Urgent--attaching new 3-speed shifter cable to old bike

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Urgent--attaching new 3-speed shifter cable to old bike

Old 03-24-08, 08:18 PM
  #1
leigh003
Junior Member
Thread Starter

Join Date: Jan 2008
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Urgent--attaching new 3-speed shifter cable to old bike

I bought an old 60's Huffy Sportsman at auction for ten bucks and took the whole thing apart to restore as a surprise for my husband for his birthday. He wants a bike, I have a vintage 3-speed he really likes, blah blah blah great idea.

EXCEPT, I am a *total* newbie at bike repair, much less rebuilding, and I have the whole thing repainted, cleaned up, oiled up, and miraculously put back together, except I cannot for the life of me figure out the new shifter cable. I've gotten it secured to the shifter and the hub, but how do I attach it to the frame so that the tension is all correct? The old cable didn't have any housing and ran through a pulley-type clip, which I have (but the new fully housed cable doesn't fit in), and also a clip (fulcrum?) with a sort of triangular shape to one side of it. That's it.

It's a Sturmey-Archer 3-speed hub, and a new Sturmey-Archer shifter cable.

I'm having a feeling at this point that the morning birthday bike ride isn't going to happen, but if someone could magically help me out on this, I would be forever grateful. (And even help on a later day would be great.)
leigh003 is offline
Old 03-24-08, 08:26 PM
  #2
roseskunk
Senior Member

roseskunk's Avatar

Join Date: Apr 2007
Posts: 631
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
sorry i can't help you on this, but i'm sure neal will be along any minute now...he's da man.
roseskunk is offline
Old 03-24-08, 10:01 PM
  #3
jjvw
MFA

jjvw's Avatar

Join Date: Apr 2006
Location: Denver
Posts: 1,186

Bikes: 1973 Italvega Nouvo Record; 1965 Hercules; 1982-83 Schwinn Mystery MTB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Dig around in here a little.
http://sheldonbrown.com/sturmey-archer.html#adjustment

But I'll try to answer the question as best I can. The cable and housing run from the shifter to the top tube. There should be a clip the holds the end of the cable housing in place on the frame's top horizontal tube. From there the bare cable continues on around the pulley to the small chain that goes into the hub. That cable housing retainer clip on the top tube is what establishes the cable tension.

It sounds like you need to remove the housing from the cable as it travels from the clip to the hub.

Neal, tell me if I'm right!

Last edited by jjvw; 03-24-08 at 10:10 PM.
jjvw is offline
Old 03-24-08, 10:27 PM
  #4
g-funk
Senior Member

g-funk's Avatar

Join Date: Aug 2007
Location: Annadel
Posts: 565
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It sounds like the cable housing only goes from the shifter to the top tube. there is a band with a round slotted insert that is flattened on one side to allow it to fit against the frame. The cable housing ends in that insert and only bare cable runs from there. SEE picture. is there a band with a little plastic wheel on it? if there isn't the full length of the cable runs to a cable stop on the chainstay, similar to externally geared bikes but the stop would be closer to the bottom bracket than the rear drop out. good luck Happy Birthday!!

g-funk is offline
Old 03-24-08, 10:33 PM
  #5
jjvw
MFA

jjvw's Avatar

Join Date: Apr 2006
Location: Denver
Posts: 1,186

Bikes: 1973 Italvega Nouvo Record; 1965 Hercules; 1982-83 Schwinn Mystery MTB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

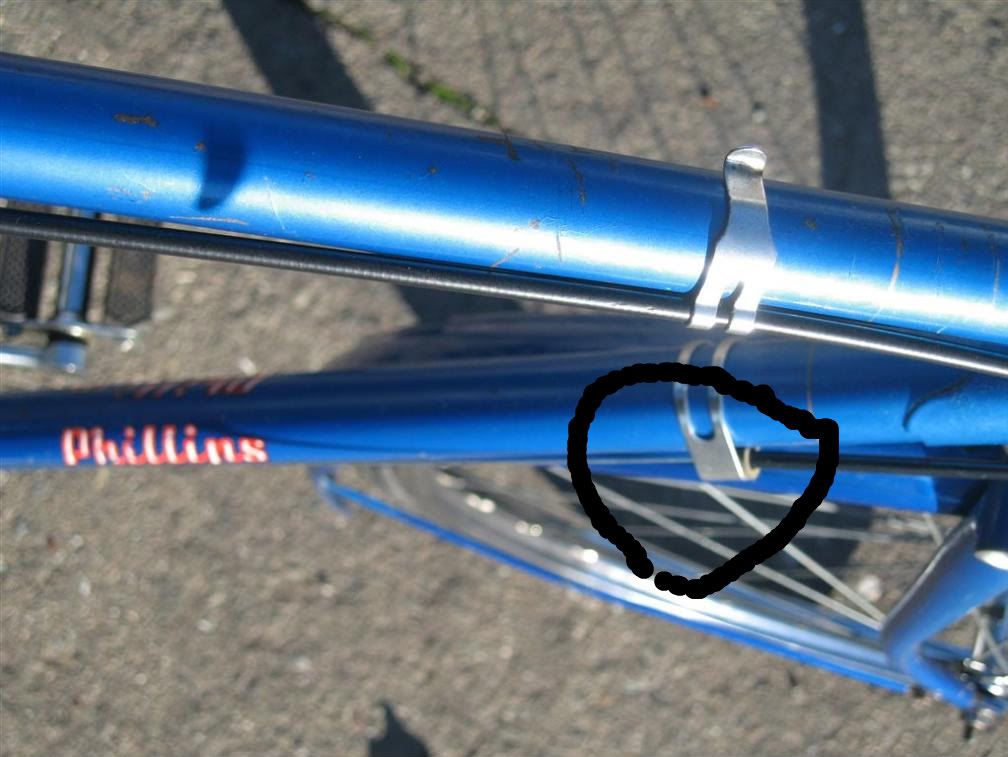

Here's a drawing of the clip and the slotted insert.
