Steel Stumpjumper Touring Rig... Thoughts?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Steel Stumpjumper Touring Rig... Thoughts?

Old 05-02-09, 05:09 PM
  #1
bigwoo
Senior Member
Thread Starter

bigwoo's Avatar

Join Date: Jun 2006
Location: Denver, CO
Posts: 1,378

Bikes: March [B]'71 Schwinn Sports Tourer [/B] [B]

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Steel Stumpjumper Touring Rig... Thoughts?

If you can give me a good reason not to try this, I am all ears....

I have been looking to build a BAD *SS rig that would rival the Riv Atlantis, Vanilla, vintage Miyata's and Surly Long Haul Truckers for quite some time and can't help thinking that a handmade Stumpy from Japan is about as high as one can get in the quality Dept...Even compared to these fine machines I just mentioned...

FULL Dbl Butted CrMo Tange Prestige, Full Deore, Canti's, silky smooth and laser fast, etc....

For advanced/technical trail riding I always tell people to size down/tight for their MTB choice, but I think that for an MTB touring rig it is important to size up, which is why I purchased this bike knowing darn-well that it's too big for me on the trail...20.5 with a whopping 23.75" top tube! I suspect that a common mistake some guys make is to build an MTB tourer that's too small in the frame geometry...

Thoughts on having a go at this for a touring rig?

https://

https://

https://

https://

https://

Last edited by bigwoo; 05-02-09 at 05:41 PM.
bigwoo is offline
Old 05-02-09, 05:13 PM
  #2
rugerben
Senior Member

rugerben's Avatar

Join Date: Sep 2007
Posts: 1,509
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Awesome idea.

Going to get trekking bars for it, drops, or leave with flat bars?
rugerben is offline
Old 05-02-09, 05:23 PM
  #3
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,338
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 758 Post(s)
Liked 327 Times in 269 Posts
+1, great idea. In fact, such a great idea I'm working on a similar project right now with a Miyata Ridgerunner. Only diff is the Miyata has lugs and Triple-splined tubing (so it goes to eleven!) and has rack bosses on the fork blades...bad news for me is it's an early model with under-chainstay roller brake...not an idea that proved out for Mtn. biking, but maybe won't be a deal-killer for a tourist or commuter.
unworthy1 is offline
Old 05-02-09, 05:36 PM
  #4
bigwoo
Senior Member
Thread Starter

bigwoo's Avatar

Join Date: Jun 2006
Location: Denver, CO
Posts: 1,378

Bikes: March [B]'71 Schwinn Sports Tourer [/B] [B]

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by rugerben View Post
Awesome idea.

Going to get trekking bars for it, drops, or leave with flat bars?
Great question! Part of the reason I'm sizing up on the frame size is because I am considering running Riv Nitto Mustache bars or Trekkers with a shorter polished stem that I've been saving for a special occasion.... I like both of those on a larger bike, but don't like Mustache's on a smaller frame because I feel like they stretch me down too much...
bigwoo is offline
Old 05-02-09, 05:38 PM
  #5
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,268
Mentioned: 343 Post(s)
Tagged: 0 Thread(s)
Quoted: 2196 Post(s)
Liked 1,777 Times in 922 Posts
I was also toying with this idea or at least trying to make a Bridgestone XO-1 clone without having to pay premium price. So I found on eBay an 80s (I think) CyclePro mtb frameset--made in Japan, level top tube, lugged fork. But for reasons probably having to do with its geometry, the handling is awful with drop bars and reasonable with a flat bar (but still a bit twitchy). That's not to say the early Stumpjumpers couldn't be good platforms for this conversion as it seems I've seen it done before.

Neal
nlerner is online now
Old 05-02-09, 05:38 PM
  #6
Straightblock
Fast Old Guy

Straightblock's Avatar

Join Date: Feb 2006
Location: Central California
Posts: 507
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 118 Times in 47 Posts
Sounds like a great idea. Here's my Stumpy commuter, posing in front of the ever-popular white garage door:

Straightblock is offline
Old 05-02-09, 05:38 PM
  #7
bigwoo
Senior Member
Thread Starter

bigwoo's Avatar

Join Date: Jun 2006
Location: Denver, CO
Posts: 1,378

Bikes: March [B]'71 Schwinn Sports Tourer [/B] [B]

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by unworthy1 View Post
+1, great idea. In fact, such a great idea I'm working on a similar project right now with a Miyata Ridgerunner. Only diff is the Miyata has lugs and Triple-splined tubing (so it goes to eleven!) and has rack bosses on the fork blades...bad news for me is it's an early model with under-chainstay roller brake...not an idea that proved out for Mtn. biking, but maybe won't be a deal-killer for a tourist or commuter.
Everybody, including me is going to want to see this Unworthy!
bigwoo is offline
Old 05-02-09, 06:47 PM
  #8
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Posts: 17,415
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
I was thinking along the same lines when I built my Bridgestone. I wanted to build a poor man's Atlantis. I need to change the bars for long distance comfort, but those are alloy Nitto/Ritchie bullmoose bars and I hate to give them up. You're right about sizing up. It fits me like a road bike with a high bottom bracket. I tried a mountain bike that was sized for off road use and it was not comfortable on the road. My only complaint is that there are no bosses or eyelets for mounting a front rack.



I've been looking at trekking bars, but I don't understand how to set them up.

Last edited by Grand Bois; 05-02-09 at 07:12 PM.
Grand Bois is offline
Old 05-02-09, 09:03 PM
  #9
rugerben
Senior Member

rugerben's Avatar

Join Date: Sep 2007
Posts: 1,509
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by Dirtdrop View Post
I've been looking at trekking bars, but I don't understand how to set them up.
My commuting bike. I actually have them on backward, but I like them better this way!

rugerben is offline
Old 05-02-09, 09:18 PM
  #10
JAG410
Senior Member

JAG410's Avatar

Join Date: Mar 2008
Location: Moorhead, MN
Posts: 1,020

Bikes: A few ;)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Here's how I had them setup on my old bike:

JAG410 is offline
Old 05-02-09, 09:20 PM
  #11
rugerben
Senior Member

rugerben's Avatar

Join Date: Sep 2007
Posts: 1,509
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Yeah, that's how they are actually supposed to look.

I tried that, and found that upside-down and backward was the most comfortable for me.
What can I say? I'm Fred to the core!!
rugerben is offline
Old 05-02-09, 09:52 PM
  #12
balindamood
Wrench Savant

balindamood's Avatar

Join Date: Mar 2006
Location: 61 Degrees North
Posts: 2,253

Bikes: Yes

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 15 Times in 7 Posts
Actually, the older Specialized MTB's (1986 and before) had all the braze-ons for touring (fenders, front racks, etc). Should work great.
__________________
"Where you come from is gone;
where you are headed weren't never there;
and where you are ain't no good unless you can get away from it."
balindamood is offline
Old 05-02-09, 09:55 PM
  #13
cs1
Senior Member

cs1's Avatar

Join Date: Feb 2004
Location: Clev Oh
Posts: 7,067

Bikes: Specialized, Schwinn

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 14 Times in 13 Posts
Nice idea and nice bike. My only problem is sizing up. I usually pick my bikes based on the TT length. On a MTB, you usually have a smaller ST than a road bike if the TT is correct, like your Stumpy.
cs1 is offline
Old 05-03-09, 06:10 PM
  #14
bigwoo
Senior Member
Thread Starter

bigwoo's Avatar

Join Date: Jun 2006
Location: Denver, CO
Posts: 1,378

Bikes: March [B]'71 Schwinn Sports Tourer [/B] [B]

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by Dirtdrop View Post
I was thinking along the same lines when I built my Bridgestone. I wanted to build a poor man's Atlantis. I need to change the bars for long distance comfort, but those are alloy Nitto/Ritchie bullmoose bars and I hate to give them up. You're right about sizing up. It fits me like a road bike with a high bottom bracket. I tried a mountain bike that was sized for off road use and it was not comfortable on the road. My only complaint is that there are no bosses or eyelets for mounting a front rack.



I've been looking at trekking bars, but I don't understand how to set them up.
Jeez Dd,
I'm conflicted... That Bridgestone looks perfect the way it is and I like those Bullmoose bars a lot, but I'll bet it would look equally good w/ some long-distance bars... Is that an MB 2!!?

RE: the lack of eyelets...Do they make a front rack that goes thru the brake hole and then clamps onto the lower fork blade?

Last edited by bigwoo; 05-03-09 at 06:13 PM.
bigwoo is offline
Old 05-03-09, 06:50 PM
  #15
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Posts: 17,415
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
I like the bullmoose bars, but I need to change hand positions once in a while if I'm going any distance. My thumbs go numb.

It's an '88 MB2.

The wheelset actually came from an Atlantis. The previous owner upgraded after only 100miles, but XT/Ultegra hubs and Sun Zero Degree rims are good enough for me. I got them $50. Butted spokes, too.

I tried a front Blackburn rack with P clips, but I didn't like that setup. It sat way too high.
Grand Bois is offline
Old 05-03-09, 07:05 PM
  #16
snappy
Senior Member

Join Date: Jun 2007
Posts: 144
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

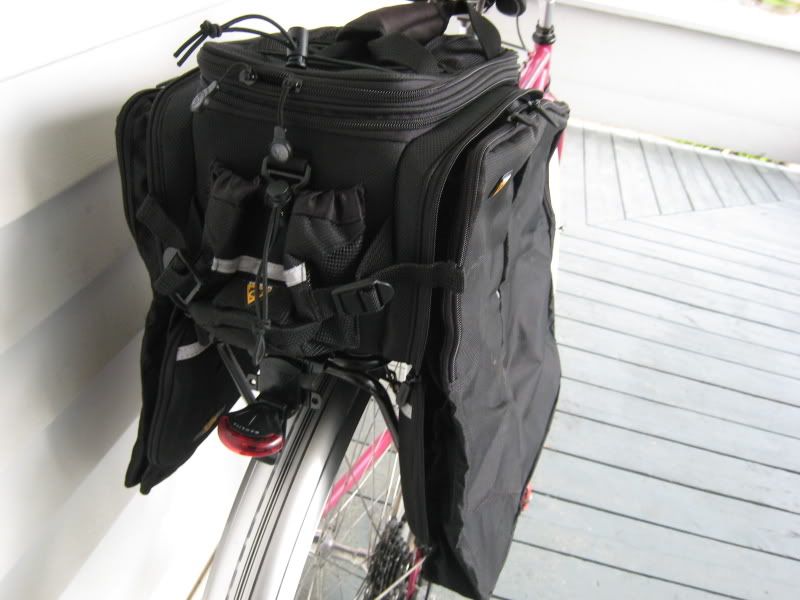

sort of how i have my rockhopper set up ...




since i took these pictures, i've added full fenders and a front rack, routed the derailleur cable housing under the bar tape, and removed the wald grocery getters. it's a really fun ride and makes a great city bike.
snappy is offline
Old 05-03-09, 09:09 PM
  #17
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Posts: 17,415
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
I need some of those folding baskets. When my wife and I ride to the farmer's market, we end up riding home with bags of fruit and vegtables hanging from our handlebars. I just wish they could make them out of aluminum instead of steel.
Grand Bois is offline
Old 05-03-09, 09:48 PM
  #18
bigwoo
Senior Member
Thread Starter

bigwoo's Avatar

Join Date: Jun 2006
Location: Denver, CO
Posts: 1,378

Bikes: March [B]'71 Schwinn Sports Tourer [/B] [B]

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
You guys are posting some beauties... Keep em' coming!

I should mention that by "Touring rig" I mean to say that Mrs Bigwoo has given me the green light to take one of the dogs in the Burley, my gear/sleeping bag and a bike to do a 3 state tour. I hope to start in CA and head up to the Pacific NW....
bigwoo is offline
Old 05-04-09, 05:32 AM
  #19
snappy
Senior Member

Join Date: Jun 2007
Posts: 144
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Dirtdrop View Post
I need some of those folding baskets. When my wife and I ride to the farmer's market, we end up riding home with bags of fruit and vegtables hanging from our handlebars. I just wish they could make them out of aluminum instead of steel.
yeah they're really heavy. that was one reason i took them off. the other is that they tended to come open on their own when i went over a nasty pothole ... and there are plenty of those around here. i need to get one of those grocery getter panniers that i can just clip on.
snappy is offline
Old 05-04-09, 06:24 AM
  #20
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,917

Bikes: Mostly English - predominantly Raleighs

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1029 Post(s)
Liked 297 Times in 208 Posts
I'm at one with the general concept, but I think it's the details that matter. I recommend a Trek 800 or 900 series. They have reasonable manners on the road, and all the braze-on's you could want for a tourer. The other main advantage is they're really easy to find.
__________________
In search of what to search for.
USAZorro is offline
Old 05-05-09, 04:17 PM
  #21
rufus
Senior Member

Join Date: Oct 2003
Posts: 564
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Not used for touring, but did this to my Stumpy to make it more versatile, my sloppy winter conditions, tooling around town, all purpose bike.

Thinking of investing in some different tires for the summer months, maybe a Schwalbe Stelvio or Marathon Racer.




Last edited by rufus; 05-05-09 at 04:32 PM.
rufus is offline
Old 05-05-09, 08:35 PM
  #22
cyclotoine
Senior Member

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Posts: 8,772
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
Vintage MTBs are ideal trekking bikes, the only issue is finding the right size. Most have really long top tubes so they are not feasible for a drop bar set-up unless you shorten the stem and put some rise on it. But they sure work great with other bar! I don't think you necessarily need to size up as it is the length of the frame that is the most critical measure and I think that is what you should be checking when you are shopping for a vintage MTB for touring purposes. Surly long haul truckers are basically vintage MTB styled frames with lower BBs and short TTs... well once you get above 54 they became 29ers but the short TTs (compared to MTBs of similar ST size) is what allows traditional touring set-ups.
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear
cyclotoine is offline
Old 05-05-09, 08:55 PM
  #23
mixtemaniac
Senior Member

mixtemaniac's Avatar

Join Date: Mar 2009
Posts: 339

Bikes: 1981 Sekai 1500 Mixte, 1974 Schwinn Le Tour Mixte, 1984 Peugeot Mixte, 1975 Gitane Grand Sport Deluxe Mixte, Motobecane Nomade II Mixte, 2001 Trek 520, 1974 Peugeot UO-18 Mixte

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
go for it! stumpy's are great frames and paired with a 26" wheel, you'd have a strong/solid touring rig. Even if you don't have all the braze-ons on your frame, you can always use p-clamps for racks and zip-ties for bottle cages!
mixtemaniac is offline
Old 05-09-09, 04:16 AM
  #24
cs1
Senior Member

cs1's Avatar

Join Date: Feb 2004
Location: Clev Oh
Posts: 7,067

Bikes: Specialized, Schwinn

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 14 Times in 13 Posts
Originally Posted by cyclotoine View Post
Vintage MTBs are ideal trekking bikes, the only issue is finding the right size. Most have really long top tubes so they are not feasible for a drop bar set-up unless you shorten the stem and put some rise on it. But they sure work great with other bar! I don't think you necessarily need to size up as it is the length of the frame that is the most critical measure and I think that is what you should be checking when you are shopping for a vintage MTB for touring purposes. Surly long haul truckers are basically vintage MTB styled frames with lower BBs and short TTs... well once you get above 54 they became 29ers but the short TTs (compared to MTBs of similar ST size) is what allows traditional touring set-ups.
I said basically the same thing in post #13

Originally Posted by cs1 View Post
Nice idea and nice bike. My only problem is sizing up. I usually pick my bikes based on the TT length. On a MTB, you usually have a smaller ST than a road bike if the TT is correct, like your Stumpy.
Have you ever tried moustache bars? I have a really Stumpjumper and Rockhopper in the garage. The Stumpy definitely has a more aggressive geometry. I can't see where it would make a good tourer. The Rockhopper, OTH, looks like it would be the ideal Trekking bike.
cs1 is offline
Old 05-09-09, 05:22 AM
  #25
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 22,599

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 906 Post(s)
Liked 318 Times in 239 Posts
+1 On the Trek 900 series. Here is my 1992 Trek 950, in light touring configuration. This time, it is set up for rough trails. The bike has Dirt Research brand trekking bars. If I was to do it again, I would use Nashbar trekking bars. But the DR bars allowed me to place the brake levers in the same position (or almost) as the original flat bars.



Last edited by wrk101; 05-09-09 at 05:23 AM. Reason: comment
wrk101 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
