help identify this Raleigh crankset?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

help identify this Raleigh crankset?

Old 06-15-09, 03:22 PM
  #1
nbru
Junior Member
Thread Starter

Join Date: Mar 2009
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
help identify this Raleigh crankset?

Hello,

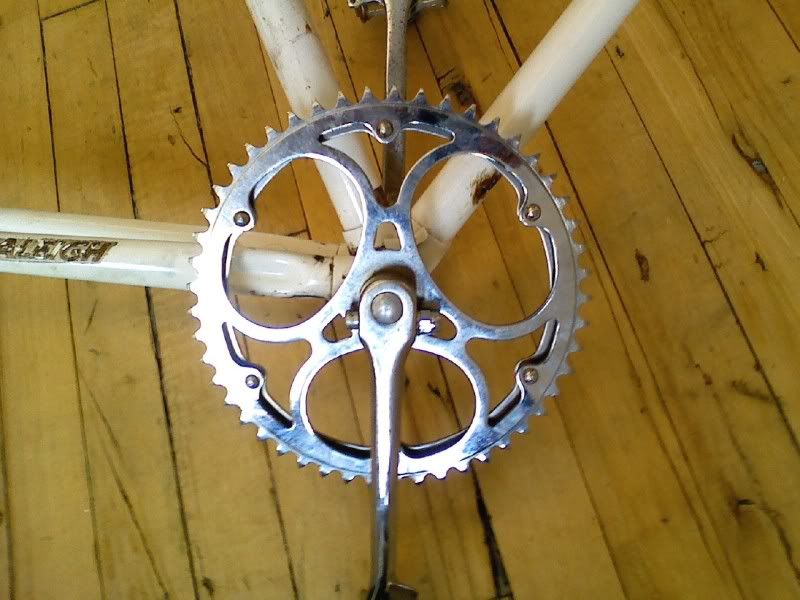

Just picked this up used for a budget rebuild of a Raleigh Record and was wondering if anyone could help figure out what it might have come from ...



the crank has a small Raleigh logo ...

cheers
nbru is offline
Old 06-15-09, 03:30 PM
  #2
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 38,787

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 467 Post(s)
Tagged: 0 Thread(s)
Quoted: 6309 Post(s)
Liked 843 Times in 553 Posts
It's a Raleigh. I bet they made it in their bicycle factory.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

When man invented the bicycle he reached the peak of his attainments. Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 06-15-09, 06:03 PM
  #3
nbru
Junior Member
Thread Starter

Join Date: Mar 2009
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
thanks.

I was just curious if it came from a specific model or year ...
nbru is offline
Old 06-15-09, 07:28 PM
  #4
jacksbike
Senior Member

Join Date: Jul 2005
Location: New Haven, CT area
Posts: 1,394

Bikes: Trek 7.5 Hybrid, Trek 1.1 Road, Holdsworth touring,Raleigh International,Ritchey Commando,Italvega Speciallissimo,et.al.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I believe that what you are looking at is a Raleigh Record from around 1969. I remember that the chainwheels were almost identical in size (40 and 48 T ?). Could be off by a few years, earlier.
jacksbike is offline
Old 06-15-09, 08:14 PM
  #5
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 38,787

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 467 Post(s)
Tagged: 0 Thread(s)
Quoted: 6309 Post(s)
Liked 843 Times in 553 Posts
jacksbike, that's plausible, because the look of the crank predates my "day" which is from the early or mid 70's through the early 80's. But the weird thing is the Raleigh font on the frame looks like mid 70's. Did they use that font back in 1969?
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

When man invented the bicycle he reached the peak of his attainments. Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 06-15-09, 08:58 PM
  #6
jacksbike
Senior Member

Join Date: Jul 2005
Location: New Haven, CT area
Posts: 1,394

Bikes: Trek 7.5 Hybrid, Trek 1.1 Road, Holdsworth touring,Raleigh International,Ritchey Commando,Italvega Speciallissimo,et.al.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
That is a very good point. I think that they used that font later on in the 70's. On the flip side, I cannot imagine anyone in their right mind removing such an old cottered crankset and putting it on a newer frame. However, stranger things have occurred.
jacksbike is offline
Old 06-15-09, 09:03 PM
  #7
-holiday76
No one cares

-holiday76's Avatar

Join Date: Jan 2008
Location: Yardley, Pa
Posts: 6,135
Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 217 Post(s)
Liked 39 Times in 28 Posts
The OP said he added it to the Record frame. It didnt come on it. At least that's how I read it.

It looks like it came off of some 3 speed setup from Raleigh.
__________________
I prefer emails to private messages - holiday76@gmail.com
Jack Taylor Super Tourer Tandem (FOR SALE), Jack Taylor Tour of Britain, Px-10, Carlton Flyer, Fuji The Finest, Salsa Fargo, Santa Cruz Tallboy, Carver All-Road .


-holiday76 is offline
Old 06-15-09, 10:37 PM
  #8
USAZorro
Seor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,596

Bikes: Mostly English - predominantly Raleighs

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 852 Post(s)
Liked 134 Times in 96 Posts
I think that's from a 50's or early 60's bike - either from a 3 speed or a 5 speed would be my guess.
__________________
In search of what to search for.
USAZorro is offline
Old 06-15-09, 10:58 PM
  #9
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 38,787

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 467 Post(s)
Tagged: 0 Thread(s)
Quoted: 6309 Post(s)
Liked 843 Times in 553 Posts
No, it's a double chainring crank, so it's not from a three speed or five speed.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

When man invented the bicycle he reached the peak of his attainments. Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 06-15-09, 11:29 PM
  #10
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 24,821

Bikes: http://www.theheadbadge.com

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 604 Times in 402 Posts
Those cranksets were used on the early '60s lightweight Raleigh models such as the Blue Streak, 10-speed Super Course, Gran Sport, and Sprite (10-speed variant).

In addition, I believe they were fitted to the 10-speed Raleigh Choppers as well. Not sure if the crankarm length on the Chopper variants were shorter or not, but I do know that the VLW models with these arms are often cannibalized to satisfy the occasional Raleigh Chopper fan.

-Kurt
__________________


cudak888 is offline
Old 06-16-09, 10:04 AM
  #11
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,012

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 18 Times in 13 Posts
Originally Posted by jacksbike View Post
I believe that what you are looking at is a Raleigh Record from around 1969. I remember that the chainwheels were almost identical in size (40 and 48 T ?). Could be off by a few years, earlier.
The chain rings are for half-step gearing, 50-47 with a two-step freewheel (14-16-18-20-22). I distinctly remember that gearing on an old school buddy's early or mid '60s Raleigh that was built very much like a bike-boom Grand Prix.
oldbobcat is offline
Old 06-16-09, 10:22 AM
  #12
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,338

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 480 Post(s)
Tagged: 0 Thread(s)
Quoted: 1667 Post(s)
Liked 127 Times in 96 Posts
Nice crank, anyway!
rhm is offline
Old 06-16-09, 11:06 AM
  #13
nlerner
Senior Member

Join Date: Dec 2005
Posts: 12,817
Mentioned: 283 Post(s)
Tagged: 0 Thread(s)
Quoted: 1433 Post(s)
Liked 455 Times in 273 Posts
Here's the crankset that was on my '61 Raleigh Lenton Grand Prix. Chainrings were 49/46. I read somewhere that these were made by Williams, but I can't verify.



Neal
nlerner is offline
Old 06-16-09, 11:37 AM
  #14
USAZorro
Seor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,596

Bikes: Mostly English - predominantly Raleighs

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 852 Post(s)
Liked 134 Times in 96 Posts
Originally Posted by noglider View Post
No, it's a double chainring crank, so it's not from a three speed or five speed.
Yeah - didn't see the second ring hiding back there.
__________________
In search of what to search for.
USAZorro is offline
Old 06-16-09, 02:58 PM
  #15
nbru
Junior Member
Thread Starter

Join Date: Mar 2009
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
hey thanks very much guys, my curiosity is satisfied.
The gearing on mine is also 49/46.

Just to clarify, When I acquired the frame it was missing all original chain rings. So I visited a LBS where I like to sift through old used parts and came across this, and thought it might be a nice replacement for a super cheap rebuild. I know it's just a Record, and maybe pointless to put any work into it, but I figured hey what the hell ...

Last edited by nbru; 06-16-09 at 03:01 PM.
nbru is offline
Old 06-16-09, 02:59 PM
  #16
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 38,787

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 467 Post(s)
Tagged: 0 Thread(s)
Quoted: 6309 Post(s)
Liked 843 Times in 553 Posts
Not pointless if you're having fun.

I'm having a heck of a fun time restoring bikes lately. Now my daughter is joining me. It's great to work together. She's 17.
