Trying to convert 27" to 700C w/ Cantilever brakes...

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Trying to convert 27" to 700C w/ Cantilever brakes...

Old 06-27-09, 10:18 PM
  #1
bigwoo
Senior Member
Thread Starter

bigwoo's Avatar

Join Date: Jun 2006
Location: Denver, CO
Posts: 1,378

Bikes: March [B]'71 Schwinn Sports Tourer [/B] [B]

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Trying to convert 27" to 700C w/ Cantilever brakes...

I'm trying to convert my '83 Schwinn Voyageur SP w/ 27" wheels to 700C.

I could have sworn that we had several threads w/ advice on how to do this when the frame has Cantilever brakes, but nothing is showing up in the search function...

Can anyone help me?
bigwoo is offline
Old 06-27-09, 10:53 PM
  #2
bikemeister
Senior Member

Join Date: Jan 2006
Location: Tucson, AZ
Posts: 801
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
I did this on an old Peugeot I picked up. I had the 700 wheelset, and the bike needed wheels. So I made it work. Getting the brake pads to interface properly is usually a problem.

If you stay thinner than 700cx32, you should be able to fit to a frame originally designed for 27x 1 1/4. But it depends - changing wheelset size is always a trial and error thing. You have frame clearance issues, the aforementioned brake pads hitting the rim (and not the tire sidewall), and the slightly higher center of gravity (by switching to 700c) might alter the way the bike rides and corners.
Plus you are usually faced with hub spacing not being the same. 27" are usually the older (narrower) spacing than the newer 700c. So, it's a pain in the booty. Easier to stay with the wheels the bike was made for.
bikemeister is offline
Old 06-27-09, 11:13 PM
  #3
robatsu
Senior Member

Join Date: Mar 2008
Location: Kansai
Posts: 1,686
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Wouldn't going from 27" to 700c put the center of gravity lower?
robatsu is offline
Old 06-27-09, 11:16 PM
  #4
bikemeister
Senior Member

Join Date: Jan 2006
Location: Tucson, AZ
Posts: 801
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
Originally Posted by robatsu View Post
Wouldn't going from 27" to 700c put the center of gravity lower?
I always thought 700c was bigger. At least the wheels I put on that Peugeot BARELY cleared the fork bridge. I figured that's why the tubes were labeled for "28 inch" tires. Thought it was strange, but maybe I'm screwed up. Guess I better jump over to Sheldons site and get straight!

Last edited by bikemeister; 06-27-09 at 11:23 PM. Reason: new material
bikemeister is offline
Old 06-27-09, 11:20 PM
  #5
bigwoo
Senior Member
Thread Starter

bigwoo's Avatar

Join Date: Jun 2006
Location: Denver, CO
Posts: 1,378

Bikes: March [B]'71 Schwinn Sports Tourer [/B] [B]

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Thanks Bikemeister,
Good insight....The issue for me is getting the Canti brakes to hit the rim perfectly...... The Voyageur SP were/are a fantastic full-blown touring machine so there's no significant issues w/ clearance or handling.....
I'm switching from the (respectable) alloy 5spd freewheel 27's that Schwinn spec'd them with to a very fine set of vintage Mavic Module 3CD touring 700C's w/ a 6 speed so I should be OK there too....

Robatsu is correct: Switching to 700 will lower the BB/center of gravity, which is a good thing Man!

I thought I heard a few members say there was a hardware kit to make the Canti's hit the rim perfectly w/ most types of pads....?
bigwoo is offline
Old 06-28-09, 12:43 AM
  #6
stronglight
Old Skeptic

stronglight's Avatar

Join Date: Jan 2006
Location: New Mexico, USA
Posts: 1,044

Bikes: 19 road bikes & 1 Track bike

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
If you have Dia-Compe 981 cantilevers it is easy.

I have them on my 86 Voyageur. This model (possibly others too) featured a brilliantly conceived hidden adjustment slot for moving the arms up or down a few mm. to make them equally suitable for either size wheel. I think these cantis were available from the early 80s. See the photos here showing details of a disassembled brake to better understand what I mean: https://www.flickr.com/photos/strongl...7606108523956/
stronglight is offline
Likes For stronglight:
Old 06-28-09, 03:09 AM
  #7
cs1
Senior Member

cs1's Avatar

Join Date: Feb 2004
Location: Clev Oh
Posts: 7,067

Bikes: Specialized, Schwinn

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 14 Times in 13 Posts
Originally Posted by stronglight View Post
If you have Dia-Compe 981 cantilevers it is easy.

I have them on my 86 Voyageur. This model (possibly others too) featured a brilliantly conceived hidden adjustment slot for moving the arms up or down a few mm. to make them equally suitable for either size wheel. I think these cantis were available from the early 80s. See the photos here showing details of a disassembled brake to better understand what I mean: https://www.flickr.com/photos/strongl...7606108523956/
Nice link, most cantis don't have that much adjustment. It's nice to know there's something else out there.
cs1 is offline
Old 06-28-09, 06:11 AM
  #8
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,234
Mentioned: 339 Post(s)
Tagged: 0 Thread(s)
Quoted: 2180 Post(s)
Liked 1,747 Times in 906 Posts
I've also done that conversion but had to find cantis that had enough adjustment range (essentially they have a long slot for the brake pad, just as a sidepull with lots of range would). A set of Shimano BR-MC70 cantis worked for me.

Neal
nlerner is online now
Old 06-28-09, 03:39 PM
  #9
garage sale GT
Banned

Join Date: May 2009
Posts: 2,078
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
I thought of a trick for post mounted cantis but HAVE NOT TRIED IT. Just so you know we're talking about an untested scheme.

The strategy is to lower the brake pads by splaying the cantilever arms further apart, which will move the pads outward and downward.

Loosen the brake cable tension, then readjust the pads closer to the rim to take up the slack.
garage sale GT is offline
Old 06-28-09, 06:12 PM
  #10
bikemeister
Senior Member

Join Date: Jan 2006
Location: Tucson, AZ
Posts: 801
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
Then again, you could just go "fixie" and forget about the brakes!
bikemeister is offline
Old 06-28-09, 06:24 PM
  #11
HSean
Senior Member

Join Date: Apr 2008
Location: Ottawa
Posts: 1,143

Bikes: Many. Ralieigh sports`s, Raleigh Superbe, sears Spaceliner, Firestone supercruisers, many vintage mountain bikes, random cruisers, and other unique bikes.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 2 Times in 1 Post
I agree with the Dia comp suggestion, my single speed had 27" wheels but I used them dia comp and now they fit my 700c wheels nicely
HSean is offline
Old 06-28-09, 08:19 PM
  #12
bigwoo
Senior Member
Thread Starter

bigwoo's Avatar

Join Date: Jun 2006
Location: Denver, CO
Posts: 1,378

Bikes: March [B]'71 Schwinn Sports Tourer [/B] [B]

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Thanks for all of the great input you guys...
Great news!!
Whatever model of Dia-Compe Canti's the 1983 Schwinn Voyageur SP was built with, they work perfectly on 700C as well as 27"!! https://www.trfindley.com/flschwinn_1...983Ltwt06.html

I honestly thought that I was going to run into a difficult time, but it took less than 10 minutes to get them adjusted. They have GREAT stopping power on my 700's!!

p.s. to Bikemeister,
I suppose that you are right... If I go fixie my bike will be cooler and faster!

On the off chance that anyone cares, this is my project: https://www.bikeforums.net/showthread...light=voyageur

https://

Last edited by bigwoo; 06-28-09 at 08:34 PM.
bigwoo is offline
Likes For bigwoo:
Old 06-28-09, 08:43 PM
  #13
fender1
Senior Member

fender1's Avatar

Join Date: Jan 2006
Location: Berwyn PA
Posts: 6,086

Bikes: I hate bikes!

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 291 Post(s)
Liked 137 Times in 49 Posts
Originally Posted by nlerner View Post
I've also done that conversion but had to find cantis that had enough adjustment range (essentially they have a long slot for the brake pad, just as a sidepull with lots of range would). A set of Shimano BR-MC70 cantis worked for me.

Neal
+1 On the Shimano BR-MC70's! I have converted 2 Schwinn (1985) Passage bikes using the Shimanos. They were easier to set up and had better braking power than the Dia Compe 981's (Sorry Stronglight!). In addition, there is a good chance your Voyageur has only one hole to mount the springs to. I found the Shimanos to be the best brake for this type of conversion.

Plus w/ all of those sweet old mountain bikes you get out your way, you probably already have a set lying around!
fender1 is offline
Old 06-29-09, 04:34 AM
  #14
stronglight
Old Skeptic

stronglight's Avatar

Join Date: Jan 2006
Location: New Mexico, USA
Posts: 1,044

Bikes: 19 road bikes & 1 Track bike

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by fender1 View Post
+1 On the Shimano BR-MC70's! I have converted 2 Schwinn (1985) Passage bikes using the Shimanos. They were easier to set up and had better braking power than the Dia Compe 981's (Sorry Stronglight!). In addition, there is a good chance your Voyageur has only one hole to mount the springs to. I found the Shimanos to be the best brake for this type of conversion...
I don't have a set, but I'll definitely keep an eye out for them now! I'd forgotten about those. They were great looking brakes - the MC70s were the Deore XT model of the mid-1980s, if I recall correctly. Glad to hear they work so well!

The later Shimano cantis of the 1990s may have even been more powerful or "practical" than those MC70s... but I never liked the way the "Low Profile" style looked on any bike.
stronglight is offline
Old 06-29-09, 06:23 AM
  #15
lazysod
Junior Member

Join Date: Jun 2008
Location: Norway
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by bikemeister View Post
Then again, you could just go "fixie" and forget about the brakes!
You can only forget about the rear brake. Only suicide candidates ride with no front brake in the street. Besides, it's also illegal in many countries. Track bikes are to be ridden in velodromes.
lazysod is offline
Old 06-29-09, 07:06 AM
  #16
Mr IGH
afraid of whales

Mr IGH's Avatar

Join Date: Apr 2009
Location: Front Range, CO
Posts: 4,306
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 347 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
ie center of gravity change: it's only 4mm change of radius from 700C to 27", the slight drop with 700C is a total of 0.6% change in height. Tough to notice.

This is also why most bikes can run both 27" and 700C, 4mm adjustment in the brake shoe height isn't much.
Mr IGH is offline
Old 01-26-21, 11:49 AM
  #17
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,299
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1459 Post(s)
Liked 277 Times in 203 Posts
Originally Posted by stronglight View Post
If you have Dia-Compe 981 cantilevers it is easy.

I have them on my 86 Voyageur. This model (possibly others too) featured a brilliantly conceived hidden adjustment slot for moving the arms up or down a few mm. to make them equally suitable for either size wheel. I think these cantis were available from the early 80s. See the photos here showing details of a disassembled brake to better understand what I mean: https://www.flickr.com/photos/strongl...7606108523956/
I thought I had read every post on every thread I could find on how to get these to work and somehow missed this one till now! OMG you no idea how happy I am right now. All of my 981s were set up with the arms in the top position still, which obviously is less than ideal with 700c wheels. I moved the left rear down just to see what it looks like, and I left the other side as it was. Not an easy pic to take but I think it shows the difference in the arm angle well enough. Thank you so much for your advice and pictures on Flickr!

__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Old 01-26-21, 01:36 PM
  #18
pcb
Senior Member

pcb's Avatar

Join Date: Jan 2012
Location: Joisey
Posts: 1,372
Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 326 Post(s)
Liked 482 Times in 223 Posts
The current Dia-Compe 980 cantis look to have a nice long brake shoe slot, and the wide-profile design works well with the typical vintage narrow boss-boss spacing. I might look at those next time I need to do a 27">700c, or 700c>650b canti conversion:
DC980 | DIA-COMPE

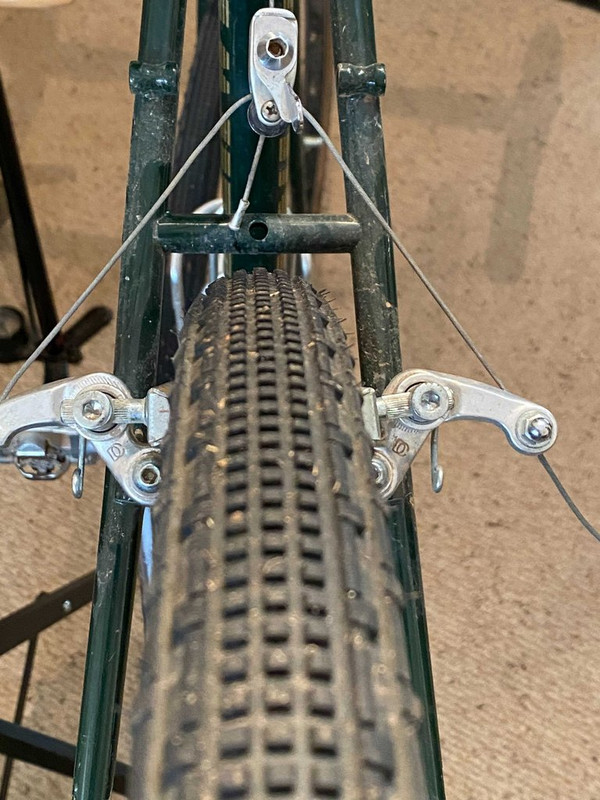

I had good luck on this Paramount with Shimano CX70 cantis. They have a decent height adjustment range, and the included spacers help with narrower boss spacing. I don't have a good front view, but in the photo you can see the shoes are at the bottom of the slot. Don't think these are still in production, but should still be out there. Shimano also had a slightly cheaper CX50 canti as well.

I've also used the Deore XT/MC70/M700 cantis on other builds, but they didn't have enough shoe height adjustment for my Paramount conversion. The rim diameter difference may only be 4mm, but actual boss position can vary, and in this case they were too high to allow the MC70 brake shoes to hit the rim squarely/safely.

As for center of gravity issues, I agree that the difference in general should be pretty subtle. What may not be subtle, though, is the increased possibility of cornering pedal strikes, depending on the bb height/drop. Remember that how far lower the bike sits isn't only a function of the rim diameter, but also the tire width/height.

This generally shouldn't be a problem as long as you're not dealing with a 75-80mm bb drop, which would be very unlikely on a vintage touring bike designed for 27" wheels. Or using 23-25mm tires on your touring bike, which is also pretty unlikely.

Just putting this out there 'cause I'm a worry-wort.

__________________
Fuggedaboutit!
pcb is offline
Old 01-26-21, 04:27 PM
  #19
Spaghetti Legs
Senior Member

Join Date: Dec 2014
Location: Central Virginia
Posts: 4,128

Bikes: Numerous

Mentioned: 97 Post(s)
Tagged: 0 Thread(s)
Quoted: 1265 Post(s)
Liked 779 Times in 355 Posts
I’m fighting that battle now as well with a Miyata 610 frame. I shopped around a little for the XT MC 70 brakes but hard to find and pricey when found. I just tied with a set of Tektro 710’s (I guess a touring version of the 720) and they didn’t work, so my Heron tourer is getting an upgrade with those. I have set of Dia Compe 988’s on the way, hoping they will work out like the 980’s. I’ll post an update when they’re installed.

By the way, browsing through the Dia Compe website, they have a lot of cool stuff for tricking out a modded C+V bike - fenders, alloy compact cranks, racks, etc.
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, 89 Cinelli Supercorsa, 83 Bianchi Specialissima, 85 Pinarello Record, Ritchey Breakaway Steel, '84 Paletti Super Prestige, Heron Randonneur
Spaghetti Legs is offline
Old 01-26-21, 04:42 PM
  #20
polymorphself
Senior Member

Join Date: Oct 2017
Location: Arizona
Posts: 1,277
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 512 Post(s)
Liked 489 Times in 242 Posts
About to do the same on my 86 Voyageur this week, seems like I should have an issue.
polymorphself is offline
Old 01-26-21, 04:53 PM
  #21
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,299
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1459 Post(s)
Liked 277 Times in 203 Posts
Originally Posted by polymorphself View Post
About to do the same on my 86 Voyageur this week, seems like I should have an issue.
Mine's an '86. Do you have the stock Dia Compe 981s?
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Old 01-26-21, 05:01 PM
  #22
southpawboston
Senior Member

southpawboston's Avatar

Join Date: Aug 2008
Location: Somerville, MA and Catskill Mtns
Posts: 4,133
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 114 Times in 56 Posts
Originally Posted by stronglight View Post
If you have Dia-Compe 981 cantilevers it is easy.

I have them on my 86 Voyageur. This model (possibly others too) featured a brilliantly conceived hidden adjustment slot for moving the arms up or down a few mm. to make them equally suitable for either size wheel. I think these cantis were available from the early 80s. See the photos here showing details of a disassembled brake to better understand what I mean: https://www.flickr.com/photos/strongl...7606108523956/
I'll back up Stronglight's suggestion on the Dia compe 981s. But also, most vertically adjustable cantis will be able to adjust to the difference in rim wall height from 27" to 700C, which is just a difference of 4mm (700c rims are 8mm smaller in diameter, so 4mm smaller radius).

I had a 1988 Voyager and I also switched from 27" to 700C. I used Shimano BR-MC70 cantis (1st gen XT) which to the best of my recollection did not have a vertical height adjustment and they still worked great. It depends in each case where the manufacturer placed the canti posts vertically relative to the rim. You'd think this would be a standard height but it varies quite a bit. If they're placed higher than usual and the canti is also at the bottom of its vertical working limit, the transition to 700C wheels may not be possible. If the cantis are lower than usual, then the transition will be easy-peasy. If they're at typical height, most cantis with a vertical adjustment will work.
southpawboston is offline
Likes For southpawboston:
Old 01-26-21, 05:07 PM
  #23
polymorphself
Senior Member

Join Date: Oct 2017
Location: Arizona
Posts: 1,277
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 512 Post(s)
Liked 489 Times in 242 Posts
Originally Posted by shoota View Post
Mine's an '86. Do you have the stock Dia Compe 981s?
Yep!
polymorphself is offline
Old 01-26-21, 05:42 PM
  #24
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,299
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1459 Post(s)
Liked 277 Times in 203 Posts
Originally Posted by polymorphself View Post
Yep!
Oh right on (not sure how I missed your profile pic. Maybe you meant you *shouldn't have an issue. Cause I don't think you will. The only other thing I noticed is that the old brake pads were clearly made for the wider brake track of 27" wheels, and they overlap the brake track on my new 700c wheels. No bueno for long term use. I'm about to order some new Kool Stop pads that should fit better.
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird

Last edited by shoota; 01-26-21 at 05:48 PM.
shoota is offline
Old 01-26-21, 05:44 PM
  #25
polymorphself
Senior Member

Join Date: Oct 2017
Location: Arizona
Posts: 1,277
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 512 Post(s)
Liked 489 Times in 242 Posts
Originally Posted by shoota View Post
Oh right on (not sure how I missed your profile pic. Maybe you meant you *shouldn't have an issue. Cause I don't think you will. The only other thing I noticed is that the old brake pads were clearly made for the wider brake track of 27" wheels, and they overlap the barke track on my new 700c wheels. No bueno for long term use. I'm about to order some new Kool Stop pads that should fit better.
Whoops, you're right I meant shouldn't! And good call I'll order some too, which did you go for?
polymorphself is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
