anyone have experience with late 80's campy athena?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

anyone have experience with late 80's campy athena?

Old 07-31-20, 12:03 PM
  #26
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,178

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1716 Post(s)
Liked 1,819 Times in 1,028 Posts
Originally Posted by botty kayer View Post
Mine have the 51 code on the right side crank arm, so assume these are from a year later, 1989?. Out of interest what number is stamped in the box on your left side crank arm? Mine has 71, why the difference?
Mine are both "41" for 1988. Yours are two different years. That's not a problem as long as the arms are the same length. Many of us do this with our bikes for various reasons, like stripped extraction/pedal threads on one side.

Velobase says these cranks use a 111 mm BB axle. SurferRosa have you fitted these to a bike yet? And if yes what BB did you need?
Yes, I'm looking for an english bb with 111mm asymmetrical ISO (not JIS/Shimano) square taper axle. I'm no expert on that stuff, so I'm not sure what I can use in lieu of that. I'd think a symmetrical axle needs to be a few mm longer. Strangely, the axle that it was using was a Shimano 116 symmetrical, and I assume it worked just fine. That length in JIS with this crank doesn't make sense to me. I need to revisit Sheldon's webpage on mixing and matching taper standards.

Good luck.

.

Last edited by SurferRosa; 07-31-20 at 12:17 PM.
SurferRosa is offline
Likes For SurferRosa:
Old 07-31-20, 01:30 PM
  #27
botty kayer
Senior Member

Join Date: Jun 2018
Posts: 222
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 429 Times in 140 Posts
Thanks folks. SurferRosa yes thankfully the crank arms are the same length. I'm not bothered if they are from a few years apart as they are both in great condition.

So if 71 is from a later year, and assuming if 41 is 1988, 51 is 1989, I guess 71 makes my left crank arm a 1991 which according to Velobase is the last year for that version, and the next generation of Chorus was released in 1992.

And I got confirmation today that the frame my cranks are going on, arrives tomorrow, 9 long and anxious weeks after being posted. There will be much shiny-ness, build pics will be coming soon.
botty kayer is offline
Likes For botty kayer:
Old 07-31-20, 07:25 PM
  #28
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,403
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 628 Post(s)
Liked 722 Times in 396 Posts
Originally Posted by Bianchigirll View Post
IMHO the Chorus group and Sheriff Star hubs were the most beautiful parts ever made by Campi
*cough* C-Record cranks *cough*
P!N20 is offline
Likes For P!N20:
Old 08-01-20, 09:52 PM
  #29
tNuvolari
Senior Member

Join Date: Apr 2020
Location: Los Angeles
Posts: 133

Bikes: 1986 Torpado Beta, 2006 Wilier Triestina Izoard

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Likes: 0
Liked 14 Times in 12 Posts

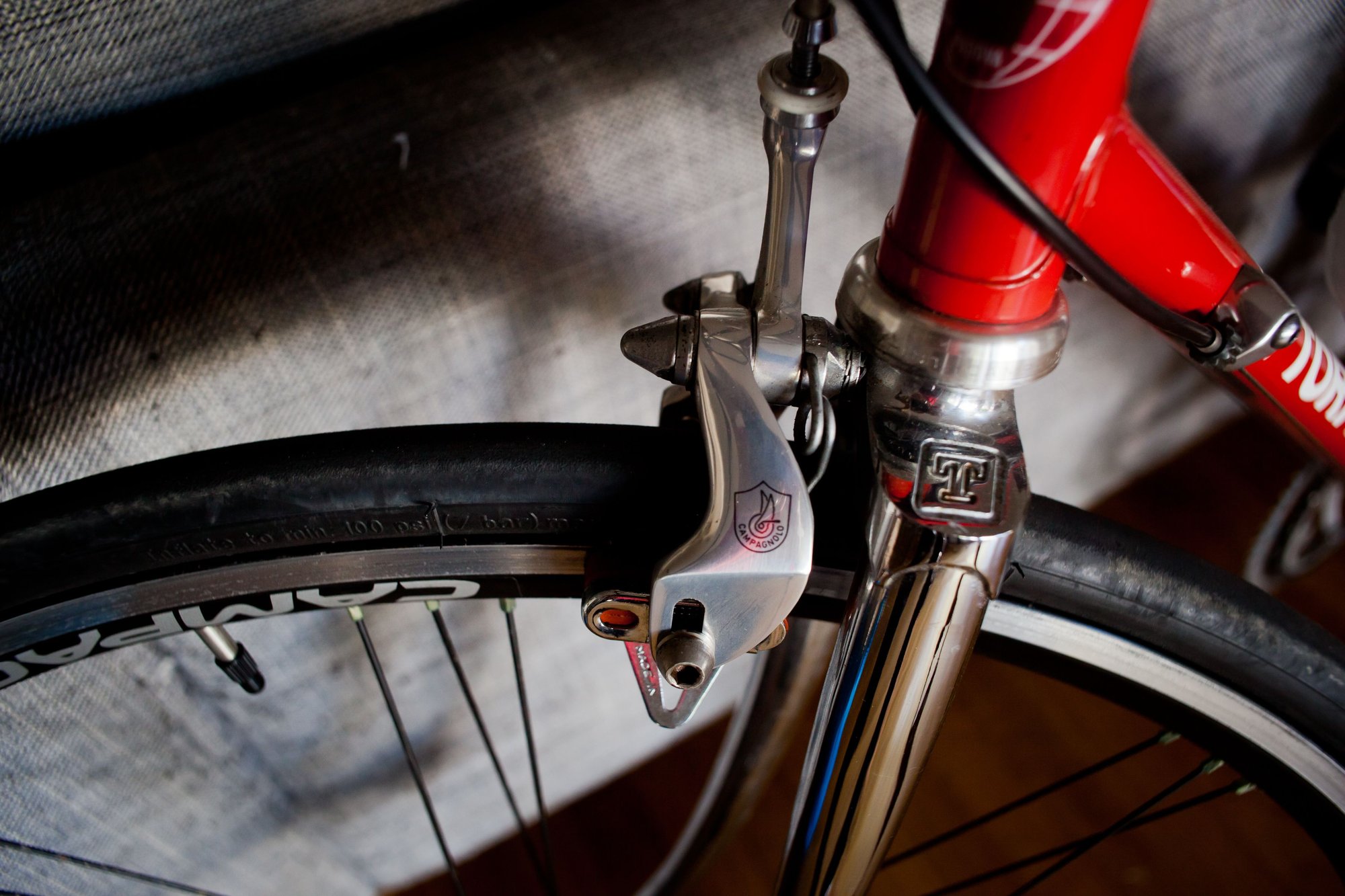

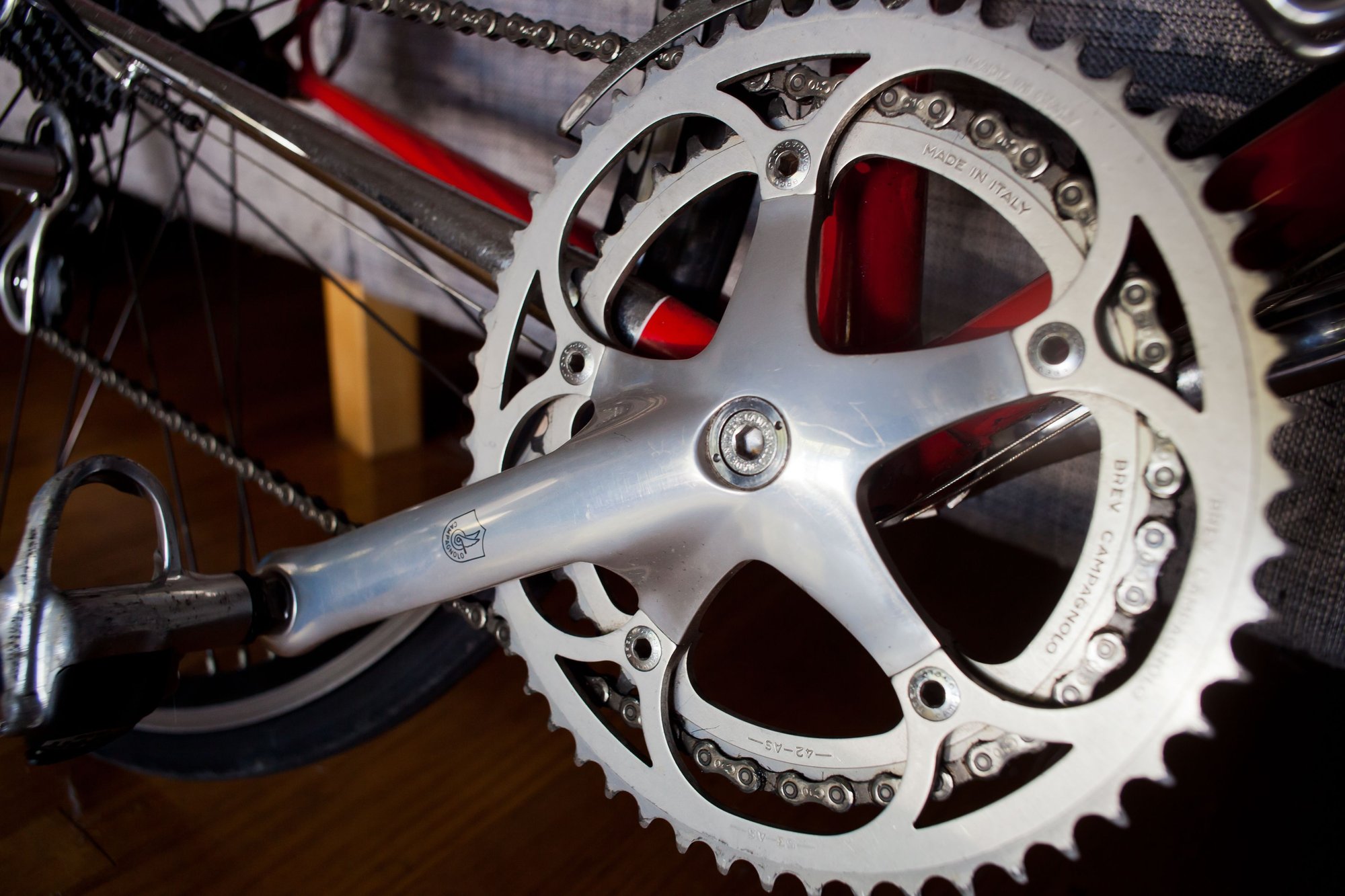

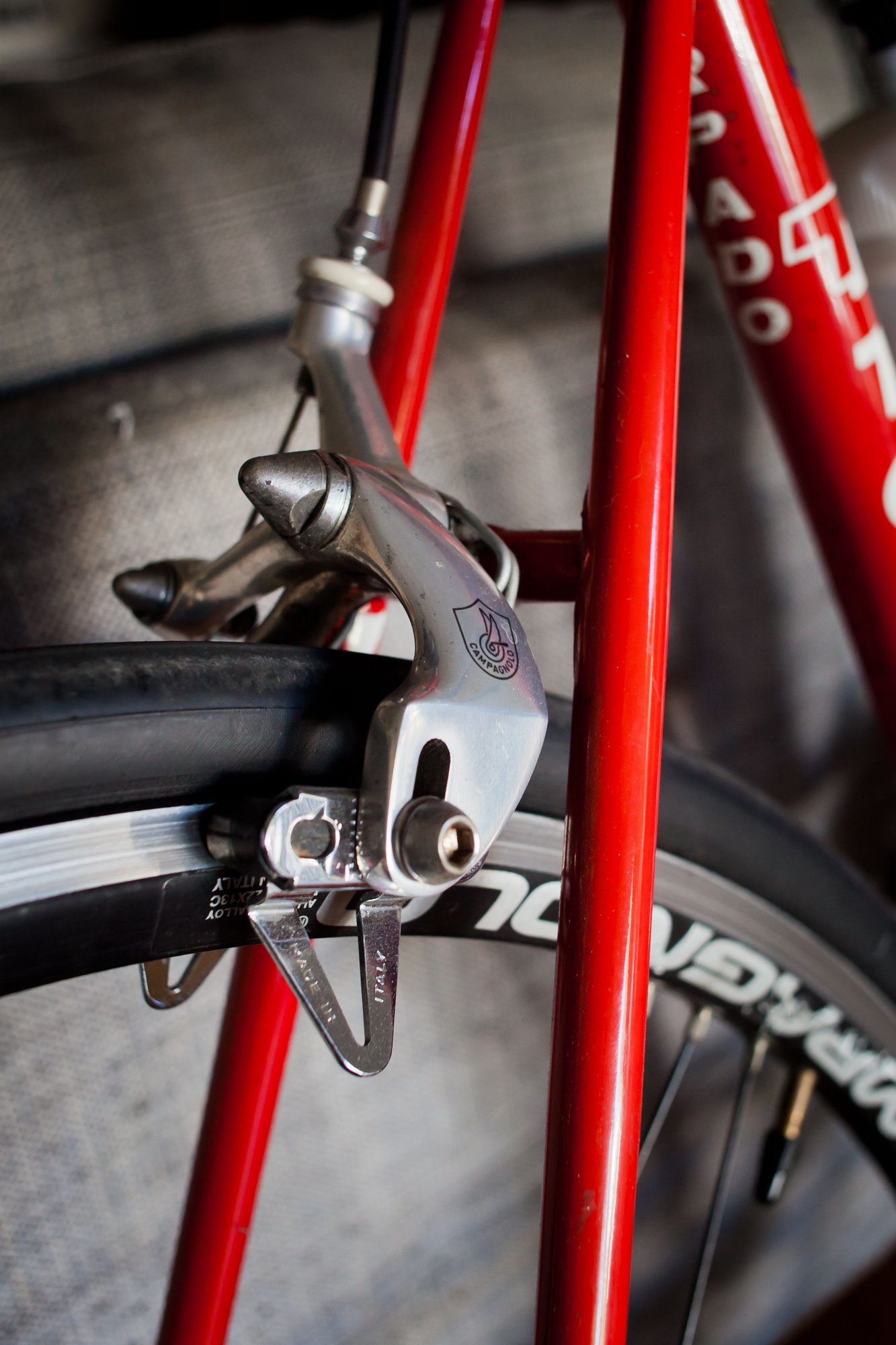

I bought a bunch of Campy items in the early 90's, crankset, brakes, hubs and rear wheel and a seat post. All of it is either Athena or Chorus but it was a strange time then because IIRC, Campy would take the Chorus line and the next year the exact Chorus would become Athena. They then called the items "New Chorus" or "Chorus" (old version) and similar for Athena. I can't remember if the New Chorus was the year earlier's Record or not. I don't think it was as there was a more noticeable step-down between the two.
So when asking if Athena or Chorus is better, it may be that they are actually the same depending on the year. Not sure how many years they did this but it got confusing, much the same way that everything Campy does!

I honestly don't know if my crank is Chorus or Athena or New or Old but it is beautiful. Same with the brakes, absolute sculpture although the finish does get slight blemishes in the anodization over the years. See my thread about polishing Campy parts for pics.
Everything works well despite the age although I'm in the process of upgrading to a dual pivot front brake (I want stronger braking from the hoods) and I also need 10 speed chainrings for the narrow 10 chain I'm running now (the 10 speed chain will sometimes spin freely between the rings when shifting down to the small chainring.)










​​​​​​​
tNuvolari is offline
Likes For tNuvolari:
Old 08-01-20, 10:20 PM
  #30
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,178

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1716 Post(s)
Liked 1,819 Times in 1,028 Posts


So, @tNuvolari, what exactly are your replacement pads for those beautiful D500 calipers with the rounded holders?
SurferRosa is offline
Old 08-01-20, 10:22 PM
  #31
tNuvolari
Senior Member

Join Date: Apr 2020
Location: Los Angeles
Posts: 133

Bikes: 1986 Torpado Beta, 2006 Wilier Triestina Izoard

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Likes: 0
Liked 14 Times in 12 Posts
Originally Posted by SurferRosa View Post


So, @tNuvolari, what exactly are your replacement pads for those beautiful D500 calipers with the rounded holders?
Salmon Kool Stops

Ha, I was just watching Pixies live. They are playing live tomorrow at noon online on the NPR site. I assume your screen name is a pixies reference?
tNuvolari is offline
Likes For tNuvolari:
Old 08-01-20, 10:35 PM
  #32
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,178

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1716 Post(s)
Liked 1,819 Times in 1,028 Posts
Originally Posted by tNuvolari View Post
Salmon Kool Stops
I see they have a Chorus model. Is this the one?

Kool Stop International - High Performance Bicycle Brake Pads Since 1977
​​​​​​
I was just watching Pixies live.
​​​​​​Joey uses a lot chorus pedal, I bet.

See? It all comes around.
SurferRosa is offline
Old 08-01-20, 10:49 PM
  #33
tNuvolari
Senior Member

Join Date: Apr 2020
Location: Los Angeles
Posts: 133

Bikes: 1986 Torpado Beta, 2006 Wilier Triestina Izoard

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Likes: 0
Liked 14 Times in 12 Posts
Originally Posted by SurferRosa View Post
I see they have a Chorus model. Is this the one?

Kool Stop International - High Performance Bicycle Brake Pads Since 1977
​​​​​​Yup, that's them. They did improve things over the original (as in original from 1992!) pads but I want more!

​​​​
​​​Joey uses a lot chorus pedal, I bet.

See? It all comes around.
Ha, I've been having thoughts of a cycling cleated pedal attached to a bass drum pedal lately for drumming. Not sure if that would be a good thing or not though.... (Obviously I'm not the best drummer....)
tNuvolari is offline
Likes For tNuvolari:
Old 08-01-20, 11:52 PM
  #34
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,403
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 628 Post(s)
Liked 722 Times in 396 Posts
Originally Posted by tNuvolari View Post
I honestly don't know if my crank is Chorus or Athena
It's either Chorus or Croce d'Aune because of the self extracting crank bolts.

Croce d'Aune cranks basically became Chorus cranks in the early 90's. Yours are interesting that there is a lip on the arm side of the crank bolt hole. I've seen that on (early?) C-Rec cranks, but never on Chorus/CdA cranks. If you can be bothered checking the date codes pre '92 means they are CdA, post '92 Chorus.
P!N20 is offline
Old 08-05-20, 06:39 PM
  #35
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,178

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1716 Post(s)
Liked 1,819 Times in 1,028 Posts
@P!N20, have you successfully mated a new cartridge bb with a 1st gen Chorus/Athena double?

I want to buy the $36 Token (Tawainese?) ISO 111mm model, but I've read so many conflicting accounts on required spindle length.

Folks used to buy the Veloce bb for these cranks, I think. And I assume people buy the Centaur bb these days. The Centaur comes in 111 and 115.5mm, which adds confusion.

​​​​​​​At some point, I want to start the end-all thread on this matter (dagnabit!) and also discuss pre-ISO Campy.
SurferRosa is offline
Old 08-05-20, 07:18 PM
  #36
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,403
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 628 Post(s)
Liked 722 Times in 396 Posts
Originally Posted by SurferRosa View Post
@P!N20, have you successfully mated a new cartridge bb with a 1st gen Chorus/Athena double?
I mounted my 1st gen Chorus cranks with a Campagnolo Veloce 111mm spindle ISO square taper bottom bracket.
P!N20 is offline
Likes For P!N20:
Old 08-06-20, 07:35 AM
  #37
AJI125
Senior Member

AJI125's Avatar

Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 291

Bikes: 1982 Trek 613 | 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2002 LeMond Zurich Women's (SO's)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 97 Post(s)
Liked 105 Times in 69 Posts
Sorry if I didn’t follow everything above, but you mentioned Athena. If you’re using a 1st gen Athena crank, BB spindle should be 116mm (or the 115.5 is close enough obviously).

Edit: I have a cartridge one (for my 1988 Athena crank) I picked up off eBay last year, cartridge style, Italian threads. Got the right chain line by my rudimentary measurements, around 43-44mm. Can’t remember if it was Veloce or something else.

Basis: 1988 Athena BB D0H0 was 116mm, goes with Athena crank D040

Campagnolo - Dealer Parts Catalog

Last edited by AJI125; 08-06-20 at 07:40 AM.
AJI125 is offline
Old 08-06-20, 09:05 AM
  #38
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,178

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1716 Post(s)
Liked 1,819 Times in 1,028 Posts
This is what I mean by "conflicting accounts." Velobase says 111 for first gen Athena.

I read P!N20's reply above and immediately bought the Token 111 for my Chorus (Athena looking) crank. We'll see what happens...
SurferRosa is offline
Old 08-06-20, 09:10 AM
  #39
AJI125
Senior Member

AJI125's Avatar

Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 291

Bikes: 1982 Trek 613 | 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2002 LeMond Zurich Women's (SO's)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 97 Post(s)
Liked 105 Times in 69 Posts
Originally Posted by SurferRosa View Post
This is what I mean by "conflicting accounts." Velobase says 111 for first gen Athena.

I read P!N20's reply above and immediately bought the Token 111 for my Chorus (Athena looking) crank. We'll see what happens...
Yeah, I had that problem when shopping for my Athena as well. Ended up finding that parts list thankfully.

Edit: looking through the docs I have, Athena group had the D0H0 BB (noted as 116 in 1988 but don’t have details for other years if it happened to change) through 1990, 1991 unknown, and 1992-1999 takes a BB-01AT(IT) or BB-03AT(EN) with 111mm (later years add CART to model for I guess sealed bearing).

Last edited by AJI125; 08-06-20 at 09:30 AM.
AJI125 is offline
Old 08-06-20, 05:26 PM
  #40
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,403
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 628 Post(s)
Liked 722 Times in 396 Posts
Originally Posted by SurferRosa View Post
We'll see what happens...
Well if it puts your mind at ease, here is the 1988 Campagnolo Spare Parts Catalog showing the Chorus BB with 111mm spindle: Campagnolo - Dealer Parts Catalog scan 33
P!N20 is offline
Likes For P!N20:
Old 08-10-20, 12:13 PM
  #41
botty kayer
Senior Member

Join Date: Jun 2018
Posts: 222
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 429 Times in 140 Posts
How are you doing with yours SurferRosa ?

I have fitted my cranks to the 111mm Campag BB, and I must say I'm not convinced they are the right ones.

Admittedly I am not familiar with these cranks so don't know what it should look like, but when fitted the crank arms look noticeably further out on the spindle compared to the newer style Chorus I have on other bikes that use a 102mm BB. Maybe I'm just expecting it to be flush and it just wasn't for that model.

I have not fitted up the cables yet, but have fitted the front derailleur and when I pull it out to its outer position it comes out far enough to get the chain over the outer chain ring on the crank, so maybe it is fine after all. But I was a bit reluctant to plough on the cabling and everything if this looks off.

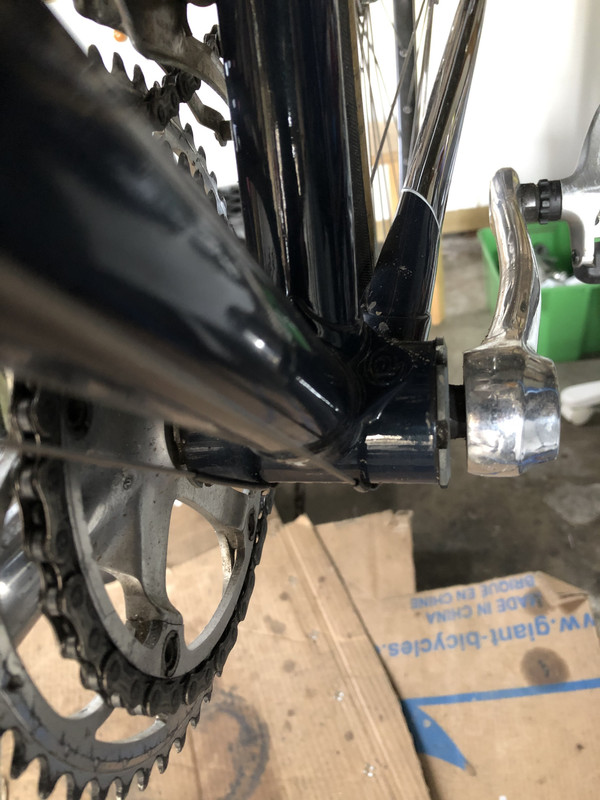

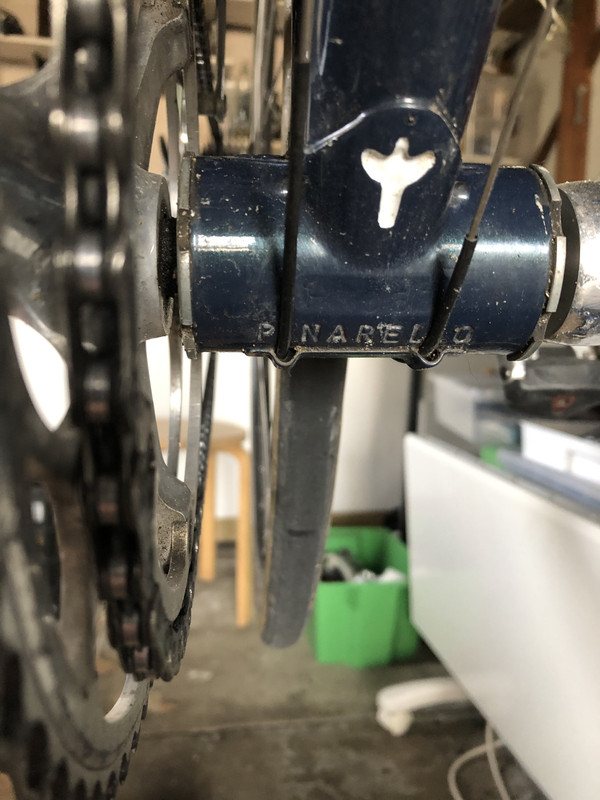

Here is a pic of the cranks on and done up tight, does this gap look acceptable? P!N20 Does the gap on my cranks look comparable to how yours look?

Thanks in advance.

botty kayer is offline
Likes For botty kayer:
Old 08-10-20, 01:13 PM
  #42
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,178

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1716 Post(s)
Liked 1,819 Times in 1,028 Posts
Originally Posted by botty kayer View Post
How are you doing with yours SurferRosa ?
My Token 111mm ISO bb arrives this week, so I'll know soon.

If the small ring clears the chainstay, the first thing I check is chainline. Check Sheldon's site for the specifics. I think he says the middle of a double should measure around 43-44mm from the center of the seat tube. So the small ring measures around 40mm and the big ring is 46mm (or so).
SurferRosa is offline
Likes For SurferRosa:
Old 08-10-20, 04:35 PM
  #43
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,403
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 628 Post(s)
Liked 722 Times in 396 Posts
Originally Posted by botty kayer View Post
Here is a pic of the cranks on and done up tight, does this gap look acceptable? P!N20 Does the gap on my cranks look comparable to how yours look?
Yeah looks about right. Hard to measure accurately, but the gap on the NDS is about 4mm.



P!N20 is offline
Likes For P!N20:
Old 08-10-20, 04:56 PM
  #44
La Brea Bike
Senior Member

Join Date: Mar 2018
Location: Los Angeles
Posts: 367

Bikes: 02 Litespeed Ultimate, 84 & 85 Raleigh Grand Prix, 84 & 85 Raleigh Super Course, 84 & 85 Raleigh Prestige, 85 Raleigh 555 RSL, 2020 Raleigh Tamland, 28 Hercules, 38 Raleigh, 85 Landshark "Raleigh", SB4484, Raleigh SSCXWC

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Liked 90 Times in 52 Posts
La Brea Bike is offline
Likes For La Brea Bike:
Old 08-10-20, 04:58 PM
  #45
La Brea Bike
Senior Member

Join Date: Mar 2018
Location: Los Angeles
Posts: 367

Bikes: 02 Litespeed Ultimate, 84 & 85 Raleigh Grand Prix, 84 & 85 Raleigh Super Course, 84 & 85 Raleigh Prestige, 85 Raleigh 555 RSL, 2020 Raleigh Tamland, 28 Hercules, 38 Raleigh, 85 Landshark "Raleigh", SB4484, Raleigh SSCXWC

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Liked 90 Times in 52 Posts
It's super pretty... This frame was NOS, but I just got an SBDU frame that is likely to get everything transferred over...
La Brea Bike is offline
Old 08-10-20, 09:11 PM
  #46
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,178

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1716 Post(s)
Liked 1,819 Times in 1,028 Posts
@botty kayer, I just installed my '88 Chorus crankset onto a Token ISO 111mm bb, and the chainline looks pretty good.

Thanks for the confirmation and confidence, @P!N20.

Pics mañana.

Last edited by SurferRosa; 08-10-20 at 10:22 PM.
SurferRosa is offline
Likes For SurferRosa:
Old 08-10-20, 11:22 PM
  #47
botty kayer
Senior Member

Join Date: Jun 2018
Posts: 222
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 429 Times in 140 Posts
Thanks a lot P!N20 and SurferRosa . I'll double check the chain line with Sheldon, and if that seems all good will crack on with finishing the build. I still have a few more bits to get, but finally hope to have bike finished this weekend
botty kayer is offline
Old 08-11-20, 03:33 PM
  #48
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,178

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1716 Post(s)
Liked 1,819 Times in 1,028 Posts
"It's getting better all the ti-i-ime!"





I was definitely worried. Especially with the Victory rear mech taking up the chain between the 53 and 39t rings. But I think it's gonna work. Shifting is still smooth. Gotta be faster than the Triomphe crank's 52t, right?
SurferRosa is offline
Likes For SurferRosa:
Old 08-11-20, 08:44 PM
  #49
RobbieTunes
Banned

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,372 Times in 886 Posts
I knew an Athena in the late 80’s

I think she was the goddess of violence.
RobbieTunes is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
