60's vintage Raleigh Gran Sport-wheel problems

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

60's vintage Raleigh Gran Sport-wheel problems

Reply

Old 11-23-09, 09:26 PM
  #1
bmwstbill
Senior Member
Thread Starter

Join Date: Aug 2009
Location: Northern Wisconsin, USA
Posts: 171

Bikes: '80's vintage Dutch framed(Gazelle), Japanese components,set up for city riding and light touring...fenders, rack and bags.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
60's vintage Raleigh Gran Sport-wheel problems

Hi everyone.
I need some help deciding what to do. I am working up a Raleigh Gran Sport-60's era. It will not be fully restored, rather made ridable, preserving 40+ years of use and abuse. The BB is rebuilt and the headset, the Brooks saddle is oiled, the frame is straightened. I am only missing a couple of small brake pieces.

But the wheels. Steel. They are 27X1 1/4, the rear is a 40 hole. This is the problem. The LBS wheel man say no way to true the old steel wheels, wants to replace them with alloy at around $30 each, they would be 700c size.

I think I could get the brakes to work with 700c wheels as there is adjustment in the slots but what do you say?

Save the old steel by finding a wheel man who will get them sort of true or replace. Ideas??
Can old steel wheels be brought back to life??

If anyone has a true set of 27's, including a 40 hole rim please let me know.
Any suggestions are appreciated.
Thanks,
Bill

Last edited by bmwstbill; 11-23-09 at 09:29 PM.
bmwstbill is offline
Reply With Quote
Old 11-23-09, 10:11 PM
  #2
Amani576
Buh'wah?!

Amani576's Avatar

Join Date: Jul 2008
Location: Raleigh, NC
Posts: 2,131

Bikes: 1972 Raleigh Twenty, mid-80's Trek

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
I just searched around. I couldn't find anything. Velocity and Sun both make rims in 40 hole drillings, but sadly only in 26" or 700c sizes. I hope you find something.
-Gene-

Edit: Though I think your mechanic just doesn't want to deal with truing the rims. You CAN true steel rims, you just have to want to. He probably is also making comission off the sale of the new wheels. It's still reasonable. But don't listen to his lie about not being able to true them.

Last edited by Amani576; 11-23-09 at 10:45 PM.
Amani576 is offline
Reply With Quote
Old 11-23-09, 10:34 PM
  #3
TejanoTrackie
Veteran Racer

TejanoTrackie's Avatar

Join Date: Jul 2009
Location: Ciudad de Vacas, Tejas
Posts: 11,147

Bikes: 29 frames + 72 wheels

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 642 Post(s)
As long as you're not hung up with doing a faithful restoration and the brakes will adjust I'd just go with a set of (aluminum) alloy 700c rims. They'll be much lighter, provide dramatically better braking in wet weather and you'll have a lot more choices in tires. The LBS charge of $30 / per wheel seems really reasonable to me.
TejanoTrackie is offline
Reply With Quote
Old 11-23-09, 10:45 PM
  #4
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 22,871

Bikes: http://www.theheadbadge.com

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Pick up a set of '70s-era Weinmann 27x1-1/4's off of eBay. Laced-up if necessary. Try to get the variants with the bulged bead.

-Kurt
__________________
cudak888 is offline
Reply With Quote
Old 11-23-09, 10:55 PM
  #5
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 13,799

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 631 Post(s)
Originally Posted by Amani576 View Post
I just searched around. I couldn't find anything. Velocity and Sun both make rims in 40 hole drillings, but sadly only in 26" or 700c sizes. I hope you find something.
-Gene-

Edit: Though I think your mechanic just doesn't want to deal with truing the rims. You CAN true steel rims, you just have to want to. He probably is also making comission off the sale of the new wheels. It's still reasonable. But don't listen to his lie about not being able to true them.
I just trued a few steel rims. It's very possible. The LBS is giving you the run around.
Road Fan is offline
Reply With Quote
Old 11-23-09, 11:32 PM
  #6
sciencemonster
Senior Member

Join Date: Nov 2007
Posts: 1,220
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
And dimes to donuts that $30 doesn't include spokes. Spokes are expensive. At a bike store, they'd run at least $40.

I've got two sets of wheels that could use new spokes, but I just don't feel like spending all that money on spokes.

You should just true the wheel yourself. It's a two dollar tool, and even if you screw it up, you can just find another shop to fix it, since you were gonna do that anyway. It's really simple to true a wheel. Just go slow, and tighten the appropriate spokes a little at a time to bring it into true. There is no mystery involved - the left spokes pull left, and the right spokes pull right. Tighten adjacent left and right spokes to flatten a hump - loosen them to fix a flat spot. A quarter turn at a time, then measure.

Last edited by sciencemonster; 11-23-09 at 11:35 PM.
sciencemonster is offline
Reply With Quote
Old 11-24-09, 06:21 AM
  #7
jacksbike
Senior Member

Join Date: Jul 2005
Location: New Haven, CT area
Posts: 1,362

Bikes: Trek 7.5 Hybrid, Trek 1.1 Road, Holdsworth touring,Raleigh International,Ritchey Commando,Italvega Speciallissimo,et.al.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
I don't understand why the LBS mechanic is giving you the run around about truing steel wheels. They are no different than truing alloy wheels. Is there a low/high spot on the rim, or is there a sudden S shape bend in it ? If there is a warping of the existing 40 hole steel rim, then I can understand. Nonetheless, as stated, a nice set of aluminum alloy wheels do have major advantages over steel. As for the $30 price tag -for what ? 1 rim ? Labor charge to build up each wheel ?
jacksbike is offline
Reply With Quote
Old 11-27-09, 04:00 AM
  #8
bmwstbill
Senior Member
Thread Starter

Join Date: Aug 2009
Location: Northern Wisconsin, USA
Posts: 171

Bikes: '80's vintage Dutch framed(Gazelle), Japanese components,set up for city riding and light touring...fenders, rack and bags.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks everyone.
I will grab the wheels back and have at them myself...and report back in a couple of weeks.
I'd rather have the old wheels just for the 'old bike' look of them.
bill
bmwstbill is offline
Reply With Quote
Old 11-27-09, 07:51 AM
  #9
Sammyboy
The Legitimiser

Sammyboy's Avatar

Join Date: Jul 2005
Location: Southampton, UK
Posts: 4,846

Bikes: Gazelle Trim Trophy, EG Bates Track Bike, HR Bates Cantiflex bike, Nigel Dean fixed gear conversion, Raleigh Royal, Falcon Westminster.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
You might be hearing what the LBS guy is saying wrong. Is he saying "There's no way to true steel wheels", or "There's no way to true THESE steel wheels"? If a rim is badly enough out of true, it can be impossible to bring it back whatever it's made of.
Sammyboy is offline
Reply With Quote
Old 11-27-09, 01:17 PM
  #10
Amani576
Buh'wah?!

Amani576's Avatar

Join Date: Jul 2008
Location: Raleigh, NC
Posts: 2,131

Bikes: 1972 Raleigh Twenty, mid-80's Trek

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Good point Sammyboy. But the OP didn't say that his wheels were taco'd or anything, so I'm still pretty sure that mech was just trying to make a sale.
-Gene-
Amani576 is offline
Reply With Quote
Old 11-27-09, 07:04 PM
  #11
Oldpeddaller
Senior Member

Oldpeddaller's Avatar

Join Date: Apr 2008
Location: Maidstone, Kent, England
Posts: 2,623

Bikes: 1970 Holdsworth Mistral, Vitus 979, Colnago Primavera, Corratec Hydracarbon, Massi MegaTeam, 1935 Claud Butler Super Velo, Carrera Virtuoso, Viner, 1953 Claud Butler Silver Jubilee, 1954 Holdsworth Typhoon, 1966 Claud Butler Olympic Road, 1982 Claud

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Jacksbike is right - steel rims are no harder to true than alloys. Alloy rims would be better of course, if you can find the 27" Weinmanns Kurt describes it would be perfect. However, no reason you can't true up your current steel rims in the meanwhile - you only need a good spoke key (wrench) and a little patience.
Oldpeddaller is offline
Reply With Quote
Old 11-27-09, 08:36 PM
  #12
Mr IGH
afraid of whales

Mr IGH's Avatar

Join Date: Apr 2009
Location: Front Range, CO
Posts: 4,322
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 346 Post(s)
...so I'm still pretty sure that mech was just trying to make a sale.....
Never seen the wheels, never met the OP, yet you're OK with slandering the LBS. Nice....
Mr IGH is offline
Reply With Quote
Old 11-28-09, 07:30 AM
  #13
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 13,799

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 631 Post(s)
If his wheels have dents, and the LBS guy knew that denting cannot be removed by truing, and the LBS statement was wrong (LBS mis-spoke, OP mis-heard, OP misunderstood), then we shouldn't blame the OP. Bottom line is the OP will learn the truth by trying to true his wheels, or perhaps by going to a different LBS that is willing to make it as good as can be.
Road Fan is offline
Reply With Quote
Old 11-28-09, 07:37 AM
  #14
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 13,799

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 631 Post(s)
Originally Posted by bmwstbill View Post
Hi everyone.


But the wheels. Steel. They are 27X1 1/4, the rear is a 40 hole. This is the problem. The LBS wheel man say no way to true the old steel wheels, wants to replace them with alloy at around $30 each, they would be 700c size.



Save the old steel by finding a wheel man who will get them sort of true or replace. Ideas??
Can old steel wheels be brought back to life??

If anyone has a true set of 27's, including a 40 hole rim please let me know.
Any suggestions are appreciated.
Thanks,
Bill
I think you can get a wheel guy at a shop to make it as good as reasonable, by saying that to him. Maybe they'll let you watch to see for yourself how to make the adjustments. The request "true this" might mean a lot more to him than "just get it into line."

If you can slide the brake shoes down 4 mm each, and can afford the new spokes, nipples, rims, rim strips, tubes, and tires, go for the 700c upgrade. It WILL make a better wheel.
Road Fan is offline
Reply With Quote
Old 11-28-09, 07:41 AM
  #15
Bikedued
Senior Member

Bikedued's Avatar

Join Date: Jul 2004
Posts: 10,919
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Originally Posted by Mr IGH View Post
Never seen the wheels, never met the OP, yet you're OK with slandering the LBS. Nice....
Sounds much like many corporate chain bike shops I've been to. I'm surpised a whole new bike wasn't the sales pitch, instead of new rims?,,,,BD

But yes, alloy 700's might be the way to go, or even respoked wheels with different hubs and new 27"/700 rims.....
__________________
So many bikes, so little dime.
Bikedued is offline
Reply With Quote
Old 11-28-09, 08:49 AM
  #16
Mr IGH
afraid of whales

Mr IGH's Avatar

Join Date: Apr 2009
Location: Front Range, CO
Posts: 4,322
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 346 Post(s)
Originally Posted by Bikedued View Post
Sounds much like many corporate chain bike shops I've been to. I'm surpised a whole new bike wasn't the sales pitch, instead of new rims?
Hmmmmm, OP never mentions name of shop and lives in northern Wisconsin, not many coporate shops up there. And you never ask OP any questions about the condition of the rim. Yet you're sure that the OP is getting ripped off.
Mr IGH is offline
Reply With Quote
Old 11-28-09, 04:20 PM
  #17
Bikedued
Senior Member

Bikedued's Avatar

Join Date: Jul 2004
Posts: 10,919
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Hmmmm, me thinks you own or run a corporate bike shop Bottom line is he was being sold something he didn't need rather than trying to repair something. They
have to make a living too, right? So yep, it sounds like most bike shops to me, corporate or otherwise? You can't change my mind with a guilt trip, I've experienced it first hand.
I have personally seen some NASTY steel rims made almost perfect by the right person. Granted steel rims aren't the best thing in the world, but a majority of the time
they don't require replacement unless they're rusted through, or the braking surfaces have been splayed outwards from a bad impact. The odds of both rims being that bad are slim,
and there are NOS alloy rims out there if the OP wants to stay with the current rim size.,,,,BD
__________________
So many bikes, so little dime.
Bikedued is offline
Reply With Quote
Old 11-28-09, 07:09 PM
  #18
Mr IGH
afraid of whales

Mr IGH's Avatar

Join Date: Apr 2009
Location: Front Range, CO
Posts: 4,322
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 346 Post(s)
Originally Posted by Bikedued View Post
...majority of the time they don't require replacement unless they're rusted through, or the braking surfaces have been splayed outwards from a bad impact. The odds of both rims being that bad are slim,
and there are NOS alloy rims out there if the OP wants to stay with the current rim size.,,,,BD
I wrenched during the age of steel rims and saw many totalled steel rims. You just keep speaking garbage, why be such a fool? Ask the OP what the rims loook like....
Mr IGH is offline
Reply With Quote
Old 11-28-09, 08:02 PM
  #19
Bikedued
Senior Member

Bikedued's Avatar

Join Date: Jul 2004
Posts: 10,919
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Okay OP, what do the rims look like?? You happy now.....,,,,BD


I remember jumping makeshift ramps as kid, and never even put a steel wheel out of true...... much less totalled one.
__________________
So many bikes, so little dime.

Last edited by Bikedued; 11-28-09 at 08:06 PM.
Bikedued is offline
Reply With Quote
Old 11-29-09, 02:05 AM
  #20
bmwstbill
Senior Member
Thread Starter

Join Date: Aug 2009
Location: Northern Wisconsin, USA
Posts: 171

Bikes: '80's vintage Dutch framed(Gazelle), Japanese components,set up for city riding and light touring...fenders, rack and bags.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

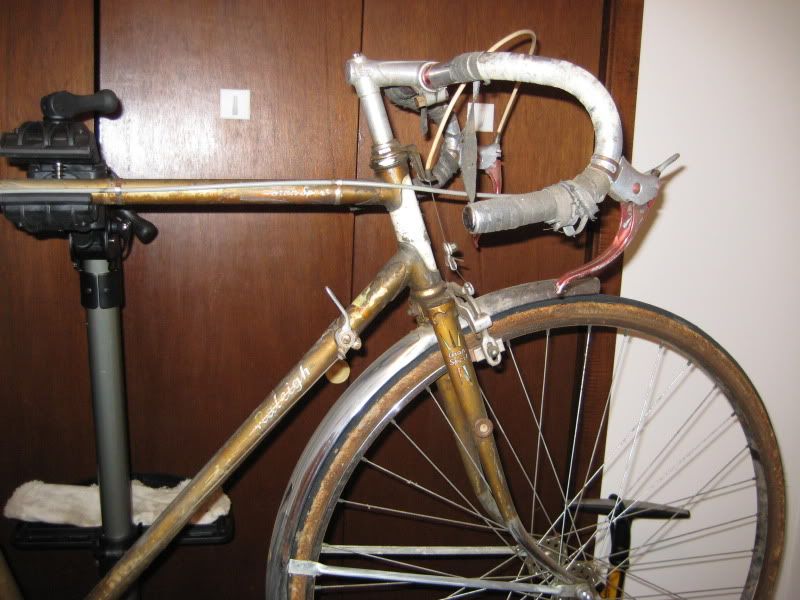

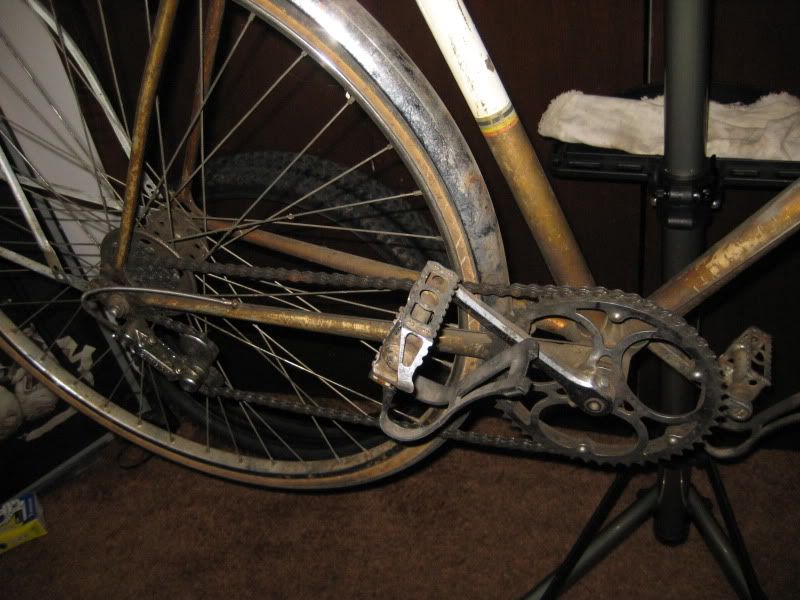

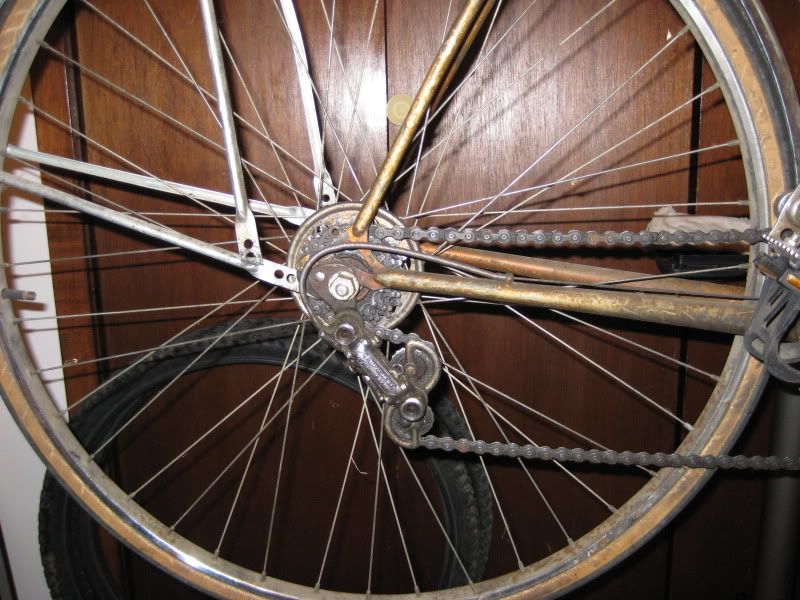

Best pics I have, frame is stripped. tires were cut off the wheels. Wheels are still at the LBS. It is an independent shop with a young mechanic who is my friend...he says the wheels disgust him. They are not rusted through, they are a little rusty. Nothing major.
biill

Last edited by bmwstbill; 11-29-09 at 02:13 AM.
bmwstbill is offline
Reply With Quote
Old 11-29-09, 02:35 AM
  #21
kpug505
Senior Member

kpug505's Avatar

Join Date: Oct 2006
Location: Puyallup Washington
Posts: 1,847

Bikes: Motobecane Mirage fixed gear, Nashbar Alpha Road 5000, Bianchi Grizzly, Coppi Fiorelli, , Schwinn Trike, , GT All Terra, Old Peugeot, Nishiki 3 speed, Bugatti, Cannondale Black Lightning, Dura All, Bianchi Touring, Bridgestone T700 & more

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by Mr IGH View Post
You just keep speaking garbage, why be such a fool?
Whoa there bucko...That kind of tone is usually reserved for A&S or P&R...C&V is the civilized forum.

Anyways...Back on topic. OP that's a nice bike...I'll jump on the bandwagon and say look for an aluminum wheelset that's suitable. If you insist on cleaning those steelies up make sure you give those spoke nips a good soaking with a penetrant oil a couple days in advance and be sure to wipe all the excess of the nips before you stick a wrench to 'em. Use a good degreaser/cleaner like cleanstreak or something. If you get 'em true oxalic acid will clean 'em up real nice and pretty like with minimal work. Plenty of info on the forums about the procedure but you might not be able to find it 'cause the search function sucks...Still.
__________________
Originally Posted by CardiacKid View Post
We don't cotton to people who cut things off their bikes in these here parts.

Check out my bike blog!
kpug505 is offline
Reply With Quote
Old 11-29-09, 07:39 AM
  #22
Mr IGH
afraid of whales

Mr IGH's Avatar

Join Date: Apr 2009
Location: Front Range, CO
Posts: 4,322
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 346 Post(s)
Originally Posted by kpug505 View Post
Whoa there bucko...That kind of tone is usually reserved for A&S or P&R...C&V is the civilized forum....
Now that we've seen the pictures, I guess it's clear the LBS employee was correct in recommending new rims/spokes...Perhaps some of us shouldn't be so quick to make unfounded accusations about someone we've never met....

70's era 10 speed steel rims could be very bad, esp the ones that came on French bikes, the Raleigh Record rims weren't very good either, Schwinn and Araya steel rims were tough but very heavy, Huffy, Sear etc had very weak rims.
Mr IGH is offline
Reply With Quote
Old 11-29-09, 08:45 AM
  #23
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 13,799

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 631 Post(s)
First, I like those old Raleighs. Nice!!!

I just got a UO-8 with a set of wheels in that condition. I was able to true them to a nicely rideable condition using a normal spoke wrench and a few fingers holding the spoke to make sure the nipple actually turns. Didn't need to oil or Liquid Wrench anything.

Your brakes are real good ones, and to my eye easily have enough slot left to accommodate 700c wheels, even 700c tubulars if you wanted.

From those pictures I don't see what makes those rims obviously past any use, other than style. Can you see denting? I can't. Can you see excessive spoke tension needed to hold it straight? I can't. Can you see crushed sidewalls? I can't.

You should basically plan on stripping down everything except perhaps the headset pressed cups and the BB fixed cup, depending on condition. Obviously the chain needs to be cleaned and lubed, tight links loosened, and checked for wear. It should all respond really well to cleaning, inspection, new bearing balls, and nice fresh clean grease on nice clean grit-free bearing races, with proper adjustment. Maybe the pedals are secondary. It won't feel like a NOS Campy Nuovo Record, but it will result in a surprisingly nice-riding bike.

Modern aluminum rims make a very strong wheel largely (IMO) because of better spoke and rim quality that enables using correctly high spoke tension. In the days of this bike spokes didn't get tensioned that way, for some reason. I don't know if a wheel with a new steel rim can be fully tensioned and hence make a strong, long lasting wheel. One question is, why bother? You can do better with modern 700c. Some wheel sources have 120 or 126 mm rear hubs on them, too, I think it's Niagara.
Road Fan is offline
Reply With Quote
Old 11-29-09, 08:15 PM
  #24
Bikedued
Senior Member

Bikedued's Avatar

Join Date: Jul 2004
Posts: 10,919
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Originally Posted by Mr IGH View Post
Now that we've seen the pictures, I guess it's clear the LBS employee was correct in recommending new rims/spokes...Perhaps some of us shouldn't be so quick to make unfounded accusations about someone we've never met....
I see a set of steel rims that I could have cleaned up, lubed, and trued inside of three hours, including a quick lunch break? There's not even rust on the spokes? I stand by my original assumptions.,,,,BD
__________________
So many bikes, so little dime.
Bikedued is offline
Reply With Quote
Old 11-29-09, 09:39 PM
  #25
Amani576
Buh'wah?!

Amani576's Avatar

Join Date: Jul 2008
Location: Raleigh, NC
Posts: 2,131

Bikes: 1972 Raleigh Twenty, mid-80's Trek

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Originally Posted by Bikedued View Post
I see a set of steel rims that I could have cleaned up, lubed, and trued inside of three hours, including a quick lunch break? There's not even rust on the spokes? I stand by my original assumptions.,,,,BD
+1 BD, I do too. I mean, sure. The OP did say the Mech was his friend, and maybe IS looking out for his friend in regards to better braking instead of a quick sale. But, still, there's nothing wrong with those wheels.
-Gene-
Amani576 is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
