Stuck crank dustcaps

Old 12-14-09, 11:17 AM
  #1
mickey85
perpetually frazzled
Thread Starter

mickey85's Avatar

Join Date: Sep 2008
Location: Linton, IN
Posts: 2,470

Bikes: 1977 Bridgestone Kabuki Super Speed; 1979 Raleigh Professional; 1983 Raleigh Rapide mixte; 1974 Peugeot UO-8; 1993 Univega Activa Trail; 1972 Raleigh Sports; 1967 Phillips; 1981 Schwinn World Tourist; 1976 Schwinn LeTour mixte; 1964 Western Flyer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Stuck crank dustcaps

I'm trying hard to pull apart the Professional to strip the frame and get it painted (eventually...), but the dust caps on the crank arms seem to be frozen in there (being steel in an aluminum crank). Honestly, I think I'm just going to take this damn thing out and back it over with a car a couple times. That'll loosen things up!

Anyway, if I just took a bucket of ammonia and stuck the bottom bracket in, do you think enough would get in there to take care of the problem? Also, does household ammonia work on frozen parts, or do I need to spring for the stronger stuff? This bike can honestly go as long as it takes - I'm not in any hurry.
mickey85 is offline
Old 12-14-09, 11:25 AM
  #2
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 6,313

Bikes: '72 Motobecane Le Champion(totaled), '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Tre Cime, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 468 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
PB Blaster and 24 Hrs. Great stuff for stuck parts/fastners.
SJX426 is offline
Old 12-14-09, 11:28 AM
  #3
zac
Senior Member

zac's Avatar

Join Date: Jul 2005
Location: Mass
Posts: 874

Bikes: I just ride them, they own me.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
+10 on the PB Blaster. Let is soak.

After the soak, take a wooden dowel or block of wood and place it against the cap, then give it (the wood) a firm, hard rap with a hammer. This will also help things along.
__________________
trans female, out and proud!

Hammer Nutrition 15% Referral Discount
MassBike.org - Same Road, Same Rules
zac is offline
Old 12-14-09, 11:44 AM
  #4
southpawboston
Senior Member

southpawboston's Avatar

Join Date: Aug 2008
Location: Somerville, MA and Catskill Mtns
Posts: 4,024
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
+100 on the PB blaster, or any rust penetrant. give it a few days to work in.
__________________
Velo Lumino - Lighting components and integration solutions for fine hand-built and classically inspired bicycles

Riding the Catskills blog

Flickr

1971 Mercian Olympic | 1972 Jeunet 630 | 1982 Jack Taylor Tour of Britain | 1984 Shogun 1500 650B | 2013 Rawland Stag | 2014 Jeff Lyon L'Avecaise | 2015 Bike Friday Haul-a-Day
southpawboston is offline
Old 12-14-09, 11:46 AM
  #5
mickey85
perpetually frazzled
Thread Starter

mickey85's Avatar

Join Date: Sep 2008
Location: Linton, IN
Posts: 2,470

Bikes: 1977 Bridgestone Kabuki Super Speed; 1979 Raleigh Professional; 1983 Raleigh Rapide mixte; 1974 Peugeot UO-8; 1993 Univega Activa Trail; 1972 Raleigh Sports; 1967 Phillips; 1981 Schwinn World Tourist; 1976 Schwinn LeTour mixte; 1964 Western Flyer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
That will help with aluminum oxide? Alright, I'll start it soaking.
mickey85 is offline
Old 12-14-09, 11:48 AM
  #6
keelbolts
Senior Member

Join Date: Oct 2009
Location: Tidewater, Virginia
Posts: 78

Bikes: Lotus Legend, Fuji Cambridge VI, Schwinn Sprint

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I despise those damned things. The last two times I've gone to work on a BB I've had trouble with those damned things. The first set were soft metal that immediately rounded out. I drove an old screwdriver into them & unscrewed them. Lastnight's pair were plastic. I ended up breaking them up & removing them in pieces. I'll find out tonight if the threads are OK. I'm debating leaving them out from now on.
keelbolts is offline
Old 12-14-09, 11:55 AM
  #7
stausty
Senior Member

Join Date: Dec 2008
Posts: 714
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
If they're steel they'll come out once you crack the oxidation holding the two pieces together. PB blaster or ammonia will help. If the dustcaps are plastic or aluminum you will probably have to take the caps out in pieces once you break them apart. I had a pair of Nervar caps that did this and ended up having to grind out the caps before being able to pull the arms.
stausty is offline
Old 12-14-09, 11:57 AM
  #8
mickey85
perpetually frazzled
Thread Starter

mickey85's Avatar

Join Date: Sep 2008
Location: Linton, IN
Posts: 2,470

Bikes: 1977 Bridgestone Kabuki Super Speed; 1979 Raleigh Professional; 1983 Raleigh Rapide mixte; 1974 Peugeot UO-8; 1993 Univega Activa Trail; 1972 Raleigh Sports; 1967 Phillips; 1981 Schwinn World Tourist; 1976 Schwinn LeTour mixte; 1964 Western Flyer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Yeah, I'm not a fan of the metal ones (though they ARE pretty). I'm just cringing at destroying them though because, although they're already rounding out, they're Campy, and it seems hard to get these bad boys.
mickey85 is offline
Old 12-14-09, 12:04 PM
  #9
love2pedal.com
Senior Member

love2pedal.com's Avatar

Join Date: Jan 2009
Location: Kansas City, MO
Posts: 817

Bikes: Colnago C50

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Drill two small holes in the steel dustcap and use an adjustable pin spanner to loosen (after giving the area a shot with PB Blaster and letting is seep in and help loosen).

Var makes (or made) the correct tool for this. Making a homemade version of this tool shouldn't be to hard either. Park makes one that is readily available

love2pedal.com is offline
Old 12-14-09, 12:23 PM
  #10
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,370
Mentioned: 400 Post(s)
Tagged: 1 Thread(s)
Quoted: 2297 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by keelbolts View Post
I despise those damned things... I'm debating leaving them out from now on.
I wouldn't advise that. Replacing damaged caps is far less expensive than replacing damaged crankarms. I've seen too many owners come into the shop with damaged crank extractor threads because they tried to insert the tool into dirt encrusted threads. Just grease the caps' threads or replace the threaded caps with some inexpensive, plastic, press fit models.
T-Mar is offline
Old 12-14-09, 12:24 PM
  #11
stausty
Senior Member

Join Date: Dec 2008
Posts: 714
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by mickey85 View Post
Yeah, I'm not a fan of the metal ones (though they ARE pretty). I'm just cringing at destroying them though because, although they're already rounding out, they're Campy, and it seems hard to get these bad boys.
Once they're rounded out they're useless without modification.

Best off luck with your choice of removal options.
stausty is offline
Old 12-14-09, 01:33 PM
  #12
keelbolts
Senior Member

Join Date: Oct 2009
Location: Tidewater, Virginia
Posts: 78

Bikes: Lotus Legend, Fuji Cambridge VI, Schwinn Sprint

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
T-Mar,
Where do you get the press fit caps? They sound like a good idea.
keelbolts is offline
Old 12-14-09, 01:35 PM
  #13
mickey85
perpetually frazzled
Thread Starter

mickey85's Avatar

Join Date: Sep 2008
Location: Linton, IN
Posts: 2,470

Bikes: 1977 Bridgestone Kabuki Super Speed; 1979 Raleigh Professional; 1983 Raleigh Rapide mixte; 1974 Peugeot UO-8; 1993 Univega Activa Trail; 1972 Raleigh Sports; 1967 Phillips; 1981 Schwinn World Tourist; 1976 Schwinn LeTour mixte; 1964 Western Flyer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
My Univega's cranks came with them...They're convenient, but fugly.
mickey85 is offline
Old 12-14-09, 02:12 PM
  #14
Chombi
Senior Member

Chombi's Avatar

Join Date: Jul 2009
Posts: 11,139

Bikes: 1986 Alan Record Carbonio, 1985 Vitus Plus Carbone 7, 1984 Peugeot PSV, 1972 Line Seeker, 1986(est.) Medici Aerodynamic (Project), 1985(est.) Peugeot PY10FC

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Try CRC's "Freeze-Off"!!
It saved my Vitus restoration project this fall after WD40, Liquid Wrench and PB Blaster all failed to release my super seized-on stem from my fork. Also released the lockring on my bottom bracket and fixed cup within minutes after the other said chemicals also did not work.
Mke sure you concentrate the Freeze-Off blast from the can on the item you would want to shrink away from the other material (The steel dustcaps in your case).
PB Blaster, which seems to have a big following here, turned out to be very dissapointing in my case, despite the extended soaking and podigious use of a dead blow mallet.

Best yet is to leave off the caps after your restoration........just like the pros did....... ;^))

Chombi
84 Peugeot PSV
85(?) Vitus Plus Carbone 7
Chombi is offline
Old 12-14-09, 03:27 PM
  #15
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,370
Mentioned: 400 Post(s)
Tagged: 1 Thread(s)
Quoted: 2297 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by keelbolts View Post
T-Mar,
Where do you get the press fit caps? They sound like a good idea.
You should be able to get them though any LBS. They come on most of the entry level cranksets. My supplier lists replacement press fit caps for $0.80 per pair. Sure, they're not very pretty but at that price you don't worry about messing them up and they're cheap insurance compared to going capless.

Originally Posted by Chombi View Post
Best yet is to leave off the caps after your restoration........just like the pros did....
Yeah, but they were on dope when they did it. Seriously, the reason the pros ran cranks without dust caps was to facilitate the servicing. When you have to tighten a loose crankarm on the road or overhaul a dozen bottom brackets overnight, this can make quite a bit of difference. Besides, their cranks were free and there was always a spare readily available. There's no reason for non-pros to risk going capless.
T-Mar is offline
Old 12-14-09, 04:06 PM
  #16
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Posts: 17,421
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It's a big problem with the Stronglight cranks like the 93 that use a steel cap. The keyway is very delicate and mechanics neglect to grease the threads. Replacement caps are hard to find and have become very expensive. The older aluminum caps are actually a better replacement because you don't have unlike metals together, but they just don't look right.

You won't have any trouble finding replacement caps on eBay if you're talking about an old Record crank. I haven't had a problem with them getting stuck since I started using anti seize compound on them.
Grand Bois is offline
Old 12-14-09, 05:45 PM
  #17
miamijim
Senior Member

miamijim's Avatar

Join Date: Aug 2003
Location: Tampa, Florida
Posts: 13,917
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 321 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I had good luck heating the crankarm with a propane torch. You dont have to balst it very long, just a few seconds to expend the aluminum.
miamijim is offline
Old 12-14-09, 06:32 PM
  #18
Chombi
Senior Member

Chombi's Avatar

Join Date: Jul 2009
Posts: 11,139

Bikes: 1986 Alan Record Carbonio, 1985 Vitus Plus Carbone 7, 1984 Peugeot PSV, 1972 Line Seeker, 1986(est.) Medici Aerodynamic (Project), 1985(est.) Peugeot PY10FC

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by T-Mar View Post
You should be able to get them though any LBS.
Yeah, but they were on dope when they did it. Seriously, the reason the pros ran cranks without dust caps was to facilitate the servicing. When you have to tighten a loose crankarm on the road or overhaul a dozen bottom brackets overnight, this can make quite a bit of difference. Besides, their cranks were free and there was always a spare readily available. There's no reason for non-pros to risk going capless.
Yes, I do know the reason why pros didn't use them.........but running cranks without the caps looks muchkewhler IMO. Most caps look ugly anyway and are made from chromed or silver painted plasteeek! I think the ones from my stronglight 106 were, and I chucked them minutes after I installed the cranks on my PSV. JMOs
I'll be running my Mavic 630 SSC cranks on my Vitus Carbone without them too......but maybe mostly because the NOS set I just got don't have them!
Better to leave them out to so they don't get seaized onto the cranks in the future.......putting the dustcaps on promotes the buildup of deritus and moisture in the bolt well through their slots and holes........just like a bellybutton that collects lint!

Chombi
84 Peugeot PSV
85(?) Vitus Plus Carbone 7
Chombi is offline
Old 12-14-09, 07:03 PM
  #19
sailorbenjamin
26 tpi nut.

sailorbenjamin's Avatar

Join Date: Mar 2008
Location: Rhode Island (an obscure suburb of Connecticut)
Posts: 5,703

Bikes: one of each

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Will the amonia get in there after you've (I've) used PB Blaster?
__________________
I have spoken.
sailorbenjamin is offline
Old 03-20-19, 01:55 PM
  #20
specialmonkey
Fillet-Brazed Member

specialmonkey's Avatar

Join Date: Sep 2015
Location: Brooklyn, New York
Posts: 361

Bikes:

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by stausty View Post
If they're steel they'll come out once you crack the oxidation holding the two pieces together. PB blaster or ammonia will help. If the dustcaps are plastic or aluminum you will probably have to take the caps out in pieces once you break them apart. I had a pair of Nervar caps that did this and ended up having to grind out the caps before being able to pull the arms.

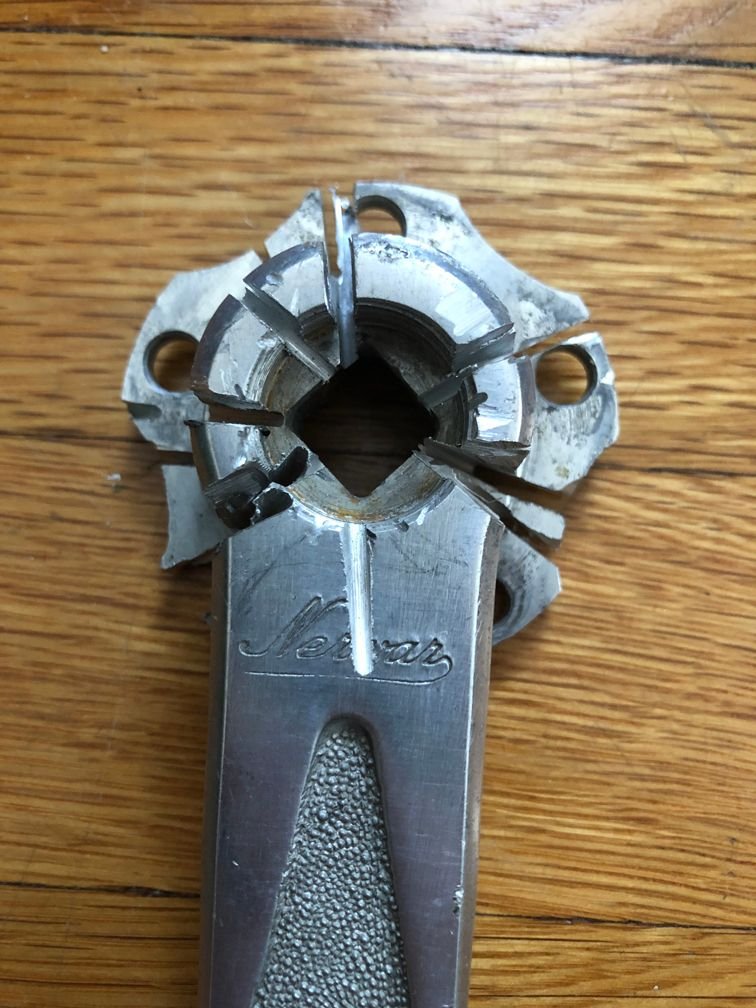

I know this is old, but I didn't want to have to resort to this again (NDS came off with Dremel cuts, and many broken cut off wheels, for DS I resorted to cheap ACE Hardware angle grinder after breaking too many cut off wheels) ... it worked, but was stressful and a waste of a perfectly good crankset



Ouch





Seeing a few recommendations here for heat (though too late) I bought a heat gun and after carefully heating the crank arm, on a different bike with stuck Nervar crankset dust caps, around the cap, trying not to heat the cap itself, I was able to remove the cap without destroying it, or the the hex slot. I'll be using heat where possible from now on! I'll also be using anti-seize on these caps in the future. In a different thread someone also suggested freezing the cap and heating the arm.

specialmonkey is offline
Old 03-20-19, 05:47 PM
  #21
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 2,517
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 492 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
All that just because of the cap? How long a cheater pipe did you slide onto the allen wrench when you tried it? Did you perchance try a large-ish vise-grip around the outside of the cap, with a cheater pipe?

I would have thought an easy-out into the allen hole might also have worked. Or perhaps slicing the cap in two with a very small cutting wheel on a Dremel.
madpogue is online now
Old 03-20-19, 07:45 PM
  #22
KenNC
Senior Member

KenNC's Avatar

Join Date: Oct 2013
Posts: 191
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
There is a guy from Australia on ebay who sells new aluminum alloy dust caps threaded for Stronglight, Specialites TA, and standard threaded cranks. Got some myself and was very pleased with them. He goes by the name of "bespokechainrings."

A wierd thing--I just looked at his listings, and when they first pop up they list the shipping cost as 24 dollars (more than the item!) but then when you click into the listing, it says international shipping is 6 dollars. Don't remember what I paid but it certainly wasn't 24.

Also, I've used the new/modern crank bolts with the attached polymer washer that protects the crank threads, and thought they looked pretty decent on a vintage bike.....
KenNC is offline
Old 03-21-19, 06:33 AM
  #23
specialmonkey
Fillet-Brazed Member

specialmonkey's Avatar

Join Date: Sep 2015
Location: Brooklyn, New York
Posts: 361

Bikes:

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by madpogue View Post
All that just because of the cap? How long a cheater pipe did you slide onto the allen wrench when you tried it? Did you perchance try a large-ish vise-grip around the outside of the cap, with a cheater pipe?

I would have thought an easy-out into the hex key hole might also have worked. Or perhaps slicing the cap in two with a very small cutting wheel on a Dremel.
Background: The bottom bracket (or crank) was loose therefore the need to remove.

I didn't use a cheater pipe on the hex wrench - never thought about it ... I'm not sure it would have helped with deforming the slot, but maybe, given the extra leverage it would have, by perhaps freeing the cap where a hand turned wrench only deformed the slot?

After rounding the hey key hole with a hex wrench, I tried Dremeling a slot in the cap and with heavy pliers turning with a quarter, nickel, dime, and penny, to try to turn the cap, each of them bent and didn't budge the cap. Then, in cutting the cap out with a Dremel, I believe I damaged the crank arm marginally, the threads or arm face near them (maybe cutting wheel was too big?), and decided maybe a little hastily to be done with it (I had a different crankset lying in wait). The cap on the Nervar crank kind of flaked out very stubbornly, like a window pane, somewhat different from the TA Cyclotouriste caps which I had in the past freed with a Dremeled slot and a quarter without damaging the arm(s). Holes for a pin spanner also seem to have potential. But I'm liking a heat gun for any future dust caps.



Originally Posted by KenNC View Post
There is a guy from Australia on ebay who sells new aluminum alloy dust caps threaded for Stronglight, Specialites TA, and standard threaded cranks. Got some myself and was very pleased with them. He goes by the name of "bespokechainrings."

A wierd thing--I just looked at his listings, and when they first pop up they list the shipping cost as 24 dollars (more than the item!) but then when you click into the listing, it says international shipping is 6 dollars. Don't remember what I paid but it certainly wasn't 24.

Also, I've used the new/modern crank bolts with the attached polymer washer that protects the crank threads, and thought they looked pretty decent on a vintage bike.....

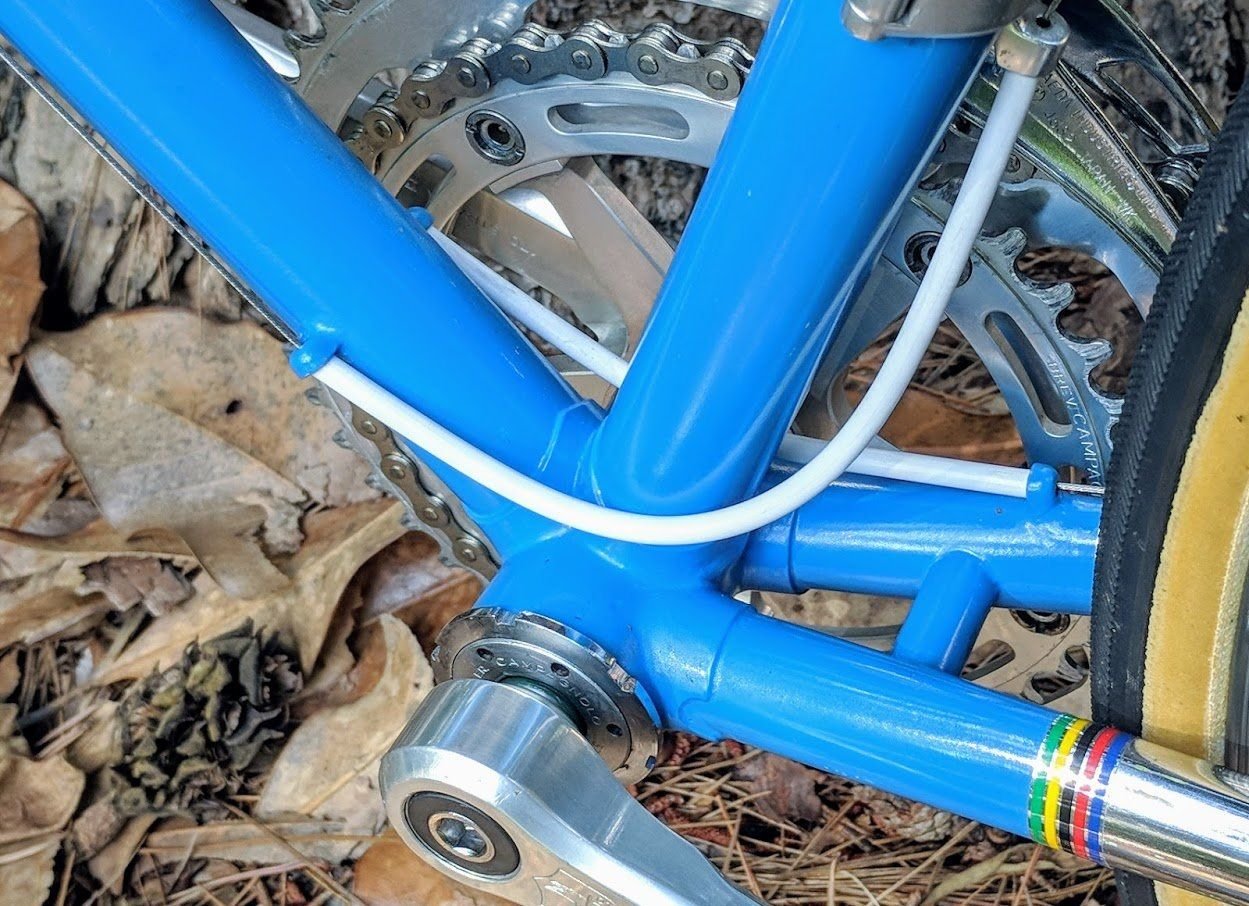

Thanks for the info, I think I might have seen that seller, and it looks like they have a website. Those caps look good on your bike, from what I see, your bike looks great (I like the color stripes on the chain stays and blue paint).
specialmonkey is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
