Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

User Tag List

Reply

Thread Tools Search this Thread
Old 02-13-10, 05:02 PM   #1
Fissile
Senior Member
Thread Starter

Fissile's Avatar

Join Date: Nov 2007
Bikes:
Posts: 540
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Vintage Campy Gurus

Which Campy (as in Grupo) aero brake lever do I have here. I'm not up on my vintage Campy. Come on, help a brother out.

Fissile is offline   Reply With Quote
Old 02-13-10, 06:37 PM   #2
teambhultima
Go Team BH!

teambhultima's Avatar

Join Date: Jan 2006
Location: just outside B-ham, AL
Bikes: Austro Daimler Ultima
Posts: 238
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
+1 Athena
I like mine, good stopping power, but the cables have a slight abrasive or gritty feel compared to the old teflon-lined cables I had with my old Dia-Compe levers.
Best Wishes!
teambhultima is offline   Reply With Quote
Old 02-13-10, 07:32 PM   #3
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Camp Hill, PA
Bikes: Too many to list here check my signature.
Posts: 24,014
Mentioned: 48 Post(s)
Tagged: 2 Thread(s)
Quoted: 583 Post(s)
Athena? what year? they look more like '99ish Recordto me
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline   Reply With Quote
Old 02-13-10, 09:08 PM   #4
Fissile
Senior Member
Thread Starter

Fissile's Avatar

Join Date: Nov 2007
Bikes:
Posts: 540
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
OK, Athena or Record? I did some research and found out that the Record levers had the little spring rate adjuster thingies while the Athena did not. Looks like this one goes to Bianchigirll.

Last edited by Fissile; 02-13-10 at 09:28 PM.
Fissile is offline   Reply With Quote
Old 02-14-10, 02:43 AM   #5
paulkal
Senior Member

paulkal's Avatar

Join Date: Dec 2007
Location: Holland
Bikes: 2007 Nagasawa with C-Record, 1992 Duell with Croce D'aune/Chorus, three Gazelles, M5 recumbent
Posts: 908
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Quote:
Originally Posted by Fissile View Post
OK, Athena or Record? I did some research and found out that the Record levers had the little spring rate adjuster thingies while the Athena did not. Looks like this one goes to Bianchigirll.
Not all Record brakelevers had the adjuster thingie (Powergrade). I agree with teambhultima that they are Athena levers.
paulkal is offline   Reply With Quote
Old 02-14-10, 06:45 AM   #6
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Camp Hill, PA
Bikes: Too many to list here check my signature.
Posts: 24,014
Mentioned: 48 Post(s)
Tagged: 2 Thread(s)
Quoted: 583 Post(s)
Actually I think we may all be right. while looking through the few Campi catalogs I have, I only see this style lever listed as a Record part in the '99 spare parts catalog (like Campi actually offered spares LOL). this is not a real "power grade' style lever, just a different style. there is no adjustment screw like the early '90s 'power grade' levers.

going by the regular and parts Campi '99 catalog this lever is listed as part # BL-22RECG. it is listed as a part in the Record and Chorus group. however I am sure these were specced on some Athena equppped bikes that might have had DT shifters.
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline   Reply With Quote
Old 02-14-10, 08:28 AM   #7
Fissile
Senior Member
Thread Starter

Fissile's Avatar

Join Date: Nov 2007
Bikes:
Posts: 540
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Quote:
Originally Posted by Bianchigirll View Post
Actually I think we may all be right. while looking through the few Campi catalogs I have, I only see this style lever listed as a Record part in the '99 spare parts catalog (like Campi actually offered spares LOL). this is not a real "power grade' style lever, just a different style. there is no adjustment screw like the early '90s 'power grade' levers.

going by the regular and parts Campi '99 catalog this lever is listed as part # BL-22RECG. it is listed as a part in the Record and Chorus group. however I am sure these were specced on some Athena equppped bikes that might have had DT shifters.
I checked the spare parts catalog from 1995. The parts diagrams for the Athena levers are different than the Record lever. See here: http://www.campagnolo.com/repository...spares95_C.pdf I believe tthat what I have are late model Record levers.
Fissile is offline   Reply With Quote
Old 02-14-10, 09:01 AM   #8
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Camp Hill, PA
Bikes: Too many to list here check my signature.
Posts: 24,014
Mentioned: 48 Post(s)
Tagged: 2 Thread(s)
Quoted: 583 Post(s)
Quote:
Originally Posted by Fissile View Post
Which Campy (as in Grupo) aero brake lever do I have here. I'm not up on my vintage Campy. Come on, help a brother out.
what was the rest of the group and what year was the bike?
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline   Reply With Quote
Old 02-14-10, 09:23 AM   #9
Fissile
Senior Member
Thread Starter

Fissile's Avatar

Join Date: Nov 2007
Bikes:
Posts: 540
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Quote:
Originally Posted by Bianchigirll View Post
what was the rest of the group and what year was the bike?
Unknown. These appear to be take-offs, and I don't know what they were taken off of.
Fissile is offline   Reply With Quote
Old 02-14-10, 09:27 PM   #10
teambhultima
Go Team BH!

teambhultima's Avatar

Join Date: Jan 2006
Location: just outside B-ham, AL
Bikes: Austro Daimler Ultima
Posts: 238
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
I stand corrected - just went down and looked at my bike. The Athena levers don't have whatever the little gray thing is (Powergrade) sticking out by the hood. Otherwise, they look the same to me. Sorry for the oversight! (original post #2 writer must have noticed this, too, as that post is now gone)
Good work Bianchigirl!
Happy St. Valentine's Day!
teambhultima is offline   Reply With Quote
Old 02-15-10, 11:22 AM   #11
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Camp Hill, PA
Bikes: Too many to list here check my signature.
Posts: 24,014
Mentioned: 48 Post(s)
Tagged: 2 Thread(s)
Quoted: 583 Post(s)
Quote:
Originally Posted by teambhultima View Post
I stand corrected - just went down and looked at my bike. The Athena levers don't have whatever the little gray thing is (Powergrade) sticking out by the hood. Otherwise, they look the same to me. Sorry for the oversight! (original post #2 writer must have noticed this, too, as that post is now gone)
Good work Bianchigirl!
Happy St. Valentine's Day!
thing sticking out of the hood? that is actually part of the body most all Campi aero levers have that (esp the models witht he QR built in) I should have put this right in my first post but I did not really notice it until I started lookign for the "thing sticking out" *blushing* a Power Grade lever has a vertical slot on the front of the lever and there is a +/- with arrows indicating which way to adjust the lever.
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline   Reply With Quote
Old 02-17-10, 06:49 AM   #12
sekaijin
Senior Member

sekaijin's Avatar

Join Date: Oct 2006
Location: Madison, Wisconsin
Bikes: 2000 Litespeed Classic, 1984 Schwinn LeTour, 1998 Gary Fisher Marlin, 1969 Hercules, 1977 Sekai 5000 Superlite, 1993 Koga-Myata TerraLiner, 2013 Trek Farley.
Posts: 1,140
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)

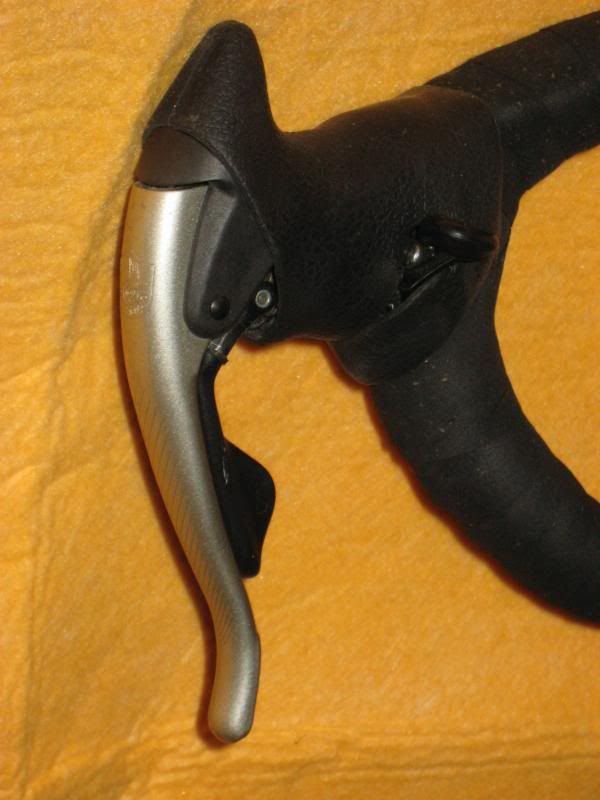

Mind if I revive-jack this thread? Here's another Campy lever - can anyone help ID it?

sekaijin is offline   Reply With Quote
Old 02-17-10, 10:22 PM   #13
luker
juneeaa memba!

Join Date: Oct 2003
Location: boogled up in...Idaho!
Bikes: Crap. The box is not big enough...
Posts: 5,633
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Looks about like a zenon 8 or 9 speed ergo lever to me. Power grade adjustment was first offered on Delta levers in 1989, btw. This is newer, and I'd guess that it is Chorus or Athena, based on black rubber and less than perfect finish.
luker is offline   Reply With Quote
