For the love of English 3 speeds...

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

For the love of English 3 speeds...

Old 10-14-18, 03:34 PM
  #18301
BigChief
Senior Member

BigChief's Avatar

Join Date: Jan 2015
Posts: 2,948
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1124 Post(s)
Likes: 0
Liked 12 Times in 10 Posts

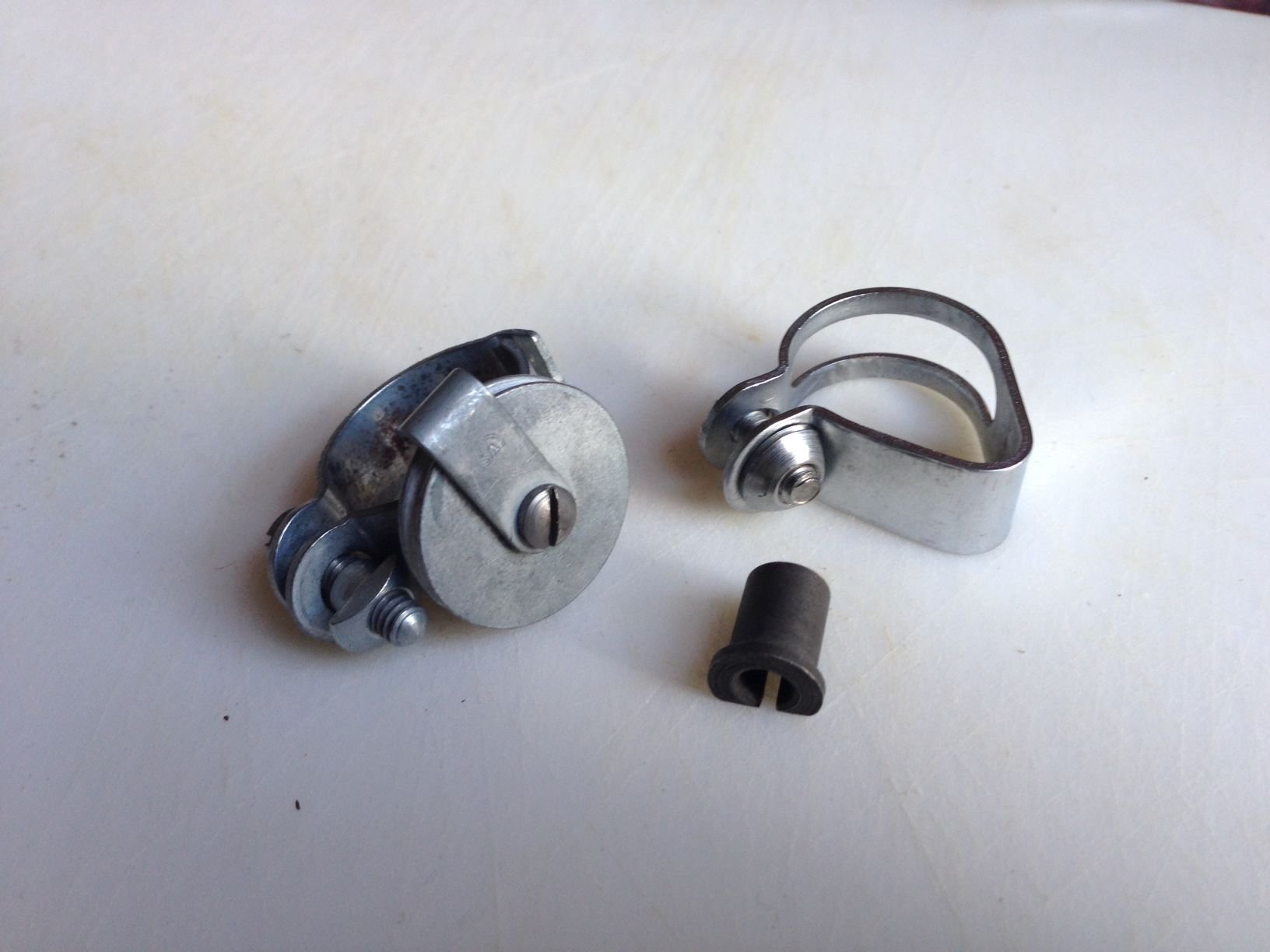

The earlier cable guides with the 2 piece bands were finished in gun barrel bluing. Sometime around 1950, SA changed to a dull gray finish. There were many different types of metal finishing and I'm not sure exactly the type, but it's similar to Parkerizing or Bonderizing. They used this same finish on the trigger shifter cases. The gun blued parts can be stripped of rust, polished and sent out to be hot blued at any gun shop. When restoring the gray finish I leave the rust in place. Maybe smooth it off a bit if it's scaley and burnish in some Brownells Action Magic dry lubricant. After a while it darkens and you would never know it wasn't the original finish.

A gun blued cable guide, cable stop and shifter

SA 38-48 by Billy Bones, on Flickr

Gray finished guide

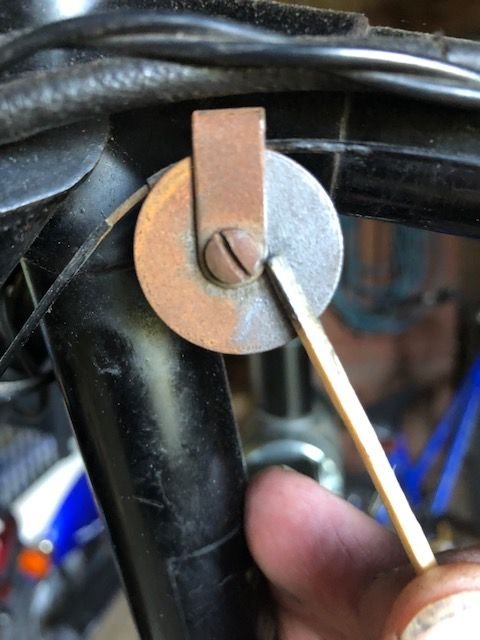

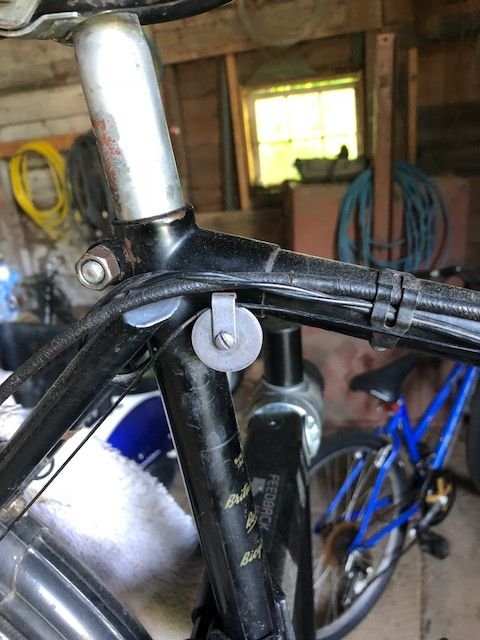

Me using Action Magic on a frame mounted guide

__________________
Inflate Hard
BigChief is offline
Old 10-15-18, 03:10 AM
  #18302
oldveloman
Member

oldveloman's Avatar

Join Date: Mar 2014
Location: Belgium
Posts: 40

Bikes: 1954 BSA 900E Roadster, 1961 Triumph Sports, 1953 Raleigh Sports, 1980 Raleigh Superbe, 1976 Raleigh Twenty, 1951 Taxandria, ±1950 The Gold Lion Tandem

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by PeterLYoung View Post
I found this 1936 BSA Roadster at an auction, It has BSA Three Speed plus Hub Brakes Front & Rear. It is Model 602DX Serial Number WD29996 and cost £6-12/6d when new. I have not found another when searching on-line so far. I also cannot find a spare 3Speed BSA Rear Hub with combined Hub Brake for spares though at present all works OK. I have now stripped it all completely and am rebuilding it after repainting as paintwork was very poor as it had been badly hand painted by a previous owner. Mechanically it was in good shape and all components just needed cleaning, de rusting and repainting. Frame is being powder coated and I have new transfers.
Hope to have it all finished and back on the road for next summer.
Hi Peter,
That' s a very nice find

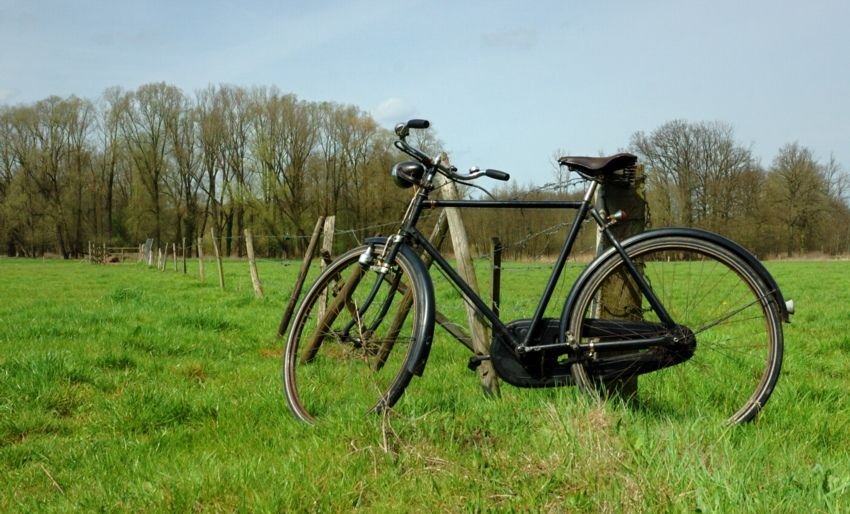

I have a 1954 BSA Model 900E Roadster with Stirrup brakes front and rear and the normal BSA 3-speed hub.
It is my favourite ride and is used for the longer journeys. The BSA 3-speed is very robust and is a licence built Sturmey Archer hub.
Below are some links to the Sturmey Acher pages:

Sturmey-Archer Heritage :: History

Sturmey-Archer Heritage :: History

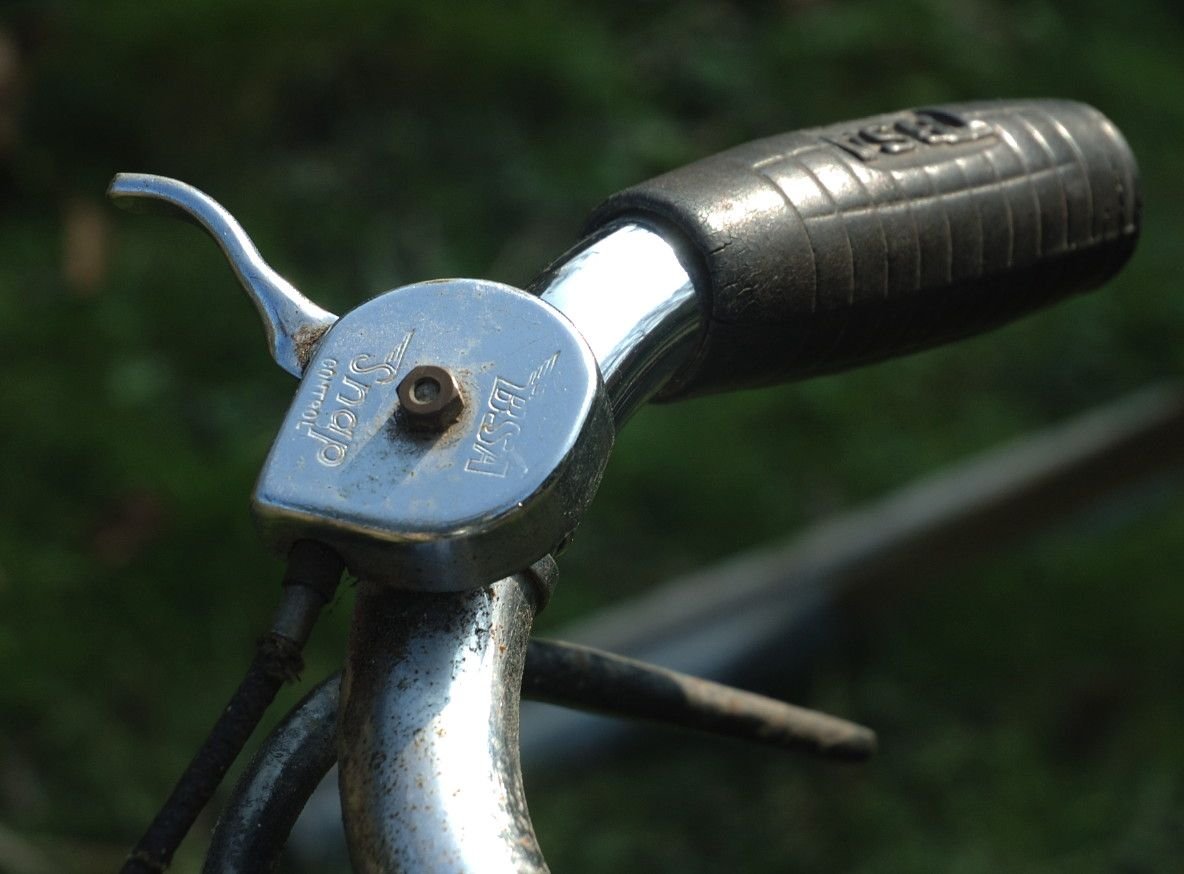

Mine has the postwar “snap-control" trigger and the original rubber BSA grips.




Enjoy it!

Peter
oldveloman is offline
Old 10-15-18, 05:02 AM
  #18303
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 4,605

Bikes: Waterford Paramount Touring, Bridgestone RB-T, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 L23 and L19, Schwinn Cimarron oddball build

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1227 Post(s)
Liked 23 Times in 15 Posts
Raleigh 3-speed, but not your ordinary Raleigh 3-speed.

https://richmond.craigslist.org/bik/...718738260.html

Raleigh chopper 3 speed bicycle - $180 (Richmond)







bicycle type: kids
frame size: not sure
wheel size: 16 in

Our chopper is for sale, it's in great working order my son has had hours of fun on his chopper, sadly he's now out grown it. We are now passing along the opportunity for the sale of the Chopper to the next cool kid on the block when you ride this bike you will be the coolest kid in the neighborhood. After many countless hours of fun my son has had on his Chopper, we hope your child will encounter as many enjoyable memories.Rear back break not working,but an easy fix. After doing our research on Ebay most choppers on eBay are a minimum starting price of $350.00. We are asking only $180.00 for our Chopper bike. This will be a cash only transaction. Contact Christine cell/text show contact info
Many thanks for reading.
thumpism is offline
Old 10-15-18, 05:44 AM
  #18304
PeterLYoung
Senior Member

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 214

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)2012 Trek Fuel EX7. 4)1974 Colnago Super, 5)1955 Freddie Grubb Meteor. 6)1993 Airborne Ti-Hag Titanium. 7)1936 BSA 602DX Roadster. 8)1957 Philips P2 Sports. 9)1955 Dayton Roadmaster. 10)1948 Humber Clubman.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 3 Times in 3 Posts
BSA Three Speed Hubs

Originally Posted by oldveloman View Post
Hi Peter,
That' s a very nice find

I have a 1954 BSA Model 900E Roadster with Stirrup brakes front and rear and the normal BSA 3-speed hub.
It is my favourite ride and is used for the longer journeys. The BSA 3-speed is very robust and is a licence built Sturmey Archer hub.
Below are some links to the Sturmey Acher pages:

Sturmey-Archer Heritage :: History

Sturmey-Archer Heritage :: History

Mine has the postwar “snap-control" trigger and the original rubber BSA grips.




Enjoy it!

Peter
I have been looking on the Veteran Cycle Club Website and found some clarification of how the BSA Three Speed came into being and I Quote the VCC & Tony Hadland below:-
--------------------------------------------------------------------Quote

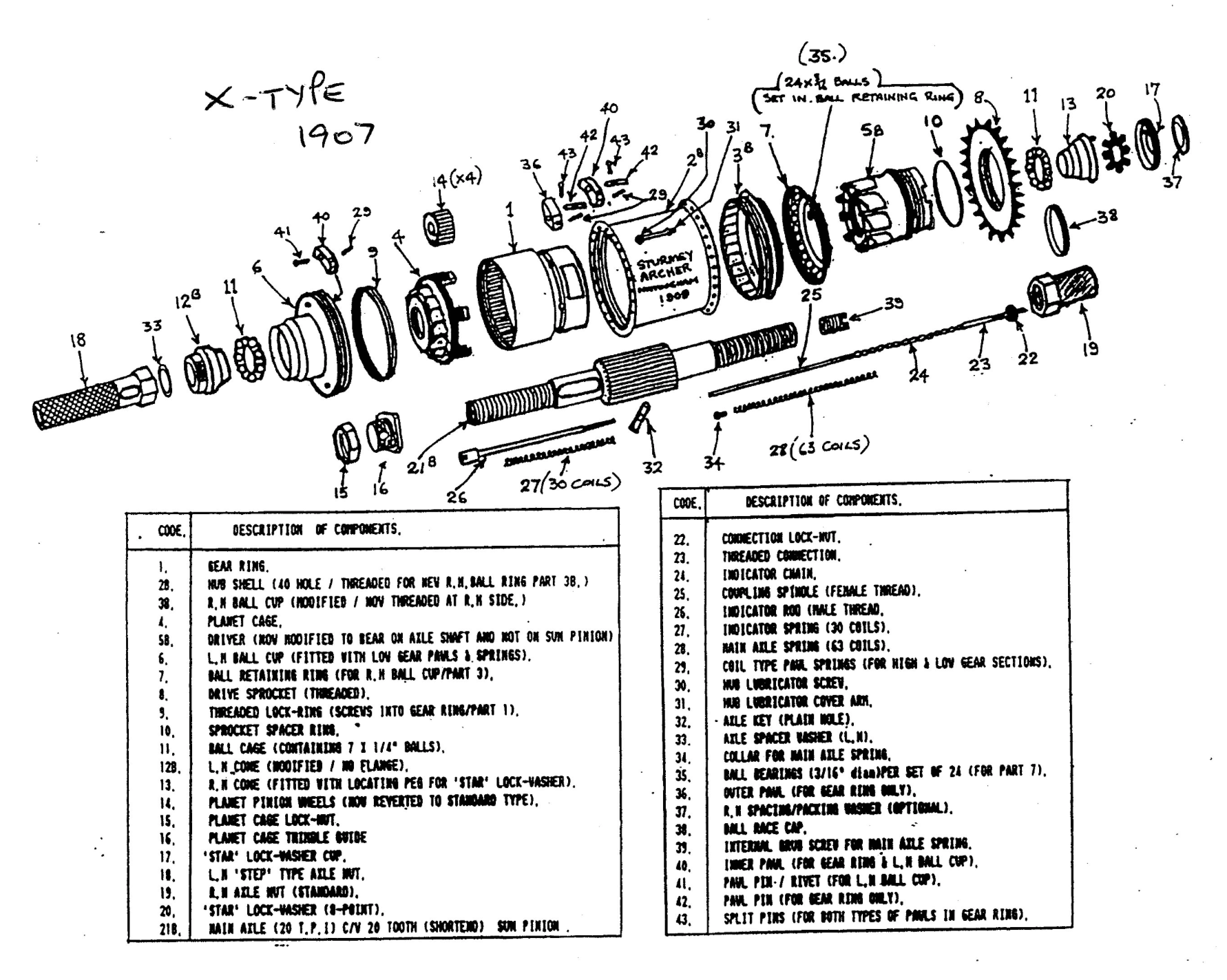

By 1907 BSA were desperate to produce a three-speed hub gear. They had merged with Eadie, makers of the ***an two-speed and a two-speed coaster brake, early in 1907. Towards the end of that year they acquired the rights of the Hub Two-Speed Gear Company. BSA therefore had the rights to produce no less than three two-speed hubs: the ***an (Eadie), the Hub and their own Mark II hub. In addition, they had the rights to the Eadie Two-Speed coaster. But demand for two-speeds was now much reduced, whereas the market for three-speeds was almost insatiable. The Hub Company had patented a three-speed in 1903 (#22,306) but nothing commercial seems to have come of it. BSA therefore approached the Three-Speed Gear Syndicate requesting permission to build the Sturmey-Archer three-speed under license. According to Henry Sturmey, writing in 1924, the Syndicate were unable to cope with demand in 1907 and therefore granted a license to BSA.
The Sturmey-Archer Story by Tony Hadland
The ***an two-speed hub had been introduced at the 1903 Stanley Show for the 1904 season, and fitted as standard on the Royal Enfield Modele Riche, while a coaster brake was fitted to the ‘Royal Enfield’ and ‘Model B.’ BSA at this time only sold components, not complete bicycles, but their order books were full, and their bikes in knock-down form were in much demand from abroad, particularly Australia. Motorcycle builders favoured BSA bicycles, in particular their spring-frame models. BSA were about to expand their business: with the success of the motorcycle market, by 1910 they had also re-commenced full-scale cycle production. This was why it was essential for them to be able to fully control the supply of three-speed hubs.
------------------------------------------------------------------Unquote
So it is now clear to me that BSA did not design their three speed hub but I still need to determine the SA version I have, though it looks very much like the 'X' version copied from the SA History site and it has the same very fine threaded gear change spindle that is so easy to break if has corroded together.

Last edited by PeterLYoung; 10-15-18 at 06:04 AM. Reason: Grammar Correction
PeterLYoung is offline
Old 10-15-18, 05:55 AM
  #18305
BigChief
Senior Member

BigChief's Avatar

Join Date: Jan 2015
Posts: 2,948
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1124 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
Originally Posted by thumpism View Post
Raleigh 3-speed, but not your ordinary Raleigh 3-speed.

https://richmond.craigslist.org/bik/...718738260.html

Raleigh chopper 3 speed bicycle - $180 (Richmond)







bicycle type: kids
frame size: not sure
wheel size: 16 in

Our chopper is for sale, it's in great working order my son has had hours of fun on his chopper, sadly he's now out grown it. We are now passing along the opportunity for the sale of the Chopper to the next cool kid on the block when you ride this bike you will be the coolest kid in the neighborhood. After many countless hours of fun my son has had on his Chopper, we hope your child will encounter as many enjoyable memories.Rear back break not working,but an easy fix. After doing our research on Ebay most choppers on eBay are a minimum starting price of $350.00. We are asking only $180.00 for our Chopper bike. This will be a cash only transaction. Contact Christine cell/text show contact info
Many thanks for reading.
Not the $350 Chopper you see on eBay. This isn't an English Raleigh. Much more recent, made in Asia somewhere.
__________________
Inflate Hard
BigChief is offline
Old 10-15-18, 06:32 AM
  #18306
PeterLYoung
Senior Member

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 214

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)2012 Trek Fuel EX7. 4)1974 Colnago Super, 5)1955 Freddie Grubb Meteor. 6)1993 Airborne Ti-Hag Titanium. 7)1936 BSA 602DX Roadster. 8)1957 Philips P2 Sports. 9)1955 Dayton Roadmaster. 10)1948 Humber Clubman.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by PeterLYoung View Post
I found this 1936 BSA Roadster at an auction, It has BSA Three Speed plus Hub Brakes Front & Rear. It is Model 602DX Serial Number WD29996 and cost £6-12/6d when new. I have not found another when searching on-line so far. I also cannot find a spare 3Speed BSA Rear Hub with combined Hub Brake for spares though at present all works OK. I have now stripped it all completely and am rebuilding it after repainting as paintwork was very poor as it had been badly hand painted by a previous owner. Mechanically it was in good shape and all components just needed cleaning, de rusting and repainting. Frame is being powder coated and I have new transfers.
Hope to have it all finished and back on the road for next summer.

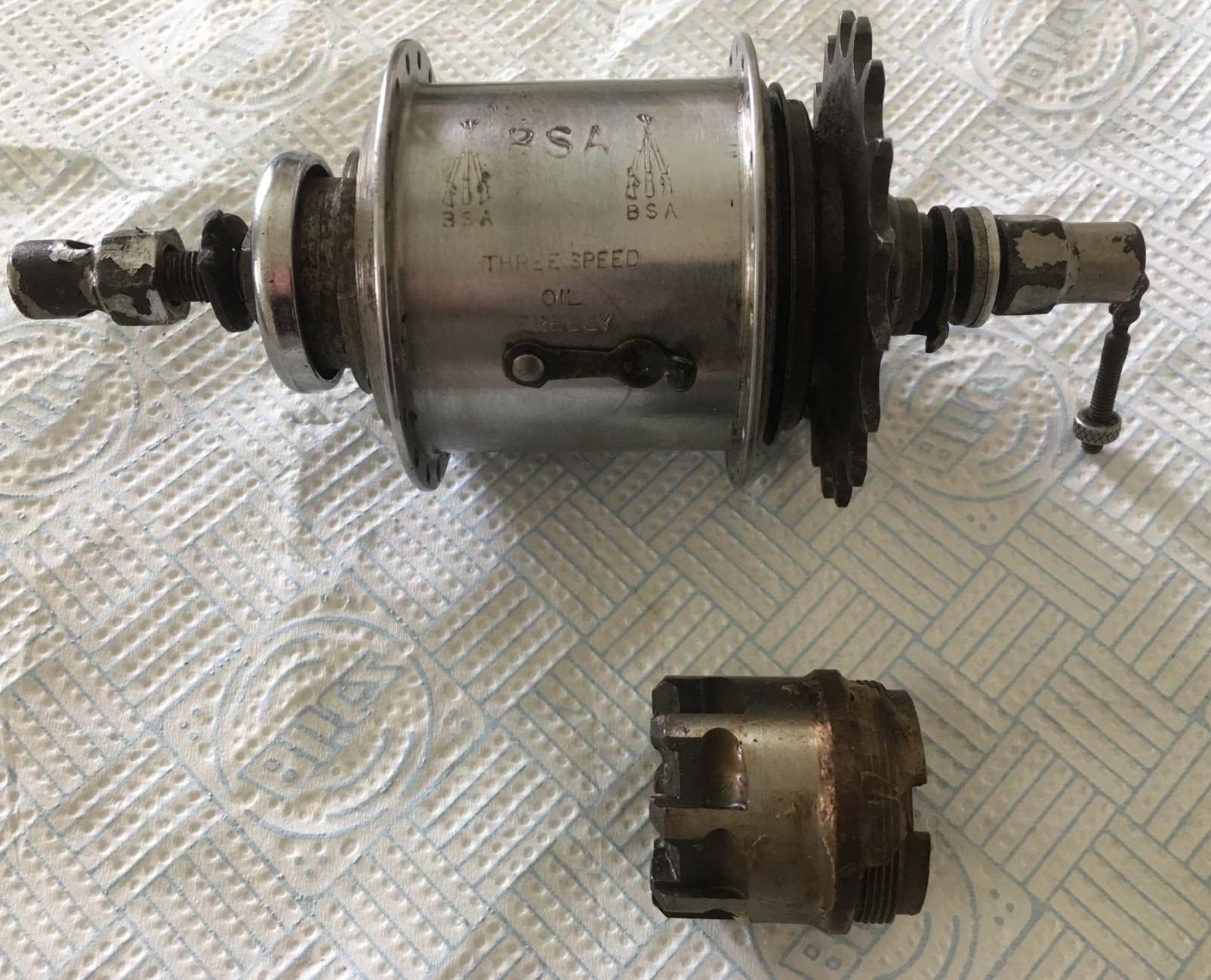

Just arrived in post today a BSA 3 Speed Hub plus a NOS BSA Hub Drive Piece, still has some greaseproof paper on it.

Now I can experiment with dismantling the hub plus have spare parts in case of repair or loss of components:-



Managed to unscrew the Gear Change Spindle OK so thats a good sign!!!
PeterLYoung is offline
Old 10-15-18, 09:25 PM
  #18307
adventurepdx
Senior Member

adventurepdx's Avatar

Join Date: Feb 2010
Location: Portland, Oregon
Posts: 894
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by gster View Post
24T seems too big a cog to me. It would make 1st so low that I doubt you'd even use it.
I've been happy with a 20T or 22T swap.
let us know your experience with the 24T.
"So low"?
Well, maybe for pretty flat Toronto...
I have a 23T cog for both my three speeds, and appreciate the low for the varied topography of Portland. I don't care too much about the overdrive, I want something that'll get me up the hills.
adventurepdx is offline
Old 10-15-18, 10:22 PM
  #18308
BigChief
Senior Member

BigChief's Avatar

Join Date: Jan 2015
Posts: 2,948
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1124 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
Originally Posted by PeterLYoung View Post
I have been looking on the Veteran Cycle Club Website and found some clarification of how the BSA Three Speed came into being and I Quote the VCC & Tony Hadland below:-
--------------------------------------------------------------------Quote
By 1907 BSA were desperate to produce a three-speed hub gear. They had merged with Eadie, makers of the ***an two-speed and a two-speed coaster brake, early in 1907. Towards the end of that year they acquired the rights of the Hub Two-Speed Gear Company. BSA therefore had the rights to produce no less than three two-speed hubs: the ***an (Eadie), the Hub and their own Mark II hub. In addition, they had the rights to the Eadie Two-Speed coaster. But demand for two-speeds was now much reduced, whereas the market for three-speeds was almost insatiable. The Hub Company had patented a three-speed in 1903 (#22,306) but nothing commercial seems to have come of it. BSA therefore approached the Three-Speed Gear Syndicate requesting permission to build the Sturmey-Archer three-speed under license. According to Henry Sturmey, writing in 1924, the Syndicate were unable to cope with demand in 1907 and therefore granted a license to BSA.
The Sturmey-Archer Story by Tony Hadland
The ***an two-speed hub had been introduced at the 1903 Stanley Show for the 1904 season, and fitted as standard on the Royal Enfield Modele Riche, while a coaster brake was fitted to the ‘Royal Enfield’ and ‘Model B.’ BSA at this time only sold components, not complete bicycles, but their order books were full, and their bikes in knock-down form were in much demand from abroad, particularly Australia. Motorcycle builders favoured BSA bicycles, in particular their spring-frame models. BSA were about to expand their business: with the success of the motorcycle market, by 1910 they had also re-commenced full-scale cycle production. This was why it was essential for them to be able to fully control the supply of three-speed hubs.
------------------------------------------------------------------Unquote
So it is now clear to me that BSA did not design their three speed hub but I still need to determine the SA version I have, though it looks very much like the 'X' version copied from the SA History site and it has the same very fine threaded gear change spindle that is so easy to break if has corroded together.
I love this bike. Thanks for sharing your research. It's fun to learn new things. Please post pics of the teardown if you have a chance. I'd like to see more of this bike.
__________________
Inflate Hard
BigChief is offline
Old 10-16-18, 01:40 AM
  #18309
PeterLYoung
Senior Member

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 214

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)2012 Trek Fuel EX7. 4)1974 Colnago Super, 5)1955 Freddie Grubb Meteor. 6)1993 Airborne Ti-Hag Titanium. 7)1936 BSA 602DX Roadster. 8)1957 Philips P2 Sports. 9)1955 Dayton Roadmaster. 10)1948 Humber Clubman.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by BigChief View Post
I love this bike. Thanks for sharing your research. It's fun to learn new things. Please post pics of the teardown if you have a chance. I'd like to see more of this bike.
1936 BSA Roadster Serial Number WD29996

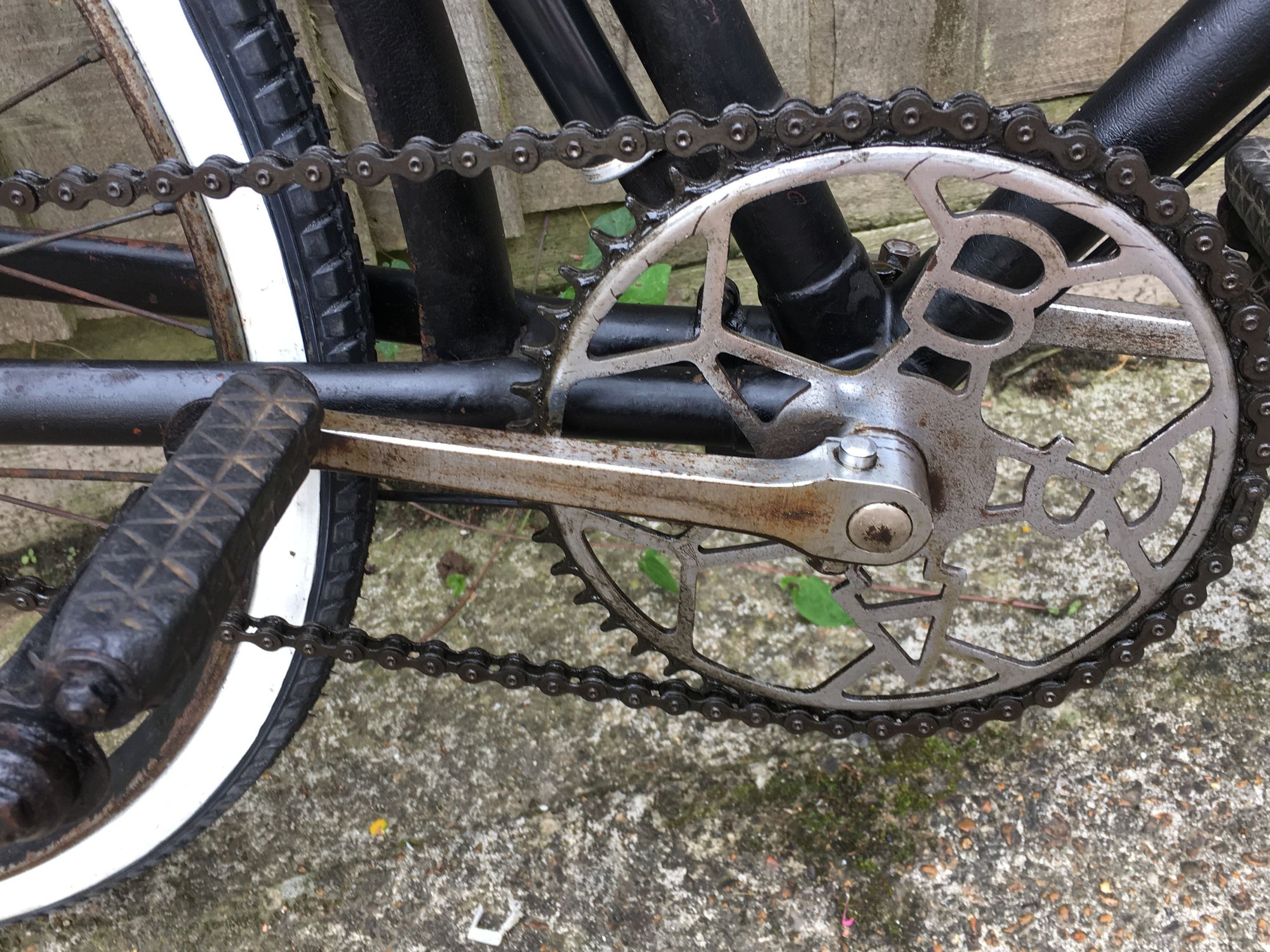

Here are a few more photos of parts of the bike only one taken of parts under restoration showing use of Clothes Rail and Garden Wire to respray small parts, an approach that works very well.

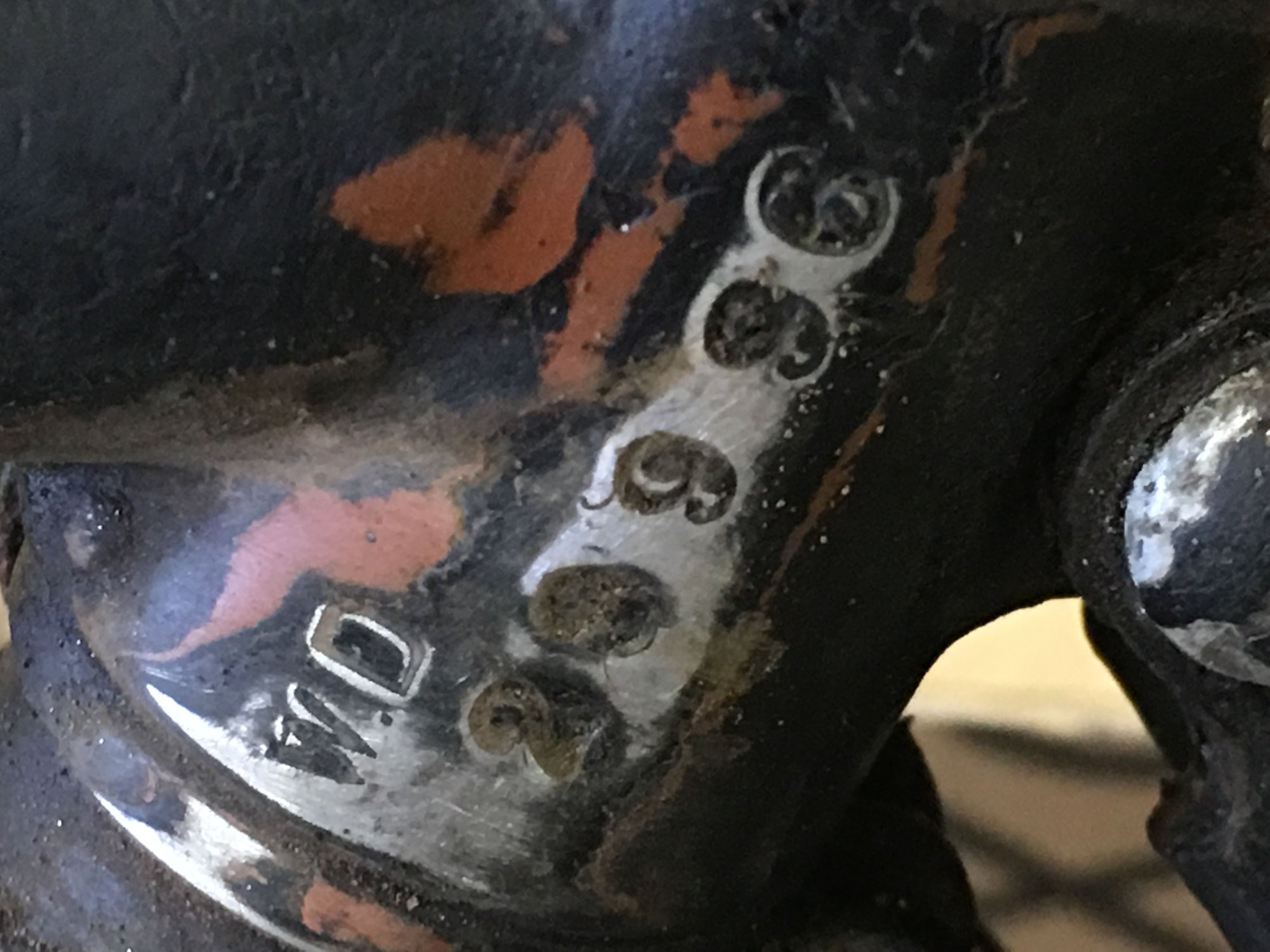

Found the Bike Serial Number stamped on Saddle Lug, had to file off paint to make visible.

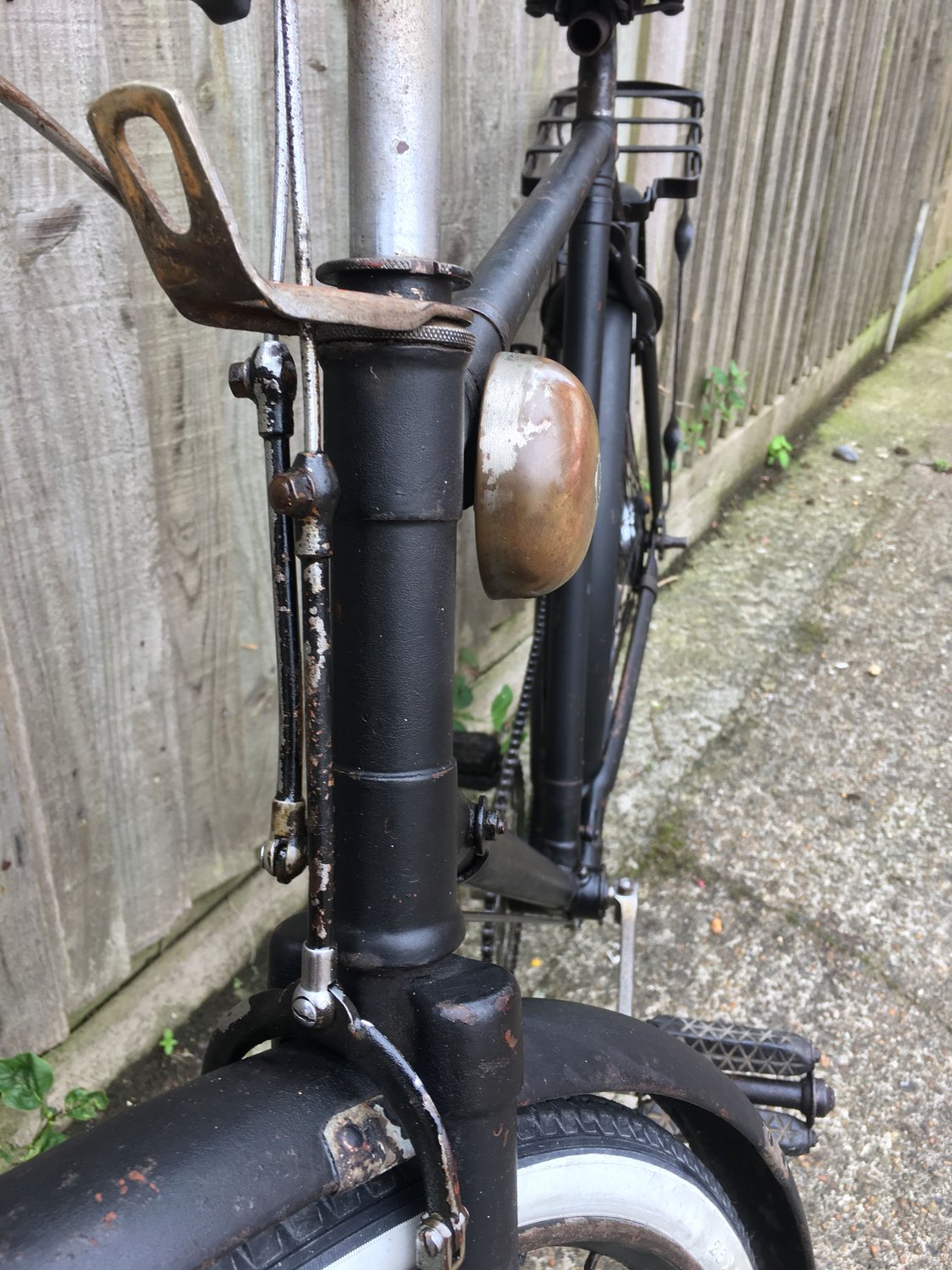

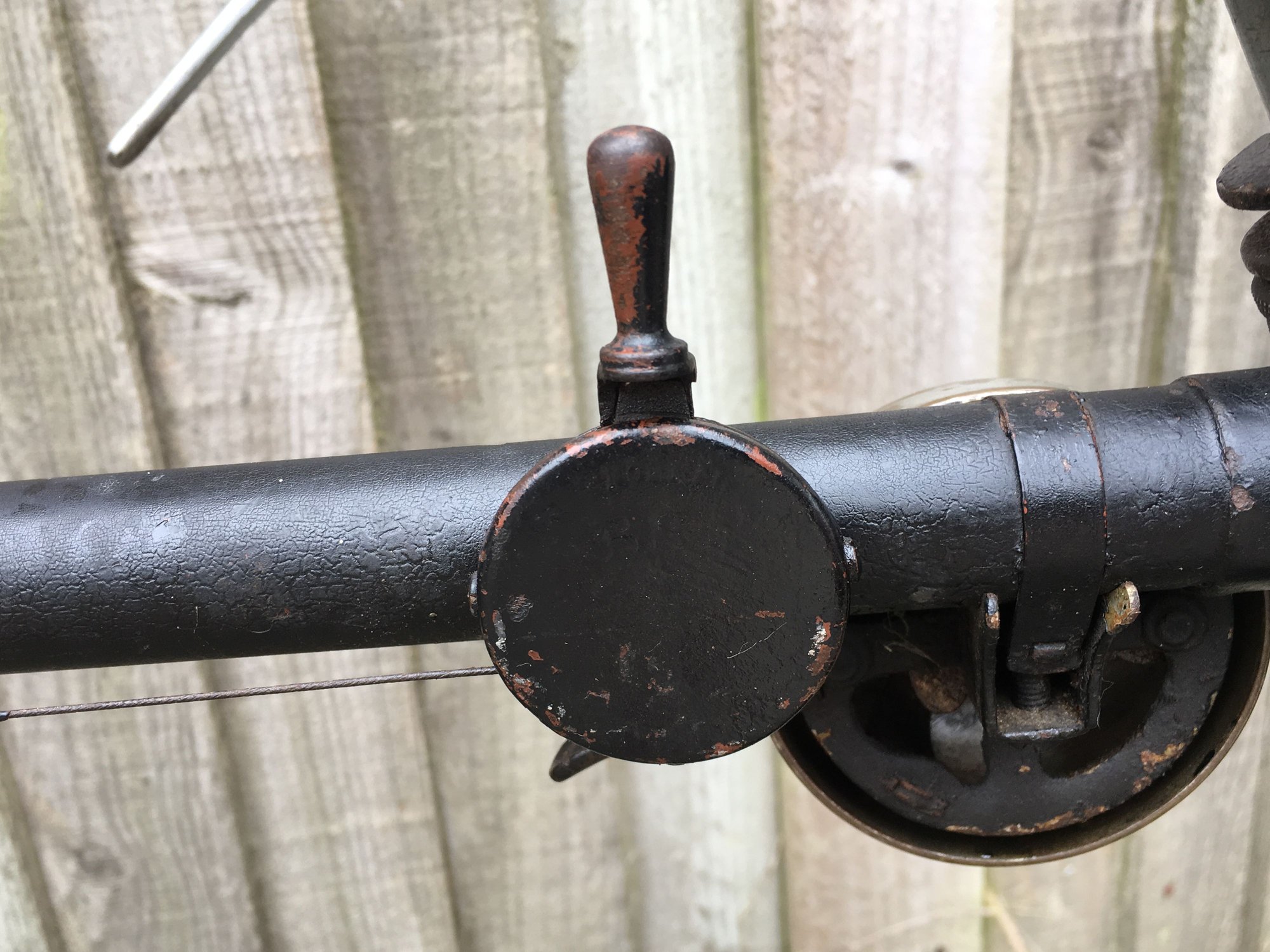

Original BSA Gear Changer with Lucas Challis Bell behind.




Lucas Challis Bell.

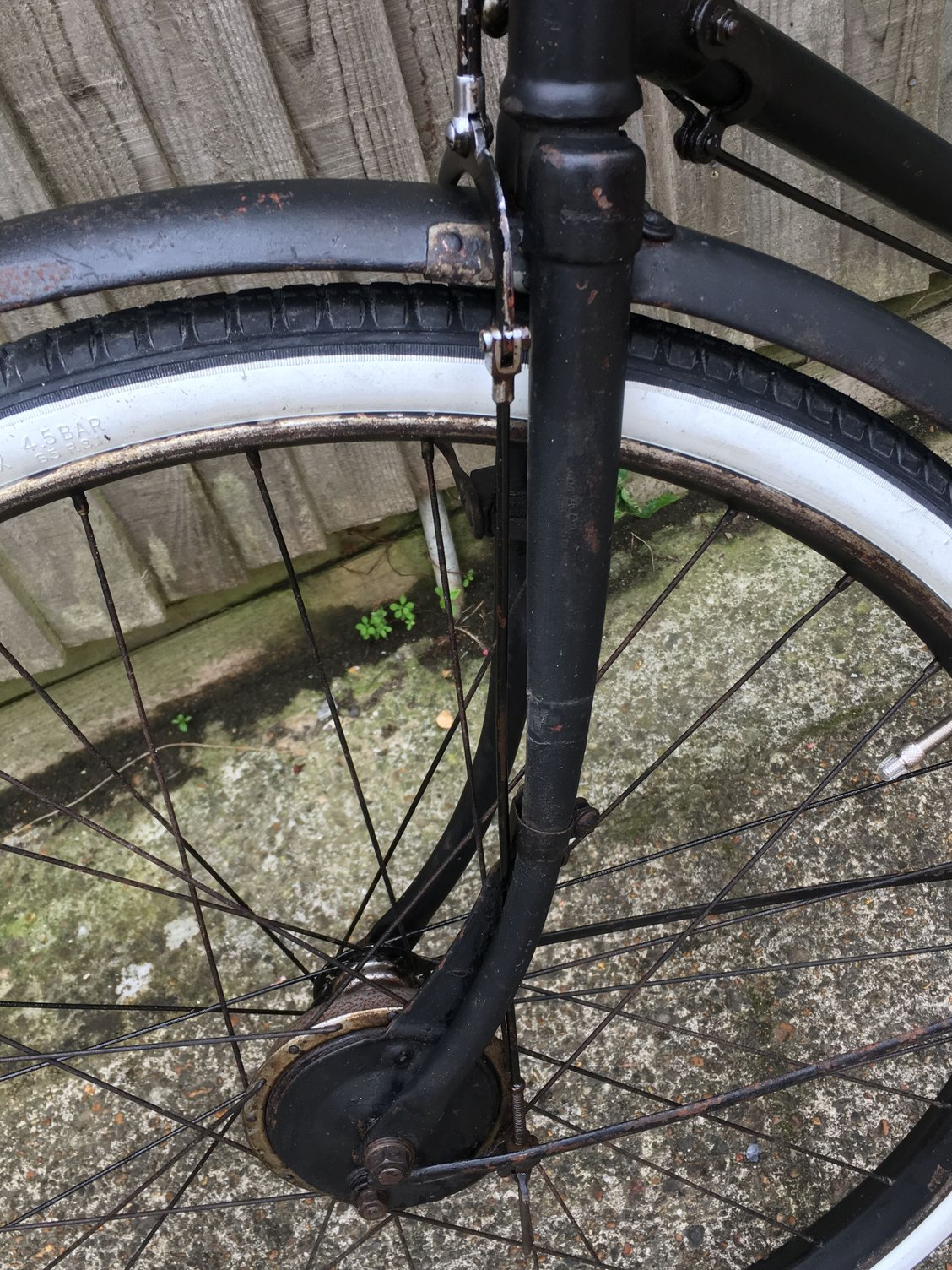

Front BSA Brake Hub, have a similar Sturmey Archer one but design is different.

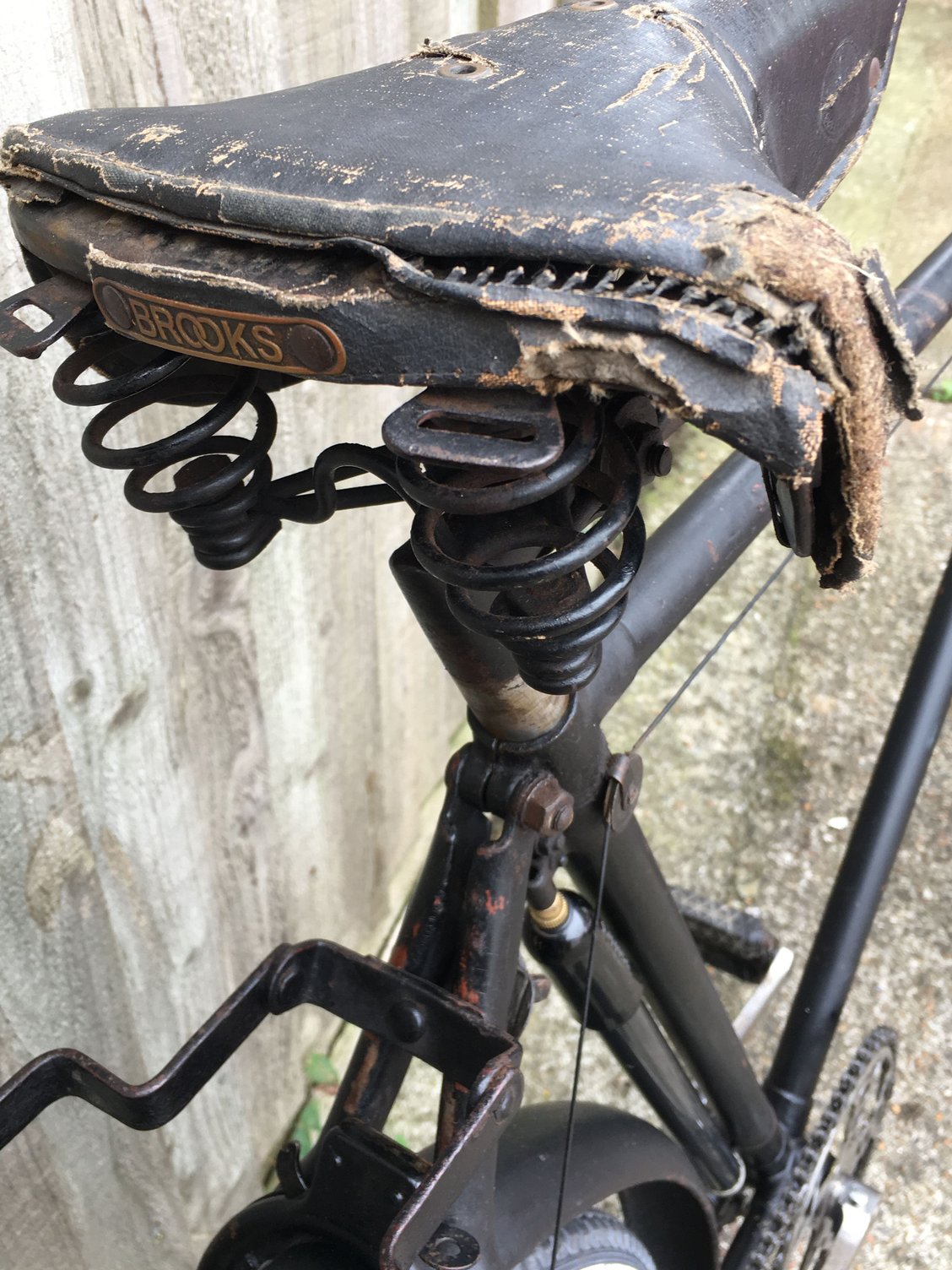

Original Saddle, very fragile so I am restoring a Brooks Leather B66 which will be more practical. It was used on similar bikes at the time.




Combined BSA Three Speed & Hub Brake, seems to be a rare item, have not found one on the Web yet.

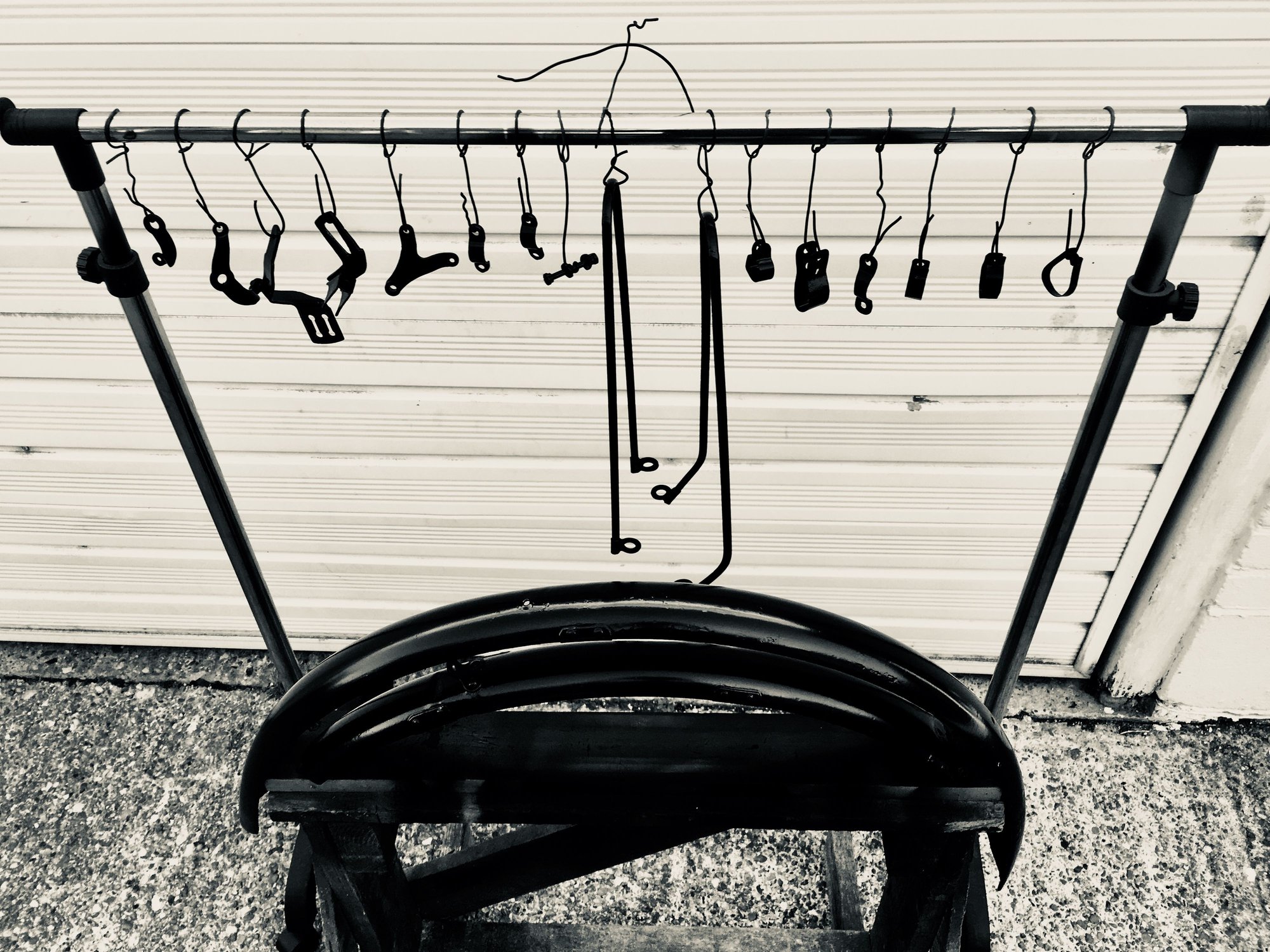

Clothes Rail and Garden Wire are great for spraying small items, Mudguards on trestle in front.
PeterLYoung is offline
Old 10-16-18, 04:24 AM
  #18310
gster
Senior Member

gster's Avatar

Join Date: Apr 2012
Location: Toronto
Posts: 1,639

Bikes: 1971 Hercules, 1978 Raleigh Superbe, 1978 Raleigh Tourist, 1964 Glider 3 Speed, 1967 Raleigh Sprite 5 Speed, 1968 Hercules AMF 3 Speed, 1972 Raleigh Superbe, 1976 Raleigh Superbe, 1957 Flying Pigeon, 1967 Dunelt 3 Speed

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 14 Times in 13 Posts
Originally Posted by adventurepdx View Post
"So low"?
Well, maybe for pretty flat Toronto...
I have a 23T cog for both my three speeds, and appreciate the low for the varied topography of Portland. I don't care too much about the overdrive, I want something that'll get me up the hills.
Toronto is pretty flat travelling crosstown (east-west) but going north is a steady incline.
gster is offline
Old 10-16-18, 07:10 AM
  #18311
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 5,492

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 968 Post(s)
Liked 18 Times in 16 Posts
Originally Posted by gster View Post

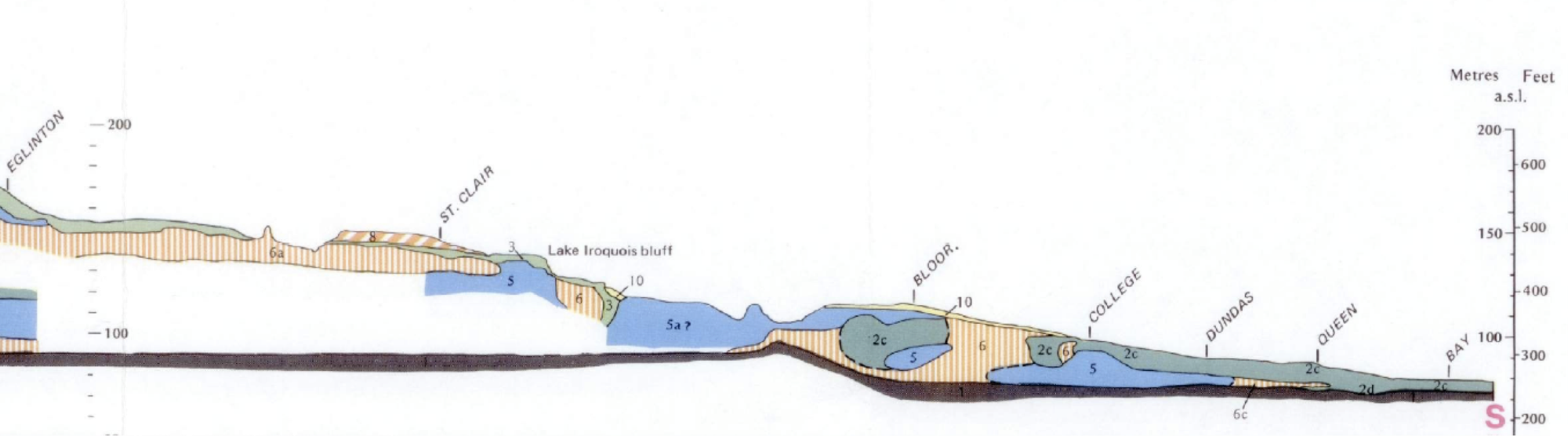

Toronto is pretty flat travelling crosstown (east-west) but going north is a steady incline.
Cool map. Riding to uptown TO from the lake was always a good workout. The Don Valley ravine was my fave ride north. All parkland. You just had to stand and go hard to get out of the vally at Eglinton and Leslie for about 15 minutes.

Last edited by clubman; 10-16-18 at 08:44 AM.
clubman is offline
Old 10-16-18, 08:06 AM
  #18312
mtb_addict
Senior Member

Join Date: Jun 2011
Posts: 2,692
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 3016 Post(s)
Liked 32 Times in 28 Posts
Saw this "1978 Raleigh 3" on CL...is the top tube suppose to be bent...or has it been damaged?
mtb_addict is offline
Old 10-16-18, 08:43 AM
  #18313
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 5,492

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 968 Post(s)
Liked 18 Times in 16 Posts
It's a stock 19" camelback frame. In older days they were often called Colts but were also released with other offbrand names.
clubman is offline
Old 10-16-18, 09:05 AM
  #18314
mtb_addict
Senior Member

Join Date: Jun 2011
Posts: 2,692
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 3016 Post(s)
Liked 32 Times in 28 Posts
Originally Posted by clubman View Post
It's a stock 19" camelback frame. In older days they were often called Colts but were also released with other offbrand names.
I guess it's made that way to get the seat lower. Looks like the seat tube is only around 18". Looks like the frame is rather small.

Last edited by mtb_addict; 10-16-18 at 09:19 AM.
mtb_addict is offline
Old 10-16-18, 11:24 AM
  #18315
adventurepdx
Senior Member

adventurepdx's Avatar

Join Date: Feb 2010
Location: Portland, Oregon
Posts: 894
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by gster View Post
Toronto is pretty flat travelling crosstown (east-west) but going north is a steady incline.
There is a difference between steady incline and short, steep hills. Portland's got both. I appreciate a low of around 40" when I hit those hills at 5-8% grade.

In any case (and without arguing further), the point I'm trying to make is that we're all different. We may have different fitness abilities and the terrain of our respective homes isn't the same as everyone else's. You may think going lower than 20T in the rear cog is overkill, whereas I tried that here and moved on to 23T which I am much happier with.
adventurepdx is offline
Old 10-16-18, 11:49 AM
  #18316
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 2,646

Bikes: Bob Jackson World Tour, 81 miyata 912 and 86 miyata 312.

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 817 Post(s)
Likes: 0
Liked 21 Times in 10 Posts
Hey I set my aw hubs up with a max of 54 in 2nd. Sometimes significantly lower. I feel your pain brother!
52telecaster is offline
Old 10-16-18, 05:44 PM
  #18317
gster
Senior Member

gster's Avatar

Join Date: Apr 2012
Location: Toronto
Posts: 1,639

Bikes: 1971 Hercules, 1978 Raleigh Superbe, 1978 Raleigh Tourist, 1964 Glider 3 Speed, 1967 Raleigh Sprite 5 Speed, 1968 Hercules AMF 3 Speed, 1972 Raleigh Superbe, 1976 Raleigh Superbe, 1957 Flying Pigeon, 1967 Dunelt 3 Speed

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 14 Times in 13 Posts
Originally Posted by clubman View Post
Cool map. Riding to uptown TO from the lake was always a good workout. The Don Valley ravine was my fave ride north. All parkland. You just had to stand and go hard to get out of the valley at Eglinton and Leslie for about 15 minutes.
It sits in the old lake bed with Davenport Road being the old shoreline.
gster is offline
Old 10-16-18, 05:46 PM
  #18318
gster
Senior Member

gster's Avatar

Join Date: Apr 2012
Location: Toronto
Posts: 1,639

Bikes: 1971 Hercules, 1978 Raleigh Superbe, 1978 Raleigh Tourist, 1964 Glider 3 Speed, 1967 Raleigh Sprite 5 Speed, 1968 Hercules AMF 3 Speed, 1972 Raleigh Superbe, 1976 Raleigh Superbe, 1957 Flying Pigeon, 1967 Dunelt 3 Speed

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 14 Times in 13 Posts
Originally Posted by adventurepdx View Post
There is a difference between steady incline and short, steep hills. Portland's got both. I appreciate a low of around 40" when I hit those hills at 5-8% grade.

In any case (and without arguing further), the point I'm trying to make is that we're all different. We may have different fitness abilities and the terrain of our respective homes isn't the same as everyone else's. You may think going lower than 20T in the rear cog is overkill, whereas I tried that here and moved on to 23T which I am much happier with.
Agreed.
gster is offline
Old 10-16-18, 08:38 PM
  #18319
gster
Senior Member

gster's Avatar

Join Date: Apr 2012
Location: Toronto
Posts: 1,639

Bikes: 1971 Hercules, 1978 Raleigh Superbe, 1978 Raleigh Tourist, 1964 Glider 3 Speed, 1967 Raleigh Sprite 5 Speed, 1968 Hercules AMF 3 Speed, 1972 Raleigh Superbe, 1976 Raleigh Superbe, 1957 Flying Pigeon, 1967 Dunelt 3 Speed

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 14 Times in 13 Posts
Originally Posted by tigervw78 View Post
Thanks for the info everyone. I've got a 22T on the 72 Sports with flipped bars and a B17 narrow. I mainly use 2nd on that one. I also recently got a 74 Sports with B66 that I plan to leave original and riding upright with the 18T is tough. I was considering the 24T because I traverse this steep harbor bridge quite a bit and Memphis humidity is a killer. Ironically, we can get pretty strong winds as well. I'll be 48 in a few days and the knees aren't as strong as they used to be....

If I find that riding upright with 24T is too low, I ordered a 22T as well, so I'll swap them. Will let you know how it goes.
At least if you switch back to a smaller cog, you can just shorten the chain and not buy a new one...
P.S. I'm proposing a new PBS segment on local TV.
Cog Talk
15 minutes a week
Phone in show
w /special guests.
Hopefully prizes (cogs)
gster is offline
Old 10-16-18, 10:52 PM
  #18320
agmetal
Senior Member

agmetal's Avatar

Join Date: Jul 2009
Location: Boston, MA
Posts: 1,541

Bikes: Bianchi Volpe, ANT 3-speed roadster, New Albion Privateer singlespeed, Raleigh One Way singlespeed, Raleigh Professional "retro roadie" rebuild, 198? Fuji(?) franken-5-speed, 1937 Raleigh Tourist, 1952 Raleigh Sports, 1966 Raleigh Sports step-through

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Liked 11 Times in 7 Posts

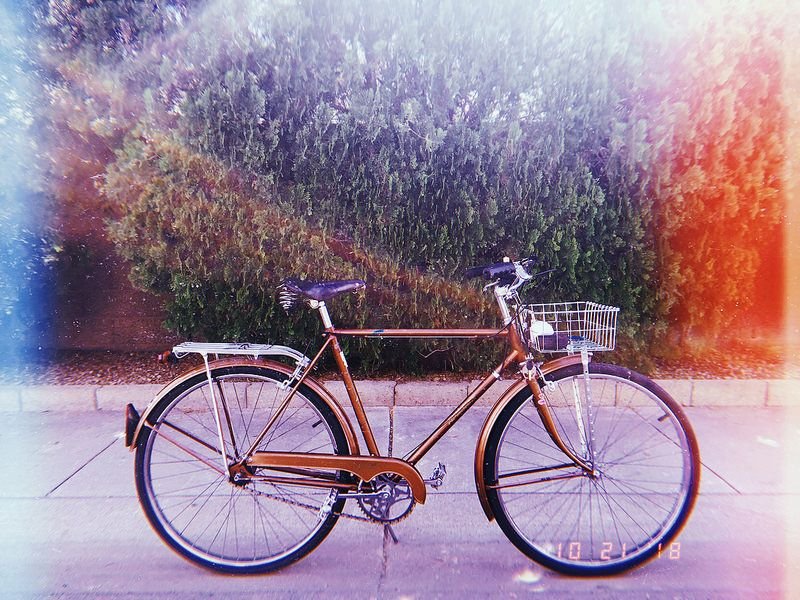

Just a picture of my 1937 Raleigh Tourist taken with a 1940s camera (and a tiny bit of tweaking on a computer)

Last edited by agmetal; 10-16-18 at 10:56 PM.
agmetal is offline
Old 10-17-18, 04:36 AM
  #18321
BigChief
Senior Member

BigChief's Avatar

Join Date: Jan 2015
Posts: 2,948
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1124 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
Cool photo!. The boots give it away as modern though. Do you have the lights working yet? I just recently joined the Dynohub club with my last project. It's a nice feature, I'm having fun with it. Oops...I meant to say fitment!
__________________
Inflate Hard
BigChief is offline
Old 10-17-18, 05:11 AM
  #18322
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,281
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 539 Post(s)
Liked 19 Times in 16 Posts
Originally Posted by BigChief View Post
I believe they are Sturmey Archer KB and LB hubs. Either made under license or simply stamped with the BSA logo. Here's a 1934 SA catalog page. Spares for these are a machine shop proposition unless you're exceptionally lucky. Great bike!!!
I have a 1950 BSA hub disassembled on the bench right now, and it looks exactly like a Sturmey Archer X model. http://www.sturmey-archerheritage.co...os/pic-8.1.jpg
And the BSA https://hadland.files.wordpress.com/2012/07/bsa.pdf
Dan Burkhart is offline
Old 10-17-18, 05:18 AM
  #18323
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,281
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 539 Post(s)
Liked 19 Times in 16 Posts
Originally Posted by PeterLYoung View Post
Just arrived in post today a BSA 3 Speed Hub plus a NOS BSA Hub Drive Piece, still has some greaseproof paper on it.

Now I can experiment with dismantling the hub plus have spare parts in case of repair or loss of components:-



Managed to unscrew the Gear Change Spindle OK so thats a good sign!!!
I'm trouble shooting a hub of that model right now. Pretty sure I've identified the issues with it and will be posting a youtube video when I'm done, likely in a day or two.
Dan Burkhart is offline
Old 10-17-18, 06:10 AM
  #18324
BigChief
Senior Member

BigChief's Avatar

Join Date: Jan 2015
Posts: 2,948
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1124 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
Originally Posted by Dan Burkhart View Post
I'm trouble shooting a hub of that model right now. Pretty sure I've identified the issues with it and will be posting a youtube video when I'm done, likely in a day or two.
That's great! Videos are wonderful. I just serviced my first Dyno Hub and it so nice to be able to watch one on YouTube before I started. My days of servicing AW hubs goes way back before the internet, but I had to do an S5 without one and it was a pest to sit there with a pad and pencil making notes of every detail as it came apart. I would have liked to have a video to refer to. The chances of me servicing an X hub are pretty slim, but I would enjoy watching anyway. You never know.
__________________
Inflate Hard
BigChief is offline
Old 10-17-18, 06:29 AM
  #18325
PeterLYoung
Senior Member

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 214

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)2012 Trek Fuel EX7. 4)1974 Colnago Super, 5)1955 Freddie Grubb Meteor. 6)1993 Airborne Ti-Hag Titanium. 7)1936 BSA 602DX Roadster. 8)1957 Philips P2 Sports. 9)1955 Dayton Roadmaster. 10)1948 Humber Clubman.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Dan Burkhart View Post
I'm trouble shooting a hub of that model right now. Pretty sure I've identified the issues with it and will be posting a youtube video when I'm done, likely in a day or two.
Hi Dan: Will look forward to your video, got mine 90% dismantled without breaking anything, found out why it did not work well, somebody tried undoing Left side adjuster cone and dropped a ball bearing from the cage into the inside of the hub, probably without realising and did it all up again, it was a bit grindy to say the least!!!
PeterLYoung is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
