For the love of English 3 speeds...

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

For the love of English 3 speeds...

Old 02-07-19, 06:27 AM
  #19226
gster
Senior Member

gster's Avatar

Join Date: Apr 2012
Location: Toronto
Posts: 1,631

Bikes: 1971 Hercules, 1978 Raleigh Superbe, 1978 Raleigh Tourist, 1964 Glider 3 Speed, 1967 Raleigh Sprite 5 Speed, 1968 Hercules AMF 3 Speed, 1972 Raleigh Superbe, 1976 Raleigh Superbe, 1957 Flying Pigeon, 1967 Dunelt 3 Speed

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 549 Post(s)
Likes: 0
Liked 12 Times in 12 Posts
Originally Posted by Buellster View Post
The flying goat has been lots of fun so far. It's been my primary commuter for a few weeks. I am loving the 4 speed. I am a little worried about one thing though. Gears 2-4 are grand but in gear 1, which I can miraculously stay in now, it feels... rough. I'm not sure how else to describe it. It's not very rough, it just feels... less smooth. That is in comparison to the beautiful butter and velvet quality of gears 2-4 gear 1 feels more like an average cassete.
is this normal?
Often the culprit is the cable. An old cable may look fine but could have minor kinks/rough spots inside the housing that bind/stick etc.
My current project ('53 BSA w/ '64 hub) was not shifting properly. I thought the problem was the trigger.. it wasn't.
A new cable is a well worth the minimal cost ($8.00-$12.00) and time to install before pulling a hub apart..
gster is offline
Old 02-07-19, 06:52 AM
  #19227
BigChief
Senior Member

BigChief's Avatar

Join Date: Jan 2015
Posts: 2,942
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1119 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
Originally Posted by gster View Post
Often the culprit is the cable. An old cable may look fine but could have minor kinks/rough spots inside the housing that bind/stick etc.
My current project ('53 BSA w/ '64 hub) was not shifting properly. I thought the problem was the trigger.. it wasn't.
A new cable is a well worth the minimal cost ($8.00-$12.00) and time to install before pulling a hub apart..
I have also found broken strands on inner cables causing problems.Depending on how important originality is to the project, reusing the cable casing and replacing the inner cable without a modern pinch bolt adapter is easy to do with very little extra cost or effort.
__________________
Inflate Hard
BigChief is offline
Old 02-07-19, 07:53 AM
  #19228
paulb_in_bkln
Senior Member

Join Date: Mar 2018
Location: Brooklyn, NY
Posts: 512

Bikes: 1983 Trek 600, 1972 Raleigh Sports Step Thru, 1963 Rudge Sports, 2007 Dahon MuP8, Dahon Speed, Public Mixte 8-speed IGH, mid-70s Peugeot Mixte AW conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 265 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Originally Posted by gster View Post
I was in New York City last w/e.
I'm not sure I could ride a bike there.....
and I live in Toronto (also a busy city)
I'm sure you could. It's best to ride very defensively and I leave a lot of margin for error by not riding aggressively, also developing some good habits helps, like never riding up alongside a big truck at an intersection, particularly the passenger side. All in all, however, I think it's less dangerous than riding in a lot of NYC's suburbs, where because of the pattern of development very often the only route from A to B is a busy arterial with traffic moving fast, minimal shoulders, and cars constantly turning off into parking areas, and not to mention resentful drivers who despise anyone on a bike. We have had some ghastly accidents. Still, the reward of riding in a big busy city is so great. I almost can't put it into words; maybe someone else can do better than I can. (I was riding the Rudge for both of these snapshots so I feel I'm not too far off topic.)

paulb_in_bkln is offline
Old 02-07-19, 08:01 AM
  #19229
paulb_in_bkln
Senior Member

Join Date: Mar 2018
Location: Brooklyn, NY
Posts: 512

Bikes: 1983 Trek 600, 1972 Raleigh Sports Step Thru, 1963 Rudge Sports, 2007 Dahon MuP8, Dahon Speed, Public Mixte 8-speed IGH, mid-70s Peugeot Mixte AW conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 265 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Originally Posted by Buellster View Post
The flying goat has been lots of fun so far. It's been my primary commuter for a few weeks. I am loving the 4 speed. I am a little worried about one thing though. Gears 2-4 are grand but in gear 1, which I can miraculously stay in now, it feels... rough. I'm not sure how else to describe it. It's not very rough, it just feels... less smooth. That is in comparison to the beautiful butter and velvet quality of gears 2-4 gear 1 feels more like an average cassete.
is this normal?
Is this an FW hub? I can't remember from old posts is any particular vintage 4-speed preferable?
paulb_in_bkln is offline
Old 02-07-19, 08:47 AM
  #19230
Buellster
Senior Member

Buellster's Avatar

Join Date: Jun 2018
Posts: 718
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 209 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by paulb_in_bkln View Post
Is this an FW hub? I can't remember from old posts is any particular vintage 4-speed preferable?
It is an FW I believe. Which if I remember right is the preferable of the two. The AW had a lot of finicky issue, more so than the FW. I may have that backwards but I sprung for this one because it was the better of the two options.


Originally Posted by BigChief View Post
I have also found broken strands on inner cables causing problems.Depending on how important originality is to the project, reusing the cable casing and replacing the inner cable without a modern pinch bolt adapter is easy to do with very little extra cost or effort.
.
Originally Posted by gster View Post
Often the culprit is the cable. An old cable may look fine but could have minor kinks/rough spots inside the housing that bind/stick etc.
My current project ('53 BSA w/ '64 hub) was not shifting properly. I thought the problem was the trigger.. it wasn't.
A new cable is a well worth the minimal cost ($8.00-$12.00) and time to install before pulling a hub apart..
Thanks guys I'll check it out! It was a new cable, but the process of getting this working, two different triggers, one that I rebuilt, another i didnt. Means it's been pulled in and out about 4 or 5 times and definitely has some rough spots. I told myself "if it works I'll get a new cable" but was so unsure 1st gear would hold I didnt want to go out and buy a new cable just yet.
It did hold and it worked so well in everything but 1st I got to thinking that lowest gear must just be so much strain on the hub that it feels a little less buttery.
It just struck me because it wasnt so much a shifting issue. It goes into first fine, albeit with less of a "click" feeling. It locks in and on the steepest of hills stays in. It just feels different. At first I chalked it up to all the extra pressure it and I were exerting going up a steep hill, all that heavy pedaling and that tight cable. But I noticed that heavy pedaling In gears 2-4 doesnt have quite the same feel. In those gears if I say go from a dead stop in 4 and pump down on the pedals, it feels rougher but not the same feel as in 1. Its hard to explain, it just feels different. I fear I'm damaging some internal component and the recent image on this thread of smashed gears made me want to ask some questions haha

Last edited by Buellster; 02-07-19 at 08:52 AM.
Buellster is offline
Old 02-07-19, 09:07 AM
  #19231
paulb_in_bkln
Senior Member

Join Date: Mar 2018
Location: Brooklyn, NY
Posts: 512

Bikes: 1983 Trek 600, 1972 Raleigh Sports Step Thru, 1963 Rudge Sports, 2007 Dahon MuP8, Dahon Speed, Public Mixte 8-speed IGH, mid-70s Peugeot Mixte AW conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 265 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Originally Posted by gster View Post
Often the culprit is the cable. An old cable may look fine but could have minor kinks/rough spots inside the housing that bind/stick etc.
My current project ('53 BSA w/ '64 hub) was not shifting properly. I thought the problem was the trigger.. it wasn't.
A new cable is a well worth the minimal cost ($8.00-$12.00) and time to install before pulling a hub apart..
I got the impression the roughness is in the pedaling, not the shifting. I could have read it wrong, though.
paulb_in_bkln is offline
Old 02-07-19, 09:38 AM
  #19232
Ballenxj
Senior Member

Join Date: Jun 2017
Posts: 618
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 307 Post(s)
Liked 5 Times in 5 Posts
Originally Posted by paulb_in_bkln View Post
I got the impression the roughness is in the pedaling, not the shifting. I could have read it wrong, though.
This is what I thought as well. I'm sure the cable can affect shifting, and staying in gear, but would be really surprised to find it would make it feel rough while actually in gear?
Ballenxj is offline
Old 02-07-19, 10:36 AM
  #19233
Buellster
Senior Member

Buellster's Avatar

Join Date: Jun 2018
Posts: 718
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 209 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by paulb_in_bkln View Post
I got the impression the roughness is in the pedaling, not the shifting. I could have read it wrong, though.
Originally Posted by Ballenxj View Post
This is what I thought as well. I'm sure the cable can affect shifting, and staying in gear, but would be really surprised to find it would make it feel rough while actually in gear?
you guys are correct. It is during the pedaling. I just figured the cable is still worth replacing as suggested since I know it's in rough shape.
Buellster is offline
Old 02-07-19, 11:22 AM
  #19234
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 131

Bikes: 1970s Schwinn SuperSport 1985 Centurion Ironman 1991 Bianchi Boardwalk Hybrid 1964 Huffeigh Sportsman 3 speed, 1960s Frejus Tour de France

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 2 Times in 2 Posts

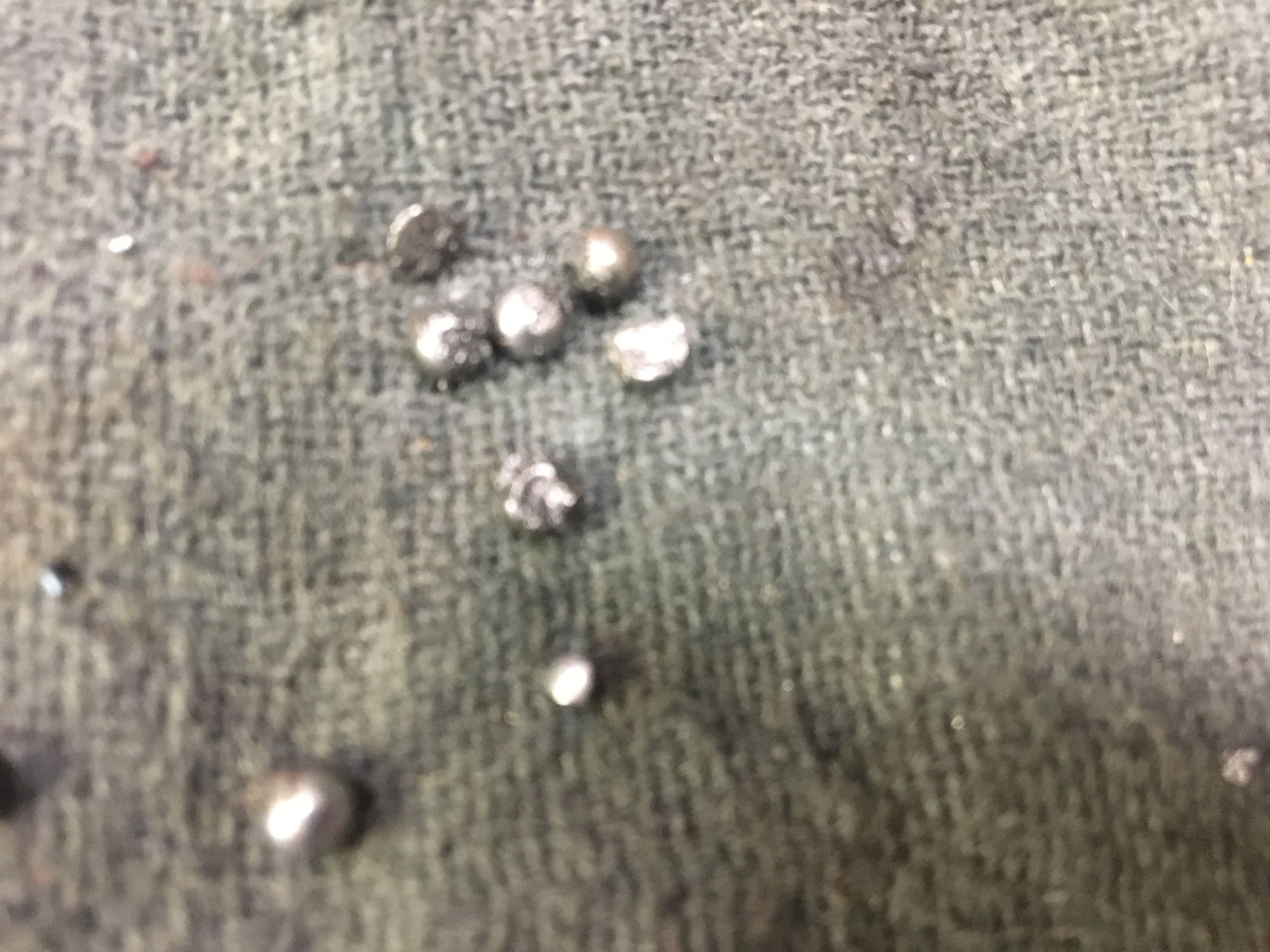

steering head bearings

Sorry about the poor pic, but you will get the idea. Steering on my new to me 1964 was a bit stiff, so I did a bearing lube. Perhaps 6 bearings on the bottom of the head were just a bit less than perfect. Time to replace I guess. Worth a good laugh at least. Top bearings fine. I guess the bottom ones take most of the load. 55 year old bike, so I guess it was needed.
nice bearings
sd5782 is offline
Old 02-07-19, 11:33 AM
  #19235
Salubrious
Senior Member

Salubrious's Avatar

Join Date: Dec 2012
Posts: 1,246
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Buellster View Post
The flying goat has been lots of fun so far. It's been my primary commuter for a few weeks. I am loving the 4 speed. I am a little worried about one thing though. Gears 2-4 are grand but in gear 1, which I can miraculously stay in now, it feels... rough. I'm not sure how else to describe it. It's not very rough, it just feels... less smooth. That is in comparison to the beautiful butter and velvet quality of gears 2-4 gear 1 feels more like an average cassete.
is this normal?
No. Check that the bearings aren't too tight and that you have proper lube in it. It should be just as smooth in low as any other gear.
Salubrious is offline
Old 02-07-19, 12:38 PM
  #19236
BigChief
Senior Member

BigChief's Avatar

Join Date: Jan 2015
Posts: 2,942
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1119 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
Originally Posted by sd5782 View Post
Sorry about the poor pic, but you will get the idea. Steering on my new to me 1964 was a bit stiff, so I did a bearing lube. Perhaps 6 bearings on the bottom of the head were just a bit less than perfect. Time to replace I guess. Worth a good laugh at least. Top bearings fine. I guess the bottom ones take most of the load. 55 year old bike, so I guess it was needed.
nice bearings
Yikes. Check the lower head race. That's the one that takes the most stress. With bearings like this, I'd be surprised if it isn't messed up.
__________________
Inflate Hard
BigChief is offline
Old 02-07-19, 12:38 PM
  #19237
paulb_in_bkln
Senior Member

Join Date: Mar 2018
Location: Brooklyn, NY
Posts: 512

Bikes: 1983 Trek 600, 1972 Raleigh Sports Step Thru, 1963 Rudge Sports, 2007 Dahon MuP8, Dahon Speed, Public Mixte 8-speed IGH, mid-70s Peugeot Mixte AW conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 265 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Originally Posted by sd5782 View Post
Sorry about the poor pic, but you will get the idea. Steering on my new to me 1964 was a bit stiff, so I did a bearing lube. Perhaps 6 bearings on the bottom of the head were just a bit less than perfect. Time to replace I guess. Worth a good laugh at least. Top bearings fine. I guess the bottom ones take most of the load. 55 year old bike, so I guess it was needed.
nice bearings
I don't see that the ones on top taking any weight at all.
paulb_in_bkln is offline
Old 02-07-19, 01:01 PM
  #19238
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 131

Bikes: 1970s Schwinn SuperSport 1985 Centurion Ironman 1991 Bianchi Boardwalk Hybrid 1964 Huffeigh Sportsman 3 speed, 1960s Frejus Tour de France

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 2 Times in 2 Posts
Yes indeed

Originally Posted by BigChief View Post
Yikes. Check the lower head race. That's the one that takes the most stress. With bearings like this, I'd be surprised if it isn't messed up.

I checked the lower race. It had a few pits and was not perfect by any means, but nothing really atrocious. One can feel the imperfections while turning bars (not fully assembled yet), but it is going to be good enough for now. It is night and day better than how it was; surprise, surprise. Actually riding it with the messed up bearings as I got it didn't really translate into much of a poor feel while underway. I was a bit surprised actually and think that the slight imperfections now will be just fine. Now if it was wheel bearings or crank bearings, that would be a different story.
sd5782 is offline
Old 02-07-19, 02:34 PM
  #19239
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 5,483

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 963 Post(s)
Liked 16 Times in 14 Posts
The AW had a lot of finicky issue, more so than the FW. I may have that backwards but I sprung for this one because it was the better of the two options.


It was the FM that was finicky. The AW is the stalwart in the Sturmey lineup.


.
clubman is offline
Old 02-07-19, 03:56 PM
  #19240
browngw
Senior Member

browngw's Avatar

Join Date: Mar 2012
Location: Port Dover Ontario Canada
Posts: 1,209

Bikes: 1958 Sun Cresta, 1965 Dilecta Le Blanc, 1960 Royal Nord, 1971 Robin Hood Sports, 1972 Raleigh Sports, 1976 SuperCycle Excalibur, 1979 Raleigh DL1 , 2014 Salsa Vaya, 2017 Felt DD70, 2016 Giant ATX27.5, 2012 Giant Halfway Folder, and others

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Liked 16 Times in 11 Posts
Originally Posted by clubman View Post
Cool 5 pin crank. Is that ring bolt on or riveted? See if you can find a makers mark on it somewhere.

The chainguard is super 60's cool as well.
Have no idea how it's fastened. But I will soon. I made a deal with the owner and sometime in the next few weeks will make the 100km or so trip to pick it up. Spent more than any of my other old treasures so I hope it turns out well after a refurbishment.
browngw is offline
Old 02-07-19, 04:00 PM
  #19241
Salubrious
Senior Member

Salubrious's Avatar

Join Date: Dec 2012
Posts: 1,246
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Likes: 0
Liked 1 Time in 1 Post
The FW seems to hold up well but you can't have the bearing races loose like you do with an AW.

The FM OTOH has a disconcerting way of blowing out of its hub shell if made of alloy.
Salubrious is offline
Old 02-07-19, 08:11 PM
  #19242
paulb_in_bkln
Senior Member

Join Date: Mar 2018
Location: Brooklyn, NY
Posts: 512

Bikes: 1983 Trek 600, 1972 Raleigh Sports Step Thru, 1963 Rudge Sports, 2007 Dahon MuP8, Dahon Speed, Public Mixte 8-speed IGH, mid-70s Peugeot Mixte AW conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 265 Post(s)
Likes: 0
Liked 2 Times in 1 Post
This from the website of Colwood Wheel Works: "The FW started in 1946 and was more suited to the commuter cyclist. It has compound planet pinions and two sun pinions which allow the drive to be run as a single simple gear train or a single compound gear train."

Probably this has been discussed before in this thread, but, why suited (that implied "just") to the commuter cyclist?
paulb_in_bkln is offline
Old 02-07-19, 08:26 PM
  #19243
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 5,483

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 963 Post(s)
Liked 16 Times in 14 Posts
Originally Posted by paulb_in_bkln View Post

Probably this has been discussed before in this thread, but, why suited (that implied "just") to the commuter cyclist?
I'd think for the simple fact it had more gears in a wide range. SA hubs slowly (quickly?) became less competitive after the popular pre war races like the Land's End to John 'o Groats. They were marketed as touring and commuting hubs after the war and derailleurs became the new must-have race technology.
clubman is offline
Old 02-07-19, 08:50 PM
  #19244
paulb_in_bkln
Senior Member

Join Date: Mar 2018
Location: Brooklyn, NY
Posts: 512

Bikes: 1983 Trek 600, 1972 Raleigh Sports Step Thru, 1963 Rudge Sports, 2007 Dahon MuP8, Dahon Speed, Public Mixte 8-speed IGH, mid-70s Peugeot Mixte AW conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 265 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Originally Posted by clubman View Post
I'd think for the simple fact it had more gears in a wide range. SA hubs slowly (quickly?) became less competitive after the popular pre war races like the Land's End to John 'o Groats. They were marketed as touring and commuting hubs after the war and derailleurs became the new must-have race technology.
If I could wave a magic wand at my AW hubs I would leave the 1st to 2nd jump as is but bring the 2nd to 3rd jump down somewhat. (I would have a very powerful magic wand.) Does the FW fill in that wide gap between the AW's positions 2 and 3?
paulb_in_bkln is offline
Old 02-07-19, 09:54 PM
  #19245
BigChief
Senior Member

BigChief's Avatar

Join Date: Jan 2015
Posts: 2,942
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1119 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
Originally Posted by paulb_in_bkln View Post
If I could wave a magic wand at my AW hubs I would leave the 1st to 2nd jump as is but bring the 2nd to 3rd jump down somewhat. (I would have a very powerful magic wand.) Does the FW fill in that wide gap between the AW's positions 2 and 3?
What you need is a S5 hub. With the left bell crank disengaged, you have a medium range 3 speed that shifts as smoothly as any AW. When you engage the bell crank, You get a super wide range 3 speed. 2nd stays the same but you get a low granny and a super tall overdrive.
S5 in medium range Low -21% normal 0 high +26.6% In wide range mode...low -33% normal 0 High +50%
The AW is Low -25% normal 0 High +33%
__________________
Inflate Hard
BigChief is offline
Old 02-08-19, 06:01 AM
  #19246
gster
Senior Member

gster's Avatar

Join Date: Apr 2012
Location: Toronto
Posts: 1,631

Bikes: 1971 Hercules, 1978 Raleigh Superbe, 1978 Raleigh Tourist, 1964 Glider 3 Speed, 1967 Raleigh Sprite 5 Speed, 1968 Hercules AMF 3 Speed, 1972 Raleigh Superbe, 1976 Raleigh Superbe, 1957 Flying Pigeon, 1967 Dunelt 3 Speed

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 549 Post(s)
Likes: 0
Liked 12 Times in 12 Posts
Originally Posted by clubman View Post
I'd think for the simple fact it had more gears in a wide range. SA hubs slowly (quickly?) became less competitive after the popular pre war races like the Land's End to John 'o Groats. They were marketed as touring and commuting hubs after the war and derailleurs became the new must-have race technology.
Despite our affection for these hubs, they can slip out of gear on occasion, especially under pressure.
I imagine over time that the cable can stretch. This is fine when you're just riding along (commuting).I often have to pull over for a minor adjustment at the indicator chain, even on a bike that's been shifting fine.
Under racing conditions, this slip could prove disastrous if you were off the seat and "standing" on the pedals.
Ouch!

Last edited by gster; 02-08-19 at 06:12 AM.
gster is offline
Old 02-08-19, 07:18 AM
  #19247
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 5,483

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 963 Post(s)
Liked 16 Times in 14 Posts
Originally Posted by paulb_in_bkln View Post
If I could wave a magic wand at my AW hubs I would leave the 1st to 2nd jump as is but bring the 2nd to 3rd jump down somewhat. (I would have a very powerful magic wand.) Does the FW fill in that wide gap between the AW's positions 2 and 3?
Have a look here. There's a slight reduction between the first two hops and then an even taller 4th gear. Some 5 speeds were the same pattern with an even taller 5th added on.
clubman is offline
Old 02-08-19, 07:29 AM
  #19248
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,284
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 537 Post(s)
Liked 19 Times in 16 Posts
Originally Posted by paulb_in_bkln View Post
If I could wave a magic wand at my AW hubs I would leave the 1st to 2nd jump as is but bring the 2nd to 3rd jump down somewhat. (I would have a very powerful magic wand.) Does the FW fill in that wide gap between the AW's positions 2 and 3?
Strong magic required here. By very nature of it's design, this is a physical impossibility.1st and third use the same gear with the power flow reversed. In first the power flows from the ring gear to the planet carrier, and in 3rd, it flows from the planet carrier to the ring gear.
Dan Burkhart is offline
Old 02-08-19, 09:53 AM
  #19249
carfreefamily
Senior Member

Join Date: Dec 2008
Posts: 100
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Originally Posted by Dan Burkhart View Post
Strong magic required here. By very nature of it's design, this is a physical impossibility.1st and third use the same gear with the power flow reversed. In first the power flows from the ring gear to the planet carrier, and in 3rd, it flows from the planet carrier to the ring gear.
Even though I had my AG hub completely in pieces, I cannot quite visualize how the clutch changes the way the hub engages. In high gear, it was clear that the planet carrier was being engaged. In second, the clutch lifts off the planet carrier, but what is engaged at that point, and when it is pulled further out, what is the clutch doing?
carfreefamily is offline
Old 02-08-19, 10:17 AM
  #19250
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,284
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 537 Post(s)
Liked 19 Times in 16 Posts
Originally Posted by carfreefamily View Post
Even though I had my AG hub completely in pieces, I cannot quite visualize how the clutch changes the way the hub engages. In high gear, it was clear that the planet carrier was being engaged. In second, the clutch lifts off the planet carrier, but what is engaged at that point, and when it is pulled further out, what is the clutch doing?
In first and second gear, the star clutch is driving the ring gear. This video explains it. Apologies for the poor audio level. Some day, I will do a remake with a voice over.
Dan Burkhart is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
