Jeunet Franch Comte Model 630

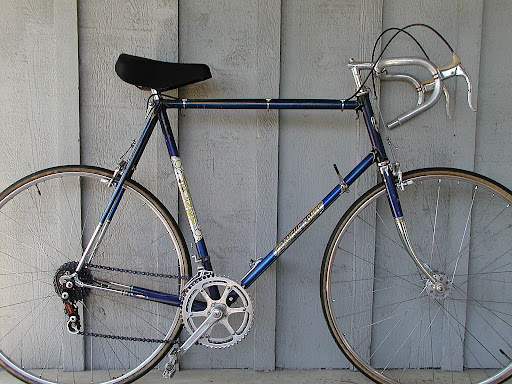

Thought I would share this with you before it disappears. It is remarkably complete and in not all that bad of shape. Remains of a 531 decal on the seat tube and a complete decal on the left fork. Typical replacement of the front Simplex derailleur. Too big for me, but bought it anyway when I saw the TA crank and Mavic rims. I am not too up on TA, but I believe them to be an early version. The pedal threads are capped. Notice anything odd with the cranks?

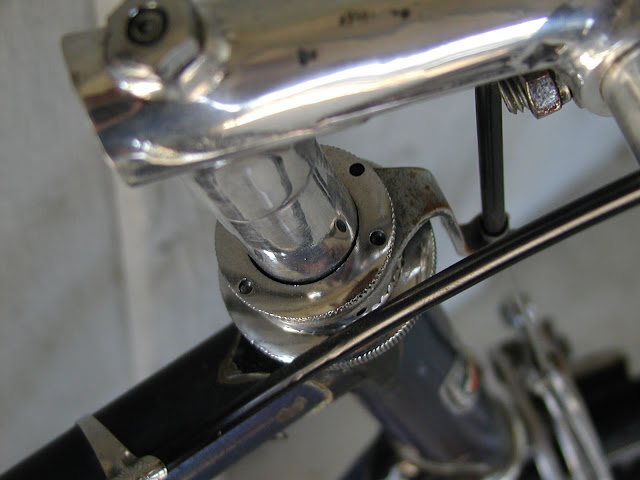

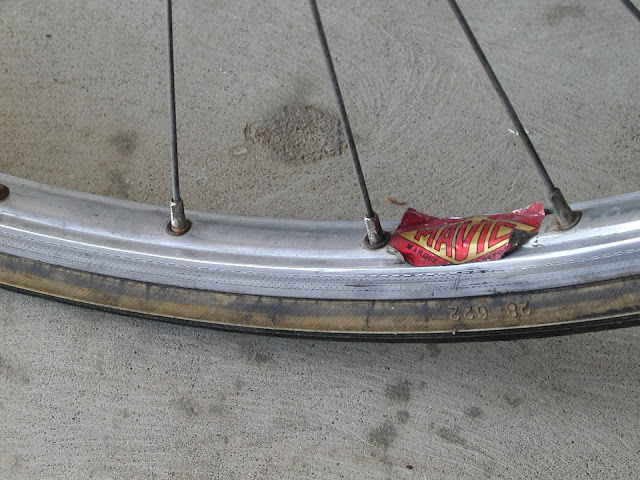

Now for the rims. I have never seen this model Mavic. They are alloy, 700c. It's not in VeloBase. Anyone recognize the rims. I will add them soon to VB, but was hoping someone might recognize them. They are laced to Tipo hubs and if it weren't for the big flat spot in the rear rim, I might use them. I may yet. Headset is either Stronglight P4 or early Competition. Won't know until I take it apart

Gotta love the seat.....









__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 04-13-10, 11:03 AM
  #2
pacifico
Senior Member

Join Date: Jan 2007
Location: East Bay
Posts: 101
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I had an alloy Araya rim in 27" with that exact profile, probably a clone of the Mavic.
pacifico is offline
Old 04-13-10, 11:44 AM
  #3
southpawboston
Senior Member

southpawboston's Avatar

Join Date: Aug 2008
Location: Somerville, MA and Catskill Mtns
Posts: 4,147
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 159 Times in 72 Posts
very nice jeunet 630! it's in better shape than mine:



i see what's odd with the cranks: the crank arm is bolted to the outside of the large chainring, not the inside. i also have an inkling as to why someone did that: on my 630, the chainline is such that the outer chainring only works with the three smallest cogs. someone may have attempted to achieve a more forgiving chainline by moving the chainrings more inboard this way.
southpawboston is offline
Old 04-13-10, 12:04 PM
  #4
CV-6
If I own it, I ride it
Thread Starter

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,461

Bikes: Lejeune(14), Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré(4), Springfield, Motobecane(2), Greg Lemond, Andre Bertin, Schwinn Paramount

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 548 Post(s)
Likes: 0
Liked 510 Times in 247 Posts
Originally Posted by southpawboston View Post
very nice jeunet 630! it's in better shape than mine:
It is? Not to my eyes. Yours looks pretty nice.

i see what's odd with the cranks: the crank arm is bolted to the outside of the large chainring, not the inside. i also have an inkling as to why someone did that: on my 630, the chainline is such that the outer chainring only works with the three smallest cogs. someone may have attempted to achieve a more forgiving chainline by moving the chainrings more inboard this way.
Interesting observation. I would not have thought of that. It does shift nicely despite the plastic Simplex.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos


Last edited by CV-6; 04-13-10 at 12:28 PM.
CV-6 is offline
Old 04-13-10, 04:05 PM
  #5
Seasnarf
Senior Member

Join Date: Apr 2008
Posts: 68
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've a '73 Raleigh Super Course with the original ( I believe) Simplex Prestige plastic deraileurs that shifts nicely though I hold my breath each time.
