Bummer, my rear aheel has a slightly bent axle :(

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Bummer, my rear aheel has a slightly bent axle :(

Old 04-29-10, 07:56 PM
  #1
khatfull
FBoD Member at Large
Thread Starter

khatfull's Avatar

Join Date: Aug 2008
Location: Woodbury, MN
Posts: 6,246
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Bummer, my rear wheel has a slightly bent axle :(

Noticed it tonight as I was swapping on a new 7 speed freewheel. When locked up in the dropouts you can see the freewheel pulse around a little bit. Oddly, you can;t see it in the rim?!

How much should a fairly priced shop charge to change out the axle. I probably could if I had the axle but I don't have the variety of thin wrenches needed for the locknuts and such. I checked and the bearings cups and cones are all ok, I just need a new axle.

Any idea?

Last edited by khatfull; 04-29-10 at 07:58 PM. Reason: Rear Wheel, not aheel!
khatfull is offline
Old 04-29-10, 07:59 PM
  #2
JunkYardBike
Since 1938...

JunkYardBike's Avatar

Join Date: Aug 2006
Location: Northwestern NJ
Posts: 6,212
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It's normal for a freewheel to wobble. I have a few that look quite drunk when the axle spins.
JunkYardBike is offline
Old 04-29-10, 08:02 PM
  #3
khatfull
FBoD Member at Large
Thread Starter

khatfull's Avatar

Join Date: Aug 2008
Location: Woodbury, MN
Posts: 6,246
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Well, wait a minute, the axle is locked and doesn't move. It must be something else....what would cause the freewheel to appear to shimmy when it isn't moving but the wheel is?
khatfull is offline
Old 04-29-10, 08:02 PM
  #4
Shp4man
Senior Member

Shp4man's Avatar

Join Date: Jan 2010
Location: San Diego
Posts: 993

Bikes: 1988 Peugeot PY-10P Frankenbike, 1994 Diamond Back Response Elite MTB. 1964 Schwinn Typhoon. 1977 Peugeot PRN10E, 2003 Performance M-201 MTB dirt rider. 1974 Bridgestone Sprinter, 2015 Scott Sub 10 Citybike.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1661 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
+1 on the above^^. It's normal.
Shp4man is offline
Old 04-29-10, 08:02 PM
  #5
JunkYardBike
Since 1938...

JunkYardBike's Avatar

Join Date: Aug 2006
Location: Northwestern NJ
Posts: 6,212
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Oh, and get yourself some cone wrenches. Friction is the enemy! You need to learn to adjust the hubs properly. I have to say, though, I do like cartridge bearing hubs...
JunkYardBike is offline
Old 04-29-10, 08:03 PM
  #6
khatfull
FBoD Member at Large
Thread Starter

khatfull's Avatar

Join Date: Aug 2008
Location: Woodbury, MN
Posts: 6,246
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by JunkYardBike View Post
It's normal for a freewheel to wobble. I have a few that look quite drunk when the axle spins.
Really...am I all worked up about nothing again?!

If that's the case I'm surprised I didn't notice it before...unless Ii just wasn't looking at as closely because I was so concerned about the small cog position relative to the frame.
khatfull is offline
Old 04-29-10, 08:03 PM
  #7
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 22,018

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 654 Post(s)
Likes: 0
Liked 39 Times in 34 Posts
+10 Normal.
wrk101 is offline
Old 04-29-10, 08:05 PM
  #8
khatfull
FBoD Member at Large
Thread Starter

khatfull's Avatar

Join Date: Aug 2008
Location: Woodbury, MN
Posts: 6,246
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by JunkYardBike View Post
Oh, and get yourself some cone wrenches. Friction is the enemy! You need to learn to adjust the hubs properly. I have to say, though, I do like cartridge bearing hubs...
Is it like a cup and cone BB...just enough pressure to get rid of play and not a bit more?
khatfull is offline
Old 04-29-10, 08:08 PM
  #9
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,758
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 346 Post(s)
Liked 60 Times in 50 Posts
Originally Posted by JunkYardBike View Post
Oh, and get yourself some cone wrenches. Friction is the enemy! You need to learn to adjust the hubs properly. I have to say, though, I do like cartridge bearing hubs...
In my case, ignorance is bliss.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 04-29-10, 08:36 PM
  #10
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,639

Bikes: Too many to list here check my signature.

Mentioned: 94 Post(s)
Tagged: 2 Thread(s)
Quoted: 1265 Post(s)
Liked 39 Times in 30 Posts
just quit cleaning and polishing and ride the bike!!!
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 04-29-10, 08:40 PM
  #11
Ex Pres
#39

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,122
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by khatfull View Post
Is it like a cup and cone BB...just enough pressure to get rid of play and not a bit more?
Yes, except

that you need to adjust it just loose enough so that when you clamp the skewer down that you have the proper (non) play. You can do this in your wheel truing stand.
Ex Pres is offline
Old 04-29-10, 08:42 PM
  #12
Shp4man
Senior Member

Shp4man's Avatar

Join Date: Jan 2010
Location: San Diego
Posts: 993

Bikes: 1988 Peugeot PY-10P Frankenbike, 1994 Diamond Back Response Elite MTB. 1964 Schwinn Typhoon. 1977 Peugeot PRN10E, 2003 Performance M-201 MTB dirt rider. 1974 Bridgestone Sprinter, 2015 Scott Sub 10 Citybike.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1661 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by khatfull View Post
Is it like a cup and cone BB...just enough pressure to get rid of play and not a bit more?
The idea is to leave a tiny bit of play in the bearings because the pressure of the quick release when tight pulls it in a little.

Edit^^beat me to it.
Shp4man is offline
Old 04-29-10, 08:45 PM
  #13
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 6,620

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 462 Post(s)
Liked 24 Times in 20 Posts
Originally Posted by khatfull View Post
Well, wait a minute, the axle is locked and doesn't move. It must be something else....what would cause the freewheel to appear to shimmy when it isn't moving but the wheel is?
It shouldn't be but it's fairy normal. I think it's because the hub and/or freewheel thread are slightly misaligned.
Reynolds is offline
Old 04-29-10, 08:53 PM
  #14
Chombi
Senior Member

Chombi's Avatar

Join Date: Jul 2009
Posts: 11,139

Bikes: 1986 Alan Record Carbonio, 1985 Vitus Plus Carbone 7, 1984 Peugeot PSV, 1972 Line Seeker, 1986(est.) Medici Aerodynamic (Project), 1985(est.) Peugeot PY10FC

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Freewheel wobble is just as sure on bikes as the lights in refridgerators, car glove boxes and trunks turning off when you close the door......everytime......believe me, it's true!......

Chombi
Chombi is offline
Old 04-29-10, 09:18 PM
  #15
khatfull
FBoD Member at Large
Thread Starter

khatfull's Avatar

Join Date: Aug 2008
Location: Woodbury, MN
Posts: 6,246
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Ok ok, I get it...

Originally Posted by Bianchigirll View Post
just quit cleaning and polishing and ride the bike!!!
I JUST got through swapping the RX100 group to it. You want a Bianchi frame now?

Originally Posted by Shp4man View Post
The idea is to leave a tiny bit of play in the bearings because the pressure of the quick release when tight pulls it in a little.

Edit^^beat me to it.
Makes sense....I left it about there but I'll get cone wrenches and do it right when I have them. Thanks.

Originally Posted by Chombi View Post
Freewheel wobble is just as sure on bikes as the lights in refridgerators, car glove boxes and trunks turning off when you close the door......everytime......believe me, it's true!...... Chombi
I got it...Lordy I got it
khatfull is offline
Old 04-29-10, 09:27 PM
  #16
scozim
Ellensburg, WA

scozim's Avatar

Join Date: Aug 2008
Location: Ellensburg, WA
Posts: 3,394

Bikes: See my signature

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 186 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by Chombi View Post
Freewheel wobble is just as sure on bikes as the lights in refridgerators, car glove boxes and trunks turning off when you close the door......everytime......believe me, it's true!......

Chombi
And, helicomatic wobble is even more pronounced.
__________________
1984 Gitane Sprint; 1984 Gitane Tour de France; 1982 Trek 610; 1968 Peugeot PL8; 1982 Nishiki Marina 12; 1972 Peugeot PX-10; 1987 Trek 800 Antelope (touring/commuting set up); 1993 Trek 950 mtb; 1997 Klein Pulse Comp mtb; 1989 Peugeot Limestone hybrid (for touring); 1975 Gitane Olympic; 1983 Vitus 979; 1989 Spectrum Titanium:
scozim is offline
Old 04-29-10, 09:46 PM
  #17
Chombi
Senior Member

Chombi's Avatar

Join Date: Jul 2009
Posts: 11,139

Bikes: 1986 Alan Record Carbonio, 1985 Vitus Plus Carbone 7, 1984 Peugeot PSV, 1972 Line Seeker, 1986(est.) Medici Aerodynamic (Project), 1985(est.) Peugeot PY10FC

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by scozim View Post
And, helicomatic wobble is even more pronounced.
It IS a Maillard....

Chombi
Chombi is offline
Old 04-29-10, 10:16 PM
  #18
Roll-Monroe-Co
Senior Member

Join Date: Jul 2005
Posts: 2,283
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by Reynolds View Post
It shouldn't be but it's fairy normal. I think it's because the hub and/or freewheel thread are slightly misaligned.
Is this it? I can tell you, upon many a midnight dreary have I this pondered weak and weary.
Roll-Monroe-Co is offline
Old 04-29-10, 10:58 PM
  #19
mkeller234
Rustbelt Rider

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,610

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 97 Post(s)
Likes: 0
Liked 12 Times in 8 Posts
Originally Posted by Shp4man View Post
The idea is to leave a tiny bit of play in the bearings because the pressure of the quick release when tight pulls it in a little.

Edit^^beat me to it.
+1, I made the tool that Sheldon shows on his website and it has been pretty nice. Check it out Khatful, it's easy to make and puts the axel under load like if it were mounted to the frame.
http://sheldonbrown.com/cone-adjustment.html
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Old 04-29-10, 11:21 PM
  #20
jamesj
Senior Member

jamesj's Avatar

Join Date: Dec 2005
Location: Arizona
Posts: 875

Bikes: 2015 Specialized AWOL, 2006 Paul Frank Cruiser, 1987 Specialized Street Stomper, 1980 Trek 412, 1979 Raleigh Sport,

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Interesting thanx for that, i'm going to be overhauling the wheels on the fuji they are suntour sprint hubs and i have never done one with a quick release. Not to hijack the thread but the hubs say sealed bearings and i have never worked on those type before. I haven't really looked took the wheels apart but in my mind i keep seeing sealed bearings like how bearings are in a skateboard wheel, the cartridge type If so can you just buy sealed cartridge bearings to replace the old ones.

I have rebuilt the ones without a quick release. but non like this.



Originally Posted by mkeller234 View Post
+1, I made the tool that Sheldon shows on his website and it has been pretty nice. Check it out Khatful, it's easy to make and puts the axel under load like if it were mounted to the frame.
http://sheldonbrown.com/cone-adjustment.html
jamesj is offline
Old 04-29-10, 11:47 PM
  #21
mkeller234
Rustbelt Rider

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,610

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 97 Post(s)
Likes: 0
Liked 12 Times in 8 Posts
As far as I know, sealed bearings can mean two things. It could be cartridges or something as little as a little plastic "seal".

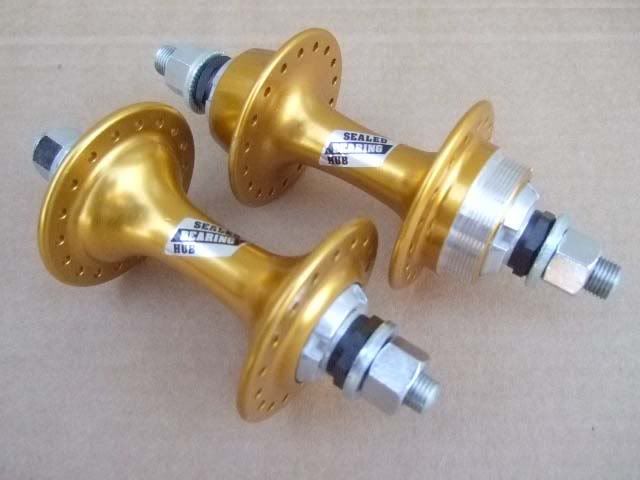

Since you are talking suntour hubs, do they look anything like these (maybe not gold of course)


I have a set of those hubs and they are cartridges and need a special tool to get to them. They are awesome hubs though.


Originally Posted by jamesj View Post
Interesting thanx for that, i'm going to be overhauling the wheels on the fuji they are suntour sprint hubs and i have never done one with a quick release. Not to hijack the thread but the hubs say sealed bearings and i have never worked on those type before. I haven't really looked took the wheels apart but in my mind i keep seeing sealed bearings like how bearings are in a skateboard wheel, the cartridge type If so can you just buy sealed cartridge bearings to replace the old ones.

I have rebuilt the ones without a quick release. but non like this.
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Old 04-30-10, 04:07 AM
  #22
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,181

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 463 Post(s)
Liked 15 Times in 9 Posts
Originally Posted by scozim View Post
And, helicomatic wobble is even more pronounced.
Originally Posted by Chombi View Post
It IS a Maillard....

Chombi
Are you guys inferring the French are intoxicated engineers?
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 04-30-10, 05:32 AM
  #23
supton
Cries on hills

supton's Avatar

Join Date: Jun 2007
Location: Central NH
Posts: 1,091

Bikes: 2007 Trek Pilot 1.2, 1969 Raleigh Sprite 5

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by pastorbobnlnh View Post
Are you guys inferring the French are intoxicated engineers?
Well, that would explain how they thought they were engineers in the first place...
supton is offline
Old 04-30-10, 05:32 AM
  #24
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Florence, KY
Posts: 16,214

Bikes: Mostly English - predominantly Raleighs

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 695 Post(s)
Liked 8 Times in 8 Posts
Originally Posted by khatfull View Post
Is it like a cup and cone BB...just enough pressure to get rid of play and not a bit more?
While it's possible this could have an effect, it could be (and is far more likely) that the freewheel is just a little bit off center. This is very common, and there's no remedy if that's the case.
__________________
In search of what to search for.
USAZorro is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
tardman91
Road Cycling
6
03-05-12 09:53 AM
RacerOne
Road Cycling
40
01-22-11 10:52 AM
aaronspoker
Advocacy & Safety
1
10-05-07 06:46 AM
johnny99
Road Cycling
32
01-09-07 04:48 PM
vintagebicycle
Classic & Vintage
2
02-21-04 02:48 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
