Raleigh Super Record 700c 9 speed conversion

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Raleigh Super Record 700c 9 speed conversion

Old 05-02-10, 12:43 AM
  #1
idcruiserman
Mmmmm potatoes
Thread Starter

idcruiserman's Avatar

Join Date: Sep 2006
Location: Idaho
Posts: 1,921
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Raleigh Super Record 700c 9 speed conversion

I bought a Raleigh Super Record frame and have built it up with 700c wheels and a 9 speed cassette, double crank and bar-cons. The frame came with no derailleur hanger, so I installed the Sunrace style hanger that fits in the dropouts with a bolt and wedge. The problem is the chain rubs on the wedge when in the smallest cog. It's not a huge deal, since I can simply not use that cog, but I'd like to make it work if possible. Maybe move the hanger forward in the dropout?

Should I put grease on the rear derailleur cable guide that's brazed on the bottom bracket shell?

Lastly, the hub axle was sticking out of the dropout slightly on the non-drive side and not allowing the QR to fully seat. I put in a lockwasher between the QR and the frame. Is there a better solution?

UPS is making a fortune on the parts I've bought for this frame.

thanks, Eric
idcruiserman is offline
Old 05-02-10, 05:35 AM
  #2
roccobike
Bike Junkie

roccobike's Avatar

Join Date: Jun 2005
Location: South of Raleigh, North of New Hill, East of Harris Lake, NC
Posts: 9,553

Bikes: Specialized Tarmac, Specialized Roubaix, Giant OCR-C, Specialized Stumpjumper FSR, Stumpjumper Comp, 88 & 92Nishiki Ariel, 87 Centurion Ironman, 92 Paramount, 84 Nishiki Medalist

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Nine speed requires 130 mm spread between the drops. Did you cold set the frame? Are you using 130mm hub?
Can you use grease? Sure, Should you, probably not, that area will pick up a lot of grit from the road. I'd try to polish it if possible.

Are you using a QR on the rear? I have no idea why that should be sticking out unless you're using a solid, nutted axle. I wouldn't. See first comment.

BTW, Pics would really help here.
__________________
Roccobike BF Official Thread Terminator
roccobike is offline
Old 05-02-10, 08:21 AM
  #3
nlerner
Senior Member

Join Date: Dec 2005
Posts: 12,096
Mentioned: 244 Post(s)
Tagged: 0 Thread(s)
Quoted: 1092 Post(s)
Liked 15 Times in 14 Posts
You need more clearance between the smallest cog on the freewheel and the dropout. One simple way to do it is to put a washer *inside* of the dropout, and you'll have to put one on the non-drive side, too, to keep your wheel centered. You can do that whether you're using a quick release or solid-nutted axle.

Neal
nlerner is offline
Old 05-02-10, 09:11 AM
  #4
sailorbenjamin
26 tpi nut.

sailorbenjamin's Avatar

Join Date: Mar 2008
Location: Rhode Island (an obscure suburb of Connecticut)
Posts: 5,703

Bikes: one of each

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Funny, I was just up all night trying to do this to one of my Raleighs. On mine there was a little spacer on the right side of the axle to get all the way out to the 130mm. I started to take it off then realized that it would be useful on the left side to get that last cog to stop rubbing on the chainstay. I had to redish the wheel anyway.
My other issue is getting the compact triple crank I have to work with my 70mm bottom bracket and really long spindle. I could just go back to the road cranks but then I need to get a new cassette to get the ratios I want.
I just pulled really hard on the rear triangle to get the wheel in. It's not far enough to permanently deform the frame, It's just a couple of mm.
How wide is your BB?
__________________
I have spoken.
sailorbenjamin is offline
Old 05-02-10, 10:30 AM
  #5
nlerner
Senior Member

Join Date: Dec 2005
Posts: 12,096
Mentioned: 244 Post(s)
Tagged: 0 Thread(s)
Quoted: 1092 Post(s)
Liked 15 Times in 14 Posts

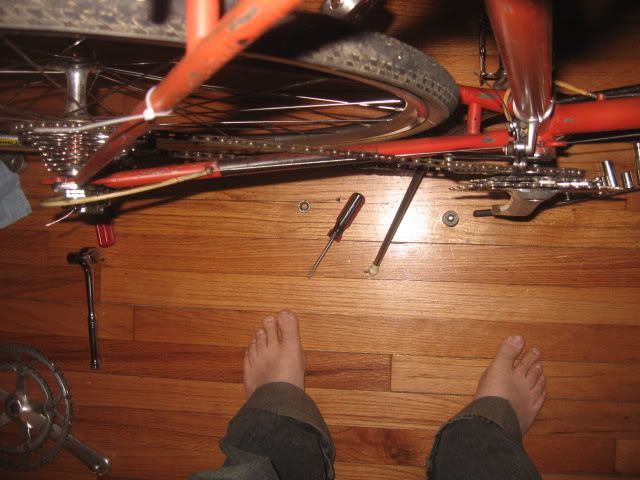

Wow, SB, from that pic, your crank set looks really outboard in relation to your freewheel. Perhaps with a 9 speed chain it won't make a difference, but I do wonder how smooth your shifting will be. Or is an optical illusion?

Neal
nlerner is offline
Old 05-02-10, 10:41 AM
  #6
idcruiserman
Mmmmm potatoes
Thread Starter

idcruiserman's Avatar

Join Date: Sep 2006
Location: Idaho
Posts: 1,921
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Good idea on the washer. I'm concerned the wheel is going to move around under torque with washers on both sides. Maybe I'll add some serrations. I'll get some pix later today.

Yes, I spread the rear to fit the wheel. Maybe the axle is not centered on the hub? That would explain why it's wide on one side and short on the other. Hmmm. I'll try a different wheel for fit.

Thanks for the help.
idcruiserman is offline
Old 05-02-10, 10:54 AM
  #7
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,494

Bikes: http://www.theheadbadge.com

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 310 Post(s)
Liked 75 Times in 63 Posts
Originally Posted by sailorbenjamin View Post
!!!!

I see a shorter BB spindle in your future. I concur with Neal - way too far outboard. The inner ring of that crankset looks as if it's centered with the smallest cog.

-Kurt
__________________
cudak888 is offline
Old 05-02-10, 01:54 PM
  #8
sailorbenjamin
26 tpi nut.

sailorbenjamin's Avatar

Join Date: Mar 2008
Location: Rhode Island (an obscure suburb of Connecticut)
Posts: 5,703

Bikes: one of each

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by idcruiserman View Post
Maybe the axle is not centered on the hub?
Can you center it by readjusting your cones?

My chainline is only half my problem. The derailleur doesn't even reach past the first ring. Maybe I should try this on my Grand Prix. It's got a standard bottom bracket. I don't know why this thing has such a long spindle.
__________________
I have spoken.
sailorbenjamin is offline
Old 05-02-10, 03:31 PM
  #9
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,632

Bikes: Too many to list here check my signature.

Mentioned: 94 Post(s)
Tagged: 2 Thread(s)
Quoted: 1265 Post(s)
Liked 38 Times in 29 Posts
Originally Posted by sailorbenjamin View Post
Can you center it by readjusting your cones?

My chainline is only half my problem. The derailleur doesn't even reach past the first ring. Maybe I should try this on my Grand Prix. It's got a standard bottom bracket. I don't know why this thing has such a long spindle.
what is a 'standard bottom bracket'? I mean there is mainly English, Italian,and French but all of these have several variations of spindle length. the length of you spindle is determined by the model and year of the cranks you are using.

most cranksets after about '94 had alot less dish on the driveside than older cranks. chances are your Grand Prix spindle is too long also.
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 05-02-10, 03:36 PM
  #10
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,632

Bikes: Too many to list here check my signature.

Mentioned: 94 Post(s)
Tagged: 2 Thread(s)
Quoted: 1265 Post(s)
Liked 38 Times in 29 Posts
Originally Posted by idcruiserman View Post
Lastly, the hub axle was sticking out of the dropout slightly on the non-drive side and not allowing the QR to fully seat. I put in a lockwasher between the QR and the frame. Is there a better solution?

UPS is making a fortune on the parts I've bought for this frame. thanks, Eric
it sounds like you hub was not properly asembled. were these new or used wheels? you really should have no more than about 4 threads outside the locknuts

UPS,FedEx and USPS are all getting rich off of us.
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 05-02-10, 06:51 PM
  #11
sailorbenjamin
26 tpi nut.

sailorbenjamin's Avatar

Join Date: Mar 2008
Location: Rhode Island (an obscure suburb of Connecticut)
Posts: 5,703

Bikes: one of each

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Bianchigirll View Post
what is a 'standard bottom bracket'?
Well, both my Carlton Raleighs have 70mm BBs which use a spindle with 57mm between the races. Kind of hard to find a decent variety of spindles. I've looked at my other bikes and this one sticks out farther than any of them as well as being wider in the middle. The Grand Prix is a Gazelle Raleigh with a 68mm BB which uses the more common 55mm spacing. While it's cottered at the moment, I've got a bag of japanese spindles to fit 68mm. One of them should fit the bill. It's just that it's a gaspipe frame and it really doesn't need much whereas the Carlton is a nice frame in need of a total makeover. A little more inspiring.
Sorry to use so much air time on your thread Cuiserman.
__________________
I have spoken.
sailorbenjamin is offline
Old 05-02-10, 07:20 PM
  #12
idcruiserman
Mmmmm potatoes
Thread Starter

idcruiserman's Avatar

Join Date: Sep 2006
Location: Idaho
Posts: 1,921
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I put a washer inside the frame on the drive side plus one on the outside of the non-drive side, and it looks good. I'm waiting on a clamp-on housing stop for the front derailleur and then the maiden voyage. Also need a clamp-on bottle cage.
idcruiserman is offline
Old 05-02-10, 08:25 PM
  #13
CMC SanDiego
Senior Member

CMC SanDiego's Avatar

Join Date: Jan 2009
Location: San Diego
Posts: 743

Bikes: Too many to list, all titanium or steel.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by idcruiserman View Post
..... Also need a clamp-on bottle cage.

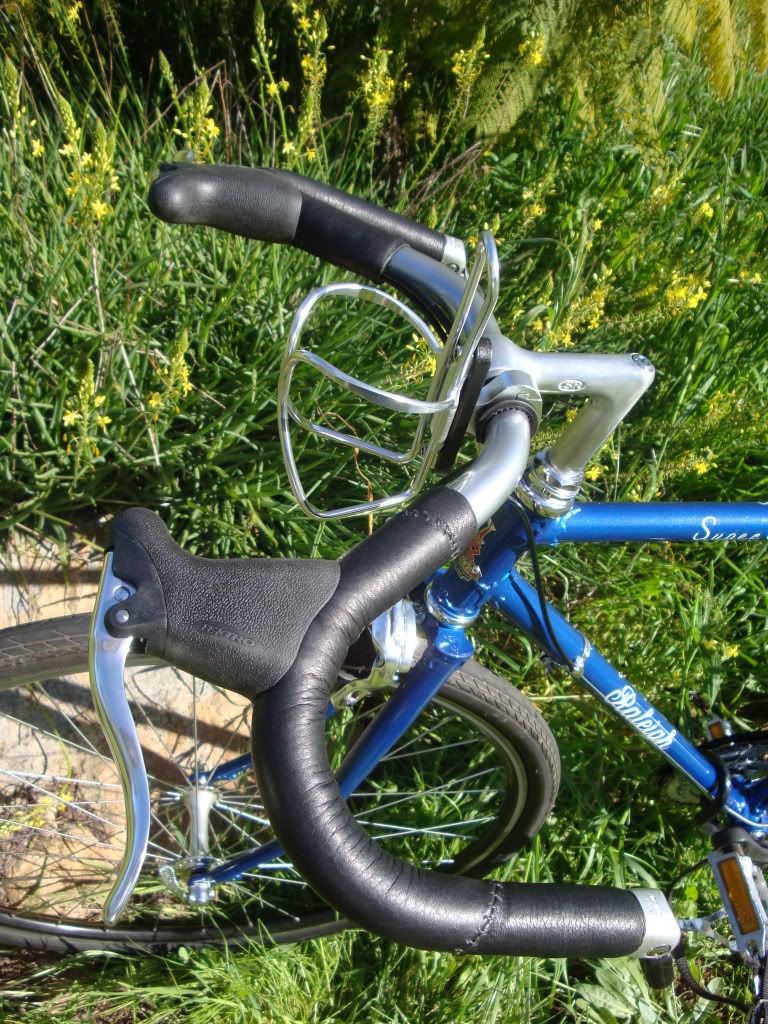

Rather than risk scratching up my new Raleigh rebuild, I mounted a water bottle on the bars like this. I got the mount at BikeNasbar.com for $3-4 and really like it.

Not so sure about the bars though.....After riding 35 miles on them a couple weekends ago, I'm thinking about putting on regular drops. I'm finding myself even more stretched out than on my other road bikes, rather than more upright like I expected to be.

Last edited by CMC SanDiego; 05-02-10 at 08:32 PM. Reason: Added mount purchase info. Und Schpellink
CMC SanDiego is offline
Old 05-02-10, 09:12 PM
  #14
idcruiserman
Mmmmm potatoes
Thread Starter

idcruiserman's Avatar

Join Date: Sep 2006
Location: Idaho
Posts: 1,921
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Blue paint is sharp.
idcruiserman is offline
Old 05-06-10, 07:16 PM
  #15
idcruiserman
Mmmmm potatoes
Thread Starter

idcruiserman's Avatar

Join Date: Sep 2006
Location: Idaho
Posts: 1,921
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Got the bike rolling the other day. The only bummer is I'm thinking the seat tube is 26.0 versus the 25.4mm seat post I bought. Yes, I'm making a shim.
idcruiserman is offline
Old 05-06-10, 08:13 PM
  #16
sailorbenjamin
26 tpi nut.

sailorbenjamin's Avatar

Join Date: Mar 2008
Location: Rhode Island (an obscure suburb of Connecticut)
Posts: 5,703

Bikes: one of each

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
How's it shifting?
I gave up on the compact triple and went back to a standard triple with a more traditional offset. It's not perfect but it'll work.
For the record, I misquoted the bearing spacing in my post above, It's 52mm for the 68mm BB and 55 for the 70.
__________________
I have spoken.
sailorbenjamin is offline
Old 05-06-10, 10:57 PM
  #17
idcruiserman
Mmmmm potatoes
Thread Starter

idcruiserman's Avatar

Join Date: Sep 2006
Location: Idaho
Posts: 1,921
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Shifting great. I like the friction bar-con action with the front derailleur.
