Mystery bike - need help

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Mystery bike - need help

Old 05-09-10, 01:39 PM
  #1
velomateo
Senior Member
Thread Starter

velomateo's Avatar

Join Date: Aug 2007
Location: California
Posts: 882

Bikes: 86 Mike Walton, '87 Serotta Colorado,'96 Moots VaMoots, Bertoni MAX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 159 Times in 82 Posts
Mystery bike - need help

First off, my apologies for those who have already seen this on RBR. But for those who have not - I'm hoping for a few sets a fresh eyes that may be able to help establish an identity of my latest find.

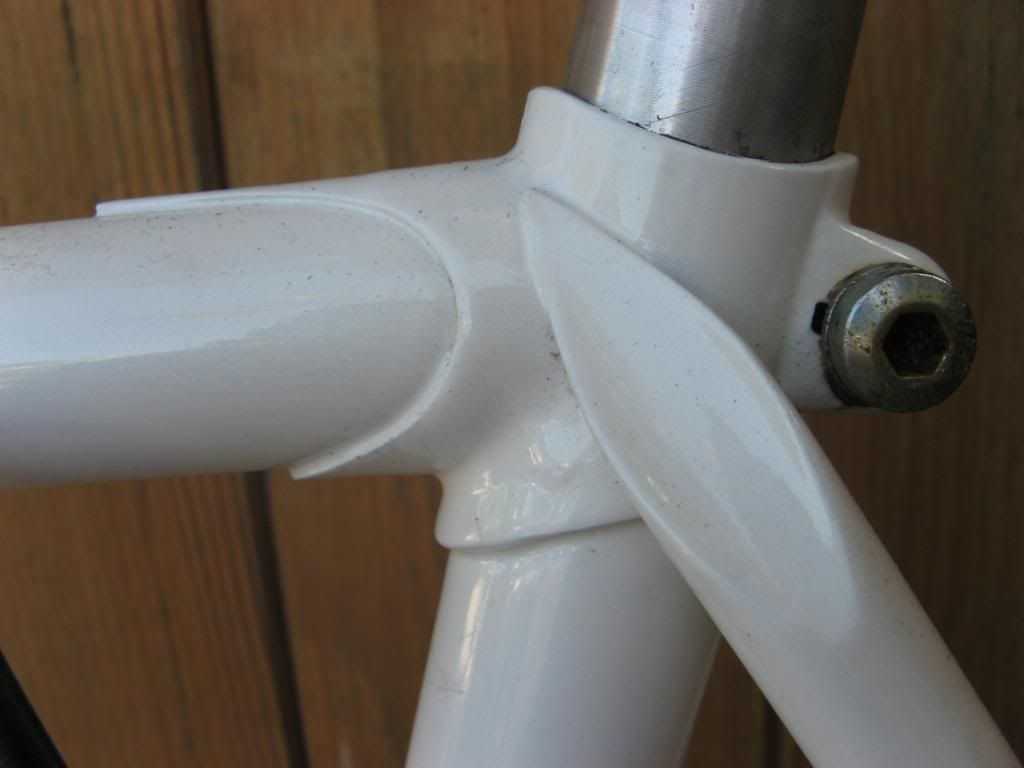

No serial numbers, the only markings are BCM and 73 on the lugs. Which I have been informed are Bacoma lugs and the angle of the lugs.
Very long pointed lugs and Campagnolo drop-outs front and rear. Seat post size is 26.4 - so I'm guessing Reynolds 531. Internal lug fork crown.

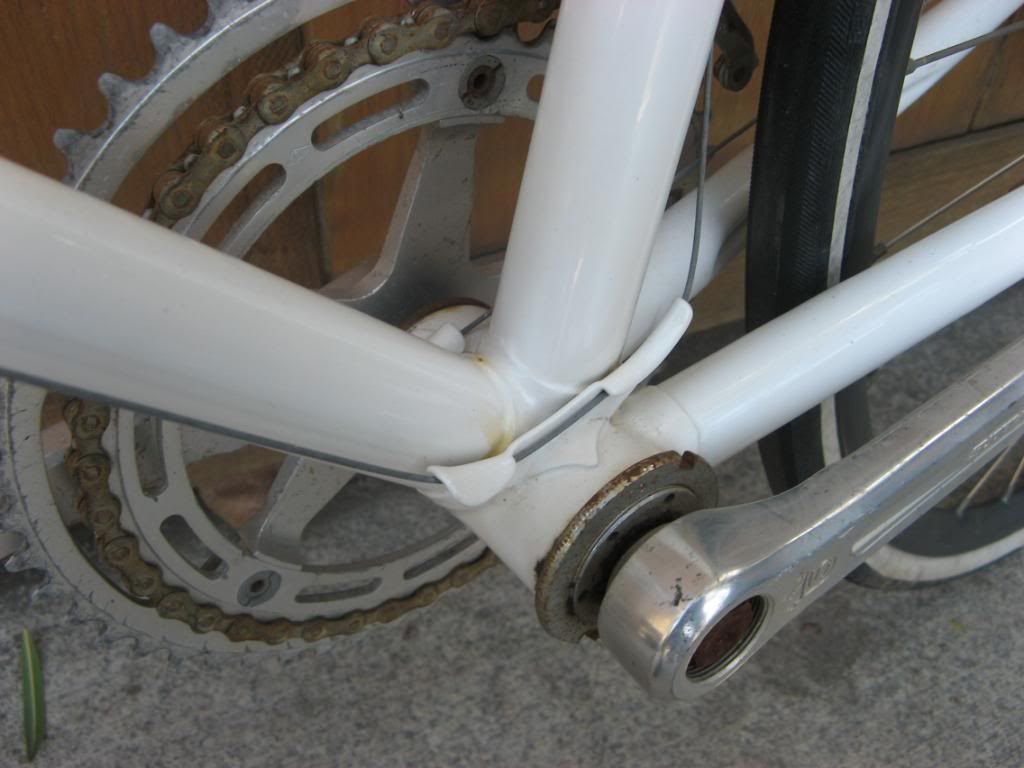

Over the BB cable routing. Other frame features, that may have been added later are;
f/d braze-on
two sets of water bottle bosses
pump peg
braze-on shifters mounts - There is a bump/nub under the down tube that may have been for clamp on shifters.

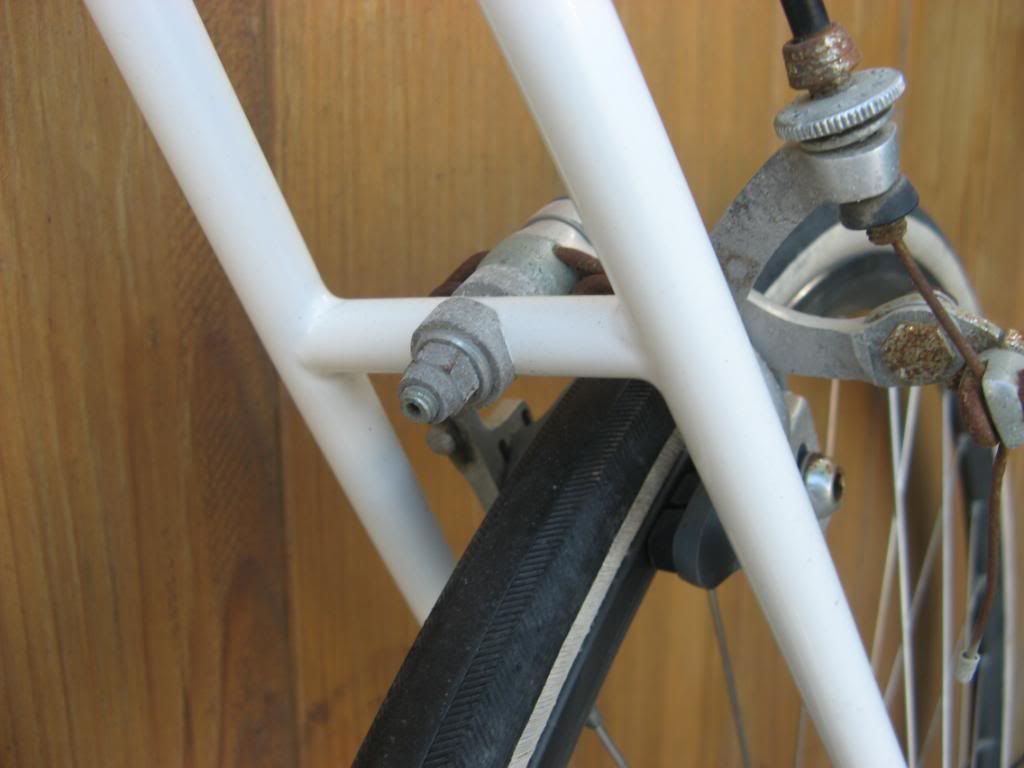

Chain stay bridge may have been removed to allow for larger tires - bike came to me with 28c tires.
With the possibility that the shifters were originally clamp on style - I believe, it's possible, it may have originally used cable clamps for the rear brake on the top tube.
Ok, here's the part that trips me up. The seat tube measures 54.5cm ctc and the top tube measures 57.2cm ctc. Custom?
Give the pics a good hard look and let me know what you think. Thanks.









Last edited by velomateo; 05-09-10 at 01:43 PM. Reason: incorrect image codes
velomateo is offline
Old 05-09-10, 01:45 PM
  #2
velomateo
Senior Member
Thread Starter

velomateo's Avatar

Join Date: Aug 2007
Location: California
Posts: 882

Bikes: 86 Mike Walton, '87 Serotta Colorado,'96 Moots VaMoots, Bertoni MAX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 159 Times in 82 Posts
I forgot to mention...English bottom bracket.
velomateo is offline
Old 05-09-10, 01:49 PM
  #3
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,938
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 990 Post(s)
Liked 508 Times in 416 Posts
Can't open the pics, try just a link to the photobucket album and make sure you've made it a "public" album.
Without seeing anything, sounds like a French bike with metric 531 tubing and Campy ends: could be a Gitane Super Corsa, perhaps (just a blindman's guess).
unworthy1 is online now
Old 05-09-10, 01:57 PM
  #4
velomateo
Senior Member
Thread Starter

velomateo's Avatar

Join Date: Aug 2007
Location: California
Posts: 882

Bikes: 86 Mike Walton, '87 Serotta Colorado,'96 Moots VaMoots, Bertoni MAX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 159 Times in 82 Posts
Can you see them now? They were showing on my page before but I made an adjustment to my photobucket account.
velomateo is offline
Old 05-09-10, 02:00 PM
  #5
lucysky
Junior Member

Join Date: May 2010
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I can see em!

Sorry im no help though
lucysky is offline
Old 05-09-10, 02:20 PM
  #6
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,938
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 990 Post(s)
Liked 508 Times in 416 Posts
Yes now they work, and I don't think "Gitane Super Corsa" anymore...it IS an odd mix with all those "modern" braze-ons, yet over BB cable routing and nutted brakes...looks like it's had some additions. Now my best guess is a late '70s FR bike with a trip to the torch. How about the HS and fork/stem: are they all FR specs?
unworthy1 is online now
Old 05-09-10, 03:39 PM
  #7
velomateo
Senior Member
Thread Starter

velomateo's Avatar

Join Date: Aug 2007
Location: California
Posts: 882

Bikes: 86 Mike Walton, '87 Serotta Colorado,'96 Moots VaMoots, Bertoni MAX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 159 Times in 82 Posts
I haven't pulled it apart yet...being Mother's day I probably won't get a chance until later tomorrow.
velomateo is offline
Old 05-09-10, 04:42 PM
  #8
EjustE
sultan of schwinn

EjustE's Avatar

Join Date: Sep 2009
Location: Lehigh Valley, PA
Posts: 3,581
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by velomateo View Post
Seat post size is 26.4 - so I'm guessing Reynolds 531.
Highly unlikely... It could be 501, but even that is unlikely. Straight gauge 4130 most likely, unless there is a shim inside the ST
EjustE is offline
Old 05-09-10, 04:56 PM
  #9
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,938
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 990 Post(s)
Liked 508 Times in 416 Posts
Originally Posted by EjustE View Post
Highly unlikely... It could be 501, but even that is unlikely. Straight gauge 4130 most likely, unless there is a shim inside the ST
no it's actually very likely for 531 if it's metric dimensions...but OP will have to measure the ODs of the main tubes to confirm that. Odd thing is the BSC BB threading, odd but not unheard of for FR bikes of a certain transitional period.
unworthy1 is online now
Old 05-09-10, 07:53 PM
  #10
velomateo
Senior Member
Thread Starter

velomateo's Avatar

Join Date: Aug 2007
Location: California
Posts: 882

Bikes: 86 Mike Walton, '87 Serotta Colorado,'96 Moots VaMoots, Bertoni MAX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 159 Times in 82 Posts
I removed the fork, headset is a Stronglight and stamped 1 inch x ## F. I'm sorry I forgot the number, I think it was 24. Am I correct to assume the F = French. What should the OD of the seat tube be to confirm if it's 531?
velomateo is offline
Old 05-09-10, 11:02 PM
  #11
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,938
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 990 Post(s)
Liked 508 Times in 416 Posts
Metric tubing is all even mm's, no fractions, so the TT is 26mm, seat and DT are 28mm. Imperial sizes are based on the inch so the TT is 25.4mm (1") and seat and DT are 28.6mm (1.125"). I' think the Stronglight HS is not FR threading since it's called out in inches and tpi...so now you've got a BSC BB and fork...looking less French and more like a mystery! No serial numbers at all?
unworthy1 is online now
Old 05-10-10, 04:05 AM
  #12
velomateo
Senior Member
Thread Starter

velomateo's Avatar

Join Date: Aug 2007
Location: California
Posts: 882

Bikes: 86 Mike Walton, '87 Serotta Colorado,'96 Moots VaMoots, Bertoni MAX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 159 Times in 82 Posts
[QUOTE= No serial numbers at all?[/QUOTE]

None at all.
velomateo is offline
Old 05-10-10, 08:11 AM
  #13
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,650

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3003 Post(s)
Liked 2,110 Times in 1,255 Posts
Originally Posted by velomateo View Post
I removed the fork, headset is a Stronglight and stamped 1 inch x ## F. I'm sorry I forgot the number, I think it was 24. Am I correct to assume the F = French. What should the OD of the seat tube be to confirm if it's 531?
No, Stronglight was a French company so F="fil" which is the French word for "thread." It's an English thread headset; French would be 25mm x 1.0mm.

It's a nice looking frame. Do you have any better pictures of the fork, particularly the crown? Do the fork ends match the rear dropouts in brand/model and finishing style? Just trying to determine if the fork is a replacement.
JohnDThompson is offline
Old 05-10-10, 10:14 AM
  #14
pacifico
Senior Member

Join Date: Jan 2007
Location: East Bay
Posts: 101
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'm thinking custom by an American builder.
pacifico is offline
Old 05-10-10, 11:30 AM
  #15
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,938
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 990 Post(s)
Liked 508 Times in 416 Posts
could be^, it's definitely an odd one, and with no serial numbers it's more likely not from mass-production. Still odd that the long BCM lugs were not worked up, like the angle-stamping and the little flanges removed, if this were a custom job...most US builders would have done at least those 2 small touches.
unworthy1 is online now
Old 05-10-10, 11:44 AM
  #16
velomateo
Senior Member
Thread Starter

velomateo's Avatar

Join Date: Aug 2007
Location: California
Posts: 882

Bikes: 86 Mike Walton, '87 Serotta Colorado,'96 Moots VaMoots, Bertoni MAX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 159 Times in 82 Posts
Originally Posted by JohnDThompson View Post
No, Stronglight was a French company so F="fil" which is the French word for "thread." It's an English thread headset; French would be 25mm x 1.0mm.

It's a nice looking frame. Do you have any better pictures of the fork, particularly the crown? Do the fork ends match the rear dropouts in brand/model and finishing style? Just trying to determine if the fork is a replacement.
Fork tips match the rear in brand ( Campy) and finish. I'll get a pic up later.
velomateo is offline
