26.0 clamp compact handlebar

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

26.0 clamp compact handlebar

Old 03-18-11, 08:41 PM
  #1
THEJAPINO
Noob
Thread Starter

Join Date: Nov 2009
Location: Bay Area
Posts: 355

Bikes: 80's Vitus 979, '86 Schwinn Paramount

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
26.0 clamp compact handlebar

Has anyone tried the Origin 8 Pro-lite compact handlebar with the 26.0 clamp? There aren't really good pics of it online to show the bend. The Origin 8 site says it has a large flat center section for comfort. Does this mean a regular old quill stem won't be able to slide onto the bar? Oh, it only comes in black also. I rode my friend's Cannondale with a compact bar and it felt perfect. Anyone try these bars? Thanks

Link: http://www.origin-8.com/?page_id=91&...cl1=HANDLEBARS
THEJAPINO is offline
Old 03-19-11, 12:18 PM
  #2
thenomad
Riding like its 1990

thenomad's Avatar

Join Date: Nov 2006
Location: IE, SoCal
Posts: 3,773
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I like the Ritchey Bio Max I have on my cross bike. Good ultra ergo shape, shallow drops and nice large flats.
JensonUSA has some deals on bars with 26.0 you might look at.
thenomad is offline
Old 03-19-11, 01:13 PM
  #3
BentLink
Senior Member

BentLink's Avatar

Join Date: Jan 2010
Location: Pennsyl-tuckey
Posts: 684

Bikes: '86 Cannondale SR400, '86 Pugeot PX10, '92 Bianchi Axis, '95 Bianchi Campione d'Italia, '00 Fondriest X-Status, '08 Specialized Roubaix, '13 Cannondale CAADX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I got some fairly recent Cinelli b-groove bars at my LBS. They're 26.0 and have a modest depth bend. Pretty affordable...
BentLink is offline
Old 03-19-11, 02:57 PM
  #4
bradtx
Senior Member

Join Date: Jun 2010
Location: Pearland, Texas
Posts: 7,580

Bikes: Cannondale, Trek, Raleigh, Santana

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 304 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
THEJAPINO, I have to wonder if the flat section will even be that noticeable once the bar is taped and you're possibly wearing gloves.

Brad
bradtx is offline
Old 03-20-11, 10:57 AM
  #5
THEJAPINO
Noob
Thread Starter

Join Date: Nov 2009
Location: Bay Area
Posts: 355

Bikes: 80's Vitus 979, '86 Schwinn Paramount

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by bradtx View Post
THEJAPINO, I have to wonder if the flat section will even be that noticeable once the bar is taped and you're possibly wearing gloves.

Brad
Oh, I don't mind how it would look or feel. I don't usually ride in the tops. My biggest concern is if whether the flat spot will keep me from sliding a quill stem clamp onto this bar. Specs are 70mm reach, 120mm drop. Supposedly in this new 'compact' that I like. I put in an order with my LBS and the bar is backordered until the 1st if April so we'll see how it goes...

EDIT: here is the compact shape I want.

Last edited by THEJAPINO; 03-20-11 at 11:17 AM.
THEJAPINO is offline
Old 04-02-11, 04:22 PM
  #6
THEJAPINO
Noob
Thread Starter

Join Date: Nov 2009
Location: Bay Area
Posts: 355

Bikes: 80's Vitus 979, '86 Schwinn Paramount

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Found one! I polished the center section(shot-peeked finish, I hate you), wedged the quill open with pry bars and finessed (forcefully) it onto the bars.

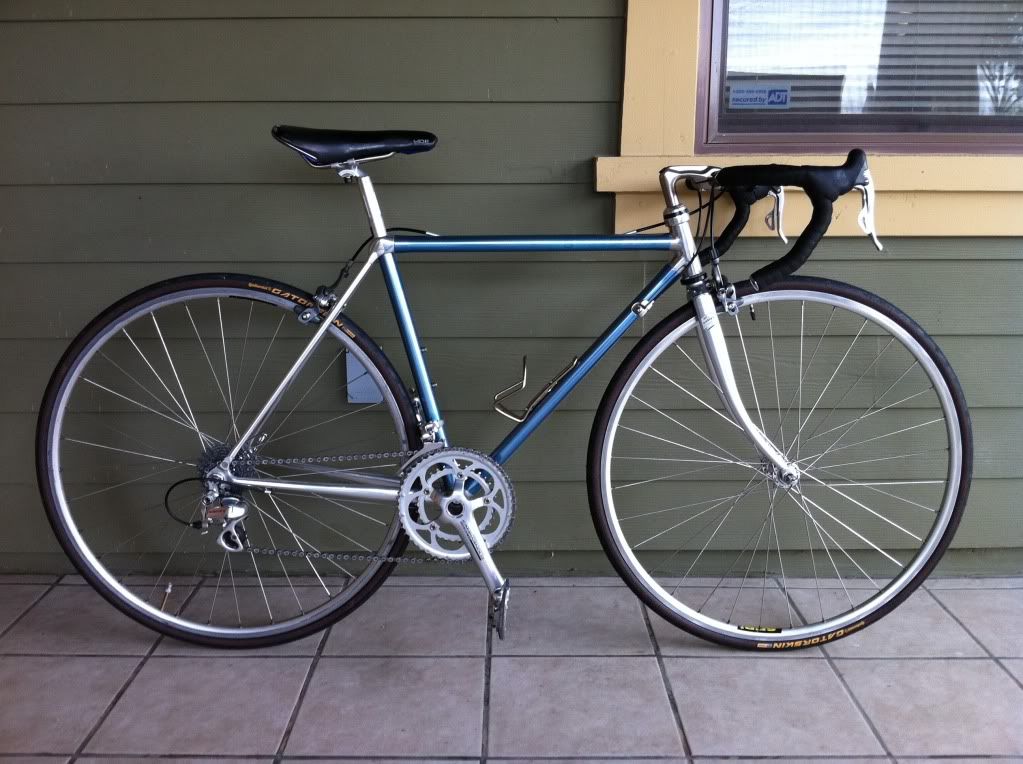

Before:

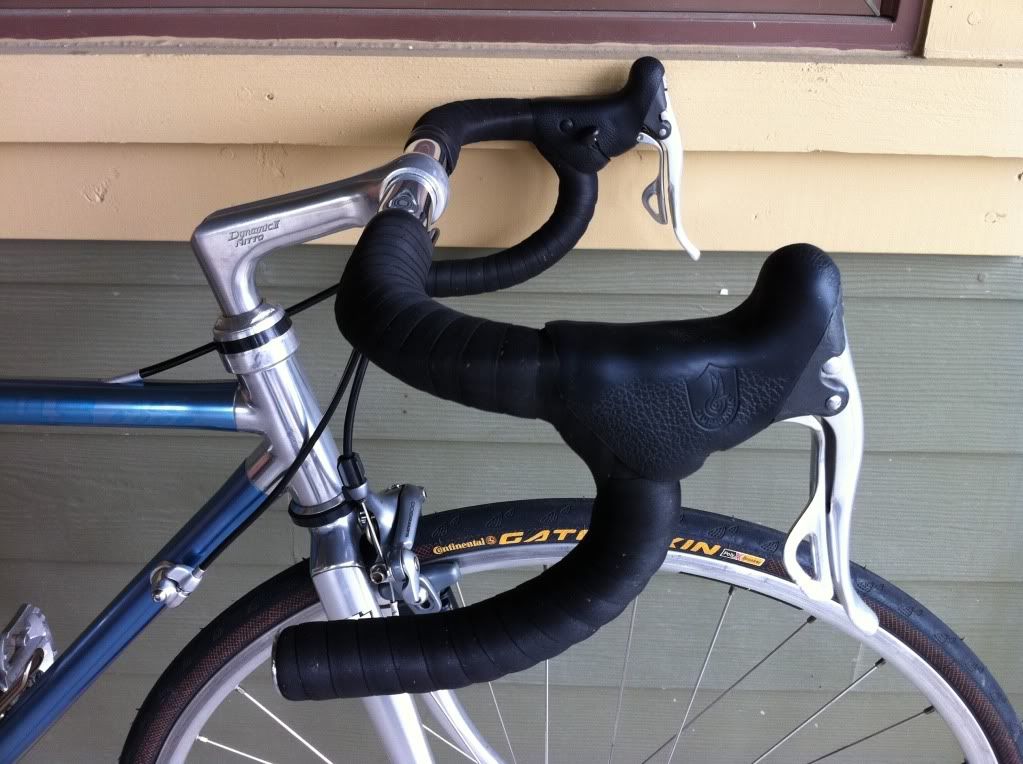

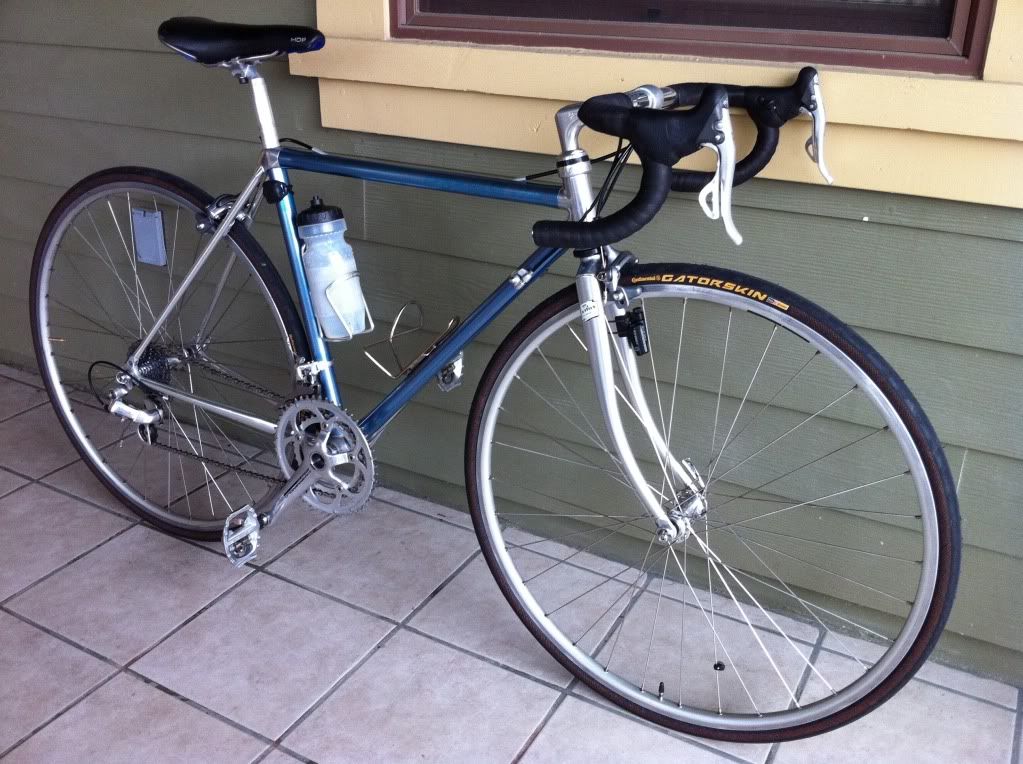

After:


THEJAPINO is offline
Old 04-02-11, 05:09 PM
  #7
bradtx
Senior Member

Join Date: Jun 2010
Location: Pearland, Texas
Posts: 7,580

Bikes: Cannondale, Trek, Raleigh, Santana

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 304 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Was it worth the effort? Quite a difference WRT drop.

Brad
bradtx is offline
Old 04-02-11, 06:13 PM
  #8
THEJAPINO
Noob
Thread Starter

Join Date: Nov 2009
Location: Bay Area
Posts: 355

Bikes: 80's Vitus 979, '86 Schwinn Paramount

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I gave it a quick spin up and down the street last night after finishing the install. "Confidence inspiring" is what I would call it. I have short arms so riding in the drops before was an awkward position for me. The saddle to bar drop combined with the depth of the handlebar made it feel unnatural for extended periods of time. During fast descents, I felt I would soon "tip over".

With the new setup, the drops actually feel usable. It has a bit longer reach but it feels ok because I'm not so hunched over anymore. I feel more stable climbing out of the saddle and on the hoods b/c of the reach.

In summary, the new bars/stem changed the bikes behavior from twitchy to stable. A good ride is planned for Monday! Let you know how it goes.

Worth it
THEJAPINO is offline
Old 08-13-11, 11:02 PM
  #9
ibis_ti
Senior Member

Join Date: Jul 2009
Location: Norcal
Posts: 201
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Did you find it locally(Bay area?) or order it off Amazon? What were the previous bars?
I think I'd like to try the same.

The other choice would be the Bontrager VR-C which has a slightly different shape with a little more reach and deeper drop.
ibis_ti is offline
Old 08-14-11, 02:45 PM
  #10
bionnaki
Senior Member

Join Date: Aug 2006
Posts: 886
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
get these instead: http://store.somafab.com/hwyonebar.html
bionnaki is offline
Old 08-14-11, 07:15 PM
  #11
ParaWK4
Senior Member

ParaWK4's Avatar

Join Date: Jul 2008
Location: Indiana
Posts: 166

Bikes: 85 Fuso, 86 Peloton, 84,88 Paramount

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Anybody know if the Origin8 bars are single or double groove. From the pictures it looks like single.
ParaWK4 is offline
Old 08-27-11, 11:55 PM
  #12
ibis_ti
Senior Member

Join Date: Jul 2009
Location: Norcal
Posts: 201
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Single groove in front. Actually it's a very shallow almost non existent groove.
ibis_ti is offline
Old 08-28-11, 12:20 AM
  #13
THEJAPINO
Noob
Thread Starter

Join Date: Nov 2009
Location: Bay Area
Posts: 355

Bikes: 80's Vitus 979, '86 Schwinn Paramount

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Found it locally through the Bontrager site. I did a 'find a retailer' search and called each store until I found someone to stocked it. Tip Top Bike Shop in Oakland stocked it.

EDIT: so far, it looks like our options for 26.0 compact handlebars are Bontrager SSR VR-C, Origin8 Pro-Lite Compact, and SomaFab Hwy One (available in silver finish).

Last edited by THEJAPINO; 08-28-11 at 12:26 AM.
THEJAPINO is offline
Old 08-31-11, 03:11 PM
  #14
bionnaki
Senior Member

Join Date: Aug 2006
Posts: 886
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
nitto has a few 26.0 compacts. 42mm widest.

very, very expensive last few months due to the yen.
bionnaki is offline
Old 08-31-11, 05:16 PM
  #15
THEJAPINO
Noob
Thread Starter

Join Date: Nov 2009
Location: Bay Area
Posts: 355

Bikes: 80's Vitus 979, '86 Schwinn Paramount

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Oh yeah, forgot that one. Nitto M106 neat. Isn't it around $100?
THEJAPINO is offline
Old 08-31-11, 05:37 PM
  #16
georgiaboy
Retro-nerd

georgiaboy's Avatar

Join Date: Mar 2005
Location: Morningside - Atlanta
Posts: 1,585

Bikes: 1991 Serotta Colorado II, 1986 Vitus 979, 1971 Juene Classic, 2008 Surly Crosscheck, 1949 Riva Sport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Nitto model 136AA -

Reach is 100 mm and drop is 128 mm. Clamp diameter is 26.0. Available in 40, 42 and 44 cm widths.



http://www.jitensha.com/eng/nittorandbar.html
__________________
Would you like a dream with that?
georgiaboy is offline
Old 10-12-11, 07:57 PM
  #17
frenchie86
Junior Member

Join Date: May 2009
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by THEJAPINO View Post
Found it locally through the Bontrager site. I did a 'find a retailer' search and called each store until I found someone to stocked it. Tip Top Bike Shop in Oakland stocked it.

EDIT: so far, it looks like our options for 26.0 compact handlebars are Bontrager SSR VR-C, Origin8 Pro-Lite Compact, and SomaFab Hwy One (available in silver finish).
Just to be clear, the bars you went with are the Bontrager SSR VR-C correct?
frenchie86 is offline
Old 10-12-11, 09:11 PM
  #18
THEJAPINO
Noob
Thread Starter

Join Date: Nov 2009
Location: Bay Area
Posts: 355

Bikes: 80's Vitus 979, '86 Schwinn Paramount

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Yeah, that's it. Be prepared to spread a stem farther than a stem has ever been spread before!
THEJAPINO is offline
Old 03-18-12, 11:36 AM
  #19
kevin_chicago9
Steal is real

kevin_chicago9's Avatar

Join Date: Jan 2008
Location: Chciago, IL
Posts: 2

Bikes: 1984 Schwinn Paramount, 2008 Cervelo Soloist Team, 1987 Schwinn Super Sport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by THEJAPINO View Post
Found one! I polished the center section(shot-peeked finish, I hate you)
THEJAPINO, would you mind sharing with me how you removed the black, shot-peened finish from the Bontrager bars? I'm getting the same bars, and I would like to do the same. Thank you in advance! (I'm sorry if you covered this in another thread. I did a search but couldn't find anything.)


-kevin
kevin_chicago9 is offline
Old 03-18-12, 11:49 AM
  #20
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,628

Bikes: Too many to list here check my signature.

Mentioned: 93 Post(s)
Tagged: 2 Thread(s)
Quoted: 1262 Post(s)
Liked 38 Times in 29 Posts
I think the general method involves heavy duty oven cleaner and lots of elbow grease.
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is online now
Old 03-21-12, 04:08 PM
  #21
kevin_chicago9
Steal is real

kevin_chicago9's Avatar

Join Date: Jan 2008
Location: Chciago, IL
Posts: 2

Bikes: 1984 Schwinn Paramount, 2008 Cervelo Soloist Team, 1987 Schwinn Super Sport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thank you, Bianchigirll! I appreciate the info. Sounds... "fun"? Ahem.
kevin_chicago9 is offline
Old 03-21-12, 05:27 PM
  #22
Sirrus Rider
Velocommuter Commando

Sirrus Rider's Avatar

Join Date: Nov 2007
Location: Houston, Texas
Posts: 2,648

Bikes: '88 Specialized Sirrus, '89 Alpine Monitor Pass, two '70 Raligh Twenties, '07 Schwinn Town & Country Trike, '07 Specialized Sirrus Hybrid

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 3 Times in 1 Post
Originally Posted by THEJAPINO View Post
Has anyone tried the Origin 8 Pro-lite compact handlebar with the 26.0 clamp? There aren't really good pics of it online to show the bend. The Origin 8 site says it has a large flat center section for comfort. Does this mean a regular old quill stem won't be able to slide onto the bar? Oh, it only comes in black also. I rode my friend's Cannondale with a compact bar and it felt perfect. Anyone try these bars? Thanks

Link: http://www.origin-8.com/?page_id=91&...cl1=HANDLEBARS
No but I wish they had their Prolite Alloy http://www.origin-8.com/?page_id=91&...cl1=HANDLEBARS as a 26.0 clamp and in silver alloy. I have this bar on my '07 Sirrus and it makes more sense than the drops that came stock on my '88. The drops on the '88 are 38cm wide and the drops are almost at the same level as the top of the fork. Which would be fine if I had the arm length of a Chimpanzee. As it is black bars would look out of place on the '88. Not to mention changing the stem out to riser and extension type to handle the 31.8 of this bar.

Last edited by Sirrus Rider; 03-21-12 at 05:34 PM. Reason: added content
Sirrus Rider is offline
Old 07-02-12, 09:49 AM
  #23
ParaWK4
Senior Member

ParaWK4's Avatar

Join Date: Jul 2008
Location: Indiana
Posts: 166

Bikes: 85 Fuso, 86 Peloton, 84,88 Paramount

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Reviving an old thread. I recently put Bontrager SSR VR-C bars (44 cm) on my Peloton and like them a lot. The tops are flat, short reach and drop, and the drops are very comfortable. I like them much better than the shallow drop Ritchey Classic or Oval Concepts I have on other bikes. To get the tops fairly flat on these, the drops angle down quite a bit.

I was able to get them on a Cinelli 1-A stem with a lot of wiggling and patience, the transition curve from the drop to top is tight and tough to get past. A Nitto Dynamic II would be perfect and still looking for one of those.
ParaWK4 is offline
Old 07-02-12, 10:17 AM
  #24
brockd15
Senior Member

brockd15's Avatar

Join Date: Dec 2008
Location: Cupertino, CA
Posts: 1,608
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by ParaWK4 View Post
Reviving an old thread. I recently put Bontrager SSR VR-C bars (44 cm) on my Peloton and like them a lot. The tops are flat, short reach and drop, and the drops are very comfortable. I like them much better than the shallow drop Ritchey Classic or Oval Concepts I have on other bikes. To get the tops fairly flat on these, the drops angle down quite a bit.

I was able to get them on a Cinelli 1-A stem with a lot of wiggling and patience, the transition curve from the drop to top is tight and tough to get past. A Nitto Dynamic II would be perfect and still looking for one of those.
Happen to have any pictures of the new bars on the bike?
brockd15 is offline
Old 07-03-12, 08:27 PM
  #25
ParaWK4
Senior Member

ParaWK4's Avatar

Join Date: Jul 2008
Location: Indiana
Posts: 166

Bikes: 85 Fuso, 86 Peloton, 84,88 Paramount

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I confess I currently have it setup with a Profile H20 stem (the Cinelli was too long) and won't subject the community to the sight of that stem on a nice bike. I'll post a picture when I get a more appropriate stem.
ParaWK4 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
