High tensile 1020 butted tubing

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.
View Poll Results: Should I always stay away from high tensile 1020?
Yes, find something better
5
16.13%
No, 1020 butted is OK
14
45.16%
Maybe, a few good bikes were made with 1020 butted tubing
12
38.71%
Voters: 31. You may not vote on this poll

High tensile 1020 butted tubing

Old 04-30-11, 07:52 AM
  #1
Barrettscv
Have bike, will travel
Thread Starter

Barrettscv's Avatar

Join Date: Feb 2006
Location: Lake Geneva, WI
Posts: 12,345

Bikes: Ridley Helium SLX, Canyon Endurance SL, De Rosa Professional, Eddy Merckx Corsa Extra, Schwinn Paramount (1 painted, 1 chrome), Peugeot PX10, Serotta Nova X, Simoncini Cyclocross Special, Raleigh Roker, Pedal Force CG2 and CX2

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 890 Post(s)
Liked 238 Times in 132 Posts
High tensile 1020 butted tubing

I'm looking at a 1980 Japanese bike with high tensile 1020 butted tubing. The bike has nice components as weighs about 25 pounds.

If the bike was 4130 Chrome-molybdenum I would get it.

Should I always stay away from high tensile 1020?
Barrettscv is offline
Old 04-30-11, 07:56 AM
  #2
crazyb
Senior Member

Join Date: Jan 2006
Location: Hills of Iowa
Posts: 1,248

Bikes: all diamond frames

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
If you like the bike, buy it. 1020 is run of the mill. so is 4130.
crazyb is offline
Old 04-30-11, 08:14 AM
  #3
jimmuller
What??? Only 2 wheels?

jimmuller's Avatar

Join Date: Apr 2010
Location: Boston-ish, MA
Posts: 13,430

Bikes: 72 Peugeot UO-8, 82 Peugeot TH8, 87 Bianchi Brava, 76? Masi Grand Criterium, 74 Motobecane Champion Team, 86 & 77 Gazelle champion mondial, 81? Grandis, 82? Tommasini, 83 Peugeot PF10

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 1218 Post(s)
Liked 573 Times in 216 Posts
Originally Posted by crazyb View Post
If you like the bike, buy it. 1020 is run of the mill. so is 4130.
And Carbolite 103 is?

I'll repeat an observation from a recent thread on bike frame steel. All steels have the same modulus of elasticity but the different alloys have different tensile strength. "Softer" alloy tubes have to be thicker to compensate. This makes the frame stiffer and heavier. But the thickness itself is the only thing that affects frame response. If the builder made good choices then a decent frame can be built with any alloy, the only difference being weight. So if the weight is okay to you (and assuming the builder was good at the trade) then the bike should be fine.

Personal experience: I have begun some commuting on a UO8 I've owned since just after the dawn of recorded time. It's a "run of the mill" frame. As equipped it is heavier than a performance bike, but the frame response is just fine. If the weight is okay for you, then so likely is the bike.
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
jimmuller is offline
Old 04-30-11, 08:42 AM
  #4
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 23,369

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1173 Post(s)
Liked 791 Times in 536 Posts
That chrome Panasonic 1020 bike is pretty nice. I avoid 1020 bikes as they tend to be finished with lower end stuff, claw RD hanger, etc. But I would have been happy to find that chrome Panasonic.
wrk101 is offline
Old 04-30-11, 08:49 AM
  #5
jimmuller
What??? Only 2 wheels?

jimmuller's Avatar

Join Date: Apr 2010
Location: Boston-ish, MA
Posts: 13,430

Bikes: 72 Peugeot UO-8, 82 Peugeot TH8, 87 Bianchi Brava, 76? Masi Grand Criterium, 74 Motobecane Champion Team, 86 & 77 Gazelle champion mondial, 81? Grandis, 82? Tommasini, 83 Peugeot PF10

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 1218 Post(s)
Liked 573 Times in 216 Posts
Originally Posted by wrk101 View Post
I avoid 1020 bikes as they tend to be finished with lower end stuff, claw RD hanger, etc.
I don't mean to be a contrarian but when youa re riding can you tell the difference between a claw and and integrated RD hanger? I sure couldn't.
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
jimmuller is offline
Old 04-30-11, 08:51 AM
  #6
crazyb
Senior Member

Join Date: Jan 2006
Location: Hills of Iowa
Posts: 1,248

Bikes: all diamond frames

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by jimmuller View Post
And Carbolite 103 is?

I'll repeat an observation from a recent thread on bike frame steel. All steels have the same modulus of elasticity but the different alloys have different tensile strength. "Softer" alloy tubes have to be thicker to compensate. This makes the frame stiffer and heavier. But the thickness itself is the only thing that affects frame response. If the builder made good choices then a decent frame can be built with any alloy, the only difference being weight. So if the weight is okay to you (and assuming the builder was good at the trade) then the bike should be fine.

Personal experience: I have begun some commuting on a UO8 I've owned since just after the dawn of recorded time. It's a "run of the mill" frame. As equipped it is heavier than a performance bike, but the frame response is just fine. If the weight is okay for you, then so likely is the bike.
I used to have a u08 and found it to be very dead feeling, not bad, just run of the mill. And really all I was saying was that there isn't much difference between the two.
crazyb is offline
Old 04-30-11, 09:24 AM
  #7
jimmuller
What??? Only 2 wheels?

jimmuller's Avatar

Join Date: Apr 2010
Location: Boston-ish, MA
Posts: 13,430

Bikes: 72 Peugeot UO-8, 82 Peugeot TH8, 87 Bianchi Brava, 76? Masi Grand Criterium, 74 Motobecane Champion Team, 86 & 77 Gazelle champion mondial, 81? Grandis, 82? Tommasini, 83 Peugeot PF10

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 1218 Post(s)
Liked 573 Times in 216 Posts
Originally Posted by crazyb View Post
I used to have a u08 and found it to be very dead feeling, not bad, just run of the mill. And really all I was saying was that there isn't much difference between the two.
Actually, I was sort of agreeing with you. The dead feeling you describe could be as much due to wheels as to the frame. (My UO8 has good wheels.) With goo designe the frame material is mostly a matter of weight.
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
jimmuller is offline
Old 04-30-11, 09:27 AM
  #8
illwafer
)) <> ((

illwafer's Avatar

Join Date: Mar 2008
Location: San Diego, CA
Posts: 2,411
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 3 Times in 3 Posts
the difference in frame weight of great steel vs ok steel is only a few pounds (at most), so right there the argument should end. there is also a difference in weight and ride from a 50cm to 60cm frame, but you can't make yourself shorter or taller so there's no use worrying about that either.

if you like the frame, and you say it has nice components, then you shouldn't even be thinking twice.
illwafer is offline
Old 04-30-11, 09:29 AM
  #9
illwafer
)) <> ((

illwafer's Avatar

Join Date: Mar 2008
Location: San Diego, CA
Posts: 2,411
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 3 Times in 3 Posts
i'm taking this hi-ten bike on a 70 mile, semi-fast (15-16mph) ride today. imo, it is not all that heavy with decent wheels, but is is sooo smooth and fun to ride:
illwafer is offline
Likes For illwafer:
Old 04-30-11, 09:30 AM
  #10
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,372

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 1281 Post(s)
Likes: 0
Liked 1,430 Times in 801 Posts
Should I always stay away from high tensile 1020?
There is nothing wrong with the tubing or the ride quality it is capable of offering. That said, just about bike could be made from 1020 steel, however; the butted examples would be reserved for mid level bicycles, mostly. To that the OP added that the bike is fitted with nice components, once again suggesting decent quality.

I think?-(

From actual experience, one of the nicest riding bikes I have owned would be the Peugeot Course, a Carbolite 103 framed beauty that would be similar to what you are considering.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 04-30-11, 09:31 AM
  #11
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 23,369

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1173 Post(s)
Liked 791 Times in 536 Posts
Originally Posted by jimmuller View Post
I don't mean to be a contrarian but when youa re riding can you tell the difference between a claw and and integrated RD hanger? I sure couldn't.
It hurts resale, at least around here. And even on keeper bikes, I consider resale, as I typically pass on at least one keeper bike every year.
wrk101 is offline
Old 04-30-11, 09:57 AM
  #12
bradtx
Senior Member

Join Date: Jun 2010
Location: Pearland, Texas
Posts: 7,579

Bikes: Cannondale, Trek, Raleigh, Santana

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 307 Post(s)
Liked 3 Times in 3 Posts
Barrettscv, I have no problem hopping on my unbutted '80 gas pipe Raleigh (well actually after the new shifters arrive ). While it isn't as sophisticated as my other bikes, nor nearly as light it's still a fun bike to ride, a true blast from the past.

Brad
bradtx is offline
Old 04-30-11, 11:00 AM
  #13
Chris_in_Miami
missing in action

Chris_in_Miami's Avatar

Join Date: Nov 2007
Posts: 4,579
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 45 Times in 26 Posts
Originally Posted by illwafer View Post
i'm taking this hi-ten bike on a 70 mile, semi-fast (15-16mph) ride today. imo, it is not all that heavy with decent wheels, but is is sooo smooth and fun to ride:
Beautiful bike illwafer, a great reason not to dismiss hi-ten bikes. Here's another - my Trek TX300 in Ishiwata hi-ten.

Chris_in_Miami is offline
Old 04-30-11, 11:13 AM
  #14
auchencrow
Senior Member

auchencrow's Avatar

Join Date: Apr 2009
Location: Detroit
Posts: 10,327
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 21 Times in 18 Posts
There are plenty of high ten bikes that I like a lot - more so even than some haughty-tubed bikes, because geometry (and good wheels) makes a far greater difference than a little extra weight.

Examples include the Pug U-08, 70's Raleigh GP's, & Fuji Special Racer.
__________________
- Auchen
auchencrow is offline
Old 04-30-11, 11:20 AM
  #15
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: Santa Rosa, California
Posts: 10,489

Bikes: Waterford 953 RS-22, several Paramounts

Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 628 Post(s)
Liked 60 Times in 49 Posts

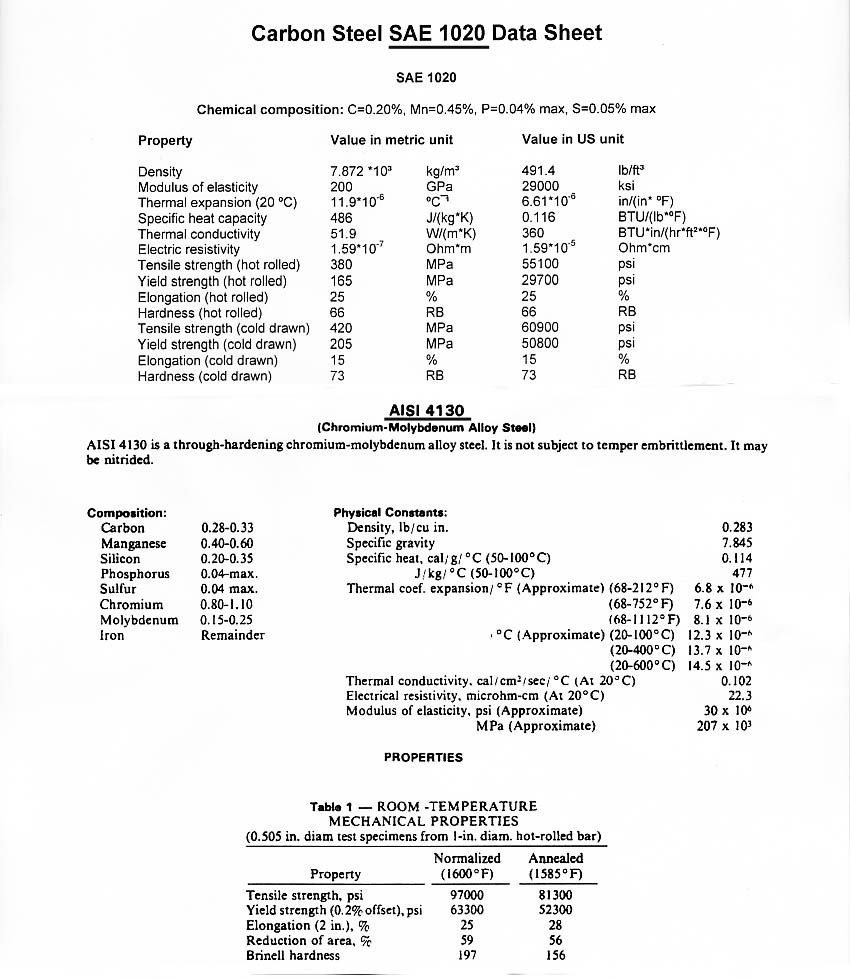

Personally, I don't think I'd buy a butted 1020 frame, especially if I were a heavier rider. The reason most 1020 frames are straight gauge is because the yield strength is about half that of 4130, so that the thinner center section of butted 1020 tubing (< about .8 mm) isn't very strong (1020 yield strength is 29,700 psi, 4130 yield strength is 63,300 psi).

Straight gauge (18 gauge, which is 1.214 mm, or thicker) 1020 is fine, but heavy. I'd save my money and buy a 4130 butted frame.

My $.02.

__________________
- Stan

my bikes

Science doesn't care what you believe.

Last edited by Scooper; 04-30-11 at 12:35 PM.
Scooper is offline
Old 04-30-11, 07:30 PM
  #16
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,429

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Liked 107 Times in 67 Posts
Scooper, those tables contain good data but they don't tell you what processing the tubes for an individual bike frame have been given. And they don't have 1:1 correspondence. That said, there's no doubt that properly handled 4130 will eclipse 1020 in tensile strength. My point is, your numbers are good examples, but are not necessarily indicative of actual bike frame tubing tensile strengths for 1020 and 4130.
old's'cool is offline
Old 04-30-11, 07:45 PM
  #17
bikemanbob
Senior Member

bikemanbob's Avatar

Join Date: Jul 2010
Location: Metro Detroit
Posts: 860

Bikes: Bertoni Corsa Mondiale, Bridgestone T-700, Miyata 700 GT, Trek 600, Trek 560 Professional Series, Chrome Panasonic DX 2000, Peugeot PH12, Peugeot PX10, Schwinn World Voyageur, Schwinn Circuit, and Schwinn Voyageur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
1020 or not, I'm very happy with mine--Panasonic DX 2000. I'm in the process of restoring it (the comfort seat is gone alreadly). It's a nice bike.

bikemanbob is offline
Old 04-30-11, 08:03 PM
  #18
Alan Edwards
Senior Member

Alan Edwards's Avatar

Join Date: Apr 2011
Location: Lancaster,CA the desert north of Los Angeles
Posts: 701

Bikes: 84' Ciocc, 79' Shogun 1000, 76' KHS Gran Sport, 96' Schwinn Super Sport,

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
When I was a kid, 16 I had been riding a Nishiki for a couple years. The Nishiki had Hi-Ten steel or something, got rid or it for a new Ralighi Technium with aluminum tubes. After the new bike feeling wore off I realised I had a bike that was noodley and didn't handle well. The Nishiki was the better bike. And that Crome Panasonic is Badazz
Alan Edwards is offline
Old 05-03-11, 10:46 AM
  #19
Barrettscv
Have bike, will travel
Thread Starter

Barrettscv's Avatar

Join Date: Feb 2006
Location: Lake Geneva, WI
Posts: 12,345

Bikes: Ridley Helium SLX, Canyon Endurance SL, De Rosa Professional, Eddy Merckx Corsa Extra, Schwinn Paramount (1 painted, 1 chrome), Peugeot PX10, Serotta Nova X, Simoncini Cyclocross Special, Raleigh Roker, Pedal Force CG2 and CX2

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 890 Post(s)
Liked 238 Times in 132 Posts
I decided not to buy the bike. While the condition was minty, the price was high and I'm not sure I would have been happy about the overall performance of the bike.
Barrettscv is offline
Old 05-03-11, 11:33 AM
  #20
la traviata
Senior Member

la traviata's Avatar

Join Date: Jun 2009
Posts: 89
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I was talking to a friend about this the other day, my lower end bikes see a lot of riding. I feel as a whole they are still just as, and in some ways more fun to ride partly because there is a lot less worry involved. scratches, chipped paint, theft, rust etc.
la traviata is offline
Old 05-03-11, 01:02 PM
  #21
jimmuller
What??? Only 2 wheels?

jimmuller's Avatar

Join Date: Apr 2010
Location: Boston-ish, MA
Posts: 13,430

Bikes: 72 Peugeot UO-8, 82 Peugeot TH8, 87 Bianchi Brava, 76? Masi Grand Criterium, 74 Motobecane Champion Team, 86 & 77 Gazelle champion mondial, 81? Grandis, 82? Tommasini, 83 Peugeot PF10

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 1218 Post(s)
Liked 573 Times in 216 Posts
Originally Posted by Barrettscv View Post
I decided not to buy the bike. While the condition was minty, the price was high and I'm not sure I would have been happy about the overall performance of the bike.
You never mentioned what the price was or what components it had. Price would make a big difference.

That being said, 25lbs is exactly what my Raleigh Gran Sport weighs and it feels like a lightweight to me. However it sounds like you weren't going to be happy with it anyway so it's probably best that you let it go.
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
jimmuller is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Tomsl923833
Classic & Vintage
9
09-17-17 06:48 PM
12strings
Road Cycling
3
10-18-15 06:16 AM
corwin1968
Framebuilders
6
08-07-12 06:16 PM
djpfine
Framebuilders
7
06-09-12 06:18 AM
cykel
Classic & Vintage
14
01-18-10 06:40 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
