Help with 1975 Peugeot UO8

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Help with 1975 Peugeot UO8

Reply

Old 10-03-11, 09:57 AM
  #1
jptwins
Senior Member
Thread Starter

jptwins's Avatar

Join Date: Dec 2008
Location: Jamaica Plain, MA
Posts: 186

Bikes: Boulder AllRoad67cm; 1990 Nobilette 65cm;Fuji S12-S LTD 63cm; xtracycle; panasonic gran tourer 68cm

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Help with 1975 Peugeot UO8

A friend of mine found and gave me a 25" Peugeot frame/fork that I identified as a 1975 UO8. It seems in good enough condition that I'll put it together and ride it (at least until I find a larger shinier frame!)

But i have a few technical questions:
1. If I'm running this as a 1x6, what sort of downtube shifter do I get that fits on here? It's obvious there was a bracket for the left hand side, but i neither want or need that. Presumably something Simplex, but are there other options?


2. Once i have the shifter, i will need to get some sort of cable stop at the bottom of the downtube, as this seems to have come off. I have a Shimano one made for the left hand side, which i could flip over, but that doesn't look so hot. (it looks like this)


I'm also interested in what people think of the UO8, and if anyone has any particularly nice pictures. I have to say that my final build will be based on southpawboston's jeunet:

http://www.flickr.com/photos/[email protected]/sets/72157623167436095/

though certainly not as nice!

Last edited by jptwins; 10-03-11 at 10:58 AM.
jptwins is offline
Reply With Quote
Old 10-03-11, 11:04 AM
  #2
gmt13
Half way there

gmt13's Avatar

Join Date: May 2011
Location: Durham, NC
Posts: 1,110

Bikes: 69 Hercules, 73 Raleigh Sports, 74 Raliegh Competition, 78 Nishiki Professional, 79 Nishiki International, 83 Colnago Super, 83 Viner Junior

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
I had a '72 UO-8 and loved the bike. Various bits did disintegrate though (like the simplex shifters). I recall that the downtube had a single lever boss (as your picture shows). There was a clamp on left shifter boss that had a hole for the brazed one to fit through. It appears that the brazed boss is fairly standard, so take your choice of levers. My U0-8 came with the delrin Simplex levers that weren't all that great. I would not bother with a cable housing stop. Just route bare cable to the dropout stop. For cable routing at the bottom bracket, you could get one that looks like this: Or maybe install one of the plastic ones that bolt to the bottom of the bracket.

Good luck.

Gary
gmt13 is offline
Reply With Quote
Old 10-03-11, 11:35 AM
  #3
mikeybikes
Senior Member

mikeybikes's Avatar

Join Date: May 2009
Location: Edgewater, CO
Posts: 3,214

Bikes: Tons

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I'm glad you asked about the downtube boss. My wife's UO-18 that I'm building for her has the same thing. We also don't have the original shifters and clamp. Going with bar end shifters on her build.
mikeybikes is offline
Reply With Quote
Old 10-03-11, 05:40 PM
  #4
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,174

Bikes: 2 many 2 fit here

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 170 Post(s)
I'm not a fan at all of stem shifters myself but I recently happened to have salvaged a single Shimano stem shifter (along with a Suntour Honor RD) from an otherwise crap bike of similar vintage to yours in the junkyard - these items might be just the ticket for your build - if you're interested, you can have them for a token donation to BF, on your honor. Just send me your shipping address. I don't have photos, but I'll get some if you're interested.
__________________
Geoff
"There is no Fail without Try" - Yoda Simpson
old's'cool is offline
Reply With Quote
Old 10-04-11, 05:37 AM
  #5
jptwins
Senior Member
Thread Starter

jptwins's Avatar

Join Date: Dec 2008
Location: Jamaica Plain, MA
Posts: 186

Bikes: Boulder AllRoad67cm; 1990 Nobilette 65cm;Fuji S12-S LTD 63cm; xtracycle; panasonic gran tourer 68cm

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
@old's'cool : i'm also not a fan of stem shifters and have taken them off of every bike that had them. thanks for the offer though.

@gmt13 - i love the idea of just doing cable routing, and skipping the cable. great idea!

So that leave my real question: which brand of shifter (or what combination or parts) do i need for that shifter boss? The shimanos and suntours that i tried at my local LBS (who has a bin of used shifters) all seemed incompatible. thanks!
jptwins is offline
Reply With Quote
Old 10-04-11, 08:14 AM
  #6
auchencrow
Senior Member

auchencrow's Avatar

Join Date: Apr 2009
Location: Detroit
Posts: 10,327
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)


jptwins -

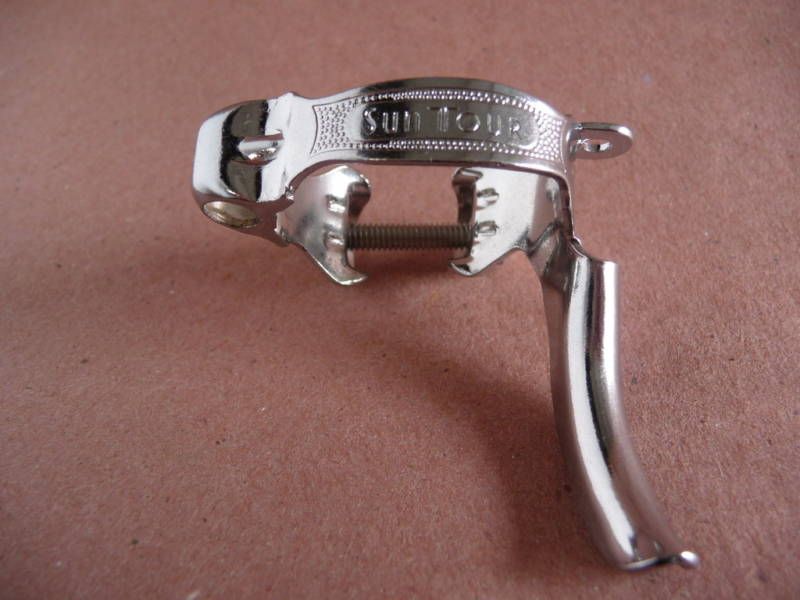

You don't need a cable stop - you need a cable guide - like this:


Generally you can find one on eBay for a few bucks.

Insofar as what people think of the U08, you can read all about it in THIS THREAD . In short, it's one of the most revered of high ten bikes and plenty of people love them. (Of course just as many around here seem to hate them )
__________________
- Auchen
auchencrow is offline
Reply With Quote
Old 10-04-11, 10:37 AM
  #7
gmt13
Half way there

gmt13's Avatar

Join Date: May 2011
Location: Durham, NC
Posts: 1,110

Bikes: 69 Hercules, 73 Raleigh Sports, 74 Raliegh Competition, 78 Nishiki Professional, 79 Nishiki International, 83 Colnago Super, 83 Viner Junior

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Here is a reference for the Simplex Prestige shifters that the bike probably came with:

These shifters are common on Ebay. I would guess that they would work; however I reckon there is some chance that Peugeot used some strange custom diameter on the boss. Hopefully someone with more current memory will chip in.

-Gary
Attached Images
gmt13 is offline
Reply With Quote
Old 10-04-11, 10:57 AM
  #8
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Posts: 17,421
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
A simplex Criterium shifter will fit and would be an upgrade.
Grand Bois is offline
Reply With Quote
Old 10-04-11, 11:27 AM
  #9
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 8,758

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 1969 Atala Professional, 1970 Torpado Luxe, 1973 Peugeot PX10E, 1978 Norco Magnum SE, 1982 Bianchi Touring, 2000 Cyclops

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 468 Post(s)
Most braze on Simplex shifters should fit that braze-on, I believe. As for the cable guide, make sure you get the right one, not sure if what you want to see is included in this article on the Peugeot U08, but you might see what you need. If you send me a PM, I can probably supply what you need.

Hope this is a help.
__________________
Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"
randyjawa is offline
Reply With Quote
Old 10-04-11, 11:35 AM
  #10
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Posts: 17,421
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
I did not find that most Simplex shifters fit that boss. Retrofrictions and some all aluminum shifters I tried did not fit. Criteriums and Prestiges did fit. Prestiges break easily and I wouldn't use them.
Grand Bois is offline
Reply With Quote
Old 10-05-11, 08:18 AM
  #11
jptwins
Senior Member
Thread Starter

jptwins's Avatar

Join Date: Dec 2008
Location: Jamaica Plain, MA
Posts: 186

Bikes: Boulder AllRoad67cm; 1990 Nobilette 65cm;Fuji S12-S LTD 63cm; xtracycle; panasonic gran tourer 68cm

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks grandBois! I'll definitly look into the Criterium levers. I also ran across some of the newer Simplex SLJ's and those are gorgeous:


this will be a slow build, but I'll post more when it gets going!
jptwins is offline
Reply With Quote
Old 10-05-11, 08:29 AM
  #12
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 16,862

Bikes: old ones

Mentioned: 191 Post(s)
Tagged: 0 Thread(s)
Quoted: 12669 Post(s)
Originally Posted by auchencrow View Post

Insofar as what people think of the U08, you can read all about it in THIS THREAD . In short, it's one of the most revered of high ten bikes and plenty of people love them. (Of course just as many around here seem to hate them )


The horror..........the horror............
Attached Images
File Type: jpg
3alarmer is offline
Reply With Quote
Old 10-05-11, 08:39 AM
  #13
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 35,501

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 367 Post(s)
Tagged: 0 Thread(s)
Quoted: 4479 Post(s)
My opinion of the UO-8 is in the middle. For a bike of this caliber, it rides great. But that's not saying much. You can get something better for the same money or just slightly more, such as a Raleigh Super Course. The UO-8 is whippy and slow by comparison. The UO-8 isn't all that well made, either. But it's a classic, and as I said, if you're going to ride a cheap 1020 (or whatever) frame, you can't get one that rides better than this one.

Sorry that sounds like faint praise. I commuted on one happily for years. And mine was bent, and it pulled to one side, but I was happy.
__________________
Tom Reingold, [email protected]
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Reply With Quote
Old 10-05-11, 09:28 AM
  #14
jptwins
Senior Member
Thread Starter

jptwins's Avatar

Join Date: Dec 2008
Location: Jamaica Plain, MA
Posts: 186

Bikes: Boulder AllRoad67cm; 1990 Nobilette 65cm;Fuji S12-S LTD 63cm; xtracycle; panasonic gran tourer 68cm

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by noglider View Post
My opinion of the UO-8 is in the middle. For a bike of this caliber, it rides great. But that's not saying much. You can get something better for the same money or just slightly more, such as a Raleigh Super Course. The UO-8 is whippy and slow by comparison. The UO-8 isn't all that well made, either. But it's a classic, and as I said, if you're going to ride a cheap 1020 (or whatever) frame, you can't get one that rides better than this one.

Sorry that sounds like faint praise. I commuted on one happily for years. And mine was bent, and it pulled to one side, but I was happy.

noglider, considering it was a free non-bent frame nearly my size, I will gladly build it up based on that praise. However, it won't stop me from looking for other frames, on which those components might be happier.
jptwins is offline
Reply With Quote
Old 10-05-11, 04:24 PM
  #15
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 35,501

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 367 Post(s)
Tagged: 0 Thread(s)
Quoted: 4479 Post(s)
There ya go. That's what I was driving at.

I got tired of mine when I worked for hours to get a cotter out. Then I lost a chainring bolt. And as I said, the frame was bent. I said enough and stripped it down. I moved everything to a Super Course, expecting the ride to be similar. Well, the Super Course is now my favorite of my many bikes. It's a mid-level bike, and it's just so perfect for me.
__________________
Tom Reingold, [email protected]
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Reply With Quote
Old 10-05-11, 04:33 PM
  #16
miamijim
Senior Member

miamijim's Avatar

Join Date: Aug 2003
Location: Tampa, Florida
Posts: 13,905
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
I think you can finagle almost any 'campy style' lever to fit the boss but you'll find the threading to be a goofy size so you may need to re-tap it to the industry standard.
miamijim is offline
Reply With Quote
Old 10-05-11, 10:41 PM
  #17
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 35,501

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 367 Post(s)
Tagged: 0 Thread(s)
Quoted: 4479 Post(s)
You mean it's not 5 x 0.8?
__________________
Tom Reingold, [email protected]
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Reply With Quote
Old 02-09-12, 07:54 AM
  #18
ColonelJLloyd
Senior Member

ColonelJLloyd's Avatar

Join Date: Dec 2009
Location: Louisville
Posts: 8,361
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Originally Posted by jptwins View Post
1. If I'm running this as a 1x6, what sort of downtube shifter do I get that fits on here? It's obvious there was a bracket for the left hand side, but i neither want or need that. Presumably something Simplex, but are there other options?
If you tap the boss' threads to M5 x .8 I believe you can mount just about any down tube shifter you like to the boss, as miamijim says.

And, like Auchen says, you just need a down tube cable guide. You just won't use the stop or guide on the non-drive side.

Originally Posted by noglider View Post
You mean it's not 5 x 0.8?
No. I believe it is M4.5. I'm not certain about the pitch, but it doesn't really matter to me as the bolts couldn't be easily found anyhow. Five minutes with a tap and you've made it useful again.
__________________
Bikes on Flickr
I prefer email to private messages. You can contact me at [email protected]

Last edited by ColonelJLloyd; 02-09-12 at 07:59 AM.
ColonelJLloyd is offline
Reply With Quote
Old 02-09-12, 12:48 PM
  #19
jptwins
Senior Member
Thread Starter

jptwins's Avatar

Join Date: Dec 2008
Location: Jamaica Plain, MA
Posts: 186

Bikes: Boulder AllRoad67cm; 1990 Nobilette 65cm;Fuji S12-S LTD 63cm; xtracycle; panasonic gran tourer 68cm

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Funny story: the more i looked at it, this mount on the down tube was very loose and with a bit of wiggling, just broke off. If I even bother with this frame, I will just get a clamp on shifter boss. I already scored a cable guide like what auchencrow suggested above (but with only the guide on the right hand side)
jptwins is offline
Reply With Quote
Old 02-09-12, 01:02 PM
  #20
Poguemahone
Vello Kombi, baby

Poguemahone's Avatar

Join Date: Dec 2002
Location: Je suis ici
Posts: 5,265

Bikes: 1973 Eisentraut; 1970s Richard Sachs; 1978 Alfio Bonnano; 1967 Peugeot PX10

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
They ride well and I think you will likely enjoy the bike. The UOs had a funky shifter set up, with a braze on on only one side. Simplex had a clamp that worked with this. Since yous is gone, I'd just find a Simplex ratcheting clamp on and go from there. There was only one braze on so they could adapt the same frame set to different models, more in the Euro market than in the US. That's my best guess anyway. They're really fun bikes to tinker with, as you don't have to worry about them much and the frame is a sturdy base.

Here are mine, first a UO8, heavily re-worked:



and a Peugeot PE41, a UO variant from Yurup:



Probably your biggest concern will be bottom bracket work arounds, but VO sells french thread bottom brackets, so you should be fine.

Have fun both wrenching and riding!
__________________
"It's always darkest right before it goes completely black"

Waste your money! Buy my comic book!
Poguemahone is offline
Reply With Quote
