Ruined fork top thread! What should I do??

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Ruined fork top thread! What should I do??

Old 12-04-11, 12:13 PM
  #1
kalbkalb
Member
Thread Starter

Join Date: Sep 2011
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Ruined fork top thread! What should I do??

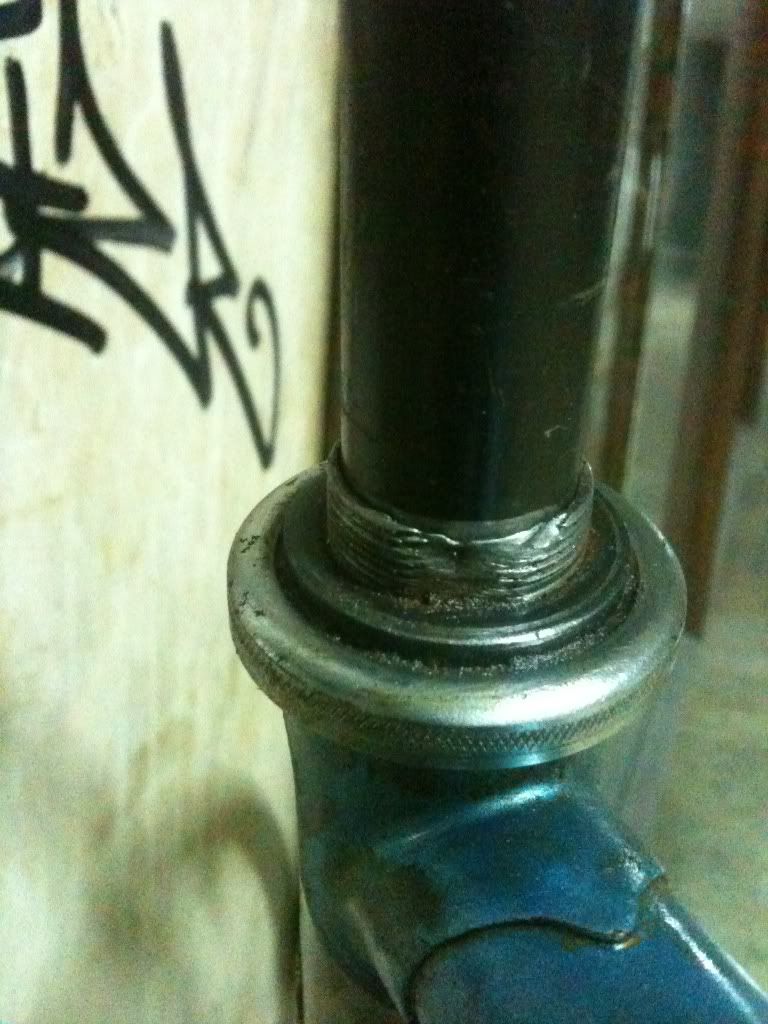

Tried to remove this stuck stem on an old motobecane, so loosened the fork's top bolt (not big on terminology sorry) eventually managed to yank it out but when putting the stem back I realised the bolt wasn't going back in prob due to this now revealed messed up thread. Is the fork ruined? The fork doesn't feel loos probably all stuck inside anyway. What should I do now??
Thanks!
kalbkalb is offline
Old 12-04-11, 12:24 PM
  #2
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 9,532
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1266 Post(s)
Likes: 0
Liked 1 Time in 1 Post
First, take it to your LBS and have them chase the threads. If that works, consider yourself lucky as it shouldn't cost much more than $10-$20.

If that doesn't work, you will need to rebuild the steel. Take the fork out of the frame. Wrap a wet cloth around the fork crown. This is to prevent too much heat weeping any braze joint. Next, use a tig welder to build up the steel. Use a file to remove excess weld. Retap the threads. My guess if you pay someone, it would be $100-$300, depending. I'd buy a new fork.
iab is offline
Old 12-04-11, 12:59 PM
  #3
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 8,971

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 1969 Atala Professional, 1970 Torpado Luxe, 1973 Peugeot PX10E, 1978 Norco Magnum SE, 1982 Bianchi Touring, 2000 Cyclops

Mentioned: 138 Post(s)
Tagged: 0 Thread(s)
Quoted: 523 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Actually, you might luck out here. I notice that you still have the upper cone threaded onto the fork.

That upper cone is threaded and already engaged in the threads. Were I you, I would take a small triangle smooth file (a 6" one would be best) and try to clean up the damaged threads with the file. Next, attempt to thread the top cone off of the steering stem. That just might clean up the threads enough to make them useable again.

As for the inside diameter of the steering tube, just try to clean it up with a file.

With a bit of luck, you will get away with this repair, even though it is not the proper way to do things.
__________________
Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"
randyjawa is online now
Old 12-04-11, 04:28 PM
  #4
kalbkalb
Member
Thread Starter

Join Date: Sep 2011
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks guys,
I'll check out the lbs, hope they do it, is that something quite standard for a good bs to do?
If not I'll try randys advise.
Don't know it's even possible to detach the fork from the bike to replace it. The seatpost is stuck hard too but I'll get to that later...
kalbkalb is offline
Old 12-04-11, 04:52 PM
  #5
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 8,971

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 1969 Atala Professional, 1970 Torpado Luxe, 1973 Peugeot PX10E, 1978 Norco Magnum SE, 1982 Bianchi Touring, 2000 Cyclops

Mentioned: 138 Post(s)
Tagged: 0 Thread(s)
Quoted: 523 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Stuck seat posts, and steering stems, can be a real pain. Exercise caution when attempting to remove either. If one or the other is really stuck, I cut them out, carefully. I prefer doing that to ruining another frame set, as I did once using the strong arm method of twist and turn. Ruined a set of forks once, also.
__________________
Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"
randyjawa is online now
Old 12-04-11, 05:14 PM
  #6
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,153
Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by randyjawa View Post

With a bit of luck, you will get away with this repair, even though it is not the proper way to do things.
actually I think that's exactly the proper way to do things in this case. You see that some of the "messed up threads" are just the flat that's milled into the backside of the steerer, the real bad threads are just the 2 or three at the very top end. I bet once you get the washer off and unscrew the top cone/race (might need a padded Big Channelock Wrench for that) some of those threads will get much better. But, wouldn't hurt to dress them a little first and for that I'd use a thread file (and you want a metric model with 1.0mm side), that's a nice tool to have and pretty cheap too.
Attached Images
File Type: jpg
unworthy1 is offline
Old 12-04-11, 07:01 PM
  #7
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,160

Bikes: Several, mostly not name brands.

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1589 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by iab View Post
First, take it to your LBS and have them chase the threads. If that works, consider yourself lucky as it shouldn't cost much more than $10-$20.

If that doesn't work, you will need to rebuild the steel. Take the fork out of the frame. Wrap a wet cloth around the fork crown. This is to prevent too much heat weeping any braze joint. Next, use a tig welder to build up the steel. Use a file to remove excess weld. Retap the threads. My guess if you pay someone, it would be $100-$300, depending. I'd buy a new fork.
Most of the thread is still intact; only the part adjacent to the keyway is damaged. I'd use brass instead of steel to build up the damaged area, then cut new threads into the brass.
JohnDThompson is offline
Old 12-04-11, 07:09 PM
  #8
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 9,532
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1266 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by JohnDThompson View Post
Most of the thread is still intact; only the part adjacent to the keyway is damaged. I'd use brass instead of steel to build up the damaged area, then cut new threads into the brass.
Good point. I'm a welder, not a brazer. Then there is the old saying about every problem lookd like a nail.
iab is offline
Old 12-04-11, 07:19 PM
  #9
BHOFM
Senior Member

Join Date: Apr 2011
Location: NW Arkansas
Posts: 785

Bikes: Too many to count

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Not the size you need, but will give you an idea of what is out there to fix your
problem.

I have used these in low to moderate load situations and they work fine.

http://www.midwayusa.com/product/402...-7-8-14-thread
BHOFM is offline
Old 12-05-11, 04:27 AM
  #10
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 8,971

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 1969 Atala Professional, 1970 Torpado Luxe, 1973 Peugeot PX10E, 1978 Norco Magnum SE, 1982 Bianchi Touring, 2000 Cyclops

Mentioned: 138 Post(s)
Tagged: 0 Thread(s)
Quoted: 523 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
People are complicating the issue with thread files (great tools, yes) and thread chasers (more good stuff). But the OP needs neither. A small three corner file and the bearing cone will clean the threads up just fine, in my opinion.

And, it costs nothing to try my method. And, you have to take the bearing cone off anyway, to effect repair. Why not just try it. I would and I would be done already.
__________________
Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"
randyjawa is online now
Old 12-05-11, 09:45 AM
  #11
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 6,616
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 462 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'm with Randy. It's worth a try to clean things up the best you can and try to back that bearing cone off. Remember to squirt some oil on the threads first, and take it slow - when the turning gets tough, screw it back down, clean out any shards, apply more oil, repeat, etc.
due ruote is offline
Old 12-05-11, 09:52 AM
  #12
miamijim
Senior Member

miamijim's Avatar

Join Date: Aug 2003
Location: Tampa, Florida
Posts: 13,917
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 321 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I would just un-thread the top race and be done with it. As you un-thread it it would more than likely re-thread the fork. Maybe hit that big ***** with a file but I wouldnt do any more than that...
miamijim is offline
Old 12-05-11, 09:53 AM
  #13
Lenton58
Senior Member

Lenton58's Avatar

Join Date: Dec 2008
Location: Sendai, Japan
Posts: 1,649

Bikes: Vitus 979, Simplon 4-Star (Romani), Woodrup Giro, Gazelle AB

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I beleive I had one worse than that recently (Woodrup). It was not as gnarled, but a lot of thread was broken down one side. The frame maker chased it out. It looked remarkable after he had finished. Now the bike has a new Tange Passage headset. No foreseeable problems.

Randy's idea could work too. Work the cone up back and forth like a die using oil. But a chase tool will IMHO cut or dress the threads the best after you get the part off. BHOFM's $4 tool looks interesting too.
__________________
Vitus 979, Simplon 4 Star, Gazelle Champion Mondial, Woodrup Giro, Dawes Atlantis

Last edited by Lenton58; 12-05-11 at 09:59 AM.
Lenton58 is offline
Old 12-05-11, 10:26 AM
  #14
bleukahuna
Senior Member

Join Date: Apr 2007
Posts: 115
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Just to complicate things a little, being an old Moto, it probably has french threads. Not an easy to find die.
OTOH, I see this frequently on old french forks, the spacer gets turned on the flat buggering the upper threads.
Randy's suggestion of cleaning it up with a needle file and and running the upper cone over the damaged area usually works.
bleukahuna is offline
Old 12-05-11, 12:17 PM
  #15
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,160

Bikes: Several, mostly not name brands.

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1589 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by bleukahuna View Post
Just to complicate things a little, being an old Moto, it probably has french threads. Not an easy to find die.
Not too hard:

http://www.ebay.com/itm/25mm-x-1-Met...item1c2142458f
JohnDThompson is offline
Old 12-06-11, 07:51 AM
  #16
kalbkalb
Member
Thread Starter

Join Date: Sep 2011
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

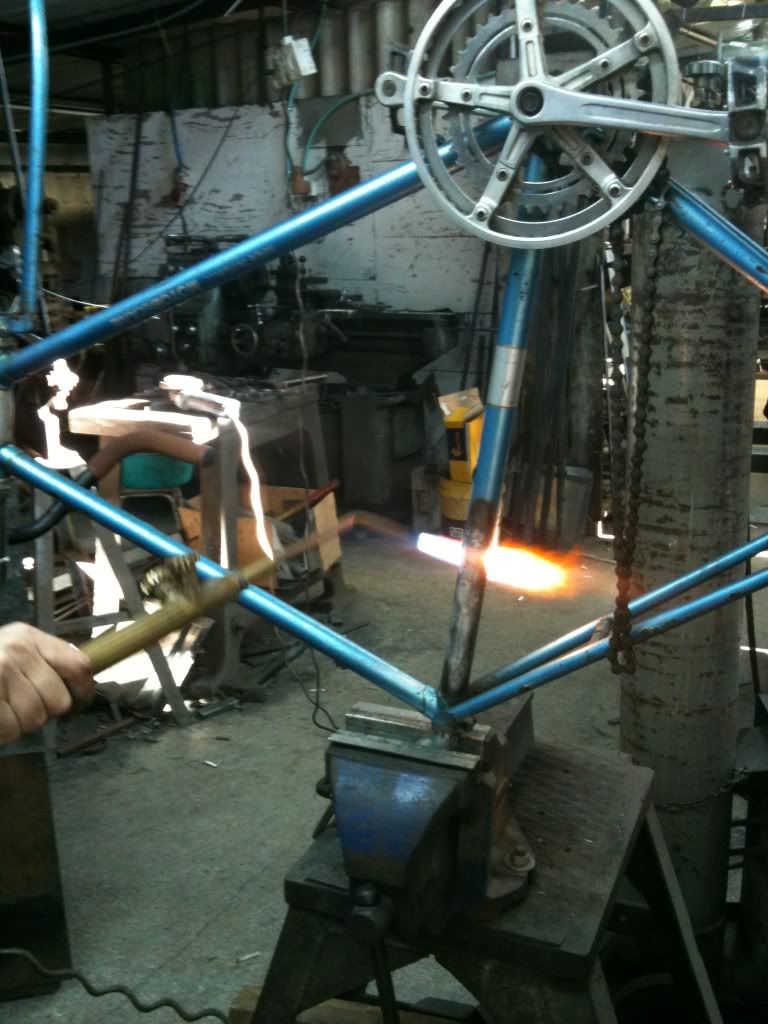

Problem solved! Had the threads raced and everything was snugly screwed back! So happy. The guy even had the stubern stem released (pic) shame bout the colour but the bike is sweet now.
kalbkalb is offline
Old 12-06-11, 08:50 AM
  #17
shnibop
Senior Member

shnibop's Avatar

Join Date: Aug 2009
Posts: 723
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
^ wow!

What other methods were attempted prior to going to the mildly destructive method?

I've had 1 seat post that I couldn't remove, it sheared off at the seat post clamp. Every other one has come out, after excercising some patience.
shnibop is offline
Old 12-06-11, 09:23 AM
  #18
kalbkalb
Member
Thread Starter

Join Date: Sep 2011
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Everything in the book... Hot water, penetrating oil, a bar through the one piece saddle clamp, several people trying to twist the saddle... The dude said I was lucky the post didn't snap in the frame. He said corrosion can be so stiff it can easily do that and harsh force can cause damage to the frame that's far worse than the colour melting. Found a pretty similar paint (p1991) and will retouch that area next week. But you need someone experienced to do that. He didn't use any force yanking it out, just heated it and gently started twisting the frame till the thing slid out.
kalbkalb is offline
Old 12-06-11, 01:11 PM
  #19
shnibop
Senior Member

shnibop's Avatar

Join Date: Aug 2009
Posts: 723
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Is there any concern about the brazing material at the seat lug being compromised?
shnibop is offline
Old 12-07-11, 05:29 AM
  #20
kalbkalb
Member
Thread Starter

Join Date: Sep 2011
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
No as long as yr careful not to over heat it. Plus the area you really need to work is a bit down from the lug.
kalbkalb is offline
Old 12-07-11, 10:40 AM
  #21
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,160

Bikes: Several, mostly not name brands.

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1589 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by shnibop View Post
Is there any concern about the brazing material at the seat lug being compromised?
No. Assuming an aluminum post, the post will melt completely long before the brass starts to liquefy.
JohnDThompson is offline
