1962 Campagnolo hub with sticker over oil hole

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1962 Campagnolo hub with sticker over oil hole

Old 12-18-11, 08:12 PM
  #1
jeirvine
Senior Member
Thread Starter

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,187

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Likes: 0
Liked 18 Times in 11 Posts
1962 Campagnolo hub with sticker over oil hole

I have a Campy record hub dated '62 form the locknuts. it has a green and red striped sticker around the center, where the oil clip normally goes. I think there is an oil port under there, but I'm not sure. If not, then I was thinking it might be a track hub with a QR axle added. Has anyone seen a sticker like that? I don't want to remove it if it is original.

Thanks,
-John
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is online now
Old 12-18-11, 08:55 PM
  #2
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,405

Bikes: Several, mostly not name brands.

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1699 Post(s)
Liked 63 Times in 43 Posts
Nope. Previous owner probably lost the clip and covered the oil port with a handy sticker.
JohnDThompson is offline
Old 12-18-11, 09:05 PM
  #3
MetinUz
Senior Member

Join Date: Apr 2005
Posts: 937
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 2 Times in 1 Post
This doesn't look like a Record hub. Is there a Campagnolo world logo in the center?
MetinUz is offline
Old 12-18-11, 09:05 PM
  #4
cranky old road
Let your bike be the tool

cranky old road's Avatar

Join Date: Jun 2006
Location: NC/SC border
Posts: 843

Bikes: '66 Raleigh Carlton, '70 Ron Cooper, '95 Bianchi CD'I, Zonal Frame with Xenon gruppo, Carbon Frame with Record Gruppo, Columbia Twosome, Terry Classic, Bianchi SX, Gravity SS/FG

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked 2 Times in 2 Posts

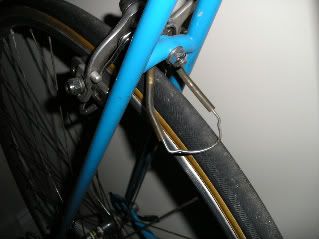

I have a couple of Record small flange hubs that have world champion stripe stickers similarly situated. One is barely visible in this photo. I haven't looked at the date on them but suspect they are from '70 based on the other components on the bike. Don't think there are oil ports underneath, but the large flange hubs that came with the same bike do have ports and clips.
__________________
Never try to teach a pig to sing...

Last edited by cranky old road; 12-18-11 at 09:10 PM. Reason: Insert photo
cranky old road is offline
Old 12-18-11, 09:12 PM
  #5
Otis
Senior Member

Join Date: Mar 2006
Posts: 2,756
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Not original, but a damn good idea if you can't find a proper clip.
__________________
Flickr stuff:

http://www.flickr.com/photos/54616231@N04/
Otis is offline
Old 12-18-11, 09:16 PM
  #6
jeirvine
Senior Member
Thread Starter

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,187

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Likes: 0
Liked 18 Times in 11 Posts
Originally Posted by MetinUz View Post
This doesn't look like a Record hub. Is there a Campagnolo world logo in the center?
Yup - "Campagnolo RECORD", and it looks otherwise identical to a later record 70's HF hub I have.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is online now
Old 12-18-11, 09:57 PM
  #7
cranky old road
Let your bike be the tool

cranky old road's Avatar

Join Date: Jun 2006
Location: NC/SC border
Posts: 843

Bikes: '66 Raleigh Carlton, '70 Ron Cooper, '95 Bianchi CD'I, Zonal Frame with Xenon gruppo, Carbon Frame with Record Gruppo, Columbia Twosome, Terry Classic, Bianchi SX, Gravity SS/FG

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked 2 Times in 2 Posts
I should note that I've owned the bike and small flange hubs I mentioned in my previous post since 1973 or 74 and the rainbow stripes were in place when I acquired it/them.
__________________
Never try to teach a pig to sing...
cranky old road is offline
Old 12-18-11, 11:16 PM
  #8
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,341
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 936 Post(s)
Likes: 0
Liked 13 Times in 11 Posts
Guys removed the oil port and placed a band of some sort to be different, not have to keep the oil port clean, tell there wheel set apart in the following van, ecause they lost one in the garage and it was Sunday night.
repechage is offline
Old 12-18-11, 11:35 PM
  #9
neurocop
Senior Member

Join Date: Oct 2011
Location: SF Bay Area
Posts: 428

Bikes: 2003 Lemond Zurich; 1987 Schwinn Tempo; 1968 PX10; 1978 PX10LE, Peugeot Course; A-D Vent Noir

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
What is the real use of hub "oil holes" anyway. I never understood the idea (and I have a few bikes with oil holes and clips). I just take the hub apart, clean and regrease when needed.
neurocop is offline
Old 12-19-11, 05:48 AM
  #10
Michael Angelo
Senior Member

Michael Angelo's Avatar

Join Date: May 2010
Location: Hurricane Alley , Florida
Posts: 3,878

Bikes: Treks (USA), Schwinn Paramount, Schwinn letour,Raleigh Team Professional, Gazelle GoldLine Racing, 2 Super Mondias, Carlton Professional.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by neurocop View Post
What is the real use of hub "oil holes" anyway. I never understood the idea (and I have a few bikes with oil holes and clips). I just take the hub apart, clean and regrease when needed.
It's for using a grease injector (Small Grease Gun). I grease all my Campy hubs that way.
Michael Angelo is offline
Old 12-19-11, 06:33 AM
  #11
jeirvine
Senior Member
Thread Starter

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,187

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Likes: 0
Liked 18 Times in 11 Posts
Originally Posted by Michael Angelo View Post
It's for using a grease injector (Small Grease Gun). I grease all my Campy hubs that way.
Right - I think the theory is you inject fresh grease from the center, and it pushes out the older, and dirtier grease through the hole in the dust cap.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is online now
Old 12-19-11, 06:43 AM
  #12
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,626
Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 493 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
Just passing this along from a knowledgeable guy over on the Classic Rendezvous list when the subject of oil ports on head tubes and BB's came up. He said the oil holes in Campy hubs were based on the same theory as the "grease" nipples on frames. He claimed that grease in those days was not as advanced as it is today and would congeal and harden up, especially over the winter months. The ports were used to inject a few drops of oil into the hubs to sort of "re-activate" the grease and get it flowing again, as a stop-gap measure, extending times between hub overhauls. FWIW, of course.

BTW, if that is a '62 hub, I find it just a bit surprising it has "Record" embossed on the barrel. But the Record stamp is probably not one of those things that can accurately be used for dating.
rootboy is offline
Old 12-19-11, 07:07 AM
  #13
jeirvine
Senior Member
Thread Starter

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,187

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Likes: 0
Liked 18 Times in 11 Posts
The locknuts actually are dated 63 - (I misremembered), and of course could not be original to the hub. When would the "record" have started? I'm kinda new to this. Thanks.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is online now
Old 12-19-11, 07:37 AM
  #14
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,626
Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 493 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
Originally Posted by jeirvine View Post
The locknuts actually are dated 63 - (I misremembered), and of course could not be original to the hub. When would the "record" have started? I'm kinda new to this. Thanks.
I think that might be a subject for debate, and maybe nobody knows for sure. I have a set with 63 lock nuts, which I know for sure are original to the hubs, with no "Record" stamp on them. It's an interesting detail, but doesn't matter a whole lot I suppose. I think the little striped band looks kind of cool.
rootboy is offline
Old 12-19-11, 09:17 AM
  #15
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,405

Bikes: Several, mostly not name brands.

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1699 Post(s)
Liked 63 Times in 43 Posts
Originally Posted by neurocop View Post
What is the real use of hub "oil holes" anyway. I never understood the idea (and I have a few bikes with oil holes and clips). I just take the hub apart, clean and regrease when needed.
Back then grease was not as stable as now and would separate more easily -- the oil component would leak out leaving only the soap behind. Adding oil through the port would restore the grease without needing to open the hub and repacking.
JohnDThompson is offline
Old 12-19-11, 10:35 AM
  #16
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,843
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2479 Post(s)
Likes: 0
Liked 65 Times in 59 Posts
Originally Posted by jeirvine View Post
The locknuts actually are dated 63 - (I misremembered), and of course could not be original to the hub. When would the "record" have started? I'm kinda new to this. Thanks.
Originally Posted by rootboy View Post
I think that might be a subject for debate, and maybe nobody knows for sure. I have a set with 63 lock nuts, which I know for sure are original to the hubs, with no "Record" stamp on them. It's an interesting detail, but doesn't matter a whole lot I suppose. I think the little striped band looks kind of cool.
Record was added to the shell for the 1964 model year and were first seen at the October 1963 trade shows. In order to have bicycles ready for the new calendar year most manufacturers start building for the new models around September. Component manufacturers often start several months in advance of that, to have the parts ready for the bicycle manufacturers. Consequently, it's very common to find old and new styles both built in the same year.

On top of that there's the issue of stock rotation. Many companies did not employ a rigid policy of using up the old stock first. An employee would place a new bin of parts in front of the old bin to save the work of switching the bins. Or he would dump new parts into a bin, on top of old parts. Both practices could result in old parts 'finding their way out of the woodwork' long after the introduction of the new part.
T-Mar is offline
