Winter-project 1972 Schwinn Sports Tourer build thread (hodge podge)

Bought the frame on ebay. Had a 1973 Super Sport I got from a friend. The SS had a huge dent in top tube so was cannibalized for this bike. Plus scrounged-up stuff from my parts pile and the LBS. Got the SR SP-11 pedals for five bucks. I kind of like them.

Please don't ask me why. I have no intention of calling this a restoration. Maybe a 1980s retro-rod? I have a bunch of Schwinns but did not have a fillet-brazed chrome-moly model. I know it weighs a ton, but doing this beats hanging out in a bar or gambling or whatever vice one can have.. And at least I have something to show for it at the end. Right?
We got our first snow this week so for a while there is no riding for me out here on the Indiana Prairie.

The bike
Frame JH - September 1972 Sports Tourer - Kool Lemon
BB - New shimano sealed-type (UN55) - English, 68x127.5mm

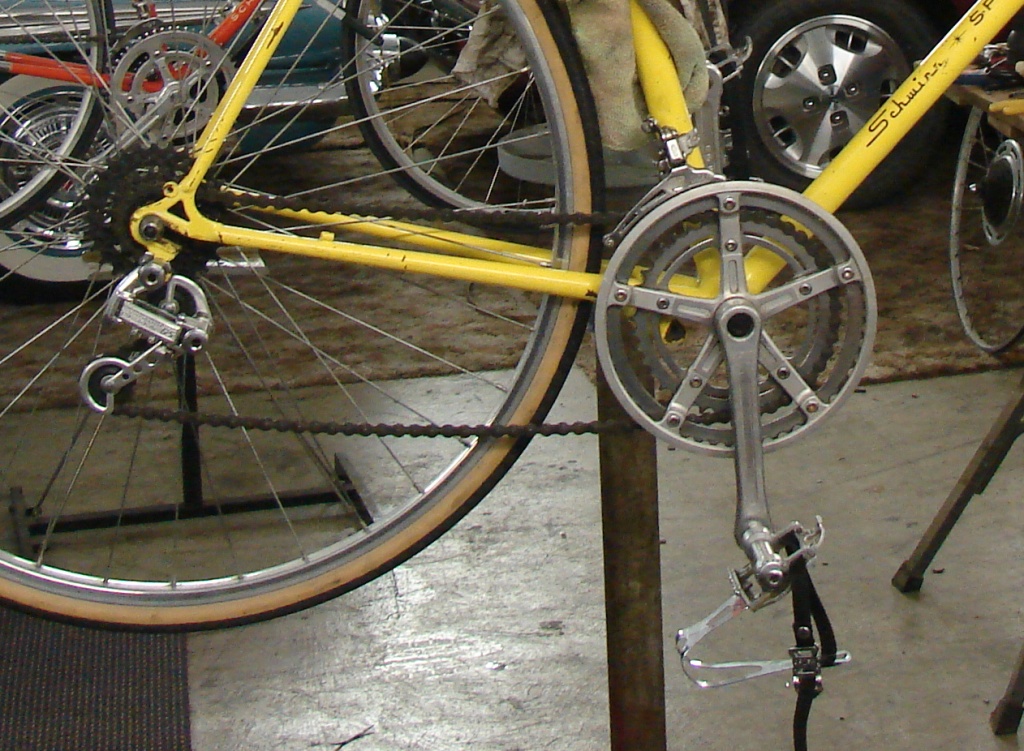

Crankset - Silstar 170mm 40-52
Rear cluster - 6-speed Shimano 13-28 circa 1981
Pedals - SR SP-11 Eleven w/Sunlight XL clips
Rear DR - NOS Crane GS
Frt DR - Shimano Altus LT circa 1981
Shifters- 1970s Suntour bar-end type
Stem and bars - OEM Schwinn aluminum Randonne type bend

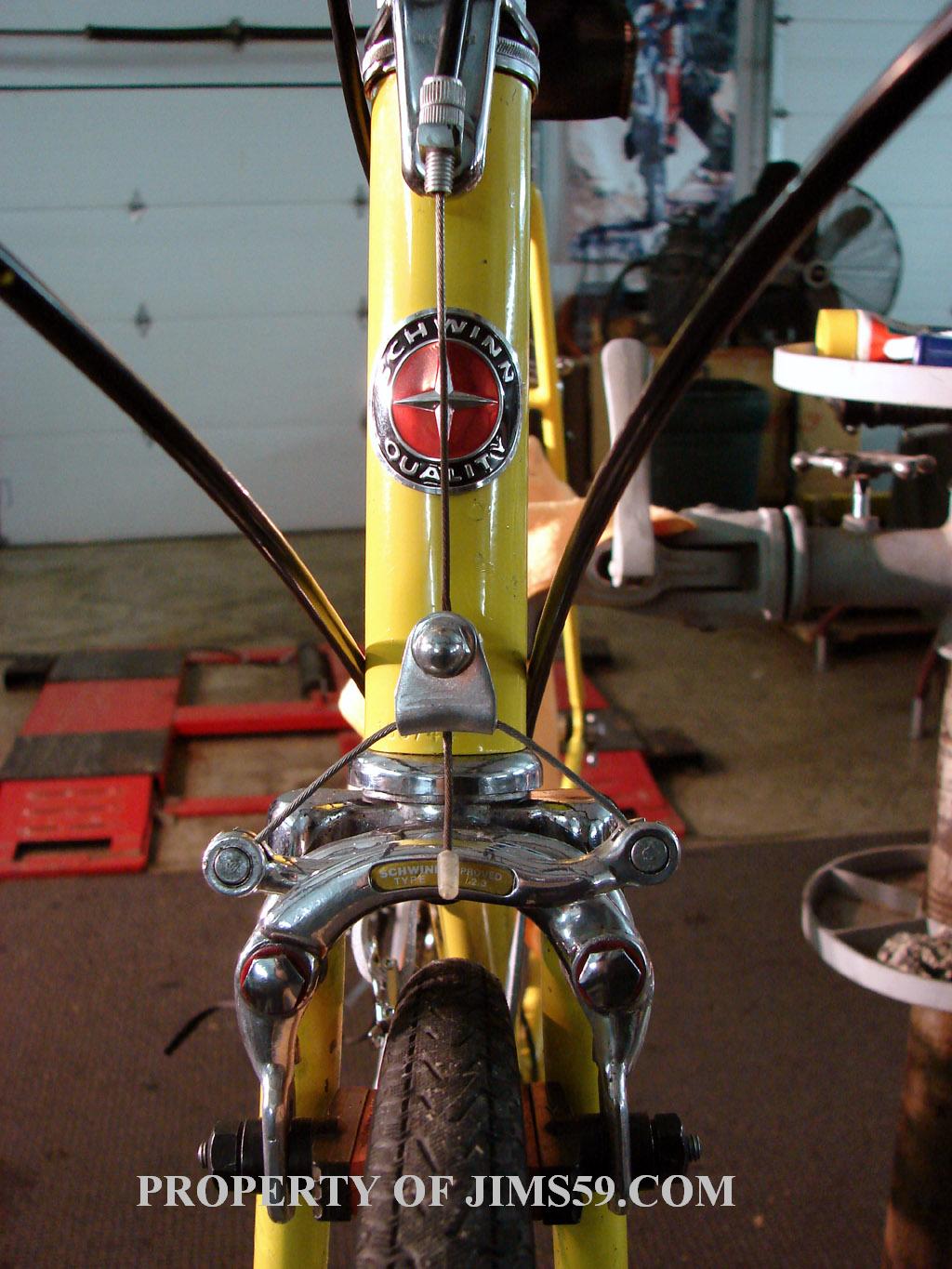

Brakes - Dura-Ace levers, Schwinn Weinmann center-pull w/NOS Schwinn cable set
Seat post - Ultra Cycle Taiwan (ebay) 26.8mm
Saddle - OEM Brooks B-15 (with half a bottle or neatsfoot oil)
Hubs - Shimano VIA (rear 120) circa 1981
Rims - UKAI 27x1 1/8 W/O LA
Tires - Panasonic Pasela Panaracer 27x1 1/8
Weight 28.25 lbs.

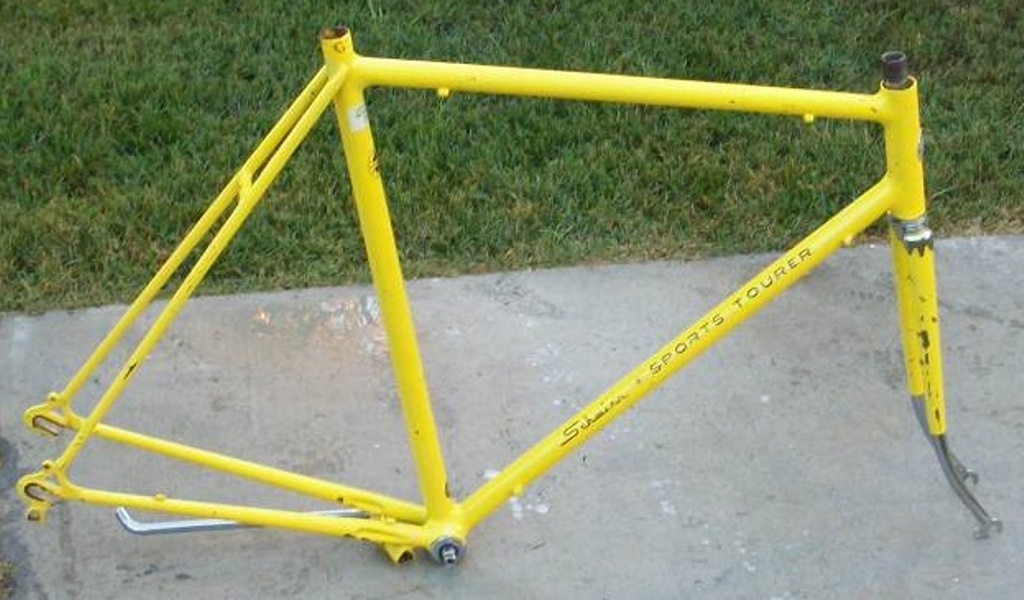

This is a photo of the frame as found, remaining photos of the bike as of today during first build-up and test fit. Will ride it some to be sure it is OK, then my plans are to tear it down and do a base-coat/clear-coat urethane repaint. But, the original patina is also kind of cool.. So for now, I'm still thinking.

Yes, I probably have $300.00 in it now..










Yes, after removing the hanger, the Crane bolted directly into the Huret dropout.





The SR SP-11 Eleven pedals



Last edited by Hoss Cartright; 01-31-12 at 07:06 AM. Reason: add data
Hoss Cartright is offline
Old 01-14-12, 03:06 PM
  #2
cs1
Senior Member

cs1's Avatar

Join Date: Feb 2004
Location: Clev Oh
Posts: 7,078

Bikes: Specialized, Schwinn

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Liked 14 Times in 13 Posts
While the bike does look nice the cars look better.
cs1 is offline
Old 01-14-12, 03:52 PM
  #3
photogravity
Hopelessly addicted...

photogravity's Avatar

Join Date: Aug 2009
Location: Central Maryland
Posts: 5,007

Bikes: 1949 Hercules Kestrel, 1950 Norman Rapide, 1970 Schwinn Collegiate, 1972 Peugeot UE-8, 1976 Raleigh Sports, 1977 Raleigh Sports, 1977 Jack Taylor Tandem, 1984 Davidson Tandem, 2010 Bilenky "BQ" 650B Constructeur Tandem, 2011 Linus Mixte

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Hoss, I can't wait to see it built up. For some reason, I really like yellow on the Sport Tourer and the Super Sport. The color really grabs your attention.
photogravity is offline
Old 01-14-12, 04:21 PM
  #4
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,352

Bikes: Too many to list here check my signature.

Mentioned: 156 Post(s)
Tagged: 2 Thread(s)
Quoted: 2342 Post(s)
Liked 1,396 Times in 825 Posts
Nice looking Schwinn and great project. you need one of those little things that go in the dropout that set the wheel forward over the RD.

Is that a Caprice or a Malibu/Chevelle?

__________________
One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Old 01-14-12, 04:32 PM
  #5
toosahn
Senior Member

Join Date: Aug 2010
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'm a fan of hodge-podge, resto-mods. Mainly because it's less-stressful and in the end you have a beautiful frame with competent and durable components that will have your bike shifting better and stopping better than if you had gone with all original componentry.
toosahn is offline
Old 01-14-12, 05:02 PM
  #6
Rabid Koala
Chrome Freak

Rabid Koala's Avatar

Join Date: Dec 2005
Location: San Diego, CA
Posts: 3,196

Bikes: 1971 Chrome Paramount P-13, 1973 Gitane Tour de France, 1974 Raleigh Professional

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
Nice bike, nice 69 Chevy! Best looking Chevy grille style ever.
__________________
1971 Paramount P-13 Chrome
1973 Paramount P-15 Opaque Blue
1973 Gitane Tour De France
1974 Raleigh Professional
1991 Waterford Paramount
Litespeed Tuscany
Holland Titanium
Rabid Koala is offline
Old 01-14-12, 05:15 PM
  #7
mkeller234
Rustbelt Rider

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,992

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 259 Times in 119 Posts
Nice bike, even better garage! I'm curious, how did you get the Altus front derailleur to fit onto the Schwinn seat tube? Did you use a shim?

I know it is pretty heavy, but I think it's a completely worth frame. It has so many features that were only found on the Paramounts of that time, and nothing says Schwinn to me like those smooth joints.

I have had two, one exactly like yours and a filet brazed superior. They are so indentical that I ended up selling the sports tourer.
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is online now
Old 01-14-12, 06:27 PM
  #8
Hoss Cartright
Senior Member
Thread Starter

Hoss Cartright's Avatar

Join Date: Dec 2011
Location: Mid N/W Indiana
Posts: 465

Bikes: Schwinns, lots of them. Some Paramounts

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Originally Posted by mkeller234 View Post
Nice bike, even better garage! I'm curious, how did you get the Altus front derailleur to fit onto the Schwinn seat tube? Did you use a shim?

I know it is pretty heavy, but I think it's a completely worth frame. It has so many features that were only found on the Paramounts of that time, and nothing says Schwinn to me like those smooth joints.

I have had two, one exactly like yours and a filet brazed superior. They are so indentical that I ended up selling the sports tourer.
mkeller234,
Thanks for the compliments.. The Altus.. Well, that's a Good question.. I thought it was odd that it laid right down onto that larger diameter tube but it did! So I'm tightening it up, looking at it and expecting it to explode. I've looked at it with my jewelers magnifier glasses and it seems the aluminum mount straps are malleable enough that it works.. It has a little surface corrosion on the chrome so no show piece. If it fractures so be it, no big loss.


Originally Posted by Bianchigirll View Post
Nice looking Schwinn and great project. you need one of those little things that go in the dropout that set the wheel forward over the RD.

Is that a Caprice or a Malibu/Chevelle?
Bianchigirl,
The rear of those Huret dropouts are cast for little axle adjuster screws. Was looking at that today and wondering if I could chuck that frame up and drill and tap those. But yes, was going to clamp the wheel onto the old paint marks for now.

It's a 1969 Basic Belair that belonged to my Grandfather's first cousin "Flossie". (My Grandfather the bike mechanic) Flossie bought it new and it has been garaged it's entire life. Has 57,000 miles now. 327 V8 275hp powerglide automatic with P/S, A/C and AM radio. I took possession of it in 2007 as they wanted to keep it in the family. Flossie is 95 now and doing fine, still living in her own home. She had to stop driving because she lost her hearing.



Last edited by Hoss Cartright; 01-14-12 at 06:33 PM.
Hoss Cartright is offline
Old 01-14-12, 06:51 PM
  #9
silvercreek
Banned.

Join Date: Oct 2011
Location: Oklahoma
Posts: 681
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I like the 61-62 Belair in the second picture. Is that a Bubbletop and maybe a 409 also?
silvercreek is offline
Old 01-14-12, 07:06 PM
  #10
Hoss Cartright
Senior Member
Thread Starter

Hoss Cartright's Avatar

Join Date: Dec 2011
Location: Mid N/W Indiana
Posts: 465

Bikes: Schwinns, lots of them. Some Paramounts

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Originally Posted by silvercreek View Post
I like the 61-62 Belair in the second picture. Is that a Bubbletop and maybe a 409 also?
Nothing special, it's my 1959 Impala four door sedan. I've had for 10 years. Rescued it from a 36-year Rip Van Winkle sleep in a heated attached garage in Hannibal MO. When I bought it in 2001, it still had 1966 license plates mounted on it. 14,000 actual miles.



Hoss Cartright is offline
Old 01-16-12, 12:17 AM
  #11
mkeller234
Rustbelt Rider

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,992

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 259 Times in 119 Posts
Originally Posted by Hoss Cartright View Post
Nothing special, it's my 1959 Impala four door sedan. I've had for 10 years. Rescued it from a 36-year Rip Van Winkle sleep in a heated attached garage in Hannibal MO. When I bought it in 2001, it still had 1966 license plates mounted on it. 14,000 actual miles.



Wow, now that is a cool looking wind shield! That car has style to spare.
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is online now
Old 01-16-12, 06:10 AM
  #12
silvercreek
Banned.

Join Date: Oct 2011
Location: Oklahoma
Posts: 681
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
This was my dad's 1965 Ford F100. He bought it new a year after I went into the US military service. I inherited it in 1996 when he passed away. I'm now 65 and finished restoring this truck in 2004. It's a lot of fun to drive and brings back good memories.



silvercreek is offline
Old 01-21-12, 02:29 PM
  #13
Hoss Cartright
Senior Member
Thread Starter

Hoss Cartright's Avatar

Join Date: Dec 2011
Location: Mid N/W Indiana
Posts: 465

Bikes: Schwinns, lots of them. Some Paramounts

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 6 Times in 5 Posts

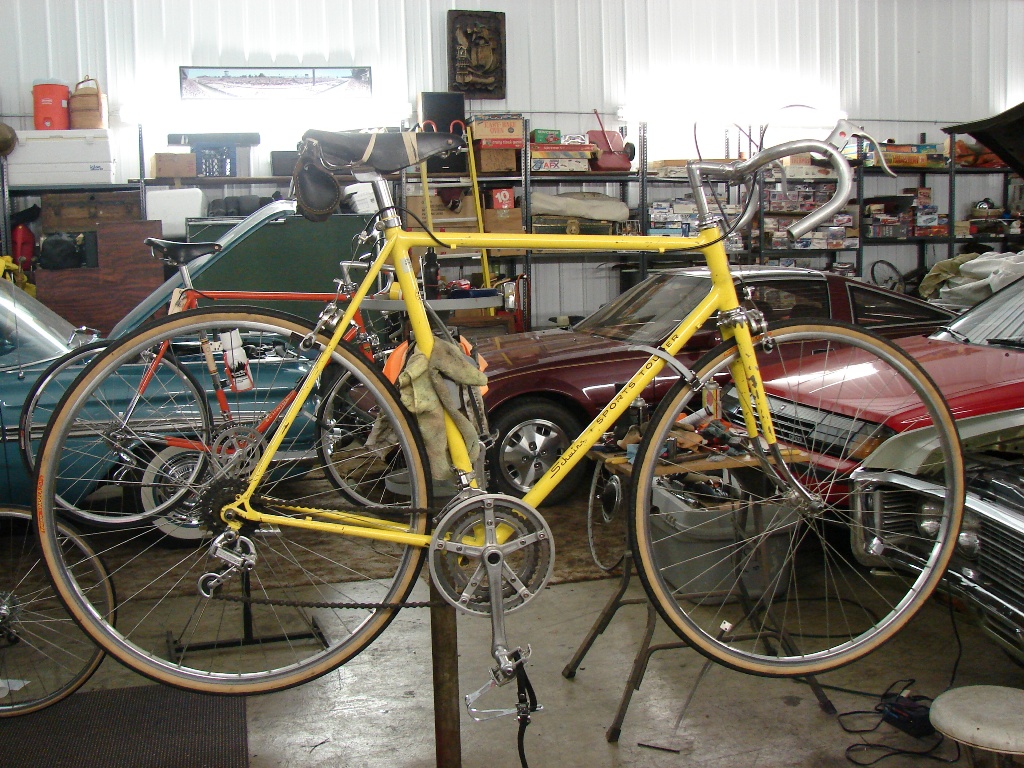

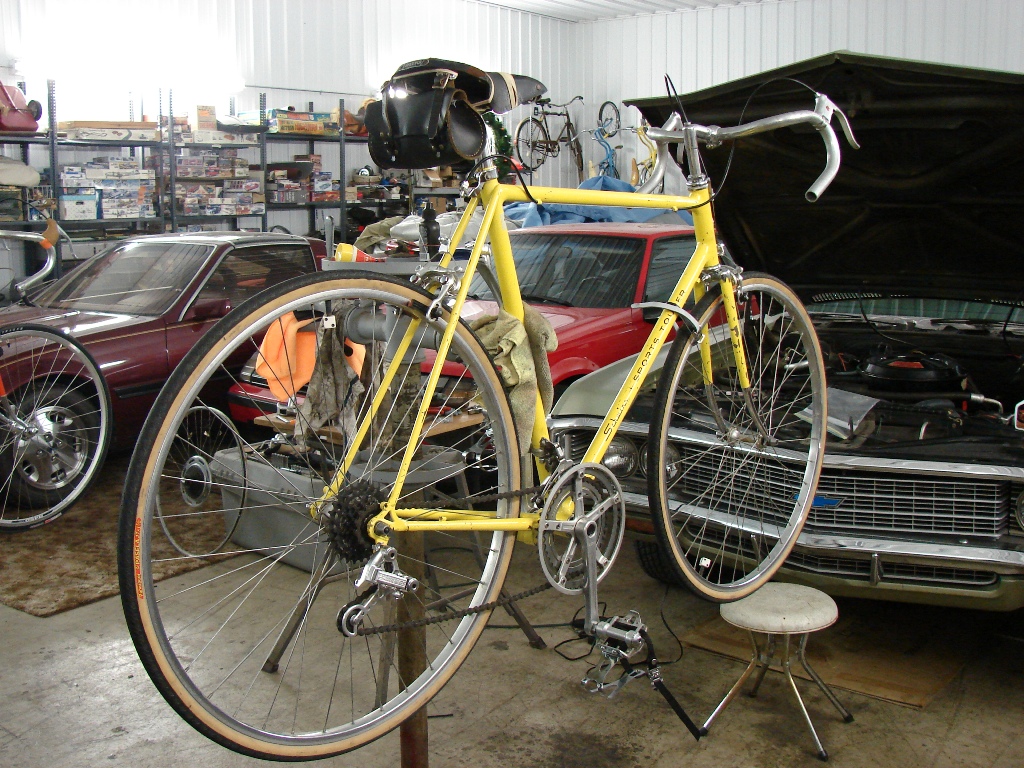

21 January 2012 - Today it is completely mocked-up and adjusted.

Wish I could ride it! I still haven't decided if I want to leave the patina or restore the frame in BC/CC with new stickers from JRrestore.

And....... This thing is heavy, but not that bad actually! I'm gonna figure out a way to accurately weigh it.

I have brush-touched all the nicks and scratches with factory matched Kool Lemon lacquer from Pete Aronson and it looks pretty darned good now. Maybe I'll just leave it alone.







Frame JH - September 1972 Sports Tourer - Kool Lemon
BB - New shimano sealed-type (UN55) - English, 68x127.5mm
Crankset - Silstar 170mm 40-52
Rear cluster - 6-speed Shimano 13-28 circa 1981
Pedals - SR SP-11 Eleven w/Sunlight XL clips
Rear DR - NOS Crane GS
Frt DR - Shimano Altus LT circa 1981
Shifters- 1970s Suntour bar-end type
Stem and bars - OEM Schwinn aluminum Randonne type bend
Brakes - Dura-Ace levers, Schwinn Weinmann center-pull w/NOS Schwinn cable set
Seat post - Ultra Cycle Taiwan (ebay) 26.8mm
Saddle - OEM Brooks B-15 (with half a bottle or neatsfoot oil)
Hubs - Shimano VIA (rear 120) circa 1981
Rims - UKAI 27x1 1/8 W/O LA
Tires - Panasonic Pasela Panaracer 27x1 1/8
Weight 28.25 lbs.

Last edited by Hoss Cartright; 01-31-12 at 07:07 AM. Reason: add data
Hoss Cartright is offline
Old 01-25-12, 09:14 AM
  #14
NJNightRider
Junior Member

Join Date: Jan 2012
Location: NJ
Posts: 5

Bikes: 1972 Schwinn Sports Tourer ... still riding

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Cool Lemon

Hoss, So glad I found your posting. I bought a cool lemon ST back in 1972 on my cross country NYC to Fairbanks via LA solo bicycle expedition. Didn't like the color so sanded it off and repainted it, now I wish I did not! Would it be possible to send me contact info of the place your got your touch up paint from? I'd like to repaint my bike in the cool lemon. Also, looking for parts for the Nevar fcrank set (one of the bolts and spacers have been lost) Belive it or not I'm still riding it after 40 years and now am cotemplating flying back to Fairbanks and continuing "the ride" around the world.... that is if my knees will let me. I'm working out now and they are complaining .
Will
NJNightRider is offline
Old 01-25-12, 09:34 AM
  #15
mkeller234
Rustbelt Rider

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,992

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 259 Times in 119 Posts
The bike looks really nice Hoss. From my seat, the touchup looks fantastic. Obviously it probably looks different in person, but I think you have a winner. Are those hoods the Cane Creek brand replacements? I ask because I bought the same thing for my Superior and can't decide whether or not I like them. Specifically the fake gum color.
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is online now
Old 01-25-12, 10:03 AM
  #16
oldbikenewbike
Senior Member

Join Date: Oct 2011
Location: Long Island, NY
Posts: 646
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 42 Times in 30 Posts
Bike looks great!! I have two, one in orange and the other in that bright green (can't think of the original names of the Schwinn colors). My only suggestion? Replace the black tape with the Schwinn yellow, always available on ebay.

fred
oldbikenewbike is offline
Old 01-25-12, 12:07 PM
  #17
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 12,014

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 108 Post(s)
Tagged: 0 Thread(s)
Quoted: 891 Post(s)
Liked 673 Times in 374 Posts
Originally Posted by NJNightRider View Post
Hoss, So glad I found your posting. I bought a cool lemon ST back in 1972 on my cross country NYC to Fairbanks via LA solo bicycle expedition. Didn't like the color so sanded it off and repainted it, now I wish I did not! Would it be possible to send me contact info of the place your got your touch up paint from? I'd like to repaint my bike in the cool lemon. Also, looking for parts for the Nevar fcrank set (one of the bolts and spacers have been lost) Belive it or not I'm still riding it after 40 years and now am cotemplating flying back to Fairbanks and continuing "the ride" around the world.... that is if my knees will let me. I'm working out now and they are complaining .
Will
Kool Lemon can be purchased from Hyperformance.
__________________
Bob
Dreaming about riding in NH's summertime while enjoying the GA coast for the remainder of the year!

Thanks for visiting my website: www.freewheelspa.com




pastorbobnlnh is offline
Old 01-25-12, 01:01 PM
  #18
Hoss Cartright
Senior Member
Thread Starter

Hoss Cartright's Avatar

Join Date: Dec 2011
Location: Mid N/W Indiana
Posts: 465

Bikes: Schwinns, lots of them. Some Paramounts

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Originally Posted by oldbikenewbike View Post
Bike looks great!! I have two, one in orange and the other in that bright green (can't think of the original names of the Schwinn colors). My only suggestion? Replace the black tape with the Schwinn yellow, always available on ebay.

fred
I actually have NOS Schwinn yellow bar tape. I thought about using it but I just don't like the sticky and no-padding feel. I'm going to ride this and I want to be comfortable.
I elected not to use Yellow cork tape as I knew it would soil rapidly and then look grungy.

Originally Posted by mkeller234 View Post
The bike looks really nice Hoss. From my seat, the touchup looks fantastic. Obviously it probably looks different in person, but I think you have a winner. Are those hoods the Cane Creek brand replacements? I ask because I bought the same thing for my Superior and can't decide whether or not I like them. Specifically the fake gum color.
Yes, these are the Cane Creek. They also have black.

Bought them at the LBS for $8.95. (Less than ebay) I think they look OK for the intended purpose of this rider.

TIP: Soak them in hot water for a few minutes to soften them and they go right onto the brake without a problem.

Last edited by Hoss Cartright; 01-25-12 at 03:14 PM.
Hoss Cartright is offline
Old 01-26-12, 12:43 PM
  #19
NJNightRider
Junior Member

Join Date: Jan 2012
Location: NJ
Posts: 5

Bikes: 1972 Schwinn Sports Tourer ... still riding

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
ST Bottom Bracket Replacement

Nervar BB Spindle has stamped on it: 117
Nervar Crankset 40/54
Would like to replace the Nervar BB spindle. I see you installed a Shimano UN55 on your rebuild.
It seems there are many different sizes for this UN55.
68 x 107 68 x 110 73 x 107 73 x 110 73 x 113 73 x 118 73 x 122.5 (From an Amazon listing)
Can you tell me the exact part number, or BB sizes?

I believe, from reading Sheldon Brown's postings on Harris Cyclery pages that it has English threads? Like 39mm? But I may be mistaken, and since you've actually replaced you BB on an ST I thought you, or someone on this board would be able to help. The crankset gear teeth to my eyes seem to be still good after 3 or 4K miles on them, but may change it out to newer. Cranks are 170mm . Any suggestions/pointers on replacing everything? Thanks ! Appreciate the help! 8-) Will
NJNightRider is offline
Old 01-26-12, 12:59 PM
  #20
mkeller234
Rustbelt Rider

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,992

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 259 Times in 119 Posts
Will, you are correct that the Nervar spindle is 117. In fact, I am replacing mine right now also. However, keep in mind that the Nervar spindle taper is ISO and the Shimano UN55 is JIS. They are technically not compatible... although I believe it can be done in a less than perfect way.

I believe Hoss's bike has cranks that take a JIS taper, so a UN55 unit is compatible with his.
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is online now
Old 01-26-12, 01:01 PM
  #21
ColonelJLloyd
Senior Member

ColonelJLloyd's Avatar

Join Date: Dec 2009
Location: Louisville
Posts: 8,382
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Liked 9 Times in 8 Posts
I plan to install a Nervar crank on a UN54. I bought a 70x115, because the 118 was out of stock. The rear spacing is 120. Hopefully it fits well.
__________________
Bikes on Flickr
I prefer email to private messages. You can contact me at justinhughes@me.com
ColonelJLloyd is offline
Old 01-26-12, 01:39 PM
  #22
jbkirby
Senior Member

jbkirby's Avatar

Join Date: Jun 2011
Location: Dothan, AL
Posts: 264

Bikes: 1971 Raleigh International; 1972 Raleigh International; 1971 Schwinn Sports Tourer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Hoss: Two thumbs up!! I wish I could ship some of the weather we've has here this winter so you could get that baby on the road. This March, I will have had my Sports Tourer 40 years!
jbkirby is offline
Old 01-27-12, 06:44 AM
  #23
Hoss Cartright
Senior Member
Thread Starter

Hoss Cartright's Avatar

Join Date: Dec 2011
Location: Mid N/W Indiana
Posts: 465

Bikes: Schwinns, lots of them. Some Paramounts

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Originally Posted by mkeller234 View Post
Will, you are correct that the Nervar spindle is 117. In fact, I am replacing mine right now also. However, keep in mind that the Nervar spindle taper is ISO and the Shimano UN55 is JIS. They are technically not compatible... although I believe it can be done in a less than perfect way.

I believe Hoss's bike has cranks that take a JIS taper, so a UN55 unit is compatible with his.
Yes, my crank-set is what I believe to be early 1980s (LeTour?) - It is "SILSTAR" branded. 170mm arms JIS
-----------------------------------------
My Shimano BB is 68x127.5 English thread - No part number on the box anywhere other than UN55 - (This 127.5mm length is what I arrived at because I was having a problem with chain "rub" with the 117mm spindle length with this crank-set.) When the chain was on the smallest rear cog and the smaller chain-ring, it rubbed hard on the interior surface of the large chain-ring.

[On this build, I am using the original wheels from my 1981 Super LeTour with 6-speed freewheel]

My set-up now has good alignment and fourth cog down on rear while on large chain-wheel results in almost zero cross-over. Which for me is a good flat-land cruising gear without excessive crossover. (And is also a ratio almost equal to the maximum cross-over smallest rear cog and smaller chain-wheel.)
--------------------------------------------------------
Originally Posted by NJNightRider View Post

I believe, from reading Sheldon Brown's postings on Harris Cyclery pages that it has English threads? Like 39mm? But I may be mistaken, and since you've actually replaced you BB on an ST I thought you, or someone on this board would be able to help. The crankset gear teeth to my eyes seem to be still good after 3 or 4K miles on them, but may change it out to newer. Cranks are 170mm . Any suggestions/pointers on replacing everything? Thanks ! Appreciate the help! 8-) Will
Yes, "English" threads x 68mm width.
I wanted to put a TA crank-set on the bike but they are really expensive. Forum member "Al" sold me this SILSTAR set for a good price and they look much like the original TA brand.

Once again Sheldon Brown might have been right about ISO vs. JIS, it seems that they do mostly work. (from my recent fiddling I have had several combinations test-fitted and my LBS which the mechanic has been doing this for 40 years says the same as Sheldon...)

- In my 22 years in the off-road racing motorcycle business and personally building my and our team's National Championship winning dirt bikes, I have often spoken to customers who want to "split-hairs" over technicalities or things they've read on "the net" and in reality we may have been doing it the "wrong way" at the highest levels of competition for decades and have had no problems of any kind.) Soooooo...

For me, 35+ years since I worked as a mechanic in the LBS - But for some reason I seem to remember that when this was done, sometimes the arms would not stay tight and you had to be sure of the fact that the crank arm was not bottomed-out on the taper which did not allow the center locking bolt to apply constant pressure to hold the arm from wiggling around.

But please don't quote me on any of the above. I'm a newbie to this forum and stake no claim to expert status.. I'm sure many would call me a "hack".

---------------------------------------------------------
Hope this answers the questions.

Last edited by Hoss Cartright; 01-27-12 at 08:06 AM.
Hoss Cartright is offline
Old 01-27-12, 07:27 AM
  #24
Hoss Cartright
Senior Member
Thread Starter

Hoss Cartright's Avatar

Join Date: Dec 2011
Location: Mid N/W Indiana
Posts: 465

Bikes: Schwinns, lots of them. Some Paramounts

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Another image -
I bought a buffing motor and have been doing some of that for winter fun.. The front brake is an example.

The head-badge is an aluminum baked-enamel stick-on from a WalMart "Schwinn" mountain bike that I picked from the trash on town-wide clean-up day. (This China junk Schwinn "donor" was put to the curb after being ran-over whilst laying behind Dad's car)
I liked the colors on the badge so I stuck it on there with 3M double-sided sticky-tape
- One can't have a bike nowadays without at least one token China trinket mounted on there. It just wouldn't seem right.


Last edited by Hoss Cartright; 01-27-12 at 08:02 AM.
Hoss Cartright is offline
Old 01-27-12, 08:54 AM
  #25
mkeller234
Rustbelt Rider

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,992

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 259 Times in 119 Posts
So how easy was the touch up paint? I might be interested in the small touch-up bottle in Lime Green. My frame has some pretty decent sized chunks of paint missing
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is online now

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
