1967 Schwinn 2-speed

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1967 Schwinn 2-speed

Old 01-30-12, 07:43 AM
  #1
treebound
aka: Mike J.
Thread Starter

treebound's Avatar

Join Date: Apr 2005
Location: between Milwaukee and Sheboygan in Wisconsin
Posts: 3,436

Bikes: 1995 Trek 520 is the current primary bike.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 42 Times in 32 Posts
1967 Schwinn 2-speed

I've had this Schwinn for, oh, I don't know, over ten years at least. I keep thinking about selling it, but then hang it in the garage and decide to keep it, I guess I kind of like it. The old skinny spokes are a little spooky to ride on with my current weight, and most of the spoke nipples are probably stuck so it will be a laborous task to tension up the spokes some day.

The non-drive side chainstay appears to be bent where the coaster brake arm is attached, and I've been told this is somewhat common on bikes that were braked heavily ( or had skid contests performed with them [ not that I ever did that as a kid ] ) .

Anyway, just thought I'd share it. The 2-speed hub used to work but appears to be stiff again. I'll probably lube it up with some Tec-9 or something once the weather warms up again.

This bike always sort of makes me think of an old open wheeled hotrod/ratrod for some reason.

Comments welcomed. And, no, I don't really feel like getting it painted. And, yes, I'll probably begin to think again about selling it but will probably decide to keep it again when I do come to that point. Pics were taken back in September 2011 when it was still warm outside.
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
__________________
= = = = = = = = = = = = = = = = = = = = = =
Life happens, don't be a spectator.
treebound is offline
Old 01-30-12, 07:54 AM
  #2
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 12,012

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 108 Post(s)
Tagged: 0 Thread(s)
Quoted: 890 Post(s)
Liked 670 Times in 372 Posts
Radiant Coppertone! What's not to like!

__________________
Bob
Dreaming about riding in NH's summertime while enjoying the GA coast for the remainder of the year!

Thanks for visiting my website: www.freewheelspa.com




pastorbobnlnh is offline
Old 01-30-12, 08:02 AM
  #3
bradtx
Senior Member

Join Date: Jun 2010
Location: Pearland, Texas
Posts: 7,579

Bikes: Cannondale, Trek, Raleigh, Santana

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 307 Post(s)
Liked 3 Times in 3 Posts
treebound, Just turn the handle bars upside down and it's a new bike.

As far as the chainstay goes, I think this happened when these bikes were used as mountain bikes (as in the early mountain bikes were often a 26" Schwinn). Might be able to straighten it with a rubber mallet?

Brad
bradtx is offline
Old 01-30-12, 08:09 AM
  #4
treebound
aka: Mike J.
Thread Starter

treebound's Avatar

Join Date: Apr 2005
Location: between Milwaukee and Sheboygan in Wisconsin
Posts: 3,436

Bikes: 1995 Trek 520 is the current primary bike.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 42 Times in 32 Posts
A guy at the shop said he had a frame tool he used in the past to straighten these out. My concern would be if the tube is rusted internally then it might crack. Rides okay as is so I'll probably leave it as is until I get around to stripping it down for a re-grease and check the tubes and squirt in some framesaver. I'll probably get around to that eventually.

I remember trying to find some gold metalflake grips for it once, but all that was available was the silver ones on it so I went with those.
__________________
= = = = = = = = = = = = = = = = = = = = = =
Life happens, don't be a spectator.
treebound is offline
Old 01-30-12, 08:21 AM
  #5
David Newton
Wood

David Newton's Avatar

Join Date: Jun 2009
Location: Beaumont, Tx
Posts: 2,304

Bikes: Raleigh Sports: hers. Vianelli Professional & Bridgestone 300: mine

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 10 Times in 8 Posts
That's the way me and my buddies used to ride them.
David Newton is offline
Old 01-30-12, 09:09 AM
  #6
Amesja
Cottered Crank

Amesja's Avatar

Join Date: Aug 2010
Location: Chicago
Posts: 3,493

Bikes: 1954 Raleigh Sports 1974 Raleigh Competition 1969 Raleigh Twenty 1964 Raleigh LTD-3

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
I picked up a Bendix hub just like that one for a project bike -paid $40 for it and drove all way from the North side of Chicago to scary Gary to pick it up.

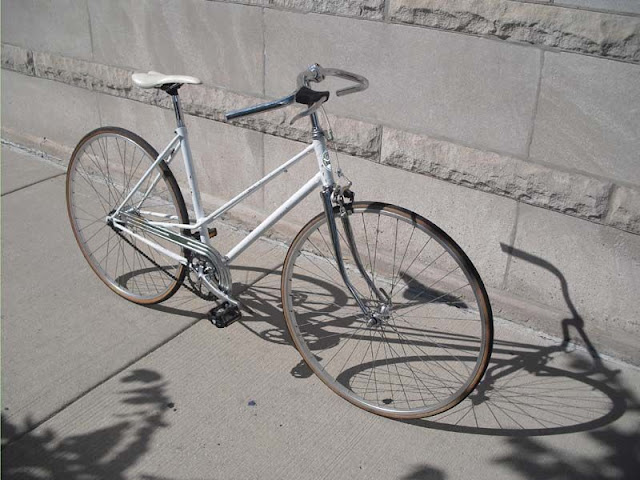

The hub went into a Chiorda Mixte that I built into a 2-speed city bike.

It wasn't until I had the hub all apart, cleaned, and ready to assemble that I realized that the driver and cog were a one-piece unit and I couldn't simply replace the 50% wore out cog. Bummer, it's a proprietary Bendix part that isn't made any more. Cost is prohibitive to source

So that there is a sweet kickback coaster hub you have in that bike that is worth something at least. I wouldn't ride it much without rebuilding it. Mine was a hot mess inside. Riding yours without re-building/re-greasing might be hard on it if it is making any noise. 40+ year old grease isn't grease anymore -in a coaster hub it is cutting compound.

I'm not a Schwinn guy so I don't know much about the chainstay bend but it looks fine to me. Isn't going to hurt anything as long as the bike rides straight. If it bothers you I'd just carefully press it back with a jig made out of a 1/2" gaspipe cut down the middle with a sawzall and put into a vise. That will keep if from collapsing when it is straightened. Either that or just junk the frame -it's only a Schwinn. The hub is the only thing on that bike that is interesting to me.

As far as the spokes are concerned it's not a big deal to re-lace a set of wheels. $35 in spokes and it's done.
Amesja is offline
Old 01-30-12, 09:28 AM
  #7
treebound
aka: Mike J.
Thread Starter

treebound's Avatar

Join Date: Apr 2005
Location: between Milwaukee and Sheboygan in Wisconsin
Posts: 3,436

Bikes: 1995 Trek 520 is the current primary bike.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 42 Times in 32 Posts
When I lived out in California I bought this bike. At the time I took the wheel into a bike shop to have them go through the rear hub, so at one point it was again in good condition. Then, foolish me, I loaned the bike to a friend who it turns out let it sit outside in the rains over a winter. Took the bike back, live and learn. Brought it with me when I moved here to Wisconsin. Might be time for me to learn the necessary methods of overhauling one of these hubs.
__________________
= = = = = = = = = = = = = = = = = = = = = =
Life happens, don't be a spectator.
treebound is offline
Old 01-30-12, 09:38 AM
  #8
jeepr
Senior Member

jeepr's Avatar

Join Date: Mar 2011
Location: Detroit, MI
Posts: 552
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by Amesja View Post
It wasn't until I had the hub all apart, cleaned, and ready to assemble that I realized that the driver and cog were a one-piece unit and I couldn't simply replace the 50% wore out cog. Bummer, it's a proprietary Bendix part that isn't made any more. Cost is prohibitive to source
Hhhmmmmm.... I need to look into this. I have a pile of NOS one piece cog/driver units that I keep meaning to research.

Cool bike. I really like the lines of those frames.
jeepr is offline
Old 01-30-12, 10:04 AM
  #9
Amesja
Cottered Crank

Amesja's Avatar

Join Date: Aug 2010
Location: Chicago
Posts: 3,493

Bikes: 1954 Raleigh Sports 1974 Raleigh Competition 1969 Raleigh Twenty 1964 Raleigh LTD-3

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
Stripping and rebuilding the hub isn't very hard if you have the special tool.

Here is a site with a bunch of information and 'sploded drawings.

Making the tool isn't too hard either out of a bit of 3/8" gas pipe and cut so that it has two notches to fit into the weird locking nut inside the hub. I can't seem to find link to a DIY tool right now. I should take a photo of the one I made. Cost about $4 in parts and took all of 15 minutes to make with a hack saw and file.
Amesja is offline
Old 01-30-12, 10:11 AM
  #10
Doohickie
You gonna eat that?

Doohickie's Avatar

Join Date: Sep 2008
Location: Fort Worth, Texas Church of Hopeful Uncertainty
Posts: 14,721

Bikes: 1966 Raleigh DL-1 Tourist, 1973 Schwinn Varsity, 1983 Raleigh Marathon, 1994 Nishiki Sport XRS

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 56 Times in 37 Posts
Originally Posted by treebound View Post
This bike always sort of makes me think of an old open wheeled hotrod/ratrod for some reason.
I can totally see that.
__________________
I stop for people / whose right of way I honor / but not for no one.


Originally Posted by bragi "However, it's never a good idea to overgeneralize."
Doohickie is offline
Old 01-30-12, 04:54 PM
  #11
jbkirby
Senior Member

jbkirby's Avatar

Join Date: Jun 2011
Location: Dothan, AL
Posts: 264

Bikes: 1971 Raleigh International; 1972 Raleigh International; 1971 Schwinn Sports Tourer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Beautiful bike! Before I got my Varsity in 1970, I rode one of these belonging to a friend, and thought I had found the Roll-Royce of bicycles. Alas, my home town had no Schwinn dealer.
jbkirby is offline
Old 01-30-12, 05:59 PM
  #12
kingsting
Bicycle Repairman

kingsting's Avatar

Join Date: Sep 2010
Location: The Land of Three Mile Island
Posts: 671

Bikes: Many

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 19 Times in 11 Posts
Originally Posted by Amesja View Post
Stripping and rebuilding the hub isn't very hard if you have the special tool.

Here is a site with a bunch of information and 'sploded drawings.

Making the tool isn't too hard either out of a bit of 3/8" gas pipe and cut so that it has two notches to fit into the weird locking nut inside the hub. I can't seem to find link to a DIY tool right now. I should take a photo of the one I made. Cost about $4 in parts and took all of 15 minutes to make with a hack saw and file.
I made a couple tools out of nuts (7/16", I think). Cut and file to fit. The nut is nice because you can get a wrench on it. You can do about 10 overhauls until they break - then just make another.

Edit: Here is a fuzzy pict of it:



I made a Suntour freewheel tool the same way but that only lasted long enough for one use...

Last edited by kingsting; 01-30-12 at 08:26 PM. Reason: Add blurry, out of focus, crappy cell phone image.
kingsting is offline
Old 01-30-12, 07:24 PM
  #13
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,489

Bikes: Several, mostly not name brands.

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 2943 Post(s)
Liked 1,957 Times in 1,170 Posts
Originally Posted by Amesja View Post
Stripping and rebuilding the hub isn't very hard if you have the special tool.

Here is a site with a bunch of information and 'sploded drawings.

Making the tool isn't too hard either out of a bit of 3/8" gas pipe and cut so that it has two notches to fit into the weird locking nut inside the hub. I can't seem to find link to a DIY tool right now. I should take a photo of the one I made. Cost about $4 in parts and took all of 15 minutes to make with a hack saw and file.
I made mine out of a cracked "peanut butter" wrench and a bit of 1/4" steel rod:

JohnDThompson is offline
Old 01-30-12, 09:25 PM
  #14
Amesja
Cottered Crank

Amesja's Avatar

Join Date: Aug 2010
Location: Chicago
Posts: 3,493

Bikes: 1954 Raleigh Sports 1974 Raleigh Competition 1969 Raleigh Twenty 1964 Raleigh LTD-3

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
OK, here is mine -made out of galvanized 3/8" pipe nipples and a 90-degree fitting:

Amesja is offline
Old 01-30-12, 09:28 PM
  #15
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: New York, NY, USA
Posts: 40,138

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 493 Post(s)
Tagged: 0 Thread(s)
Quoted: 6994 Post(s)
Liked 1,713 Times in 1,067 Posts
I think the uglier it is, the more points you get.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 01-31-12, 05:46 AM
  #16
oldroads
OldBikeGuide.com

oldroads's Avatar

Join Date: Feb 2002
Location: Massachusetts
Posts: 696
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 19 Times in 10 Posts
Originally Posted by noglider View Post
I think the uglier it is, the more points you get.
Yeah and I'm seeing some high scores.
oldroads is offline
Old 01-31-12, 07:46 AM
  #17
Amesja
Cottered Crank

Amesja's Avatar

Join Date: Aug 2010
Location: Chicago
Posts: 3,493

Bikes: 1954 Raleigh Sports 1974 Raleigh Competition 1969 Raleigh Twenty 1964 Raleigh LTD-3

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
It did the job -the hub is purring like a kitten again.

Did you see my dish gauge I posted the other day?

Amesja is offline
Old 01-31-12, 11:01 AM
  #18
kingsting
Bicycle Repairman

kingsting's Avatar

Join Date: Sep 2010
Location: The Land of Three Mile Island
Posts: 671

Bikes: Many

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 19 Times in 11 Posts
Originally Posted by Amesja View Post
It did the job -the hub is purring like a kitten again.

Did you see my dish gauge I posted the other day?


This thing is beautiful!!!
kingsting is offline
Old 02-01-12, 03:15 AM
  #19
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,395

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1220 Post(s)
Liked 716 Times in 505 Posts
You guys are the real deal, what a collection of tools! Reminds me of tools I've fashioned for VW strut replacement and MC fork overhaul. Never thought I'd see so many variants of that tool in one place.

I've overhauled Bendix 2-sp hubs (red and blue band) using only needle-nose plier tips to secure the nut. I always figured that the axle nut would compress and secure the assembly sufficiently when I installed the wheel.
I wonder now if there could be a consequence of that?
Bikes have come to me, strangely enough, with the rear 2sp hub almost falling apart, and I had one hub develop cracks around the left-side hubshell bearing race during the years that I owned and overhauled it.
So, with that in mind, I have a question: Would the hub bearings loosen, or tighten themselves (possibly cracking the hubshell) if the nut wasn't secured fully enough within/against the hub's inner hub/driver thing that's also threaded onto the axle?
In other words, was the cracked hubshell (45+ years ago, LOL) the fault of my riding, or wrenching?

I'm now riding an original in-between-green(?) 1961 Schwinn Traveler, with a Brooks saddle and red-band hub on it.
The hub works well after lubing, but does seem to "un-stick" audibly whenever I stop pedaling in low gear, before and after thoroughly lubing it.
I ride it hard. Shifting is very reliable, and the ratios are about perfect for around here. I'm able to stay in direct drive (high) most of the time, yet it has enough reduction when needed to get over most of the steeper hills. The braking action is also very good if a little abrupt at higher speeds and under sudden braking.

Last edited by dddd; 02-01-12 at 03:24 AM.
dddd is offline
Old 02-01-12, 07:22 AM
  #20
Amesja
Cottered Crank

Amesja's Avatar

Join Date: Aug 2010
Location: Chicago
Posts: 3,493

Bikes: 1954 Raleigh Sports 1974 Raleigh Competition 1969 Raleigh Twenty 1964 Raleigh LTD-3

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
I put mine into a Chiorda mixte on 27" wheels. I wasn't super-happy with the braking at first pre-rebuild. I was unused to riding a coaster and with the 27x1" tires it really isn't exactly the intended set-up for that hub.

Nearly killed myself locking it up in traffic the first ride before I rebuilt the hub. After rebuilding it the brakes were just as strong but a lot less touchy. Still, locking up the rear end doesn't take a lot of effort.



Amesja is offline
Old 02-01-12, 01:28 PM
  #21
brianinc-ville
Senior Member

brianinc-ville's Avatar

Join Date: Nov 2006
Location: Greenville, NC
Posts: 1,352
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 34 Times in 27 Posts
Originally Posted by Amesja View Post
It did the job -the hub is purring like a kitten again.

Did you see my dish gauge I posted the other day?

brianinc-ville is offline
Old 02-01-12, 01:44 PM
  #22
Amesja
Cottered Crank

Amesja's Avatar

Join Date: Aug 2010
Location: Chicago
Posts: 3,493

Bikes: 1954 Raleigh Sports 1974 Raleigh Competition 1969 Raleigh Twenty 1964 Raleigh LTD-3

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
Un chapeau de couleur dorée?
Amesja is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
ocean bay marin
Classic & Vintage
1
11-30-17 07:00 AM
noglider
Classic & Vintage
52
03-13-17 04:56 PM
WeAreMarshall
Classic & Vintage
12
05-01-12 04:23 AM
robbyrocks12345
Mountain Biking
5
05-05-11 07:49 PM
thebrokenspoke
Classic and Vintage Bicycles: Whats it Worth? Appraisals.
3
02-27-10 09:27 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
