stronglight headset installation question

I'm trying to learn the peculiarities of French bikes, but I'm not sure I'm ready for all this. I bought an old PX-10 frame that I'm beginning to rehab. I also purchased what I assumed to be the correct headset. Both purchases off eBay. The problem is that I can't figure out how to install the bottom headset race. The inside diameter of the bottom bearing race is stepped. One side down, it seems to fit, but the word "Stronglight" is upside down. If I flip it, the diameter is too big, and it is loose on the fork. The fork seems to have what I believe to be a standard French diameter - 26.4. Am I missing something?
Palmer is offline
Old 04-21-12, 03:43 PM
  #2
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,555
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 854 Post(s)
Liked 421 Times in 260 Posts
Are you talking about the crown race, the part that goes on the fork? A picture would help.
due ruote is offline
Old 04-21-12, 04:03 PM
  #3
Palmer
Senior Member
Thread Starter

Join Date: Aug 2005
Location: Hershey, Pennsylvania
Posts: 53

Bikes: Dawes Double Blue, Vision R-42 SWB, Bacchetta Giro, Lemond Maillot Jaune, Lemond Washoe, Holdsworth Special, Gitane Champion du Monde, Bob Jackson World Tour, Bianchi Professional, Nashbar C/Tour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
Yes, I'm talking about the crown race. I'll try to get a picture. I know it would help, I'm just kinda lazy.

Last edited by Palmer; 04-21-12 at 04:03 PM. Reason: typo
Palmer is offline
Old 04-21-12, 04:24 PM
  #4
Palmer
Senior Member
Thread Starter

Join Date: Aug 2005
Location: Hershey, Pennsylvania
Posts: 53

Bikes: Dawes Double Blue, Vision R-42 SWB, Bacchetta Giro, Lemond Maillot Jaune, Lemond Washoe, Holdsworth Special, Gitane Champion du Monde, Bob Jackson World Tour, Bianchi Professional, Nashbar C/Tour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
I think that I've uploaded the pictures, but I'm not really sure. Hope they help.
Attached Images
File Type: jpg
File Type: jpg
Palmer is offline
Old 04-21-12, 04:47 PM
  #5
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,555
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 854 Post(s)
Liked 421 Times in 260 Posts
I've never installed that particular headset, but the bottom picture (the one with Stronglight upside-down) looks right to me. I'm guessing the bottom head cup covers up that lettering anyway? All the same the lettering seems weird, but hey, it's French.
due ruote is offline
Old 04-21-12, 04:58 PM
  #6
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 8,679

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 597 Post(s)
Liked 688 Times in 333 Posts

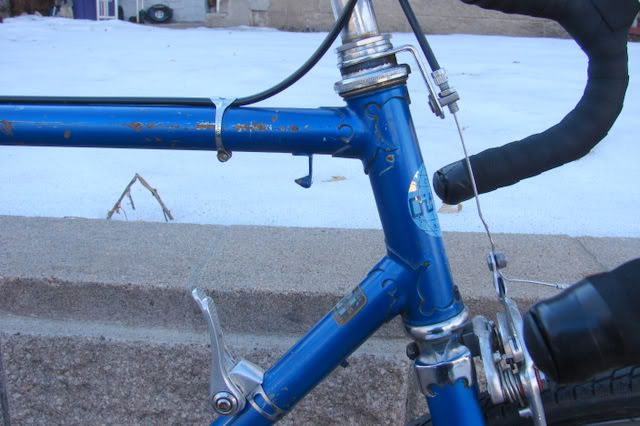

Are you sure that is installed the right way and this the right bottom race it looks a lot like a top race installed upside down.? This may not help much it is a pic of a vintage Stronglight headset from a bike I no longer own on the bike.


Last edited by zukahn1; 04-21-12 at 05:07 PM.
zukahn1 is offline
Old 04-21-12, 05:08 PM
  #7
Palmer
Senior Member
Thread Starter

Join Date: Aug 2005
Location: Hershey, Pennsylvania
Posts: 53

Bikes: Dawes Double Blue, Vision R-42 SWB, Bacchetta Giro, Lemond Maillot Jaune, Lemond Washoe, Holdsworth Special, Gitane Champion du Monde, Bob Jackson World Tour, Bianchi Professional, Nashbar C/Tour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
I am sure it's the crown race. I assume that the second (sideways) picture shows the correct installation, but I was surprised by the upside down lettering. Is it possibly made to fit two sizes of forks?
Palmer is offline
Old 04-21-12, 05:24 PM
  #8
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Scranton, PA, USA
Posts: 2,519

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; 1984 Ross MTB (stored at parents' house)

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Liked 59 Times in 40 Posts
If you flipped it upside down, the cone would no longer point in the right direction.
DiegoFrogs is offline
Old 04-21-12, 05:38 PM
  #9
Palmer
Senior Member
Thread Starter

Join Date: Aug 2005
Location: Hershey, Pennsylvania
Posts: 53

Bikes: Dawes Double Blue, Vision R-42 SWB, Bacchetta Giro, Lemond Maillot Jaune, Lemond Washoe, Holdsworth Special, Gitane Champion du Monde, Bob Jackson World Tour, Bianchi Professional, Nashbar C/Tour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
Just ignore me. I'm an idiot. I just re-read the ebay listing for the headset. It clearly says "27mm crown race". According to Sheldon Brown, the Peugeot should have a 26.4 fork, and that's what I get when I measure it. So, the lettering does go right side up - on a different fork. Sheldon says Italian, although the threading on this headset is French. It's interesting because if the race is installed with the lettering right side up, the bearings ride in a concave groove rather than the traditional cone. Oh well, back to eBay.
Palmer is offline
Old 04-21-12, 05:39 PM
  #10
CV-6
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,458

Bikes: Lejeune(14), Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré(4), Springfield, Motobecane(2), Greg Lemond, Andre Bertin, Schwinn Paramount

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 548 Post(s)
Likes: 0
Liked 506 Times in 246 Posts
The first picture, with the lettering right side up, is the correct way to install it. Looking at it, I can see the groove where the bearings ride. I have a Stronglight competition headset very similar to this and it is installed that way.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 04-21-12, 06:00 PM
  #11
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 8,679

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 597 Post(s)
Liked 688 Times in 333 Posts
Originally Posted by Palmer View Post
Just ignore me. I'm an idiot. I just re-read the ebay listing for the headset. It clearly says "27mm crown race". According to Sheldon Brown, the Peugeot should have a 26.4 fork, and that's what I get when I measure it. So, the lettering does go right side up - on a different fork. Sheldon says Italian, although the threading on this headset is French. It's interesting because if the race is installed with the lettering right side up, the bearings ride in a concave groove rather than the traditional cone. Oh well, back to eBay.
One option you could try can't say it will work is to try using what you have and setup up all loose ball no race it's a pain but often a solution.
zukahn1 is offline
Old 04-21-12, 06:53 PM
  #12
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Posts: 17,415
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 441 Post(s)
Likes: 0
Liked 13 Times in 13 Posts
A very confusing thread!
