Old 10-27-14, 06:43 PM
  #3576
Junior Member

Join Date: Sep 2011
Posts: 103
Liked 2 Times in 1 Post
Originally Posted by Soundtallica
48/32/22. The larger two rings shift perfectly. But since the big ring is so big, it positions the derailleur cage too high for the ramp that shifts the small ring to contact the chain when shifting to that ring. I countered this by setting the inner limit much further in than usual, so the bottom part of the cage can shift the chain into the little ring. It requires trimming after the shift but it works well, and I barely use the small ring, so it's all good.

Hooray for friction shifting. This setup likely wouldn't work with indexed gears!
I was thinking of trying to make a super compact double 48/28 or 30 and see how that works. As your 48/32 works good I have hope. thanks.

royal
pcdmiele is offline
Old 10-28-14, 09:29 AM
  #3577
Senior Member

kehomer's Avatar

Join Date: Jan 2008
Location: North Georgia
Posts: 272
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by striknein


I swapped out the 300lx group for suntour XCE and threw together some other parts from the bin. I had to buy a new stem, which was a little tricky since its 1 1/8" threaded. It's a nice ride.
Good looking, well thought out bike! Enjoy!
kehomer is offline
Old 10-28-14, 09:40 AM
  #3578
Junior Member

Join Date: Sep 2008
Location: Santa Cruz, Ca.
Posts: 7

Bikes: A Bakers Dozen.. '37 Schwinn AutoCycle, '64 Schwinn Wasp, '64 Woodrup, '70 Woodrup, '80 Laguna Cruiser, '82 Kos Kruiser, '87 DB Ascent EX, '88 Bottecchia, '92 Trek 950, '96 Bontrager OR Race, '96 Bianchi Cyclocross, '03 IRO RobRoy, '12 Stumpjumper

Likes: 0
Liked 2 Times in 1 Post
Seriously cool use of ancient steel mtb's. Love all of them. One of my favorite threads.

A sea foam green 1986 Diamondback Apex was my 1st geared mtb, sold yrs ago to a friend so I could upgrade. So in that vein, I am throwing my hat in the ring with my '86/87 Diamondback Ascent EX. Yellow frame, u-brake and stem gifted by friend. Thanks Dominic! Stripped paint, wanted a bit of patina, now time for clear. Few rides in about 50miles, ready for completion as the set up is perfect.
$10 mustache bars had a scratch.
Dia-compe levers, Shimano canti front, Shimano U-brake will be on soon.
Deore cranks, 39 chainring, 19 surly cog, red KKT Lightning pedals from my KOS Kruiser
DX hubs, RM20 rims, old tires.
Strong seat post, Avocet saddle I have had since 1985 and still love. Stainless Cage.
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg

Last edited by CruzCtrl; 10-28-14 at 12:39 PM.
CruzCtrl is offline
Old 10-28-14, 10:11 AM
  #3579
Senior Member

Join Date: May 2014
Posts: 2,537

Bikes: yes

Liked 644 Times in 330 Posts
Originally Posted by striknein


I swapped out the 300lx group for suntour XCE and threw together some other parts from the bin. I had to buy a new stem, which was a little tricky since its 1 1/8" threaded. It's a nice ride.
Nice job, that thing is looks sweet. I see Antelopes for dirt cheap fairly often on CL, I may just have to snag one next time...
ksryder is offline
Old 10-28-14, 10:56 AM
  #3580
Goes to 11.

striknein's Avatar

Join Date: Oct 2010
Location: Wichita, KS, USA
Posts: 2,547

Bikes: 2015 Soma Double Cross

Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by ksryder
Nice job, that thing is looks sweet. I see Antelopes for dirt cheap fairly often on CL, I may just have to snag one next time...
They can be good value. This one has seamed Tange butted tubing. I think I managed to get it down to 27 lbs. before throwing the rack on.
striknein is offline
Old 10-28-14, 12:57 PM
  #3581
Senior Member

kehomer's Avatar

Join Date: Jan 2008
Location: North Georgia
Posts: 272
Likes: 0
Liked 2 Times in 2 Posts
Pictures of this '86 Stumpjumper were posted here in the Spring. I thought some of you might like to see the bike with fenders. Also replaced the Ichigear pista drop bars with Nitto B135s.

There are more pictures and details in the thread "To Fender or not to Fender". As you can see, it can be a pain in the posterior, with the HUGE frame to fender gaps to try to get acceptable fender lines.

[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]

Last edited by kehomer; 10-28-14 at 01:44 PM. Reason: sp
kehomer is offline
Old 10-28-14, 12:59 PM
  #3582
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,462
Liked 529 Times in 322 Posts
CruzCtrl, nice bike and cool photos!

Is it getting bar tape, or are you going minimalist?
due ruote is offline
Old 10-28-14, 01:35 PM
  #3583
Junior Member

Join Date: Sep 2008
Location: Santa Cruz, Ca.
Posts: 7

Bikes: A Bakers Dozen.. '37 Schwinn AutoCycle, '64 Schwinn Wasp, '64 Woodrup, '70 Woodrup, '80 Laguna Cruiser, '82 Kos Kruiser, '87 DB Ascent EX, '88 Bottecchia, '92 Trek 950, '96 Bontrager OR Race, '96 Bianchi Cyclocross, '03 IRO RobRoy, '12 Stumpjumper

Likes: 0
Liked 2 Times in 1 Post
Originally Posted by due ruote
CruzCtrl, nice bike and cool photos!

Is it getting bar tape, or are you going minimalist?
Thank you due ruote. Good question, cloth tape will happen. If I didn't live in the MTN's and ride so much dirt I would keep them as is.

Last edited by CruzCtrl; 10-28-14 at 11:34 PM.
CruzCtrl is offline
Old 10-28-14, 01:42 PM
  #3584
Junior Member

Join Date: Sep 2008
Location: Santa Cruz, Ca.
Posts: 7

Bikes: A Bakers Dozen.. '37 Schwinn AutoCycle, '64 Schwinn Wasp, '64 Woodrup, '70 Woodrup, '80 Laguna Cruiser, '82 Kos Kruiser, '87 DB Ascent EX, '88 Bottecchia, '92 Trek 950, '96 Bontrager OR Race, '96 Bianchi Cyclocross, '03 IRO RobRoy, '12 Stumpjumper

Likes: 0
Liked 2 Times in 1 Post
Beautiful bike Kehomer. Hope you find some relief so you can ride it more.
CruzCtrl is offline
Old 10-29-14, 02:26 PM
  #3585
Senior Member

Soundtallica's Avatar

Join Date: Feb 2011
Posts: 65
Likes: 0
Liked 5 Times in 2 Posts
Originally Posted by pcdmiele
I was thinking of trying to make a super compact double 48/28 or 30 and see how that works. As your 48/32 works good I have hope. thanks.

royal
I think my setup worked because a rule of thumb for front derailleurs is that they can shift a maximum of a 16 tooth difference between rings effectively unless it's a special derailleur, which is what the difference between 48/32 is. You might have problems if you try to do a 48/28 or 30 since the difference is larger for both. I'm not sure how it will actually turn out, it may not work or just not shift as smoothly, but don't let that stop you from trying!
Soundtallica is offline
Old 10-29-14, 06:54 PM
  #3586
Junior Member

Join Date: Sep 2011
Posts: 103
Liked 2 Times in 1 Post
Originally Posted by Soundtallica
I think my setup worked because a rule of thumb for front derailleurs is that they can shift a maximum of a 16 tooth difference between rings effectively unless it's a special derailleur, which is what the difference between 48/32 is. You might have problems if you try to do a 48/28 or 30 since the difference is larger for both. I'm not sure how it will actually turn out, it may not work or just not shift as smoothly, but don't let that stop you from trying!
I ride this bike as a commuter and never have to use the lower chainrings on my commute so it is essentially a 1x system. I was hoping to just use the smallest chainring as a bailout for the steepest hills when I tour up in the mountains. smooth shifting wouldn't be necessary because it would rarely happen. I figured it would be a fun experiment. I did not know about the 16 tooth rule of thumb. thanks for that info.

Royal
pcdmiele is offline
Old 10-30-14, 03:27 PM
  #3587
Senior Member

bconneraz's Avatar

Join Date: Jan 2005
Location: So Cal
Posts: 701

Bikes: Cimarrons 1835, 0836, 1767, 3517, 0768, 3408, a LHT, and a couple others

Likes: 0
Liked 12 Times in 8 Posts

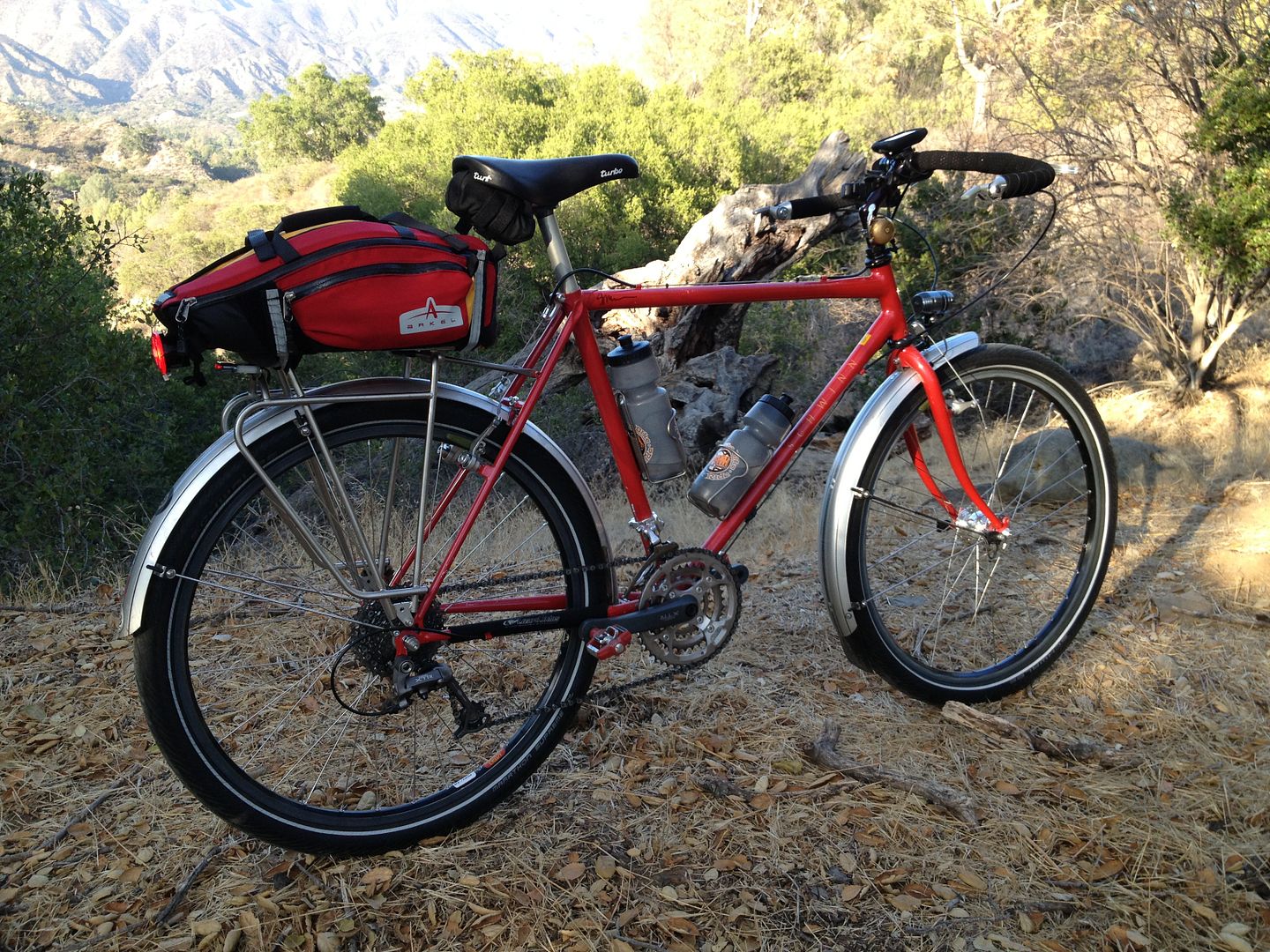

Fall is in the air......
bconneraz is offline
Old 10-30-14, 04:28 PM
  #3588
Senior Member

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Posts: 8,759
Likes: 0
Liked 16 Times in 14 Posts
Originally Posted by striknein


I swapped out the 300lx group for suntour XCE and threw together some other parts from the bin. I had to buy a new stem, which was a little tricky since its 1 1/8" threaded. It's a nice ride.
what stem is that? I may need to get one. Nice bike I just tuned up a purple 830 I picked up local for $75. The exage 400 is not a bad group but the steel chain rings and steel handlebar had to do. I put an old alloy bar on and a newer deore external BB crank on it and shaved a few pounds. some studded tires and she'll be commuting through any storm.
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear
cyclotoine is offline
Old 10-30-14, 05:32 PM
  #3589
Goes to 11.

striknein's Avatar

Join Date: Oct 2010
Location: Wichita, KS, USA
Posts: 2,547

Bikes: 2015 Soma Double Cross

Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by cyclotoine
what stem is that? I may need to get one. Nice bike I just tuned up a purple 830 I picked up local for $75. The exage 400 is not a bad group but the steel chain rings and steel handlebar had to do. I put an old alloy bar on and a newer deore external BB crank on it and shaved a few pounds. some studded tires and she'll be commuting through any storm.
The stem is a Profile Designs Boa. It's pretty much the last decent aluminum 1 1/8" quill stem out there.
striknein is offline
Old 11-03-14, 04:54 PM
  #3590
Full Member

american psycho's Avatar

Join Date: Sep 2011
Location: Whiefish, Montana
Posts: 292

Bikes: 1970 Cilo Pacer, 1972 Colnago Super, 1972 Bianchi Specialissima Professional, 1998 Colnago Monotitan, 2015 Salsa Horsethief, 2015 Salsa Mukluk Titanium

Likes: 0
Liked 6 Times in 3 Posts
1991 Specialized Stumpjumper Team

Finished.

1991 Specialized Stumpjumper Team, Campagnolo Euclid drivetrain, 1st Generation C Record Brifters, misc, Shimano crap I'll try to replace.



Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
__________________
1972 Colnago Super, 1972 Bianchi Specialissima Professionale, 1998 Colnago Monotitan, 2014 Salsa Horsethief, 2015 Salsa Mukluk Ti
american psycho is offline
Old 11-03-14, 05:54 PM
  #3591
Senior Member

Join Date: Jul 2006
Location: STP
Posts: 14,491
Liked 260 Times in 144 Posts
Originally Posted by american psycho
Finished.

1991 Specialized Stumpjumper Team, Campagnolo Euclid drivetrain, 1st Generation C Record Brifters, misc, Shimano crap I'll try to replace.



Nice.

Careful with that stem. I cracked mine right through the cable routing hole.
gomango is offline
Old 11-05-14, 02:59 PM
  #3592
Full Member

Join Date: Jun 2004
Location: Long Island, NY
Posts: 459

Bikes: 1980 Motobecane Grand Jubile, 1986 Kuwahara ATB, 2006 Bianchi Volpe, 2016 Salsa Fargo

Liked 29 Times in 17 Posts
Originally Posted by cooperryder
Ok, not a mtb 'drop bar' conversion, although I have done about 6 of those to this point & shared some of them, but this is a mtb conversion
with Nitto Albatross bars.

It is the 1986 Peugeot Orient Express that had the 'under chainstay' roller cam brakes & I know there are fans of them
but I could not get them to work right, (I think the springs were warped or something)
so I found these Tektro '26" Cruiser' sidepulls for $17 on ebay and gave them a try.

First ride on it yesterday after installing proved them to work very well for me.
They are beefy and swallow those 58 to 60mm fat tires with room to spare.
I will have to deflate the tire to remove wheel but that is not a huge issue for me.

I am enjoying this 'relatively' fat tire bike a lot.
It's rolling at a fraction under 30 lbs. which is quite a bit less than the 34 listed on the online 1986 Peugeot catalog.

Again with all due respect to the under chainstay roller cam fans this looks to be a decent alternative rear brake solution for
certain mtb's.
I guess for folks who wanted to not use any canti's you could use on both front & rear.
















Loving this! How do you like the Fat Franks - I'm undecided between them and the Big Bens for mixed surface riding.
wintermute is offline
Old 11-05-14, 03:35 PM
  #3593
Senior Member

cooperryder's Avatar

Join Date: Oct 2006
Location: Dallas / Ft Worth
Posts: 1,198
Liked 1,665 Times in 435 Posts
Originally Posted by wintermute
Loving this! How do you like the Fat Franks - I'm undecided between them and the Big Bens for mixed surface riding.
Thanks.

Those are actually Chinese made knockoffs, and heavy at that but help make this bike a blast to ride.
CST Metropolitan Palm Bay Wire Bead Tire 26-Inch x 2.35

METROPOLITAN PALM BAY C1779 | Hybrid Tires | CST Tires (Listed at 1075 grams) in their copper brown color.
Got them on close out at REI over a year ago.
cooperryder is offline
Old 11-05-14, 04:37 PM
  #3594
Senior Member

Bikedued's Avatar

Join Date: Jul 2004
Posts: 10,963
Liked 108 Times in 61 Posts
I have been thinking about a drop bar(VO flared model) bars on my burgandy Urban Express, along with a set of Deore DX derailleurs. I am undecided on the tre size though. I can probably go narrower and pick up a little speed, since the wheels I'd use are 90's era matrix on deore hubs IIRC. I will do all I can to lighten it up within reason, but there's only so much you can do. it will most likely end up in the 30-33 pound range like most 80's steel mtbs.,,,,BD
__________________
So many bikes, so little dime.
Bikedued is offline
Old 11-05-14, 04:57 PM
  #3595
Senior Member

Join Date: Sep 2008
Location: Elwood Indiana
Posts: 7,333

Bikes: they change so much I'm tired of updating this

Liked 1,211 Times in 446 Posts
Ive decided to swap my Marin over. Thanks to all the enablers here on the forum. I have the bars already, waiting on a set of bar end shifters, aero brake levers and bar tape. Ive done a mock up with the bars and really like the fit. Looking foreward to getting it done.
__________________
Semper fi
sloar is online now
Old 11-06-14, 08:15 AM
  #3596
Senior Member

cooperryder's Avatar

Join Date: Oct 2006
Location: Dallas / Ft Worth
Posts: 1,198
Liked 1,665 Times in 435 Posts
Originally Posted by Bikedued
I have been thinking about a drop bar(VO flared model) bars on my burgandy Urban Express, along with a set of Deore DX derailleurs. I am undecided on the tre size though. I can probably go narrower and pick up a little speed, since the wheels I'd use are 90's era matrix on deore hubs IIRC. I will do all I can to lighten it up within reason, but there's only so much you can do. it will most likely end up in the 30-33 pound range like most 80's steel mtbs.,,,,BD
My Peugeot Orient Express in current config is 30.8 lbs...quite a tank.
It is a heavy frame to begin with at 8.9 lbs for the bare frame & fork.
On the plus side it has lots of room to spare between the stays and fork with those fat tires.

I could easily shave off several pounds with lighter tires and wheels but will save that for a lighter build I am currently mulling over with a different lighter frame.

Several of my other 21" to 23" mtb frames weigh in right at 8.0 lbs for bare frame & fork.

To date my lightest was my 23" Schwinn Cimarron at 7.65 lbs for frame & fork.
The heaviest I have encountered to date is a dark gray Specialized Hardrock frame which was a whopping 9.65 lbs for bare frame & fork.(Sold that one) Good grief, did they pour lead down some of the tubes of that one?

It is interesting to me that another Specialized, a Hardrock Comp ( 1989 model) I have weighs a flat 8.0 for the bare frame and fork.

I have read of several of the folks on this list have pared down their vintage mtb builds to weights to the sub 25 lb range.

It would be interesting to know what the bare frame & fork weights on these lighter vintage mtb's.(Such as the Specialized Stumpjumpers)

Since I completely disassemble b4 rebuilding it is easy to weigh the bare frame & fork.

From my very limited mtb sample of about 8 frames/forks the difference between the higher end Cimarron and several other decent double butted tubing frames was .35 lbs. Not a whole lot of difference there.

I currently have a Trek 850 sitting here as my next project that is a 8.0 frame and fork.
I hope to build it up at no more that 26 to 27 lbs.
I am finding it a bit harder to achieve a lighter build with these tallish frames.

I don't care for it's current royal blue color of the 850 and am inspired by 'kehomer's' beautiful metallic orange Stumpjumper that was posted recently.

Last edited by cooperryder; 11-06-14 at 08:22 AM.
cooperryder is offline
Old 11-06-14, 08:24 AM
  #3597
Thrifty Bill
Thread Starter

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 23,557

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Liked 1,005 Times in 646 Posts
Originally Posted by Bikedued
I have been thinking about a drop bar(VO flared model) bars on my burgandy Urban Express, along with a set of Deore DX derailleurs. I am undecided on the tre size though. I can probably go narrower and pick up a little speed, since the wheels I'd use are 90's era matrix on deore hubs IIRC. I will do all I can to lighten it up within reason, but there's only so much you can do. it will most likely end up in the 30-33 pound range like most 80's steel mtbs.,,,,BD
FWIW, I got my Cimarron down below 26 pounds (started at 31 pounds) by using lighter wheels, tires, saddle and pedals. Continued to use the same components (crank, derailleurs, etc). I got as low as 25 1/2 pounds, before adding back some weight with my preferred pedals and saddle.

With a little effort, you should easily end up below 28 pounds.
wrk101 is offline
Old 11-06-14, 08:29 AM
  #3598
Cisalpinist

Italuminium's Avatar

Join Date: Jan 2011
Location: Holland
Posts: 5,557

Bikes: blue ones.

Likes: 0
Liked 17 Times in 12 Posts
Originally Posted by american psycho
Finished.

1991 Specialized Stumpjumper Team, Campagnolo Euclid drivetrain, 1st Generation C Record Brifters, misc, Shimano crap I'll try to replace.



Amazing. Funny how these road groups can shift off-road derailers. I'm gobbling up all the campagnolo mountain bike stuff I can get from the local trading site, so far not enough for a complete bike, but getting there.
Italuminium is offline
Old 11-06-14, 08:54 AM
  #3599
Newbie

Join Date: Nov 2014
Location: Orange County California
Posts: 3

Bikes: Kona Explosif 27.5 and 1990 Stumpjumper

Likes: 0
Liked 0 Times in 0 Posts
There are so many great bikes here. Lots of inspiration!

I've been SLOWLY rebuilding a 1990 stumpjumper I picked up off CL last year, and this thread has made me decide to convert it to drop bars.

i have 2 questions though.

1) Does anyone know where I can find a pair of 25.4 Midge drops? I've been watching On One's site for quite a while, but they seem to be sold out every time I check. I've even tried ebay, but I haven't seen them in my clamp size.

2) Does anyone have experience fitting 26x2.35 tires with fenders on an old stumpjumper or comparable bike? I really like the idea of fatty tires (schwalbe big apples or big bens), but I don't want to get them on there only to find out later I don't have room for a fender?

Thanks in advance for any help!
RideAtDawn is offline
Old 11-06-14, 11:30 AM
  #3600
Full Member

Join Date: Jun 2004
Location: Long Island, NY
Posts: 459

Bikes: 1980 Motobecane Grand Jubile, 1986 Kuwahara ATB, 2006 Bianchi Volpe, 2016 Salsa Fargo

Liked 29 Times in 17 Posts
Originally Posted by RideAtDawn
1) Does anyone know where I can find a pair of 25.4 Midge drops? I've been watching On One's site for quite a while, but they seem to be sold out every time I check. I've even tried ebay, but I haven't seen them in my clamp size.
I got mine at Planet-X USA.
wintermute is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Your Privacy Choices -

Copyright © 2024 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
