Show Your Vintage MTB Drop Bar Conversions

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Show Your Vintage MTB Drop Bar Conversions

Old 01-10-19, 04:23 AM
  #6326
The Rabbi

seely's Avatar

Join Date: Apr 2004
Posts: 5,125
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by imabeliever1


Probably my favorite ride. Mid 80ís Schwinn Mtb that started as a 5.00 frame set at a swap meet. Here it is in front of the Alamo by the Christmas tree.

Thats lovely. I can't place which Schwinn that would be -- not say it isn't, but I've owned quite a few of that era and the fork crown + long rear triangle + slight BB drop is throwing me off. Totally ideal candidate for what you're doing, and not too far from my '85 Cimmarron build in the works.
seely is offline
Old 01-10-19, 04:28 AM
  #6327
The Rabbi

seely's Avatar

Join Date: Apr 2004
Posts: 5,125
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by imabeliever1


Probably my favorite ride. Mid 80ís Schwinn Mtb that started as a 5.00 frame set at a swap meet. Here it is in front of the Alamo by the Christmas tree.
Answered my own question -- 1984 High Sierra!
seely is offline
Old 01-11-19, 08:25 AM
  #6328
Full Member

Join Date: Sep 2003
Location: From a Texas dirt road to the Blue Grass
Posts: 340

Bikes: Bicycles, Yes

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 111 Times in 40 Posts
You are correct. High Sierra.
imabeliever1 is offline
Old 01-13-19, 10:15 PM
  #6329
Member

Join Date: Dec 2016
Location: New Mexico
Posts: 47

Bikes: Fausto Coppi, Specialized Transition, Specialized Roll

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

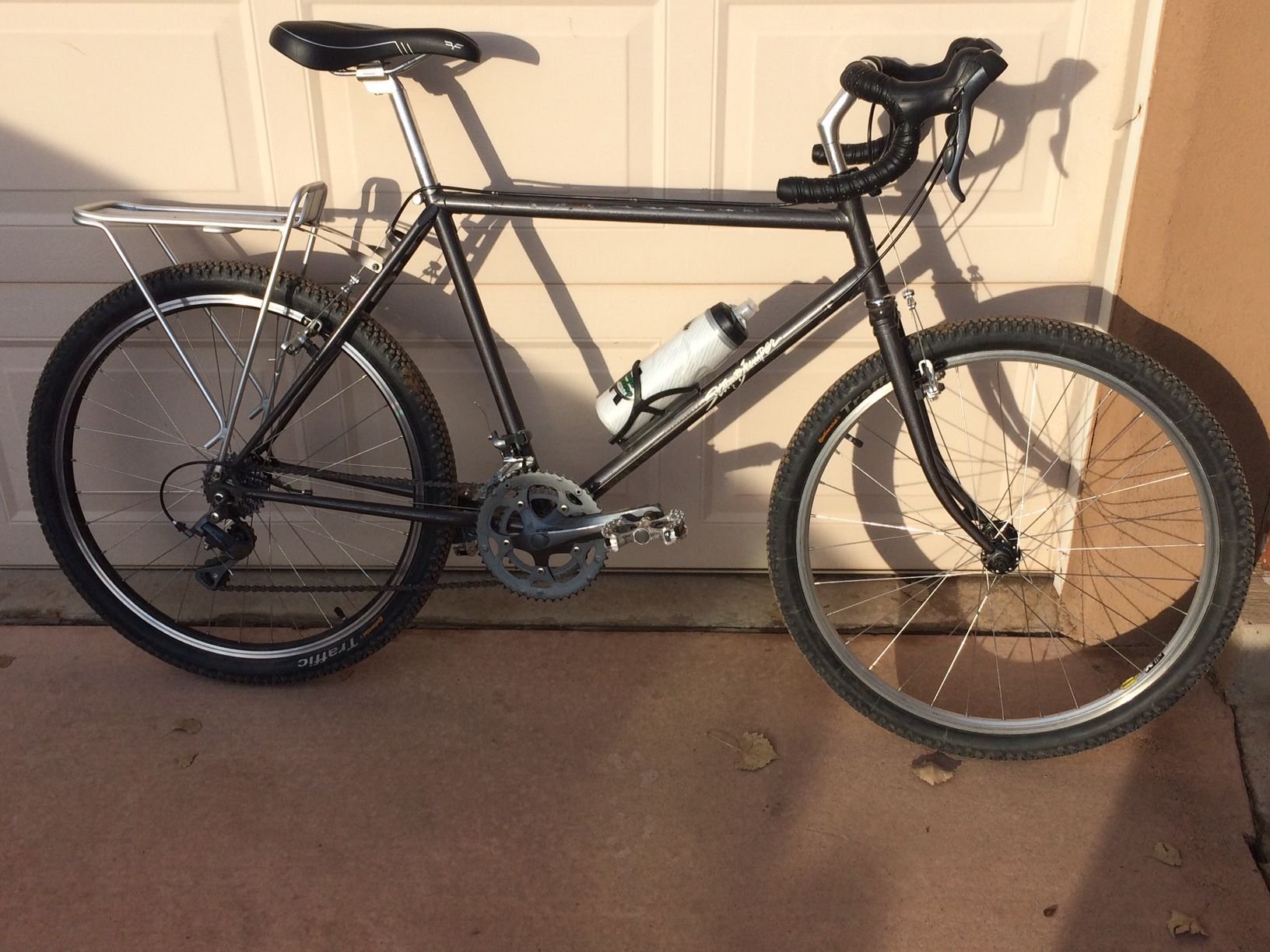

CL Find Stumpjumper Sport

I've been looking for a donor, found a complete conversion. Set the seat back, raised the post, back from the first ditch bank ride...
FrkYrPrk is offline
Old 01-13-19, 10:54 PM
  #6330
Senior Member

Chris Chicago's Avatar

Join Date: May 2009
Location: near north side
Posts: 1,348
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 31 Times in 20 Posts
I've got that sierras twin, even the same tires. It's my favorite bike too. Still trying to figure out why.

Here it is when I first put it together 6 yrs back
https://www.bikeforums.net/15197181-post817.html


Originally Posted by imabeliever1


Probably my favorite ride. Mid 80ís Schwinn Mtb that started as a 5.00 frame set at a swap meet. Here it is in front of the Alamo by the Christmas tree.
Chris Chicago is offline
Old 01-20-19, 10:31 PM
  #6331
Junior Member

Join Date: Jun 2016
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 4 Times in 2 Posts

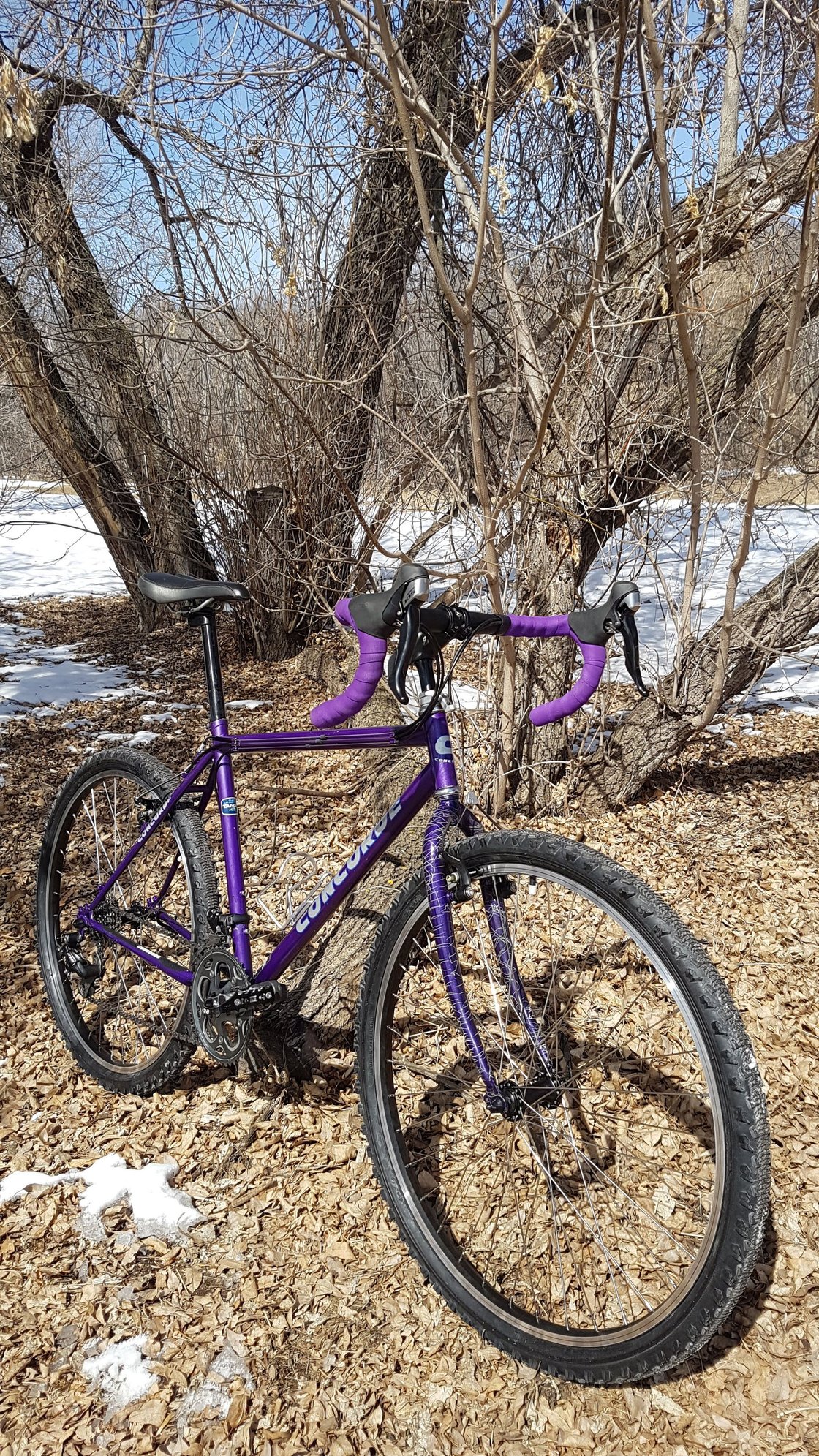

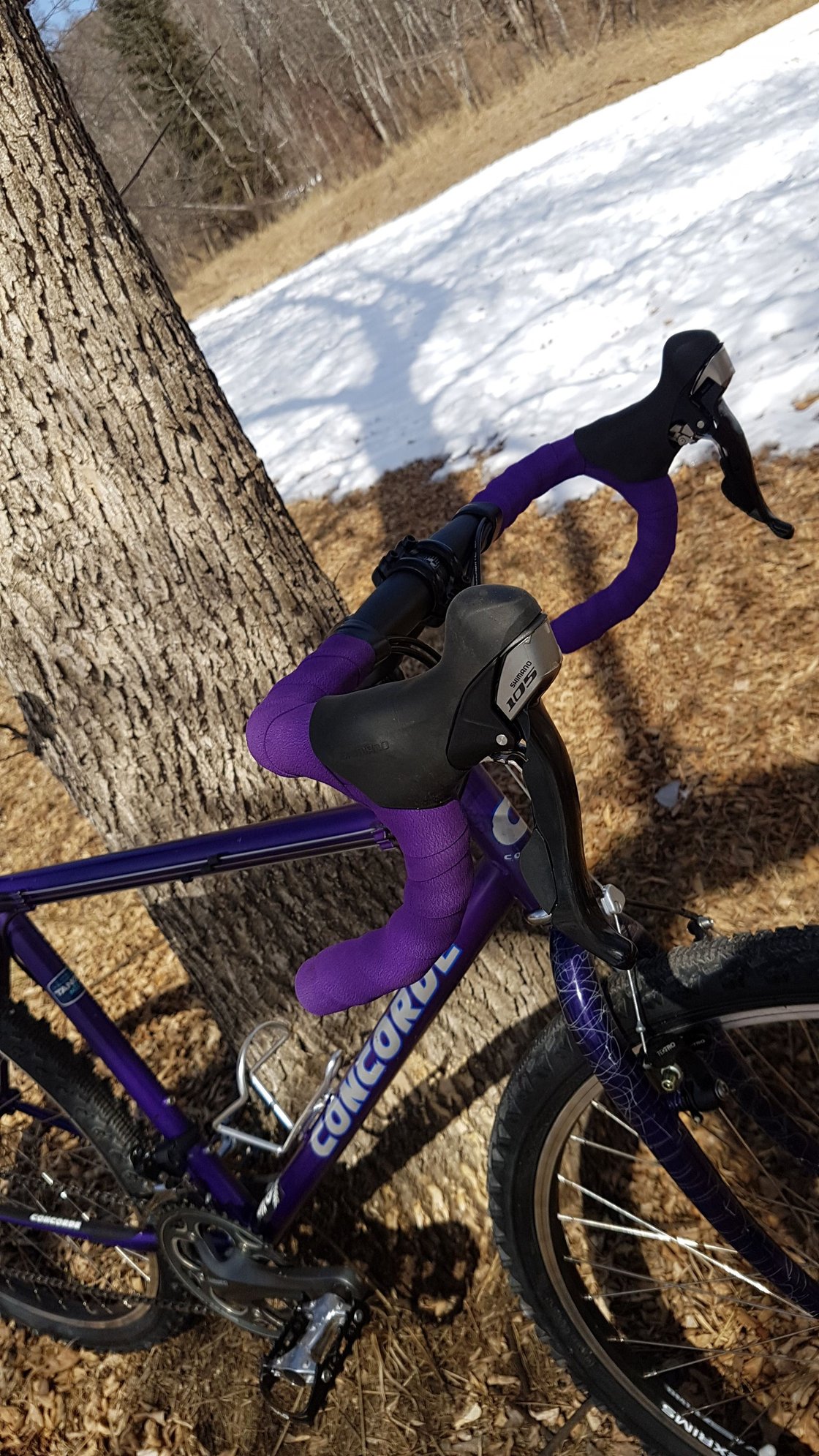

Concorde 105

Been meaning to post this one for a while but kept forgetting. Scooped this butted Tange Concorde frame from the local bike co-op for around $20, built it up for a friend, with 5800 shifters & derailleurs, CX70 crankset, Alex DM18 hoops on Deore hubs. It's been on some epic adventures & a super fun ride apparently. I like that all the cabling is run along the top tube, it's what made this frame catch my eye originally

biketroubadour is offline
Old 01-21-19, 07:51 AM
  #6332
Senior Member

Join Date: Jan 2017
Location: Berea, KY
Posts: 1,127
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 358 Post(s)
Liked 296 Times in 177 Posts
I love the color of that Concorde.
__________________
Andy
beicster is offline
Old 01-21-19, 11:46 AM
  #6333
Junior Member

vp1337's Avatar

Join Date: Jun 2016
Location: Rotterdam
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 112 Times in 33 Posts
Originally Posted by biketroubadour
Been meaning to post this one for a while but kept forgetting. Scooped this butted Tange Concorde frame from the local bike co-op for around $20, built it up for a friend, with 5800 shifters & derailleurs, CX70 crankset, Alex DM18 hoops on Deore hubs. It's been on some epic adventures & a super fun ride apparently. I like that all the cabling is run along the top tube, it's what made this frame catch my eye originally
Fantastic!
vp1337 is offline
Old 01-21-19, 12:26 PM
  #6334
Full Member

GeezyRider's Avatar

Join Date: Aug 2015
Location: Delaware Sea Shore
Posts: 491

Bikes: There is always room for one more.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 340 Times in 197 Posts
Originally Posted by beicster
I love the color of that Concorde.
Me too! And the work on the build is nicely done as well.
GeezyRider is offline
Old 01-21-19, 08:04 PM
  #6335
Senior Member

alecjahn's Avatar

Join Date: May 2011
Location: Wichita, KS
Posts: 117

Bikes: 1988 Trek 800, 200? Fuji Marseille [shimagnolo], 2010 Windsor The Hour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post
Started the conversion last week to 8sp rear+600 brifters, drops, conversion stem... Reduced cranks from triple to double. Will do brakes, hopefully, Wednesday morning. Tange 5 with CroMo fork. Paint is beat to heck, I surely don't mind: Nothing special but I like the way it fits and it's the perfect foul-weather beater/commuter.
alecjahn is offline
Old 01-24-19, 08:26 AM
  #6336
Aww
Member

Join Date: Nov 2017
Posts: 30
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Been checking this thread for ages, awesome conversions everyone.

If it is not OT here, I might ask for advice, since I'm in the process of converting early 90s mtb to drop bars.
The issue is about the front derailleur, I have 3x7 road STIs (RSX) ready for this, and would love not to lose any chainring. So far it is - those 3x7 STIs, FD-M561 front derailleur (31.8, cable comes from the top), and crankset is not decided yet, got plenty to choose from.
From what I have read, road STIs have different cable pull for the front derailleur (same for rear one) than mtb STIs, therefore if I just connect it the way it is, it won't be possible to reach one part of the crankset. Using road tripple cranks won't help (?). Has anyone gone through the same with any simple sollution?
From what I understand, it seems that
- I can find a road fd (needing less cable pull), which seems unlikely because of the 31.8 and cable from the top. Or are there any?
- I can connect it the way it is and make it 2x7, with both clicks on STIs needed for each shift. Easiest, but would prefer not to do this.
- I can try to customize the FD somehow - have seen some pictures, but still pretty unsure how and if I can make it.

Am I missing any option, or an easy but still reliable fix?

Thanks for ideas in advance, got about a week to think about this, then I'll have some time to play with the conversion, post pics and such .)
Aww is offline
Old 01-24-19, 02:14 PM
  #6337
HarborBandS

Join Date: Jun 2018
Location: Chicago Western Suburbs
Posts: 476
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Liked 102 Times in 55 Posts
Originally Posted by Aww
Been checking this thread for ages, awesome conversions everyone.

If it is not OT here, I might ask for advice, since I'm in the process of converting early 90s mtb to drop bars.
The issue is about the front derailleur, I have 3x7 road STIs (RSX) ready for this, and would love not to lose any chainring. So far it is - those 3x7 STIs, FD-M561 front derailleur (31.8, cable comes from the top), and crankset is not decided yet, got plenty to choose from.
From what I have read, road STIs have different cable pull for the front derailleur (same for rear one) than mtb STIs, therefore if I just connect it the way it is, it won't be possible to reach one part of the crankset. Using road tripple cranks won't help (?). Has anyone gone through the same with any simple sollution?
From what I understand, it seems that
- I can find a road fd (needing less cable pull), which seems unlikely because of the 31.8 and cable from the top. Or are there any?
- I can connect it the way it is and make it 2x7, with both clicks on STIs needed for each shift. Easiest, but would prefer not to do this.
- I can try to customize the FD somehow - have seen some pictures, but still pretty unsure how and if I can make it.

Am I missing any option, or an easy but still reliable fix?

Thanks for ideas in advance, got about a week to think about this, then I'll have some time to play with the conversion, post pics and such .)
I'm in the process of putting brifters on an old 2002 Trek 7500FX. The frame is an American-made Alpha SL MTB geometry that weighs only 3.63 lbs. The front derailleur is a mountain bike style top pull. I have an old road 3x derailleur I want to use, and bought a pulley from Problem Solvers that can reverse the direction of the cable pull. I'll let you know if it works... It should be happening very soon.
HarborBandS is offline
Old 01-24-19, 02:35 PM
  #6338
Senior Member

katsup's Avatar

Join Date: May 2016
Location: Southern California
Posts: 1,766

Bikes: Soma Fog Cutter v2, Cotic SolarisMax, Ritchey Ultra, 1995 ParkPre Pro 825

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 603 Post(s)
Liked 552 Times in 312 Posts
Originally Posted by Aww
Been checking this thread for ages, awesome conversions everyone.

If it is not OT here, I might ask for advice, since I'm in the process of converting early 90s mtb to drop bars.
The issue is about the front derailleur, I have 3x7 road STIs (RSX) ready for this, and would love not to lose any chainring. So far it is - those 3x7 STIs, FD-M561 front derailleur (31.8, cable comes from the top), and crankset is not decided yet, got plenty to choose from.
From what I have read, road STIs have different cable pull for the front derailleur (same for rear one) than mtb STIs, therefore if I just connect it the way it is, it won't be possible to reach one part of the crankset. Using road tripple cranks won't help (?). Has anyone gone through the same with any simple sollution?
From what I understand, it seems that
- I can find a road fd (needing less cable pull), which seems unlikely because of the 31.8 and cable from the top. Or are there any?
- I can connect it the way it is and make it 2x7, with both clicks on STIs needed for each shift. Easiest, but would prefer not to do this.
- I can try to customize the FD somehow - have seen some pictures, but still pretty unsure how and if I can make it.

Am I missing any option, or an easy but still reliable fix?

Thanks for ideas in advance, got about a week to think about this, then I'll have some time to play with the conversion, post pics and such .)
I was able to use my 3x7 Deore LX top pull with Microshift STI shifters. The bike has changed since I posted the photo, but it is post #6085. The front shifter had a correction (extra click) and I had to have it on the first click when tightening the cable. I don't know if your RSX are similar.
katsup is offline
Old 01-25-19, 04:13 AM
  #6339
Aww
Member

Join Date: Nov 2017
Posts: 30
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Thank you both for advice, going to spend some days just considering options.
The thing is that I can see it being my first drop bar conversion, so in the end I might even go for the easiest possible way, making it 2x7, but we'll see. Will post pics once it is finished.
Aww is offline
Old 01-25-19, 11:06 AM
  #6340
Senior Member

alecjahn's Avatar

Join Date: May 2011
Location: Wichita, KS
Posts: 117

Bikes: 1988 Trek 800, 200? Fuji Marseille [shimagnolo], 2010 Windsor The Hour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post
Originally Posted by katsup
I was able to use my 3x7 Deore LX top pull with Microshift STI shifters. The bike has changed since I posted the photo, but it is post #6085. The front shifter had a correction (extra click) and I had to have it on the first click when tightening the cable. I don't know if your RSX are similar.
What was the symptom you had that led you to the single click setup fix? I can't get my FD to extend enough and the current idea is a narrower BB. I can shift into that gear just fine but with the limit screw all the way out and I'm on small (rear) to big (front) the chain rubs (fd not extending enough). If I press on the brifter more it will, with the limit screw all the way out, easily pull enough cable (beyond the final click). It's just not indexing with enough pull. It kinda seems like this might be the key for my setup (XT fd) but I'll have to get it on the work stand and spend some more time with it.
alecjahn is offline
Old 01-25-19, 02:50 PM
  #6341
Senior Member

katsup's Avatar

Join Date: May 2016
Location: Southern California
Posts: 1,766

Bikes: Soma Fog Cutter v2, Cotic SolarisMax, Ritchey Ultra, 1995 ParkPre Pro 825

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 603 Post(s)
Liked 552 Times in 312 Posts
Originally Posted by alecjahn
What was the symptom you had that led you to the single click setup fix? I can't get my FD to extend enough and the current idea is a narrower BB. I can shift into that gear just fine but with the limit screw all the way out and I'm on small (rear) to big (front) the chain rubs (fd not extending enough). If I press on the brifter more it will, with the limit screw all the way out, easily pull enough cable (beyond the final click). It's just not indexing with enough pull. It kinda seems like this might be the key for my setup (XT fd) but I'll have to get it on the work stand and spend some more time with it.
It took two shifts to get from the small chain ring to the middle. I don't remember having trouble shifting from middle to large. I use the same shifters on a bottom pull DX front derailleur on my 520.
katsup is offline
Old 01-25-19, 04:27 PM
  #6342
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,953
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 444 Times in 298 Posts
Originally Posted by Aww
Thank you both for advice, going to spend some days just considering options.
The thing is that I can see it being my first drop bar conversion, so in the end I might even go for the easiest possible way, making it 2x7, but we'll see. Will post pics once it is finished.
Have you tried making the road shifters and MTB front derailleur work? Sometimes it all comes together to work out even though the interwebs say otherwise. Front derailleurs are pretty simple devices. It's worth a shot.
tricky is offline
Old 01-25-19, 06:39 PM
  #6343
Aww
Member

Join Date: Nov 2017
Posts: 30
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by tricky
Have you tried making the road shifters and MTB front derailleur work? Sometimes it all comes together to work out even though the interwebs say otherwise. Front derailleurs are pretty simple devices. It's worth a shot.
Ye, I have, but just to put it together and check if I want to ride this, with 3x8 Sora shifters that time (well, different setup overall). Had issues with getting the FD to not to touch chain at big chainring/small wheel, or one of the smaller ones. But you are correct, it is worth a try, there is still time to make it into perfection. At the moment, I'm not having all the parts on the same place as the bike is, so in a week or two, I'll just try to put it all together and we'll see .)

Last edited by Aww; 01-25-19 at 06:43 PM.
Aww is offline
Old 01-25-19, 07:08 PM
  #6344
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,953
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 444 Times in 298 Posts
Originally Posted by Aww
Ye, I have, but just to put it together and check if I want to ride this, with 3x8 Sora shifters that time (well, different setup overall). Had issues with getting the FD to not to touch chain at big chainring/small wheel, or one of the smaller ones. But you are correct, it is worth a try, there is still time to make it into perfection. At the moment, I'm not having all the parts on the same place as the bike is, so in a week or two, I'll just try to put it all together and we'll see .)
I did some googling. I found this. https://www.modernbike.com/shimano-a...ont-derailleur Check the cable pull, but maybe this would work? Here are a few more. https://www.modernbike.com/front-der...ullisdual-pull
tricky is offline
Old 02-03-19, 03:32 PM
  #6345
Newbie

RicardoDeGalvez's Avatar

Join Date: Feb 2019
Location: Galveston Texas
Posts: 2

Bikes: A blue one

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have just picked up an old mountain bike frame and planning to convert to a drop bar for commuting, errands, and maybe touring. I am assuming I would want to put more road oriented gears on it, is that correct?

There are single braze-ons at the front and rear. I have seen fenders and rear racks attached to the same braze-on, Is there any reason I wouldn't want to do this?
RicardoDeGalvez is offline
Old 02-03-19, 07:03 PM
  #6346
Thrifty Bill
Thread Starter

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 23,538

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1226 Post(s)
Liked 928 Times in 608 Posts
Originally Posted by Aww
Been checking this thread for ages, awesome conversions everyone.

If it is not OT here, I might ask for advice, since I'm in the process of converting early 90s mtb to drop bars.
The issue is about the front derailleur, I have 3x7 road STIs (RSX) ready for this, and would love not to lose any chainring. So far it is - those 3x7 STIs, FD-M561 front derailleur (31.8, cable comes from the top), and crankset is not decided yet, got plenty to choose from.
From what I have read, road STIs have different cable pull for the front derailleur (same for rear one) than mtb STIs, therefore if I just connect it the way it is, it won't be possible to reach one part of the crankset. Using road tripple cranks won't help (?). Has anyone gone through the same with any simple sollution?
From what I understand, it seems that
- I can find a road fd (needing less cable pull), which seems unlikely because of the 31.8 and cable from the top. Or are there any?
- I can connect it the way it is and make it 2x7, with both clicks on STIs needed for each shift. Easiest, but would prefer not to do this.
- I can try to customize the FD somehow - have seen some pictures, but still pretty unsure how and if I can make it.

Am I missing any option, or an easy but still reliable fix?
.)
Ideal for me would be to install both STI shifters, but use the front lever just as a brake. Then install either a bar end shifter, or a DT shifter to control the FD. I prefer friction on the FD anyway. Since my Cimarron does not have shifter mounts on the DT, I would just pull out an orphan bar end shifter for one side. Sure, it might look a little odd, but functionally it would work great.
wrk101 is offline
Old 02-04-19, 12:06 AM
  #6347
Junior Member

Join Date: Jun 2016
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 4 Times in 2 Posts
Originally Posted by alecjahn
What was the symptom you had that led you to the single click setup fix? I can't get my FD to extend enough and the current idea is a narrower BB. I can shift into that gear just fine but with the limit screw all the way out and I'm on small (rear) to big (front) the chain rubs (fd not extending enough). If I press on the brifter more it will, with the limit screw all the way out, easily pull enough cable (beyond the final click). It's just not indexing with enough pull. It kinda seems like this might be the key for my setup (XT fd) but I'll have to get it on the work stand and spend some more time with it.
You'll probably need a shorter BB axle. But it also sounds like you cable tension may be too low if you have lots of movement beyond the final click. I'd start by increasing tension, & if that isnt working go with a bb around 2-3mm shorter to start.
biketroubadour is offline
Old 02-04-19, 05:19 AM
  #6348
Senior Member

Join Date: Jan 2017
Location: Berea, KY
Posts: 1,127
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 358 Post(s)
Liked 296 Times in 177 Posts
Originally Posted by RicardoDeGalvez
I have just picked up an old mountain bike frame and planning to convert to a drop bar for commuting, errands, and maybe touring. I am assuming I would want to put more road oriented gears on it, is that correct?

There are single braze-ons at the front and rear. I have seen fenders and rear racks attached to the same braze-on, Is there any reason I wouldn't want to do this?
I have been doing that for years on various bikes and other than being a bit more fiddly to install, I have never had a problem with it.
__________________
Andy
beicster is offline
Old 02-06-19, 02:55 PM
  #6349
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,700
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 899 Post(s)
Liked 521 Times in 316 Posts
Mounted a bag. An excuse to post another pic and keep this thread going!

due ruote is offline
Old 02-06-19, 04:25 PM
  #6350
Senior Member

simmonsgc's Avatar

Join Date: Dec 2010
Location: NC High Country
Posts: 657
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 14 Times in 8 Posts
Originally Posted by due ruote
Mounted a bag. An excuse to post another pic and keep this thread going!
Great pic, great looking bike.
simmonsgc is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
