Building a Clubman: What kind of Handlebar?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Building a Clubman: What kind of Handlebar?

Old 10-11-12, 03:41 PM
  #1
lonelybikeboy
Member
Thread Starter

Join Date: Jul 2012
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Building a Clubman: What kind of Handlebar?

Hi everyone,

Thanks in advance for your help!

I am looking to build a replica of the Raleigh Clubman. See link https://sheldonbrown.com/retroraleigh...an-kohler.html

My question is what handlebar do I buy to get that look? Here are a few considerations.

Type of riding: Commuting around the city. Occasional longer rides on the weekend.

1. Is it possible to use a bar end brake? (My setup will be 1 front brake and a back coaster brake)

2. Comfort. More than one hand position is desirable. I would like a space at the top and be able to use the drops as well.

So what kind of handlebar? Nitto randonneur? nitto road 115? Major taylor? Lauterwasser?
lonelybikeboy is offline
Old 10-11-12, 06:56 PM
  #2
Velognome
Get off my lawn!

Velognome's Avatar

Join Date: Nov 2010
Location: The Garden State
Posts: 6,253

Bikes: 1917 Loomis, 1923 Rudge, 1930 Hercules Renown, 1947 Mclean, 1948 JA Holland, 1955 Hetchins, 1957 Carlton Flyer, 1962 Raleigh Sport, 1978&81 Raleigh Gomp GS', 2010 Raliegh Clubman

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Likes: 0
Liked 72 Times in 36 Posts
replica or just a Clubman style type bike? A Maes bend drop bar would l look appropriate. The Major is a track bend and Nitto rando is, well, a modern rando bar.

Search Clubman, Drop bar 3 speeds or pathracer on the forum and I think you'll get some ideas. I did up this Raleigh Sports in the Clubman style, the bars are vintage Raleigh's, I don't know what the bend or style is called.
Velognome is offline
Old 10-11-12, 08:06 PM
  #3
kaliayev
Gouge Away

kaliayev's Avatar

Join Date: Nov 2008
Location: BFOH
Posts: 984
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 8 Times in 4 Posts
Very nice build. I've been thinking of doing something similar.
kaliayev is offline
Old 10-12-12, 06:40 AM
  #4
rhenning
Senior Member

Join Date: Apr 2006
Posts: 3,637
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Likes: 0
Liked 101 Times in 75 Posts
I used a standard steel Randonneur drop bar that was comfortable to me on my 1941 Schwinn World path racer. Comfort is more important to me than style but it is your bike so it is your choice. Roger
Attached Images
File Type: jpg
rhenning is offline
Old 10-12-12, 07:21 AM
  #5
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,772

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 549 Post(s)
Tagged: 0 Thread(s)
Quoted: 1863 Post(s)
Liked 389 Times in 256 Posts

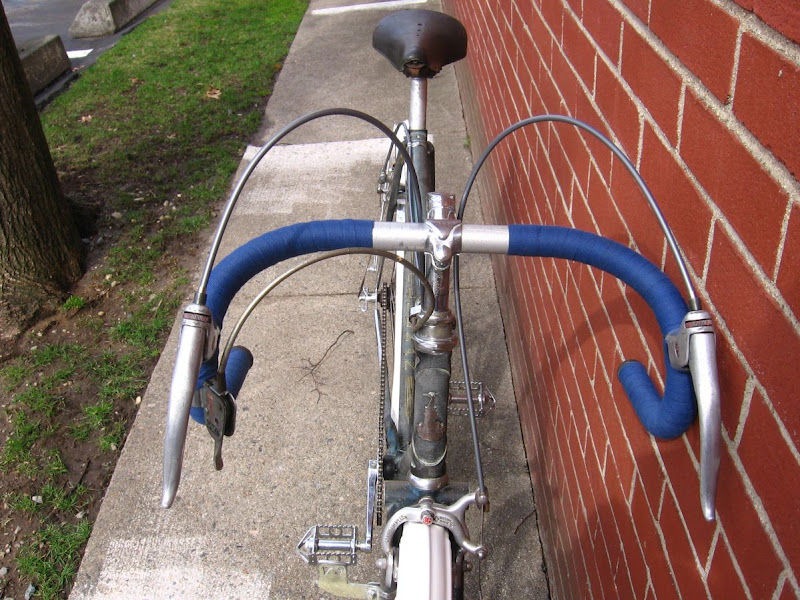

The popular "modern" bend handlebar of that period was the Maes bend, which is probably the most common drop bar bend of the 50's-70's. So if you have a plain drop bar that doesn't have grooves for aero levers and doesn't have the modern 'anatomical' bend, it'll probably look fine on a 'Clubman' type build.

The bar on my 1948 Raleigh Record Ace is one of those; an aluminum Maes bend bar that probably came off a Super Course from the early 70's, but it looks right:

This one, a Dawes "Certes" bar from the 50's or 60's, look about the same:


Some riders of that period still preferred handlebar bends that were already old fashioned at that time. If you want something like that, you can try a Soma Lauterwasser bar, but be warned: it only looks like a vintage Lauterwasser bar from certain angles. Here's the Soma one:

Our very own Frank the Welder made this copy of an original Lauterwasser bar, and eventually succumbed to my mooching and sent it to me:


The (original) handlebar on my 1951 Raleigh Lenton Sports has a pretty interesting bend. Note the short stem. But I don't know where you'd find one of these:
rhm is offline
Old 10-12-12, 07:53 AM
  #6
Velognome
Get off my lawn!

Velognome's Avatar

Join Date: Nov 2010
Location: The Garden State
Posts: 6,253

Bikes: 1917 Loomis, 1923 Rudge, 1930 Hercules Renown, 1947 Mclean, 1948 JA Holland, 1955 Hetchins, 1957 Carlton Flyer, 1962 Raleigh Sport, 1978&81 Raleigh Gomp GS', 2010 Raliegh Clubman

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Likes: 0
Liked 72 Times in 36 Posts
Nice collection rhm.....I need (really need ) to finish some builds!

Here is a period clubman style bar with a little more curve than the Maes. An eBay find:
Velognome is offline
Old 10-12-12, 07:59 AM
  #7
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,351

Bikes: Too many to list here check my signature.

Mentioned: 156 Post(s)
Tagged: 2 Thread(s)
Quoted: 2340 Post(s)
Liked 1,394 Times in 824 Posts
I like this tell us more. Is this an IGH with a mutli spd gear on the outside? How about a close up of the derailluer/changer?



SO if I have this straight a "Clubman" is a drop bar 3spd bike with fenders?
__________________
One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Old 10-12-12, 08:12 AM
  #8
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,772

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 549 Post(s)
Tagged: 0 Thread(s)
Quoted: 1863 Post(s)
Liked 389 Times in 256 Posts
Originally Posted by Bianchigirll View Post
I like this tell us more. Is this an IGH with a mutli spd gear on the outside? How about a close up of the derailluer/changer?
Yup! That's a three speed hub with two cogs on it --19T and 22T if I recall correctly-- and a "Resilion" derailleur that I got on ebay because the frame has a chainstay derailleur mount. It's a nicely made, well finished piece of machinery (as featured on Disraeli Gears) but a horror for wheel changes. I believe it was designed for three cogs, and setting it up for two was a pain; but it shifts well. End result, six evenly spaced gears.

Originally Posted by Bianchigirll View Post
SO if I have this straight a "Clubman" is a drop bar 3spd bike with fenders?
Yup! That is, that's how we use the term in this forum. I don't think that's common parlance anywhere else, though.
rhm is offline
Old 10-12-12, 10:14 AM
  #9
Velognome
Get off my lawn!

Velognome's Avatar

Join Date: Nov 2010
Location: The Garden State
Posts: 6,253

Bikes: 1917 Loomis, 1923 Rudge, 1930 Hercules Renown, 1947 Mclean, 1948 JA Holland, 1955 Hetchins, 1957 Carlton Flyer, 1962 Raleigh Sport, 1978&81 Raleigh Gomp GS', 2010 Raliegh Clubman

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Likes: 0
Liked 72 Times in 36 Posts
Originally Posted by Bianchigirll
SO if I have this straight a "Clubman" is a drop bar 3spd bike with fenders?




Originally Posted by rhm
Yup! That is, that's how we use the term in this forum. I don't think that's common parlance anywhere else, though.
In the begining was the fixed gear. Yea though I ride to climbith out of thy saddle and spinnith through thy fertile glade; I fearth not thy gears for thou art within thy hub. Thy fulcrum and trigger, they comfort me, thy hub bringith unto me unto more terrian. My heart panted for thy mystical union and thou gaveith me thy hub of fixed gear. All the days of my life I shall ride with thee, fixed or free, one or three,..

Amen


Canticle of the Clubman from the Anglican Book of Common Repair

Last edited by Velognome; 10-12-12 at 05:05 PM.
Velognome is offline
Old 10-12-12, 10:37 AM
  #10
loubapache
Senior Member

loubapache's Avatar

Join Date: Jul 2008
Location: Western MI
Posts: 262

Bikes: 2015 Windsor Oxford; 2012 Trek T900; 2008 Iron Horse Commuter; 1999 Specialized Stumpjumper M2 Pro; 1999 Kona Lava Dome; 1992 Trek 520 Tour; 1980 Fuji Grand Tour SE; 1973 Raleigh LTD-3; 1956 Robin Hood; 198x Worksman Industrial Trike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 1 Time in 1 Post
This is not a clubman but a lowly Huffy Bay Pointe I restored and converted. It runs very smooth and I think these American/Shimano 3 speeds are under-appreciated.

The handle bar and brake levers are from another Huffy 10 speeds. It is a Shimano 3S rear hub with a solid wire shifting. Most of these old Shimano 3 speeds are adjusted with the shifter in second gear but this one seems to be a little different. Since it is shifting perfectly now, the "set" arrow and another arrow are lined up when the shifter is in third gear. It does not have the 'N" window or circle. The beauty of this system is that you do not have to re-adjust the gear if you take the rear wheel off since the entire shifting system (the bell crank and cable) all come off together as a unit.

I have 4 other American/Shimano 3 speeds and none of them has this shifting mechanism.

Is this one I have on the Bay Pointe called positron 3 speeds?
Attached Images
File Type: jpg
File Type: jpg

Last edited by loubapache; 10-12-12 at 10:52 AM.
loubapache is offline
Old 10-12-12, 02:15 PM
  #11
acoffin
Senior Member

acoffin's Avatar

Join Date: Jul 2011
Location: St Louis
Posts: 608

Bikes: 72 Lygie (SS conv), 87 Ironman Expert, 94 Allez Sport, 16 Black Mountain Cycles Monstercross

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 14 Times in 4 Posts
Originally Posted by Velognome View Post
replica or just a Clubman style type bike? A Maes bend drop bar would l look appropriate. The Major is a track bend and Nitto rando is, well, a modern rando bar.

Search Clubman, Drop bar 3 speeds or pathracer on the forum and I think you'll get some ideas. I did up this Raleigh Sports in the Clubman style, the bars are vintage Raleigh's, I don't know what the bend or style is called.
^ This is a good look. In order to replicate it you would need an older drop bar with 22.2 diameter grip (as opposed to the standard 23.8), they are not too dificult to find. Then add upright brake levers. Those newish Tektro levers (fl750?) would look nice.
acoffin is offline
Old 10-12-12, 03:52 PM
  #12
RFC
Senior Member

RFC's Avatar

Join Date: Sep 2007
Location: Scottsdale, AZ
Posts: 4,466

Bikes: many

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 11 Times in 10 Posts
Originally Posted by Velognome View Post
replica or just a Clubman style type bike? A Maes bend drop bar would l look appropriate. The Major is a track bend and Nitto rando is, well, a modern rando bar.

Search Clubman, Drop bar 3 speeds or pathracer on the forum and I think you'll get some ideas. I did up this Raleigh Sports in the Clubman style, the bars are vintage Raleigh's, I don't know what the bend or style is called.
Nicely done.
RFC is offline
Old 10-12-12, 04:34 PM
  #13
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,636
Mentioned: 401 Post(s)
Tagged: 0 Thread(s)
Quoted: 2932 Post(s)
Liked 3,610 Times in 1,624 Posts
Here's the bar on my 1950 Raleigh Clubman. As far as I know, it's original, which would make it a Clubman bar:



nlerner is offline
Old 10-12-12, 04:46 PM
  #14
Velognome
Get off my lawn!

Velognome's Avatar

Join Date: Nov 2010
Location: The Garden State
Posts: 6,253

Bikes: 1917 Loomis, 1923 Rudge, 1930 Hercules Renown, 1947 Mclean, 1948 JA Holland, 1955 Hetchins, 1957 Carlton Flyer, 1962 Raleigh Sport, 1978&81 Raleigh Gomp GS', 2010 Raliegh Clubman

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Likes: 0
Liked 72 Times in 36 Posts
^ Nice, very nice, What hub hub is on it?
Velognome is offline
Old 10-12-12, 04:48 PM
  #15
ftwelder
Senior Member

ftwelder's Avatar

Join Date: Apr 2010
Location: vermont
Posts: 3,091

Bikes: Many

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
Raleigh put out a ton of different handlebar bends from the 20's on into the 50's. When the term "clubman" was used, personal automobiles were rare. If you could afford a bike and were "keen" on racing, you would pick something that could be fitted with clothing, spares, light over-night gear and perhaps a set of spare racing wheels. A lightweight frame with racing geometry, fittings for removable mudguards and a tool bag would be the order of the day.

Originally Posted by rhm View Post



That is pretty much the hottest bike photo I have ever seen.

Last edited by ftwelder; 10-12-12 at 04:52 PM.
ftwelder is offline
Old 10-12-12, 04:51 PM
  #16
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,883

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3547 Post(s)
Liked 1,913 Times in 1,229 Posts
Originally Posted by rhm View Post
The (original) handlebar on my 1951 Raleigh Lenton Sports has a pretty interesting bend. Note the short stem. But I don't know where you'd find one of these:
Love those Lenton bars -- they look like a dream to install as well as to ride.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is online now
Old 10-12-12, 05:18 PM
  #17
Roll-Monroe-Co
Senior Member

Join Date: Jul 2005
Posts: 2,308
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 14 Times in 12 Posts
Originally Posted by loubapache View Post
The beauty of this system is that you do not have to re-adjust the gear if you take the rear wheel off since the entire shifting system (the bell crank and cable) all come off together as a unit.
This is also the case with the SA AW, if you don't move the little locknut. Well, OK, in theory.

Originally Posted by loubapache View Post
Is this one I have on the Bay Pointe called positron 3 speeds?
That does indeed look like a Positron shifter. I had no idea that this unholy union was ever consummated.
Roll-Monroe-Co is offline
Old 10-12-12, 05:24 PM
  #18
Roll-Monroe-Co
Senior Member

Join Date: Jul 2005
Posts: 2,308
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 14 Times in 12 Posts
Not a mention of the flipped North Roads? Porche no? You can have that aero feel without the crazy lauterwasser reach.
Roll-Monroe-Co is offline
Old 10-12-12, 05:32 PM
  #19
Velognome
Get off my lawn!

Velognome's Avatar

Join Date: Nov 2010
Location: The Garden State
Posts: 6,253

Bikes: 1917 Loomis, 1923 Rudge, 1930 Hercules Renown, 1947 Mclean, 1948 JA Holland, 1955 Hetchins, 1957 Carlton Flyer, 1962 Raleigh Sport, 1978&81 Raleigh Gomp GS', 2010 Raliegh Clubman

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Likes: 0
Liked 72 Times in 36 Posts
We're trying to be proper here, none of that school yard hijinx, flipping a perfectly statley set ofbars just to get a cheap thrill...shesh!
Velognome is offline
Old 10-12-12, 06:36 PM
  #20
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,636
Mentioned: 401 Post(s)
Tagged: 0 Thread(s)
Quoted: 2932 Post(s)
Liked 3,610 Times in 1,624 Posts
Originally Posted by Velognome View Post
^ Nice, very nice, What hub hub is on it?
Originally it came with a Sturmey Archer FW rear hub hub though the wheel that's on it now is built with an AM. I overhauled that original and need to put it wheel back on. The front hub is a Bayliss Wiley, I believe.
nlerner is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Desertdweller
Classic & Vintage
14
05-18-15 08:44 AM
Daddy Wags
Hybrid Bicycles
15
04-24-15 02:11 PM
lonelybikeboy
Classic and Vintage Bicycles: Whats it Worth? Appraisals.
0
10-08-12 02:13 PM
crispbike
Hybrid Bicycles
19
06-24-12 05:48 PM
gtownviking
Touring
3
09-05-10 10:19 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
