Very strange full suspension road bike spotted at antique auto swap.

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Very strange full suspension road bike spotted at antique auto swap.

Old 10-18-12, 04:49 PM
  #1
kingsting
Bicycle Repairman
Thread Starter

kingsting's Avatar

Join Date: Sep 2010
Location: The Land of Three Mile Island
Posts: 630

Bikes: Many

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Very strange full suspension road bike spotted at antique auto swap.

Just thought I would share this one. I saw this at the Hershey Region AACA fall antique auto meet last week. It was sold when we arrived and the seller said it was a prototype. It had 24" wheels along with front and rear suspension. Never saw anything like it before and this show is known for one of a kind items of all types. The guy said he got $200 for it...







I would guess it was from the late 80's. Probably a strange riding thing too.
kingsting is offline
Old 10-18-12, 05:06 PM
  #2
KvltBryce
- Bikes Not Bombs -

KvltBryce's Avatar

Join Date: Nov 2011
Location: Desert Hell, AZ
Posts: 630

Bikes: 1986 LOOK KG86, 19XX Les Ephgrave?, 1983 Nishiki Royal, 199X Nukeproof MTB, 1974 Raleigh Grand Prix

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'm not even sure I understand how the front suspension would work.

Wouldn't all of the upward force be right underneath the axle?
KvltBryce is offline
Old 10-18-12, 05:12 PM
  #3
frantik
Chainstay Brake Mafia

Join Date: Mar 2011
Location: California
Posts: 6,028
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
frantik is offline
Old 10-18-12, 05:18 PM
  #4
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,556
Mentioned: 410 Post(s)
Tagged: 1 Thread(s)
Quoted: 2378 Post(s)
Likes: 0
Liked 15 Times in 15 Posts
Based on the elastomers, I'd guess early 1990s.
T-Mar is offline
Old 10-18-12, 05:27 PM
  #5
Chombi
Senior Member

Chombi's Avatar

Join Date: Jul 2009
Posts: 11,139

Bikes: 1986 Alan Record Carbonio, 1985 Vitus Plus Carbone 7, 1984 Peugeot PSV, 1972 Line Seeker, 1986(est.) Medici Aerodynamic (Project), 1985(est.) Peugeot PY10FC

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

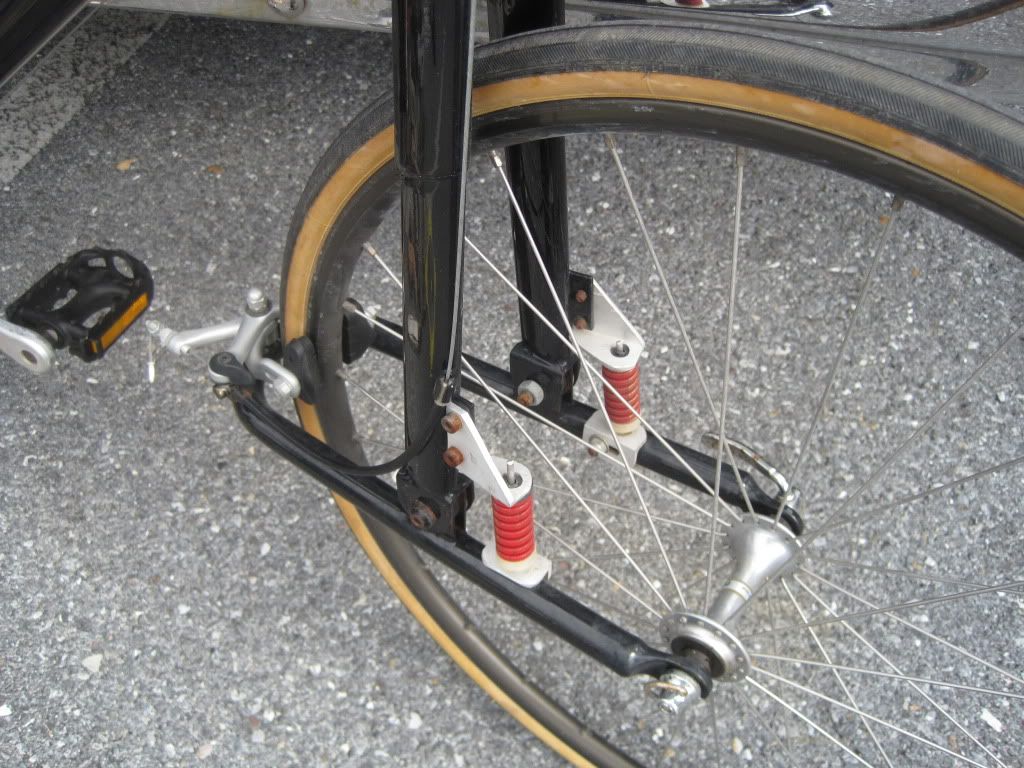

That's called an "Earls fork" suspension system on the front of that bike.
Lots of old BMWs from the 50's and earlier had that kind of front suspension system, they worked specially well with sidecar rigs. In fact, my oldest brother owns a Russian Ural sidecar rig with that kind of front suspension. Best thing about them is there minimal or no fork dive with such a fork when a person puts on the brakes, unlike telescopic fork suspensions on other bikes.
I saw a very similar bike in the 90's being ridden by a guy somewhere in the south bay near San Jose, but it was much racier set up.
I don't think this front suspension system was considered too seriously by the big bike companies as it most likely is heavier than telescopic forks. Never saw another Earls forked bicycle since then till this one popped up!
Thanks for posting its pic on the forum!

Chombi
Chombi is offline
Old 10-18-12, 05:39 PM
  #6
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,339
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 932 Post(s)
Likes: 0
Liked 10 Times in 8 Posts
Originally Posted by Chombi View Post
That's called an "Earls fork" suspension system on the front of that bike.
Lots of old BMWs from the 50's and earlier had that kind of front suspension system, they worked specially well with sidecar rigs. In fact, my oldest brother owns a Russian Ural sidecar rig with that kind of front suspension. Best thing about them is there minimal or no fork dive with such a fork when a person puts on the brakes, unlike telescopic fork suspensions on other bikes.
I saw a very similar bike in the 90's being ridden by a guy somewhere in the south bay near San Jose, but it was much racier set up.
I don't think this front suspension system was considered too seriously by the big bike companies as it most likely is heavier than telescopic forks. Never saw another Earls forked bicycle since then till this one popped up!
Thanks for posting its pic on the forum!

Chombi

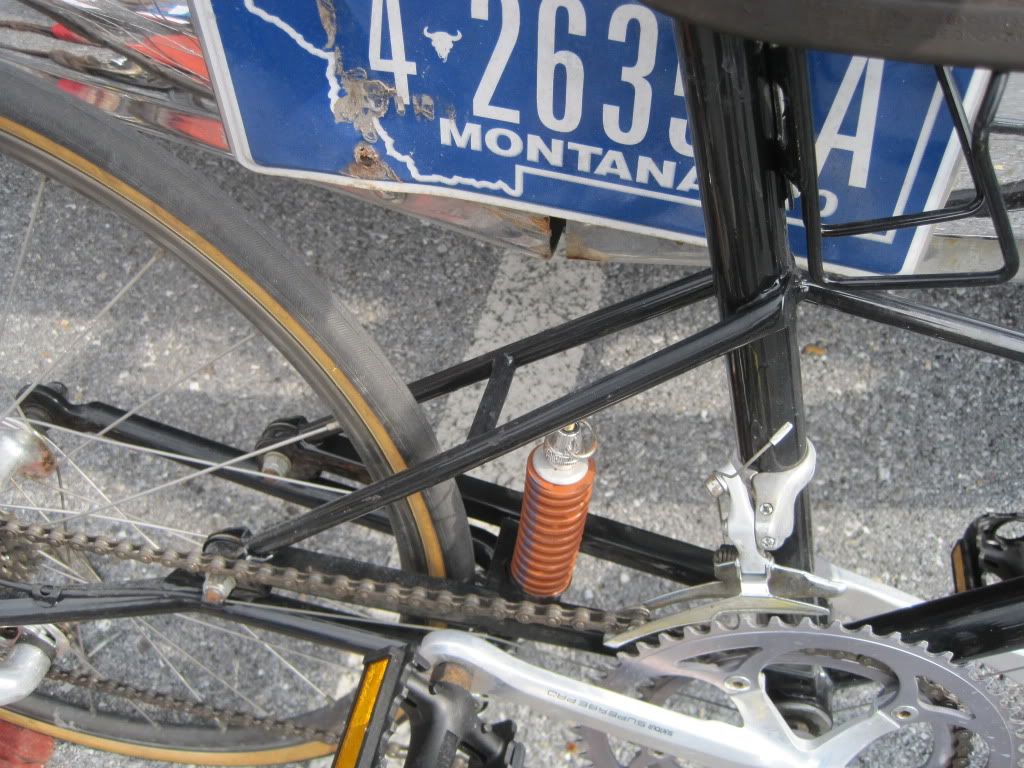

The rear suspension might just work without much bobbing as one pedals, unlike many mtb. designs. The front I would have gone with a similar design as seen on some Motocross bikes in the late 60's.
I don't like where that front caliper ends up.
There was an article in the late 60's or very early 70's in Bicycling Magazine with a full suspension road bike, kind of interesting, as it was full 531, but heavy, too many extra tubes.
Way back Bicycling ran a number of articles on oddball bicycle designs, they even featured one on Gary Klein, one of the features that went somewhere.
repechage is offline
Old 10-18-12, 06:04 PM
  #7
Flying Merkel
Senior Member

Flying Merkel's Avatar

Join Date: Mar 2008
Location: Costa Mesa CA
Posts: 2,641
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It's an interesting piece of history, but why? I'd pay $50.00 for one.
Flying Merkel is offline
Old 10-18-12, 07:08 PM
  #8
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 5,391

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 925 Post(s)
Liked 5 Times in 5 Posts
Originally Posted by Chombi View Post
That's called an "Earls fork" suspension system on the front of that bike.
Lots of old BMWs from the 50's and earlier had that kind of front suspension system, they worked specially well with sidecar rigs....I don't think this front suspension system was considered too seriously by the big bike companies as it most likely is heavier than telescopic forks. Never saw another Earls forked bicycle since then till this one popped up!
Thanks for posting its pic on the forum!

Chombi
Exactly. Also known as "leading link" It was generally considered to be a superior suspension system for touring rigs and there were other Brit/Euro moto bikes that used it too.. It would be fun to test drive.
clubman is offline
Old 10-18-12, 07:26 PM
  #9
kingsting
Bicycle Repairman
Thread Starter

kingsting's Avatar

Join Date: Sep 2010
Location: The Land of Three Mile Island
Posts: 630

Bikes: Many

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Chuckk View Post
Interesting that this came out of Baltimore...

Baltimore vintage bike guru Sam Fitzsimmons was set up a couple spaces away from where this was and he didn't see it until after it was sold. He was a little bummed that he missed it.

http://urbanvelo.org/sam-fitzsimmons-baltimore-legend/
kingsting is offline
Old 10-18-12, 09:56 PM
  #10
Captain Blight
Senior Member

Captain Blight's Avatar

Join Date: Oct 2009
Location: Minneapolis
Posts: 2,473

Bikes: -1973 Motobecane Mirage -197? Velosolex L'Etoile -'71 Raleigh Super Course

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'm not sure I'd want to own it, but I'd love to ride it.
Captain Blight is offline
Old 10-19-12, 05:15 AM
  #11
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,018

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 430 Post(s)
Tagged: 0 Thread(s)
Quoted: 1510 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I would have whipped out $200 for that pretty quick. Not that I need another bicycle.
rhm is offline
Old 10-19-12, 05:19 AM
  #12
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,554
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 340 Post(s)
Liked 17 Times in 14 Posts
It kind of looks like one of those "induced" ideas come to fruition, but maybe it rides pretty well.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 10-19-12, 05:27 AM
  #13
gomango
Senior Member

Join Date: Jul 2006
Location: STP
Posts: 14,839
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 648 Post(s)
Liked 2 Times in 1 Post
Rube Goldberg comes to mind.....

http://www.youtube.com/watch?v=IGhUgl8Q4es
__________________


Bikes and stuff

https://www.flickr.com/photos/36270004@N06/
gomango is offline
Old 10-19-12, 06:33 AM
  #14
YoKev
hi

YoKev's Avatar

Join Date: Apr 2006
Location: Kingston, NY
Posts: 2,611
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have an open mind when it comes to bikes, but not this one, especially at $200. Trash grab? Meh, ok.
YoKev is offline
Old 10-19-12, 07:24 AM
  #15
Velognome
Get off my lawn!

Velognome's Avatar

Join Date: Nov 2010
Location: The Garden State
Posts: 6,202

Bikes: 1917 Loomis, 1923 Rudge, 1930 Hercules Renown, 1947 Mclean, 1948 JA Holland, 1955 Hetchins, 1957 Carlton Flyer, 1962 Raleigh Sport, 1978&81 Raleigh Gomp GS', 2010 Raliegh Clubman

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The Earls Fork causes the front to rise up under braking...would be kinda fun...maybe?
Velognome is offline
Old 10-19-12, 12:14 PM
  #16
Velognome
Get off my lawn!

Velognome's Avatar

Join Date: Nov 2010
Location: The Garden State
Posts: 6,202

Bikes: 1917 Loomis, 1923 Rudge, 1930 Hercules Renown, 1947 Mclean, 1948 JA Holland, 1955 Hetchins, 1957 Carlton Flyer, 1962 Raleigh Sport, 1978&81 Raleigh Gomp GS', 2010 Raliegh Clubman

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by starground View Post
Or maybe not, as your weight is distributed to the front when braking hard, counteracting upward motion... ;-)
!

Oh it will rise alright, the more weight (compression of the suspension) the higher the rise. Not much travel on this fork though but maybe enough for the effect.
Velognome is offline
