Headset Wrenches-Quality?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Headset Wrenches-Quality?

Reply

Old 11-11-12, 06:57 AM
  #1
Tandem Tom
Senior Member
Thread Starter

Join Date: Dec 2011
Location: NE Ohio
Posts: 1,763

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Headset Wrenches-Quality?

The other day I had my bike at the LBS to have the new Chris King headset tightened up. I was out on a 40 mile ride and it started to loosen so I called the shop and they said just keep hand tightening it until you get to us. While the bike was in the stand the bike mechanic said that the Parks headset wrenches are not really very good quality as they seem to spread while being used. I want to add these wrenches to my tool it but I do not want to buy poor quality. Here is a link about making some http://forums.bicycletutor.com/thread-979.html .
Or does anyone have a suggestion for quality wrenches?
Thanks!
Tandem Tom is offline
Reply With Quote
Old 11-11-12, 06:58 AM
  #2
Tandem Tom
Senior Member
Thread Starter

Join Date: Dec 2011
Location: NE Ohio
Posts: 1,763

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Just as I posted this I see the next thread down on the same subject!!
Tandem Tom is offline
Reply With Quote
Old 11-11-12, 07:17 AM
  #3
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,495
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 441 Post(s)
One word: Campagnolo. Not inexpensive. But worth every penny, imo.
rootboy is offline
Reply With Quote
Old 11-11-12, 07:19 AM
  #4
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 24,762

Bikes: Too many to list here check my signature.

Mentioned: 64 Post(s)
Tagged: 2 Thread(s)
Quoted: 856 Post(s)
I'll have to double check but I never heard of a Park HS wrench flexing/spreading under use. Mine did stellar service for the 5 or 6 years I worked in bike shops and are still going strong. I do have buggered up fixed cup wrench but that is more user error than the tool.
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Reply With Quote
Old 11-11-12, 07:46 AM
  #5
Italuminium
Cisalpinist

Italuminium's Avatar

Join Date: Jan 2011
Location: Holland
Posts: 5,557

Bikes: blue ones.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Got one of those ifu or something like that wrenches, house brand from halfords. It's ridiculously off spec, but solid pig iron so no flex but please, avoid.
Italuminium is offline
Reply With Quote
Old 11-11-12, 08:01 AM
  #6
WNG
Spin Forest! Spin!

WNG's Avatar

Join Date: Sep 2007
Location: Arrid Zone-a
Posts: 5,964

Bikes: I used to have many. And I Will again.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
^I think you're referring to Lifu. Yes, cheap stuff.

I've not had trouble with my Park headset wrenches, but I can see how they are cheaper than some competing brands. Signs they are stamped out of steel stock. Where as a few others I've used and owned are forged. ie. Pedros, Wrenchforce, and some European brand.
WNG is offline
Reply With Quote
Old 11-11-12, 08:19 AM
  #7
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,432

Bikes: '71 Gitane Super Corsa, '73 Atala Giro d'Italia, '73 Schwinn Super Sport, '76 Viscount Aerospace Pro, '81 Miyata 710, '84 Ross Signature 290s, '85 Miele Gara, '87 Miyata 512, '89 Centurion Ironman, many more

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 226 Post(s)
The Park wrenches come in two flavors: stamped steel 'consumer' grade and cast alloy shop grade. The cast ones are as good as any and better than most.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Reply With Quote
Old 11-11-12, 08:32 AM
  #8
Italuminium
Cisalpinist

Italuminium's Avatar

Join Date: Jan 2011
Location: Holland
Posts: 5,557

Bikes: blue ones.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Originally Posted by WNG View Post
^I think you're referring to Lifu. Yes, cheap stuff.

I've not had trouble with my Park headset wrenches, but I can see how they are cheaper than some competing brands. Signs they are stamped out of steel stock. Where as a few others I've used and owned are forged. ie. Pedros, Wrenchforce, and some European brand.
Lol, lifu indeed. Ifu is a kind of noodle dish. Great stuff. Sauce poured over a nest of uncooked noodles, with veggies and meat. The sauce cooks the noodles on the plate. Wonderful dish. Much better than cookie cutter chinese tools.
Italuminium is offline
Reply With Quote
Old 11-11-12, 03:10 PM
  #9
MrEss
likes to ride an old bike

Join Date: Dec 2010
Location: Madison
Posts: 673
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by top506 View Post
The Park wrenches come in two flavors: stamped steel 'consumer' grade and cast alloy shop grade. The cast ones are as good as any and better than most.
They're pretty proud of their consumer grade ones too. Current production ones aren't stamped, but pretty obviously laser-cut. Park claims that they're hardened before cutting so they should be pretty durable. I tightened my fixed cup with mine and the faces still feel nicely parallel.
MrEss is offline
Reply With Quote
Old 11-11-12, 04:24 PM
  #10
miamijim
Senior Member

miamijim's Avatar

Join Date: Aug 2003
Location: Tampa, Florida
Posts: 13,905
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Headset wrenches suck when used on top nut. They should be used on the adjusting cup/cone in conjunction with a regular adjustable wrench on the top nut.

Most of my old shop headset wrenches were ground a tick thinner to better fit under top nuts and washers.
miamijim is offline
Reply With Quote
Old 11-11-12, 04:29 PM
  #11
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 36,955

Bikes: 8

Mentioned: 141 Post(s)
Tagged: 0 Thread(s)
Quoted: 5436 Post(s)
Park has altered their manufacturing process.
they went from a punch press and a shearing die,
to CNC grinding the opening smooth and accurate.
fietsbob is offline
Reply With Quote
Old 11-11-12, 05:07 PM
  #12
Elev12k
Senior Member

Elev12k's Avatar

Join Date: Oct 2005
Posts: 1,266

Bikes: (Koga) Miyata, WTB, Fat Chance, Mountain Goat, Grove, Verlicchi, Rafty, Panasonic, Vitus, Gazelle, Batavus, Zieleman, Presto, Peka, RIH, Reus, Vittorio, Simon, Duell, Fongers, Concorde, Alan, Zebrakenko

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
I use a conventional Parktool wrench to hold the lower nut and I do the tightening of the top nut with this magical tool >>> http://www.knipex.com/index.php?id=1...8&groupID=1500

Set you back about 40 euros, but it is perfect.
Elev12k is offline
Reply With Quote
Old 11-11-12, 05:13 PM
  #13
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 765
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Park has stopped making any stamped headset, cone, BB or brake wrenches, it's all laser cut and way better than it used to be. That said the cast headset locknut wrench is a joke, faces not parallel and not even close to accurate fit on any headset.

Zogs wrenches are pretty good, of the few I have all seem to be made from a different thickness of steel and have different coatings/plating. They could work on the consistency. Pedros stuff was pretty decent and thicker steel than Park, rumor was the early American made Pedros stuff was made by Zogs.

Old wrench force stuff was also good and most of it was made by Snap-on. They made a really nice set of headset locknut wrenches, double sided 30/32mm and 36/40mm.

The Shimano wrench set is awesome if you only need standard road sizes, slightly easier to find than the Campy stuff and IMHO nicer quality, better plating and finish. Also comes with one reinforced wrench to solve the spreading problem.

J.A. Stein headset locknut wrenches are pretty much the best, impossible to find however. Locknut wrenches solve the problem of damaging aluminum headset nuts like Chris King, but in practice the adjustable or better yet a Knipex plier wrench is much easier and does the same thing.

Having used or owned most of them the Park stuff is the easiest to get and good quality. Everything else is either impossible to get or garbage.

It's worth noting that when Pedros sorta almost went out of business tons of Pedros product landed on ebay, it's still possible to find headset wrenches and some other items for very cheap. Same thing with wrench force tools, Trek stopped making wrench froce branded stuff years ago but it pops up on ebay pretty often.

Last edited by wesmamyke; 11-11-12 at 05:21 PM.
wesmamyke is offline
Reply With Quote
Old 11-11-12, 05:20 PM
  #14
miamijim
Senior Member

miamijim's Avatar

Join Date: Aug 2003
Location: Tampa, Florida
Posts: 13,905
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Originally Posted by wesmamyke View Post
Park has stopped making any stamped headset, cone, BB or brake wrenches, it's all laser cut and way better than it used to be. That said the cast headset locknut wrench is a joke, faces not parallel and not even close to accurate fit on any headset.

Zogs wrenches are pretty good, of the few I have all seem to be made from a different thickness of steel and have different coatings/plating. They could work on the consistency. Pedros stuff was pretty decent and thicker steel than Park, rumor was the early American made Pedros stuff was made by Zogs.

Old wrench force stuff was also pretty good and most of it was made by Snap-on. They made a really nice set headset locknut wrenches, double sided 30/32mm and 36/40mm.

The Shimano wrench set is awesome if you only need standard road sizes, slightly easier to find than the Campy stuff and IMHO nicer quality, better plating and finish. Also comes with one reinforced wrench to solve the spreading problem.

J.A. Stein headset locknut wrenches are pretty much the best, impossible to find however. Locknut wrenches solve the problem of damaging aluminum headset nuts like Chris King, but in practice the adjustable or better yet a Knipex plier wrench is much easier and does the same thing.

Having used or owned most of them the Park stuff is the easiest to get and good quality. Everything else is either impossible to get or garbage.
Any of the thin headset wrenches should never be used on the top nut. Using a thin headset wrench will do nothing but damage the nut and ruin the wrench.

The wrench companies may show pictures of them being used on top nuts but they also was you to buy 2 of each $$$$$$$
miamijim is offline
Reply With Quote
Old 11-11-12, 08:14 PM
  #15
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 6,979

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 16 Post(s)
Tagged: 1 Thread(s)
Quoted: 226 Post(s)
The basic park spanner wrenches for headsets are fine. You just dont or shouldn't need to put enough tork on a headset to screw up even cheap wrenches used properly. A couple of basic park wrenches and a top quality big ass adjustable wrench 12 or 14 inch with 36+ or even 40+mm jaws are what you want to spend you money on. Every decent mechanic working on bikes should have a top guality precision adjustable big wrench, I would go with the best guality and bigest size you can afford.
zukahn1 is offline
Reply With Quote
Old 11-11-12, 09:28 PM
  #16
Ex Pres
#39

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 6,922
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 265 Post(s)
Stronglight #93 and #94 are great, especially for the top nut - grabs 5 sides + 2 partial sides
I do have to use my Park HCW7 for the race sometimes.
(2nd & 3rd on top - basically the same w/93 being thicker - only pic I found is from an ebay sale)

__________________
72 special CNC & Frejus / 72 Holdsworth Record / 74 Italvega NR / c80 unknown French / 83 Trek 620 / 03 Casati Dardo / 08 BF IRO / 09 Dogma FPX / 10 Vassago Fisticuff

For Sale: 1996 Litespeed Classic; f&f's c'80 Ranson, c'84 Gianni Motta, '86 Trek 400Elance & c'88 Guerciotti GLX
Ex Pres is offline
Reply With Quote
Old 11-11-12, 10:10 PM
  #17
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 19,647

Bikes: Several, mostly not name brands.

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 1398 Post(s)
Originally Posted by Ex Pres View Post
Stronglight #93 and #94 are great, especially for the top nut - grabs 5 sides + 2 partial sides
Agree on the Stronglight wrenches; they are my preferred headset wrenches for the reason you gave, especially with aluminum parts. Unfortunately, they do not work with the Campy Super Record headset, as the aluminum spacer is too wide to allow the wrench access to the threaded cup.

JohnDThompson is offline
Reply With Quote
Old 11-08-18, 03:12 PM
  #18
Yoyo2012
Senior Member

Join Date: Apr 2016
Posts: 63
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Originally Posted by Elev12k View Post
I use a conventional Parktool wrench to hold the lower nut and I do the tightening of the top nut with this magical tool >>> http://www.knipex.com/index.php?id=1...8&groupID=1500

Set you back about 40 euros, but it is perfect.
hi. I am going to order a Knipex wrench. May I ask which size of the wrench did you choose. I was told Knipex 250mm wrench has a dedicated gear to work for 32mm nut, while the 180mm wrench does not have the dedicated gear for 32mm nut,but much easier to handle when working on a bicycle.
Yoyo2012 is offline
Reply With Quote
Old 11-08-18, 03:34 PM
  #19
Elev12k
Senior Member

Elev12k's Avatar

Join Date: Oct 2005
Posts: 1,266

Bikes: (Koga) Miyata, WTB, Fat Chance, Mountain Goat, Grove, Verlicchi, Rafty, Panasonic, Vitus, Gazelle, Batavus, Zieleman, Presto, Peka, RIH, Reus, Vittorio, Simon, Duell, Fongers, Concorde, Alan, Zebrakenko

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Originally Posted by Yoyo2012 View Post
hi. I am going to order a Knipex wrench. May I ask which size of the wrench did you choose. I was told Knipex 250mm wrench has a dedicated gear to work for 32mm nut, while the 180mm wrench does not have the dedicated gear for 32mm nut,but much easier to handle when working on a bicycle.

Hi,

I did buy the 250 and it is okay for me.
Elev12k is offline
Reply With Quote
Old 11-08-18, 03:53 PM
  #20
Spaghetti Legs
Senior Member

Join Date: Dec 2014
Location: Central Virginia
Posts: 2,781

Bikes: Numerous

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 625 Post(s)
Originally Posted by rootboy View Post
One word: Campagnolo. Not inexpensive. But worth every penny, imo.
Absolutely. Not too long ago I did an experiment with measuring the “play” in my Campy wrench and my Park wrench, in fairness, an older stamped wrench that I’ve had since the early 90’s. At a fixed point, say 5cm from the base of the contact point I measured how far the wrench would move. I forget th exact # but it was something like 1 mm for the Campy and 3mm or more for the Park.
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '89 Bianchi Giro, '85 Merckx Pro, '89 Merckx Century, '85 Moser, '8_ Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, ‘89 Cinelli Supercorsa
Spaghetti Legs is offline
Reply With Quote
Old 11-08-18, 05:27 PM
  #21
gearbasher
Senior Member

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 721
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Years ago I spent the money on a Park "Professional" HW-2 headset wrench. I figured, with it's design it would fit the top nut well. It was sloppy. My Campy wrench is still my "go to" on all my headsets.
gearbasher is offline
Reply With Quote
Old 11-08-18, 05:32 PM
  #22
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 36,955

Bikes: 8

Mentioned: 141 Post(s)
Tagged: 0 Thread(s)
Quoted: 5436 Post(s)
Park Grinds the flats now , they did less BITD,

I Got a 36-40 pair a while ago ,
My Bike Friday uses a 1.25" CK Gripnut.
fietsbob is offline
Reply With Quote
Old 11-08-18, 07:08 PM
  #23
wschruba
Senior Member

Join Date: Sep 2015
Location: New Jersey
Posts: 1,396
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 411 Post(s)
Originally Posted by Elev12k View Post
Hi,

I did buy the 250 and it is okay for me.
I concur. I have the same length from Wiha. Works great on top nuts.

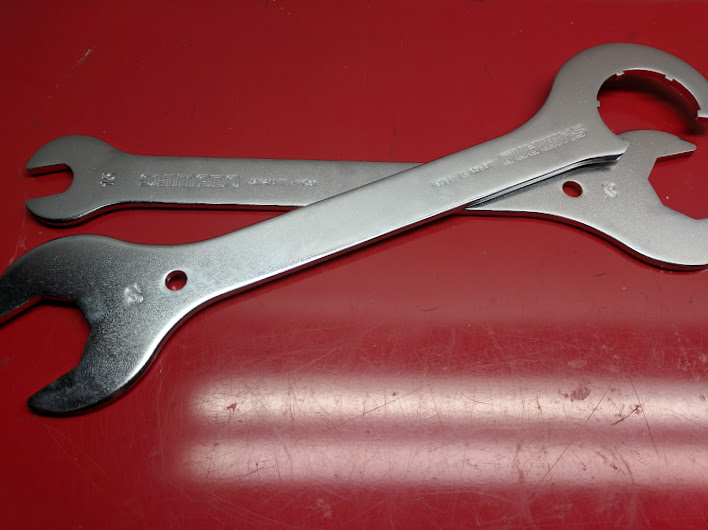

Shimano makes an excellent matched set of headset lockring wrenches:



While I don't typically go for 'multi-tools', the choice of a 6-spline lockring and pedal wrench are excellent.
wschruba is offline
Reply With Quote
Old 11-08-18, 11:28 PM
  #24
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 6,815

Bikes: A green one, "Ragleigh," or something.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 1097 Post(s)
I just bought a pair of the Ice Toolz 4-in-1 headset wrenches a couple months ago. Seemed a no-brainer for the price and they are more stout than they need to be. (not thin stamped metal). I can't compare their size accuracy to anything else, since this is my first set. I've set at least one (Stronglight) alloy headset and two steel ones so far, and they seem to fit nicely; not too much slop. But since headsets don't require a ton of torque, I'm not sure I'd notice.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1981 Miyata 1000 ● 1984 Bianchi Limited ● 1984 Nishiki Landau ● 1984 Peugeot Vagabond ● 1985 Trek 600 ● 1985 Shogun Prairie Breaker ● 1986 Univega Nuovo Sport ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ● And a Bike to Be Named Later ●

Last edited by Lascauxcaveman; 11-09-18 at 12:48 AM.
Lascauxcaveman is offline
Reply With Quote
Old 11-09-18, 06:00 AM
  #25
jimmuller
What??? Only 2 wheels?

jimmuller's Avatar

Join Date: Apr 2010
Location: Boston-ish, MA
Posts: 12,803

Bikes: '73 Raleigh Carlton Gran Sport, '72 Peugeot UO-8, '82 Peugeot TH8, '87 Bianchi Brava, '76? Masi Grand Criterium, '87 Centurion Ironman Expert, '74 Motobecane Champion Team, '86 Gazelle champion mondial, '81? Grandis, '82? Tommasini, '83 Peugeot PFN10

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 944 Post(s)
Long ago (though in this same galaxy) when this thread was started the prompting event was a loosening headset and an offhand comment by an LBS mechanic. One should be able to adjust a headset with lesser wrenches to the same performance level as with the better ones. Which is to say it wasn't the wrench's fault. A faulty wrench is more likely to mar the finish than to prevent proper adjustment.

However I once had a Chris King headset installed at a LBS and it too loosened up, Not so much as to need re-tightening on a ride but as to need re-adjustment. It seemed to want time to seat its bearings, or something. I just pulled out my non-Campy wrench and adjusted it. End of story.
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
jimmuller is offline
Reply With Quote

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
