Using the "paintless dent repair" tools to pull dent out of frame.

So I now have a 91 RB1 frame with a small dent in the top tube. Doing some bikeforum research it seems like there are several different ways people fix dents like this:

1) have top tube replaced by frame builder and repaint
2) use cut out blocks that roll out the dent. Usually requires a repaint of the area
3) fill tube with water, freeze

What I haven't seen is someone try the paintless dent removal tools they use on cars. I am talking about the ones that use hot glue to attach a tool to the dent and then pull it out.

Here is the 12 dollar harbor freight version:

https://www.harborfreight.com/crossba...kit-66957.html

here is a demonstration video showing a more expensive version

It seems like this might work. You would need a small tool. And some way to pull on it without hurting the tube. But other than that-- why not?

Yet I didn't see where people were doing this.

Thanks
sjpitts is offline
Old 11-18-12, 07:15 PM
  #2
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,713
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1447 Post(s)
Liked 394 Times in 312 Posts
Keep looking.

You will find a number of different sets of tools to remove small dents from sheetmetal.
The professional "dent wizards" I have seen work work from the inside out.
That is much more of a challenge with a bicycle frame.

I think the steel tensile strength and the diameter are not working in your favor.
repechage is offline
Old 11-18-12, 07:16 PM
  #3
sloar
Senior Member

Join Date: Sep 2008
Location: Elwood Indiana
Posts: 6,479

Bikes: they change so much I'm tired of updating this

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 893 Post(s)
Likes: 0
Liked 183 Times in 94 Posts
Pulling a dent out of thin sheet metal is way easier than steel or aluminum tubing. I don't think hot glue is strong enough.
__________________
Semper fi
sloar is offline
Old 11-18-12, 07:20 PM
  #4
Michael Angelo
Senior Member

Michael Angelo's Avatar

Join Date: May 2010
Location: Hurricane Alley , Florida
Posts: 3,896

Bikes: Treks (USA), Schwinn Paramount, Schwinn letour,Raleigh Team Professional, Gazelle GoldLine Racing, 2 Super Mondias, Carlton Professional.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 12 Times in 10 Posts
Auto sheetmetal is thin and bends easily. Chromemoly bike tubing does not.
Michael Angelo is offline
Old 11-18-12, 07:39 PM
  #5
toytech
Senior Member

toytech's Avatar

Join Date: Feb 2009
Location: san leandro
Posts: 1,453

Bikes: enough bikes to qualify for Hoarders......

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
There exist tools in the gunsmiths world for floating out dents from the inside of tubes, but the problem is access to the inside of the tube.
They would only work on a seat tube (direct access from one end)
toytech is offline
Old 11-18-12, 09:09 PM
  #6
sailorbenjamin
26 tpi nut.

sailorbenjamin's Avatar

Join Date: Mar 2008
Location: Rhode Island (an obscure suburb of Connecticut)
Posts: 5,703

Bikes: one of each

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I think there's something like that for brass instruments, too.
__________________
I have spoken.
sailorbenjamin is offline
Old 11-18-12, 11:33 PM
  #7
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 26,949

Bikes: Too many to list here check my signature.

Mentioned: 136 Post(s)
Tagged: 2 Thread(s)
Quoted: 1780 Post(s)
Liked 577 Times in 355 Posts
Originally Posted by toytech View Post
There exist tools in the gunsmiths world for floating out dents from the inside of tubes, but the problem is access to the inside of the tube.
They would only work on a seat tube (direct access from one end)
Originally Posted by sailorbenjamin View Post
I think there's something like that for brass instruments, too.
Yes there is and for instruments is it can be as simple as some heavy magnets and balbearing. I would rather replace the barrel on my Ithaca or Kimber than have it repaired.

There was at one time something called frame blocks, which were just as they sound a set of blocks that went on each sie of the tube and when clamped togather took most dents out.

https://www.ebay.com/itm/FRAME-DENT-R...item35c19e947c

__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is online now
Old 11-18-12, 11:39 PM
  #8
4Rings6Stars
Señor Member

4Rings6Stars's Avatar

Join Date: Jul 2009
Location: Boston Burbs
Posts: 1,701

Bikes: Bedford, IF, Hampsten, DeSalvo, Intense Carbine 27.5, Raleigh Sports, Bianchi C.u.S.S, Soma DC Disc, Bill Boston Tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
OP acknowledges frame blocks in his first post, he was wondering if there was something he could do to remove the dent without damaging the paint.

I have a small TT ding on my Merckx MX Leader that I would love to remove, but the tubing isn't round so even frame blocks and wrecking the paint aren't an option... I wish there was another option.
4Rings6Stars is offline
Old 11-19-12, 12:12 AM
  #9
puchfinnland
MIKE is my name!

puchfinnland's Avatar

Join Date: Mar 2012
Location: finland,baltimore
Posts: 2,886

Bikes: hans lutz, , puch mistral ultima,2x Austro Daimler Smoked chrome Ultima,Austro Daimler Mixte,Austro Daimler 531 mixte, flying arrow,F Moser,

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I got the suprise of these ugly dents on a purchase, covered with electrical tape...

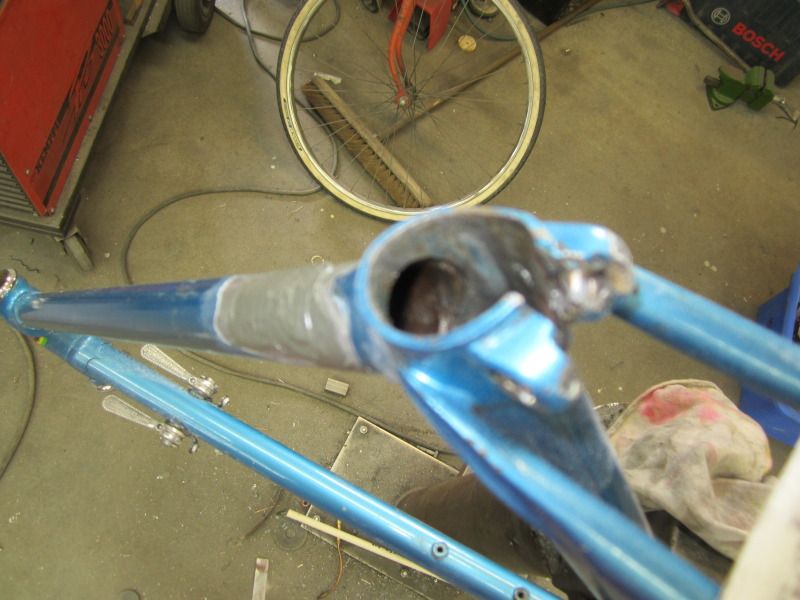

I carefully opened up the the rear ears being careful not to break the brazing...


The stratagy was simple, I opened up the seatpost clamp bosses just enough to get to the top tube- I then uses a die-grinder to gain full access, turned a perfect fit ramrod on the lathe and tamp it through the damaged area, the dents came out very well, the low spots were filled with quick bursts of the MIG welder, and filed smooth.
Some filler was required after to make it perfect.
Now if you ever worked with filler you know it is far easier to put more on then try to skimp,

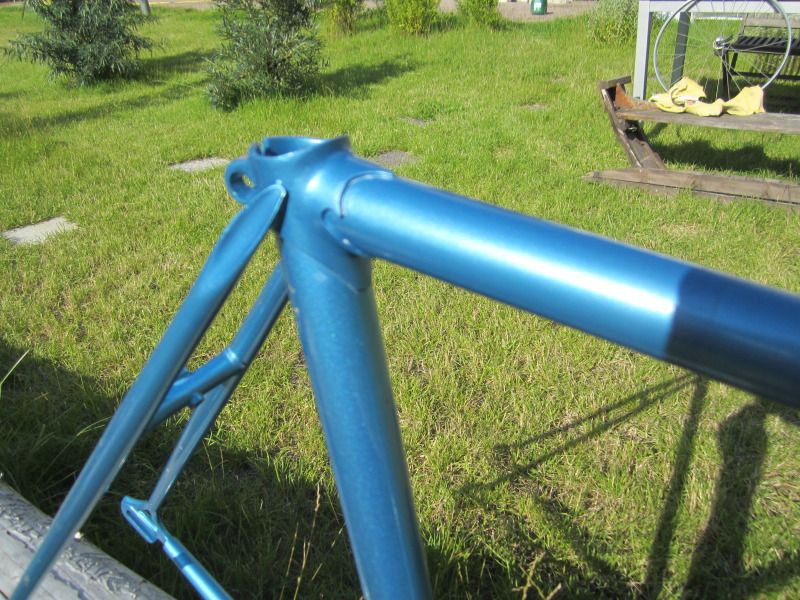

the end result on a repair was amazing, the color match was fantastic

puchfinnland is offline
Old 11-19-12, 03:22 AM
  #10
ftwelder
Senior Member

ftwelder's Avatar

Join Date: Apr 2010
Location: vermont
Posts: 3,090

Bikes: Many

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I removed a serious dent 1/3 the width of the tube from the top tube of a Raleigh pro by plugging the tubes, filling with compressed air and heating the tube. It worked quite well. Tenspeedterror has the frame now.

Before


IMG_4006 by frankthewelder, on Flickr


IMG_4007 by frankthewelder, on Flickr

I thought I would get a "maypop" (bubble) but nothing bad happened. Ever.
ftwelder is offline
Old 11-19-12, 06:22 AM
  #11
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,079

Bikes: many

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 721 Post(s)
Liked 247 Times in 164 Posts
Originally Posted by ftwelder View Post
... filling with compressed air and heating the tube.
How hot? How did you plug the ends of the tube?

Tx...
smontanaro is offline
Old 11-19-12, 07:07 AM
  #12
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,135

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 744 Post(s)
Liked 309 Times in 204 Posts
Both repairs are amazing!
BG: I worked with a fellow who bought a group of Argentune Mausers. One had a clear bend in the barrel. It shot with small groups once you could figure out where to aim it!
SJX426 is offline
Old 11-19-12, 07:20 AM
  #13
marley mission
people's champ

marley mission's Avatar

Join Date: Oct 2010
Location: joisey
Posts: 1,517
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by ftwelder View Post
I removed a serious dent 1/3 the width of the tube from the top tube of a Raleigh pro by plugging the tubes, filling with compressed air and heating the tube. It worked quite well. Tenspeedterror has the frame now.

Before


IMG_4006 by frankthewelder, on Flickr


IMG_4007 by frankthewelder, on Flickr

I thought I would get a "maypop" (bubble) but nothing bad happened. Ever.
whoa
