The Evolution of the Record Crown Race

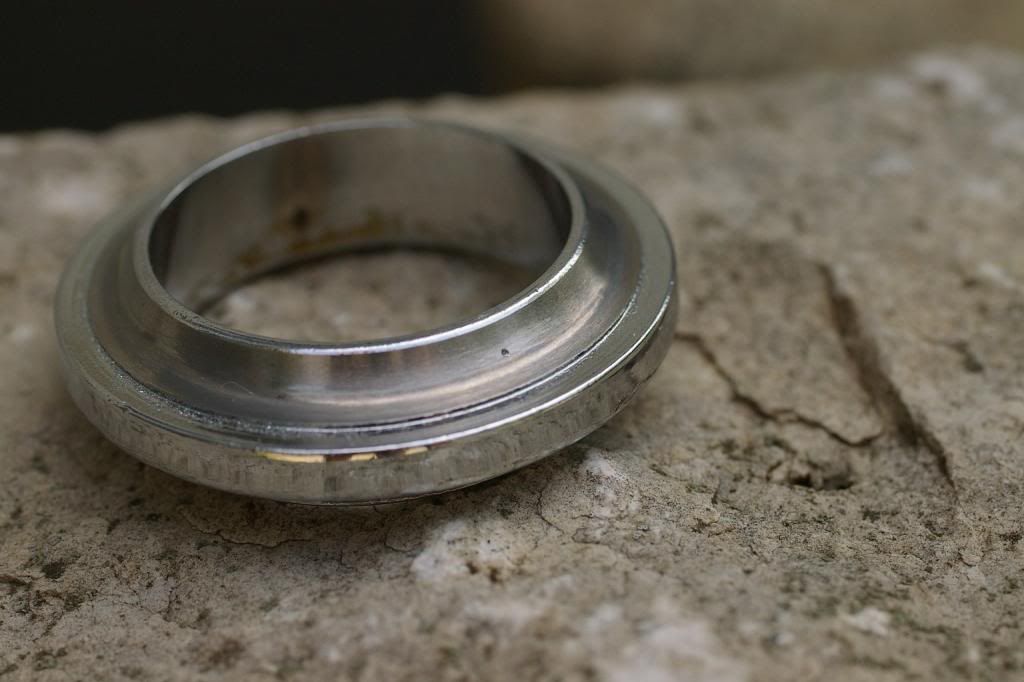

Couple photos.

Middle is oldest, probably 1960s record. Right is probably First Nuovo Record race and the left is a super record crown race.




__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear

Last edited by cyclotoine; 11-26-13 at 12:22 PM.
cyclotoine is offline
Old 11-26-13, 11:38 AM
  #2
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,755
Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 123 Times in 72 Posts
Very interesting, Cyclotoine. I like this kind of stuff. Although the profiles changed, it looks as though maybe the height of the unit remained basically the same. No?
rootboy is offline
Old 11-26-13, 11:52 AM
  #3
cyclotoine
Senior Member
Thread Starter

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Posts: 8,772
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 12 Times in 11 Posts
Yes it does seem the dimensions were similar but they found ways to make it lighter. The first one is one big hunk of steel! The last one would also be what came with super record. Does anyone have an other variations? Post them up! Interestingly, I needed the one on the far right years ago to have my headset 100% correct on my 1971 restoration. It ended up with the far left style. That bike has been in storage for a few years but when I get it out the correct race will go on!
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear
cyclotoine is offline
Old 11-26-13, 12:14 PM
  #4
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,759

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3052 Post(s)
Liked 2,182 Times in 1,303 Posts
The one on the left looks like a Super Record race, which had to be thinner than the Record race to offset the thicker aluminum cups on the Super Record unit. Campy wanted the stack height to stay the same, so people could easily upgrade to Super Record. Thus, the crown race was made thinner.

While you can sometimes use a Super Record crown race with a Record cup, the lip of the cup will overhang the crown race. In some cases, the lip of the cup will actually drag on the fork crown.

Last edited by JohnDThompson; 11-26-13 at 12:18 PM.
JohnDThompson is offline
Old 11-26-13, 12:19 PM
  #5
cyclotoine
Senior Member
Thread Starter

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Posts: 8,772
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 12 Times in 11 Posts
Originally Posted by JohnDThompson View Post
The one on the left looks like a Super Record race, which had to be thinner than the Record race to offset the thicker aluminum cups on the Super Record unit. Campy wanted the stack height to stay the same, so people could easily upgrade to Super Record. Thus, the crown race was made thinner.
Thanks John! You're right, the left most one does appear to be shallower. Does anyone have a photo of a late model nuovo record crown race?

Edit Found this: Indeed thicker:



Another angle of the later Nuovo Record race.

__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear

Last edited by cyclotoine; 11-26-13 at 12:26 PM.
cyclotoine is offline
Old 11-26-13, 12:26 PM
  #6
Michael Angelo
Senior Member

Michael Angelo's Avatar

Join Date: May 2010
Location: Hurricane Alley , Florida
Posts: 3,906

Bikes: Treks (USA), Schwinn Paramount, Schwinn letour,Raleigh Team Professional, Gazelle GoldLine Racing, 2 Super Mondias, Carlton Professional.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 19 Times in 16 Posts
I'll look thru my stash tonight.
Michael Angelo is offline
Old 11-26-13, 02:40 PM
  #7
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,755
Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 123 Times in 72 Posts
Originally Posted by cyclotoine View Post
Edit Found this: Indeed thicker:

So what is that one on the left, with the groove cut around the outside perimeter?
I thought maybe later variant than Super Record.
rootboy is offline
Old 11-26-13, 02:42 PM
  #8
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,759

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3052 Post(s)
Liked 2,182 Times in 1,303 Posts
Originally Posted by cyclotoine View Post
Does anyone have a photo of a late model nuovo record crown race?
How's this?

JohnDThompson is offline
Old 11-26-13, 02:42 PM
  #9
cyclotoine
Senior Member
Thread Starter

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Posts: 8,772
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 12 Times in 11 Posts
Originally Posted by rootboy View Post
So what is that one on the left, with the groove cut around the outside perimeter?
I thought maybe later variant than Super Record.
That I don't know, and any info on this variation would be greatly appreciated. Perhaps it was a very late version that had a seal in it?
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear
cyclotoine is offline
Old 11-26-13, 03:29 PM
  #10
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,759

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3052 Post(s)
Liked 2,182 Times in 1,303 Posts
Originally Posted by cyclotoine View Post
That I don't know, and any info on this variation would be greatly appreciated. Perhaps it was a very late version that had a seal in it?
The NR race in my picture above has a very light groove, but it doesn't have a seal. I've had it since new and in the box, around 1983 or so.
JohnDThompson is offline
Old 11-26-13, 03:59 PM
  #11
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,755
Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 123 Times in 72 Posts
That is interesting. I had one like the first one Cyclotoine showed, with a somewhat deep but narrow groove in it. It came with what was supposed to be a NOS Nuovo Record head set I got from some seller in Europe. I posted a pic of it here, as I remember but no one cold identify it. Didn't look like any NR crown race I had ever seen so I returned the head set. Kind of figured it was a later model, like Victory or something. Perhaps not.
rootboy is offline
Old 11-26-13, 04:02 PM
  #12
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,755
Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 123 Times in 72 Posts
It is kind of a shame that most of the pics of Campy headsets on Velobase don't show the crown race.
rootboy is offline
Old 11-26-13, 04:32 PM
  #13
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,755
Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 123 Times in 72 Posts
Originally Posted by JohnDThompson View Post
The one on the left looks like a Super Record race, which had to be thinner than the Record race to offset the thicker aluminum cups on the Super Record unit. Campy wanted the stack height to stay the same, so people could easily upgrade to Super Record. Thus, the crown race was made thinner.

While you can sometimes use a Super Record crown race with a Record cup, the lip of the cup will overhang the crown race. In some cases, the lip of the cup will actually drag on the fork crown.
Say, John, since they made the crown race on the Super Record headset thinner, so that folks could change over from NR to Super, why do you think they included that 4 mm thick washer with the Super record set? I'm trying to wrap my head around this, as headsets have always perplexed me somewhat. The NR and SR headsets are supposed to have the same stack height, if I'm not mistaken. 41 mm. I'm just wondering if they made the aluminum washer that thick to make up the needed height.

Last edited by rootboy; 11-26-13 at 04:47 PM.
rootboy is offline
Old 11-26-13, 04:45 PM
  #14
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,831
Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 2543 Post(s)
Liked 1,487 Times in 1,117 Posts
Originally Posted by rootboy View Post
Say, John, since they made the crown race thinner on the Super Record headset thinner, so that folks could change over from NR to Super, why do you think they included that 4 mm thick washer with the Super record set? I'm trying to wrap my head around this, as headsets have always perplexed me somewhat. The NR and SR headsets are supposed to have the same stack height, if I'm not mistaken. 41 mm. I'm just wondering if they made the aluminum washer that thick to make up the needed height.
From my experience the early Super Record Head Sets used a cut washer, the later the taller machined one. The machining ridge helped keep the wrenches from slipping off, (although Campagnolo made a tool for that).
The might have even made the lower crown race thinner still, but I never measured, it just appeared that way to me. I think the headset did "grow" a bit, still capable of using a 41 mm stack height, but it could swallow more.

On the groove... The very early Campagnolo headsets did use "O" rings top and bottom on the lower "cone" races. A pretty rare bird, hicampy might have an image. The groove was bigger than what is shown earlier in this thread. Small chance it is from an early offroad headset, I had one but it is long gone. The early mountain bike headsets had seals. They accepted the same caged bearings.
repechage is offline
Old 11-27-13, 02:23 AM
  #15
realestvin7
Large Member

realestvin7's Avatar

Join Date: Nov 2010
Location: Tejas
Posts: 2,733
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 3 Times in 1 Post
Makes me want to dig in the crown race box.
realestvin7 is offline
Old 11-27-13, 08:45 AM
  #16
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,723

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1294 Post(s)
Liked 1,346 Times in 735 Posts
In 2009, when i disassembled my newly acquired 83 Colnago, I found the CR broken. I looked for a replacement but could not find one. I learned from one of our own BFer's, that worked at Trek back in the day, that they broke frequently and there was a drawer with many of them there. I gave up looking for one. My solution was to place it toward the rear, thinking the forces would be minimal. The CR fell off when the fork was turned upside down. There was paint all around the OD of the crown. I suspect that the CR broke on installation and was not noticed. There was no "feel" in the rotation of the fork, still isn't.

I recently acquired a Masi frame from Thrifty Bill which had a CR attached. Guess what, it is a SR CR! It will replace the one on the Colnago Fork one of these days. My understanding is the max interference is .002 inches for proper installation, otherwise you get this:
[IMG][/IMG]
SJX426 is online now
Old 11-27-13, 11:29 AM
  #17
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,755
Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 123 Times in 72 Posts
Ouch. Yeah, one of the dangers, perhaps, of making the crown race so much thinner. Or, trying to force it on. BTW, SJX, I have read the max interference should be .1 mm. But I'm not sure. Is that the same as two thou?

FWIW, here is one with the circumferential groove, which the seller sez is Triomphe. I know not.

https://www.ebay.com/itm/CAMPAGNOLO-T...item3a8514083b
rootboy is offline
Old 11-27-13, 12:16 PM
  #18
cyclotoine
Senior Member
Thread Starter

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Posts: 8,772
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 12 Times in 11 Posts
Most modern cartridge crown races are split to you don't need a tool to install or remove them but then it isn't really a race anymore since the bearing is not running on it. These crown races and the wedge thing that goes in the top are supposed to go to the side as that is where the forces are smallest (except when corning of course). If you are going to run the broken super record crown race I would advise running the crack at 90 degrees to the plane of the bike.

Interestingly I measured the height of various crown races last night before I mailed the super record and old record one off to London this morning. A nuovo record which it turns out I have is about 10mm and the older record ones were about 9mm and the super record was thinner still though I can't remember exactly how much so. maybe around 8mm. That is why in my photos the difference isn't as great.
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear
cyclotoine is offline
Old 11-27-13, 12:57 PM
  #19
spacemanz
Senior Member

spacemanz's Avatar

Join Date: Nov 2012
Location: Seattle
Posts: 1,085

Bikes: Frejus/Bertin/Cannondale

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Ooh, this is interesting. I have very limited experience here, and I do all my headset work without "proper" tools, LOL. I got an early Nuovo Record headset, with the <C> markings, on my '71 Frejus, and I used to think it was pretty worn, because of those indentations, but I guess things could be worse. But I replaced that with a C-Record headset, with the holy top race cup, in excellent mechanical condition, but with the outer parts badly treated by a former/temporary owner (?), so it doesn't look even close to perfect, cosmetically, but rocks otherwise. I think the C-Record CR is about in the middle, between NR & SR, on thickness. But my memory's not exactly the photographic sort, & it's been done awhile ago now.
spacemanz is offline
Old 11-27-13, 09:45 PM
  #20
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,723

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1294 Post(s)
Liked 1,346 Times in 735 Posts
Cyclotonine, Thanks for your advice. I will take it into consideration. Most likely I will replace it with the one received with the Masi. I can measure tomorrow.
SJX426 is online now
Old 11-28-13, 03:32 PM
  #21
cyclotoine
Senior Member
Thread Starter

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Posts: 8,772
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 12 Times in 11 Posts
I am trying to complete a nuovo record headset currently and only need an adjustable cup to finish it. I looked at Sheldon's data base and see the cups are all the same so I could buy a french cup and lock nut and have a complete french headset (for who knows what)... but the database says french crown cone/race ID was 26.5 or 27.0. Is it possible campagnolo actually made a 26.5 crown race for their french headsets or do you think the 26.4 was close enough to jam on there?
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear

Last edited by cyclotoine; 11-28-13 at 04:06 PM.
cyclotoine is offline
Old 11-28-13, 03:55 PM
  #22
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,831
Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 2543 Post(s)
Liked 1,487 Times in 1,117 Posts
Originally Posted by cyclotoine View Post
I am trying to complete a nuovo record headset currently and only need an adjustable cup to finish it. I looked at Sheldon's data base and see the cups are all the same so I could buy a french cup and lock nut and have a complete french headset (for who knows what)... but the database says french crown cone/race ID was 26.5 or 27.0. Is it possible campagnolo actually made a 26.5 crown race for their french headsets or so you think the 26.4 was close enough to jam on there?
As Campagnolo did not make a special tool set to gauge and mill bikes with French steerers, my guess is that the only difference between nationality fits are the threaded parts.

Way back I bought a French Campagnolo headset to replace the Stonglight one on a French bike, exchanged it for something else as fitting the assembly was going to require dressing the headtube and steerer.
repechage is offline
Old 11-28-13, 04:26 PM
  #23
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,755
Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 123 Times in 72 Posts
FWIW, all of my French thread NR crown races have been 26.4, and the crown race seats of the bikes they came on were milled to 26. 5 or so, for that interference fit needed to press on the c race.
rootboy is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
frpax
Classic & Vintage
17
08-02-20 04:40 AM
iab
Classic & Vintage
28
06-26-12 03:08 PM
tsappenfield
Classic & Vintage
7
12-05-11 09:15 AM
Force
Classic & Vintage
3
03-24-11 09:16 AM
collegeboymike
Road Cycling
33
04-29-10 07:51 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
