Looking for information on my Takagi Tourney GS crankset

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Looking for information on my Takagi Tourney GS crankset

Old 11-29-13, 08:59 AM
  #1
corwin1968
Senior Member
Thread Starter

corwin1968's Avatar

Join Date: Aug 2011
Posts: 1,385
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
NEW BB QUESTION: Looking for information on my Takagi Tourney GS crankset

As some of you know, I recently picked up an old 80's MTB. I'm curious about the Takagi Tourney GS crankset that came on it. The big chainring is a 48 and I haven't looked at the other two but I assume they follow the traditional size-range and fall in the 30's and 20's, respectively.

I had assumed this crankset, being from the 80's, had an obscure and unknown to me mounting system, like splined. However, looking at similar cranksets on E-bay it appears that it might actually be square taper. Is this likely the case? If it is square taper, can I used a modern sealed BB instead of the type (consisting of two end parts and bearing cages) seen on E-bay.

Also, what is the quality level of this crankset? Is it lower quality, higher quality or equivalent to a modern Sugino XD-600? I ask this because I seriously considered the Sugino for my good bike build but went with a Deore instead. The Takagi is a very nice looking crankset and if it's decent quality, moving it over to my good bike would give it all silver components (the black Deore is an eyesore on an otherwise silver accented bike).

Would chainrings be easy to find? I measured the BCD by Sheldon Brown's method and got 108mm on the outer rings. He doesn't even list 108 on his cheatset so I guess I mis-measured. Is it likely 110? 74?


Attached Images
File Type: jpg

Last edited by corwin1968; 07-03-14 at 03:22 PM.
corwin1968 is offline
Old 11-29-13, 09:13 AM
  #2
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,357

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1712 Post(s)
Liked 45 Times in 35 Posts
I think they're quality.

Some of the early Stumpjumpers were specced with Takagi Tourney XT.

I have a Tourney XT set on my Stumpjumper and sourced one for my Voyageur.

I also have a Takagi Tourney AID (or maybe it's AD).
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 11-29-13, 10:56 AM
  #3
cyclotoine
Senior Member

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Posts: 8,774
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 106 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Yup, Takagi was one of the component manufactures in the shimano group that was eaten up in the 1980s. You will often see takagi stuff paired with shimano in the early 1980s. The tourney XT cranks were beautiful touring cranks and top quality. They even came in 180mm lengths.
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear
cyclotoine is offline
Old 11-30-13, 06:27 AM
  #4
pakman
ad hoc bicyclist

Join Date: Jul 2008
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have an early Schwinn Voyageur S/P that came with a Takagi crankset and it is very nice.
pakman is offline
Old 11-30-13, 07:11 AM
  #5
balindamood
Wrench Savant

balindamood's Avatar

Join Date: Mar 2006
Location: 61 Degrees North
Posts: 2,216

Bikes: Yes

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
One of the best triple cranks available in the first half of the 1980's. Shimano bought them out about 1985 or so.
__________________
"Where you come from is gone;
where you are headed weren't never there;
and where you are ain't no good unless you can get away from it."
balindamood is offline
Old 11-30-13, 09:15 AM
  #6
Glennfordx4
Holy Spokes it's Batsman!

Glennfordx4's Avatar

Join Date: Nov 2008
Location: South Jersey
Posts: 1,860

Bikes: Too many Bicycles to list

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Bolt pattern should be 110BCD so rings are easy to find, I have a few of these & think they are a damn fine looking crankset when polished up. I used one on my Jetter road project with 8spd STI's and can't quite get it to shift right & think I need to find some ramped & pinned chain rings to make it work right as these weren't designed for index shifting.


Glenn

Glennfordx4 is offline
Old 12-01-13, 12:56 AM
  #7
adventurepdx
Senior Member

adventurepdx's Avatar

Join Date: Feb 2010
Location: Portland, Oregon
Posts: 894
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Yep, a great crankset! I have a Tourney XT on my '84 Raleigh Crested Butte MTB. No longer pristine since the non-drive side crank has been replaced, and the drive side is slightly bent. But still performs, and looks great.


Last edited by adventurepdx; 12-01-13 at 01:00 AM. Reason: added/edited image(s)
adventurepdx is offline
Old 12-01-13, 09:27 AM
  #8
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 8,960
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 427 Post(s)
Liked 17 Times in 13 Posts
Originally Posted by corwin1968 View Post
As some of you know, I recently picked up an old 80's MTB. I'm curious about the Takagi Tourney GS crankset that came on it. The big chainring is a 48 and I haven't looked at the other two but I assume they follow the traditional size-range and fall in the 30's and 20's, respectively.

I had assumed this crankset, being from the 80's, had an obscure and unknown to me mounting system, like splined. However, looking at similar cranksets on E-bay it appears that it might actually be square taper. Is this likely the case? If it is square taper, can I used a modern sealed BB instead of the type (consisting of two end parts and bearing cages) seen on E-bay.

Also, what is the quality level of this crankset? Is it lower quality, higher quality or equivalent to a modern Sugino XD-600? I ask this because I seriously considered the Sugino for my good bike build but went with a Deore instead. The Takagi is a very nice looking crankset and if it's decent quality, moving it over to my good bike would give it all silver components (the black Deore is an eyesore on an otherwise silver accented bike).

Would chainrings be easy to find? I measured the BCD by Sheldon Brown's method and got 108mm on the outer rings. He doesn't even list 108 on his cheatsheet so I guess I mis-measured. Is it likely 110? 74?
As others have said, this is a very good crank. One of the best of the early mountain bike era.
It's square-taper BB, probably 124.5mm length. Could be 127.5mm if extra clearance was needed.
110mm BCD on the big rings, 74mm on the small ring. Replacement rings are available anywhere.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Old 07-03-14, 02:22 PM
  #9
corwin1968
Senior Member
Thread Starter

corwin1968's Avatar

Join Date: Aug 2011
Posts: 1,385
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Resurrecting a moderately old thread here.

I'm thinking about putting this crankset on a mid-90's bike and using a cartridge BB rather than what came on the original bike. The original bike had either 126 or 130mm rear stays and the bike I want to put it on has 135mm rear stays. The post above mentions 124.5 or 127.5 but would those same numbers apply to a cartridge BB? The only knowledge I have of this stuff is reading RBW-related stuff and it seems that their 135mm bikes are using BB's in the 110 to 113 range. Is there a weight difference between a cartridge and the old-fashioned BB this crankset came with? I'm primarily considering the cartridge because I have a good idea how to install it. The old style, I have no idea.

UPDATE: I took some measurements and the BB shell of both bikes is standard 68mm and the spindle, as best as I can measure it with the crankarms installed, appears to be 124.5. The bike the crankset is currently on was cold-set to 135mm and when I had the BB overhauled, the LBS mechanic said it needed a wider spindle and several front derailleurs wouldn't allow a full range of motion. Is 127.5 the obvious solution or might it need a wider spindle? The widest cartridge I found so far was 127.5 and it was really inexpensive....like $13 for Shimano.

Last edited by corwin1968; 07-03-14 at 03:24 PM.
corwin1968 is offline
Old 07-03-14, 04:06 PM
  #10
Velocivixen
Senior Member

Velocivixen's Avatar

Join Date: Oct 2013
Location: The Great Pacific Northwest
Posts: 4,492
Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 385 Post(s)
Liked 4 Times in 4 Posts

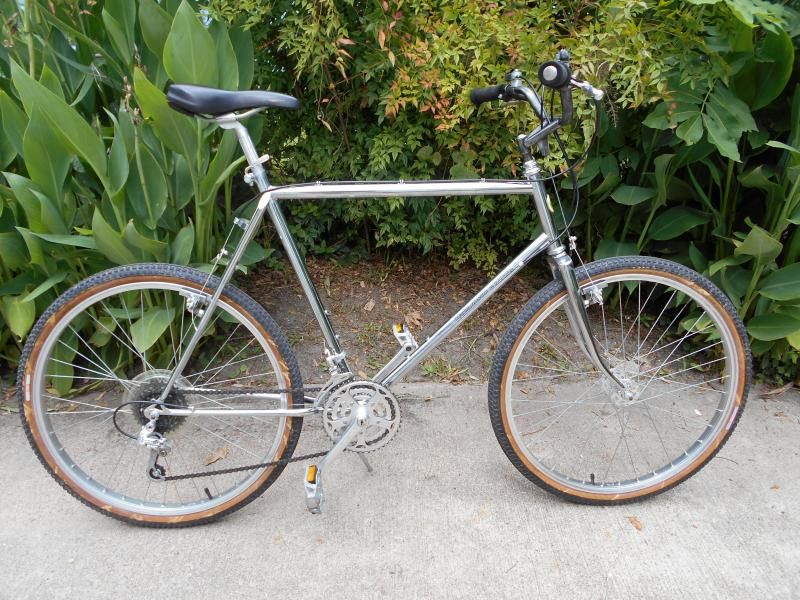

My 1985 Sekai Bigfoot has Tourney GS cranks on them, which I suspect are original.
Attached Images
File Type: jpg
Velocivixen is offline
Old 07-03-14, 04:12 PM
  #11
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,634

Bikes: Too many to list here check my signature.

Mentioned: 94 Post(s)
Tagged: 2 Thread(s)
Quoted: 1265 Post(s)
Liked 39 Times in 30 Posts
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 07-03-14, 05:22 PM
  #12
corwin1968
Senior Member
Thread Starter

corwin1968's Avatar

Join Date: Aug 2011
Posts: 1,385
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Originally Posted by Bianchigirll View Post

What tires are those and how do you like them? Your crankset looks brand new!
corwin1968 is offline
Old 07-03-14, 05:27 PM
  #13
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,634

Bikes: Too many to list here check my signature.

Mentioned: 94 Post(s)
Tagged: 2 Thread(s)
Quoted: 1265 Post(s)
Liked 39 Times in 30 Posts
That is Velocivixen's bike. I just posted a bigger pic. I agree it is a good looking bike. I would bet money the tires are Pannaracer Pasela TGs a perennial favorite on the forum.
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 07-04-14, 01:23 PM
  #14
Velocivixen
Senior Member

Velocivixen's Avatar

Join Date: Oct 2013
Location: The Great Pacific Northwest
Posts: 4,492
Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 385 Post(s)
Liked 4 Times in 4 Posts
@corwin1968 & @bianchigirl - yep she's right. 26x1.75 Panaracer Paselas. I like them and have them on most of my bikes in various wheel sizes (27", 26", 700c). I currently run Continental Travel Contact tires on there now - got them 50% off and they look okay.

Anyway that crankset is original as far as I know and I didn't do anything heroic to clean them up. This was my $40 bike that had been highly neglected. Of course saddle, tires, rack, etc. did not come with the bike.
Velocivixen is offline
Old 07-04-14, 04:07 PM
  #15
eschlwc
Banned.

Join Date: May 2011
Location: on the beach
Posts: 4,860

Bikes: '73 falcon sr, '76 grand record, '84 davidson

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 1 Time in 1 Post
i upgraded to a tourney crank from '76 on my '80 g.jubilé. moto used this one for several of its models, including the g.jubilé, but not for this specific year.

eschlwc is offline
Old 07-04-14, 04:22 PM
  #16
oldskoolwrench
自転車整備士

oldskoolwrench's Avatar

Join Date: Apr 2012
Location: Denver, Colorado USA
Posts: 898

Bikes: '86 Moots Mountaineer, '94 Salsa Ala Carte, '94 S-Works FSR, 1983 Trek 600 & 620

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by corwin1968 View Post
Resurrecting a moderately old thread here.

I'm thinking about putting this crankset on a mid-90's bike and using a cartridge BB rather than what came on the original bike. The original bike had either 126 or 130mm rear stays and the bike I want to put it on has 135mm rear stays. The post above mentions 124.5 or 127.5 but would those same numbers apply to a cartridge BB? The only knowledge I have of this stuff is reading RBW-related stuff and it seems that their 135mm bikes are using BB's in the 110 to 113 range. Is there a weight difference between a cartridge and the old-fashioned BB this crankset came with? I'm primarily considering the cartridge because I have a good idea how to install it. The old style, I have no idea.

UPDATE: I took some measurements and the BB shell of both bikes is standard 68mm and the spindle, as best as I can measure it with the crankarms installed, appears to be 124.5. The bike the crankset is currently on was cold-set to 135mm and when I had the BB overhauled, the LBS mechanic said it needed a wider spindle and several front derailleurs wouldn't allow a full range of motion. Is 127.5 the obvious solution or might it need a wider spindle? The widest cartridge I found so far was 127.5 and it was really inexpensive....like $13 for Shimano.
corwin1968... As long as you use an older Shimano front DR that's somewhat period specific (Deore XT, Deore DX, etc.) you should be OK. the cheaper cartridge BB's typically come in longer spindle lengths, but they don't tend to last as long as the more expensive ones. Older Cartridge BB's like the UN-51 and UN-71 series from the mid 90's did come in 122.5, 124 and 127 mm lengths, but they're pricey on the Bay.
oldskoolwrench is offline
Old 07-05-14, 10:08 AM
  #17
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,357

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1712 Post(s)
Liked 45 Times in 35 Posts
Originally Posted by Velocivixen View Post
My 1985 Sekai Bigfoot has Tourney GS cranks on them, which I suspect are original.
Damn- that's a cool bike. The High Flange hubs, the long wheelbase, the Biplane fork: That thing is great as is, or a wide open canvas for a "project" of all different types.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 07-05-14, 10:46 AM
  #18
Velocivixen
Senior Member

Velocivixen's Avatar

Join Date: Oct 2013
Location: The Great Pacific Northwest
Posts: 4,492
Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 385 Post(s)
Liked 4 Times in 4 Posts
@The Golden Boy - Thank you. It was my 2nd CL buy. Had to go the the persons house at night, across the river to Washington state, in October.....had original cables RUSTED into the original spiral old school housing, etc. My first "big" rehab. After I got it home & looked it over more I started to cry.....it was a mess. I had major buyer's remorse & thought for sure I was in over my head. I spent hours each day over the next week & finally got it done! I learned a lot along the way too. Still figuring out what tires & handlebar situation I want.

anyway, don't mean to hijack this thread.
Velocivixen is offline
Old 07-05-14, 08:38 PM
  #19
Bikedued
Senior Member

Bikedued's Avatar

Join Date: Jul 2004
Posts: 10,929
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I never saw what was so special about them up until a few years ago. I found they had quite a following. I actually have one of the XT's, and will probably put it on this chrome beauty I just picked up today. It came my way on a very unusual suspect. A ladies Montgomery Ward Omega mixte in hot pink. Shimano light action, and actually had forged drops as well. Not the norm for dept store bikes.,,,,BD

__________________
So many bikes, so little dime.

Last edited by Bikedued; 07-06-14 at 05:50 AM.
Bikedued is offline
Old 03-10-15, 02:56 PM
  #20
greg3rd48
Senior Member

greg3rd48's Avatar

Join Date: Aug 2014
Location: Bronx, NYC
Posts: 1,728

Bikes: '19 Fuji Gran Fondo 1.5, '72 Peugeot PX10, '74 Peugeot U08, '78 Fuji Newest, '89 Fuji Ace, '94 Cannondale R600

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 8 Times in 7 Posts
Originally Posted by eschlwc View Post
i upgraded to a tourney crank from '76 on my '80 g.jubilé. moto used this one for several of its models, including the g.jubilé, but not for this specific year.

I realize this is an old thread but I am hoping that you could provide me with some answers. Your Grand Jubilee is beautiful and well done. I recently picked up a Super Mirage (minus a wheelset and a few other things) for very little. It has a Tagaki Tourney crank on it but for some odd reason the chainrings were removed at some point in its life. Would you be able to tell me what chainrings I need for this crank?
greg3rd48 is offline
Old 03-10-15, 03:29 PM
  #21
eschlwc
Banned.

Join Date: May 2011
Location: on the beach
Posts: 4,860

Bikes: '73 falcon sr, '76 grand record, '84 davidson

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 1 Time in 1 Post
this one's spelled, "jubilé." (heh)

let's see ... the chain ring bolts are 76mm apart, so sheldon says that's 130 bcd "standard road double." i counted the big ring at 52t. the small ring is a 39-42t, not sure. those should be easy to find in that size.

be sure to measure your bolts and xref that with the sheldon data before buying some nos rings for $200 on ebay.
eschlwc is offline
Old 03-10-15, 05:17 PM
  #22
greg3rd48
Senior Member

greg3rd48's Avatar

Join Date: Aug 2014
Location: Bronx, NYC
Posts: 1,728

Bikes: '19 Fuji Gran Fondo 1.5, '72 Peugeot PX10, '74 Peugeot U08, '78 Fuji Newest, '89 Fuji Ace, '94 Cannondale R600

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 8 Times in 7 Posts
Jubilé it is. My apologies! I wonder if it worth spending the money on new chainrings or should I just swap it out with a different spindle and crankset.
greg3rd48 is offline
Old 03-10-15, 07:12 PM
  #23
eschlwc
Banned.

Join Date: May 2011
Location: on the beach
Posts: 4,860

Bikes: '73 falcon sr, '76 grand record, '84 davidson

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 1 Time in 1 Post
got a co-op or lbs that has vintage, used stuff? used chainrings should be under $10 each, and be readily available in 130 bcd.

or post a request in the "iso and for trade thread."

the uglier, the better (as long as the teeth are good), 'cause they're easy to deanodize with oven cleaner and polish with 3m 600 grit sandpaper.
eschlwc is offline
Old 03-10-15, 07:17 PM
  #24
greg3rd48
Senior Member

greg3rd48's Avatar

Join Date: Aug 2014
Location: Bronx, NYC
Posts: 1,728

Bikes: '19 Fuji Gran Fondo 1.5, '72 Peugeot PX10, '74 Peugeot U08, '78 Fuji Newest, '89 Fuji Ace, '94 Cannondale R600

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 8 Times in 7 Posts
Originally Posted by eschlwc View Post
got a co-op or lbs that has vintage, used stuff? used chainrings should be under $10 each, and be readily available in 130 bcd.

or post a request in the "iso and for trade thread."

the uglier, the better (as long as the teeth are good), 'cause they're easy to deanodize with oven cleaner and polish with 3m 600 grit sandpaper.
Thanks a lot! I do have both nearby and I volunteer as an assistant mechanic there frequently. I will do just that. Thank you for your help.
greg3rd48 is offline
Old 03-10-15, 07:24 PM
  #25
eschlwc
Banned.

Join Date: May 2011
Location: on the beach
Posts: 4,860

Bikes: '73 falcon sr, '76 grand record, '84 davidson

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 1 Time in 1 Post
B^ )
eschlwc is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
