Post your Schwinn Voyageur!

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Post your Schwinn Voyageur!

Old 01-15-21, 06:11 PM
  #326
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,156

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 498 Post(s)
Liked 590 Times in 349 Posts
Originally Posted by beicster View Post
I don't know about SP forks but that looks exactly like my non SP 85 Voyageur fork. They came painted but were chromed underneath.
Interesting! I didn't give it much thought, because it's a friend's bike and the frame didn't show signs of front end damage and the fork, regardless of origin, was straight and had the appropriate eyelets and posts. I think it said "Spinner" on it, which they may have made the Voyageur fork. Not sure. The headset was incomplete as well when he got it. I think the crown race was plated zinc and the cups were plated chrome or something so they looked a little different. But yeah, it's hard to find threaded cantilever forks, of this steerer length, with proper fork crowns, so that's points for it being original or at least from the era. Wonder what would possess a person to go strip all the paint off. Maybe a bad blemish.

Last edited by scarlson; 01-15-21 at 06:17 PM.
scarlson is offline
Old 01-15-21, 06:16 PM
  #327
Rooney
Senior Member

Join Date: Apr 2018
Location: Pennsylvania
Posts: 58

Bikes: '85 Schwinn Voyageur SP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 26 Times in 14 Posts
Other people have posted 38s without fenders (and this guy has a 45 upfront). I'd only been thinking about going to 35mm. The hammered is only rated to 37mm by VO, and I prefer the look of them to the Zeppelin. Definitely food for thought.
Rooney is offline
Old 01-15-21, 08:24 PM
  #328
southpawboston
Senior Member

southpawboston's Avatar

Join Date: Aug 2008
Location: Somerville, MA and Catskill Mtns
Posts: 4,117
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 93 Times in 49 Posts
Originally Posted by scarlson View Post
Yeah, probably not original. But your fork looks comparable to this one in terms of distance from fork crown to rim in front. That makes me pretty confident that the same setup (700x38 tires, VO Zeppelin fenders) would probably work on the original fork as well. And in this fork, it _really_ worked, I mean with flying colors. There's a big ol' nut under the crown holding the fender on, and the daruma bolt didn't even have to be sawed shorter to clear the tire or anything. On some other bikes (Nishiki, Holdsworth), it's so tight up in there that I have to use a recessed nut or an Aheadset starnut shoved up inside the steerer. Great success!



Like this:

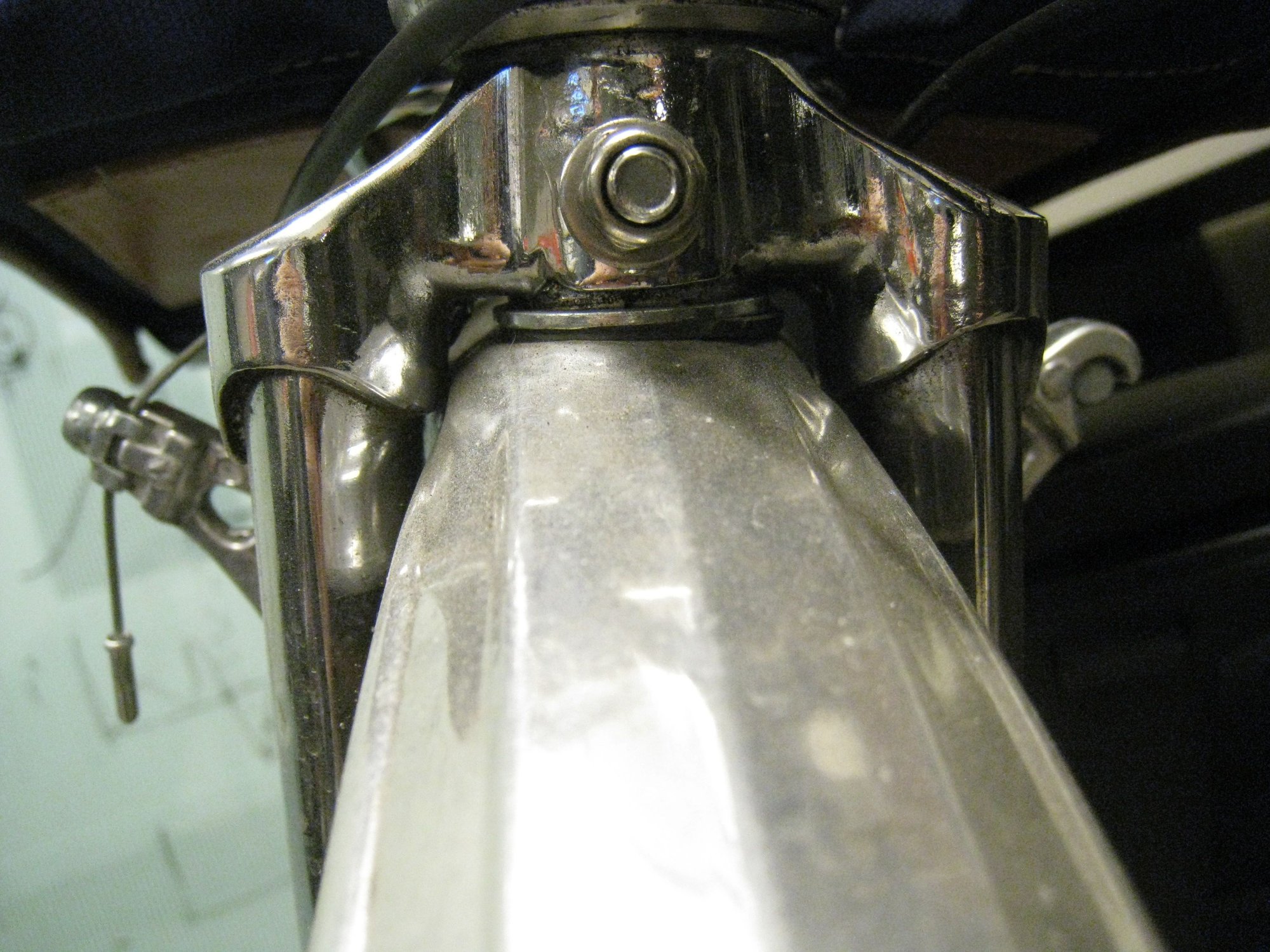

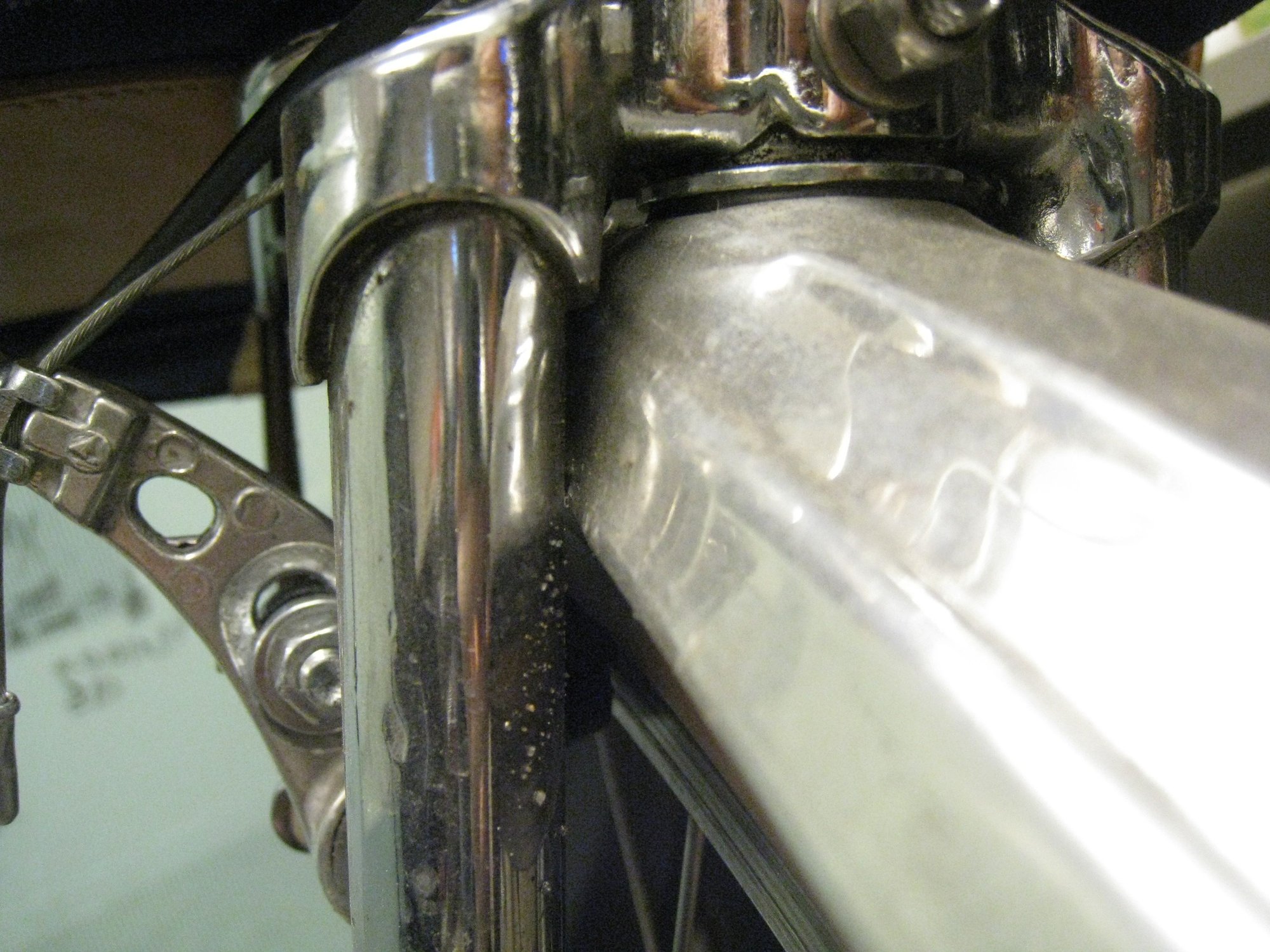

A simple flat spot to help the fender sit level on the underside of the fork crown, even though it's going through at an angle. I usually do it with a hammer and a wood block.
Sweet! I haven't seen anyone make a square flat spot for the crown before. I've always made a round one using a DIY press with a stack of fender washers and threaded rod.
southpawboston is offline
Likes For southpawboston:
Old 01-15-21, 09:10 PM
  #329
aeshultz
Somewhat slow older guy

Join Date: Oct 2008
Location: C-bus, OH
Posts: 336

Bikes: '83 Trek 311, '96 Litespeed Catalyst, '06 LeMond Poprad, '07 LeMond plastic bike, '06 Serotta CSI, Surly Cross Check, and a few others.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 100 Post(s)
Liked 9 Times in 8 Posts
Interesting - that looks exactly the same fork that is on my '83? SP - full chrome, with the same mid-blade mount and same crown. Good to know that it might be original.


Originally Posted by beicster View Post
I don't know about SP forks but that looks exactly like my non SP 85 Voyageur fork. They came painted but were chromed underneath.
aeshultz is offline
Old 01-15-21, 10:02 PM
  #330
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,156

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 498 Post(s)
Liked 590 Times in 349 Posts
Seems there were a lot of running changes in the Voyageur SP, eh? Maybe that's the explanation. Also seems to be two different seatpost diameters in '85. Catalog says 26.6 but I have seen mention of several that take 27.2 posts, including the one I did for my friend.
scarlson is offline
Old 01-16-21, 12:04 AM
  #331
ravenix
Enthusiast

ravenix's Avatar

Join Date: Apr 2007
Location: Anchorage, Alaska
Posts: 28

Bikes: ‘83 Trek 720, ‘85 Schwann Voyageur SP, ‘97 Ibis hakkalugi, '80's Haro

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 33 Times in 11 Posts





So the 23” frame with silver Chris King 2nut headset..... quill, seat tube and saddle up next!
ravenix is offline
Likes For ravenix:
Old 01-16-21, 12:19 AM
  #332
ravenix
Enthusiast

ravenix's Avatar

Join Date: Apr 2007
Location: Anchorage, Alaska
Posts: 28

Bikes: ‘83 Trek 720, ‘85 Schwann Voyageur SP, ‘97 Ibis hakkalugi, '80's Haro

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 33 Times in 11 Posts
Originally Posted by scarlson View Post
Here's the '85 Voyageur SP I did with VO Zeppelin fenders. The tires are Panaracer Gravelking 700x38. You can see all the fender massaging I had to do. It was fairly minimal. Fenderline was good, with easy rear wheel removal due to the vertical dropouts. I cut the rear fender down to fit between the chainstays, and made a slight indent for the front derailleur. I made a "step" in the front fender to sit flat under the fork crown and slightly indented the sides. Caveat is that the fork may not be original, but I think it is at least period-correct.







Wow, super cool! That must be the 25” frame.... looks really big. Nice job on those fenders, but yeah no way is that the original fork. I'll be lucky to get 32mm tires with 40mm fenders (which is my current goal). You did a really great job on that build though
ravenix is offline
Old 01-16-21, 02:07 AM
  #333
Rooney
Senior Member

Join Date: Apr 2018
Location: Pennsylvania
Posts: 58

Bikes: '85 Schwinn Voyageur SP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 26 Times in 14 Posts
Originally Posted by scarlson View Post
Seems there were a lot of running changes in the Voyageur SP, eh? Maybe that's the explanation. Also seems to be two different seatpost diameters in '85. Catalog says 26.6 but I have seen mention of several that take 27.2 posts, including the one I did for my friend.
I ran into the seatpost problem myself. When I replaced it I originally tried 26.6 based on the comparison chart, but it constantly slid down. Schreck83 mentioned having a 27.2 seatpost (84 VSP), then I found a thread where a couple of other 84/85 VSP owners corroborated that number. I'm guessing the catalog is a typo.

Also, that VSP with the Spinner fork sounds familiar. Did your friend get it off eBay a couple of months back? I think the mid-fork mounts went all the way through, right?
Rooney is offline
Old 01-16-21, 09:57 AM
  #334
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,156

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 498 Post(s)
Liked 590 Times in 349 Posts
Originally Posted by Rooney View Post
Also, that VSP with the Spinner fork sounds familiar. Did your friend get it off eBay a couple of months back? I think the mid-fork mounts went all the way through, right?
Yep, that's right. He wanted an affordable touring frame from the '80s, so I found it for him. It was a good deal, turned out to be a nice straight frame and fork in spite of the weirdness. I spread the rear triangle to 135mm, did the fenders and racks, built him some wheels, and he cleaned up the surface rust on the chrome and did the brakes and shifting. You can see by the photos he's already been out in the Boston winter muck. He's been happy with it.
scarlson is offline
Old 01-16-21, 10:17 AM
  #335
beicster
Senior Member

Join Date: Jan 2017
Location: Berea, KY
Posts: 823
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 241 Post(s)
Liked 91 Times in 66 Posts
Oops! I need to set the record straight. That is not the same fork as is on my 85 Voyageur. I went out and took a closer look this morning and the crown is different. Sorry for the confusion.
__________________
Andy
beicster is offline
Old 01-16-21, 03:02 PM
  #336
Rooney
Senior Member

Join Date: Apr 2018
Location: Pennsylvania
Posts: 58

Bikes: '85 Schwinn Voyageur SP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 26 Times in 14 Posts
That's awesome, glad to know it's being appreciated and ridden! I was tempted to buy it a couple times myself, then thought it'd be ridiculous to have two of the same bike, especially when I'm not finished sorting the current one. It looks great, hope your friend enjoys it for years to come!
Rooney is offline
Old 01-16-21, 09:01 PM
  #337
southpawboston
Senior Member

southpawboston's Avatar

Join Date: Aug 2008
Location: Somerville, MA and Catskill Mtns
Posts: 4,117
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 93 Times in 49 Posts
Here's an '88 Schwinn Voyageur SP I had... it left the fleet years ago. I never knew much about the chronology of Voyageur changes. Not sure but did the "SP" variant refer to the Columbus SP touring-thickness tube-set? The Voyageurs were impressive off the shelf tourers, with top-flight parts. The cartridge bearing Sansin hubs were smooth as buttah... Back then I had drank the Grant Peterson kool-aid and compulsively twined and shellacked lots of stuff... in this case the water bottle!! (My wife still has the water bottle, and it's still got its twine!).


Last edited by southpawboston; 01-16-21 at 09:07 PM.
southpawboston is offline
Likes For southpawboston:
Old 01-16-21, 10:11 PM
  #338
polymorphself
Senior Member

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 1,173
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 457 Post(s)
Liked 394 Times in 207 Posts
Originally Posted by southpawboston View Post
Here's an '88 Schwinn Voyageur SP I had... it left the fleet years ago. I never knew much about the chronology of Voyageur changes. Not sure but did the "SP" variant refer to the Columbus SP touring-thickness tube-set? The Voyageurs were impressive off the shelf tourers, with top-flight parts. The cartridge bearing Sansin hubs were smooth as buttah... Back then I had drank the Grant Peterson kool-aid and compulsively twined and shellacked lots of stuff... in this case the water bottle!! (My wife still has the water bottle, and it's still got its twine!).

I’ve looked at this picture a handful of times in the past year or so between here and Flickr. One of the best Voyageur builds on the internet for sure.
polymorphself is offline
Old 01-16-21, 10:18 PM
  #339
polymorphself
Senior Member

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 1,173
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 457 Post(s)
Liked 394 Times in 207 Posts
Originally Posted by Rooney View Post

What’s your tire/fender size?
polymorphself is offline
Old 01-16-21, 11:59 PM
  #340
Rooney
Senior Member

Join Date: Apr 2018
Location: Pennsylvania
Posts: 58

Bikes: '85 Schwinn Voyageur SP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 26 Times in 14 Posts

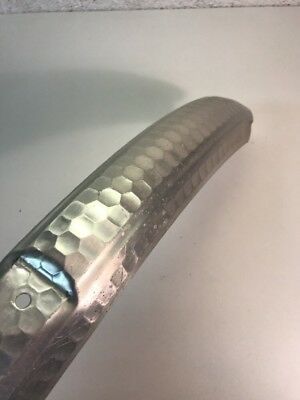

Hammered VO 700c fenders and 27 x 1 1/4” Panaracer Paselas
Rooney is offline
Old 01-17-21, 10:03 AM
  #341
polymorphself
Senior Member

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 1,173
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 457 Post(s)
Liked 394 Times in 207 Posts
Originally Posted by Rooney View Post
Hammered VO 700c fenders and 27 x 1 1/4” Panaracer Paselas
45mm fender?
polymorphself is offline
Old 01-17-21, 10:05 AM
  #342
polymorphself
Senior Member

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 1,173
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 457 Post(s)
Liked 394 Times in 207 Posts
Some more recent shots since my first photo in this thread.




polymorphself is offline
Likes For polymorphself:
Old 01-17-21, 11:22 AM
  #343
Rooney
Senior Member

Join Date: Apr 2018
Location: Pennsylvania
Posts: 58

Bikes: '85 Schwinn Voyageur SP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 26 Times in 14 Posts
Originally Posted by polymorphself View Post
45mm fender?
Yup! Doesn't look like the Hammered come in any other widths.
Rooney is offline
Old 01-17-21, 11:29 AM
  #344
polymorphself
Senior Member

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 1,173
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 457 Post(s)
Liked 394 Times in 207 Posts
Originally Posted by Rooney View Post
Yup! Doesn't look like the Hammered come in any other widths.
My setup is the exact same yours just looks way cleaner than mine haha. Not sure how you got the rear fender sitting so high up!

I’ll be swapping for 700c in the coming weeks and looking to go 35mm.
polymorphself is offline
Likes For polymorphself:
Old 01-17-21, 12:54 PM
  #345
Rooney
Senior Member

Join Date: Apr 2018
Location: Pennsylvania
Posts: 58

Bikes: '85 Schwinn Voyageur SP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 26 Times in 14 Posts
Haha, I think it may look cleaner because the dirt blends with the sidewalls, hiding some discrepancies, but thank you!

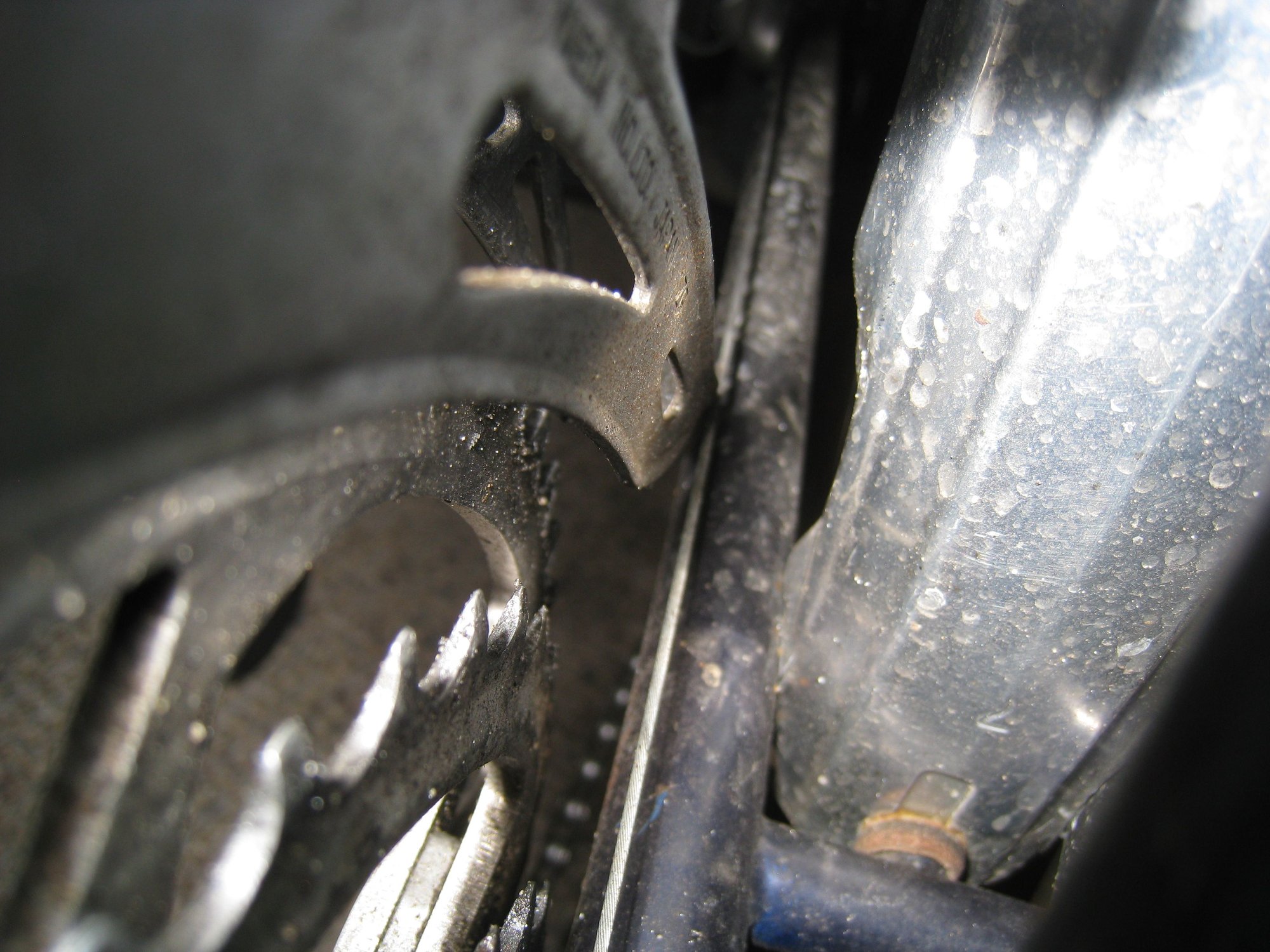

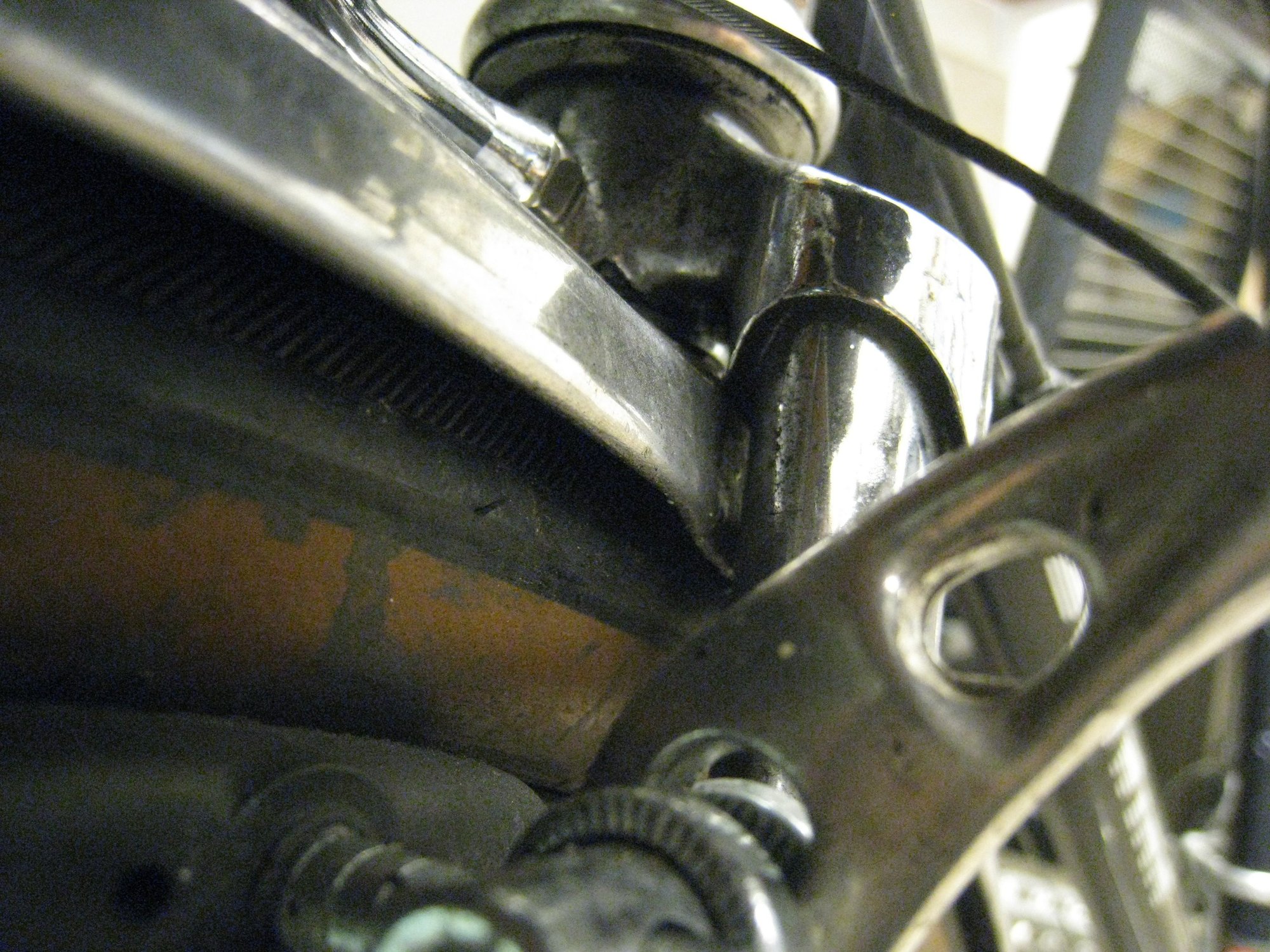

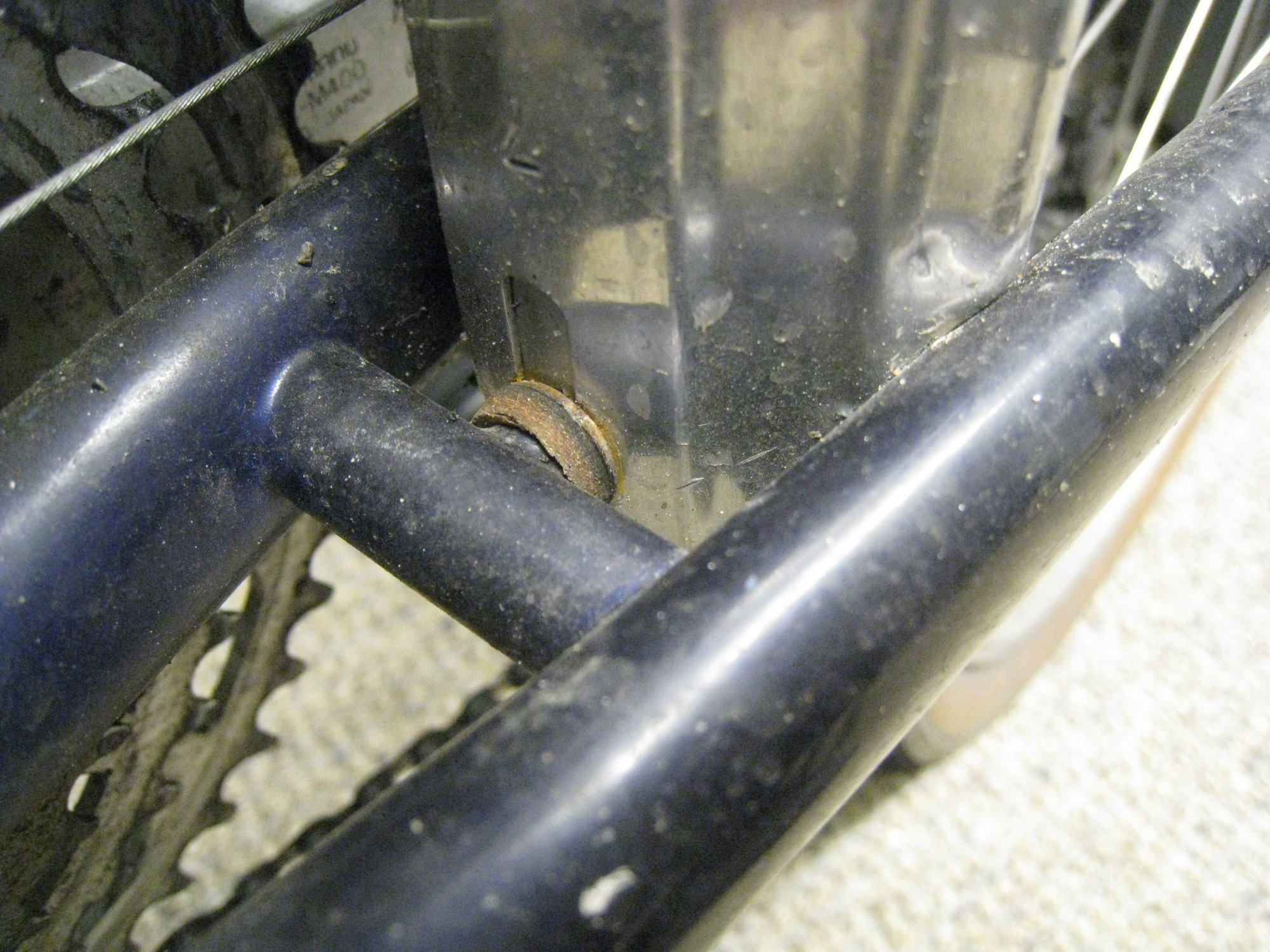

I took your advice and kept bending the front fender little by little to get as consistent of a line as I could. The rear was pretty easy for me, especially after wrestling with the front fender for a few hours. I only used the leather washer between the fender and the chainstay bridge (the screw is just about in the middle of the fender's slot), and the L-bracket is as high as it can go at the seat stay bridge. After that, I set the struts, and with a few minor adjustments, ended up with what you see.

I was following your wheel thread; you've got me in the early stages of thinking about rims and hubs!
Rooney is offline
Old 01-26-21, 07:20 AM
  #346
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,221
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1414 Post(s)
Liked 248 Times in 184 Posts
Originally Posted by polymorphself View Post
My setup is the exact same yours just looks way cleaner than mine haha. Not sure how you got the rear fender sitting so high up!

I’ll be swapping for 700c in the coming weeks and looking to go 35mm.
I'll be curious to hear how you do with the brake pads. I could use some pointers on getting them to line up (at least close to) perfectly.
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Old 01-27-21, 03:59 PM
  #347
homelessjoe
Senior Member

Join Date: Nov 2014
Location: Ann Arbor Michigan
Posts: 152

Bikes: miyata 83 1000,84 1000,83 610,88 ridge runner ,Schwinn 84 high sierra,88 Cimmeron,86 Passage,84 Stumplumper ,83 Mt Whitney,83 Trek 850,Merckx Century,PX10, RB1,XO 1 XO 4,bunch of stuff like that

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 44 Times in 36 Posts
question

Has anyone stripped the paint off a chromed frame?I have a 73 World Voyager with a chromed frame under orange paint.......for years I have wanted a all chrome road bike and have not had any luck in finding one ....either to much money or to far away on not my size or to scraped up.....so I keep eying my World bike......If I took off all that paint would I have a perfect shinny frame or are there rough spots and spots that wouldnt clean up........and I have two Torpado frames that are chromed under the paint......how about them
homelessjoe is offline
Old 01-27-21, 04:26 PM
  #348
acm
Member

acm's Avatar

Join Date: May 2019
Location: Rochester, NY
Posts: 26

Bikes: '84 Centurion Pro Tour 15

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 14 Times in 8 Posts
Originally Posted by homelessjoe View Post
Has anyone stripped the paint off a chromed frame?I have a 73 World Voyager with a chromed frame under orange paint.......for years I have wanted a all chrome road bike and have not had any luck in finding one ....either to much money or to far away on not my size or to scraped up.....so I keep eying my World bike......If I took off all that paint would I have a perfect shinny frame or are there rough spots and spots that wouldnt clean up........and I have two Torpado frames that are chromed under the paint......how about them
Tough issue. There's a nother thread somewhere in c&v on exactly this topic and unfortunately there's no easy answer. I went down the rabbit hole trying to do this to my Pro Tour and decided it wasn't worth the trouble.

If you can get your hands on some **old** aircraft paint stripper that will do the job just fine. It is extremely toxic and has been illegal in the US for a number of years. The new product on the shelves by the same name is not the same thing.

You could give it the ol' scrape with wooden tools, but this will take a very long time.

Plastic media blasting (as opposed to sand blasting) may be gentle enough but I'm not sure. Call your local blasting shop and ask a pro!

The elegant but expensive option is to sandblast the whole thing and have it re-chromed for a perfect, long-lasting finish.

The 73 WV in my cellar has a lot of exposed chrome that's still in decent shape, I like the way the sun reflects off those spots when my housemate rides it. Cheapest solution is to love it for what it is, hahaha
acm is offline
Old 01-27-21, 06:25 PM
  #349
homelessjoe
Senior Member

Join Date: Nov 2014
Location: Ann Arbor Michigan
Posts: 152

Bikes: miyata 83 1000,84 1000,83 610,88 ridge runner ,Schwinn 84 high sierra,88 Cimmeron,86 Passage,84 Stumplumper ,83 Mt Whitney,83 Trek 850,Merckx Century,PX10, RB1,XO 1 XO 4,bunch of stuff like that

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 44 Times in 36 Posts
yes

Those are nice bikes as is ...but...I dont think I will have any problem stripping the old paint at all ....done a bunch.....what I wanted to know ......is the chrome is polished like the stays and forks or are some areas rough and dull
homelessjoe is offline
Old 01-27-21, 06:56 PM
  #350
acm
Member

acm's Avatar

Join Date: May 2019
Location: Rochester, NY
Posts: 26

Bikes: '84 Centurion Pro Tour 15

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 14 Times in 8 Posts
Originally Posted by homelessjoe View Post
Those are nice bikes as is ...but...I dont think I will have any problem stripping the old paint at all ....done a bunch.....what I wanted to know ......is the chrome is polished like the stays and forks or are some areas rough and dull
Ah sorry, misunderstood the question!

Yes, it seems like the chrome exposed under the paintwork is about as bright as that on the stays.
acm is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
