Lauterwasser bars, expertise requested!

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Lauterwasser bars, expertise requested!

Old 01-04-15, 08:06 PM
  #1
AZORCH
Senior Member
Thread Starter

AZORCH's Avatar

Join Date: Aug 2010
Location: Liberty, Missouri
Posts: 3,115

Bikes: 1946 Hobbs of Barbican | 1966 Paramount P-13 | 1971 Raleigh International | ca. 1970 Bernard Carre | 1989 Waterford Paramount | 2012 Boulder Brevet | 2019 Specialized Diverge

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked 43 Times in 22 Posts
Lauterwasser bars, expertise requested!

I am considering Lauterwasser bars on my winter project bike. In addition to vintage models, there are a couple of contemporary options - SOMA, for instance, and Nitto has a similar (but not too similar) mustache bar. As with any component choice, I recall various people loving the bars, hating the bars, and everything in-between, so I'll try them out and form my own opinion about how they work for me.

To give them a fair shake though, I want to solicit advice from the list. Specifically, how did you adjust stem length/height to compensate for the difference in reach and shape from road bars?

Thanks for any insights.
AZORCH is offline
Old 01-04-15, 08:18 PM
  #2
Barrettscv
Have bike, will travel

Barrettscv's Avatar

Join Date: Feb 2006
Location: Lake Geneva, WI
Posts: 12,268

Bikes: Ridley Helium SLX, Canyon Endurance SL, De Rosa Professional, Eddy Merckx Corsa Extra, Schwinn Paramount (1 painted, 1 chrome), Peugeot PX10, Serotta Nova X, Simoncini Cyclocross Special, Raleigh Roker, Pedal Force CG2 and CX2

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 848 Post(s)
Liked 165 Times in 100 Posts
I have the Lauterwasser bars. I ended up not using them, they don't accept bar-end shifters and selecting brake levers would have been a challenge.

I did size them to the bike. I wouldn't immediately want to change the stem, the reach is somewhere between the position on the lever and the position on the drops. I would install them using your existing stem. I think you will find the reach to be easier on the back and shoulders than being on the drops, but more aero than being on the hoods. The angle of the flair is very well designed and comfortable.
__________________
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.

Last edited by Barrettscv; 01-04-15 at 08:27 PM.
Barrettscv is offline
Old 01-04-15, 09:53 PM
  #3
AZORCH
Senior Member
Thread Starter

AZORCH's Avatar

Join Date: Aug 2010
Location: Liberty, Missouri
Posts: 3,115

Bikes: 1946 Hobbs of Barbican | 1966 Paramount P-13 | 1971 Raleigh International | ca. 1970 Bernard Carre | 1989 Waterford Paramount | 2012 Boulder Brevet | 2019 Specialized Diverge

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked 43 Times in 22 Posts
Barrettscv, are you using vintage bars or the SOMA bars, or something else entirely?
AZORCH is offline
Old 01-04-15, 09:59 PM
  #4
Barrettscv
Have bike, will travel

Barrettscv's Avatar

Join Date: Feb 2006
Location: Lake Geneva, WI
Posts: 12,268

Bikes: Ridley Helium SLX, Canyon Endurance SL, De Rosa Professional, Eddy Merckx Corsa Extra, Schwinn Paramount (1 painted, 1 chrome), Peugeot PX10, Serotta Nova X, Simoncini Cyclocross Special, Raleigh Roker, Pedal Force CG2 and CX2

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 848 Post(s)
Liked 165 Times in 100 Posts
The Soma made bars.
__________________
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.
Barrettscv is offline
Old 01-05-15, 12:04 PM
  #5
crank_addict
Banned

Join Date: Aug 2013
Posts: 7,152
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 393 Times in 258 Posts
There's also a variant and low cost Origin 8 Tiki. Typically cost $20-25. Haven't tried them yet but are set aside for a future build.

crank_addict is offline
Old 01-05-15, 12:11 PM
  #6
icepick_trotsky
Aspiring curmudgeon

icepick_trotsky's Avatar

Join Date: Aug 2014
Location: Saint Louis
Posts: 2,667

Bikes: Guerciotti, Serotta, Gaulzetti

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Nashbar has a mustache bar for something absurdly cheap, like $12. That would be a pretty low investment way to try them out.
__________________
"Party on comrades" -- Lenin, probably
icepick_trotsky is offline
Old 01-05-15, 12:24 PM
  #7
fender1
Senior Member

fender1's Avatar

Join Date: Jan 2006
Location: Berwyn PA
Posts: 6,121

Bikes: I hate bikes!

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 302 Post(s)
Liked 201 Times in 69 Posts
I have a Nitto Moustache bar (25.4) you are welcome to.
fender1 is offline
Old 01-05-15, 12:25 PM
  #8
AZORCH
Senior Member
Thread Starter

AZORCH's Avatar

Join Date: Aug 2010
Location: Liberty, Missouri
Posts: 3,115

Bikes: 1946 Hobbs of Barbican | 1966 Paramount P-13 | 1971 Raleigh International | ca. 1970 Bernard Carre | 1989 Waterford Paramount | 2012 Boulder Brevet | 2019 Specialized Diverge

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked 43 Times in 22 Posts
Originally Posted by fender1 View Post
I have a Nitto Moustache bar (25.4) you are welcome to.
Cool! PM sent.
AZORCH is offline
Old 01-05-15, 12:32 PM
  #9
fender1
Senior Member

fender1's Avatar

Join Date: Jan 2006
Location: Berwyn PA
Posts: 6,121

Bikes: I hate bikes!

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 302 Post(s)
Liked 201 Times in 69 Posts
Originally Posted by AZORCH View Post
Cool! PM sent.
Great! My experience with them is as follows:

Stem 2-3cm shorter than your "normal" road stem length
Bar height should be level or slightly above your saddle (below put too much pressue on my wrists)
Non-areo, brake levers look best (YMMV)
Levers should be abour 15cm/16cm apart from each other ( measured from the point where the cable exits, lever to lever)
You can install dummy levers (or old levers w/ the lever removed) to create an additional hand position. I put them close to the stem on the opposite side of the bar. This was a nice "resting/more upright" perch. It does take away usable space for computers/ lights etc.
fender1 is offline
Old 01-05-15, 12:43 PM
  #10
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,640

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 527 Post(s)
Tagged: 0 Thread(s)
Quoted: 1798 Post(s)
Liked 306 Times in 202 Posts
I have the Soma "Lauterwasser" bar on the Falcon that I commute on these days. Here's the cockpit:



For comparison, I have Frank the Welder's approximation of a Lauterwasser bar on my Fothergill. Frank's bar is a very close copy of the bar on his Raleigh Golden Arrow. Here's the cockpit of that one:



I like both these bikes and have ridden both well over a thousand miles in the setup shown. In both cases, I have the bar set up so the grips sit a little higher than the top tube, and a little forward of the steerer tube:



The shape of the two is pretty different. The grip area of the Soma bar is longer and farther back, so the Soma will take a longer stem. The old ones take a very short stem.

I should mention that the frame geometry of the two bikes is basically the same (though the Fothergill has an unusually long top tube and unusually slack seat tube, with the saddle mounted in front of the seat post as shown the frame geometry is very similar to the Falcon).

The Lauterwasser shape is basically a rather shallow drop bar that offers approximately one good riding position. Therefore you want to make that position exactly what you want.

A Lauterwasser bar has some similarities to a mustache bar, but they are not the same thing. I'm sure you could set up a mustache bar to give a similar ride, but I don't know how you'd do that. You'd probably want a smaller frame, since the Lauterwasser bar has a lot more drop than any mustache bar.

Note also, most mustache bars measure 15/16" (23.8 mm) like most drop bars, while the Lauterwasser bar measures 7/8" (22.2 mm). Mustache bars expect road style brake levers; a Lauterwasser bar takes levers made for upright style bars and will take IGH shifters.


But to further confuse things, I once took a Nashbar mustache bar, filled it with sand, and bent it around a bit more to make a shape like a Lauterwasser bar. Here's a photo of that bar mounted on an old Dawes belonging to @zaphodbeeblebrox

But I should add, he doesn't like them.
__________________
www.rhmsaddles.com.
rhm is offline
Old 01-05-15, 01:25 PM
  #11
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,315 Times in 826 Posts
Had to Look it up Lauterwasser Alloy Bar | SOMA Fabrications..

as Typical your Preferences are Your Own , I used Nitto's Mustache Bars , with Road Brake levers , and Bar ends ..

with them the drop is not as deep and the curve less severe so the front portion of the Bend is Useful..

People have used Nitto's Albatross bars as a flipped down install they bore out the ends of the aluminum,

to accept Bar ends , and The Chromoly ones use a High strength steel tube ,

so the tube wall is thin and needs no Machining to fit Bar Ends.
fietsbob is offline
Old 01-05-15, 01:38 PM
  #12
icepick_trotsky
Aspiring curmudgeon

icepick_trotsky's Avatar

Join Date: Aug 2014
Location: Saint Louis
Posts: 2,667

Bikes: Guerciotti, Serotta, Gaulzetti

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I think the new Albatrosses are already sized to accept bar ends.
__________________
"Party on comrades" -- Lenin, probably
icepick_trotsky is offline
Old 01-05-15, 01:54 PM
  #13
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,640

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 527 Post(s)
Tagged: 0 Thread(s)
Quoted: 1798 Post(s)
Liked 306 Times in 202 Posts
I'm confused. Is this thread about Lauterwasser bars or mustache bars? They are not the same thing. They are not even similar.
__________________
www.rhmsaddles.com.
rhm is offline
Old 03-10-21, 01:28 PM
  #14
Special_k44
Junior Member

Join Date: Nov 2018
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 4 Times in 3 Posts
Sorry I'm ressurreting this.

Originally Posted by Barrettscv View Post
I have the Lauterwasser bars. I ended up not using them, they don't accept bar-end shifters and selecting brake levers would have been a challenge.
Can someone explain why the aluminum ones don't accept bar-end shifters but the steel ones do?
Special_k44 is offline
Old 03-10-21, 02:50 PM
  #15
cocoabeachcrab
Myrtle Beach Crab

cocoabeachcrab's Avatar

Join Date: Nov 2012
Location: Newport RI
Posts: 385

Bikes: enough one would think, but thinking isn't my strong point

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Liked 134 Times in 64 Posts

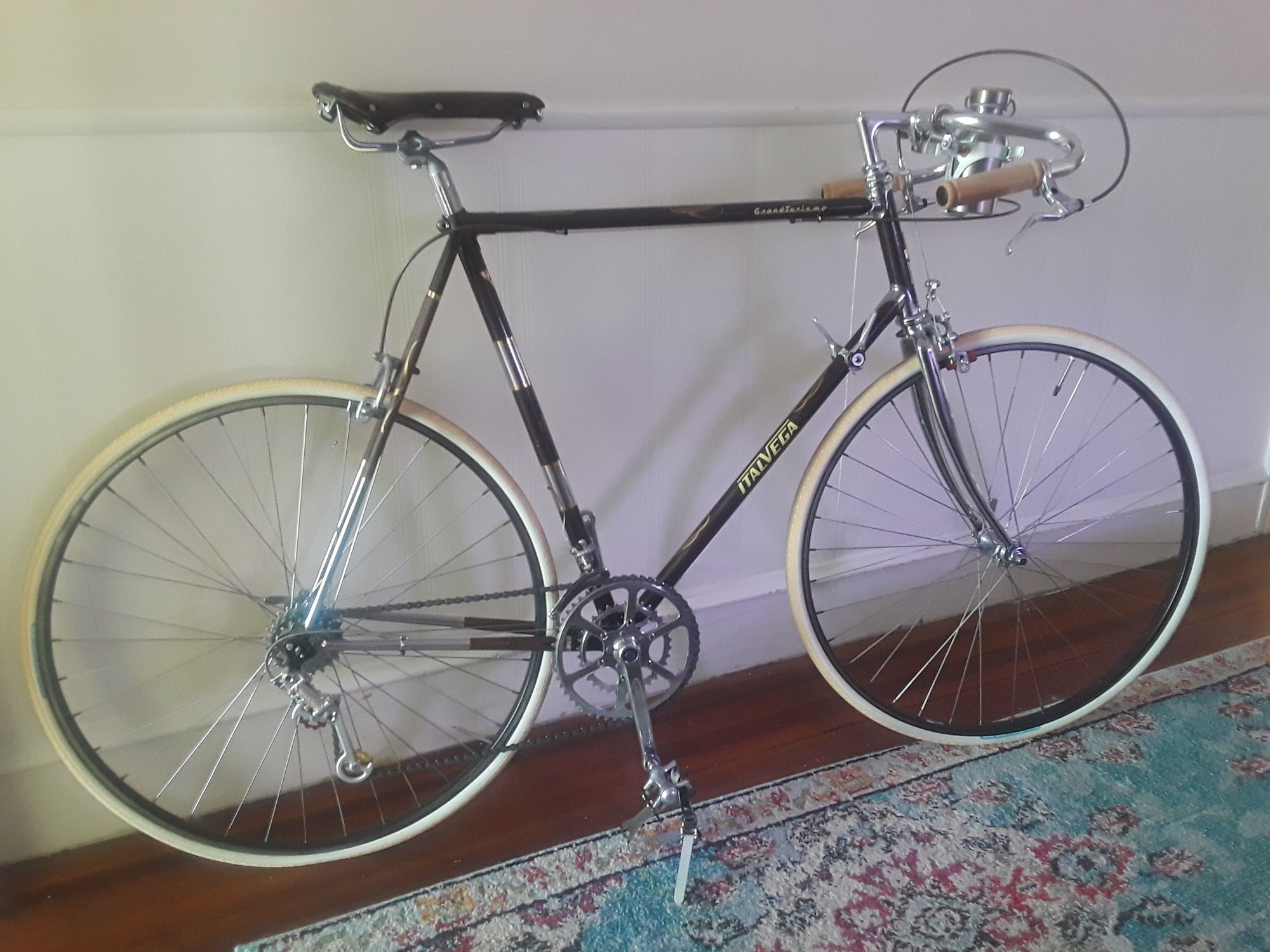

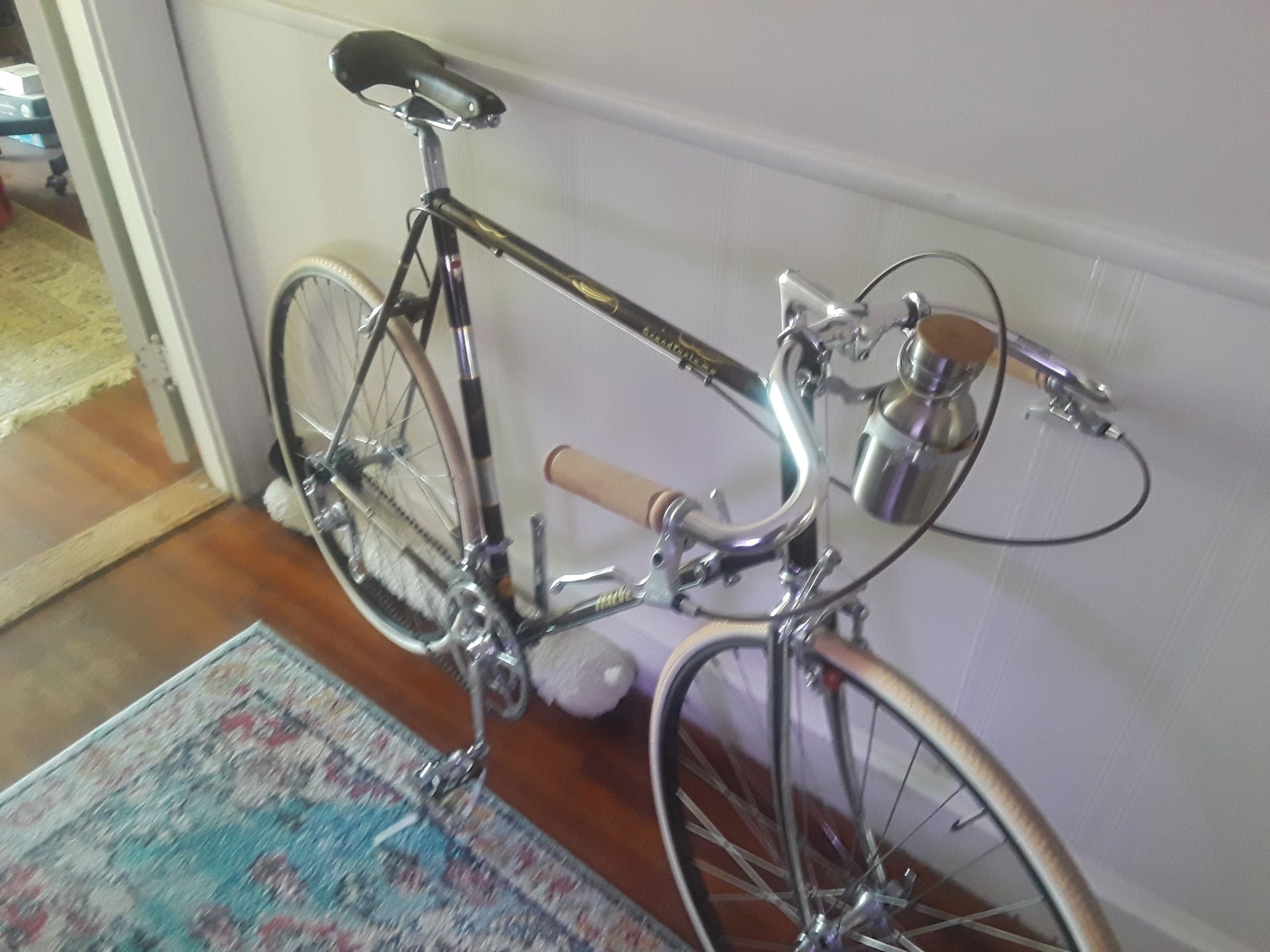

mounted the Lauterwasser on a brave volunteer ... used a tall stem on a too tall frame (for me)... going to sell this one at some point but wanted to give it a try. i think i like it! sorry for blurry cell phone pics.

cocoabeachcrab is offline
Likes For cocoabeachcrab:
Old 03-11-21, 07:40 PM
  #16
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,534

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 4064 Post(s)
Liked 1,902 Times in 1,225 Posts
Originally Posted by cocoabeachcrab View Post
mounted the Lauterwasser on a brave volunteer ... used a tall stem on a too tall frame (for me)... going to sell this one at some point but wanted to give it a try. i think i like it! sorry for blurry cell phone pics.
That's very comparable to how I set up my Univega Via Carisma with Nitto albatross bars back in late 2018. However at the time I was recovering from a shoulder injury and couldn't handle the flipped bar position. Since then it's been in the more conventional upright position. But I might try it flopped again this year. A couple of friends set up their hybrids with flipped swept bars -- I don't recall the specific bar types as one fellow has a collection of swept bars, ranging from North Roads to albatross to Lauterwasser and others.

Last edited by canklecat; 03-11-21 at 07:47 PM.
canklecat is offline
Old 03-11-21, 07:44 PM
  #17
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,534

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 4064 Post(s)
Liked 1,902 Times in 1,225 Posts
Originally Posted by Special_k44 View Post
Can someone explain why the aluminum ones don't accept bar-end shifters but the steel ones do?
It depends on whether the aluminum bar was heat treated. My Nitto Albatross aluminum bar is okay for use with bar-end shifters. The manufacturers/distributors usually say whether the aluminum bars are heat treated for better strength. They'll cost more too.

I'm guessing the risk is installing the bar-end pods with excessive pressure in lower quality aluminum bars. It doesn't take much pressure to grip the bar-ends properly, and there may be some friction paste or something similar that would help ensure adequate tension without weakening the bars. Same challenge as installing carbon fiber handlebars, stems, etc.
canklecat is offline
