Stems

As a 350 lb. rider, would a LOW degree of stem offset be safer?

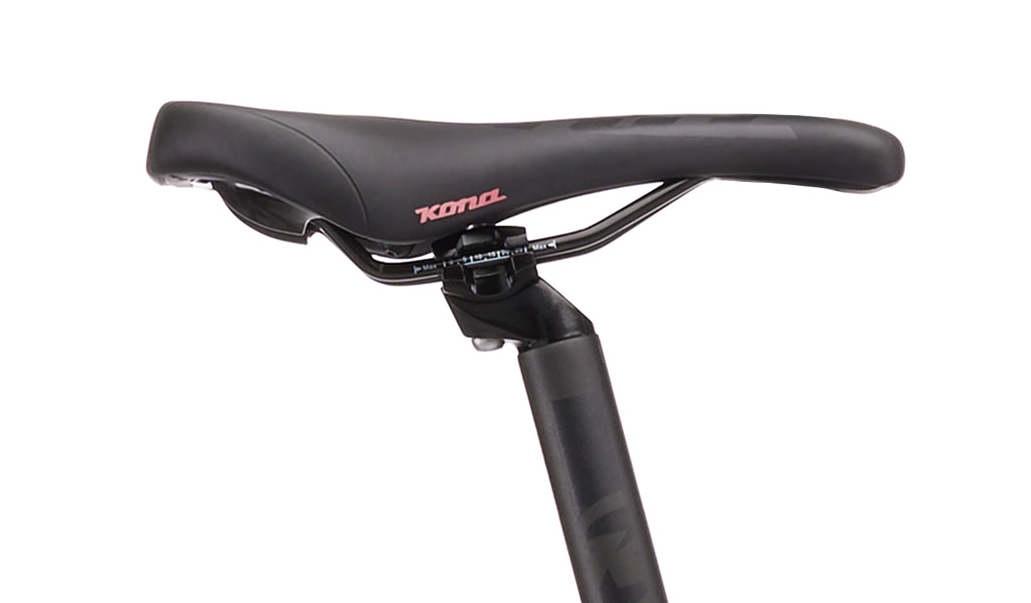

HIGH degree of stem offset looks dangerous to me. (see pics)



taylorgeo is offline
Old 08-07-20, 07:11 AM
  #2
chadtrent
Senior Member

chadtrent's Avatar

Join Date: Jun 2018
Location: Roanoke, VA
Posts: 156

Bikes: 2020 Canyon Endurace CF SL

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 72 Times in 34 Posts
First things first - those are seat posts, not stems. Second, the offset is safe.

What you really should be concerned about is which seatpost is necessary to get your bike to fit you correctly. For me my bike fits best with a post with no offset. But everyone and every bike is different.
chadtrent is offline
Old 08-07-20, 01:45 PM
  #3
shelbyfv
Banned.

Join Date: Jun 2007
Posts: 7,172
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,182 Times in 672 Posts
Time to get off the pot and on to a saddle
shelbyfv is offline
Old 08-07-20, 06:51 PM
  #4
cyclist2000
Senior Member

cyclist2000's Avatar

Join Date: Sep 2009
Location: Up
Posts: 4,305

Bikes: Masi, Giant TCR, Eisentraut (retired), Jamis Aurora Elite, Zullo, Cannondale, 84 Stumpjumper, Waterford, Tern D8, Bianchi, Gunner Roadie, Serotta, and looking for a Brompton M6R

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 235 Post(s)
Liked 1,048 Times in 316 Posts
use the one that gives you the best fit.
cyclist2000 is offline
Old 08-09-20, 12:35 AM
  #5
jsigone
got the climbing bug

jsigone's Avatar

Join Date: Jan 2005
Location: San Diego
Posts: 9,923

Bikes: one for everything

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 546 Post(s)
Liked 94 Times in 53 Posts
Offset is for fitting to the bike.

2 bolt design will be best and easier to adjust angle as needed for the rider.
__________________
Rule #10 // It never gets easier, you just go faster.
jsigone is offline
Old 08-09-20, 06:49 AM
  #6
taylorgeo
Senior Member
Thread Starter

Join Date: Jul 2020
Posts: 79
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 11 Times in 10 Posts
Originally Posted by jsigone View Post
Offset is for fitting to the bike.

2 bolt design will be best and easier to adjust angle as needed for the rider.
Would you say a 2-bolt is inherently stronger than a 1-bolt? Seems like more expensive MTB's have a 2-bolt with zero or minimal offset.
taylorgeo is offline
Old 08-09-20, 10:15 AM
  #7
cyclist2000
Senior Member

cyclist2000's Avatar

Join Date: Sep 2009
Location: Up
Posts: 4,305

Bikes: Masi, Giant TCR, Eisentraut (retired), Jamis Aurora Elite, Zullo, Cannondale, 84 Stumpjumper, Waterford, Tern D8, Bianchi, Gunner Roadie, Serotta, and looking for a Brompton M6R

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 235 Post(s)
Liked 1,048 Times in 316 Posts
Originally Posted by taylorgeo View Post
Would you say a 2-bolt is inherently stronger than a 1-bolt? Seems like more expensive MTB's have a 2-bolt with zero or minimal offset.
Strength depends on the construction of the seat post, some are better than others. I just like the 2-bolt because it is easier to zero in the tilt on the saddle. Just make sure the two bolts are orientated front to back not side to side ( I have seen a seatpost with this design).

Last edited by cyclist2000; 08-09-20 at 10:21 AM.
cyclist2000 is offline
Old 08-11-20, 12:32 AM
  #8
jsigone
got the climbing bug

jsigone's Avatar

Join Date: Jan 2005
Location: San Diego
Posts: 9,923

Bikes: one for everything

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 546 Post(s)
Liked 94 Times in 53 Posts
Originally Posted by taylorgeo View Post
Would you say a 2-bolt is inherently stronger than a 1-bolt? Seems like more expensive MTB's have a 2-bolt with zero or minimal offset.
most single bolt seat post have sent grooves and attempts to clamp down on the grooves, as the grooves wear, more force is needed to tighten. With weight and leverage it's easy to pop out of the grooves and you get some slipping, usually these materials are alum and grooved w/ say 0.020" to .040" deep

2 bolt design with one forward and one behind has now shifted that load on the threads of the usually stainless steel M4 to M6 bolt. Yes it's easier to fine tune angle because you're no longer in the mercy of grooves lining up like above.
The 2 bolt design pull on each other at recommended tq setting and I haven't had a seat slip. Even in the event of crashing, the seat goes sideways but the angle is not askew.

Offset has to do with bike fit (getting the knee placed correctly) or you have a really long femur bone than average. If you need longer than 20-25mm like most offer, your bike frame is too small or If you are long boned in the femur, look at Thomson seatpost but won't be cheap.

Seatpost fits the bottom half, stem length fits the top half, but you can't out fit a wrong size bike.
__________________
Rule #10 // It never gets easier, you just go faster.
jsigone is offline
Old 08-11-20, 07:38 AM
  #9
c_m_shooter
Senior Member

c_m_shooter's Avatar

Join Date: Sep 2006
Location: Paradise, TX
Posts: 1,776

Bikes: Soma Pescadero, Surly Pugsley, Salsa Fargo, Schwinn Klunker, Gravity SS

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 84 Times in 64 Posts
The set rails are generally weaker than the seatpost. I see those bend or break long before the seatpost fails most of the time. In 20 years I have had 2 of the single bolt type fail, the splines stripped out and the saddle would not stay level anymore. I loctite the splines and bolt now once I find a good fit. The only post that I have broken off totally was on my old 1953 Schwinn DX. I have a solid bar inside the seatpost for it now. I have not had a 2 bolt clamp fail.
