my fender dilema

Apologies if this has been done, but search is buggered again.

I just got some Freddy Fenders for my commuter* and my 700x25 zaffiros are just rubbing at the brake calipers. I like the 700x25s and a new set of tires would cost the same as the fenders did.

Has anybody butchered Freddy Fenders for caliper clearance? How did it work?

Should I just go ahead and get 700x23s?



*the bike is a Trek 420 and it's design is a mystery to me. It has fender eyelets front and rear and rack eyelets on the back, but no rack bosses on the seat stays and the brake bridge and crown are too low to fit the fenders with anything other than a 23mm tire. Grrr.
huerro is offline
Reply With Quote
Old 02-17-09, 06:20 PM
  #2
positron
Senior Member

Join Date: Mar 2007
Posts: 1,268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I butchered sks fenders for a bike with a similar problem. basically cut them into pieces using a hot xacto knife, then made a bridge to cross above the brake bridge out of aluminum stock from the hardware store, used a layer of innertube to protect the frame. For the front, the fender just extends backwards from the fork crown. the frontwards piece was mounted to a front rack platform i no longer use...

it looks decent enough, and the fenders work really well- but it bugs me. I am going to convert the bike to 650b, since I can run larger tires, and full honjo fenders. This is a particularly classy vintage lightweight lugged rando-bike, so its worth it to me. But for a more purely utilitarian situation, 'splitting' the fenders can work well.
positron is offline
Reply With Quote
Old 02-17-09, 08:32 PM
  #3
huerro
Villainous
Thread Starter

huerro's Avatar

Join Date: Sep 2006
Location: Austin
Posts: 1,894

Bikes: Trek 420, Cyclops

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks. did you just drill the fender and bolt on the bridge?
huerro is offline
Reply With Quote
Old 02-18-09, 07:51 AM
  #4
dynaryder
PatronSaintOfDiscBrakes

dynaryder's Avatar

Join Date: Apr 2005
Location: BicycleSPACE warehouse in SW Washington DC
Posts: 6,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
I didn't know what a 420 was,so I Googled it and found this:
http://www.cyclofiend.com/cc/2006/cc...icnye0706.html


Is that close to your model? He's running some skinny SKS's on there with 1 1/4" tires;PB also makes 'road' width Hardcore fenders that are pretty skinny. Which fenders are you using? You should be able to cut reliefs in the edges of the fenders where they pass through the calipers,then drop the wheels and slide the fenders up in to mount them. Also looks like this guy mounted his rack to the brake mount. Axiom makes racks like this for CF/road frames. There was also a recent thread about seatpost collars with rack mounts on them.
__________________

C'dale BBU('05 and '09)/Super Six/Hooligan8and 3,Kona Dew Deluxe,Novara Buzz/Safari,Surly Big Dummy,Marin Pt Reyes,Giant Defy 1,Schwinn DBX SuperSport,Dahon Speed Pro TT,Brompton S6L/S2E-X
dynaryder is offline
Reply With Quote
Old 02-18-09, 08:05 AM
  #5
AEO
Senior Member

AEO's Avatar

Join Date: Jun 2007
Location: A Coffin Called Earth. or Toronto, ON
Posts: 12,258

Bikes: Bianchi, Miyata, Dahon, Rossin

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
the freddy fenders are made from polycarbonate. they melt at 130C, or about 265F
you can reshape them at that temperature.
__________________
Food for thought: if you aren't dead by 2050, you and your entire family will be within a few years from starvation. Now that is a cruel gift to leave for your offspring. ;)
http://sanfrancisco.ibtimes.com/arti...ger-photos.htm
AEO is offline
Reply With Quote
Old 02-18-09, 08:59 AM
  #6
positron
Senior Member

Join Date: Mar 2007
Posts: 1,268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by huerro View Post
Thanks. did you just drill the fender and bolt on the bridge?
exactly, cut them, drilled two tiny holes, used two tiny machine screws with stopnuts.
positron is offline
Reply With Quote
Old 02-18-09, 10:13 AM
  #7
Sawtooth
All Bikes All The Time

Sawtooth's Avatar

Join Date: Feb 2005
Location: Boise, ID
Posts: 2,343

Bikes: Giant TCR 0, Lemond Zurich, Giant NRS 1, Jamis Explorer Beater/Commuter, Peugeot converted single speed

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by positron View Post
I butchered sks fenders for a bike with a similar problem. basically cut them into pieces using a hot xacto knife, then made a bridge to cross above the brake bridge out of aluminum stock from the hardware store, used a layer of innertube to protect the frame. For the front, the fender just extends backwards from the fork crown. the frontwards piece was mounted to a front rack platform i no longer use...

it looks decent enough, and the fenders work really well- but it bugs me. I am going to convert the bike to 650b, since I can run larger tires, and full honjo fenders. This is a particularly classy vintage lightweight lugged rando-bike, so its worth it to me. But for a more purely utilitarian situation, 'splitting' the fenders can work well.
Got any PICS?
Sawtooth is offline
Reply With Quote
Old 02-18-09, 10:15 AM
  #8
Sawtooth
All Bikes All The Time

Sawtooth's Avatar

Join Date: Feb 2005
Location: Boise, ID
Posts: 2,343

Bikes: Giant TCR 0, Lemond Zurich, Giant NRS 1, Jamis Explorer Beater/Commuter, Peugeot converted single speed

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
River City Cycles in Portland splits them all the time with some proprietary hardware that I am not sure if they sell or not... (They used to sell it for about $20)
Here are some great pics... http://www.rivercitybicycles.com/mod...105&page_id=58

Last edited by Sawtooth; 02-18-09 at 10:24 AM.
Sawtooth is offline
Reply With Quote
Old 02-18-09, 10:17 AM
  #9
Sawtooth
All Bikes All The Time

Sawtooth's Avatar

Join Date: Feb 2005
Location: Boise, ID
Posts: 2,343

Bikes: Giant TCR 0, Lemond Zurich, Giant NRS 1, Jamis Explorer Beater/Commuter, Peugeot converted single speed

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I have chopped mine at the front and zip tied it to meet the fork crown from behind (I don't run them rear round). There is no fender coming out the front of the fork. For the rear, I simply run it over the top of the cantilever brake and zip tie the mother down. Works for me.
Sawtooth is offline
Reply With Quote
Old 02-18-09, 10:21 AM
  #10
Sawtooth
All Bikes All The Time

Sawtooth's Avatar

Join Date: Feb 2005
Location: Boise, ID
Posts: 2,343

Bikes: Giant TCR 0, Lemond Zurich, Giant NRS 1, Jamis Explorer Beater/Commuter, Peugeot converted single speed

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by AEO View Post
the freddy fenders are made from polycarbonate. they melt at 130C, or about 265F
you can reshape them at that temperature.
Dang!!! Wish I had thought of that before I bent mine into oblivion (ugly, but still serviceable).
Attached Images
File Type: jpg
Kona by Snow Fort Oblique.jpg (96.2 KB, 46 views)
File Type: jpg
Kona and Snow Fort.jpg (98.9 KB, 34 views)
Sawtooth is offline
Reply With Quote
Old 02-18-09, 10:33 AM
  #11
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Near Sublimity Orygun
Posts: 4,761

Bikes: Still have a few left!

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 297 Post(s)
When the Zefal front fender on my Torelli shattered from a picked up stick, my LBS gave me a Freddie fender. I cut it just in front of the "L" mount & installed the back half normally. I drilled a couple holes in the front piece & zip tied it in place below the brake caliper. No problems for several thousand miles. This is the only pic I have handy.
Attached Images
File Type: jpg
ollo_ollo is offline
Reply With Quote
Old 02-18-09, 10:43 AM
  #12
Sawtooth
All Bikes All The Time

Sawtooth's Avatar

Join Date: Feb 2005
Location: Boise, ID
Posts: 2,343

Bikes: Giant TCR 0, Lemond Zurich, Giant NRS 1, Jamis Explorer Beater/Commuter, Peugeot converted single speed

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by ollo_ollo View Post
When the Zefal front fender on my Torelli shattered from a picked up stick, my LBS gave me a Freddie fender. I cut it just in front of the "L" mount & installed the back half normally. I drilled a couple holes in the front piece & zip tied it in place below the brake caliper. No problems for several thousand miles. This is the only pic I have handy.
Interesting...how did you support the weight of the front portion of the zip-tied part (not sure if that makes sense)? How did you keep the front peice from drooping toward the tire?
Sawtooth is offline
Reply With Quote
Old 02-18-09, 12:58 PM
  #13
huerro
Villainous
Thread Starter

huerro's Avatar

Join Date: Sep 2006
Location: Austin
Posts: 1,894

Bikes: Trek 420, Cyclops

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by dynaryder View Post
I didn't know what a 420 was,so I Googled it and found this:

Is that close to your model? He's running some skinny SKS's on there with 1 1/4" tires;PB also makes 'road' width Hardcore fenders that are pretty skinny. Which fenders are you using? You should be able to cut reliefs in the edges of the fenders where they pass through the calipers,then drop the wheels and slide the fenders up in to mount them. Also looks like this guy mounted his rack to the brake mount. Axiom makes racks like this for CF/road frames. There was also a recent thread about seatpost collars with rack mounts on them.

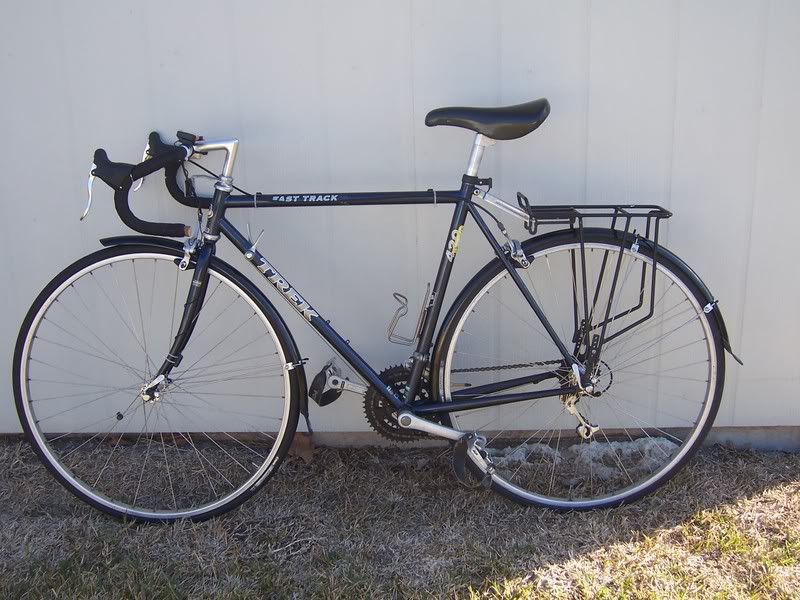

Mine's nowhere near as nice as that. Sadly, it's this guy (although the specs are wrong there): http://www.bikepedia.com/QuickBike/B...=420&Type=bike

I connected the rack to the seatpost binder which seems to work fine. It's just a silly design though.

I'm running the narrowest freddy's and the width isn't the problem, it's that the distance from the brake bridge and fork crown to the hub is too small. I would actually need to cut out the center of the fenders so that I can raise them a few mm. I'll probably just end up splitting them and doing the bridge. Thanks for that link Sawtooth.

I'll post some pics of my solution. Had to drop the puppy at the groomers today so I took the car in anyway.
huerro is offline
Reply With Quote
Old 02-18-09, 10:38 PM
  #14
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Near Sublimity Orygun
Posts: 4,761

Bikes: Still have a few left!

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 297 Post(s)
"How did you keep the front peice from drooping toward the tire?"

Apparently there isn't enough weight for it to droop, or possibly the zip holds the fender piece tightly enough to the bottom of the brake caliper that it cannot droop. It sometimes gets slightly out of line with the tire but is easy enough to adjust right back. I will get a close-up picture & post it soon. Don
ollo_ollo is offline
Reply With Quote
Old 02-19-09, 01:58 PM
  #15
Silverexpress
Senior Member

Silverexpress's Avatar

Join Date: Sep 2005
Location: Berkley, Michigan
Posts: 609

Bikes: Commuter(s), MTB(s), bent(s), folder(s) and a road.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Originally Posted by Sawtooth View Post
River City Cycles in Portland splits them all the time with some proprietary hardware that I am not sure if they sell or not... (They used to sell it for about $20)
Here are some great pics... http://www.rivercitybicycles.com/mod...105&page_id=58
These brackets are nothing more than the brackets used for rear racks. Go to a few LBS' and ask if they have any extras in their bins. Take a pair of pliers and a vise to em and wal'la.
Silverexpress is offline
Reply With Quote
Old 02-19-09, 02:25 PM
  #16
positron
Senior Member

Join Date: Mar 2007
Posts: 1,268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by Silverexpress View Post
These brackets are nothing more than the brackets used for rear racks. Go to a few LBS' and ask if they have any extras in their bins. Take a pair of pliers and a vise to em and wal'la.
Yeah, I don't have any PICS, but that is the exact solution i came up with... (see the aforementioned link) I made mine with a piece of alu stock, hacksaw and a drill, and they are much lower profile (and more elegant) than the ones in the link pics. Exactly the same idea though.

incidently, if i want to post a pic, i have to host it somewhere, correct? then what do i do?
positron is offline
Reply With Quote
Old 02-19-09, 03:30 PM
  #17
Silverexpress
Senior Member

Silverexpress's Avatar

Join Date: Sep 2005
Location: Berkley, Michigan
Posts: 609

Bikes: Commuter(s), MTB(s), bent(s), folder(s) and a road.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Originally Posted by positron View Post
Yeah, I don't have any PICS, but that is the exact solution i came up with... (see the aforementioned link) I made mine with a piece of alu stock, hacksaw and a drill, and they are much lower profile (and more elegant) than the ones in the link pics. Exactly the same idea though.

incidently, if i want to post a pic, i have to host it somewhere, correct? then what do i do?
Do a reply with qoute to this post of mine, and when the "Message" box appears scroll down to "Manage Attachments". There is a limit to the size of any attachment, so if you need to go to this site and resize your pics before you post them...

http://www.picresize.com/
Silverexpress is offline
Reply With Quote
Old 02-20-09, 04:36 PM
  #18
huerro
Villainous
Thread Starter

huerro's Avatar

Join Date: Sep 2006
Location: Austin
Posts: 1,894

Bikes: Trek 420, Cyclops

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

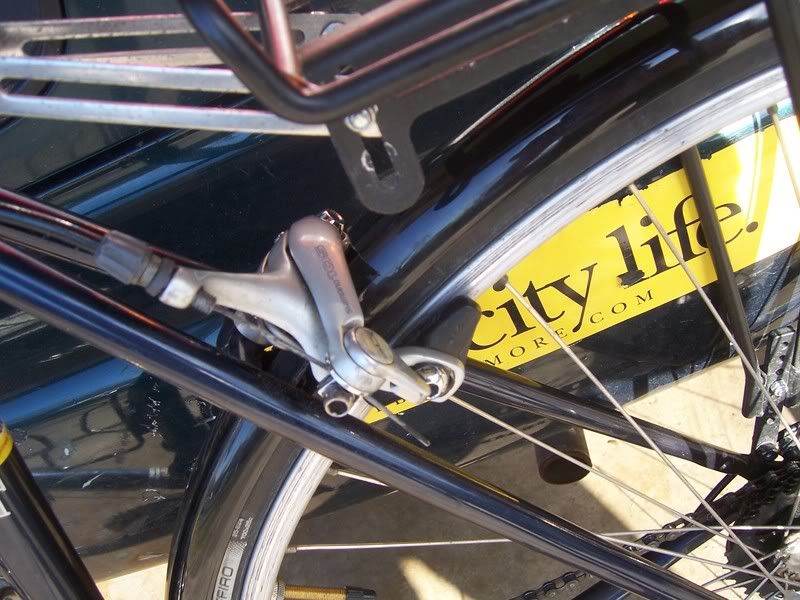

A little surgery with the dremel and a hacksaw seems to have solved the problem nicely. No extra hardware needed. The hole in the back is a little bigger than it needed to be, but the front is just about perfect.


huerro is offline
Reply With Quote
Old 02-20-09, 10:42 PM
  #19
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Near Sublimity Orygun
Posts: 4,761

Bikes: Still have a few left!

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 297 Post(s)
Sorry I'm late with the promised pics, I sold our old washer/dryer and my old table saw on Craigs list today & got sidetracked loading everyone up & getting them out of here. Here are the pics of my cut & zip tied fender. Harder than I thought to take a picture of black zip tie on black fender! I hope these help & encourage anyone else to try this simple solution. The rear half sits above the bottom of the fork crown & the front piece is tight against bottom of brake caliper. Don
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
