Stems - Adjustable vs Fixed (Need higher rise)

Notices
Cyclocross and Gravelbiking (Recreational) This has to be the most physically intense sport ever invented. It's high speed bicycle racing on a short off road course or riding the off pavement rides on gravel like : "Unbound Gravel". We also have a dedicated Racing forum for the Cyclocross Hard Core Racers.

Stems - Adjustable vs Fixed (Need higher rise)

Old 01-17-22, 05:53 PM
  #1
Noonievut
Senior Member
Thread Starter

Join Date: Sep 2009
Posts: 791
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 119 Times in 75 Posts
Stems - Adjustable vs Fixed (Need higher rise)

Almost got the fit on new gravel bike dialed in and last issue to resolve is that the bar drop is too low and with a 6 degree stem (rise), sitting just below the top of the carbon steerer tube, Iíve realized I need more rise as I canít go higher. I wish the manufacturer / shop would have left it uncut, as I only have 20 mm of spacers.

Ritchey has both adjustable and fixed stems. Unless I can calculate how much degree rise I need, Iím wondering if the adjustable is the way to go. Any experience with these? I would need one around 110-120mm (110 stem currently gives the right reach, not sure how more Ďriseí affects this).

I want the bars up about 2-3cm.
Noonievut is offline
Old 01-17-22, 06:14 PM
  #2
shelbyfv
Senior Member

shelbyfv's Avatar

Join Date: Jun 2007
Location: TN
Posts: 10,039
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2970 Post(s)
Liked 3,754 Times in 1,931 Posts

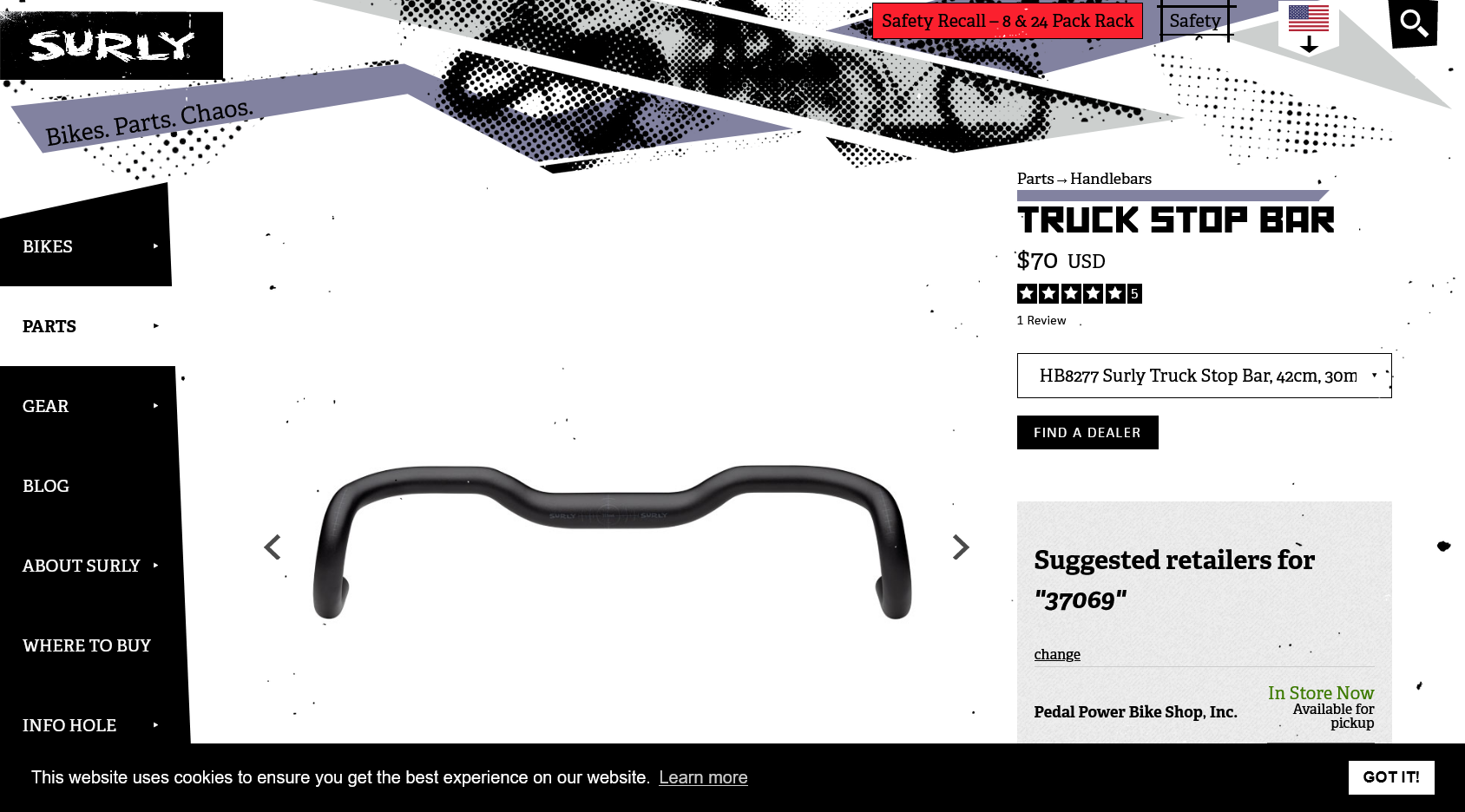

You don't want a goofy adjustable stem. Something like the Surly Truckstop bar will give you 30mm w/o looking too weird. https://surlybikes.com/parts/truck_stop_bar Specialized has something similar with less rise and less $.

shelbyfv is offline
Likes For shelbyfv:
Old 01-17-22, 06:40 PM
  #3
cyclezen
OM boy

cyclezen's Avatar

Join Date: Jul 2005
Location: Goleta CA
Posts: 3,724

Bikes: a bunch

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 269 Post(s)
Liked 264 Times in 186 Posts
and...
a great tool to calc what stem you'd need/like to create the difference
The Habanero Stem Chart
and you won;t have to deal with an adjustable - adjustable is nice as a temporary install to get a 'feel', but you won;t get the 'reach' without calc-ing the length & rise/angle diff.
hence the chart...
Ride On
Yuri
cyclezen is online now
Old 01-17-22, 07:13 PM
  #4
dwmckee
Senior Member

dwmckee's Avatar

Join Date: Jun 2008
Location: Pittsburgh, PA
Posts: 2,390

Bikes: Co-Motion Cappuccino Tandem,'88 Bob Jackson Touring, Co-Motion Cascadia Touring, Open U.P., Ritchie Titanium Breakaway, Frances Cycles SmallHaul cargo bike. Those are the permanent ones; others wander in and out of the stable occasionally as well.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 388 Post(s)
Likes: 0
Liked 306 Times in 203 Posts
Adjustable stems are horrible; they loosen and squeak and really never work out well long term. Ritchey Ergommax handlebars have a 20 - 25MM rise (like the Surly) from the stem height and it will not look as goofy as a 30 degree 'hybrid-type' stem.
This is a great stem calculation tool we use at our shop for comparing stem angles and lengths: Stem Comparison Tool | yojimg.net
dwmckee is offline
Likes For dwmckee:
Old 01-17-22, 07:25 PM
  #5
Noonievut
Senior Member
Thread Starter

Join Date: Sep 2009
Posts: 791
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 119 Times in 75 Posts
Thanks for the tips re handlebars. Didnít think of that
Noonievut is offline
Old 01-18-22, 03:28 PM
  #6
Rolla
Victimless Criminal

Rolla's Avatar

Join Date: Sep 2020
Posts: 2,172
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 963 Post(s)
Liked 2,251 Times in 1,014 Posts
Originally Posted by Noonievut View Post
Unless I can calculate how much degree rise I need, I’m wondering if the adjustable is the way to go. Any experience with these? I would need one around 110-120mm (110 stem currently gives the right reach, not sure how more ‘rise’ affects this).
For a given length stem, a higher rise results in a slightly shorter reach. This stem comparison tool can be helpful, but most riders eventually accumulate a drawer full of trial-and-error stems anyway.

You might want to ask at your local shop if they have any "lenders" you can try out; there's really no substitute for a few long test rides to determine what works best.
Rolla is offline
Likes For Rolla:
Old 01-19-22, 10:40 AM
  #7
pbass
Senior Member

Join Date: Sep 2012
Location: SoCal
Posts: 1,098

Bikes: 2016 Surly Cross Check singlespeed, 2019 Kona Rove ST

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 251 Post(s)
Liked 251 Times in 174 Posts
Originally Posted by dwmckee View Post
Adjustable stems are horrible; they loosen . . . .
I always wondered about these - have one bike I'm always messing with - different bars, stems. But I ride lots of rough stuff and I don't think I could ever trust one of those.
pbass is offline
Old 01-19-22, 05:39 PM
  #8
dwmckee
Senior Member

dwmckee's Avatar

Join Date: Jun 2008
Location: Pittsburgh, PA
Posts: 2,390

Bikes: Co-Motion Cappuccino Tandem,'88 Bob Jackson Touring, Co-Motion Cascadia Touring, Open U.P., Ritchie Titanium Breakaway, Frances Cycles SmallHaul cargo bike. Those are the permanent ones; others wander in and out of the stable occasionally as well.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 388 Post(s)
Likes: 0
Liked 306 Times in 203 Posts
Originally Posted by pbass View Post
I always wondered about these - have one bike I'm always messing with - different bars, stems. But I ride lots of rough stuff and I don't think I could ever trust one of those.
They are best left to hybrid riding on rail trails...That is not a bad thing, you just need to use parts for what they are designed for. Adjustable stems often do not hold up for longer miles and where you have more weight and stresses on the bars.
dwmckee is offline
