Give away or fix? Torker electric bike

I would appreciate some advice. Iím a small town lawyer working on liquidation of some property for a friend and client who is now in a senior center. There is an electric bike, a Torker, and I canít find the battery, charger, or key anywhere. My friend wouldnít be able to help locate it and her husband died a few years back.

Is the bike worth anything as is, or should I give it away? If it is a giveaway situation, Iíd prefer someone on the forum get it. Weíre located in Waynesboro, Virginia.

Thanks very much.


Fairview is offline
Old 07-30-18, 03:26 AM
  #2
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,052
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14437 Post(s)
Liked 2,422 Times in 1,806 Posts
I'd hold onto it as you clean the house to see if the battery shows up. However, if it belonged to the deceased husband, the battery could be long gone, or dead by now.

It appears as if a new replacement battery is about $400 to $500, but probably not a good deal for you unless you wish to actually use the bike.

The bike probably could be sold for around $200 as-is. But, an option is also to see if there is a local bike co-op that will take it as a donation. Or, of course, various thrift stores (just make sure they don't throw it out with the trash).
CliffordK is online now
Old 08-01-18, 09:42 AM
  #3
Fairview
Senior Member
Thread Starter

Join Date: Jul 2012
Location: Virginia
Posts: 184

Bikes: 1971 and 1972 Schwinn Paramount

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 16 Times in 7 Posts
Thanks Clifford, good advice, we just found the battery and charger in a hall closet. I’ll post how it responds to a recharge and air in the tires. Looks like it’s been sleeping for quite a while. Jeff
Fairview is offline
Old 08-01-18, 10:33 AM
  #4
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,052
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14437 Post(s)
Liked 2,422 Times in 1,806 Posts
It sounds like you have some fun coming up ahead of yourself.

My guess is the battery was kept somewhere for charging. Kitchen? Then when the bike stopped being used, the battery just got stuffed in the closet.

I see prices all over the board on used E-Bikes. I haven't paid a lot of attention to them, but having a nice commercially produced product should be a benefit.

Still, if it is several years old, it may not go for as much as one might hope.
CliffordK is online now
Old 08-01-18, 02:09 PM
  #5
2old
Senior Member

Join Date: Jul 2014
Location: socal
Posts: 3,015
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 565 Post(s)
Liked 347 Times in 257 Posts
Looks like a pretty solid, clean bike. AFAICT, this was a 24V system, so a replacement battery (check Leeds) might not be too expensive assuming you can connect it to the controller (might be easy to locate the red & black wires from the controller). Then, you would have an inexpensive 15 mph bike.
2old is offline
Old 08-02-18, 06:30 PM
  #6
Fairview
Senior Member
Thread Starter

Join Date: Jul 2012
Location: Virginia
Posts: 184

Bikes: 1971 and 1972 Schwinn Paramount

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 16 Times in 7 Posts
Yes, hallway closet! Clifford you are Sherlock Holmes of the bike world. 2old, I think it did say 24 volts on the battery or it may have said 29.4 but that doesn’t seem to make sense does it?

Haven’t been back out there since the charging started, but hope to have a full report by this weekend.
Fairview is offline
Old 08-02-18, 06:49 PM
  #7
2old
Senior Member

Join Date: Jul 2014
Location: socal
Posts: 3,015
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 565 Post(s)
Liked 347 Times in 257 Posts
F, 29.4 probably is correct if it's 7s (seven batteries in series), since each charges to 4.2 volts; 7 X 4.2 = 29.4.
2old is offline
Old 08-02-18, 07:44 PM
  #8
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,052
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14437 Post(s)
Liked 2,422 Times in 1,806 Posts
Originally Posted by Fairview View Post
Yes, hallway closet! Clifford you are Sherlock Holmes of the bike world.
You did mention the closet!

But, there is likely a logical reason why it got separated from the bike.

It really depends on how the battery is configured. If it is designed to slide into a slot to engage/disengage, then you could wire in a replacement battery from Alibaba, but it would be clunky.

If your battery pack is bad, then it would be better to rebuild.

There would have to be battery shops that rebuild that kind of thing, or perhaps it would be easy enough to see how it comes apart and goes together once you open it up.

Still crossing my fingers that you report back that the battery is good and you took it out for a 30 mile flawless ride.
CliffordK is online now
Old 08-04-18, 05:49 AM
  #9
Fairview
Senior Member
Thread Starter

Join Date: Jul 2012
Location: Virginia
Posts: 184

Bikes: 1971 and 1972 Schwinn Paramount

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 16 Times in 7 Posts
I put the charger on the battery for a full 24 hours and the battery is completely dead. I did check to see that the charger is working. The charger box had a note on it dated 2011,so I have a hunch that the battery is even older than 2011.

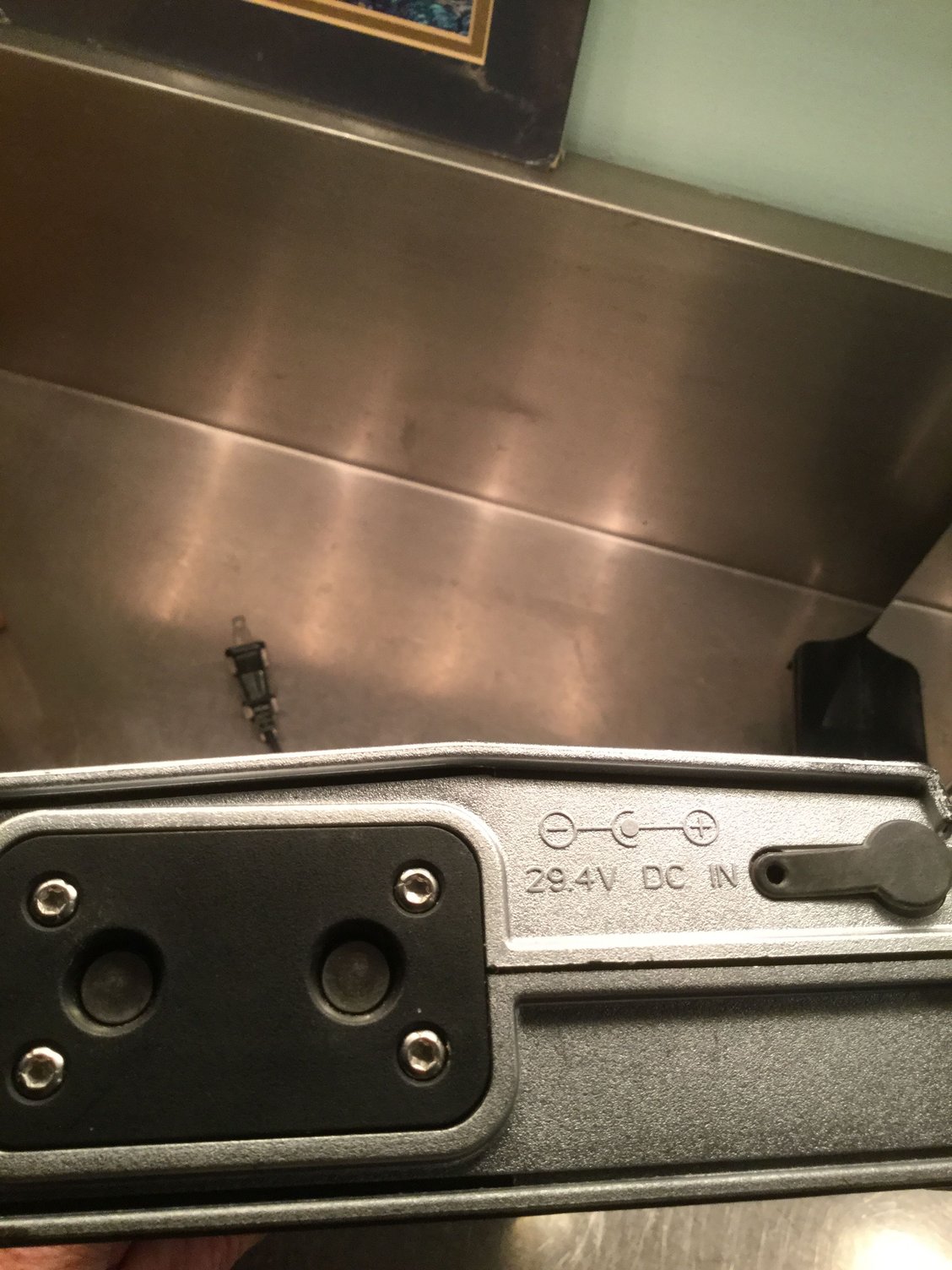

Here are are photos of the battery. From a search, it looks like this particular battery is no longer available. What do you think is the best course from here?

Thanks very much.





Last edited by Fairview; 08-04-18 at 06:15 AM.
Fairview is offline
Old 08-04-18, 07:52 AM
  #10
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,052
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14437 Post(s)
Liked 2,422 Times in 1,806 Posts
By searching the numbers above, one gets quite a few hits to batteries. Mostly German companies.

BP-L2410sh1
https://batterie24.de/Protanium-BP-L...tausch?number=

https://www.akkukaputt.de/epages/201...ts/301020-0015

https://www.alibaba.com/product-deta...260171662.html

Volts (26.6 VDC), is important, of course.

It looks like the batteries come in several different Amp Hour ratings. From that German site, you have from 11.6 to 17.5 AH.

If I was buying it to use, I'd go for the 17.5 AH version. Longer distances, and perhaps greater longevity of the battery pack.

It never hurts to ask the Alibaba vendor for pricing of one.
CliffordK is online now
Old 08-04-18, 08:35 AM
  #11
dilkes
Senior Member

Join Date: Jun 2013
Posts: 224
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 1 Time in 1 Post
In case you haven't seen it, here is a very old review of that bike so you would know what you get if you do go ahead with battery replacement.
Torker Review

Somewhat slow (24V) by current standards but perhaps a classic?
dilkes is offline
Old 08-04-18, 01:28 PM
  #12
2old
Senior Member

Join Date: Jul 2014
Location: socal
Posts: 3,015
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 565 Post(s)
Liked 347 Times in 257 Posts
Two things:

1) Some controllers that are supplied with 24 volt systems are capable of higher wattage. Should you want to go faster than 15 mph, you might try to open yours to determine the maximum (or you may find it from literature on the product.

2) If you can locate the positive and negative wires from your controller, you can solder or crimp a connector XT-60, XT-90, or many others on these wires and use another battery. Leeds had 24V batteries for as little as $199 AFAICR.
2old is offline
Old 08-04-18, 01:46 PM
  #13
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,052
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14437 Post(s)
Liked 2,422 Times in 1,806 Posts
You might contact some local battery shops to see if they'll rebuild. If it was me, I'd open it up to see what is inside. There probably are pretty standard batteries that can be replaced, although they may require some soldering.
CliffordK is online now
Old 08-05-18, 05:09 AM
  #14
Fairview
Senior Member
Thread Starter

Join Date: Jul 2012
Location: Virginia
Posts: 184

Bikes: 1971 and 1972 Schwinn Paramount

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 16 Times in 7 Posts
Just saying thanks for you all helping me with this! You’re great. I’ll let you know where this lands.

Jeff
Fairview is offline
Old 08-06-18, 04:47 AM
  #15
Fairview
Senior Member
Thread Starter

Join Date: Jul 2012
Location: Virginia
Posts: 184

Bikes: 1971 and 1972 Schwinn Paramount

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 16 Times in 7 Posts
Back already.. would you mind looking at this battery’s specifications to see if it’s something compatible electrically? https://www.monsterscooterparts.com/...k-charger.html

Thanks very much.

Jeff
Fairview is offline
Old 08-07-18, 09:11 AM
  #16
Fairview
Senior Member
Thread Starter

Join Date: Jul 2012
Location: Virginia
Posts: 184

Bikes: 1971 and 1972 Schwinn Paramount

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 16 Times in 7 Posts
Originally Posted by Fairview View Post
Back already.. would you mind looking at this batteryís specifications to see if itís something compatible electrically? https://www.monsterscooterparts.com/...k-charger.html

Thanks very much.

Jeff
Please donít tell me now, itís too late, I just ordered it!
Fairview is offline
Old 08-12-18, 03:50 PM
  #17
Fairview
Senior Member
Thread Starter

Join Date: Jul 2012
Location: Virginia
Posts: 184

Bikes: 1971 and 1972 Schwinn Paramount

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 16 Times in 7 Posts
I am happy to report that I’ve got the bike up and running. It is working fine and is fun to ride, though a very different experience compared to my wife’s Verve+. The sales information and owner’s manual show a sales date of 2011, so is something of a senior citizen as an e-bike.

The battery is just strapped to the rack for now. It is 24v and 20ah, and is thicker than the defunct original battery, which was 10ah. I wired the new battery into the original controller, and it seems to work just fine, though is probably more battery than I really need. It looks mighty big in the photo, but in reality is not much more than the original.

Thanks for the advice! Glad I didn’t give up on it.




Fairview is offline
Old 12-10-18, 10:54 PM
  #18
BrocLuno
Senior Member

BrocLuno's Avatar

Join Date: Nov 2018
Location: Kalifornia Kollective
Posts: 348

Bikes: K2 (Marzocchi/Fox), Trek 6000 (red) MARS Elite up front, Specialized Hardrock Sport -> eBike (R7 Elite up front), lastly TREK 820 loaner. Recently sold Peugeot du Monde Record and 1956 Schwinn (owned since new).

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Thumbs up

Nice

If you still have the OEM battery, it can be rebuilt with new cells. Maybe even a bit more capacity. It'll fit the rack slot and that would be cool
BrocLuno is offline
Old 12-13-18, 10:47 PM
  #19
lkoyanagi
Senior Member

Join Date: Mar 2018
Posts: 97

Bikes: Tern D7e

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 5 Times in 3 Posts
Originally Posted by Fairview View Post
I would appreciate some advice. Iím a small town lawyer working on liquidation of some property for a friend and client who is now in a senior center. There is an electric bike, a Torker, and I canít find the battery, charger, or key anywhere. My friend wouldnít be able to help locate it and her husband died a few years back.

Is the bike worth anything as is, or should I give it away? If it is a giveaway situation, Iíd prefer someone on the forum get it. Weíre located in Waynesboro, Virginia.

Thanks very much.


Wait for the battery to show up. Key is with battery, key hook or on his keyring to start.

Any person buying as is can ride it or convert it to standard bike.
lkoyanagi is offline
Old 01-25-19, 06:56 PM
  #20
powell
Senior Member

Join Date: Aug 2011
Location: Western Canada
Posts: 666

Bikes: E+ kit, BIONX

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
very bad place for the battery
you cannot cheat laws of physics center pf gravity that high!!
there is so much room on the frame for battery placement.
powell is offline
