Connector type

Old 11-06-19, 09:42 PM
  #1
Bigbadjohn
Senior Member
Thread Starter

Join Date: Sep 2014
Posts: 96
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 1 Time in 1 Post
Connector type

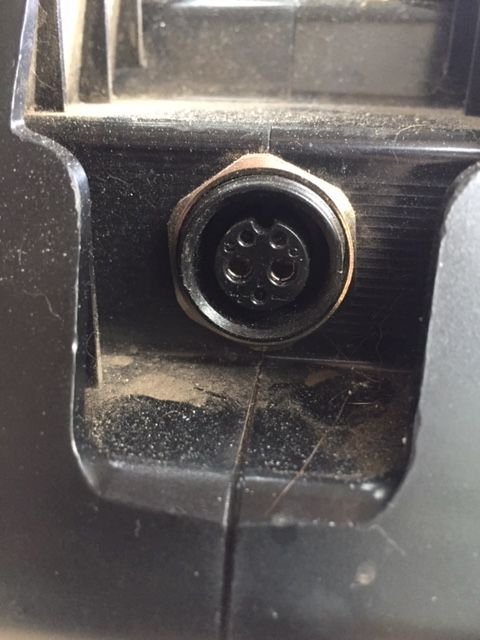

Does anybody know this connection type it's on the 48 V battery



Last edited by Bigbadjohn; 11-07-19 at 10:47 AM. Reason: make better
Bigbadjohn is offline
Old 11-07-19, 01:27 PM
  #2
MNebiker
Senior Member

Join Date: Jul 2018
Location: MN
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 21 Times in 14 Posts
I think it is generally called an "aviation connector." Search on eBay, Amazon, Aliexpress, etc.
MNebiker is offline
Old 11-08-19, 01:43 PM
  #3
Frankenbike27
Junior Member

Join Date: May 2019
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've seen this before! i think it was on a mike that plugs into a CB radio from the 70's. just a guess. pretty sure Radio Shack (the source) might have something
Frankenbike27 is offline
Old 11-08-19, 11:32 PM
  #4
Doc_Wui
Senior Member

Doc_Wui's Avatar

Join Date: Jul 2015
Location: Chicago Suburbs
Posts: 823

Bikes: GT Transeo & a half dozen ebike conversions.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked 9 Times in 7 Posts
The problem is most mike plugs that look like this have four equal size prongs. Two small and two large doesn't come up in searches.
Doc_Wui is offline
Old 11-09-19, 04:04 PM
  #5
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,668
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 85 Times in 72 Posts
"mic plugs" or DIN plugs look like this. This must be a high power version. but it could well be proprietary. Not seeing anything like this on a search for "high power din plug" so I'm stumped
unterhausen is offline
Old 11-10-19, 11:37 AM
  #6
allan6344
Senior Member

Join Date: Jun 2006
Location: Seattle, WA
Posts: 131
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Try www.mouser.com. They had the Rosenberger connector for my Specialized Turbo (a link to the specific connector was posted on another site). You might need to look for a P/N on the mating connector on the bike side to find it.
