52V, 4 ah Battery

Notices
Electric Bikes Here's a place to discuss ebikes, from home grown to high-tech.

52V, 4 ah Battery

Old 06-06-20, 10:35 AM
  #1
2old
Senior Member
Thread Starter

Join Date: Jul 2014
Location: socal
Posts: 2,322
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Liked 165 Times in 120 Posts
52V, 4 ah Battery

Procured battery for shorter rides or a spare for longer ones. Arrived yesterday (14s, 1p, 21800 cells, $195 including tax, free shipping). Charged it for BBS02 system and went on an eight mile off road ride. Final voltage was 52.0 suggesting that 40% of capacity (1.6 ah) was consumed, so used about 10 wh per mile.There's a voltage meter on my display, so won't allow it to go below 45V or so (20%). The battery is approximately 3" X 3" X 5" and 3 or so pounds (will weigh someday) and fits nicely with lots of insulation in a seat bag. Pictures soon.
2old is offline
Old 06-06-20, 09:17 PM
  #2
2old
Senior Member
Thread Starter

Join Date: Jul 2014
Location: socal
Posts: 2,322
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Liked 165 Times in 120 Posts

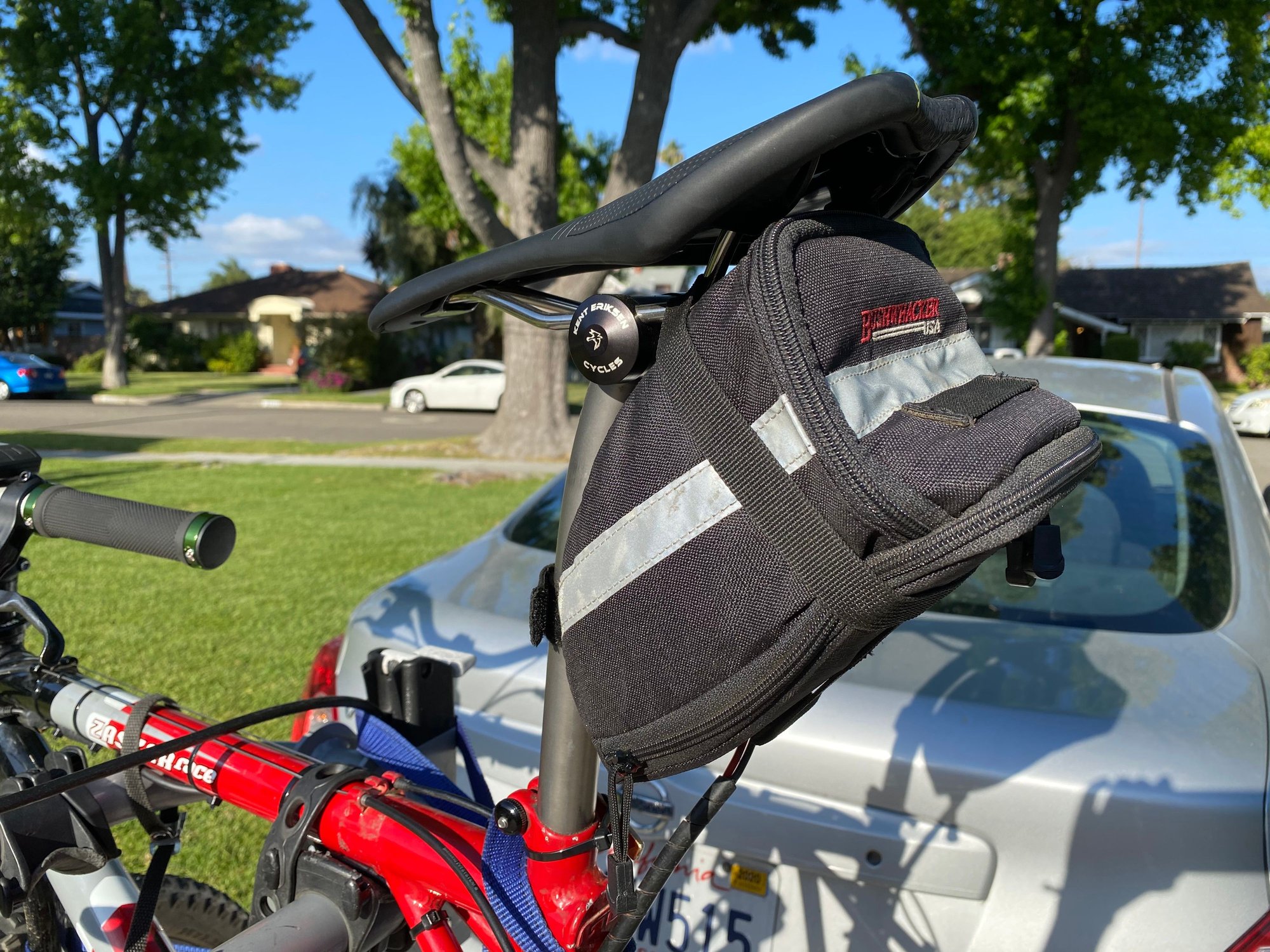

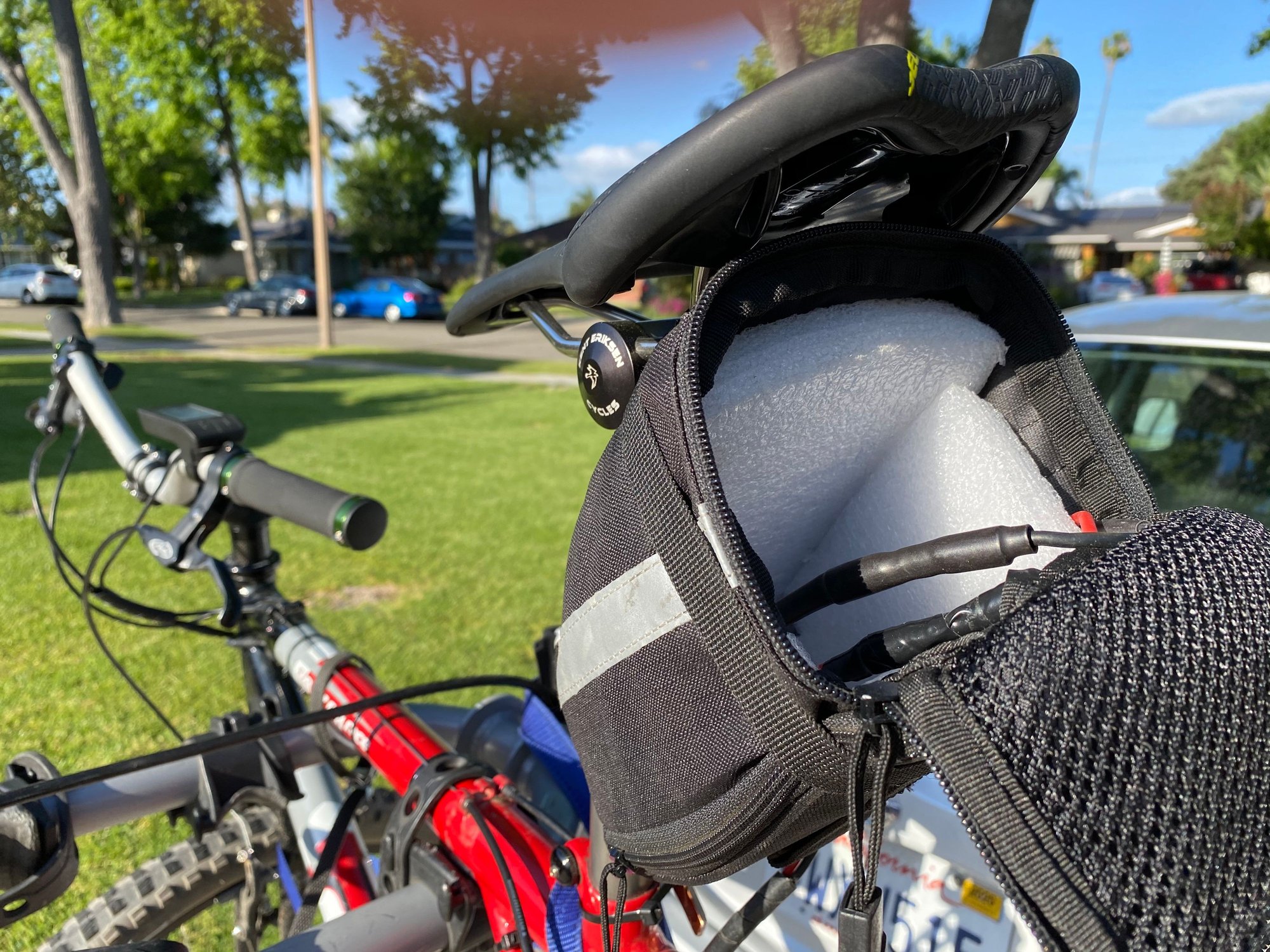

Pictures of seat bag and battery enclosure if anyone is interested. I'm figuring 10 wh per mile for off road, so the battery should be sufficient for 15 mile 2,000' - 3,000' ascent rides.

2old is offline
Old 06-08-20, 03:40 PM
  #3
Bluesfrog
Senior Member

Join Date: Jul 2019
Posts: 142
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 19 Times in 18 Posts
Two could be wired in parallel??? You have that much room in the bag don't you? Be Well, Bluesfrog
Bluesfrog is offline
Old 06-08-20, 08:00 PM
  #4
2old
Senior Member
Thread Starter

Join Date: Jul 2014
Location: socal
Posts: 2,322
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Liked 165 Times in 120 Posts
It will accommodate only one, but there's room for a lot of insulation which (to me) is important for fairly severe off road conditions..

Last edited by 2old; 06-08-20 at 08:06 PM.
2old is offline
Old 06-15-20, 03:46 PM
  #5
chas58
Senior Member

chas58's Avatar

Join Date: Jul 2010
Location: Michigan
Posts: 4,339

Bikes: too many of all kinds

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 978 Post(s)
Liked 223 Times in 179 Posts
Interesting. where did you get it from?
What the heck kind of cell gives 4AH at 1p? Do you know what is inside?
I'm slightly skeptical, but battery power density is always getting better and better.
chas58 is offline
Old 06-16-20, 12:03 PM
  #6
2old
Senior Member
Thread Starter

Join Date: Jul 2014
Location: socal
Posts: 2,322
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Liked 165 Times in 120 Posts
Look on ebay for 52V, 4 ah; if you can't locate it there I'll look up my paperwork. Thought you were the one who first talked about the 21800 cells which are its composition (14s, 1p). The 21800 (21 mm diameter, 80 mm length) may be the "new" size.
2old is offline
Old 06-18-20, 05:38 PM
  #7
2old
Senior Member
Thread Starter

Join Date: Jul 2014
Location: socal
Posts: 2,322
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Liked 165 Times in 120 Posts
Tested out the battery today. Charged to 58.8V, then rode 10 miles (16.7 km) on flat ground level 3 (of 9) on my BBS02-powered MTB. Averaged about 10 mph around neighborhood on flat ground, no wind, 180 pound rider, 45 pound bike. Used about 104 wh, so around 10 wh per mile. Tomorrow will test on 10 miles of pretty severe off road.
2old is offline
Old 06-19-20, 09:11 PM
  #8
Pop N Wood
Senior Member

Join Date: Jun 2020
Location: Maryland
Posts: 508

Bikes: 1982 Bianchi Sport SX, Rayleigh Tamland 1, Rans V-Rex recumbent, Fuji MTB, 80's Cannondale MTB with BBSHD ebike motor, 70's vintage Schwinn Continental and Suburban

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 238 Post(s)
Liked 172 Times in 114 Posts
Luna's wolf pup is 52V 4 AH and uses 21700 cells, claims same as Tesla uses. 4 pounds. At $249 a bit more expensive but a top quality unit.
Pop N Wood is offline
Old 06-20-20, 09:32 AM
  #9
2old
Senior Member
Thread Starter

Join Date: Jul 2014
Location: socal
Posts: 2,322
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Liked 165 Times in 120 Posts
That would have been my choice, but they've been sold out for awhile and Luna said they may not manufacture that size again. They had a 52V, 6 ah battery, also discontinued.
2old is offline
Old 06-22-20, 12:44 PM
  #10
chas58
Senior Member

chas58's Avatar

Join Date: Jul 2010
Location: Michigan
Posts: 4,339

Bikes: too many of all kinds

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 978 Post(s)
Liked 223 Times in 179 Posts
Huh, interesting. Good to know about this cell type, I wasn't familar with it.
(I did ask the founder of Luna if he would do a pocket battery the same size as the 52V6ah around the time he started that business. At the time he didn't want to futz with 36v batteries, but I guess he liked the idea of 3lb battery. I ended up having EM3ev make me the battery).
chas58 is offline
Old 06-22-20, 04:40 PM
  #11
2old
Senior Member
Thread Starter

Join Date: Jul 2014
Location: socal
Posts: 2,322
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Liked 165 Times in 120 Posts
Rode 11.2 miles off road on one of my usual trails. Quick hour or so jaunt with maybe 600' of ascent (but a guess). Used 2.2 wh, so again about 10 wh per mile. Trying a 15 mile loop tomorrow and if there's anything different, I'll report it. Otherwise I've bored you sufficiently.
2old is offline
Likes For 2old:
Old 06-24-20, 01:35 PM
  #12
chas58
Senior Member

chas58's Avatar

Join Date: Jul 2010
Location: Michigan
Posts: 4,339

Bikes: too many of all kinds

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 978 Post(s)
Liked 223 Times in 179 Posts
Too much pedaling, you should use the throttle more.
chas58 is offline
Old 06-29-20, 05:35 AM
  #13
Bluesfrog
Senior Member

Join Date: Jul 2019
Posts: 142
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 19 Times in 18 Posts
Better batteries are discontinued? I just missed it. Was considering a 52 overvolt on a 48 volt unit. ??? That's life eh? Keep on with the info if you have time. Be Well, Bluesfrog.
Bluesfrog is offline
