Lightweight low-mid step bike?

Notices
Electric Bikes Here's a place to discuss ebikes, from home grown to high-tech.

Lightweight low-mid step bike?

Old 09-08-20, 07:41 AM
  #1
tdonline
Senior Member
Thread Starter

Join Date: Jul 2016
Posts: 372
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 18 Times in 12 Posts
Lightweight low-mid step bike?

Recommendations per the thread title? I need to carry my bikes up some stairs to get into my apartment building and weight is the primary reason I have not bought an e-bike. I like where I live so moving isn't in the cards. I'm a city commuter and my bikes are a mid-step hybrid and a mid step mini velo. My hybrid is dressed up with racks, basket, etc so it probably comes in at least 35 pounds. It's not a delight but I can carry it up the wide steps into the building. Feasibly, an e-bike no more than 40 pounds is what I'm looking for.

The lightweight options I have looked into tend to have the traditional diamond frame. Not interested in being speedy, just need some help on rolling hills and as a city commuter, be able to show up at social events/haul grocery without looking like a drowned cat. Some distance would be appreciated as I do not have a car and would love to e-bike to places further away.
tdonline is offline
Old 09-08-20, 09:16 AM
  #2
linberl
Senior Member

linberl's Avatar

Join Date: Jun 2014
Location: SF Bay Area
Posts: 3,220

Bikes: 2017 BF pakiT & Dahon Mu Uno (both for sale); current ride - Trident Spike trike w/ e-assist

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1224 Post(s)
Liked 248 Times in 199 Posts
You can add a kit that weighs 10 lbs or less, if that interests you. Quite a few on the market. Since you have 2 bikes, you might consider one of the friction drive systems that can be moved from bike to bike. Otherwise a lightweight front hub system can come in at 10 lbs with one of the Bafang mini hubs.
linberl is offline
Old 09-08-20, 09:24 AM
  #3
2old
Senior Member

Join Date: Jul 2014
Location: socal
Posts: 3,423
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 678 Post(s)
Liked 466 Times in 355 Posts
^^^^^^^ +1 unless you want to spend $3,500 - $4,000 (I think Specialized has an e-commuter <40 pounds, but AFAIK it's not a step through).
2old is offline
Old 09-08-20, 12:31 PM
  #4
tdonline
Senior Member
Thread Starter

Join Date: Jul 2016
Posts: 372
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 18 Times in 12 Posts
Thank you for the replies. Can you direct me to resources for kits? Or share some names? I am aware of Swytch. My reservation with it is that I have to switch out my front wheel. My hybrid has a hub light so that would be a complication. With friction kits, that would interfere with my fenders? My mini velo wouldn't have these complications but if I'm going to kit out a bike, I'd prefer it to be the hybrid. That's my longer haul ride. The mini velo I would like to leave as a simple, fun, around the town ride.
tdonline is offline
Old 09-08-20, 12:32 PM
  #5
gsa103
Senior Member

Join Date: May 2013
Location: SF Bay Area
Posts: 4,401

Bikes: Bianchi Infinito (Celeste, of course)

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 754 Post(s)
Liked 103 Times in 76 Posts
Originally Posted by tdonline View Post
Recommendations per the thread title? I need to carry my bikes up some stairs to get into my apartment building and weight is the primary reason I have not bought an e-bike. I like where I live so moving isn't in the cards. I'm a city commuter and my bikes are a mid-step hybrid and a mid step mini velo. My hybrid is dressed up with racks, basket, etc so it probably comes in at least 35 pounds. It's not a delight but I can carry it up the wide steps into the building. Feasibly, an e-bike no more than 40 pounds is what I'm looking for.

The lightweight options I have looked into tend to have the traditional diamond frame. Not interested in being speedy, just need some help on rolling hills and as a city commuter, be able to show up at social events/haul grocery without looking like a drowned cat. Some distance would be appreciated as I do not have a car and would love to e-bike to places further away.
Quite honestly, that's going to be difficult. I put a BBS02 mid-drive with 600Wh battery and it added about 20lbs. A 250W hub motor with 200Wh battery is still going to add 10lbs to a bike, so you'd need to find a base bike that <30lbs with the racks and everything else. That's going to be very challenging, considering most mid-step bikes are low-spec boat anchors.
gsa103 is offline
Old 09-08-20, 01:16 PM
  #6
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,331 Times in 839 Posts
I have been liking my Bike Friday for its step through functionality.. the company offers a hub motor option.
to be lighter... take the battery off & put it in your back pack rather than leave it on the bike..

Then you wont have to lift it on the bike..
fietsbob is offline
Old 09-08-20, 04:06 PM
  #7
Bikealou
Senior Member

Join Date: Aug 2009
Location: New Jersey
Posts: 85

Bikes: Mongoose passed on to my son, Miyata, Tailwind, V-Rex, De Rosa, Safari, just added a Bike Friday

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 0 Times in 0 Posts
Check out the Bike Friday Ever-E-Day. Seems to check your boxes at about 2500 for the "commuter" version. Mid-drive, fenders, rear rack with detachable basket, low-rider front pannier rack.I just got one for some of the reasons you state. Haven't had it long enough to give a complete evaluation.
Bikealou is offline
Old 09-08-20, 04:33 PM
  #8
2old
Senior Member

Join Date: Jul 2014
Location: socal
Posts: 3,423
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 678 Post(s)
Liked 466 Times in 355 Posts
Check out Leeds and Hill Topper for low power, pretty lightweight front hub systems (Leeds has one with a total weight of < seven pounds AIR. e-bikeling has less expensive combinations and Dillenger is a possibility (excellent motors and associated parts, but questionable batteries IMO).The cruiser that I built for my daughter came in at about 40 pounds.
2old is offline
Old 09-08-20, 06:09 PM
  #9
tdonline
Senior Member
Thread Starter

Join Date: Jul 2016
Posts: 372
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 18 Times in 12 Posts
Originally Posted by Bikealou View Post
Check out the Bike Friday Ever-E-Day. Seems to check your boxes at about 2500 for the "commuter" version. Mid-drive, fenders, rear rack with detachable basket, low-rider front pannier rack.I just got one for some of the reasons you state. Haven't had it long enough to give a complete evaluation.
My preference is for a regular-sized ebike but definitely interested in hearing how your new BF works out. I have a thing against high racks on smaller bikes (I made sure to find a rack that sat lower on my mini velo) so I'm not a fan of the backend of the Ever-E-Day commuter. But 43 pounds is pretty attractive. The cargo is much more aesthetically pleasing but clocks in at 50 pounds.

I checked out ebikes a few years ago and resigned myself to waiting a little bit for better and lighter. Disappointed it hasn't progressed as quickly as I would like though I'm sure ebike connoisseurs will deluge me with all the great things that have happened over the last few years.
tdonline is offline
Old 09-09-20, 07:20 AM
  #10
Dewey101
Senior Member

Dewey101's Avatar

Join Date: Sep 2016
Location: Arlington, VA
Posts: 124

Bikes: '73 Raleigh Sports; 2017 Breezer Downtown 8 ST converted to ebike

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 18 Times in 17 Posts
Step through ebikes using the Mahle ebikemotion x35 hub motor are lightweight, for example in the US the Orbea Optima (38lb), and Cannondale Treadwell Neo Mixte (40lb), and in the UK the Islabikes eJanis (<35lb)
Dewey101 is offline
Likes For Dewey101:
Old 09-09-20, 09:34 AM
  #11
linberl
Senior Member

linberl's Avatar

Join Date: Jun 2014
Location: SF Bay Area
Posts: 3,220

Bikes: 2017 BF pakiT & Dahon Mu Uno (both for sale); current ride - Trident Spike trike w/ e-assist

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1224 Post(s)
Liked 248 Times in 199 Posts
Grin Technologies in Canada offers a variety of kits. They make the system Bike Friday uses. Some of their kits can even go on airplanes if you travel with your bike. As you mentioned there is Swytch. Friction drives won't necessarily mean giving up your fender. Some of them, like my Onemotor and Add-E/Go-E attach at the kickstand plate and bottom bracket. You can still leave your fender in place. My Onemotor pops from one bike to the other in less than 30 seconds and no wheel removal. It's also theft proof - a big deal in a major city. I can just take it off in 20 seconds and put it in my backpack if I park somewhere, but even more importantly I can remove and then carry the bike at it's regular weight if I'm have a lot of stairs to climb. I think pretty much all the friction drive systems have a fairly quick release for the motor; not sure it they all have the quick release battery like OM though. If you're not going to use both bikes, then a front hub system will work fine. Electrek really liked Swytch: https://electrek.co/2019/10/31/revie...onversion-kit/
linberl is offline
Likes For linberl:
Old 09-09-20, 07:30 PM
  #12
tdonline
Senior Member
Thread Starter

Join Date: Jul 2016
Posts: 372
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 18 Times in 12 Posts
Originally Posted by Dewey101 View Post
Step through ebikes using the Mahle ebikemotion x35 hub motor are lightweight, for example in the US the Orbea Optima (38lb), and Cannondale Treadwell Neo Mixte (40lb), and in the UK the Islabikes eJanis (<35lb)
Thanks! The Cannondale Quick looks to be another option. There are Orbea and Cannondale dealers in my area so I may be able to do some test rides.
tdonline is offline
Old 09-09-20, 07:34 PM
  #13
tdonline
Senior Member
Thread Starter

Join Date: Jul 2016
Posts: 372
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 18 Times in 12 Posts
Linberl, thank you. I'm reading all your posts about One Motor. My fenders go all the way to the 9 and 3 o'clock positions so it would be cutting it close. Not keen on the 1450 price for the extended battery but then again, that is still cheaper than buying a brand new lightweight e-bike.

You have written the One Motor stays on the bike but I can't wrap my head around it lasting on some of the crappy MUP and streets I ride on.
tdonline is offline
Old 09-09-20, 11:13 PM
  #14
linberl
Senior Member

linberl's Avatar

Join Date: Jun 2014
Location: SF Bay Area
Posts: 3,220

Bikes: 2017 BF pakiT & Dahon Mu Uno (both for sale); current ride - Trident Spike trike w/ e-assist

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1224 Post(s)
Liked 248 Times in 199 Posts
Originally Posted by tdonline View Post
Linberl, thank you. I'm reading all your posts about One Motor. My fenders go all the way to the 9 and 3 o'clock positions so it would be cutting it close. Not keen on the 1450 price for the extended battery but then again, that is still cheaper than buying a brand new lightweight e-bike.

You have written the One Motor stays on the bike but I can't wrap my head around it lasting on some of the crappy MUP and streets I ride on.
I don't know where you live, I'm in the Bay Area and our streets are often more pothole than pavement. There are folks with them using them in New York on the streets and in London that I actually know. Are you asking if it will fall off? My BF is a 16" wheel so I figure that puts the OM to some pretty hard use (I know I feel it, lol). Lemme know where you are located, maybe there's someone with an OM near you, maybe not, worth checking if it appeals to you at all. For the cost of extra mount, you could use on both bikes, so it's really half the price for each bike, ha ha. I switch back and forth between my bikes almost every day.
But it also sounds like Swytch might work out well for you. Not affiliated with them, just had one interaction online with the developer and he seemed like a decent guy.

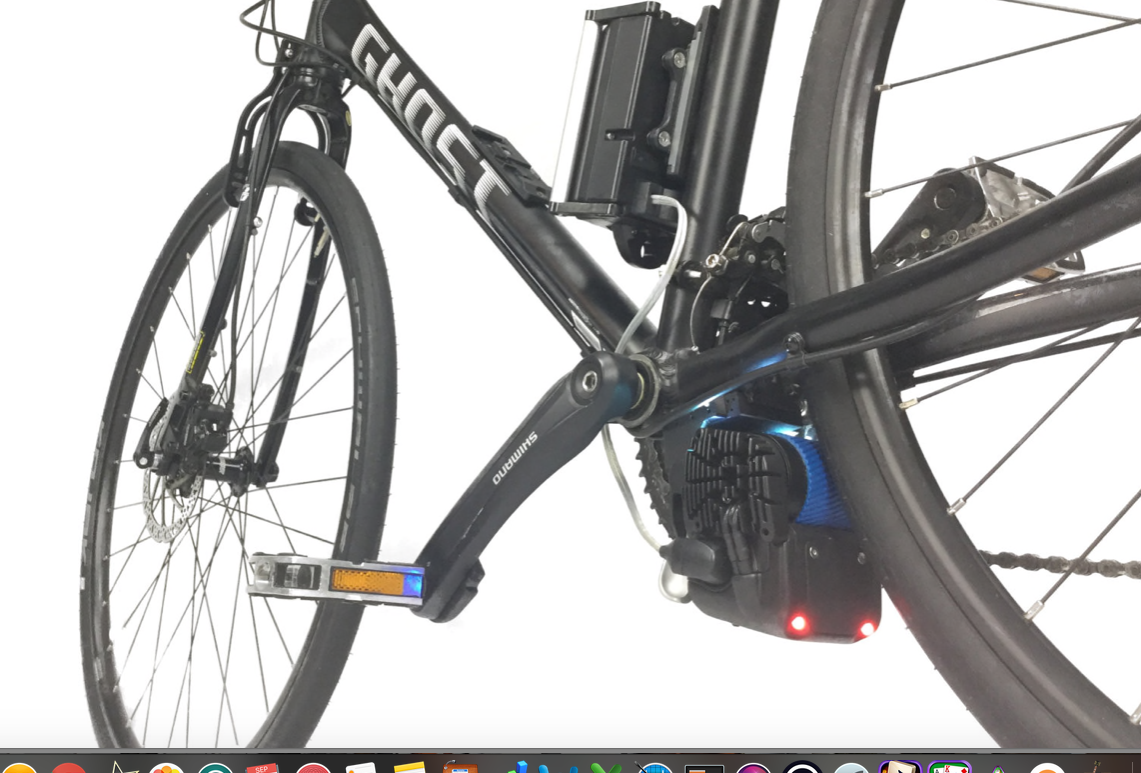

Here's a pic of how OM looks with the bottom mount - would that really interrupt your fender?
linberl is offline
Old 09-10-20, 07:11 PM
  #15
Dewey101
Senior Member

Dewey101's Avatar

Join Date: Sep 2016
Location: Arlington, VA
Posts: 124

Bikes: '73 Raleigh Sports; 2017 Breezer Downtown 8 ST converted to ebike

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 18 Times in 17 Posts
Originally Posted by tdonline View Post
Thanks! The Cannondale Quick looks to be another option.
I like the Quick Neo SL 2 Remixte, it was reported on EBR the Quick Neo SL weighs 33-34lb

Last edited by Dewey101; 09-10-20 at 07:21 PM.
Dewey101 is offline
