Testing a Nexus HB NX23 Generator Hub

I recently bought a bakfiets with a Nexus generator hub. Interestingly, when you search for "Nexus" on this forum, a thread from someone else who bought a bakfiets with a Nexus generator hub comes up. He also seemed to have a burned out bulb and it war recommended that he gets a new light rather than just a new bulb. OK, I'm on board with that.

Hub is HB-NX23, and a Google search didn't turn up much. It's a single wire design with a spade connector. Shimano's website found doucmentation, but only in Japanese, and it wouldn't let me download it anyway. I turn the wheel, and there's no light. The bulb has a frosted, knobbled texture, so I can't see the filament, but it looks intact, I'm just making the assumption it's bad because that's the most obvious. However, before I invest in a new light, I'd like to be sure.

How do I test to make sure my hub works, first? What do I put the little tester leads onto?
bajajoaquin is offline
Reply With Quote
Old 06-12-18, 04:09 PM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 16,740
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
if you have a voltmeter, you should be able to measure between the spade lug and some point on the frame that doesn't have paint. Maybe a brake bolt?
__________________
Randonneuring -- it's touring for people that aren't smart enough to stop for the night.
It's a wonderful sport when you can make up for a lack of ability with a lack of sleep
unterhausen is offline
Reply With Quote
Old 06-12-18, 04:59 PM
  #3
bajajoaquin
Senior Member
Thread Starter

Join Date: Jun 2013
Location: San Diego
Posts: 80
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Got it. So the ground goes through the frame. Thanks.
bajajoaquin is offline
Reply With Quote
Old 06-12-18, 08:04 PM
  #4
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 4,994

Bikes: 1961 Ideor, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, Perfekt 3 Speed -age unknown, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Dyno hubs are alternating current, if your meter is set for direct current it might not give you what you need to know.

A dynohub that is not supplying current to anything other than your meter can run high voltage. Going down a hill at 25 mph I measured over 30 volts AC on my hub.

Many Shimano hubs (possibly all?) ground to the frame.
Tourist in MSN is offline
Reply With Quote
Old 06-13-18, 02:05 AM
  #5
2_i
Senior Member

Join Date: Sep 2005
Location: Michigan
Posts: 2,152

Bikes: Trek 730, Bike Friday NWT, Brompton M6R*2, Trek 830, Trek 720, Dahon HAT060, Dahon HT060,...

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Originally Posted by bajajoaquin View Post
Got it. So the ground goes through the frame. Thanks.
This is often a problem as the connections through the frame are often poor. Flip the bike upside down, connect a voltmeter set to AC between the spade connector and axle, turn the wheel and see whether there is a reading. Without a meter, you could try to short-circuit the dynamo by connecting a wire between the spade connector and axle. If the dynamo works, you should sense a highly increased drag for a short-circuited dynamo. You can test the lamp and bulb separately with a voltage source of about 6V or a meter set to ohms. If the dynamo works, you should aim at tossing the incandescent lamp and getting an LED, preferably with a standfunction. They went down in prices so much that there is no excuse in persisting with a dim inefficient incandescent. Also you may consider a washer connected to a wire on the axle to take out the unreliable connection through the frame.
2_i is online now
Reply With Quote
Old 06-13-18, 08:52 AM
  #6
bajajoaquin
Senior Member
Thread Starter

Join Date: Jun 2013
Location: San Diego
Posts: 80
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Thank you. That's what I planned on doing, but the extra detail is helpful. I had planned on waiting for my multi-meter to arrive, but I think I'll grab a couple pieces of wire and do a jump test to see if I get light. Of course, the light bulb might still be bad!

Yes, a new LED light is coming. I want to get the generator sorted first, then buy a light. If this generator doesn't work, my caliper brakes aren't very good either, so I'll be buying a Sturmey-Archer XL-FDD 90mm drum brake Dynohub.
bajajoaquin is offline
Reply With Quote
Old 06-13-18, 10:36 AM
  #7
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 35,754

Bikes: 8

Mentioned: 131 Post(s)
Tagged: 0 Thread(s)
Quoted: 5118 Post(s)
You said bulb, a bike headlight bulb is 2.4w. what is the hub output?

typically a bike generator is 3w, with an 0.6w bulb rail light and a 2.4w headlight bulb,

one burns out the other is overpowered..

Now, LED lights get an IC, with a rectifier (AC to DC)
and an overvoltage regulator in the circuit..
fietsbob is offline
Reply With Quote
Old 06-13-18, 02:20 PM
  #8
bajajoaquin
Senior Member
Thread Starter

Join Date: Jun 2013
Location: San Diego
Posts: 80
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
That is correct. The light is also a Nexus, but it's an older bulbed version. I reassembled it all, and I don't have the model number handy, but it was a 2.4w bulb. There's a taillight, but the wire was just run into the rubber grommet on the rear drum brake linkage.... in other words nowhere. My guess was that the bulb was burned out, but I decided to try to get a light on the bulb by running a ground wire from the light bracket to the axle. It didn't work.

So I'm back to waiting for Amazon to deliver my multi-meter, and I'll test the output of the hub by touching from the spade connector (for the light to hook up to) and to the axle or other parts of the hub. If I find that the hub puts out it's 3w at 6v that I expect, I will probably keep it and add a new LED light/taillight. If the hub doesn't work, I'll probably buy a Sturmey-Archer XL-FDD.
bajajoaquin is offline
Reply With Quote
Old 06-13-18, 05:57 PM
  #9
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 4,994

Bikes: 1961 Ideor, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, Perfekt 3 Speed -age unknown, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
If you get a 3 watt bulb at the hardware store, then skip the taillight. A good Ace hardware store or a True Value hardware store should have an assortment of flashlight bulbs.

Some people have wired in 7.5 or 8 volt Zener diodes to reduce the chance of blowing out an incandescent bulb on downhills. But since almost all bike lights now are LED with over-voltage protection it is getting hard to find the instructions to do that, but googling zener diode bicycle dynohub might give you some help. WIth the demise of Radio Shack it is getting harder to find things like Zener diodes.
Tourist in MSN is offline
Reply With Quote
Old 06-13-18, 06:48 PM
  #10
bajajoaquin
Senior Member
Thread Starter

Join Date: Jun 2013
Location: San Diego
Posts: 80
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Thanks. I may try that.

Theres very little danger of my blowing out bulbs on any downhills on this bike!
bajajoaquin is offline
Reply With Quote
Old 06-14-18, 11:11 AM
  #11
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 34,950

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 354 Post(s)
Tagged: 0 Thread(s)
Quoted: 4200 Post(s)
The 3 watt rating on dynamos is nominal. Power output varies a lot with speed.

Modern LED lights have very good over-voltage protection, so there is virtually no worry of damaging them with too much.
__________________
Tom Reingold, [email protected]
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Reply With Quote
Old 06-14-18, 11:20 AM
  #12
WheresWaldo
Ride it like you stole it

WheresWaldo's Avatar

Join Date: Nov 2005
Location: Union County, NC
Posts: 4,827

Bikes: 2013 Cannondale EVO Ultegra Di2, Pedal Force Aeroblade, Rue Tandem

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
I am glad I read this thread, I was planning on building a new front wheel with a Nexus dynamo hub but now that I know it is a frame ground I need to rethink, carbon front fork. Even though unrelated to the OP's issue I still learned something that will save me a bunch of time and money on something I wouldn't get to work. Thanks.
__________________
"Never use your face as a brake pad" - Jake Watson
The Reloutionaries @ Shapeways
WheresWaldo is offline
Reply With Quote
Old 06-14-18, 01:44 PM
  #13
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 16,740
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
I think I would check on that first, they probably have made different versions.
__________________
Randonneuring -- it's touring for people that aren't smart enough to stop for the night.
It's a wonderful sport when you can make up for a lack of ability with a lack of sleep
unterhausen is offline
Reply With Quote
Old 06-14-18, 02:01 PM
  #14
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 34,950

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 354 Post(s)
Tagged: 0 Thread(s)
Quoted: 4200 Post(s)
Don't most of those hubs have two wires coming out of them?
__________________
Tom Reingold, [email protected]
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Reply With Quote
Old 06-14-18, 05:45 PM
  #15
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 4,994

Bikes: 1961 Ideor, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, Perfekt 3 Speed -age unknown, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Originally Posted by WheresWaldo View Post
I am glad I read this thread, I was planning on building a new front wheel with a Nexus dynamo hub but now that I know it is a frame ground I need to rethink, carbon front fork. Even though unrelated to the OP's issue I still learned something that will save me a bunch of time and money on something I wouldn't get to work. Thanks.
It should not matter if you have a hub grounded to the frame or not. If your fork is not conductive, then run two wires. The hub connector is designed to use two wires. If you bought an SP hub instead, that also has two wires but is not grounded to the frame. An interesting side note - the SP and Shimano wire connectors on the hubs are interchangeable. I have one bike with a Shimano hub and two bikes with SP hubs, the connectors on all the bikes are essentially the same except for the labeling, in some cases I am using an SP connector on a Shimano hub and the reverse is also true.

Where you can get in trouble is if you have a metal fork and a hub grounded to the frame, and a light also grounded to the frame. In that case, there is a 50/50 chance that when you wire it, you will get the wires reversed and the light won't work. In that case, switch the wires.


Originally Posted by noglider View Post
Don't most of those hubs have two wires coming out of them?
Yes, I think all hubs have two connections for wires. But often one of those two wires is redundant if you have a metal fork and have a headlamp that is also grounded to the frame.

I tried an experiment, I wired in a headlamp that was grounded to the frame. Shimano hub, so it also was grounded to the frame. I only needed one wire from the hub to the light, see photo. I no longer run the light on the fender mount, the light worked fine but was too low to the ground and I got weird shadows from tiny little things sitting on the ground, it was a short term experiment and I decided I needed the light up higher. But that was the easiest wiring job I ever did, less than a food of wire.

Tourist in MSN is offline
Reply With Quote
Old 06-14-18, 07:20 PM
  #16
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 34,950

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 354 Post(s)
Tagged: 0 Thread(s)
Quoted: 4200 Post(s)
Yeah, great wiring, bad lighting. I tried that mount point, too. No good at all. However, the fork crown is a perfectly good height for me. I love my headlight there.
__________________
Tom Reingold, [email protected]
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Reply With Quote
Old 06-14-18, 07:29 PM
  #17
bajajoaquin
Senior Member
Thread Starter

Join Date: Jun 2013
Location: San Diego
Posts: 80
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
This is an old model Nexus hub. I don’t know the age, but I’ve posted the model number above if anyone can use that to find out better than I did.

In other words, don’t take my hub description to be the current state of the Nexus art.
bajajoaquin is offline
Reply With Quote
Old 06-24-18, 08:48 AM
  #18
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Helsingborg, Sweden
Posts: 2,287

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; '90s Helkama "Trekking"; 1984 Ross MTB (in USA)

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Doing a google image search of your part number, it appears that Shimano did indeed make some hubs that have connections for only 1 wire instead of the normal captive-wire 2-connector clip... :-(
DiegoFrogs is offline
Reply With Quote
Old 06-29-18, 11:01 PM
  #19
bajajoaquin
Senior Member
Thread Starter

Join Date: Jun 2013
Location: San Diego
Posts: 80
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Yes, this is a single wire hub. I also found that I didn’t actually order a multi meter but it was sitting in my cart. Then I went in vacation then I had month-and quarter-end to get through at work.

I had another family over tonight for dinner and offered up a ride since the husband is a former racer but had never ridden a bakfiets. Imagine my surprise when the light worked!

The bulb is pretty dim, I think a product of being on a 20” wheel and being pedaled slowly uphill. But it works.

I'd like to convert to LED, but I understand that the difference between a conversion bulb and a new light isn’t that great. What are my reasonably priced options? Is there a good $30 light or should I just suck it up and spend $80 on a B&M?
bajajoaquin is offline
Reply With Quote
Old 06-29-18, 11:35 PM
  #20
znomit
Zoom zoom zoom zoom bonk

znomit's Avatar

Join Date: Sep 2006
Location: New Zealand
Posts: 3,660

Bikes: Giant Defy, Trek 1.7c, BMC GF02, Scott Sub 35

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Originally Posted by bajajoaquin View Post
I'd like to convert to LED, but I understand that the difference between a conversion bulb and a new light isn’t that great. What are my reasonably priced options? Is there a good $30 light or should I just suck it up and spend $80 on a B&M?

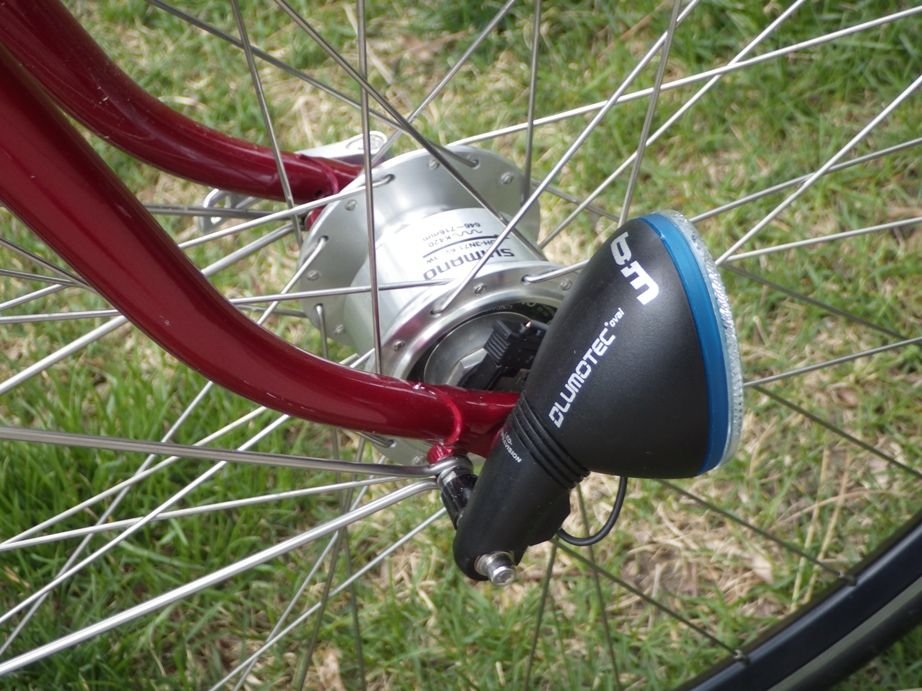

For city riding the eyc is fine, about 40US$
https://www.rosebikes.com/b-m-lumote...eadlamp-683821
znomit is offline
Reply With Quote
Old 06-30-18, 05:35 AM
  #21
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 4,994

Bikes: 1961 Ideor, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, Perfekt 3 Speed -age unknown, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Originally Posted by bajajoaquin View Post
...
I'd like to convert to LED, but I understand that the difference between a conversion bulb and a new light isn’t that great. What are my reasonably priced options? Is there a good $30 light or should I just suck it up and spend $80 on a B&M?
I saw a guy stopped and taking a break with a vintage Raleigh 3 speed. I was stopping there, also to take a break so I started a conversation with him and looked at his bike. I worked in a Raleigh shop decades ago, so it was a bit of nostalgia.

While looking at it I saw that he had an LED flashlight bulb in his vintage headlamp unit. He complained that if flickered at low speed, I assured him that was normal for most LED lights because the hub puts out AC, not DC. But I told him his might flicker much worse because an LED uses DC, not AC. Thus, his bulb might only use half as much power as the hub puts out. I told him that if he can find a Radio Shack that has not closed yet, for a few bucks he could try a rectifier to change the current to DC. I have no idea what the voltage rating on his bulb is.

If you want to try something like that, some LED flashlight bulbs have a wide range of voltages. But I have found LED flashlight bulbs sometimes do not play well with the reflector because of the bulb design.
Tourist in MSN is offline
Reply With Quote
Old 06-30-18, 10:10 AM
  #22
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 34,950

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 354 Post(s)
Tagged: 0 Thread(s)
Quoted: 4200 Post(s)
Originally Posted by znomit View Post
For city riding the eyc is fine, about 40US$
https://www.rosebikes.com/b-m-lumote...eadlamp-683821
The Eyc (pronouinced Ike) is pretty amazing, actually. I put one on my wife's bike. It's so small, it's almost invisible. When you see it in the flesh, you won't believe it. And it works well!
__________________
Tom Reingold, [email protected]
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Reply With Quote
Old 06-30-18, 11:40 AM
  #23
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 35,754

Bikes: 8

Mentioned: 131 Post(s)
Tagged: 0 Thread(s)
Quoted: 5118 Post(s)
In addition Planet Bike offers a Dynamo version , with a wire, and a disconnect plug in the middle of the twin lead wire

So like their battery headlights, the light comes off the handlebar mount and can go in your pocket ,
when you lock up the bike , and pop it back on, with the convenience of the plug..
leaving your wiring to the hub itself intact..
fietsbob is offline
Reply With Quote
Old 06-30-18, 01:33 PM
  #24
2_i
Senior Member

Join Date: Sep 2005
Location: Michigan
Posts: 2,152

Bikes: Trek 730, Bike Friday NWT, Brompton M6R*2, Trek 830, Trek 720, Dahon HAT060, Dahon HT060,...

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
+1 on Eyc. You can further look at offerings from xxcycle. Trelock lamps are OK , below B&M but sufficient for city riding. Axa Pico is very inexpensive. Make sure you buy a lamp with a standlight function. You are likely not going to save buying a no-name Chinese lamp on Ebay. The beam pattern may be lacking and the light may die in the rain - too much risk in my opinion.
2_i is online now
Reply With Quote
Old 07-04-18, 11:40 AM
  #25
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Helsingborg, Sweden
Posts: 2,287

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; '90s Helkama "Trekking"; 1984 Ross MTB (in USA)

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
I have an AXA Echo 30 that I bought some years back that I bought to replace another lamp. I've been happy with the performance on my "please don't steal me" city bike.

I wish there more choices for a bright, durable light with only a standlight and a simple on/off switch. It seems like many of the lights these days incorporate features that I don't need that seem more like liabilities. /old man
DiegoFrogs is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
