Drop bar & Upright Posture

Fitting Your Bike Are you confused about how you should fit a bike to your particular body dimensions? Have you been reading, found the terms Merxx or French Fit, and don’t know what you need? Every style of riding is different- in how you fit the bike to you, and the sizing of the bike itself. It’s more than just measuring your height, reach and inseam. With the help of Bike Fitting, you’ll be able to find the right fit for your frame size, style of riding, and your particular dimensions. Here ya’ go…..the location for everything fit related.

Drop bar & Upright Posture

Reply

Old 05-14-18, 12:33 PM
  #1
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,187
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 2320 Post(s)
Drop bar & Upright Posture

I have a problem with my neck flexibility. So I cannot lean forward much.
I got a properly sized road bike for my size; I swapped the shortest stem, the most compact drop bar, and raised the bar very high...but the Reach to the Hood is still too far away.


So here's my idea: (1) get a touring/gravel bike frame one or two size too small, (2) raise the handlebar height, and (3) use the shortest stem extension.
Now riding on the Hood should be perfect!
And upright posture like below.
Is this a good idea? Will the handling be funky and wierd?


I'm planning this to be a serious long distance endurance machine for interstate travel.


Last edited by mtb_addict; 05-14-18 at 01:28 PM.
mtb_addict is online now
Reply With Quote
Old 05-14-18, 02:15 PM
  #2
GailT
Senior Member

Join Date: Jun 2017
Posts: 116
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Originally Posted by mtb_addict View Post
I have a problem with my neck flexibility. So I cannot lean forward much.
I got a properly sized road bike for my size; I swapped the shortest stem, the most compact drop bar, and raised the bar very high...but the Reach to the Hood is still too far away.
What bike did you get originally, and have you compared its stack and reach to other road bikes? You might be able to find a properly sized endurance/road bike with higher stack and shorter reach, for example, check the dimensions on the Specialized Diverge compared to other road bikes.
GailT is offline
Reply With Quote
Old 05-14-18, 02:16 PM
  #3
Clem von Jones
Senior Member

Join Date: Sep 2008
Posts: 557
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
I have bad arthritis but even after winter when I'm fat and weak I have no problem getting an aero position. Are you certain this isn't just a delusion? I see cyclists go way overboard trying to achieve an upright posture and then complaining about how uncomfortable they are. Maybe there's a connection.
Clem von Jones is offline
Reply With Quote
Old 05-14-18, 02:21 PM
  #4
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,187
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 2320 Post(s)
Originally Posted by GailT View Post
What bike did you get originally, and have you compared its stack and reach to other road bikes? You might be able to find a properly sized endurance/road bike with higher stack and shorter reach, for example, check the dimensions on the Specialized Diverge compared to other road bikes.
I'm on a Windsor Wellington 54cm ett...which has a traditional flat top tube geometry.
I would be looking for maybe a 50cm ett.


Last edited by mtb_addict; 05-14-18 at 02:24 PM.
mtb_addict is online now
Reply With Quote
Old 05-14-18, 02:33 PM
  #5
Kontact
Senior Member

Kontact's Avatar

Join Date: Apr 2011
Posts: 3,628
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2141 Post(s)
You might find a smaller bike that also has a higher front end than your current bike, but if you are serious about riding long distances and you have a medical issue, I wouldn't keep buying bikes and go to a PT or fitter to figure out what will actually work.
Kontact is offline
Reply With Quote
Old 05-14-18, 02:59 PM
  #6
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 908

Bikes: frankenbike based on MKM frame

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 210 Post(s)
Bikes designated as 'women's bikes' usually have shorter top tubes. Have you tried one of those out?
philbob57 is offline
Reply With Quote
Old 05-14-18, 04:11 PM
  #7
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,187
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 2320 Post(s)
Originally Posted by Kontact View Post
go to a PT
It's like I have Shermer's Neck. I always try to tough it out. But I do core exercise. I do neck exercise. They help...but can't git rid of it completely.

Originally Posted by philbob57 View Post
Bikes designated as 'women's bikes' usually have shorter top tubes. Have you tried one of those out?
No, I haven't seen any women's road biike. I thought they're just with compact drops and short reach levers, and wider saddles.

Last edited by mtb_addict; 05-15-18 at 10:55 AM.
mtb_addict is online now
Reply With Quote
Old 05-14-18, 04:28 PM
  #8
Cuyuna
Senior Member

Join Date: Jul 2017
Posts: 193
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Originally Posted by mtb_addict View Post
I have a problem with my neck flexibility. So I cannot lean forward much.
I got a properly sized road bike for my size; I swapped the shortest stem, the most compact drop bar, and raised the bar very high...but the Reach to the Hood is still too far away.


So here's my idea: (1) get a touring/gravel bike frame one or two size too small, (2) raise the handlebar height, and (3) use the shortest stem extension.
Now riding on the Hood should be perfect!
And upright posture like below.
Is this a good idea? Will the handling be funky and wierd?


I'm planning this to be a serious long distance endurance machine for interstate travel.

Faced with the same problems and questions, I ultimately found the best solution for me was, after decades of riding drop bars, to drop the drops altogether in favor of an upright riding position. I bought a Trek FXs6 carbon, put a taller stem on it. It has made endurance rides infinitely more comfortable. IMHO, go flat bars on your endurance bike frame.
Cuyuna is online now
Reply With Quote
Old 05-14-18, 05:04 PM
  #9
wgscott
VectorPotential sensitive

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 3,694

Bikes: Steel

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 1920 Post(s)
Also take a look at Jones Bars and Trekking Bars.
wgscott is offline
Reply With Quote
Old 05-14-18, 08:59 PM
  #10
Brian25
Senior Member

Join Date: Apr 2006
Location: Tucson, AZ
Posts: 630

Bikes: Road, mountain and track bikes and tandems.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 227 Post(s)
As an avid road rider for over forty years I have seen a huge change in the way that people ride road bikes, especially since the advent of the hands on type brake shifters. A lot of riders now try to ride all of the time on the brake hoods because they want to be close to the controls. (bad) I do not know if this will help, but I have always, and still do ride about 80 percent of the time on the tops (closer reach) hoods are for braking shifting and off the saddle climbing, but not something that I would recommend to stay on all of the time. I knew a women in San Diego who had a custom frame built with a supper short top tube, so she could be on the hoods all of the time. She eventually got a "normal frame" after her coach schooled her on riding position, in regards to riding all of the time on the hoods.
Brian25 is offline
Reply With Quote
Old 05-14-18, 09:40 PM
  #11
GeneO
Cyclopath

GeneO's Avatar

Join Date: May 2010
Posts: 2,115

Bikes: 2018 Roubaix Expert Di2, 2016 Diverge Expert X1, Felt 2012 F55X

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 372 Post(s)
Originally Posted by mtb_addict View Post
I have a problem with my neck flexibility. So I cannot lean forward much.
I got a properly sized road bike for my size; I swapped the shortest stem, the most compact drop bar, and raised the bar very high...but the Reach to the Hood is still too far away.


So here's my idea: (1) get a touring/gravel bike frame one or two size too small, (2) raise the handlebar height, and (3) use the shortest stem extension.
Now riding on the Hood should be perfect!
And upright posture like below.
Is this a good idea? Will the handling be funky and wierd?


I'm planning this to be a serious long distance endurance machine for interstate travel.

Getting a smaller bike will make you less upright, then you have to compensate. A larger bike puts the saddle lower with respect to the bars than a smaller bike. What you want a larger bike with a shorter stem.
__________________
Manbearpig & Redtail

Last edited by GeneO; 05-14-18 at 09:43 PM.
GeneO is offline
Reply With Quote
Old 05-15-18, 12:21 AM
  #12
Oneder
Pompous Windbag with ADD

Oneder's Avatar

Join Date: Apr 2018
Posts: 414

Bikes: Gary Fisher Wahoo, Magna Great Divide, Schwinn

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Oneder is offline
Reply With Quote
Old 05-15-18, 01:02 AM
  #13
tangerineowl
Senior Member

Join Date: Apr 2013
Location: Oz
Posts: 493

Bikes: Curve Grovel v2 ti

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
https://www.ebay.com/itm/2018-Mosaic...item52091daaa8

520 ETT. Stack 585. Reach 345.

What you really need is a custom frame at your size with a very short reach and a very tall stack height. Kind of like that Mosaic custom geo frame, but not at the crazy high price.

I've come across such used frames online occasionally.


Another cheaper consideration might be the production ti frameset Lynskey Backroads in size small: 525 ETT. Stack is 593. Reach is 353.

Last edited by tangerineowl; 05-15-18 at 01:52 AM. Reason: txt
tangerineowl is offline
Reply With Quote
Old 05-15-18, 08:55 AM
  #14
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,187
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 2320 Post(s)
Originally Posted by Brian25 View Post
I have always, and still do ride about 80 percent of the time on the tops (closer reach) hoods are for braking shifting and off the saddle climbing, but not something that I would recommend to stay on all of the time.
Interesting. While the Top is comfortable and upright, I felt lack of control . On the Corners, I felt more control but uncomfortable on the wrist. Maybe it's 'cuz the bar is too narrow (40 cm).

Last edited by mtb_addict; 05-15-18 at 10:56 AM.
mtb_addict is online now
Reply With Quote
Old 05-15-18, 09:18 AM
  #15
Hypno Toad
meh

Hypno Toad's Avatar

Join Date: Jul 2014
Location: Hopkins, MN
Posts: 3,420

Bikes: 17 Breezer Radar Pro; 15 Surly Pugsley; 13 Felt Z85; 11 Globe Daily; 09 Kona Dew Drop; 96 Mondonico

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 542 Post(s)
Originally Posted by wgscott View Post
also take a look at jones bars and trekking bars.
+1
Hypno Toad is offline
Reply With Quote
Old 05-15-18, 10:24 AM
  #16
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 1,902

Bikes: '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 720 Post(s)
I'm finding that sitting upright more makes for a sore butt on longer rides. If I get to the point where I can't raise my head up enough to see when in the drops or stretched across the hoods, I might start considering a recumbent. There have been more than a few people on recumbent bicycles.... not those low riding recumbent tricycles.... come through my area while riding the Natchez trace. They were loaded down with panniers front and back and some with trailers too. So I know they were doing some serious endurance riding.
Iride01 is offline
Reply With Quote
Old 05-15-18, 10:57 AM
  #17
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,187
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 2320 Post(s)
Originally Posted by wgscott View Post
Also take a look at Jones Bars and Trekking Bars.
They look great for a adventure bike, but they seem too wide for a road bike.
mtb_addict is online now
Reply With Quote
Old 05-15-18, 10:59 AM
  #18
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,187
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 2320 Post(s)
Originally Posted by Iride01 View Post
I'm finding that sitting upright more makes for a sore butt on longer rides. If I get to the point where I can't raise my head up enough to see when in the drops or stretched across the hoods, I might start considering a recumbent. There have been more than a few people on recumbent bicycles.... not those low riding recumbent tricycles.... come through my area while riding the Natchez trace. They were loaded down with panniers front and back and some with trailers too. So I know they were doing some serious endurance riding.
Recumbents! I forgot about those. Yeah...I don't like the way they look...but I am beginning to admit to myself that might be the only option left for me. I feel like every time I do another long ride, my neck is a little worse. THe Recumbents just look so heavy and expensive. I saw a guy struggling mightily on the rolling hills that are easy on a regular bike, and I said to myself that's not for me.
mtb_addict is online now
Reply With Quote
Old 05-16-18, 09:15 AM
  #19
5teve
Senior Member

Join Date: Mar 2018
Posts: 104
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
If you'd like to stick with drop bars get a Salsa Vaya. They have a relatively high stack (headtube height from ground) and short reach compared to most other bikes that are designed for drop bars. They're nice bikes and readily available used if you're a bit patient.
5teve is offline
Reply With Quote
Old 05-17-18, 09:44 AM
  #20
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 37,457

Bikes: 8

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 5601 Post(s)
bikes direct imports, warehouses, and ships bikes in boxes,,
to get a higher bar ask them to ship a 2nd fork with an un-cut steerer too .

A bike shop would maybe give you a bit of trade in of shorter fork, if you bought a bike from them ,
but you skip those benefits by going with BD.
fietsbob is online now
Reply With Quote
Old 05-17-18, 11:19 AM
  #21
phughes
Senior Member

Join Date: Mar 2011
Posts: 1,020
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 167 Post(s)
I got my LHT with an uncut fork. I also went with the larger of the two sizes that would fit me. I could have used a 54, but went with the 56. The result is I can get the bars higher without a huge stack of spacers. I now have the bars level with the seat, but on one tour I had the bars way up high, and I still had room to go higher. I am more comfortable with the bars lower though, and found the neck issue was helped by a longer stem, letting my back stretch out more. With the stem shorter, my back was more rounded, making it necessary to lift my head more than with the longer stem.

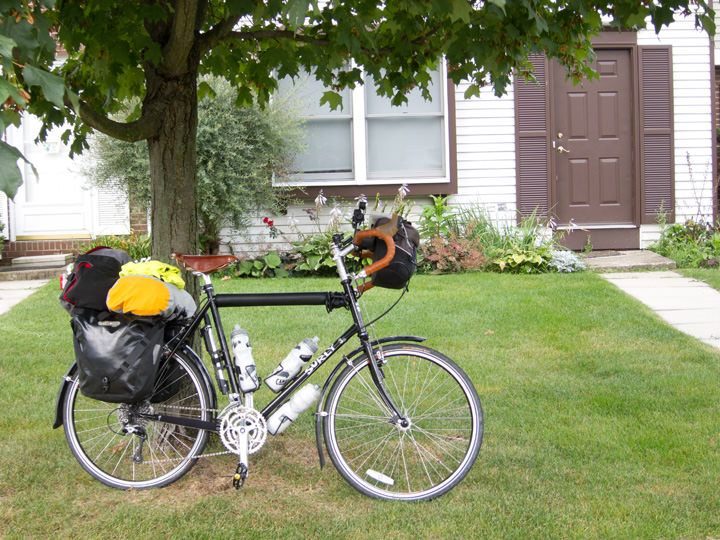

Here is the LHT with the bars high.
phughes is offline
Reply With Quote
Old 05-17-18, 12:05 PM
  #22
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,397

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1611 Post(s)
None of this is new or unexplored territory. Road bikes with drop bars set high and back are Rivendell's basic shtick.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Reply With Quote
Old 05-17-18, 02:40 PM
  #23
bob_white
Junior Member

Join Date: Jan 2014
Location: Toronto
Posts: 17

Bikes: kona dew/Woodrup Giro touring

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
I have a similar problem with my first drop bar bike. I'm still not comfortable braking from the hood, the ergonomics never seems right to me. I added interrupter brake levers which allowed me to brake from the tops. Now I can ride on the hoods when I want but brake from the top where I can get more leverage.
bob_white is offline
Reply With Quote
Old 05-17-18, 04:35 PM
  #24
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,187
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 2320 Post(s)
Originally Posted by ThermionicScott View Post
None of this is new or unexplored territory. Road bikes with drop bars set high and back are Rivendell's basic shtick.
Not just raising. I already have my bar raised very high. I noticed that raising up but Reach is not addressed...result is your hand is high in front of you, lack of leverage to hold up my upperbody...so my head drop and my shoulder shrugging.

What I am saying is instead of going High...go Back.


Last edited by mtb_addict; 05-17-18 at 04:47 PM.
mtb_addict is online now
Reply With Quote
Old 05-17-18, 04:39 PM
  #25
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,397

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1611 Post(s)
Originally Posted by mtb_addict View Post
Not just raising. I already have my bar raised very high. I noticed that raising up but Reach is not addressed...result is your hand is high in front of you, lack of leverage to hold up my upperbody...so my head drop and my shoulder shrugging.

What I am saying is instead of going High...go Back.
Umm, did I say "just raise"? Read my post again.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
