Dahon Classic III and pedaling problem

Notices
Folding Bikes Discuss the unique features and issues of folding bikes. Also a great place to learn what folding bike will work best for your needs.

Dahon Classic III and pedaling problem

Old 10-15-18, 05:24 PM
  #1
rotater
Junior Member
Thread Starter

Join Date: May 2015
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Dahon Classic III and pedaling problem

Dahon Classic III 1988 here. I'm already hesitating to post this because I'm not sure how to describe it with my imperfect English. When riding, pedaling feels strange. Not all the time but for example when slowing down there's this... subtle "slammy" feeling. I'm really struggling here explaining this. I'm hoping some of you Dahon owners know right away what I'm talking about.
rotater is offline
Old 10-16-18, 10:19 PM
  #2
Pine Cone
Senior Member

Join Date: Nov 2006
Location: Western Washington
Posts: 355

Bikes: 2-many...2 road bikes, 2 fixed wheels, 3 tandems, 2 recumbents, 2 cyclecross, 3 mtb, 4 folders

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Likes: 0
Liked 7 Times in 3 Posts
If the bike has cottered cranks you have a cotter pin that needs to be tightened or replaced.
Pine Cone is offline
Old 10-18-18, 03:24 AM
  #3
zebede
Hello

zebede's Avatar

Join Date: Aug 2007
Location: Suncoast, Florida
Posts: 883

Bikes: n+1

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 13 Times in 12 Posts
Make sure the hinge frame is not excessively worn. I have owned a number of these and all were garage queens and under used so they showed no signs of wear. Make sure the frame hinge closes snugly with the cam lock mechanism and the spring clip is in place and does not allow an unintentional opening. Moving up to where the brace attaches to the handlebar. Ideally there should be no play hear, but old or worn plastic insert is the usual find. If so you can apply "shoe goo" to the insert and after drying drill out to spring pen diameter. Alternatively just shove a rubber garden hose washer under there to wedge things snug. See pics from rehab from a couple of years ago.

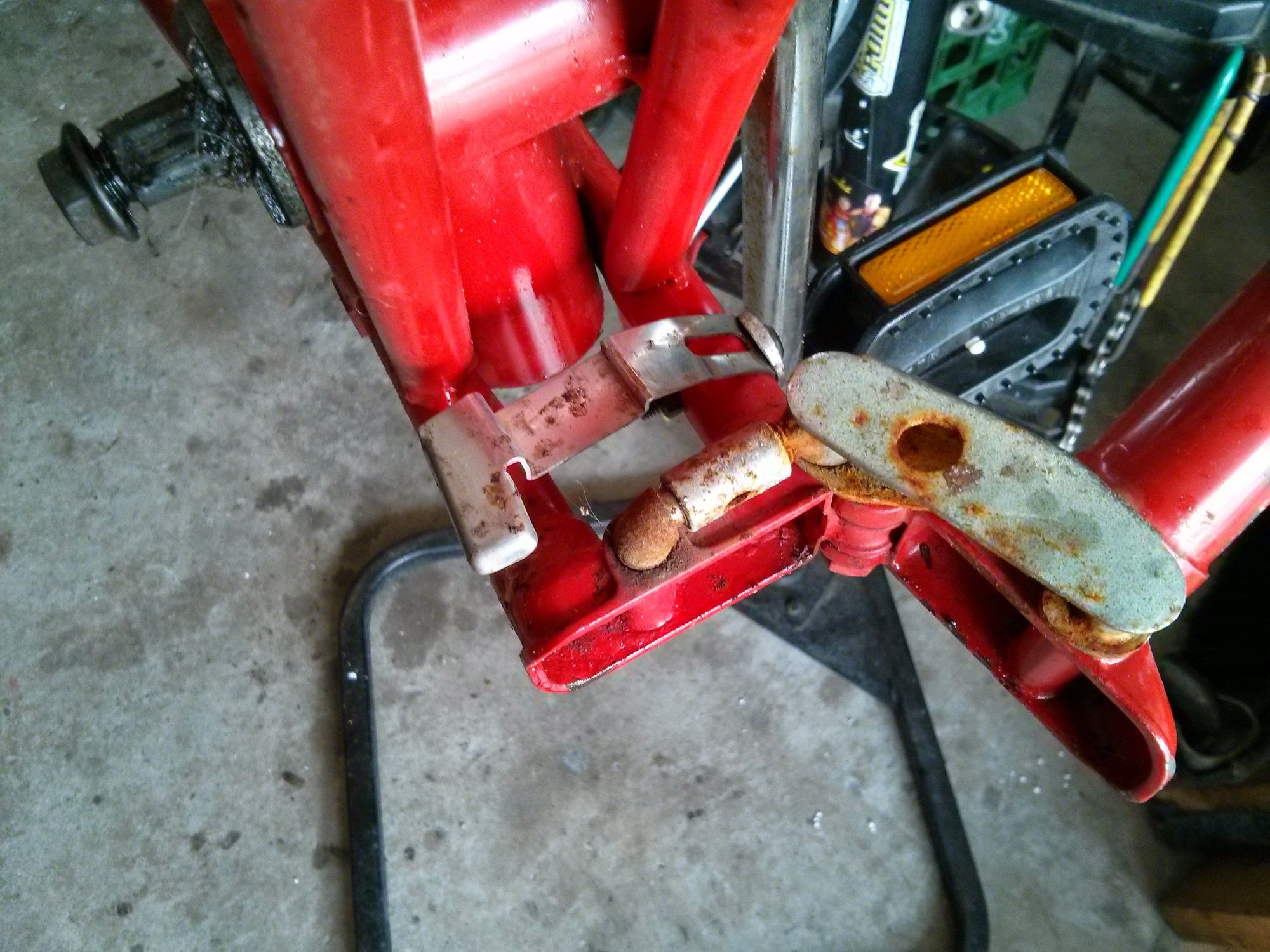

Thoroughly inspect this hinge. cam lock, safety clip and restore to like new operation


Brace goes from top tube to handle bar stem. Inspect connection points.


Hand Tighten folding crank before riding. If it wont tighten place a fiber washer between crank and arm bolt
zebede is offline
Old 10-22-18, 11:25 PM
  #4
2wheeldeal
Goldmember

2wheeldeal's Avatar

Join Date: Aug 2008
Location: Portland, OR
Posts: 113

Bikes: Trek Multitrack 750, Dahon Classic

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Yes, your description sounds like the feeling of a loose frame hinge clamp. They tend to come loose, but they can be tightened. Also make sure that any play in the steering hinge is taken up with a rubber gasket of some kind. The plastic cover for the steering bearing is often lost by the time the bike is sold.
2wheeldeal is offline
Old 12-27-18, 02:46 AM
  #5
DennyW
Junior Member

Join Date: Dec 2018
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hi.. Any idea where to get the brace locking mechanism? (I'm not sure what it's called). Mine is missing one ball bearing. Thanks!
DennyW is offline
Old 12-28-18, 05:28 PM
  #6
zebede
Hello

zebede's Avatar

Join Date: Aug 2007
Location: Suncoast, Florida
Posts: 883

Bikes: n+1

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 13 Times in 12 Posts
I don't think there are parts are available for the the 80's Dahons. A donor bike or a improvisation repair may be the only options. Is it possible to disassemble the mechanism and replace the missing ball?

The quick work around solution that comes to mind is removal of the spring loaded pin brace assembly and use a bolt with a wing nut in its place.
zebede is offline
Old 12-31-18, 02:29 PM
  #7
Duragrouch
Senior Member

Join Date: Apr 2017
Posts: 156
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 81 Post(s)
Liked 21 Times in 18 Posts
Thor Bikes has some older Dahon stuff, not a lot, but some.
Duragrouch is offline
Old 01-01-19, 07:26 AM
  #8
zebede
Hello

zebede's Avatar

Join Date: Aug 2007
Location: Suncoast, Florida
Posts: 883

Bikes: n+1

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 13 Times in 12 Posts
Thor Bikes has some older Dahon stuff, not a lot, but some.


In case original poster does not know who Thor is, link provided.
zebede is offline
Old 01-02-19, 11:04 AM
  #9
rotater
Junior Member
Thread Starter

Join Date: May 2015
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hello,

and thank you all for your replies, especially zebede! My plan was to shoot a video or maybe even several videos to better understand what's happening and share the videos with you. But then winter arrived and well... I'll get back to this after snows melt.

Last edited by rotater; 01-03-19 at 05:19 PM.
rotater is offline
Old 01-06-19, 07:35 AM
  #10
xerman
Member

xerman's Avatar

Join Date: Jun 2014
Location: Madrid, Spain
Posts: 42

Bikes: dahon classic V

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Please, update us on this, if I can I will help.
xerman is offline
Old 01-06-19, 08:15 PM
  #11
DennyW
Junior Member

Join Date: Dec 2018
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by zebede View Post
I don't think there are parts are available for the the 80's Dahons. A donor bike or a improvisation repair may be the only options. Is it possible to disassemble the mechanism and replace the missing ball?

The quick work around solution that comes to mind is removal of the spring loaded pin brace assembly and use a bolt with a wing nut in its place.
Yes, ended up disassembling the lock, measured the ball bearing and ordered them online...
DennyW is offline
Old 01-07-19, 03:06 AM
  #12
xerman
Member

xerman's Avatar

Join Date: Jun 2014
Location: Madrid, Spain
Posts: 42

Bikes: dahon classic V

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Thanks for the link!
