How small can I get my folding bike? (due to luggage size rules)

Folding Bikes Discuss the unique features and issues of folding bikes. Also a great place to learn what folding bike will work best for your needs.

How small can I get my folding bike? (due to luggage size rules)

Reply

Old 02-03-19, 08:21 PM
  #1
Mini1976
Newbie
Thread Starter

Join Date: Feb 2019
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
How small can I get my folding bike? (due to luggage size rules)

I am looking at purchasing a Mini folding bike (similar to a Dahon Speed P8) to go on a trip around New Zealand. The first leg of my trip involves a coach ride where the maximum luggage size is 150cm (Length+Width+Height). The fold size of the bike is given as about 180cm.

So I wondered if I was to do things like remove the wheels and seat post, how much smaller the bike might be, or are there other ways of reducing the total size.

I'm allowed two bags, so any parts removed can go in a second bag.

Thanks for any advice
Mini1976 is offline
Reply With Quote
Old 02-03-19, 09:01 PM
  #2
1nterceptor
LET'S ROLL

1nterceptor's Avatar

Join Date: Nov 2009
Location: NEW YORK, NY - USA
Posts: 4,708

Bikes: 2014 BMC Gran Fondo, 2013 Brompton S6L-X

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 277 Post(s)
My old Tobukaeru has a similar fold and wheel size(20 in.) as yours.

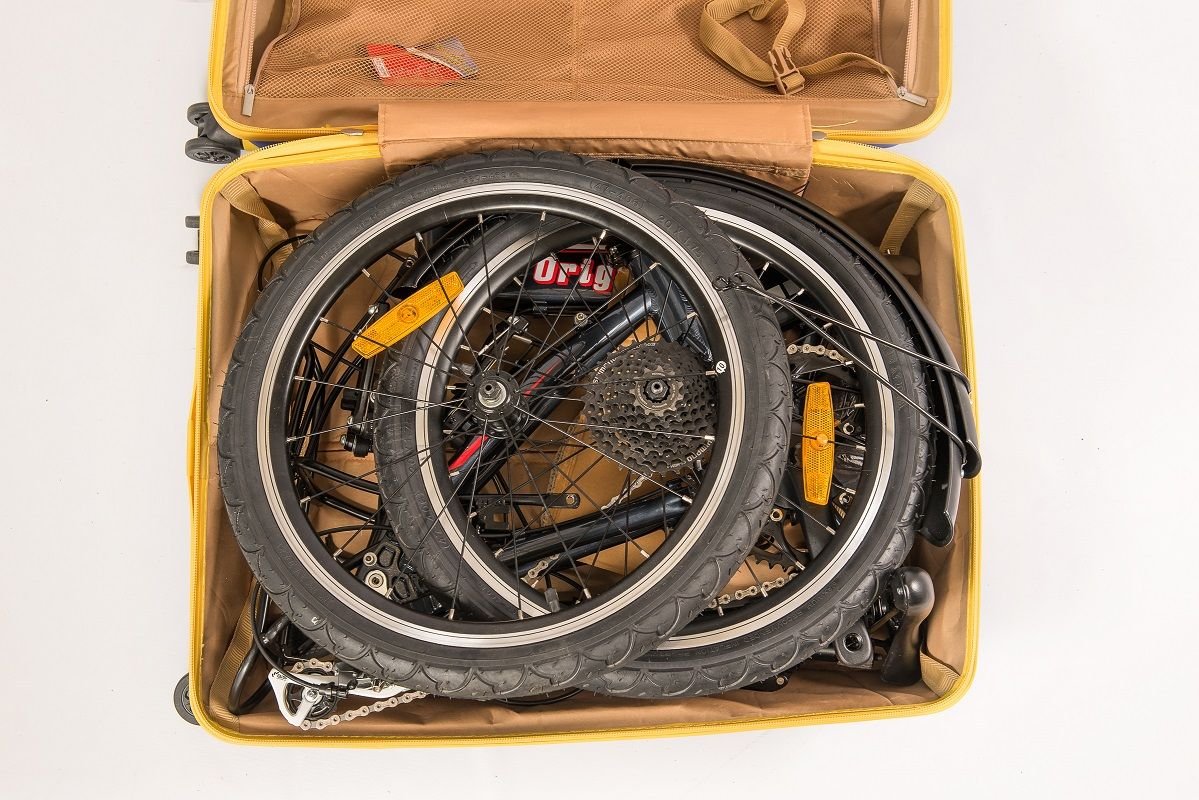

If you remove the wheels; might be able to squeeze everything in 1 standard size suitcase:
__________________
One day: https://www.youtube.com/watch?v=20X43026ukY&list=UUHyRS8bRu6zPoymgKaIoDLA&index=1
1nterceptor is offline
Reply With Quote
Old 02-03-19, 09:50 PM
  #3
Mini1976
Newbie
Thread Starter

Join Date: Feb 2019
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks 1nterceptor that is exactly what i was thinking could be done, Would you happen to know (or be able to measure for me) the size of that suitcase.

Thanks
Mini1976 is offline
Reply With Quote
Old 02-03-19, 10:17 PM
  #4
1nterceptor
LET'S ROLL

1nterceptor's Avatar

Join Date: Nov 2009
Location: NEW YORK, NY - USA
Posts: 4,708

Bikes: 2014 BMC Gran Fondo, 2013 Brompton S6L-X

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 277 Post(s)

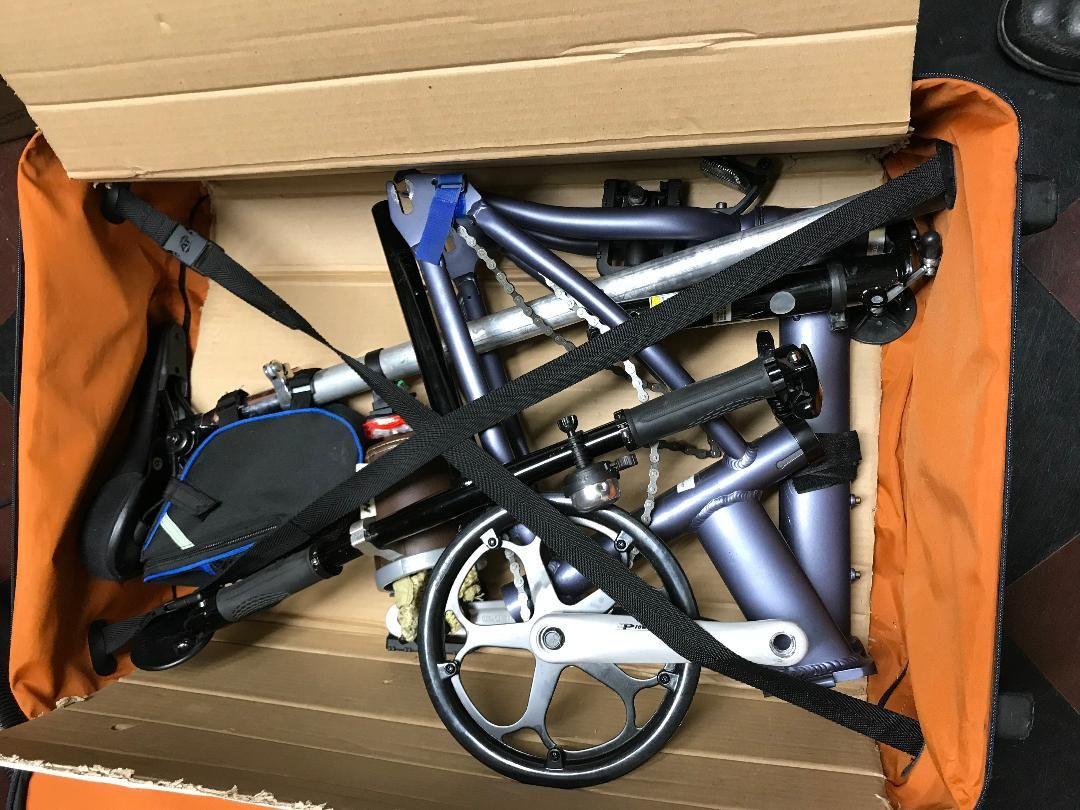

I got that suitcase specifically for that bike. When I switched to a different bike(Brompton) and bike luggage(cardboard box);
I got rid of both the Tobukaeru and that suitcase. But I think it's still being sold. Google Samsonite Winfield 2 28" Hardside Spinner Luggage.
Oh just realized; I had the dimensions in my video description: Dimensions: 28.0" x 19.0" x 13.0"

Another bike(Citizen Tokyo) in the same suitcase:

2013 Citizen Tokyo in a suitcase by 1nterceptor, on Flickr
__________________
One day: https://www.youtube.com/watch?v=20X43026ukY&list=UUHyRS8bRu6zPoymgKaIoDLA&index=1
1nterceptor is offline
Reply With Quote
Old 02-03-19, 10:24 PM
  #5
2_i
Senior Member

Join Date: Sep 2005
Location: Michigan
Posts: 2,352

Bikes: Trek 730, Bike Friday NWT, Brompton M6R*2, Trek 830, Trek 720, Dahon HAT060, Dahon HT060,...

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 305 Post(s)
By taking the seatpost out, wheels off, letting air out and detaching the pedals and the derailleur I managed to squeeze each of our Dahons into a B&W Bompton suitcase, right at the border of the airline dimensions. I put one wheel into the other suitcase and some stuff from the other suitcase into B&W because it was the most straightforward. I suspect that if I worked harder I could keep both wheels in B&W. One critical move was turning the fork backwards, if I remember correctly.
2_i is offline
Reply With Quote
Old 02-06-19, 08:19 AM
  #6
pibach
Senior Member

Join Date: Apr 2007
Posts: 300

Bikes: Dahon Mu Sport & Mu Ex

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
The fork usually can be fit in between the rear triangle - (works for all Dahons I know).
pibach is offline
Reply With Quote
Old 02-07-19, 08:00 AM
  #7
Pinigis
Senior Member

Pinigis's Avatar

Join Date: Feb 2012
Location: Henrico, VA
Posts: 995

Bikes: Origami Gazelle, Origami Crane 8, Origami Cricket 7

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Most bikes will require some disassembly, and not all will fit in a airline-standard suitcase, but there are a lot that will.


__________________
Paul Pinigis
Owner of Origami Bicycle Company
Pinigis is offline
Reply With Quote
Old 02-07-19, 08:02 AM
  #8
Pinigis
Senior Member

Pinigis's Avatar

Join Date: Feb 2012
Location: Henrico, VA
Posts: 995

Bikes: Origami Gazelle, Origami Crane 8, Origami Cricket 7

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Here is a video that may help you:
__________________
Paul Pinigis
Owner of Origami Bicycle Company
Pinigis is offline
Reply With Quote
Old 02-07-19, 08:17 AM
  #9
rhenning
Senior Member

Join Date: Apr 2006
Posts: 3,204
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 238 Post(s)

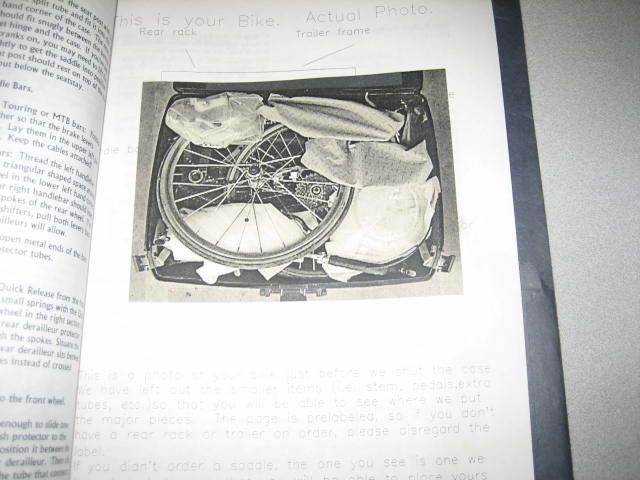

These are from my Bike Froday's owners manual and include the bike in its case. Roger
rhenning is offline
Reply With Quote
Old 02-07-19, 10:00 AM
  #10
mirfi
Senior Member

mirfi's Avatar

Join Date: Mar 2012
Location: Baltimore, MD
Posts: 246

Bikes: Vilano Urbana, DownTube FS9, Montaque paratrooper, Nano mini-velo, Motobecane CX, Raleigh 20, MIFA folder, ROG Pony

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)

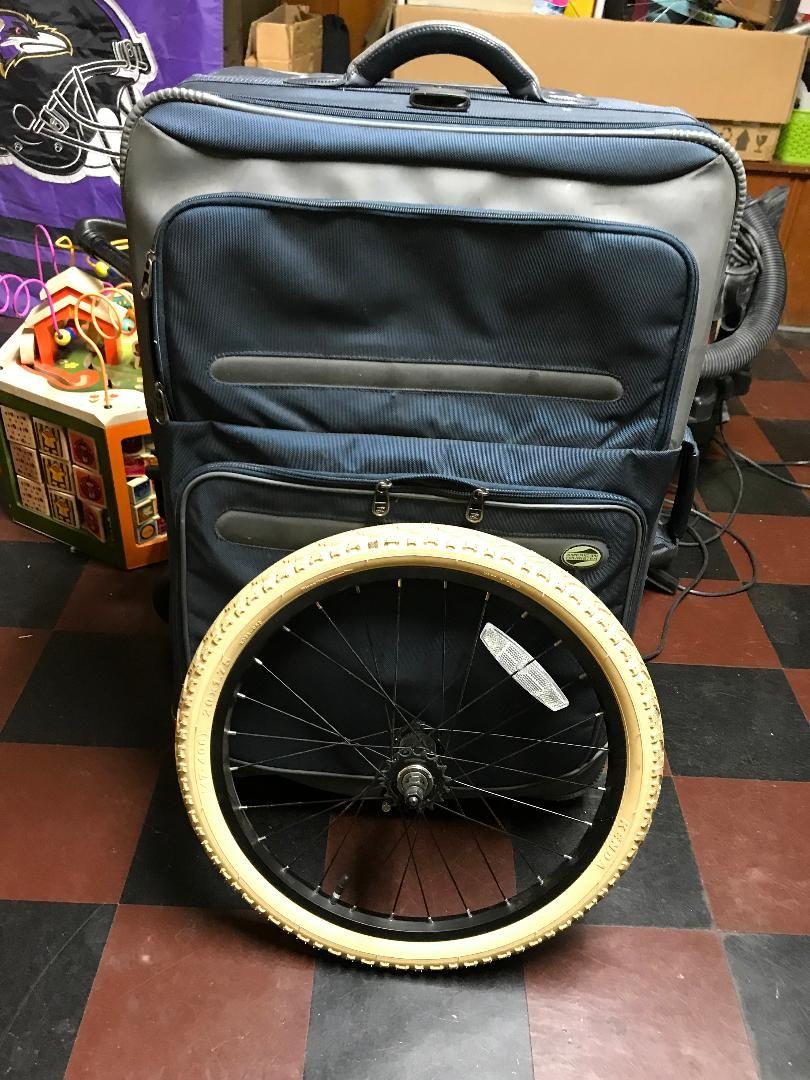

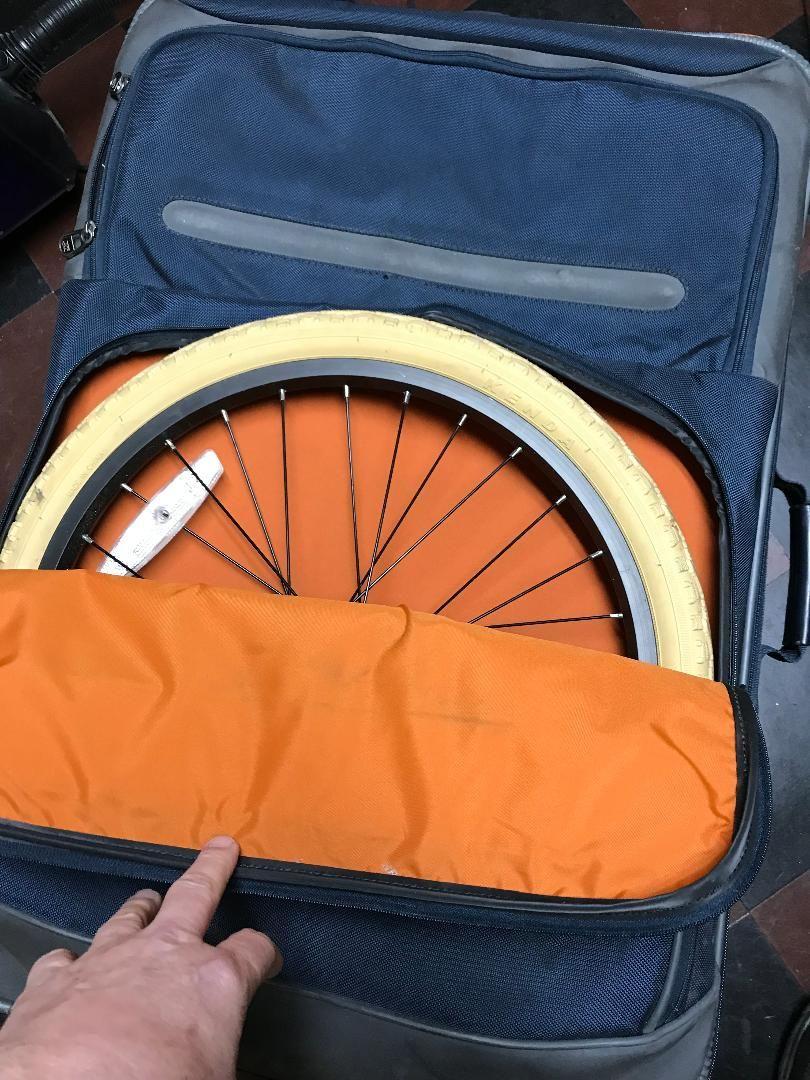

My "Proof of Concept" using a freecycle checked luggage with a Vilano Urbana. Testing is to see what steps I'll need. I didn't go full tilt like deflating tires or add padding.



mirfi is offline
Reply With Quote
Old 02-07-19, 09:13 PM
  #11
mirfi
Senior Member

mirfi's Avatar

Join Date: Mar 2012
Location: Baltimore, MD
Posts: 246

Bikes: Vilano Urbana, DownTube FS9, Montaque paratrooper, Nano mini-velo, Motobecane CX, Raleigh 20, MIFA folder, ROG Pony

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
As a followup, what I find is that I'm gonna need two bags, if only for helmet, miscellaneous and probably put both wheels in second bag. Also, the pedals have to come off. Good luck to ya.
mirfi is offline
Reply With Quote
Old 02-08-19, 07:23 PM
  #12
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 5,549

Bikes: 1961 Ideor, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, Perfekt 3 Speed -age unknown, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1148 Post(s)
In USA the standard airline size limit is 62 inches (sum of length, width and thickness), which is 157 cm. And that has set somewhat of a standard for other airlines too. Thus, that is a common size for luggage. I suspect if you show up for transport with a case that meets that criteria, they probably will accept it.
