Has anyone... 74 mm front quick release?

Notices
Folding Bikes Discuss the unique features and issues of folding bikes. Also a great place to learn what folding bike will work best for your needs.

Has anyone... 74 mm front quick release?

Old 11-07-19, 05:00 PM
  #1
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,460

Bikes: A few

Mentioned: 101 Post(s)
Tagged: 0 Thread(s)
Quoted: 1306 Post(s)
Likes: 0
Liked 86 Times in 66 Posts
Has anyone... 74 mm front quick release?

Hello all,

my 2003 Dahon Mariner has a nutted front axle which I would love to change to QR. my LBS has axles which look like an easy switch out. Problem is, no QR to go with it.

Can I take a reg front QR rod and run a die down the shaft to give me enough thread for the 74 mm size? What thread die should I use?

Any quidance is appreciated!
3speedslow is offline
Old 11-07-19, 05:12 PM
  #2
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 23,294
Mentioned: 181 Post(s)
Tagged: 0 Thread(s)
Quoted: 9548 Post(s)
Liked 262 Times in 203 Posts
Hmmpf

I'm seeing a few on E-Bay from China.

https://www.ebay.com/itm/New-MTB-Roa...t/312788159971

I might be willing try one of their internal cam skewers. I've had issues with the super-light external cam skewers.

You could try cutting threads with an M5 (0.8, I think) thread die.

Bike Friday has sold 74mm hubs. Also Brompton. And, Phil, I think. Anyway, you could contact some of those companies even if they don't list current stock.

If axles are 90% or 100% threaded, then they should be able to be cut down easily enough.
CliffordK is online now
Old 11-07-19, 06:02 PM
  #3
linberl
Senior Member

linberl's Avatar

Join Date: Jun 2014
Location: SF Bay Area
Posts: 2,603

Bikes: 2017 Bike Friday PakiT. Dahon Mu Uno (trailer bike) Sold: 2003 Bike Friday NWT, 1997 Trek 720, 1993 Trek 520)

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1032 Post(s)
Liked 37 Times in 33 Posts
Originally Posted by 3speedslow View Post
Hello all,

my 2003 Dahon Mariner has a nutted front axle which I would love to change to QR. my LBS has axles which look like an easy switch out. Problem is, no QR to go with it.

Can I take a reg front QR rod and run a die down the shaft to give me enough thread for the 74 mm size? What thread die should I use?

Any quidance is appreciated!
$20 on T.h.o.r. USA at the end of the listing of dahon wheels
linberl is offline
Old 11-07-19, 08:29 PM
  #4
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,210

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 532 Post(s)
Liked 28 Times in 23 Posts
Originally Posted by 3speedslow View Post
Can I take a reg front QR rod and run a die down the shaft to give me enough thread for the 74 mm size? What thread die should I use?
Those threads should be rolled, not cut with a die. Rolled threads are stronger under tension, as the QR shaft will be during use.
sweeks is offline
Old 11-07-19, 10:21 PM
  #5
tomtomtom123
Senior Member

Join Date: Jan 2017
Posts: 463
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Likes: 0
Liked 17 Times in 14 Posts
Sometimes a 100 mm skewer has enough threads to fit 74mm dropouts. Then you only have to trim the skewer. Put a m5 nut on it before cutting. Removing the nut afterward helps to clean up the threads. Cutting with a thin disk like on a Dremel or proxxon tool also helps to keep the threads clean.
tomtomtom123 is offline
Old 11-08-19, 04:24 PM
  #6
tomtomtom123
Senior Member

Join Date: Jan 2017
Posts: 463
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Likes: 0
Liked 17 Times in 14 Posts
Also, you might want to consider the security implications of switching to quick release, which would make it easier for thieves to steal your wheels.

If you are also interested in a new hub, if you buy a Novatec hub on Aliexpress for $20-25, it usually comes with a quick release. But you'll find the quick release by itself for even cheaper, like what the other person posted above. I have 2 Novatec hubs from Aliexpress which came with quick release skewers, but now they're just sitting in a box because I found that I needed hubs with a greater number of spokes to match the rim that I needed to use. The Chosen T4B hub is actually much better quality with better end cap designs than the Novatec hubs. It also came with a quick release which I'm not using. Instead I'm using a skewer bolt with a lock for better security, because I don't want to lose the wheels that I spent many hours to build.

If you're curious about the Chosen hub, it's the same one that is used on some of the Bike Friday wheels. It goes all the way up to 36 holes. It comes with Taiwanese bearings instead of Chinese bearings, and uses the larger 6000 cartridge bearings which has the same 4,762 mm (3/16″) ball size as what Shimano uses on their cup and cone front hubs. (Some of the miniature Japanese NTN bearings are actually rebranded Taiwanese bearings). Otherwise, Novatec has 2 models, a smaller one with smaller 699 bearings, and a larger one with 6000 bearings that only goes up to 28 holes. You can find more info here:
Novatec and Kinetix 74mm front hub dimensions for Dahon and others

Last edited by tomtomtom123; 11-08-19 at 04:34 PM.
tomtomtom123 is offline
Old 11-08-19, 05:00 PM
  #7
tomtomtom123
Senior Member

Join Date: Jan 2017
Posts: 463
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Likes: 0
Liked 17 Times in 14 Posts

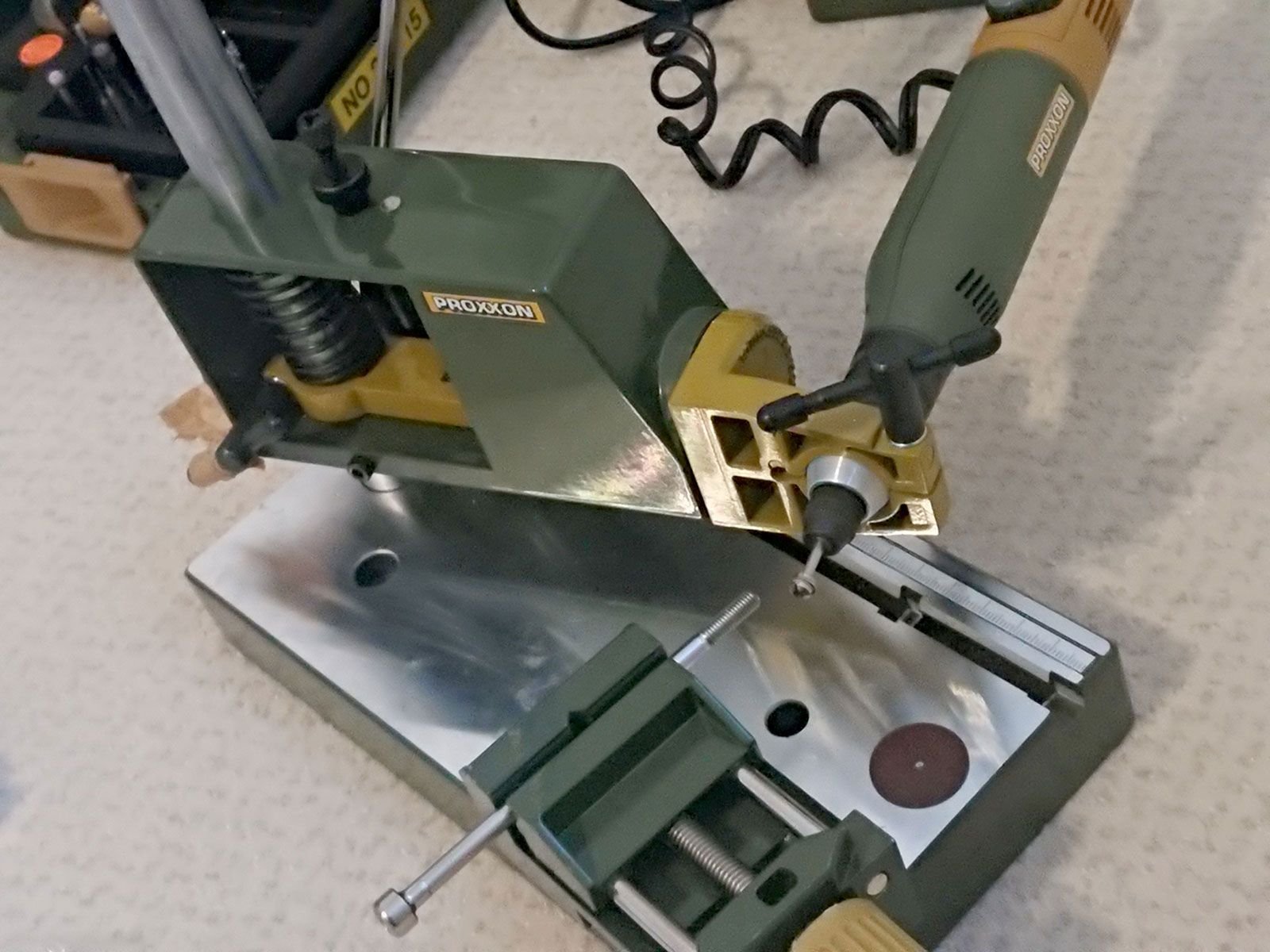

I found the photo of how I trimmed the 100mm skewer bolt so that it wouldn't stick out on the other end on my 74mm dropout. I had forgotten to thread on a M5 nut before cutting (for cleaning up the threads from the inside), but the cut was so clean that it didn't matter. The brown disk at the bottom is what I used to cut the steel. Using a clamp and a drill stand made it much easier and a cleaner cut. There were a few threads remaining when screwing it into the hub and dropout, before bottoming out. Not all 100mm skewers have such a large amount of thread length though, so you'd have to check if the one you get would work.
tomtomtom123 is offline
Old 11-09-19, 04:13 PM
  #8
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,460

Bikes: A few

Mentioned: 101 Post(s)
Tagged: 0 Thread(s)
Quoted: 1306 Post(s)
Likes: 0
Liked 86 Times in 66 Posts
Originally Posted by sweeks View Post
Those threads should be rolled, not cut with a die. Rolled threads are stronger under tension, as the QR shaft will be during use.
Good point! I had forgotten that.
3speedslow is offline
Old 11-09-19, 04:19 PM
  #9
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,460

Bikes: A few

Mentioned: 101 Post(s)
Tagged: 0 Thread(s)
Quoted: 1306 Post(s)
Likes: 0
Liked 86 Times in 66 Posts
Originally Posted by tomtomtom123 View Post
Sometimes a 100 mm skewer has enough threads to fit 74mm dropouts. Then you only have to trim the skewer. Put a m5 nut on it before cutting. Removing the nut afterward helps to clean up the threads. Cutting with a thin disk like on a Dremel or proxxon tool also helps to keep the threads clean.
Tom,

Excellent posts with great info! I thank you for the effort and experience you have shared. I do have a Drexel and have cut bolts before. Remembered the nut clean off trick.

i do have a set of security QRs but sadly they are not threaded enough. I will check my LBS to see if they are able to roll threads for me. They have a huge bin of QRs to paw through, might find one I simply have to cut down.

Thanks all!
