Chain jump on Moulton TSR 11 advice

Notices
Folding Bikes Discuss the unique features and issues of folding bikes. Also a great place to learn what folding bike will work best for your needs.

Chain jump on Moulton TSR 11 advice

Old 03-30-20, 08:21 AM
  #1
Falconista
Senior Member
Thread Starter

Join Date: Mar 2020
Posts: 62

Bikes: 1986 Falcon Laser, 2004 Dahon, 2018 Moulton TSR

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 6 Times in 5 Posts
Chain jump on Moulton TSR 11 advice

I am getting occasional chain drop on the front cog of my Moulton TSR and was looking for advice/ideas on a fix.

It was a standard TSR 9 which I upgraded to Shimano XT 11 speed (on inspiration from Pinholecam from this forum). However I left the front chainring as stock (Sturmey Archer 54T with double chain guard and generally it all works well.

However occasionally (maybe every four or five rides) when changing up a gear and near top gear the chain jumps off the front ring and jams between the chainring and outer chain guard.

I suppose that this is because the 11 speed chain is slightly narrower than the original 9 speed. The clutch on the XT derailleur is set in the right position and chain tension is OK. It has always done it so not the age of the chain.

1) Should I just use some force to squeeze/bend the chain guards slightly narrower? I can see that might cause a real jam if it came off again.
2) Swap the chainring to one with narrow wide teeth? Litespeed seem to make one with 54T although it doesn't always specify for 11 speed. Would it work with the existing guards to keep oil off trousers etc?
3) Other options?

Thanks in advance for the input. Apols that I can't post pictures in my first post.

PS I have got a load of help on bike works from searching this forum in the past. It has been much appreciated.
Falconista is offline
Old 03-30-20, 03:30 PM
  #2
Jipe
Senior Member

Join Date: Feb 2017
Posts: 607
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Likes: 0
Liked 76 Times in 65 Posts
This front chainring is not a 11s compatible chainring, I guess that's the reason especially if it happens with the smallest cogs where the chain is less tensionned by the rear derailleur.
Jipe is offline
Old 03-31-20, 05:15 AM
  #3
Falconista
Senior Member
Thread Starter

Join Date: Mar 2020
Posts: 62

Bikes: 1986 Falcon Laser, 2004 Dahon, 2018 Moulton TSR

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 6 Times in 5 Posts
Thanks Jipe. I understood the inside of all chains are the same diameter, so a single chain ring will handle all chains. In this case it works fine except the occasional jump off, probably due to the chain line or as you say less tension.

Curious if anyone has successfully used the litespeed narrow wide option which seems attractive. Squeezing the chain guards is cheaper but doesn't allow me to order new bits and look forward to receiving them in the post...
Falconista is offline
Old 03-31-20, 05:19 AM
  #4
zebede
Hello

zebede's Avatar

Join Date: Aug 2007
Location: Suncoast, Florida
Posts: 910

Bikes: n+1

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 20 Times in 18 Posts
This happens on my 1x8 Tikit. I am using a short cage derailleur and a bio-pace chain ring. I have theorized, during a shift, that when the derailleur arm snaps forward on an to smaller rear cog, at relative high cadence, it can send a "wave" of loose chain forward, aggravated by my biopace (ovalish) . Since a 1x system has greater chain angle than 2x it is more prone to the chain coming off the front ring, to the outside. As with you, it is an occasional phenomena.

Solutions: I have removed my outer chain guard so there is no jamming (it just comes off), My primary solution has been to just slow down my cadence more than usual and shift slowly, on the upper end.
I cannot fit a conventional chain keeper or chain guide, as would be my preference.
The only idea I have for you: If there is such as thing as a 5 bolt chain guard with an off-set inward to narrow the distance. Alternatively reduce the distance by riveting a ring on the inboard side of the chain guard.
zebede is offline
Old 03-31-20, 01:48 PM
  #5
Vanrex
Member

Join Date: Sep 2014
Posts: 27
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 6 Times in 1 Post
I'm not familiar with the Litespeed chainring, but I've been using a narrow wide Wolf Tooth 52T in my 1x10 setup for a couple years now. I haven't dropped a chain since I installed it, whereas before the chain would drop off the outside every few rides (even with a clutched rear derailleur), with the problem getting progressively worse as the chain wore.
Vanrex is offline
Old 04-01-20, 01:30 AM
  #6
pinholecam
Senior Member

Join Date: Jan 2016
Posts: 491
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 50 Times in 43 Posts
LitePro has a 10sp narrow wide chainring option.
https://www.lazada.sg/products/litep...TdbLP&search=1

This is a local online shopping site, but I think you should be able to find a similar one via Amazon, Ebay, AliExpress, etc.


I did not get chaindrops from my TSR setup, though I did more so with another 1x setup on a mini-velo (with Sora).
For the latter, I added a dis-used FD w/o any cable and it solved the problem.
pinholecam is offline
Old 04-01-20, 02:50 AM
  #7
Falconista
Senior Member
Thread Starter

Join Date: Mar 2020
Posts: 62

Bikes: 1986 Falcon Laser, 2004 Dahon, 2018 Moulton TSR

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 6 Times in 5 Posts
Thanks all. It seems that the narrow wide option is best. I meant LitePro (not Litespeed which I used in the first post) as the (only?) option for a 54T narrow wide chainring with 130BCD. They are available on ebay for not a huge amount,

Now I just need to decide whether to get the whole LitePro crankset (which looks quite good and also light), or just the chain ring and keep the SA crank and outer guards. Decisions decisions...
Falconista is offline
Old 04-16-20, 09:34 AM
  #8
2bridges1bike
Senior Member

Join Date: Jan 2019
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 8 Times in 5 Posts
Originally Posted by zebede View Post
This happens on my 1x8 Tikit. I am using a short cage derailleur and a bio-pace chain ring. I have theorized, during a shift, that when the derailleur arm snaps forward on an to smaller rear cog, at relative high cadence, it can send a "wave" of loose chain forward, aggravated by my biopace (ovalish) . Since a 1x system has greater chain angle than 2x it is more prone to the chain coming off the front ring, to the outside. As with you, it is an occasional phenomena.

Solutions: I have removed my outer chain guard so there is no jamming (it just comes off), My primary solution has been to just slow down my cadence more than usual and shift slowly, on the upper end.
I cannot fit a conventional chain keeper or chain guide, as would be my preference.
The only idea I have for you: If there is such as thing as a 5 bolt chain guard with an off-set inward to narrow the distance. Alternatively reduce the distance by riveting a ring on the inboard side of the chain guard.
This has been my experience as well. I would also add that a chain guide can help reduce, but not eliminate, the waves mentioned above. Search for “chain guide” On the page below.

edit: See also the Tern Mainstay also on the page below.


Special Parts Dahon Tern and others

Last edited by 2bridges1bike; 04-16-20 at 09:43 AM.
2bridges1bike is offline
Old 04-20-20, 05:29 AM
  #9
dukeiii
Member

Join Date: Apr 2020
Posts: 26
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 6 Times in 4 Posts
Sram force CX1 is another narrow-wide chainring option. It comes in both 110 and 130 standards with different teeth # options.
dukeiii is offline
Old 04-27-20, 12:17 PM
  #10
Falconista
Senior Member
Thread Starter

Join Date: Mar 2020
Posts: 62

Bikes: 1986 Falcon Laser, 2004 Dahon, 2018 Moulton TSR

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 6 Times in 5 Posts

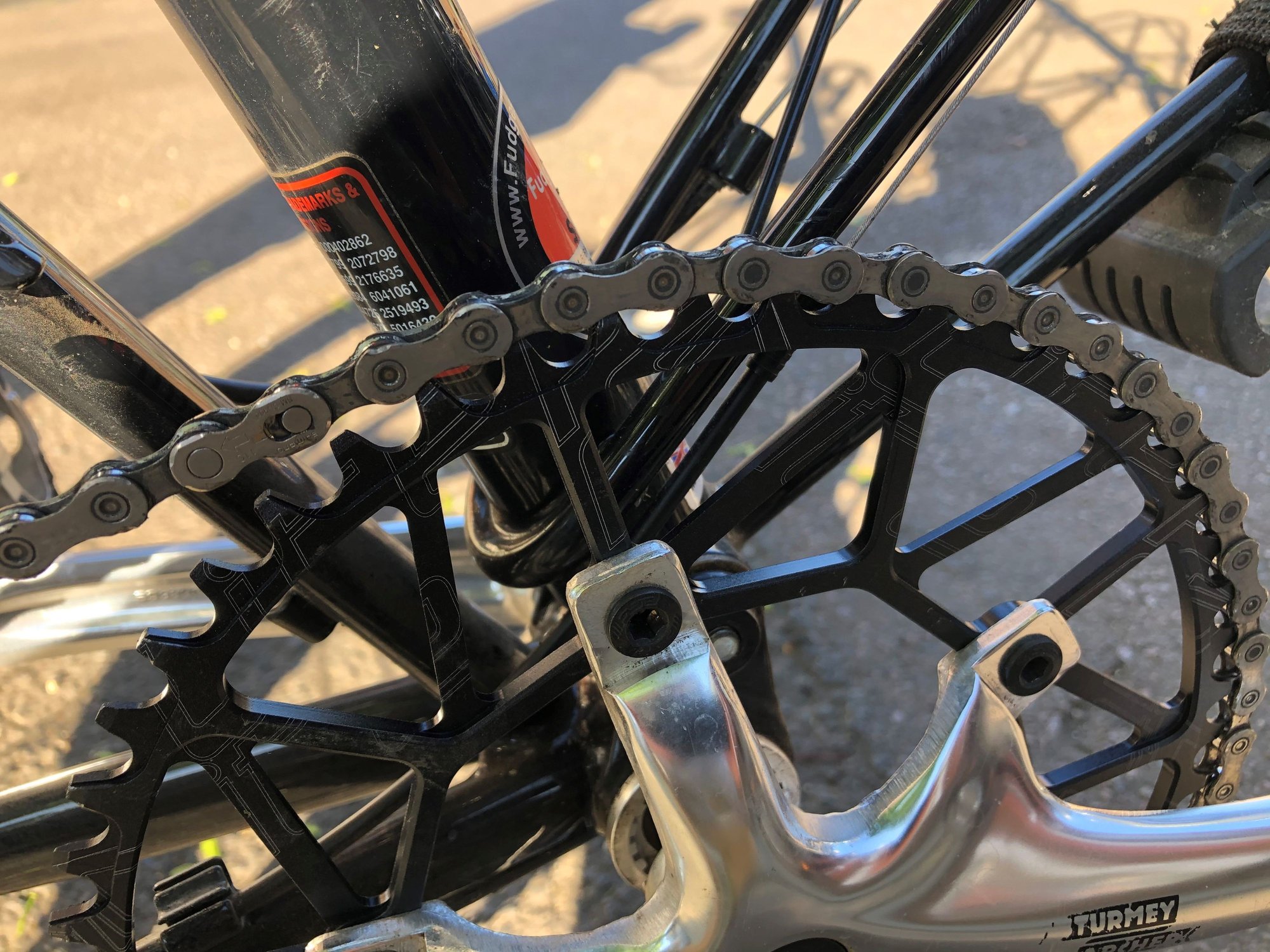

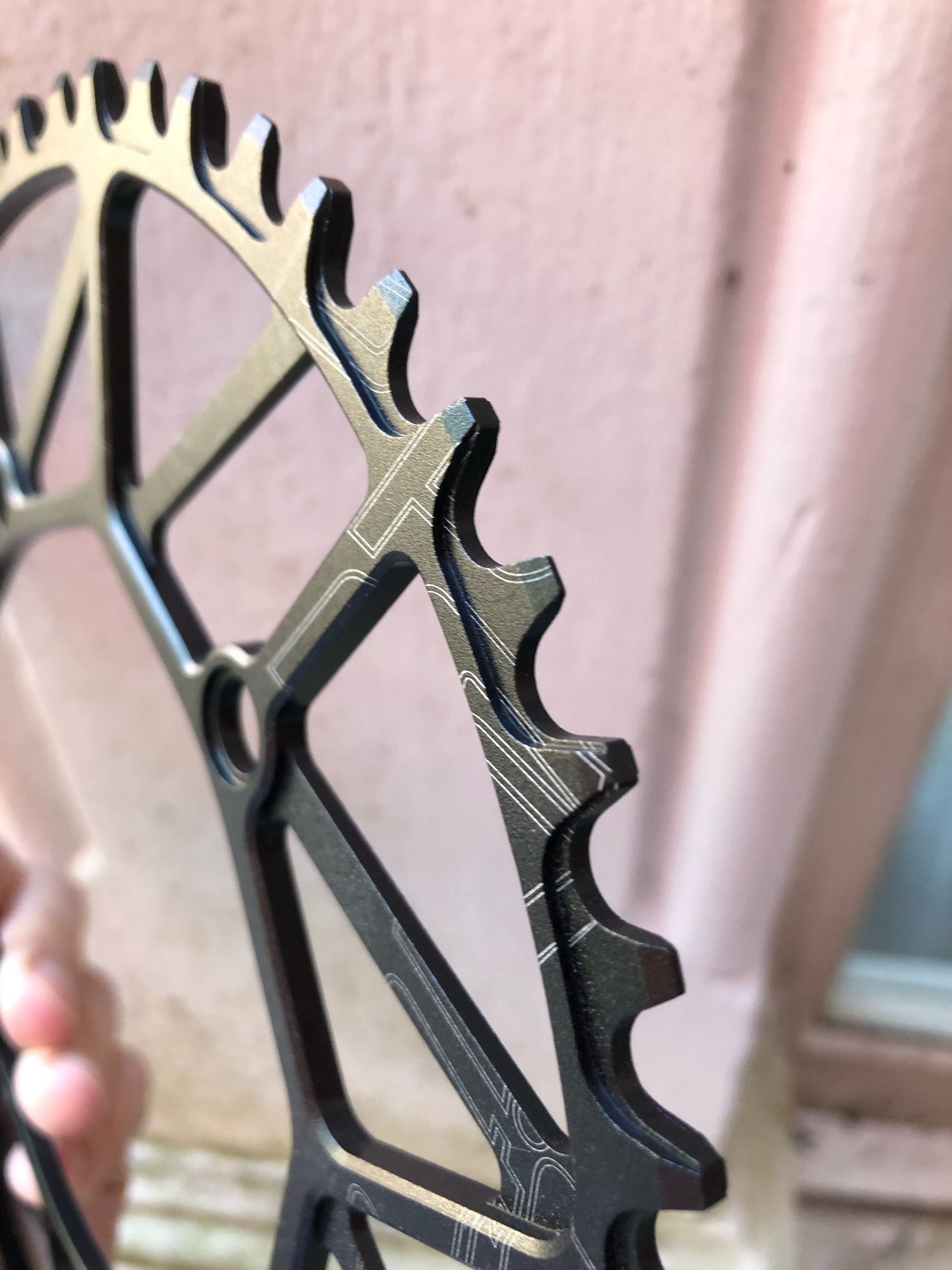

Thanks all for the comments and help. I bought a cheapish narrow wide chainring from ebay. I think it is by Litepro but not absolutely certain.
