Low 31.8mm drop-bars: recommended handleposts/stems?
11-29-20, 11:14 PM
#1
Senior Member
Thread Starter
Join Date: Sep 2018
Location: Shenandoah Valley, Northern Virginia.
Posts: 368
Bikes: '99 Trek 520, Konacado ('20 Kona Sutra) and a chromoly-framed folding bicycle with drop-bars and V-brakes, that rolls even while folded.
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Likes: 0
Liked 83 Times
in
64 Posts
Low 31.8mm drop-bars: recommended handleposts/stems?
I been looking to convert a Dahon Speed to drop-bars. Seems that the ideal height for the bars would be 10"/25.4cm, for me at least. As far as I know, the only way to keep the drop-handlebars securely clamped is to forgo the ability to fold them independently from the handlepost (e.g. no quick-release at the top) - I'm fine with that. So what is the most effective system or component combination? The most obvious to me would be to have a handlepost with a top-portion that is designed for a regular threadless bicycle stem to be clamped onto it, similar to how a quill-threadless adapter works. I've seen one product like that on Ebay but, it was a standard adjustable height, which doesn't go as short as 10"/25.4cm, and also didn't appear to have a hinge.
11-30-20, 07:03 AM
#2
Senior Member
Join Date: Aug 2010
Location: Madison, WI
Posts: 7,962
Bikes: 1961 Ideor, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, Perfekt 3 Speed -age unknown, 1980s Bianchi Mixte on a trainer. Others are now gone.
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2152 Post(s)
Likes: 0
Liked 452 Times
in
374 Posts
I am not sure what you are trying to do, but I am using a quick release with an adjustable threadless stem on my folder, which is not a Dahon.
I am using drop bars with an adjustable threadless stem. The bolt that you loosen and tighten to adjust the angle of my stem is M6. That is the same size thread as some quick release seatpost clamps. For several years I have used a quick release clamp on my adjustable stem to make it easier to make my bike smaller when I pack it away without using any tools.
There is risk if you do that, if you accidentally bumped the quick release with enough force to release it while you are riding, you could have a very bad day. So, only try it if you are willing to take that risk.

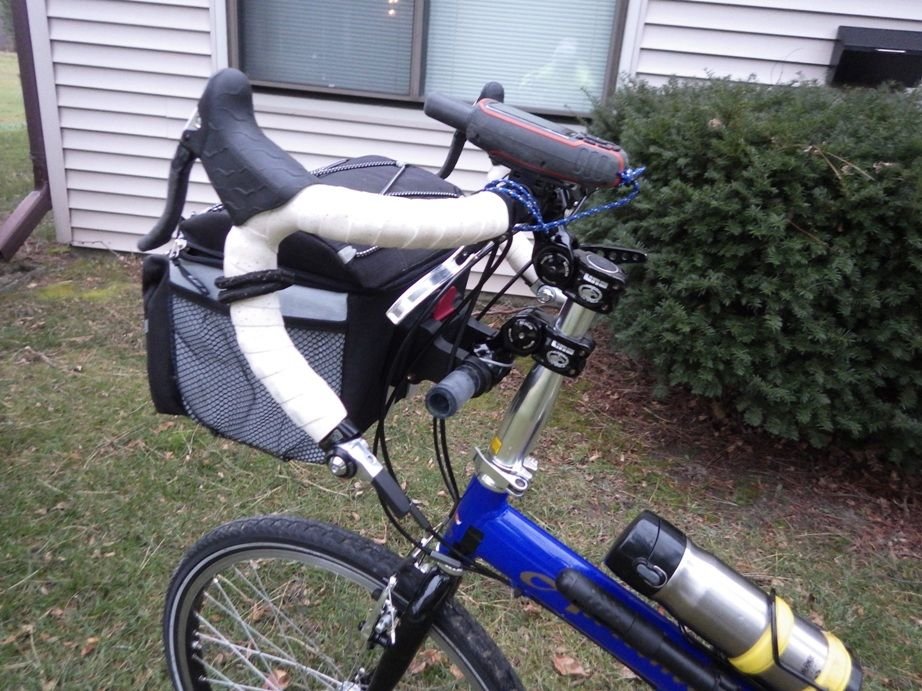

The lower stem is to mount the handlebar bag, do not let that confuse you, the upper stem that mounts the handlebars is where I have the quick release, in the photo below the lever is visible behind the stem.
I am using drop bars with an adjustable threadless stem. The bolt that you loosen and tighten to adjust the angle of my stem is M6. That is the same size thread as some quick release seatpost clamps. For several years I have used a quick release clamp on my adjustable stem to make it easier to make my bike smaller when I pack it away without using any tools.
There is risk if you do that, if you accidentally bumped the quick release with enough force to release it while you are riding, you could have a very bad day. So, only try it if you are willing to take that risk.
The lower stem is to mount the handlebar bag, do not let that confuse you, the upper stem that mounts the handlebars is where I have the quick release, in the photo below the lever is visible behind the stem.
11-30-20, 08:18 AM
#3
Senior Member
Thread Starter
Join Date: Sep 2018
Location: Shenandoah Valley, Northern Virginia.
Posts: 368
Bikes: '99 Trek 520, Konacado ('20 Kona Sutra) and a chromoly-framed folding bicycle with drop-bars and V-brakes, that rolls even while folded.
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Likes: 0
Liked 83 Times
in
64 Posts
What I'm trying to do is add drop-bars to a bicycle that employs a folding (or otherwise retractable) handlepost. The adjustable threadless stem that you describe would certainly allow folding the drop-bars independent of the handlepost. The problem is finding a folding/retractable handlepost that accepts that kind of stem. The only one I've found was unreasonably tall for using drop-bars with.
12-05-20, 12:00 PM
#4
Wake up!!!
Join Date: Aug 2012
Location: Mastic Beach, NY
Posts: 3,307
Bikes: 9+,...
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 734 Post(s)
Liked 238 Times
in
145 Posts
What you need is a handlebar stem that folds to the outside of the bike. Litepro makes them, but I can't seem to locate it on eBay. Try Aliexpress. They should have what you 're looking for, so you can easily use drop bars, and still fold the bike.
