Andrew Ritchie pattern tri-folders

Old 12-25-21, 07:49 AM
  #26
Ev0lutionz
Senior Member

Join Date: Aug 2020
Posts: 103
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 11 Times in 7 Posts
I'm based in Singapore, Mobot is just a Pikes re-brand. Am using a pikes personally.
Ev0lutionz is offline
Likes For Ev0lutionz:
Old 12-28-21, 11:13 PM
  #27
pinholecam
Senior Member

Join Date: Jan 2016
Posts: 557
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 74 Times in 61 Posts
Originally Posted by Schwinnsta View Post
No, I would call that a bi-fold with an extra hinge. The ideal would be not having a hinge in the main beam or triangle (if there is one). If you look at the bicycle as a structure, the wheels are its supports. The bi-fold is like a beam spanning wheel to wheel with a hinge in the middle. Structurally, that is the worst spot. For cost of production and practicality, it may be the best spot. Can you overcome that shortcoming? Yes. The only folder I had that was a bi-fold that was stiff was the Raleigh 20. it was way heavy, had a huge fold, and it had an antique threading system. I had had two Dahons. Both were relatively cheap and both way too flexy. I had two Moultons. I liked them, but they are not folders. On balance, I do like front wheel shocks (just my opinion but too much compromise). My current 20" bike is a Xootr Swift. I love the ride, but the fold is huge. That is its only downside. Later this year I will try another folder, maybe a bi-fold.
The bi-fold also offers a quick fold into roughly half the bike length as a practical aspect and no need to roller wheels/rack to push around after fold (provided it was catered for in the design of course).

The ChangeBike does have a design that isn't too bad a compromise (esp the flat bar version), stiff turning joint (maybe even over spec'ed for my weight).
It can use a standard 26" or 27.5" fork depending on model.
Not the smallest fold, but in reality, it occupies a imaginary space when folded that is really more or less the same as a 20" folded bike.
pinholecam is offline
Old 12-29-21, 05:02 AM
  #28
Jipe
Senior Member

Join Date: Feb 2017
Posts: 1,034
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 503 Post(s)
Likes: 0
Liked 149 Times in 128 Posts
For me the cleverest solution is the one of the Birdy: no additional folding axle, one piece main frame, the front and rear suspension axles are also the one used to fold the bike.
Jipe is offline
Old 12-29-21, 09:07 AM
  #29
tcs
Palmer
Thread Starter

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,267

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 796 Times in 484 Posts
Originally Posted by Jipe View Post
For me the cleverest solution is the one of the Birdy...
Very clever, yes. The compromise of the 'no hinge in the main frame' design approach is of course a larger fold.



Last edited by tcs; 12-29-21 at 09:16 AM.
tcs is offline
Old 12-29-21, 03:50 PM
  #30
Jipe
Senior Member

Join Date: Feb 2017
Posts: 1,034
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 503 Post(s)
Likes: 0
Liked 149 Times in 128 Posts
Yes, larger fold but only slightly larger.

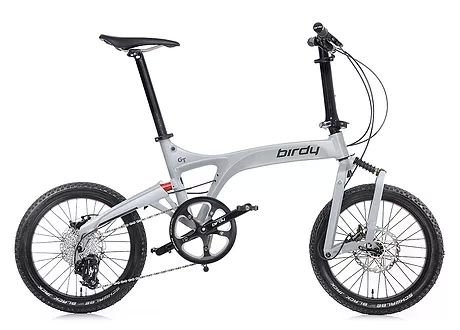

The above picture is an old one of a Birdy I.

The Birdy has been improved step by step and the current Birdy is only slightly bigger than the Brompton.

Jipe is offline
Old 12-29-21, 07:15 PM
  #31
pinholecam
Senior Member

Join Date: Jan 2016
Posts: 557
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 74 Times in 61 Posts
Originally Posted by tcs View Post
Very clever, yes. The compromise of the 'no hinge in the main frame' design approach is of course a larger fold.


The Tyrell IVE uses the same folding concept.
That said, nothing 'tucks' the wheels better than the Brompton when folded, so width wise, its still the neatest and most narrow.

Its really all about compromises and what one prefers and decides what he/she can accept more of.
I am not big nor heavy and to me a bi-fold bikes work well enough and can be lighter on the wallet too.
I can also appreciate the compact fold of the Brompton (though I really dislike the poseur cult that is built around it ); also I am willing to sacrifice some fold compactness for good gear spacing, better efficiency with other folding bikes
Birdy/Tyrell IVE type fold is a reasonable compromise to me too (and the middle ground really depends on where is middle for the user)
pinholecam is offline
Old 12-30-21, 08:54 AM
  #32
tcs
Palmer
Thread Starter

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,267

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 796 Times in 484 Posts
Originally Posted by Jipe View Post
The Birdy has been improved step by step and the current Birdy is only slightly bigger than the Brompton.
State of the art Andrew Ritchie trifolder Dahon Curl: 54x27x58cm
Birdy factory folded dimensions: 62x34x80cm
tcs is offline
Old 12-31-21, 05:16 AM
  #33
Jipe
Senior Member

Join Date: Feb 2017
Posts: 1,034
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 503 Post(s)
Likes: 0
Liked 149 Times in 128 Posts
Birdy factory folded dimensions: 61x33x72cm

Just like for the Brompton, the folded length of the Birdy depend of the saddle mounting.

Both bikes have a seatpost with an offset (on the Brompton, the offset comes from the pentaclip).

With the offset to the front, the folded length is smaller than with the offset to the rear (the same apply for the folded height of the Brompton that also depends of the pentaclip adjustment)



.Birdy seatpost with offset to the front:


Birdy seatpost offset to the rear



The Dahon Curl has (or had ? at least some models had it) a clever folding saddle mounting system that reduces the folded size.


Last edited by Jipe; 12-31-21 at 05:19 AM.
Jipe is offline
Old 01-10-22, 04:52 PM
  #34
kraftwerk
my nice bike is at home

kraftwerk's Avatar

Join Date: Feb 2006
Location: Brooklyn, NY USA
Posts: 913

Bikes: 2011 BMC Race Machine / 2012 BMC Road Machine / Trek 2300 / '90's Merlin/ '70's Raleigh 20/ Ti-'swift' folder / Erickson w/S&S couplers

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Liked 19 Times in 14 Posts
This guy figured out a pretty good fold, takes a few ingredients from Bromptom but has 20' wheels, so better on those Belgian cobbles.
Nice guy, he was VERY impressed w/ mi Ti-Swift folder.



https://www.ahooga.bike/

Analog model looks good to me, there are also two models w/ electric motors.
__________________
BMC Race Machine / BMC Team Machine / Rossin Record / 80's Pinarello Traviso / Merlin MTB / Raleigh "Folding 20" / Ti-Swift (!)
Erikson w/C&C couplers / Trek's: 2300, 1200, 990 / Jamis 'Sputnik'


Last edited by kraftwerk; 01-10-22 at 07:42 PM.
kraftwerk is offline
Old 01-11-22, 04:41 AM
  #35
Jipe
Senior Member

Join Date: Feb 2017
Posts: 1,034
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 503 Post(s)
Likes: 0
Liked 149 Times in 128 Posts
Brompton just announced the T-line bike claimed to be the "Brompton reinvented".

If this claim is true, it should be more that a Brompton with a titanium frame like the existing titanium Brompton clone.
Jipe is offline
Old 01-11-22, 07:09 AM
  #36
Pinigis
Senior Member

Pinigis's Avatar

Join Date: Feb 2012
Location: Henrico, VA
Posts: 1,260

Bikes: Origami Gazelle, Origami Crane 8, Origami Cricket 7

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 327 Post(s)
Liked 193 Times in 130 Posts
Originally Posted by kraftwerk View Post
This guy figured out a pretty good fold, takes a few ingredients from Bromptom but has 20' wheels, so better on those Belgian cobbles.
Nice guy, he was VERY impressed w/ mi Ti-Swift folder.



https://www.ahooga.bike/

Analog model looks good to me, there are also two models w/ electric motors.
It's an interesting compromise between folding and disassembly. Personally, I don't like the idea of having to remove the front wheel to "fold" the bike.
__________________
Paul Pinigis
Owner of Origami Bicycle Company
Pinigis is offline
Likes For Pinigis:
Old 01-11-22, 08:52 AM
  #37
tcs
Palmer
Thread Starter

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,267

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 796 Times in 484 Posts
Originally Posted by Pinigis View Post
Personally, I don't like the idea of having to remove the front wheel to "fold" the bike.
Yeah, the Ori (&Mezzo) method of folding the front wheel back away from the forks is far more clever.
tcs is offline
Old 01-11-22, 09:08 AM
  #38
Winfried
Senior Member

Winfried's Avatar

Join Date: Aug 2011
Location: Paris, France
Posts: 2,268
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 458 Post(s)
Liked 87 Times in 76 Posts
Originally Posted by Pinigis View Post
It's an interesting compromise between folding and disassembly. Personally, I don't like the idea of having to remove the front wheel to "fold" the bike.
I was told by one of the co-founders that IRL, people don't often need to fold the bike completly, so leaving the front wheel on isn't that big a deal.

Winfried is offline
Old 01-11-22, 09:32 AM
  #39
tcs
Palmer
Thread Starter

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,267

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 796 Times in 484 Posts
Another Andrew Ritchie pattern tri-folder, branded 'Harry Quinn'. The ebike version is interesting.
tcs is offline
Old 01-11-22, 09:40 AM
  #40
tcs
Palmer
Thread Starter

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,267

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 796 Times in 484 Posts
Originally Posted by Jipe View Post
Brompton just announced the T-line bike claimed to be the "Brompton reinvented".

If this claim is true, it should be more than a Brompton with a titanium frame like the existing titanium Brompton clone.

We'll know on the 19th, I suppose. Until then,

tcs is offline
Old 01-11-22, 11:13 AM
  #41
Jipe
Senior Member

Join Date: Feb 2017
Posts: 1,034
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 503 Post(s)
Likes: 0
Liked 149 Times in 128 Posts
Originally Posted by tcs View Post
We'll know on the 19th, I suppose. Until then,

https://youtu.be/wCv37frpPbs
The exclusive virtual launch event is announced for Tuesday 18th January 2022 4pm UK time.
Jipe is offline
Old 01-11-22, 04:42 PM
  #42
2_i
Senior Member

Join Date: Sep 2005
Location: Michigan
Posts: 3,393

Bikes: Trek 730 (quad), 720 & 830, Bike Friday NWT, Brompton M27R & M6R, Dahon HAT060 & HT060, ...

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 699 Post(s)
Liked 237 Times in 176 Posts
Originally Posted by kraftwerk View Post
This guy figured out a pretty good fold, takes a few ingredients from Bromptom but has 20' wheels, so better on those Belgian cobbles.
Nice guy, he was VERY impressed w/ mi Ti-Swift folder.

https://www.ahooga.bike/

Analog model looks good to me, there are also two models w/ electric motors.
No fenders for the folding bike => No interest on my part. It is not about the art of folding for the sake of art, in the end, but about utility, and the fender question is from the list testing the latter.

Last edited by 2_i; 01-11-22 at 04:47 PM.
2_i is offline
Old 01-11-22, 06:21 PM
  #43
Winfried
Senior Member

Winfried's Avatar

Join Date: Aug 2011
Location: Paris, France
Posts: 2,268
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 458 Post(s)
Liked 87 Times in 76 Posts
They are "rollable" fenders.

Considering how rainy its native city is (Brussels), I assume they know what they're doing.

Winfried is offline
Old 01-11-22, 09:48 PM
  #44
2_i
Senior Member

Join Date: Sep 2005
Location: Michigan
Posts: 3,393

Bikes: Trek 730 (quad), 720 & 830, Bike Friday NWT, Brompton M27R & M6R, Dahon HAT060 & HT060, ...

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 699 Post(s)
Liked 237 Times in 176 Posts
Originally Posted by Winfried View Post
They are "rollable" fenders.

Considering how rainy its native city is (Brussels), I assume they know what they're doing.
Even if the protection is limited, it is good that they consider the issue .
2_i is offline
Old 01-13-22, 01:15 AM
  #45
CEBEP
Full Member

Join Date: Nov 2021
Posts: 291
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 130 Post(s)
Liked 34 Times in 26 Posts
Front fender provides no protection to the drive train and I too find having to remove front wheel to fold being much less practical. Probably not a big issue for whose who don't need to fold it every day but occasionally. Interesting concept.
CEBEP is offline
Old 01-16-22, 12:46 AM
  #46
Ev0lutionz
Senior Member

Join Date: Aug 2020
Posts: 103
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 11 Times in 7 Posts
This my Pikes !

Ev0lutionz is offline
Likes For Ev0lutionz:
Old 01-16-22, 01:15 PM
  #47
kayakindude
Full Member

Join Date: Jan 2017
Location: New England
Posts: 391

Bikes: 1987 Cannondale SR600/BioPace, 1991 Cannondale Road Tandem,1994 Giant Iguana MB, 2009 Airnimal Chameleon, 2016 Dahon Vybe C7A

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 70 Times in 44 Posts
I don't see removing the front wheel a detriment. On the contrary I feel a lot better leaving my Chameleon unattended in the vestibule area of the train while I grab a comfortable seat for the ride and store the tire in the rack above the seat.
kayakindude is offline
Old 01-18-22, 12:48 PM
  #48
Jipe
Senior Member

Join Date: Feb 2017
Posts: 1,034
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 503 Post(s)
Likes: 0
Liked 149 Times in 128 Posts
The T-line:

Jipe is offline
Old 01-18-22, 12:52 PM
  #49
CEBEP
Full Member

Join Date: Nov 2021
Posts: 291
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 130 Post(s)
Liked 34 Times in 26 Posts
Originally Posted by Jipe View Post

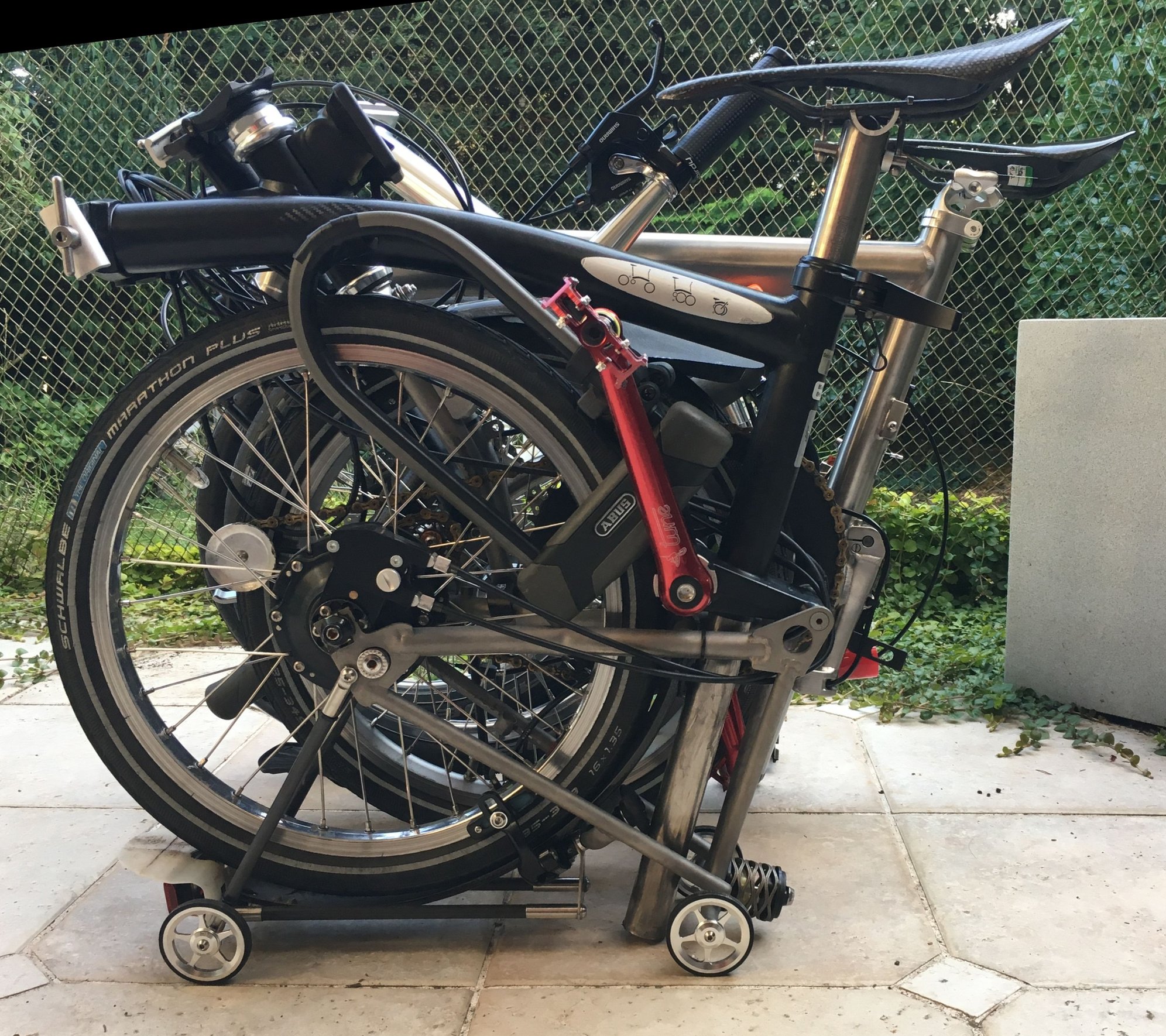

The T-line:

Next update will cost 5k
CEBEP is offline
Likes For CEBEP:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
