Presta valve inner tube for Brompton

Notices
Folding Bikes Discuss the unique features and issues of folding bikes. Also a great place to learn what folding bike will work best for your needs.

Presta valve inner tube for Brompton

Old 10-29-22, 06:05 AM
  #1
CEBEP
Full Member
Thread Starter

Join Date: Nov 2021
Posts: 404
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 191 Post(s)
Liked 56 Times in 37 Posts
Presta valve inner tube for Brompton

I have Schwalbe Marathon plus tires and want to switch inner tubes to Presta valve ones. Which tubes would suit best?

Will Presta fit to the rims or do I need to buy an adaptor or something?

Last edited by CEBEP; 10-29-22 at 06:39 AM.
CEBEP is offline
Old 10-29-22, 06:53 AM
  #2
Schwinnsta
Schwinnasaur

Schwinnsta's Avatar

Join Date: Dec 2006
Location: New Orleans, LA
Posts: 1,382
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 373 Post(s)
Liked 109 Times in 74 Posts
Just get a 349 tube.
Schwinnsta is offline
Old 10-29-22, 07:11 AM
  #3
CEBEP
Full Member
Thread Starter

Join Date: Nov 2021
Posts: 404
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 191 Post(s)
Liked 56 Times in 37 Posts
Just ordered Kenda
CEBEP is offline
Old 10-29-22, 05:33 PM
  #4
Ron Damon
Full Member

Join Date: Jun 2022
Location: The Ring of Fire
Posts: 399
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 189 Post(s)
Liked 246 Times in 148 Posts
Originally Posted by CEBEP View Post
Just ordered Kenda
Make sure you buy the valve height you need. If you've got high profile rims, you'll need a taller valve.
Ron Damon is offline
Old 10-29-22, 06:04 PM
  #5
CEBEP
Full Member
Thread Starter

Join Date: Nov 2021
Posts: 404
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 191 Post(s)
Liked 56 Times in 37 Posts
Originally Posted by Ron Damon View Post
Make sure you buy the valve height you need. If you've got high profile rims, you'll need a taller valve.
Thanks Ron. I did check this and ordered ones with normal valve hight as I have stock rims.
CEBEP is offline
Old 10-30-22, 06:57 AM
  #6
Jipe
Senior Member

Join Date: Feb 2017
Posts: 1,152
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 572 Post(s)
Likes: 0
Liked 170 Times in 145 Posts
The hole for the Schräder valve is bigger, too big for the Presta valve (rims for Presta valve have a valve hole with a smaller diameter than rims for Schräder valves).

You need an adapter ring to avoid any damage to the inner tube that could eventually cause a leakage around the valve.

The Schwalbe inner tubes with Presta valves (SV4 for the Brompton) are delivered with a ring that also play the role of the adapter.
Jipe is offline
Old 10-30-22, 12:05 PM
  #7
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 9,885

Bikes: 1961 Ideor, 1966 Perfekt 3 Speed AB Hub, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 2898 Post(s)
Liked 1,041 Times in 839 Posts
Agree with Jipe, you need the adapter.

I used to use the Wheels Manufacturing adapters, they are metal. But, I had some corrosion problems. I also had a tube fail near the valve stem which I blamed on the adapter. I no longer use them.
https://wheelsmfg.com/pss-1.html

I now use one by Mavic. This is the only place I know to buy, but there may be other places.
https://www.sjscycles.co.uk/rims-tap...der-to-presta/
Tourist in MSN is offline
Old 10-30-22, 12:37 PM
  #8
2_i
Senior Member

Join Date: Sep 2005
Location: Michigan
Posts: 3,487

Bikes: Trek 730 (quad), 720 & 830, Bike Friday NWT, Brompton M27R & M6R, Dahon HAT060 & HT060, ...

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 743 Post(s)
Liked 277 Times in 207 Posts
Originally Posted by Tourist in MSN View Post
I used to use the Wheels Manufacturing adapters, they are metal. But, I had some corrosion problems. I also had a tube fail near the valve stem which I blamed on the adapter. I no longer use them.
https://wheelsmfg.com/pss-1.html

I now use one by Mavic. This is the only place I know to buy, but there may be other places.
https://www.sjscycles.co.uk/rims-tap...der-to-presta/
Same here. Those Wheels Manufacturing, while looking better at the start, are a disaster since they fuse over time galvanically with the valve and rim. I had to destroy a perfectly good tube, because there was no gentle way of getting the vent+adapter out. I now use rubber adapters - you want a minor item to be the easiest to tackle.
2_i is offline
Old 10-30-22, 01:04 PM
  #9
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,574

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1218 Post(s)
Liked 1,004 Times in 614 Posts
Originally Posted by Jipe View Post
The Schwalbe inner tubes with Presta valves (SV4 for the Brompton) are delivered with a ring that also play the role of the adapter.
tcs is offline
Old 10-30-22, 07:08 PM
  #10
CEBEP
Full Member
Thread Starter

Join Date: Nov 2021
Posts: 404
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 191 Post(s)
Liked 56 Times in 37 Posts
Originally Posted by Tourist in MSN View Post
Agree with Jipe, you need the adapter.

I used to use the Wheels Manufacturing adapters, they are metal. But, I had some corrosion problems. I also had a tube fail near the valve stem which I blamed on the adapter. I no longer use them.
https://wheelsmfg.com/pss-1.html

I now use one by Mavic. This is the only place I know to buy, but there may be other places.
https://www.sjscycles.co.uk/rims-tap...der-to-presta/
Thanks. Could you post a picture of correct installation of Mavic adaptors?
CEBEP is offline
Old 10-31-22, 07:12 AM
  #11
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 9,885

Bikes: 1961 Ideor, 1966 Perfekt 3 Speed AB Hub, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 2898 Post(s)
Liked 1,041 Times in 839 Posts
Originally Posted by CEBEP View Post
Thanks. Could you post a picture of correct installation of Mavic adaptors?
I do not have a photo. Doing some internet searching, I find two options, one is to put it into the rim, not from the tire side, the other side. And the other option is to put it over the valve stem before you put the valve stem into the rim.

I put it on the valve stem, then insert the valve stem into the rim.

It had not occurred to me why the Schwalbe valve stem rings were shaped the way they are until I saw the post from TCS. But that makes sense and if you put the Mavic adapter on the valve stem first, then on most rims you could use that Schwalbe ring to hold the stem centered from the other side of the rim too.
Tourist in MSN is offline
Old 10-31-22, 09:13 AM
  #12
2_i
Senior Member

Join Date: Sep 2005
Location: Michigan
Posts: 3,487

Bikes: Trek 730 (quad), 720 & 830, Bike Friday NWT, Brompton M27R & M6R, Dahon HAT060 & HT060, ...

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 743 Post(s)
Liked 277 Times in 207 Posts

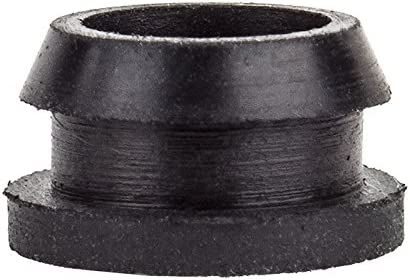

You put the Sunlite rubber grommet from the inside of the rim. After all, the main goal is to protect the tube.

2_i is offline
Old 10-31-22, 09:20 AM
  #13
CEBEP
Full Member
Thread Starter

Join Date: Nov 2021
Posts: 404
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 191 Post(s)
Liked 56 Times in 37 Posts
Listing on Aliexpress shows the opposite
CEBEP is offline
Old 10-31-22, 10:30 PM
  #14
MAK
Member

Join Date: Jun 2005
Location: Delaware
Posts: 1,672

Bikes: Yes, I have bikes.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
Liked 103 Times in 62 Posts
Take a look at:

It's a video by Chris by Bike on You Tube. Very good Brompton channel. She knows her stuff.
In a response to one of the questions, she says to get plastic adapters for the schrader sized hole in the rim.

Good luck.
MAK is offline
