74mm front axle and disc brakes?

Notices
Folding Bikes Discuss the unique features and issues of folding bikes. Also a great place to learn what folding bike will work best for your needs.

74mm front axle and disc brakes?

Old 11-23-22, 04:29 AM
  #1
h3rtz
Newbie
Thread Starter

Join Date: Nov 2022
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
74mm front axle and disc brakes?

Hi,

does anyone know a complete folding bike that comes with 74mm (or up to 86mm) front axle and disc brake? Or a 20" fork / 74mm disc hub combo?

I've seen plenty of 74mm disc hubs for sale but not a single instance of a bike fitted with one. I wonder if it even can be done?

Greets, Tim
h3rtz is offline
Old 11-23-22, 05:28 AM
  #2
splithub
Newbie

Join Date: May 2017
Posts: 70

Bikes: Java Air, FSIR Spin 2.0/Spin 5.1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 10 Times in 8 Posts
Originally Posted by h3rtz View Post
Hi,

does anyone know a complete folding bike that comes with 74mm (or up to 86mm) front axle and disc brake? Or a 20" fork / 74mm disc hub combo?

I've seen plenty of 74mm disc hubs for sale but not a single instance of a bike fitted with one.
..my FSIR Spin 5.1 has
splithub is offline
Old 11-23-22, 05:10 PM
  #3
Winfried
Senior Member

Winfried's Avatar

Join Date: Aug 2011
Location: Paris, France
Posts: 2,302
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 472 Post(s)
Liked 91 Times in 80 Posts
Originally Posted by h3rtz View Post
does anyone know a complete folding bike that comes with 74mm (or up to 86mm) front axle and disc brake? Or a 20" fork / 74mm disc hub combo? I've seen plenty of 74mm disc hubs for sale but not a single instance of a bike fitted with one. I wonder if it even can be done?
At least some of Dahon's use 74mm front hubs, so there might be one that also uses disk brakes, but only experts of the brand would know.

https://www.google.com/search?q=daho...brake&tbm=isch
Winfried is offline
Old 11-23-22, 08:23 PM
  #4
Ron Damon
Full Member

Join Date: Jun 2022
Location: The Ring of Fire
Posts: 399
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 189 Post(s)
Liked 246 Times in 148 Posts
Originally Posted by splithub View Post
..my FSIR Spin 5.1 has
A photo would not be out of place, inappropriate or unappreciated here.
Ron Damon is offline
Likes For Ron Damon:
Old 11-24-22, 03:45 AM
  #5
h3rtz
Newbie
Thread Starter

Join Date: Nov 2022
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by splithub View Post
..my FSIR Spin 5.1 has
pic od it didn't happen

...or do you happen to know of a web page that shows those bikes with specs? a quick google search didn't bring up anything useful...
h3rtz is offline
Old 11-24-22, 04:50 AM
  #6
Ron Damon
Full Member

Join Date: Jun 2022
Location: The Ring of Fire
Posts: 399
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 189 Post(s)
Liked 246 Times in 148 Posts
Originally Posted by h3rtz View Post
pic od it didn't happen

...or do you happen to know of a web page that shows those bikes with specs? a quick google search didn't bring up anything useful...
The fantastic FSIR folders are no longer being made or sold. A few of us, though, managed to snag a specimen or two before they expired. 😉
Ron Damon is offline
Old 11-24-22, 06:09 AM
  #7
splithub
Newbie

Join Date: May 2017
Posts: 70

Bikes: Java Air, FSIR Spin 2.0/Spin 5.1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 10 Times in 8 Posts
Originally Posted by h3rtz View Post
pic od it didn't happen

...or do you happen to know of a web page that shows those bikes with specs? a quick google search didn't bring up anything useful...

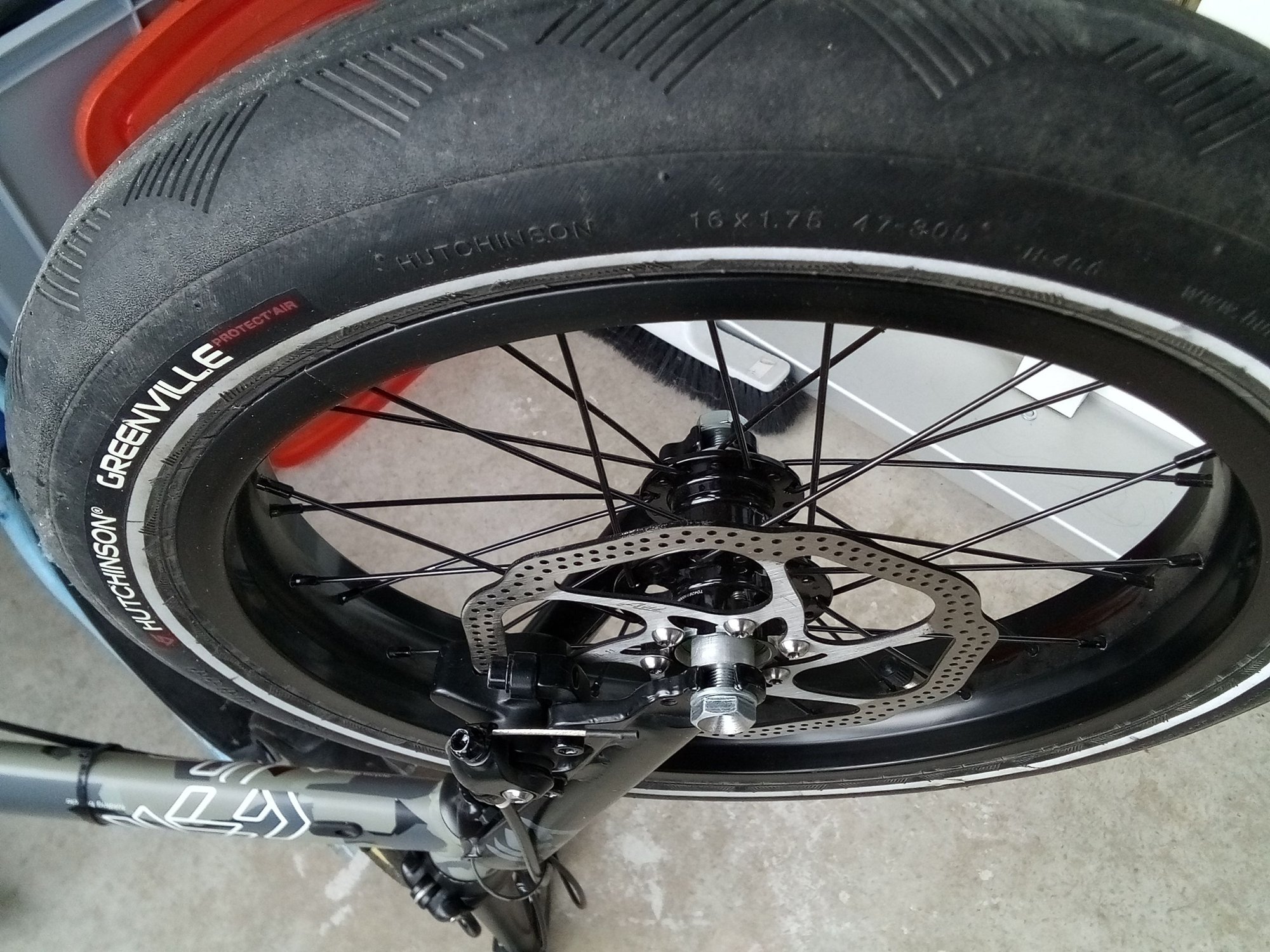

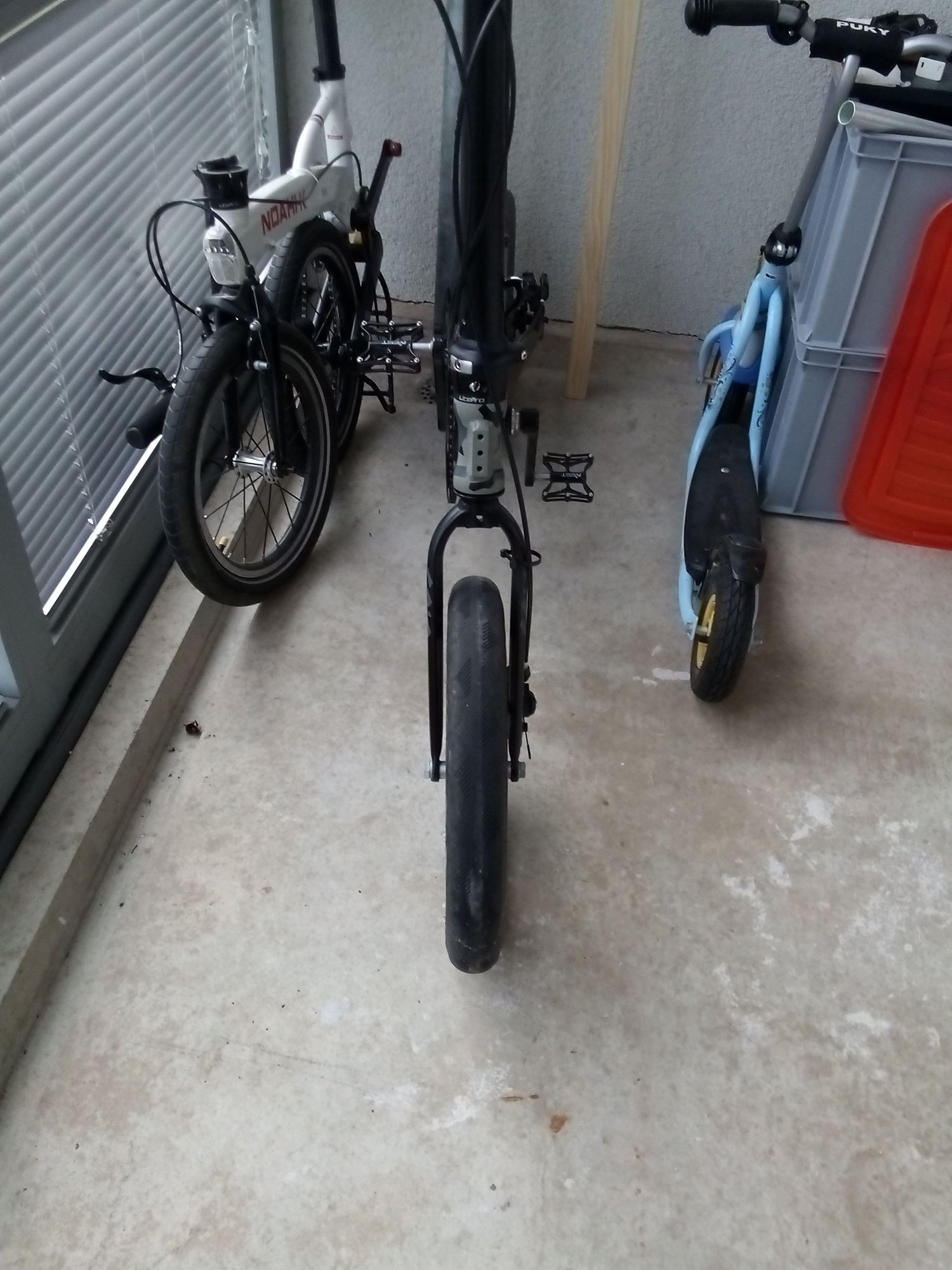

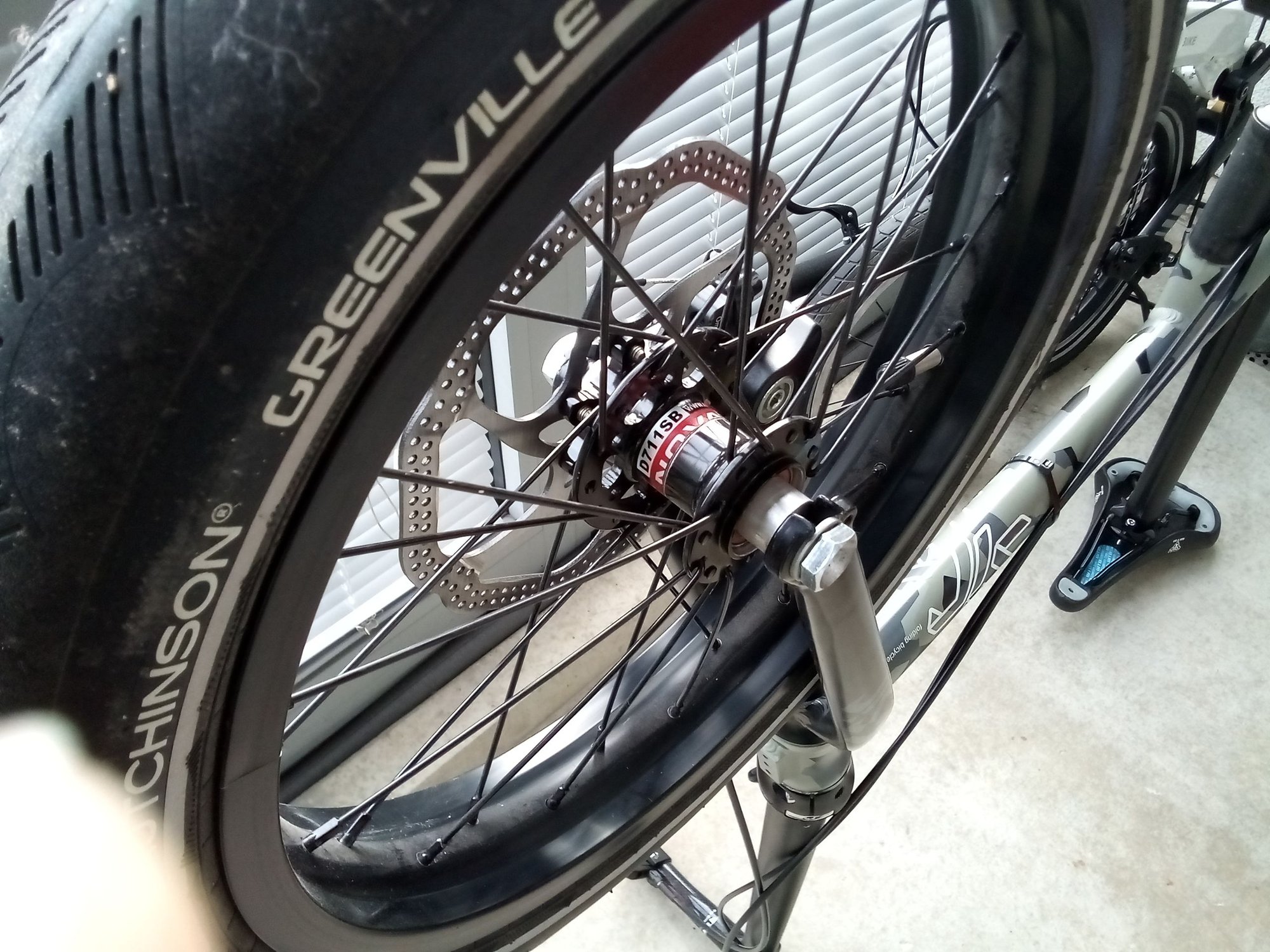

...sorry, had to pull it out from hibernation. Bike looks disfigured - has 47-305 tires on it for ergonomic tests - standard is 406. Hub in pic i made myself from 100mm hub, because i bought the bike and built the wheelsets i wanted long before 74mm disc hubs were widely available.
splithub is offline
Likes For splithub:
Old 11-24-22, 04:09 PM
  #8
Ron Damon
Full Member

Join Date: Jun 2022
Location: The Ring of Fire
Posts: 399
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 189 Post(s)
Liked 246 Times in 148 Posts
That Hutchinson tire says 47-305 on the sidewall but looks a lot more plump than that. Is it the camera distorting its size?
Ron Damon is offline
Old 11-25-22, 05:21 AM
  #9
splithub
Newbie

Join Date: May 2017
Posts: 70

Bikes: Java Air, FSIR Spin 2.0/Spin 5.1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 10 Times in 8 Posts
Originally Posted by Ron Damon View Post
That Hutchinson tire says 47-305 on the sidewall but looks a lot more plump than that. Is it the camera distorting its size?
..it's the rims stretching the tires out to 60mm. Was looking for a lightweight voluminous slick but didn't find (in 305), tried to make my own by shaving knobby veetire crown gem in 2.25 and a chaoyang sparrow in 2.6 but they both came out too sticky of the material - too much rolling resistance. So i found these 40mm rims in the parts range of a bike trailer manufacturer. They fit the bill making comfortable volume and being lightweight, cheap and of acceptable quality and stability so far.
splithub is offline
Old 11-25-22, 07:03 AM
  #10
Ron Damon
Full Member

Join Date: Jun 2022
Location: The Ring of Fire
Posts: 399
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 189 Post(s)
Liked 246 Times in 148 Posts
Originally Posted by splithub View Post
..it's the rims stretching the tires out to 60mm. Was looking for a lightweight voluminous slick but didn't find (in 305), tried to make my own by shaving knobby veetire crown gem in 2.25 and a chaoyang sparrow in 2.6 but they both came out too sticky of the material - too much rolling resistance. So i found these 40mm rims in the parts range of a bike trailer manufacturer. They fit the bill making comfortable volume and being lightweight, cheap and of acceptable quality and stability so far.
You're a real McGyver, ain't Cha?
Ron Damon is offline
Old 11-25-22, 10:59 AM
  #11
splithub
Newbie

Join Date: May 2017
Posts: 70

Bikes: Java Air, FSIR Spin 2.0/Spin 5.1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 10 Times in 8 Posts
Originally Posted by Ron Damon View Post
You're a real McGyver, ain't Cha?
It's playing, only 10% of the things i try actually work

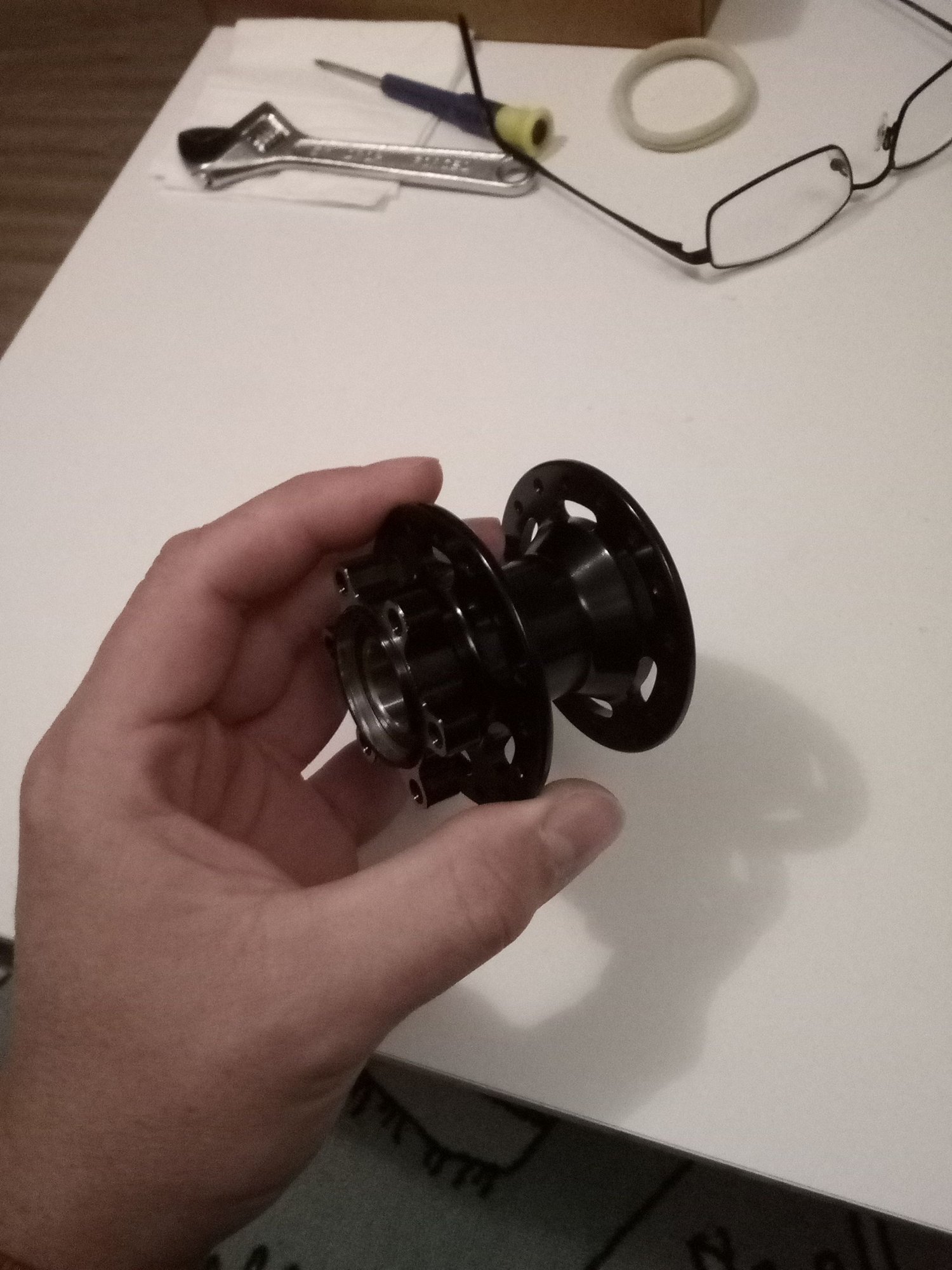

To get back on track, there is no real problems with 74mm hubs and disc brakes since the spoke flange distance can be smaller on smaller wheels. If 50mm is enough for 622 wheels, 35mm is fine for 406. It makes the fold narrower. I would plead for a narrower standard in the back also. The only limitation i ever heard of is that the TRP double actuated mechanical brakes don't fit, i have Tektro Lyra on it.

Last edited by splithub; 11-25-22 at 11:03 AM. Reason: picture
splithub is offline
Old 11-29-22, 10:56 PM
  #12
h3rtz
Newbie
Thread Starter

Join Date: Nov 2022
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
splithub , thanks a ton mate. That is really helpful!
h3rtz is offline
Old 11-30-22, 04:53 PM
  #13
tomtomtom123
Senior Member

Join Date: Jan 2017
Posts: 1,033
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 337 Post(s)
Likes: 0
Liked 114 Times in 82 Posts
I remember seeing a website that was selling replacement front forks for Dahon bikes that could fit 100mm hubs with disc brakes. They were selling also on ebay.

Here it is on ebay:
https://www.ebay.co.uk/itm/134225217381

you'll need to check if it has the threads for the type of headset nut that Dahon uses. It looks like this uses a star nut / expander with a compression ring. Hopefully it may fit.
tomtomtom123 is offline
Old 11-30-22, 04:58 PM
  #14
tomtomtom123
Senior Member

Join Date: Jan 2017
Posts: 1,033
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 337 Post(s)
Likes: 0
Liked 114 Times in 82 Posts
Also, I thought the steerer tube length was longer on Tern compared to Dahon, so I'm not sure how this fork they're selling is supposed to be compatible with both.
tomtomtom123 is offline
Old 11-30-22, 05:16 PM
  #15
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,564

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1218 Post(s)
Liked 998 Times in 610 Posts
Originally Posted by Winfried View Post
At least some of Dahon's use 74mm front hubs, so there might be one that also uses disk brakes...
AFAIK all Dahon with disk brakes use a 100mm OLD front hub: the Launch, K3 Plus, the new 2023 model Curl.
tcs is offline
Old 12-01-22, 06:59 AM
  #16
tomtomtom123
Senior Member

Join Date: Jan 2017
Posts: 1,033
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 337 Post(s)
Likes: 0
Liked 114 Times in 82 Posts
It seems strange to me that the Dahon EU website lists both the Launch D8 and K3 Plus, but I haven't found them for sale in EU stores.
tomtomtom123 is offline
Old 12-20-22, 12:03 PM
  #17
Nyah
QR-disc must die!!!

Join Date: Sep 2018
Location: Shenandoah Valley, Northern Virginia.
Posts: 663

Bikes: '99 Trek 520, '20 Kona Sutra (FOR SALE 48cm), '21 Simon-Bikes mini-velo and a chromoly-framed folding bicycle with drop-bars and V-brakes, that rolls even while folded.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 368 Post(s)
Likes: 0
Liked 188 Times in 136 Posts
Originally Posted by splithub View Post
What are those rims on the folded bicycle with the white frame and Big Apple tires?
Nyah is offline
Old 12-21-22, 12:01 AM
  #18
splithub
Newbie

Join Date: May 2017
Posts: 70

Bikes: Java Air, FSIR Spin 2.0/Spin 5.1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 10 Times in 8 Posts
Originally Posted by Nyah View Post
What are those rims on the folded bicycle with the white frame and Big Apple tires?
They are stock, generic double wall, 305x18c
splithub is offline
Old 12-30-22, 09:54 PM
  #19
sjanzeir
Keeling over.

Join Date: Apr 2016
Location: Jeddah, Saudi Arabia
Posts: 1,329

Bikes: 1990 Raleigh Flyer (size 21"); 2014 Trek 7.6 FX (size 15"); 2014 Trek 7.6 FX (size 17.5"); 2019 Dahon Mu D9; 2020 Dahon Hemingway D9

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 653 Post(s)
Liked 1,288 Times in 413 Posts
Originally Posted by tcs View Post
AFAIK all Dahon with disk brakes use a 100mm OLD front hub: the Launch, K3 Plus, the new 2023 model Curl.
And the Hemingway/K-ONE.
sjanzeir is offline
Old 12-31-22, 03:00 PM
  #20
Nyah
QR-disc must die!!!

Join Date: Sep 2018
Location: Shenandoah Valley, Northern Virginia.
Posts: 663

Bikes: '99 Trek 520, '20 Kona Sutra (FOR SALE 48cm), '21 Simon-Bikes mini-velo and a chromoly-framed folding bicycle with drop-bars and V-brakes, that rolls even while folded.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 368 Post(s)
Likes: 0
Liked 188 Times in 136 Posts
Originally Posted by splithub View Post
They are stock, generic double wall, 305x18c
Does 18c mean 18mm internal width?
Nyah is offline
Old 01-03-23, 08:46 AM
  #21
splithub
Newbie

Join Date: May 2017
Posts: 70

Bikes: Java Air, FSIR Spin 2.0/Spin 5.1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 10 Times in 8 Posts
Originally Posted by Nyah View Post
Does 18c mean 18mm internal width?
Yes it does..
Happy new year!
splithub is offline
