Bikesdirect Mini Velo upgrade thread

Folding Bikes Discuss the unique features and issues of folding bikes. Also a great place to learn what folding bike will work best for your needs.

Bikesdirect Mini Velo upgrade thread

Reply

Old 08-21-17, 02:16 PM
  #776
mirfi
Senior Member

mirfi's Avatar

Join Date: Mar 2012
Location: Baltimore, MD
Posts: 199

Bikes: DownTube FS9, Montaque paratrooper, Nano mini-velo, Motobecane CX, Raleigh 20, MIFA folder, ROG Pony

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Originally Posted by ttakata73 View Post
I think if the seatpost covers the clamp area you would be fine. I doubt that this frame would have butted tubing so it might be fairly thick AL all the way down the seattube. Most of those types of racks are rated for 10kg which isn't much so supports to the axles would make good sense anyway. It would be nice to see your entire bike with the new rack. I dig the retro high bars.
Inside photo, raining out.
Attached Images
File Type: jpg
mirfi is offline
Reply With Quote
Old 08-25-17, 12:49 PM
  #777
Doc_Wui
Senior Member

Doc_Wui's Avatar

Join Date: Jul 2015
Location: Chicago Suburbs
Posts: 515

Bikes: Diamonback, Transeo, Trek, Giant

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 104 Post(s)
We've been having fun with Downtube folders for travel, but I've never folded them since they got out of the box, and the front stems do flex.

Have a bunch of older parts, like 1" quills, bars, rear derailleurs, and clicker shifers in my box. Maybe I get a Mercier and put on higher bars with shifters? The smaller size means I can stuff it in the garage with the other six bikes.
Doc_Wui is offline
Reply With Quote
Old 08-28-17, 06:06 AM
  #778
12boy
Senior Member

12boy's Avatar

Join Date: Oct 2012
Location: casper wy usa
Posts: 320

Bikes: brompton sl, surly steamroller, fuji track, gary fisher bmx minivelo etc

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Nanos are not for everyone, as the ride is very twitchy until you get used to it. I am 5'8" and ordered the larger frame size so as to extend the wheelbase and I am glad I did. I enjoy mine a lot and find popping off the wheels makes it easy to get into the back of a small car, obviously not as easy as a Brompton, but not too bad at all. BTW, one of the the things I love about the Brompton is the luggage block on the headset which sets the weight low and on the frame. I think I will try to figure a way to do the same on the Nano which may, as it does on the Brompton, actually smooth out the handling.
12boy is offline
Reply With Quote
Old 09-16-17, 06:32 PM
  #779
High Fist Shin
Back In The Saddle

High Fist Shin's Avatar

Join Date: Mar 2005
Location: Pacific Northwest
Posts: 2,319

Bikes: N+1

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Hi folks. Back with some updates to the Nano.











I added the following:

Soma Highway One Bars
Nitto Technomic Stem
Tektro brakes
Shimano Claris shifters
Specialized Phat bartape
Black seat post clamp to match the headset
And I replaced the crank bolts. The new ones look nicer than the plain bolts it came with originally.

I think I am going to replace the crank, chain rings and bottom bracket next, but for now it rides nicely and brakes well. Saddle and tires will be last. I want to get some use out of the originals.

What surprised me the most was the performance of the Claris shifters. They are really nice for the price. Smooth shifts and very comfortable hoods. They're a winner in my book.

-Shin
__________________
In life there are no mistakes, only lessons. -Shin

Last edited by High Fist Shin; 09-16-17 at 06:39 PM.
High Fist Shin is offline
Reply With Quote
Old 09-16-17, 06:47 PM
  #780
12boy
Senior Member

12boy's Avatar

Join Date: Oct 2012
Location: casper wy usa
Posts: 320

Bikes: brompton sl, surly steamroller, fuji track, gary fisher bmx minivelo etc

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Those Nitto stems are very nice.
12boy is offline
Reply With Quote
Old 09-16-17, 06:54 PM
  #781
High Fist Shin
Back In The Saddle

High Fist Shin's Avatar

Join Date: Mar 2005
Location: Pacific Northwest
Posts: 2,319

Bikes: N+1

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Originally Posted by 12boy View Post
Those Nitto stems are very nice.
They are, indeed. Shiny.

Before:



After:



-Shin
__________________
In life there are no mistakes, only lessons. -Shin
High Fist Shin is offline
Reply With Quote
Old 09-16-17, 08:05 PM
  #782
mirfi
Senior Member

mirfi's Avatar

Join Date: Mar 2012
Location: Baltimore, MD
Posts: 199

Bikes: DownTube FS9, Montaque paratrooper, Nano mini-velo, Motobecane CX, Raleigh 20, MIFA folder, ROG Pony

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Nice job Shin, very impressive. I'm comparing the before and after photos. :-)
mirfi is offline
Reply With Quote
Old 09-16-17, 08:09 PM
  #783
mirfi
Senior Member

mirfi's Avatar

Join Date: Mar 2012
Location: Baltimore, MD
Posts: 199

Bikes: DownTube FS9, Montaque paratrooper, Nano mini-velo, Motobecane CX, Raleigh 20, MIFA folder, ROG Pony

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Originally Posted by Doc_Wui View Post
We've been having fun with Downtube folders for travel, but I've never folded them since they got out of the box, and the front stems do flex.

Have a bunch of older parts, like 1" quills, bars, rear derailleurs, and clicker shifers in my box. Maybe I get a Mercier and put on higher bars with shifters? The smaller size means I can stuff it in the garage with the other six bikes.

What model Downtube? I keep an FS9 in my trunk on my car.
mirfi is offline
Reply With Quote
Old 09-16-17, 09:55 PM
  #784
mirfi
Senior Member

mirfi's Avatar

Join Date: Mar 2012
Location: Baltimore, MD
Posts: 199

Bikes: DownTube FS9, Montaque paratrooper, Nano mini-velo, Motobecane CX, Raleigh 20, MIFA folder, ROG Pony

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
All, I'm looking to put a front basket on (and keep my fenders). The main support will be from my handlebars (hi rise).

I'm wondering these clamps (found on Amazon) would work on the fork.
Pico 7324PT 1-1/2" ID Rubber Insulated Clamps 1/2" Aluminum with 1/4" Mounting Hole 4 per Package

https://www.amazon.com/Pico-Insulate.../dp/B0002ZG7YQ


If not, another suggestion?
mirfi is offline
Reply With Quote
Old 09-16-17, 10:07 PM
  #785
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,048

Bikes: Dahon Dash P18, Dahon Dash Altena, Bannard Sunny.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 778 Post(s)
Kilckfix caddy & Klickfix-compatible basket

Originally Posted by mirfi View Post
All, I'm looking to put a front basket on (and keep my fenders). The main support will be from my handlebars (hi rise).

I'm wondering these clamps (found on Amazon) would work on the fork.
Pico 7324PT 1-1/2" ID Rubber Insulated Clamps 1/2" Aluminum with 1/4" Mounting Hole 4 per Package

https://www.amazon.com/Pico-Insulate.../dp/B0002ZG7YQ


If not, another suggestion?
Abu Mahendra is online now
Reply With Quote
Old 09-16-17, 10:28 PM
  #786
High Fist Shin
Back In The Saddle

High Fist Shin's Avatar

Join Date: Mar 2005
Location: Pacific Northwest
Posts: 2,319

Bikes: N+1

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Originally Posted by mirfi View Post
Nice job Shin, very impressive. I'm comparing the before and after photos. :-)
Thank you It's been fun to work on. Rides nice too. It's the perfect "around town" bike.

-Shin
__________________
In life there are no mistakes, only lessons. -Shin
High Fist Shin is offline
Reply With Quote
Old 09-17-17, 08:31 PM
  #787
mirfi
Senior Member

mirfi's Avatar

Join Date: Mar 2012
Location: Baltimore, MD
Posts: 199

Bikes: DownTube FS9, Montaque paratrooper, Nano mini-velo, Motobecane CX, Raleigh 20, MIFA folder, ROG Pony

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Originally Posted by Abu Mahendra View Post
Kilckfix caddy & Klickfix-compatible basket
Abu, wow, a lot of solutions, Thank you
mirfi is offline
Reply With Quote
Old 09-18-17, 03:13 AM
  #788
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,048

Bikes: Dahon Dash P18, Dahon Dash Altena, Bannard Sunny.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 778 Post(s)
Originally Posted by mirfi View Post
Abu, wow, a lot of solutions, Thank you
Originally Posted by mirfi View Post
Abu, wow, a lot of solutions, Thank you
Ortlien Klickfix caddy. The caddy weight limit is 3kg. I don't recommend loading more than that on the handlebars...

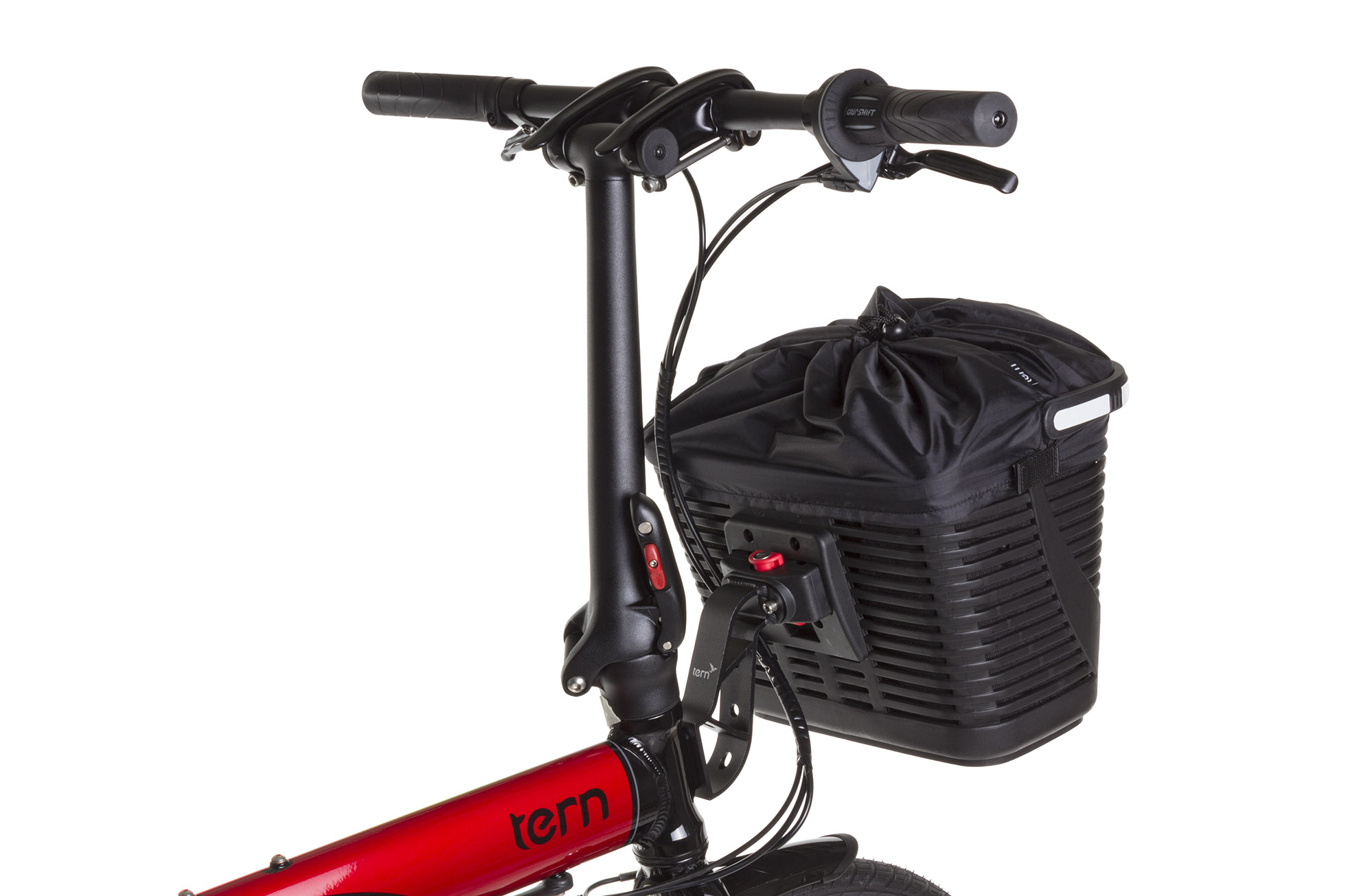

Tern sells a pretty decent Klickfix basket...



And so does Brooks...

Abu Mahendra is online now
Reply With Quote
Old 10-07-17, 10:58 AM
  #789
Doc_Wui
Senior Member

Doc_Wui's Avatar

Join Date: Jul 2015
Location: Chicago Suburbs
Posts: 515

Bikes: Diamonback, Transeo, Trek, Giant

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 104 Post(s)
Originally Posted by mirfi View Post
What model Downtube? I keep an FS9 in my trunk on my car.
FS8 and Nova. I raised the handle bars on both today. Less leaning on them makes for a nicer ride. We don't ride them far (18 miles today), but they're fun.

Still thinking about ordering a Nano. Maybe after I hang most of the bikes on the rafters for the winter, it will feel less crazy to roll in another one. My grand daughter (4 years old) counted them and got ten. She was right. They're all inexpensive bikes ...
Doc_Wui is offline
Reply With Quote
Old 04-10-18, 07:24 PM
  #790
vdub6541
Senior Member

Join Date: Jun 2014
Location: Houston, TX/Austin, TX
Posts: 81

Bikes: 1997 Romic Neo-Retro, 2015 Ridley Ignite 27.5, Mercier Nano

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Bought my Nano a few weeks ago when it popped up on the local CL for $100. Pleasantly surprised to find it in practically brand new condition, and with a few upgrades (rear rack + rim strips + WTB Speed V saddle). Rode it on a couple 30-40 mile rides with some friends and LOVED it. It's great for getting on the Houston MetroRail as well.

So... it got some well-deserved upgrades. Since the original drivetrain was in such great condition, I was able to sell it and fund most of the upgrade parts. Here's what I've got so far:

- Shimano 105 5500 rear derailleur
- Shimano Ultegra 6500 front derailleur
- SRAM 970 cassette
- FSA 9 speed chain
- Shimano Dura Ace 7700 downtube shifters
- Suntour Sprint crankset, 52/42
- Shimano BB-UN72 bottom bracket
- Shimano 105 1050 brake levers
- Tektro brake pads
- Nitto Technomic stem
- some old Raleigh drop bar I had laying around
- Specialized Power replica saddle from Aliexpress (these things are great for ~$20)
- Bontrager bar tape
- Animal Nylon flat pedals
- Ibera alloy bottle cage
- New cables

In the future I'll upgrade the tires and call it a day. Figure I might as well wear these out a little bit, no reason to waste them.
Okay, maybe the headset will get an upgrade too....

Final weight is 25.4lb, which I'm happy with, especially considering that I only have $120 into the whole thing.

Pics:
IMG_2098 by Sathvik Aithala, on Flickr

IMG_2099 by Sathvik Aithala, on Flickr

IMG_2100 by Sathvik Aithala, on Flickr

IMG_2101 by Sathvik Aithala, on Flickr

IMG_2102 by Sathvik Aithala, on Flickr

Last edited by vdub6541; 04-10-18 at 07:27 PM. Reason: fixed embedding for pics
vdub6541 is offline
Reply With Quote
Old 04-10-18, 07:32 PM
  #791
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,048

Bikes: Dahon Dash P18, Dahon Dash Altena, Bannard Sunny.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 778 Post(s)
what's the wheelbase on the Nano?
Abu Mahendra is online now
Reply With Quote
Old 04-10-18, 07:33 PM
  #792
vdub6541
Senior Member

Join Date: Jun 2014
Location: Houston, TX/Austin, TX
Posts: 81

Bikes: 1997 Romic Neo-Retro, 2015 Ridley Ignite 27.5, Mercier Nano

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Originally Posted by Abu Mahendra View Post
what's the wheelbase on the Nano?
I measured 94cm from the centers of the quick releases. Mine is the 53cm model.
vdub6541 is offline
Reply With Quote
Old 04-10-18, 09:50 PM
  #793
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,048

Bikes: Dahon Dash P18, Dahon Dash Altena, Bannard Sunny.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 778 Post(s)
I've come to appreciate a short wheelbase. I've got a minivelo with a 93cm wheelbase. I love its agility, flickability. It's a hoot. Can anyone else relate?

Last edited by Abu Mahendra; 04-11-18 at 04:46 AM.
Abu Mahendra is online now
Reply With Quote
Old 04-11-18, 07:10 AM
  #794
12boy
Senior Member

12boy's Avatar

Join Date: Oct 2012
Location: casper wy usa
Posts: 320

Bikes: brompton sl, surly steamroller, fuji track, gary fisher bmx minivelo etc

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
I think the steel frame helps offset road buzz a bit compared to my aluminum xootr swift which is a little longer, and the Nano is nimble. However so are my swift and Brompton. I also like being able to hang a large bag of the saddle. I can carry a lot more on my Brompton but a big bag in the front has a definite drag.
12boy is offline
Reply With Quote
Old 04-12-18, 07:13 AM
  #795
mirfi
Senior Member

mirfi's Avatar

Join Date: Mar 2012
Location: Baltimore, MD
Posts: 199

Bikes: DownTube FS9, Montaque paratrooper, Nano mini-velo, Motobecane CX, Raleigh 20, MIFA folder, ROG Pony

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Originally Posted by Doc_Wui View Post
FS8 and Nova. I raised the handle bars on both today. Less leaning on them makes for a nicer ride. We don't ride them far (18 miles today), but they're fun.

Still thinking about ordering a Nano. Maybe after I hang most of the bikes on the rafters for the winter, it will feel less crazy to roll in another one. My grand daughter (4 years old) counted them and got ten. She was right. They're all inexpensive bikes ...
Sorry I missed your post. But what are your thoughts on the Nova?
mirfi is offline
Reply With Quote
Old 04-15-18, 07:06 PM
  #796
Doc_Wui
Senior Member

Doc_Wui's Avatar

Join Date: Jul 2015
Location: Chicago Suburbs
Posts: 515

Bikes: Diamonback, Transeo, Trek, Giant

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 104 Post(s)
Originally Posted by mirfi View Post
Sorry I missed your post. But what are your thoughts on the Nova?
I like the Nova. My original concern was some squeaking and groaning from the frame that made me think it was coming apart. Then I lubricated the hinge and it went quiet. A quiet bike must be, of course, a good bike, and usually faster, no? I like the latch design better on the Downtube 8FS, but the Nova latch is adequate.

Wanting to get a little more gearing. I switched the freewheel to a DNP 11-28. I believe the original was a 14-28 and the front gear s 46T. The brakes feel good, and the shifter shifts. I changed out the cheap bell. Use the same grips.

I just checked the wheelbase. Got 40 inches, which is 100 cm. It's always felt stable to me.
Doc_Wui is offline
Reply With Quote
Old 04-15-18, 07:53 PM
  #797
mirfi
Senior Member

mirfi's Avatar

Join Date: Mar 2012
Location: Baltimore, MD
Posts: 199

Bikes: DownTube FS9, Montaque paratrooper, Nano mini-velo, Motobecane CX, Raleigh 20, MIFA folder, ROG Pony

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Thanks, not sure why they are geared so low. Switch FS9 to 11-32 and crank to 52. BTW, do you know the weight?
mirfi is offline
Reply With Quote

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Terms of Service
